EMAX ECO II 2306 1700KV 1900KV 2400KV Brushless Motor for FPV Racing RC Drone
EMAX ECO II 2306 Brushless Motor for FPV Racing RC Drone
Item Name: EMAX ECO II 2306 Motor
KV: 1700KV
Framework: 12N14P
Length: 31.6mm
Diameter: 28mm
No.of cells: 3-6S
Propeller: 5″-5.5″
Weight: 30.4g(W/O Silicone Wire)
Prop adapter shaft thread: M5
Bearing Shaft：4mm
Shaft Thread：CW
KV:1900KV
Framework: 12N14P
Length: 31.6mm
Diameter: 28mm
No.of cells: 3-6S
Propeller: 5″-5.5″
Weight: 30.2g(W/O Silicone Wire)
Prop adapter shaft thread: M5
Bearing Shaft：4mm
Shaft Thread：CW
KV: 2400KV
Framework: 12N14P
Length: 31.6mm
Diameter: 28mm
No.of cells: 3-4S
Propeller: 5″-5.5″
Weight: 30.2g(W/O Silicone Wire)
Prop adapter shaft thread: M5
Bearing Shaft：4mm
Shaft Thread：CW

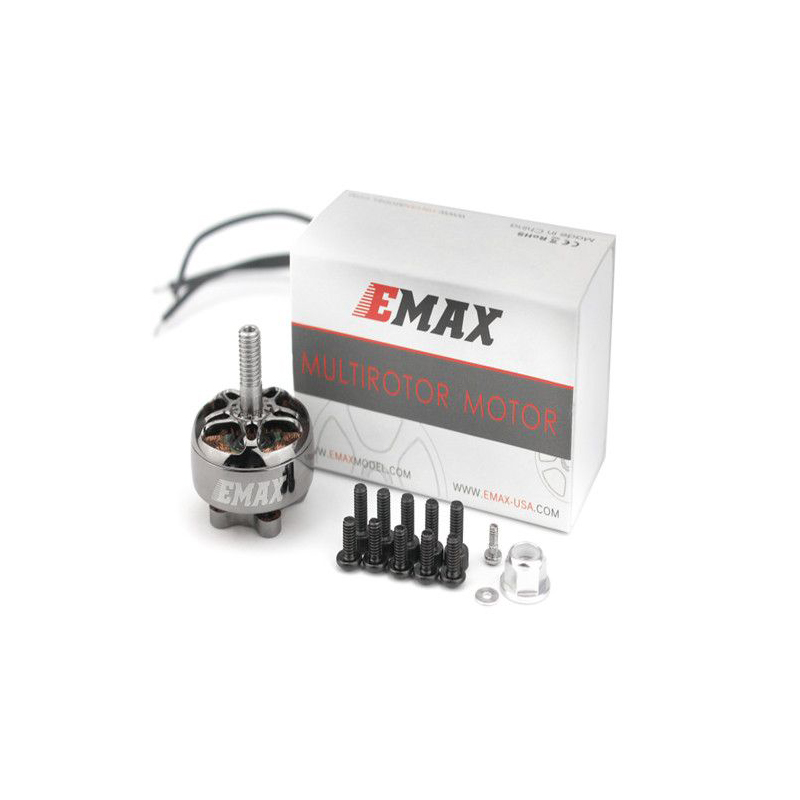

EMAX ECO II 2306 Motor X1
M3*8 Screw X5
M3*7 Screw X5
M3*6 Screw X5
Aluminum M5 nylock nut X1
Washer and Screw for shaft X1
