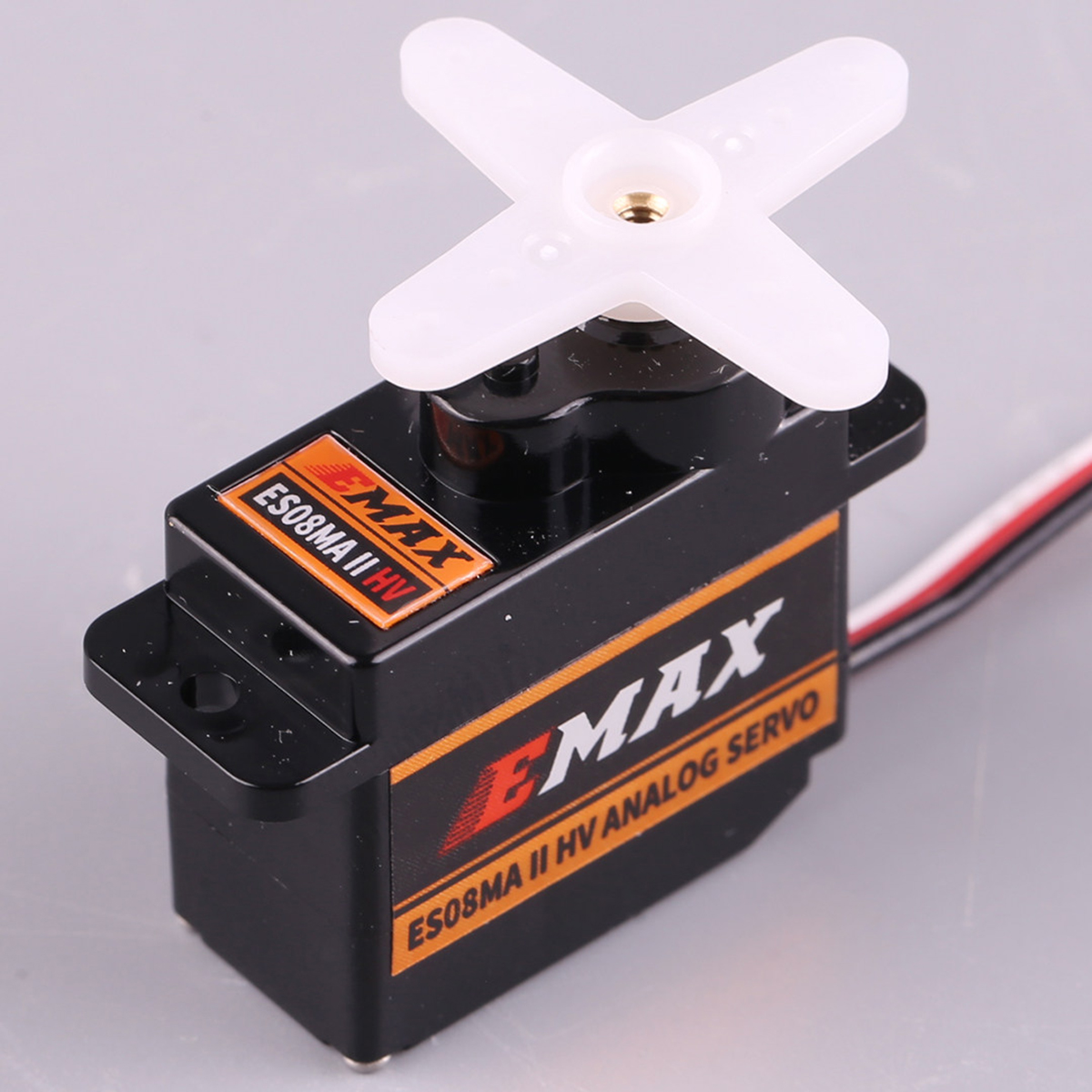

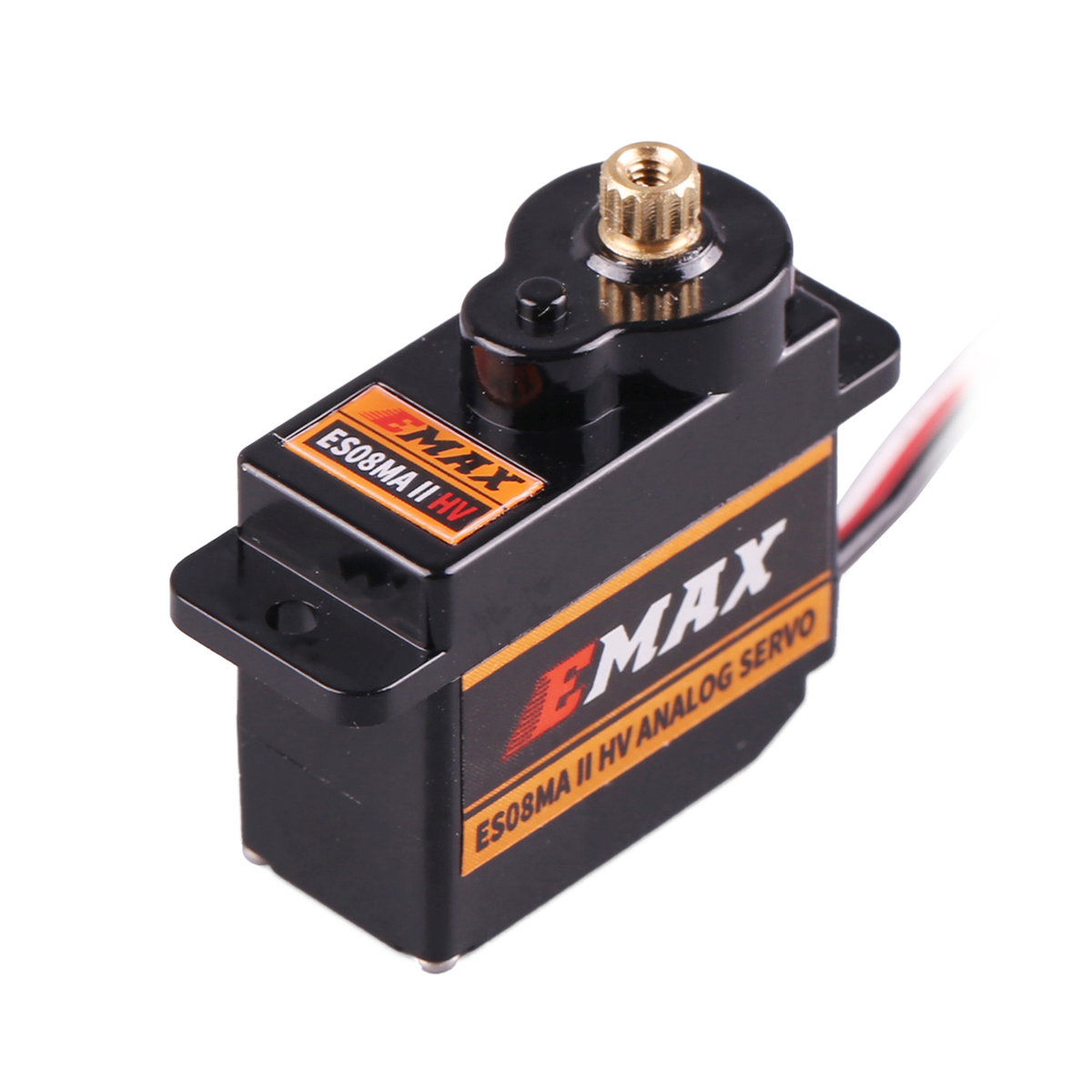

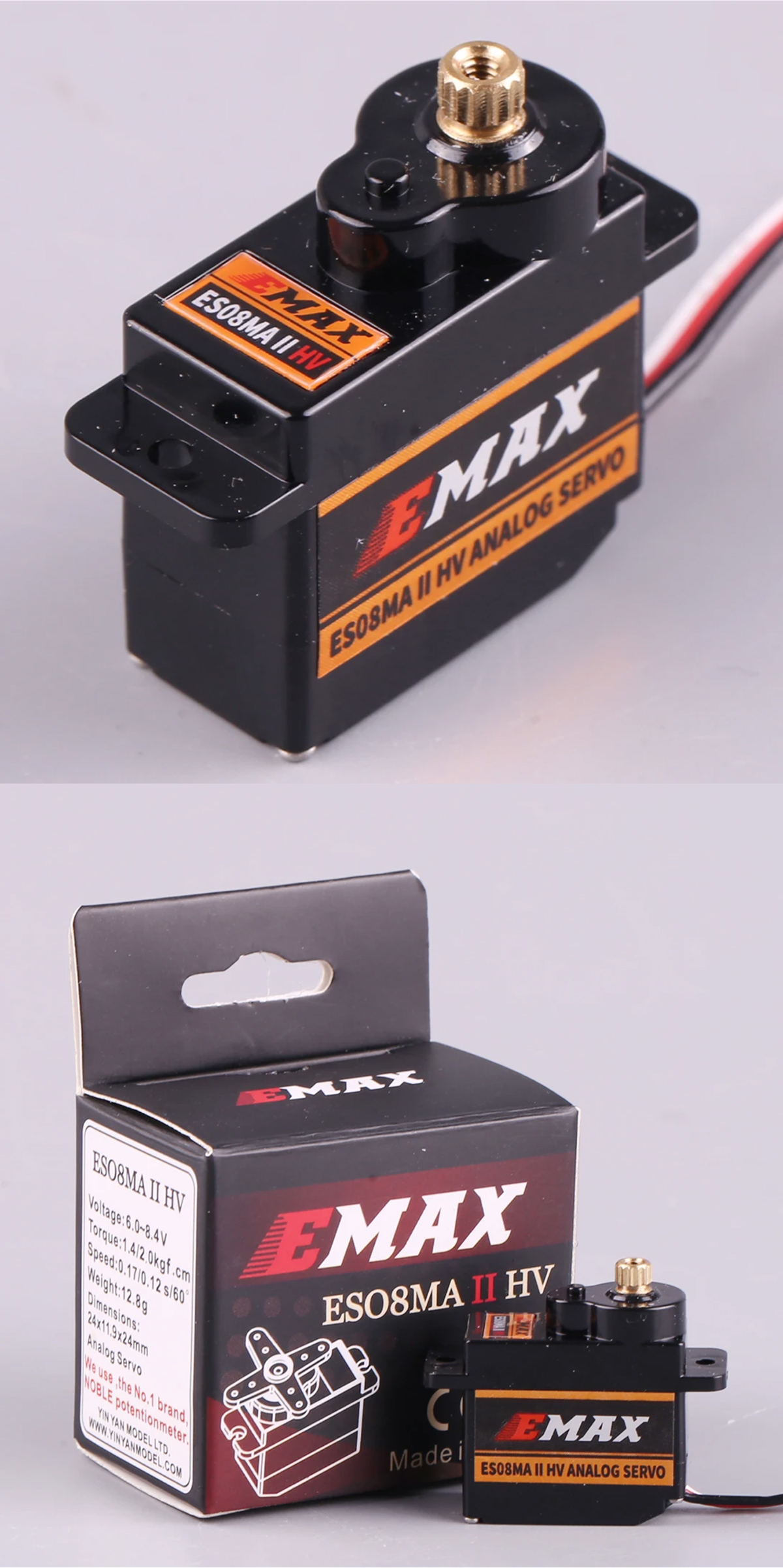

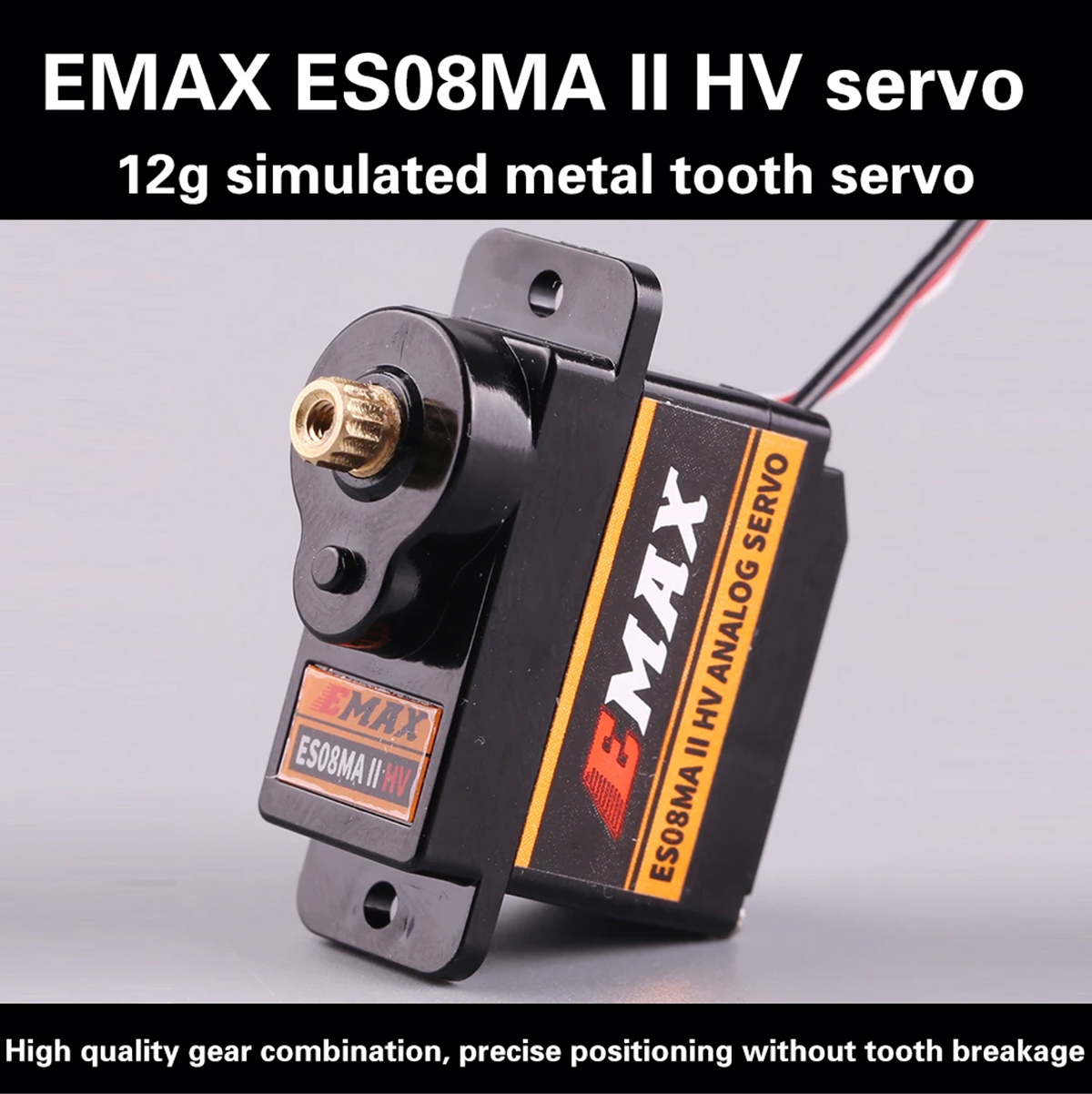

EMAX ES08MA II HV 8.4V 12g Lightweight Metal Gear Analog Servo for RC Helicopter Boat Car Micro Robots


















EMAX ES08MA II HV 8.4V 12g Lightweight Metal Gear Analog Servo for RC Helicopter Boat Car Micro Robots

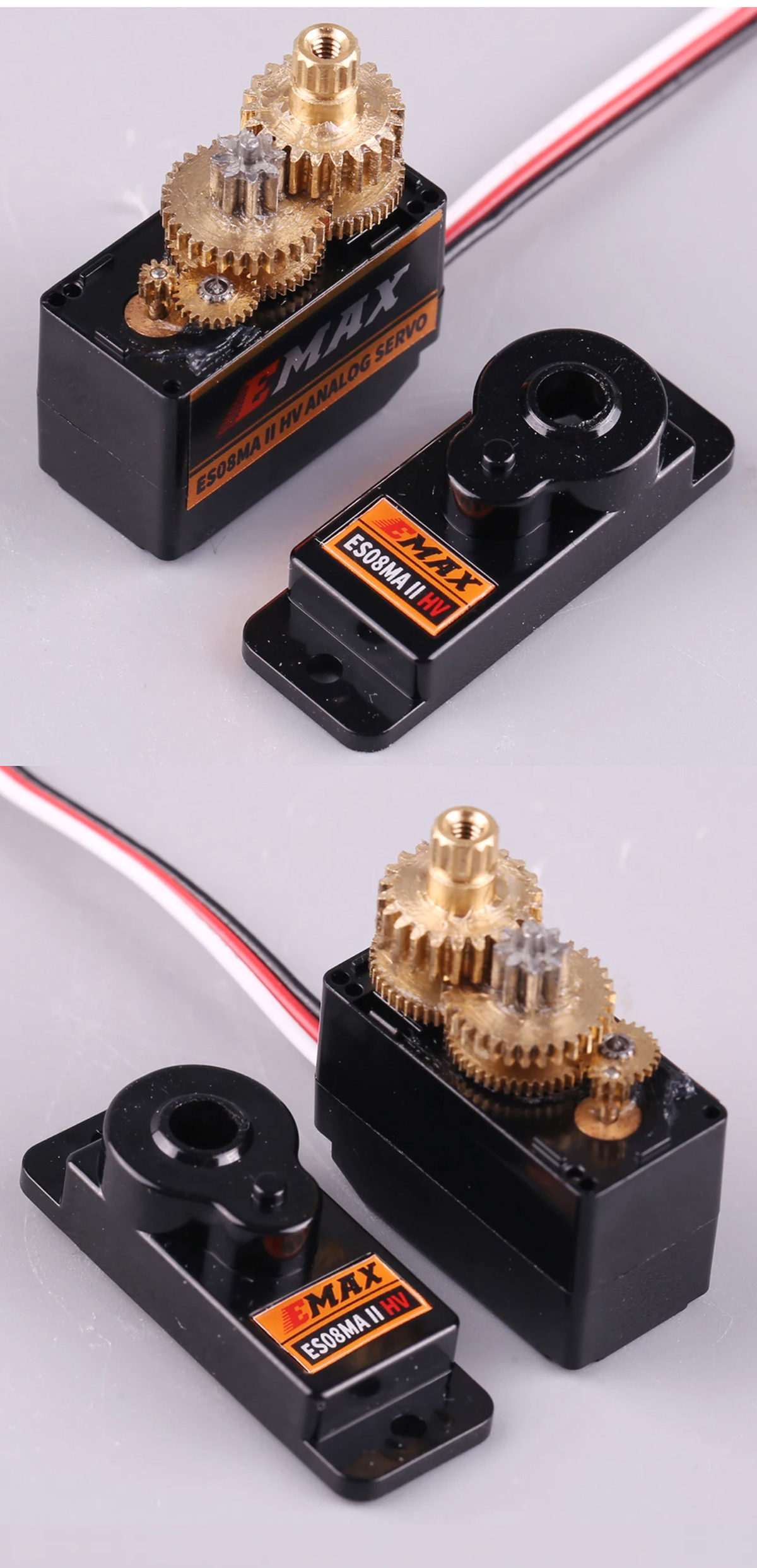

The precise gear combination is more stable. EMAX masters the core technology of gearbox design, which is smooth and delicate, and is not easy to crack teeth. All of our plastic components are made of imported materials, and there is no need for recycled materials!
Professional and high-quality motors are more powerful. Firstly, EMAX is a professional motor company, so it has unique insights in controlling motor quality. Our motors are not afraid of high temperatures or large currents.
NOBLE locator, more precise positioning, industry standard higher temperature resistance, faster response speed, and more efficient
Through precise mechanical calculations, the angle and opening position of the rocker arm are optimized to make the aircraft’s power output more efficient
Model: ES08MA II HV
Storage Temperature Range: -20℃~70℃
Operating Temperature Range: -10℃~60℃
Voltage: 6-8.4V
Operating Speed (at no load, ±10%): 0.17sec/60°@6V / 0.12sec/60°@8.4V
Running Current (at no load, Max): 150mA@6V / 200mA@8.4V
Stall Torque (Max): 1.4kg.cm@6V / 2.0kg.cm@8.4V
Maximum Current (Max): 0.4A@6V / 0.5A@8.4V
Idle Current: 6.5mA
Weight: 12±1g
Connector Wire Gauge: JR
3P Connector Wire Length: 250±8mm (excluding connector)
Flower Head: 15T
Bearing: No
Gear Type: Metal
Extreme Angle: 360°
Control System: PWM
Operating Travel: 95°±10° (at 1000-2000μsec)
Neutral Position: 1500μsec
Rotating Direction: Counter Clockwise (at 1500 to 1900μsec pulse)
Pulse Width Range: 600-2400 μsec
Maximum Travel: 170°±10° (at 600-2400μsec)

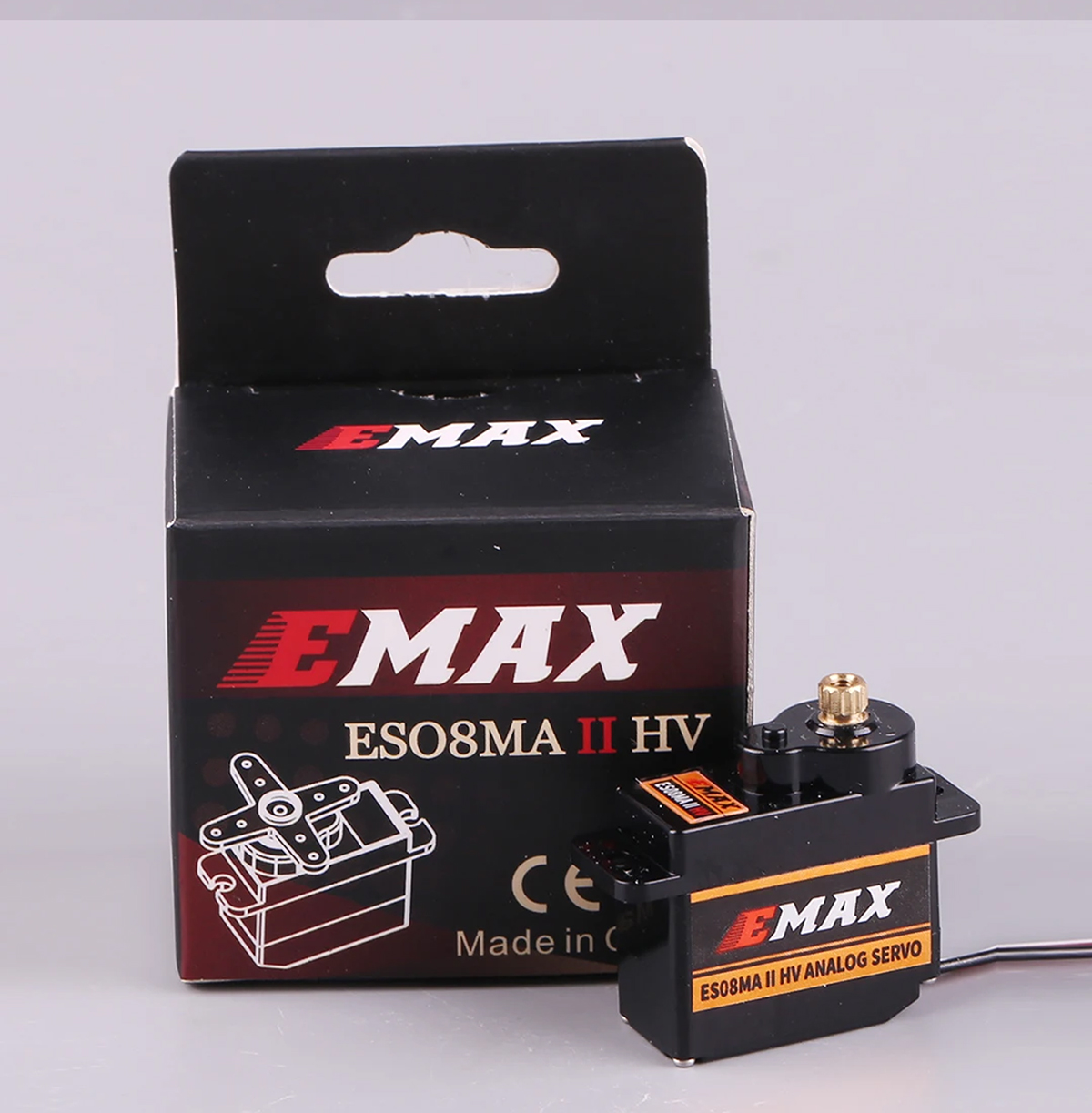

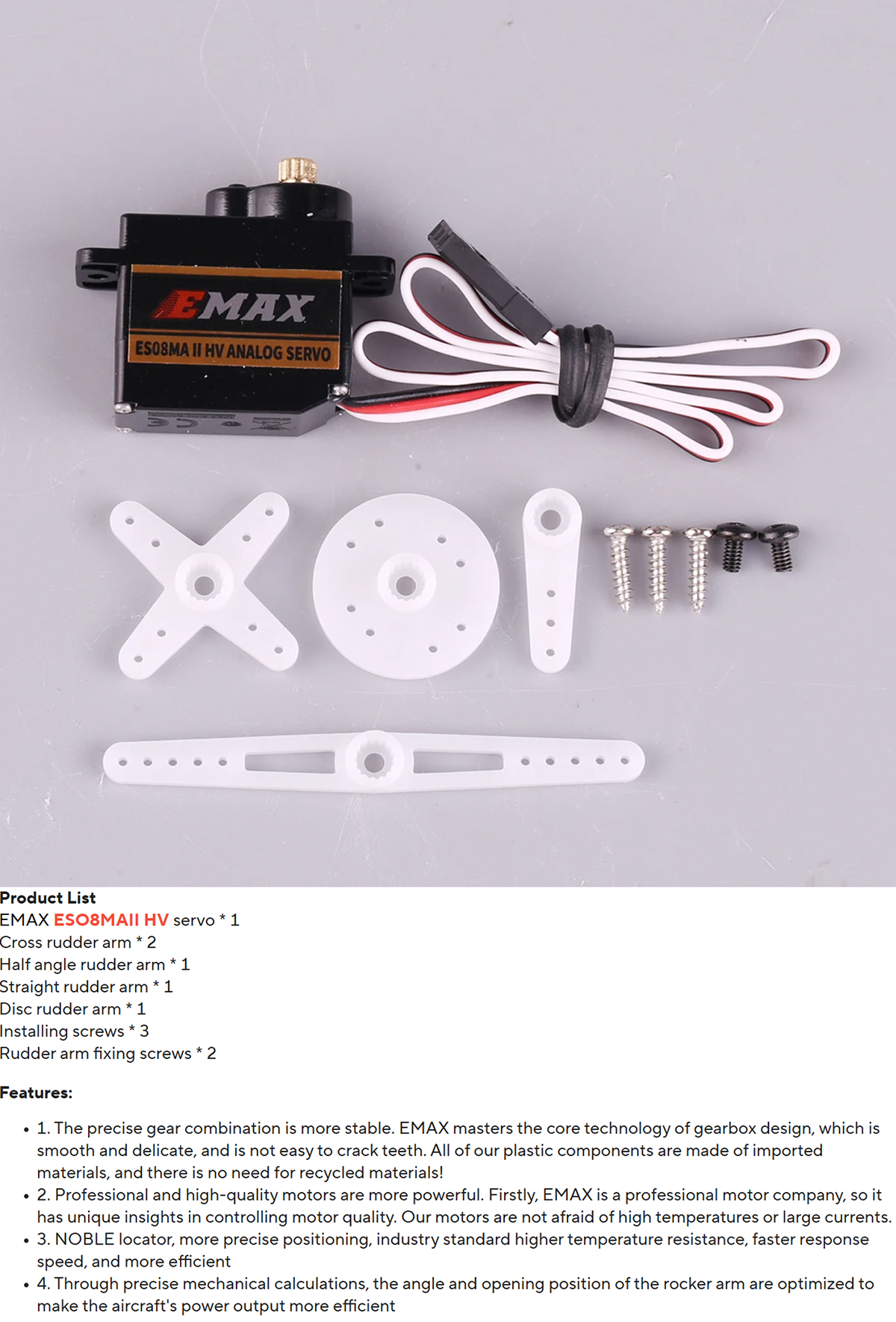

EMAX ESO8MAII HV servo x1

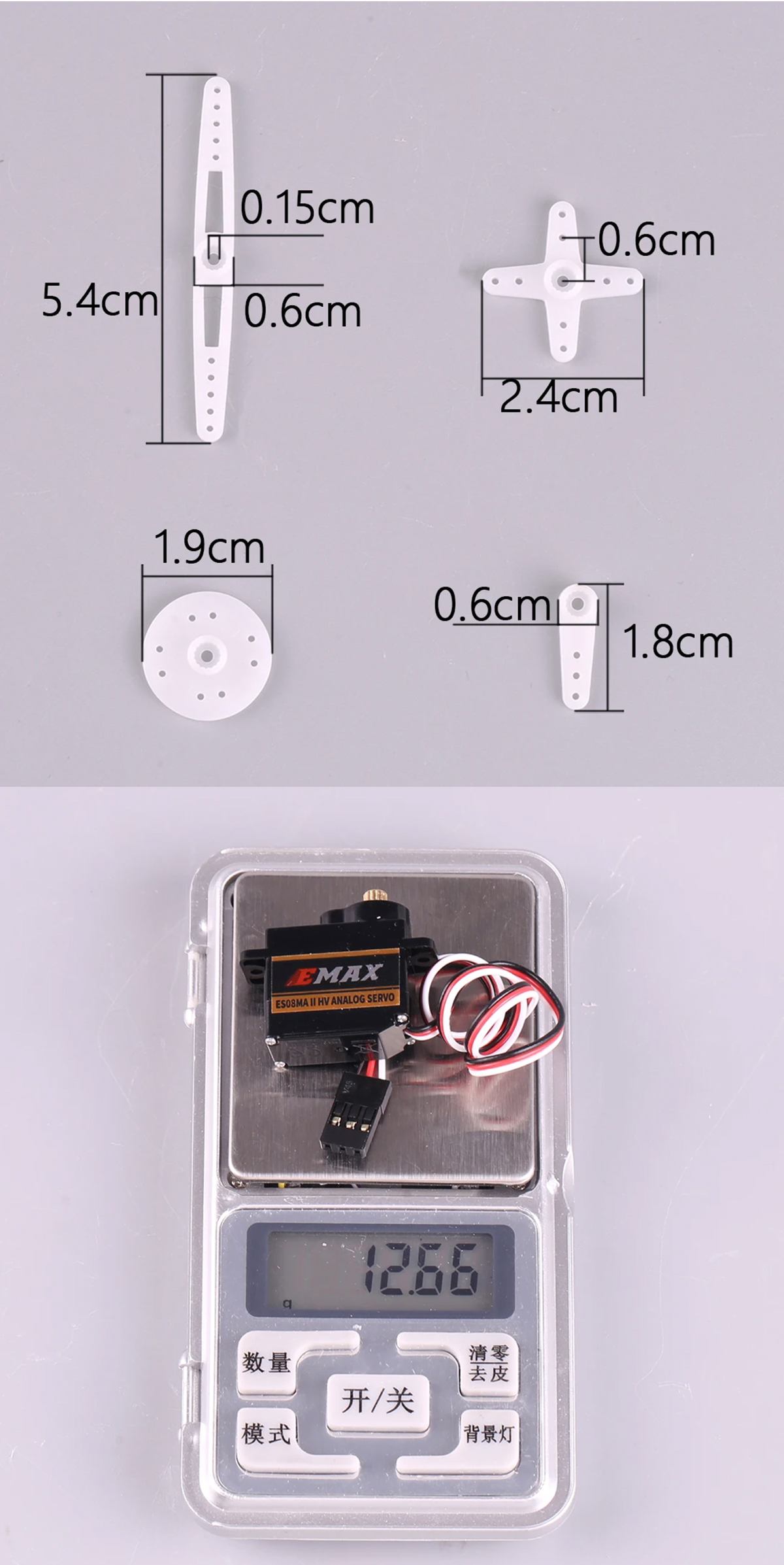

Cross rudder arm x2
Half angle rudder arm x1
Straight rudder arm x1

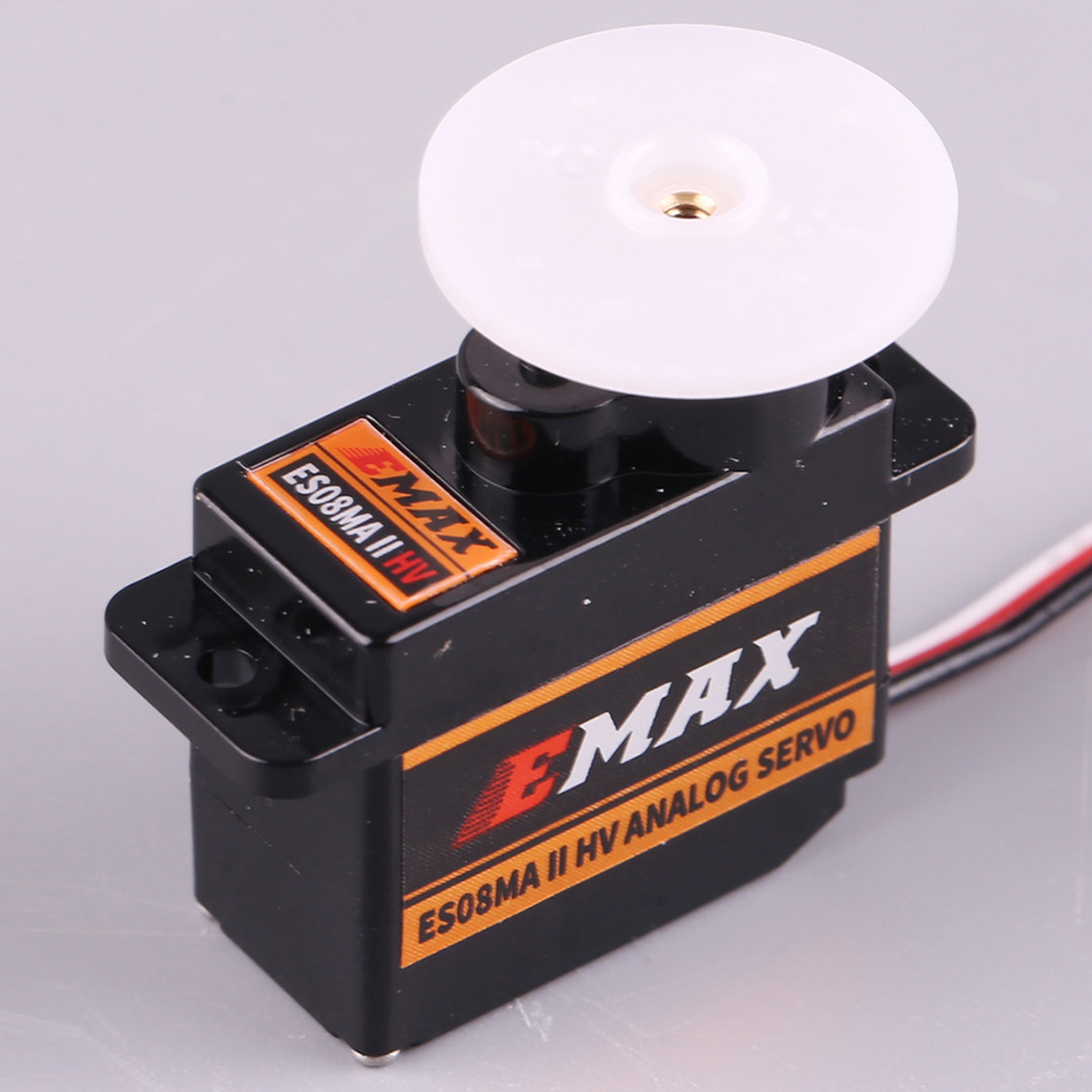

Disc rudder arm x1
Installing screws x3
Rudder arm fixing screws x2
