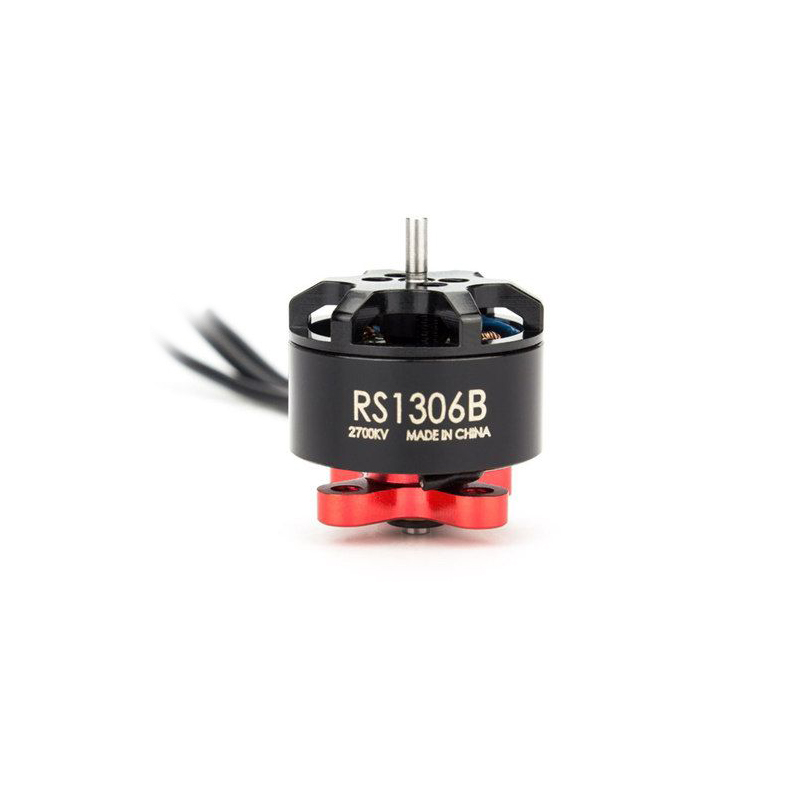

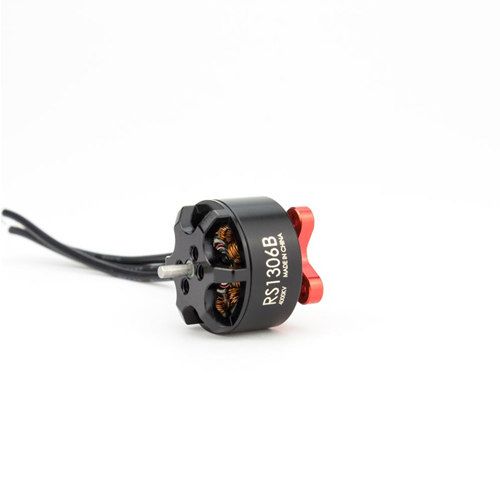

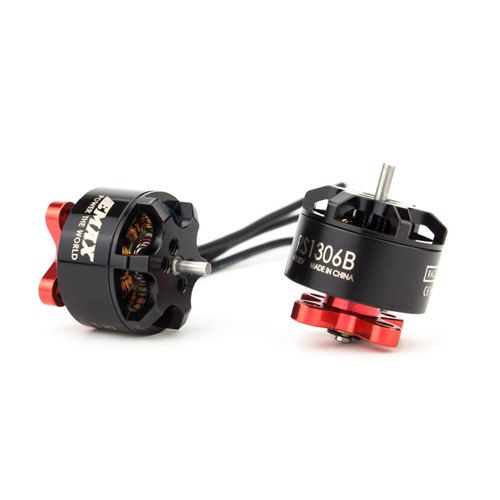

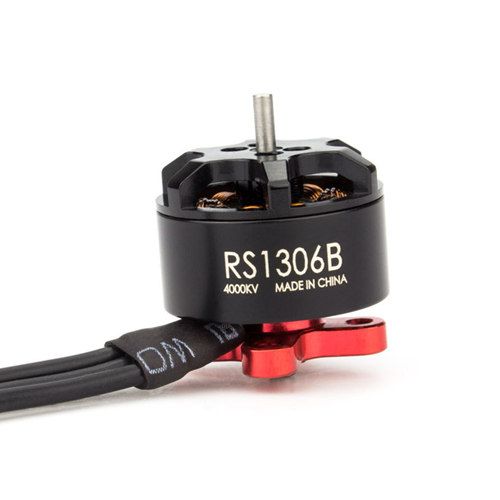

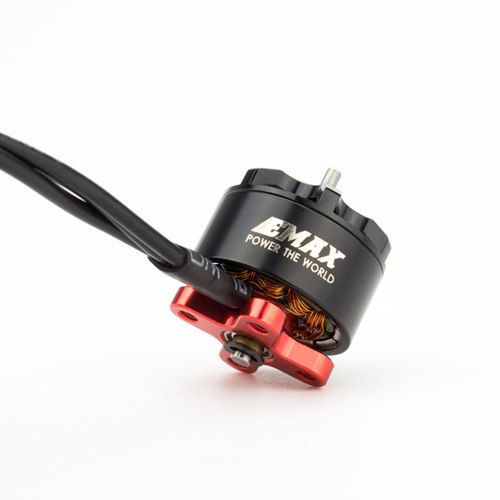

EMAX RS1306B 2700KV 4000KV Brushless Racing Motor 3-4S RS1306 Version 2 Motor for RC FPV RACER Quadcopter
EMAX RS1306B 2700KV 4000KV Brushless Racing Motor 3-4S RS1306 Version 2 Motor for RC FPV RACER Quadcopter
RS exclusive “Cooling” design on a micro sized motor.
Designed for 3” propellers up to 4s battery.
High Quality NSK Bearings for long lasting smoothness.
Strong N52 Magnets.
Factory Balanced Precision CNC Motor Bells.
Brand name: EMAX
Item name: RS1306 Version 2 2700KV 4000KV brushless motor

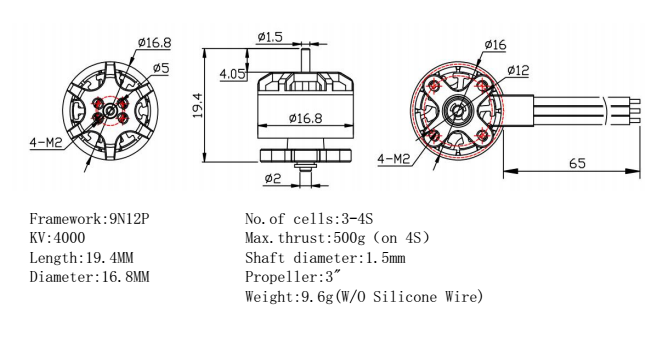

Framework: 9N12P
Length: 19.4mm
Diameter: 16.8mm
No. of cells: 3-4s

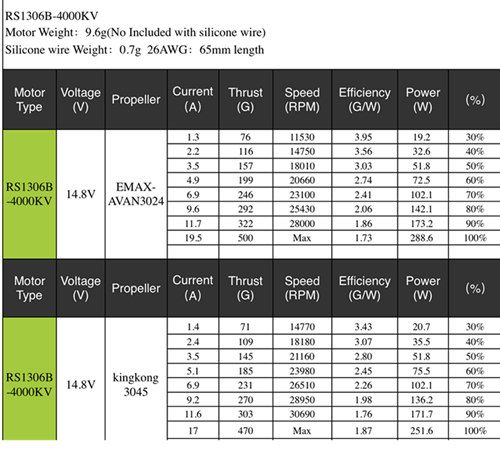

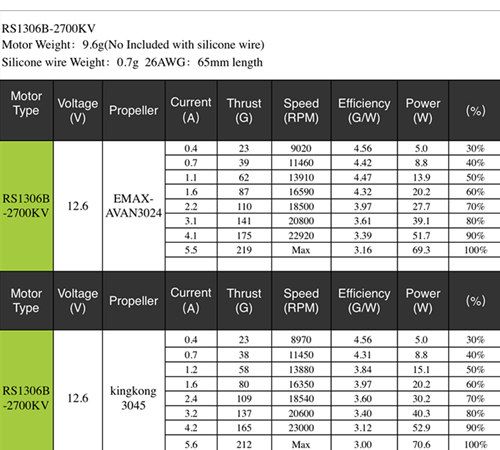

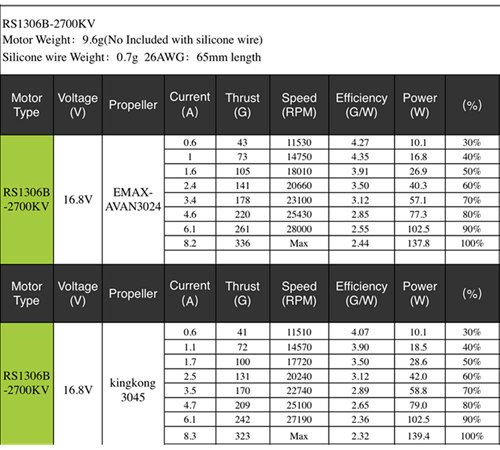

Max thrust: 4000kv-500g(on 4s), 2700kv-336g(on 4s)
Shaft diameter: 1.5mm
Propeller: 3″
Weight: 9.6g (W/O silicone wire)
Wire Length: 65mm 26AWG
Mounting: T-Mount (M2 holes, 5mm eye to eye)
Motor mount bolt pattern 12mmx12mm M2 thread
Bearing: 2x5x2.5

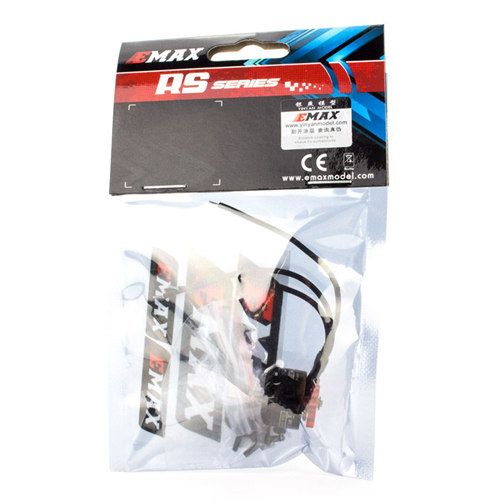

EMAX RS1306B Brushless Motor x1
