EMAX RSIII 2306 1800KV 2100KV 2500KV Brushless Motor High Performance for 5 Inch FPV Racing Drone

SKU RSIII-2306 Category Tag Brand:

EMAX RSIII 2306 1800KV 2100KV 2500KV Brushless Motor High Performance for 5 Inch FPV Racing Drone

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

RSIII, the newest addition to the prestigious lineage of racing motors, is purpose-built to revolutionize the world of drone racing. Designed from the ground up, this performance racing motor is engineered for unrivaled speed, precision, and endurance.

With versatility in mind, RSIII is available in two optimal sizes – 2207 and 2306, catering to diverse racing preferences.Choose from three impressive KV options – 1800kv, 2100kv, and 2500kv – to tailor the motor’s performance to your exact needs.

The RSIII 2100kv stands in a league of its own, capable of handling voltages up to 6s lipos without compromising on durability or performance. Say goodbye to worries about overheating or burnouts during intense races, as RSIII outperforms competitors with ease.

Engineered for strength and endurance, the RSIII motors feature a robust 4mm Titanium alloy bearing shaft. This innovation ensures smooth and efficient rotation, making every racing maneuver feel effortless and precise.

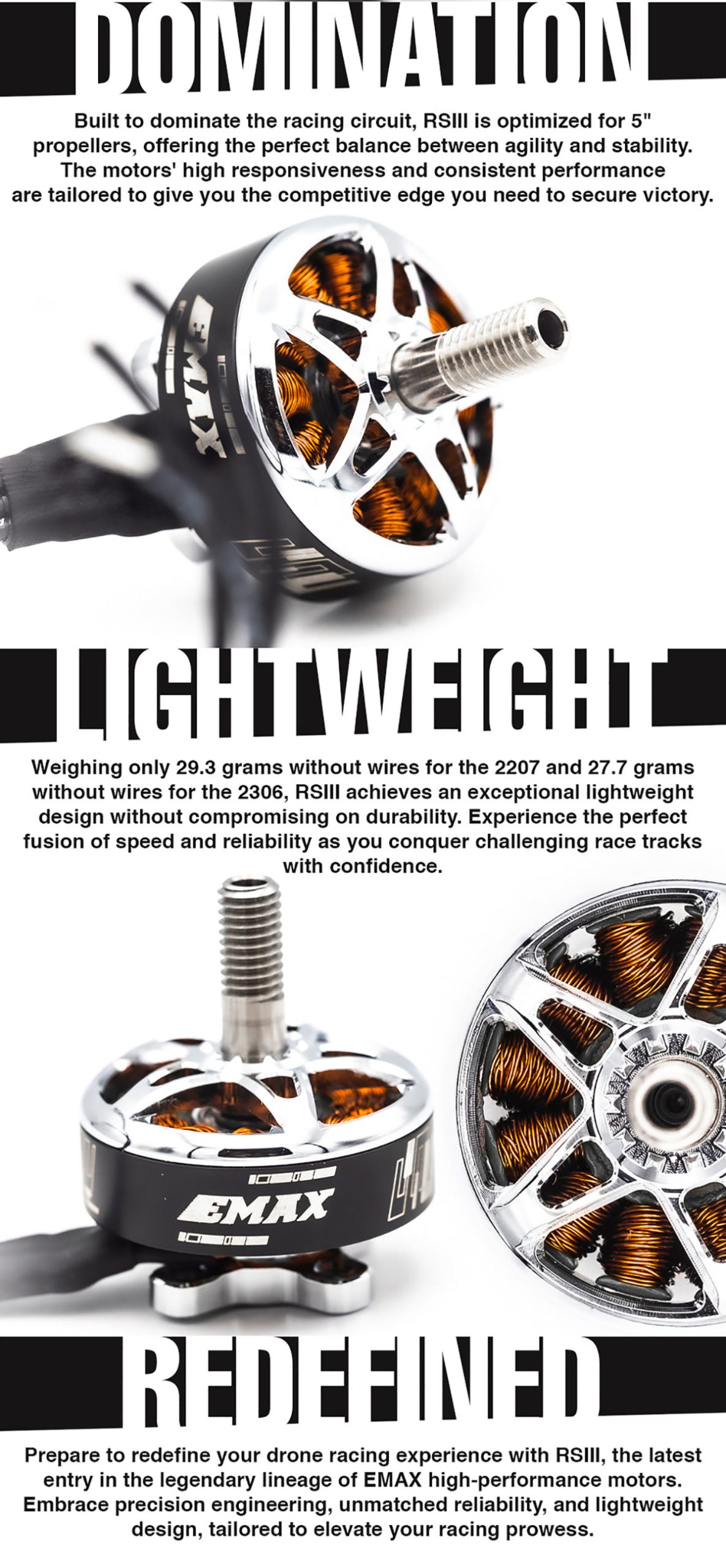

Built to dominate the racing circuit, RSIII is optimized for 5″ propellers, offering the perfect balance between agility and
stability. The motors’ high responsiveness and consistent performance are tailored to give you the competitive edge you need to secure victory.

Weighing only 29.3 grams without wires for the 2207 and 27.7 grams without wires for the 2306, RSIII achieves an exceptional lightweight design without compromising on durability. Experience the perfect fusion of speed and reliability as you conquer challenging race tracks with confidence.

Prepare to redefine your drone racing experience with RSIII, the latest entry in the legendary lineage of EMAX high-performance motors. Embrace precision engineering, unmatched reliability, and lightweight design, tailored to elevate your racing prowess.

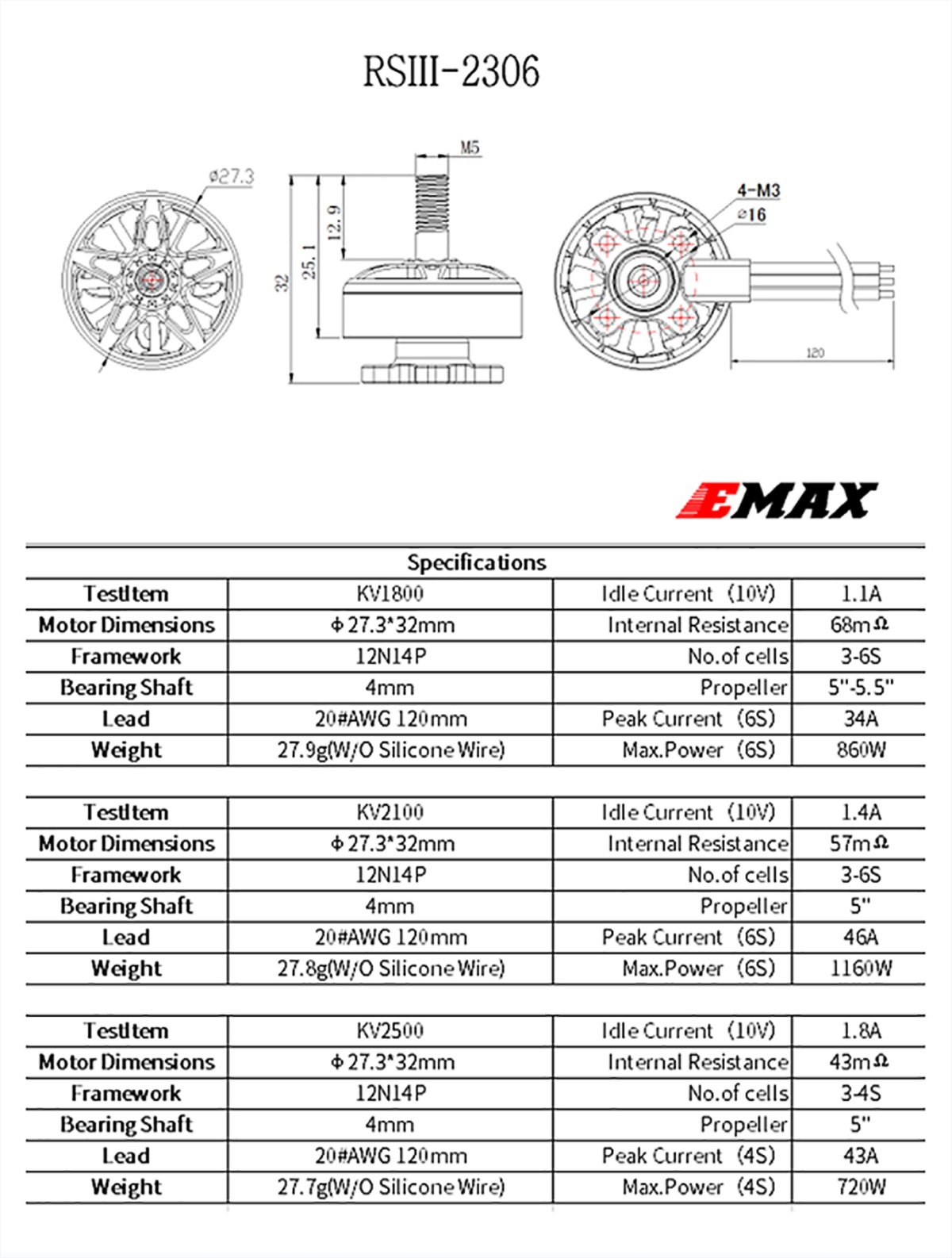

Model: RSIII-2306
KV: 1800KV
Motor Dimensions: Φ27.3*32mm
Framework: 12N14P
Bearing Shaft: 4mm
Lead: 20#AWG 120mm
Weight: 27.9g (W/O Silicone Wire)
Idle Current (10V): 1.1A
Internal Resistance: 68mΩ
No. Of Cells: 3-6S
Propeller: 5″-5.5″
Peak Current (6S): 34A
Max. Power (6S): 860W

KV: 2100KV
Motor Dimensions: Φ27.3*32mm
Framework: 12N14P
Bearing Shaft: 4mm
Lead: 20#AWG 120mm
Weight: 27.8g (W/O Silicone Wire)
Idle Current (10V): 1.4A
Internal Resistance: 57mΩ
No. Of Cells: 3-6S
Propeller: 5″
Peak Current (6S): 46A
Max. Power (6S): 1160W

KV: 2500KV
Motor Dimensions: Φ27.3*32mm
Framework: 12N14P
Bearing Shaft: 4mm
Lead: 20#AWG 120mm
Weight: 27.7g (W/O Silicone Wire)
Idle Current (10V): 1.8A
Internal Resistance: 43mΩ
No. Of Cells: 3-4S
Propeller: 5″
Peak Current (4S): 43A
Max. Power (4S): 720W

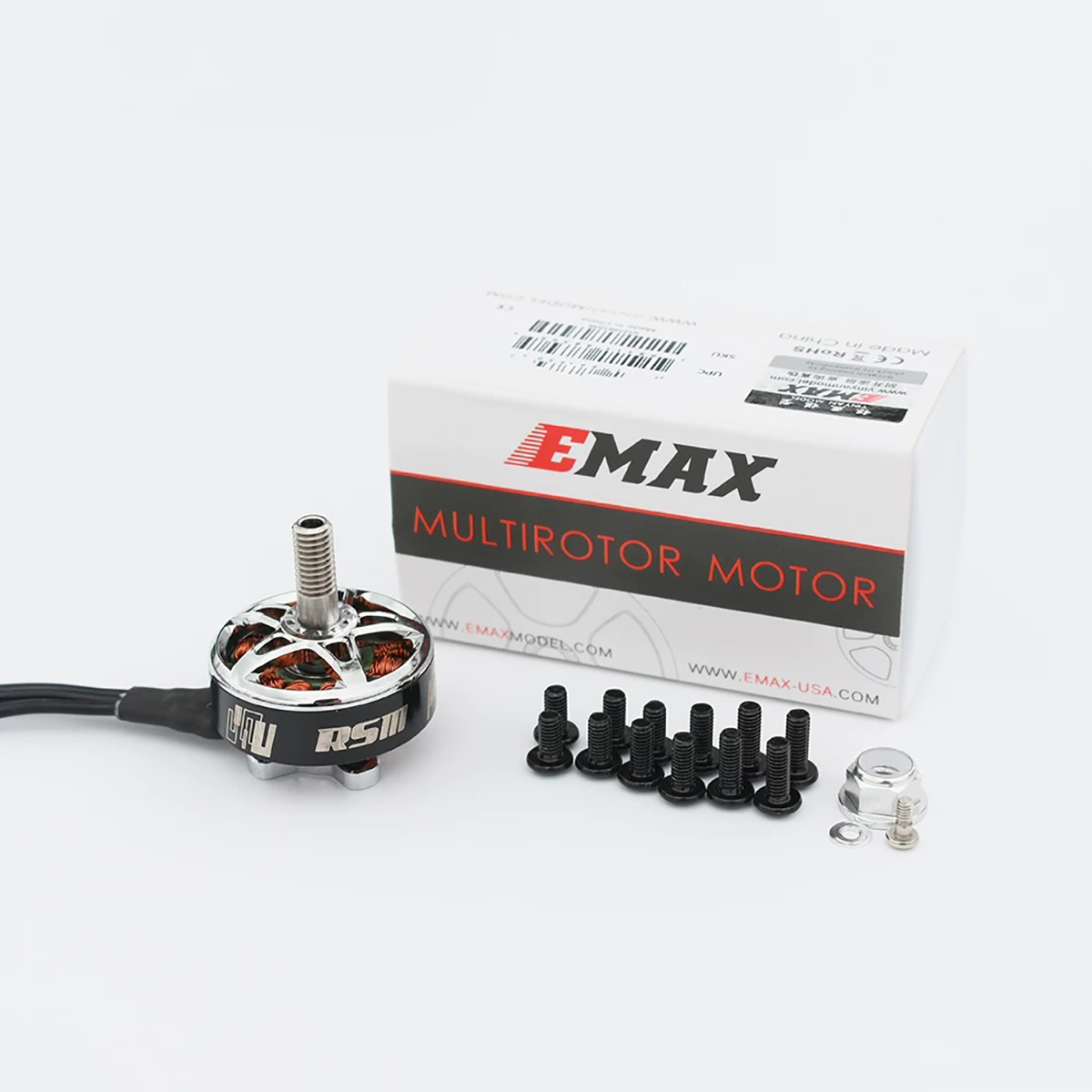

RSIII 2306 Brushless Motor x1
