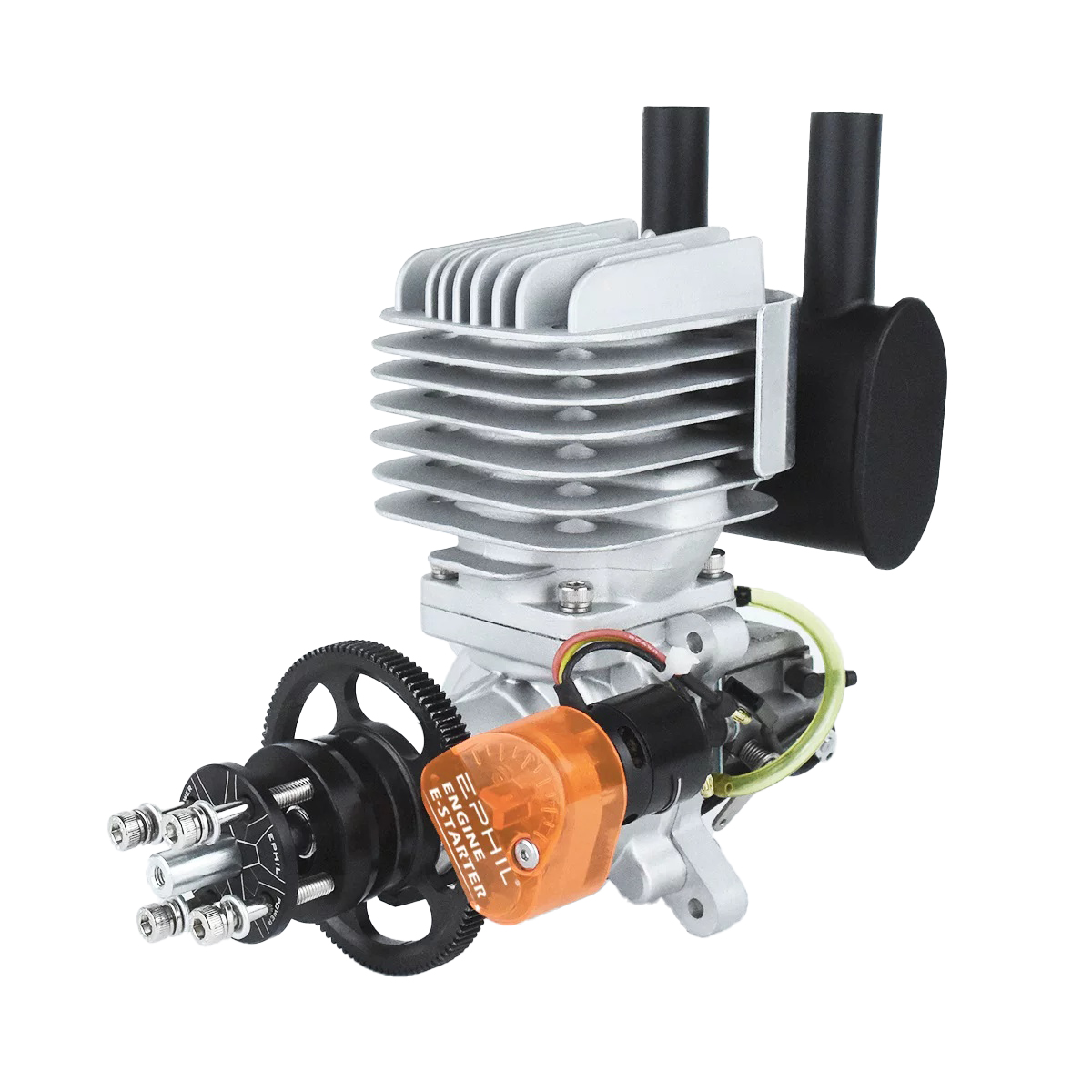

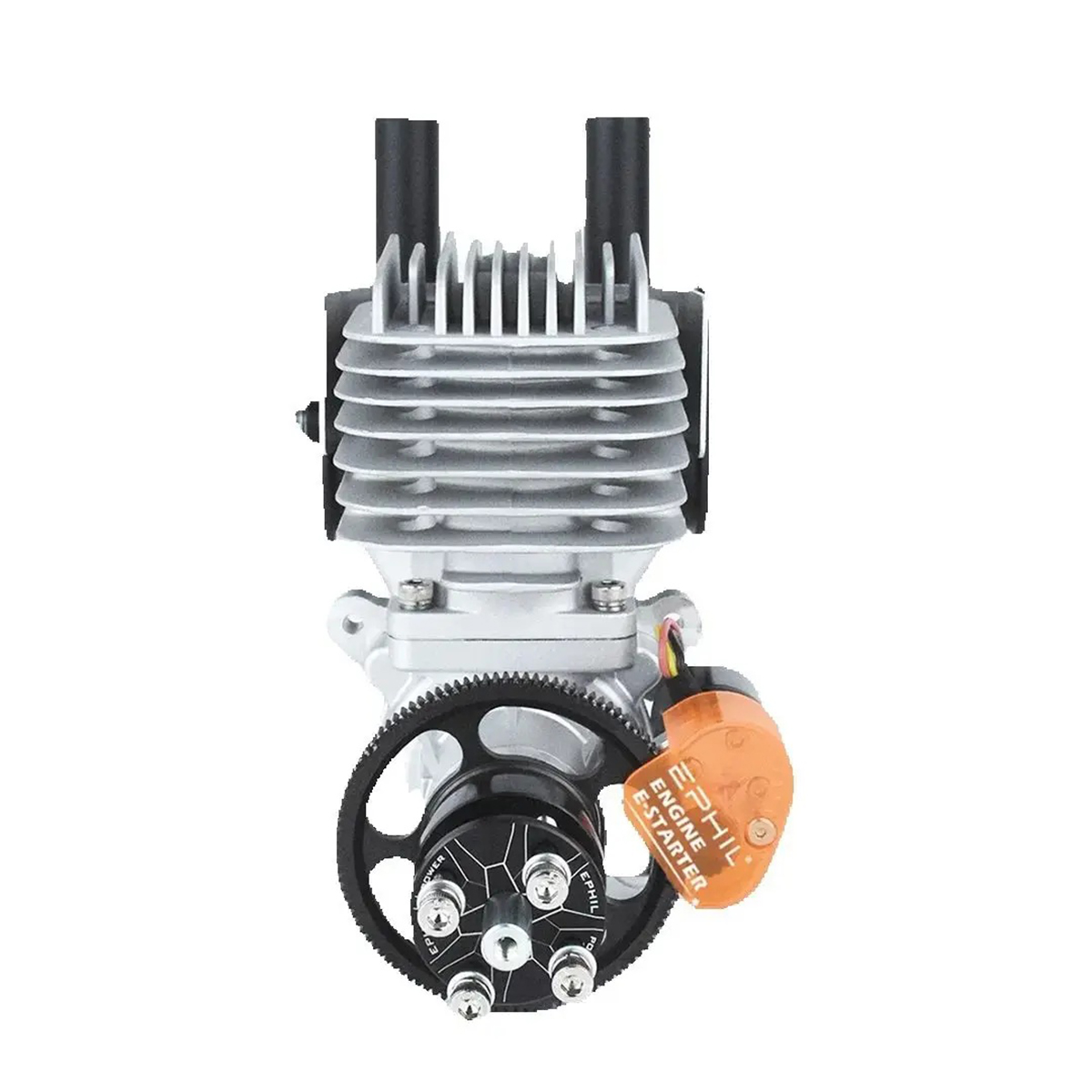

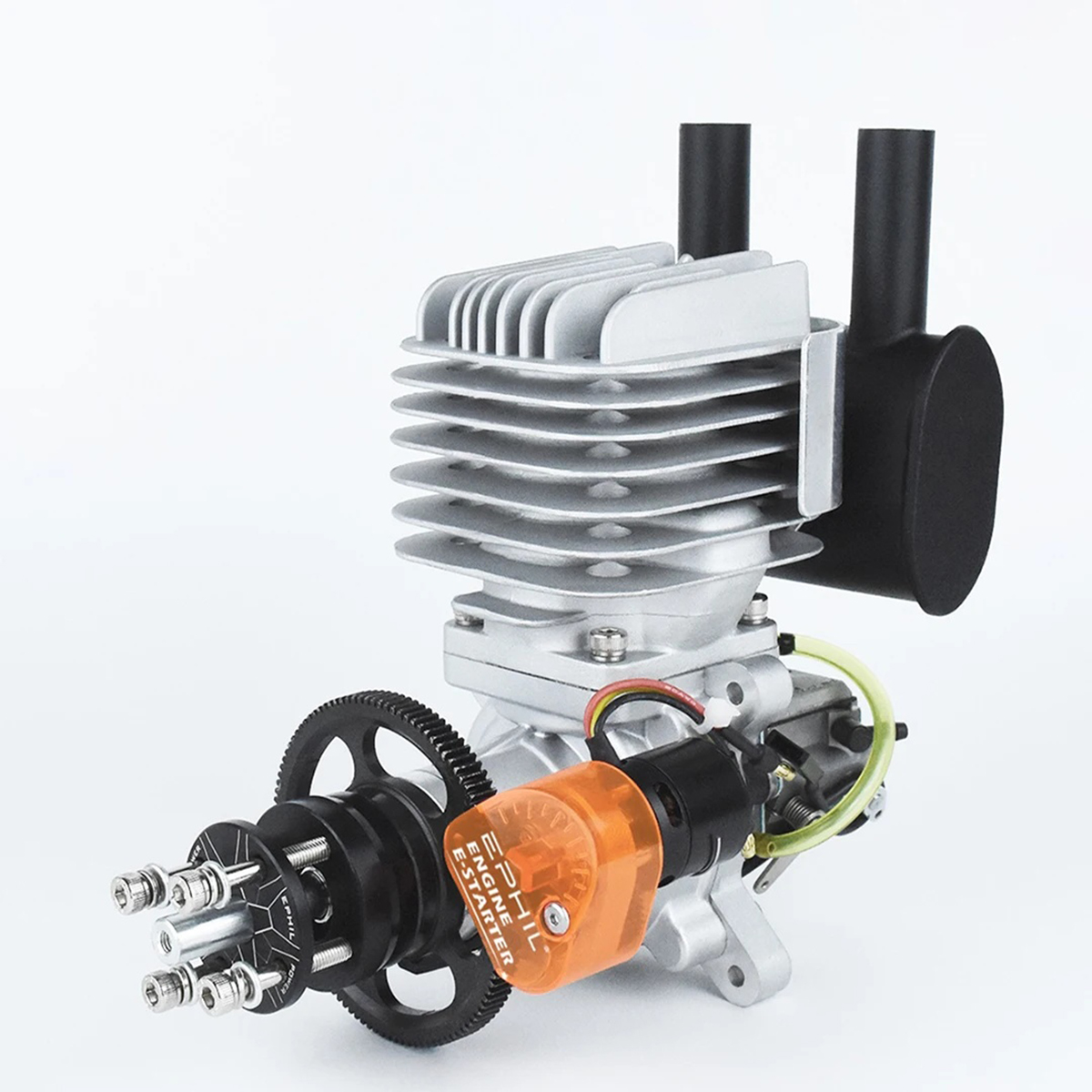

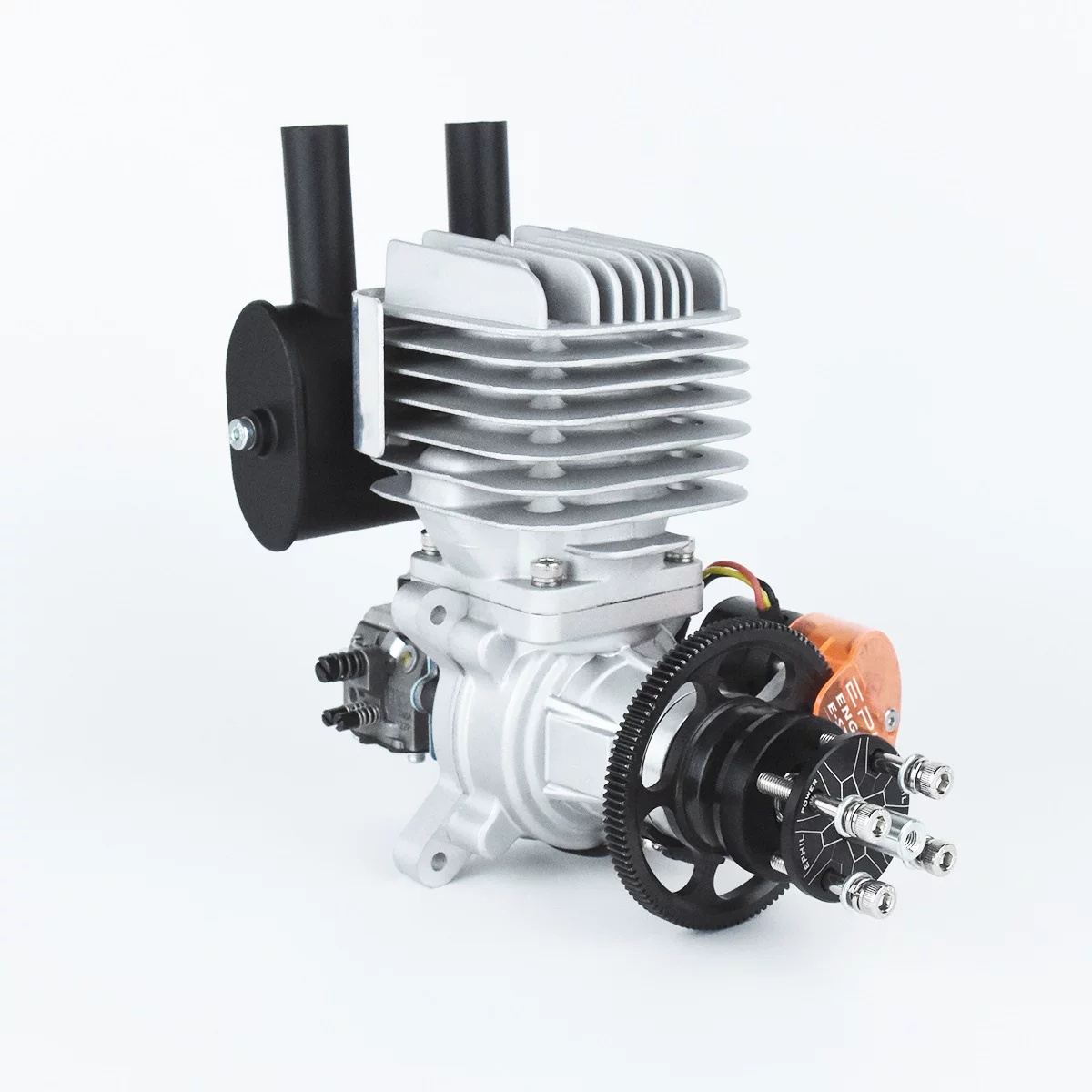

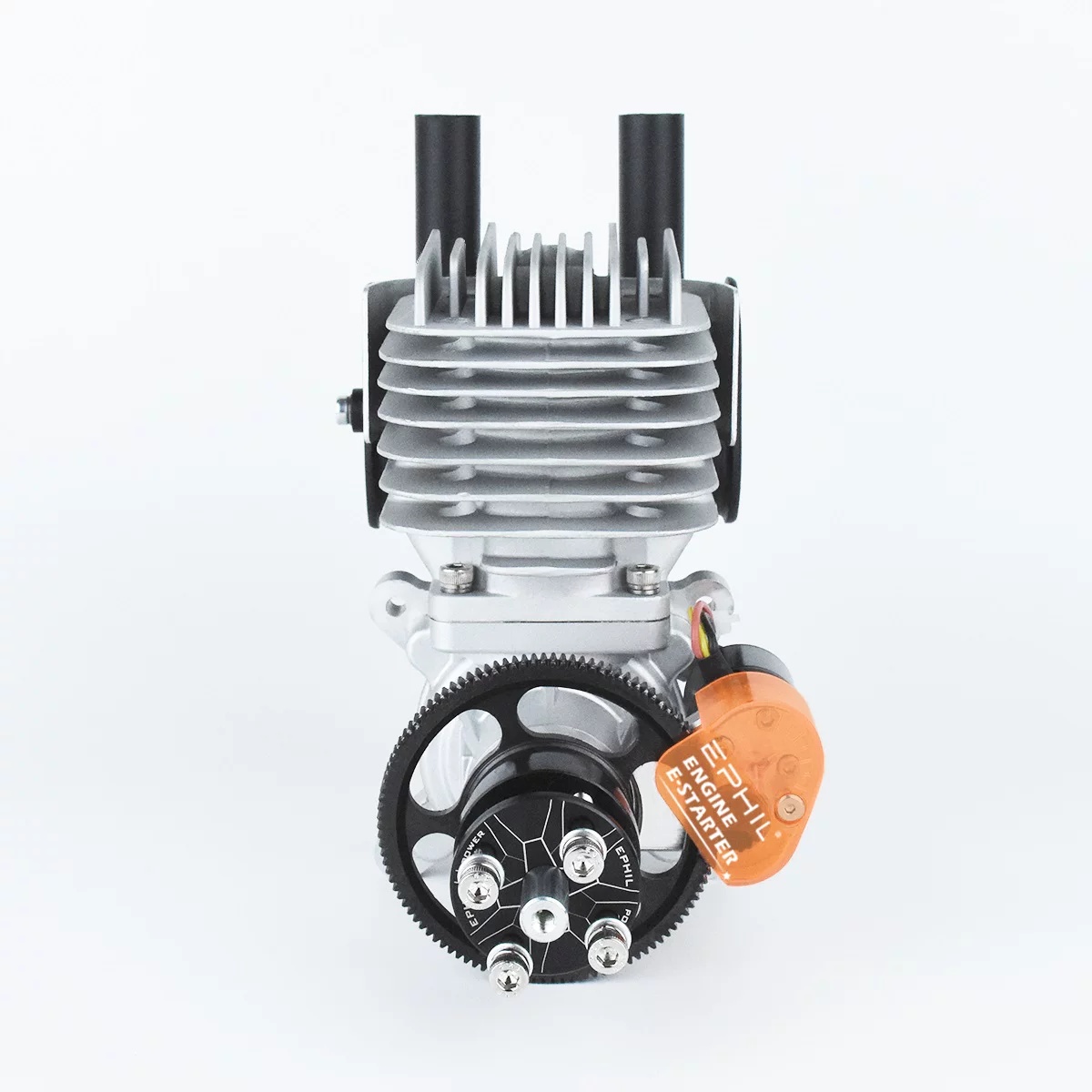

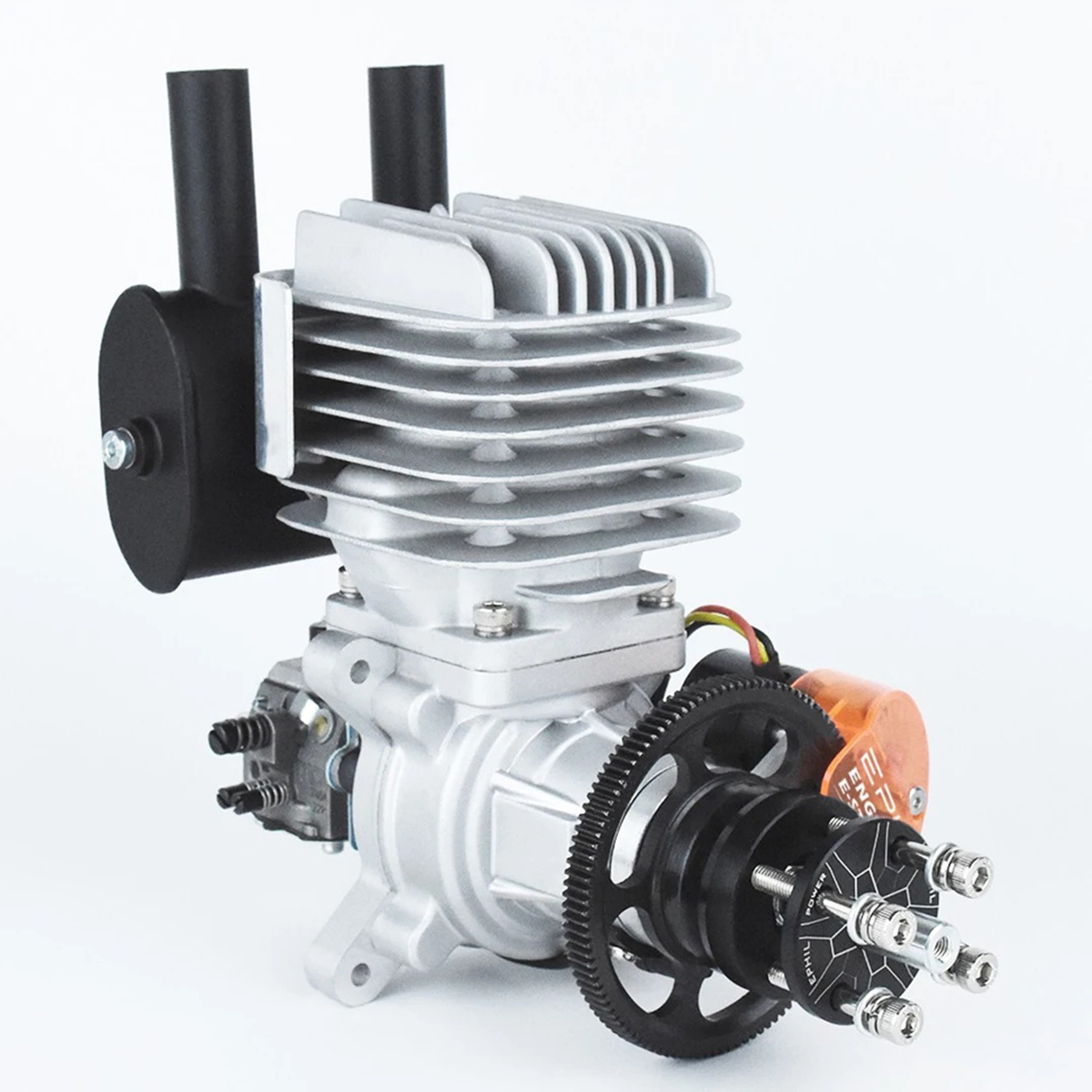

EPHIL 60cc-R Pro Gasoline Engine Electric Starter Two Stroke Single Cylinder Rear Exhaus for RC Fixed Wing
EPHIL 60cc-R Pro Gasoline Engine Electric Starter Two Stroke Single Cylinder Rear Exhaus for RC Fixed Wing
EPHIL 60cc-R Pro Gasoline Engine Electric Starter Two Stroke Single Cylinder Rear Exhaus for RC Fixed Wing
Model: 60cc-R Pro
Displacement: 60cc (3.66 cu in)
Performance: 6.2HP
Speed Range: 1800-6900 RPM (Test Propeller-24*9)
Bore: 47mm (1.85 in)
Stroke: 35mm (1.38 in)
Static Thrust: 15.6 kg @ 100 m ALT (21.8 lb @ 328 ft ALT)
Static Thrust: 13.6 kg @ 1800 m ALT (18.1 lb @ 5900 ft ALT)
Compression Ratio: 8:1
Lubrication Ratio: 30:1 (Fuel: 2-Stroke Motor Oil)
Ignition Voltage: 6-14 V
Spark Plug Type: CM6 Iridium Spark Plug
Recommended Propeller: 22×10; 23×8; 23×10; 24×8; 24×9
Weight of Main Engine: 1680g
Weight of Muffler Set: 135g
Weight of Engine Mount: 115g
Weight of Spark Plug: 13.5g
Weight of CDI (Ignition): 104g
Weight of ESC: 36g
Total Weight : 2047g (4.5 lb)

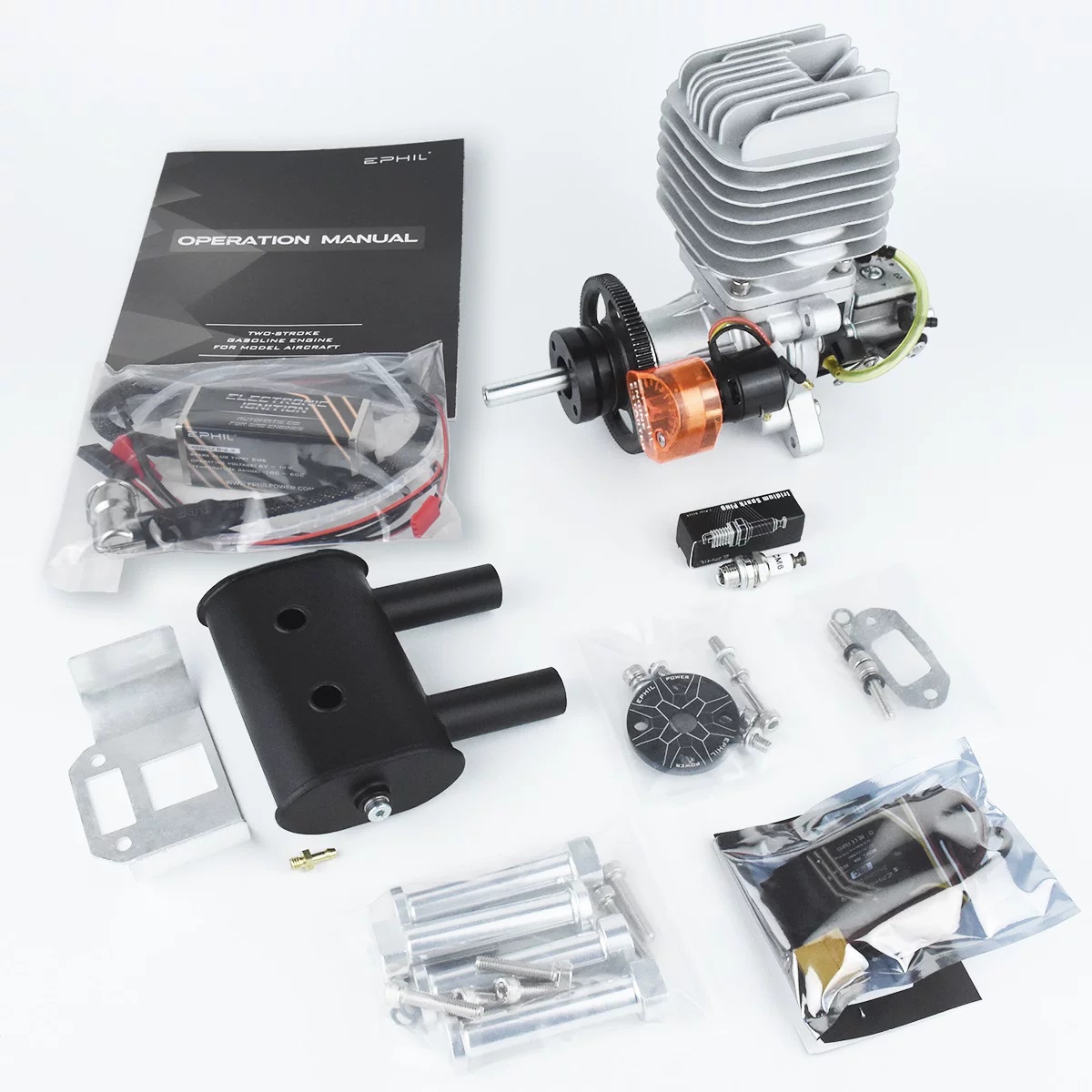

60cc-R PRO Engine x1
