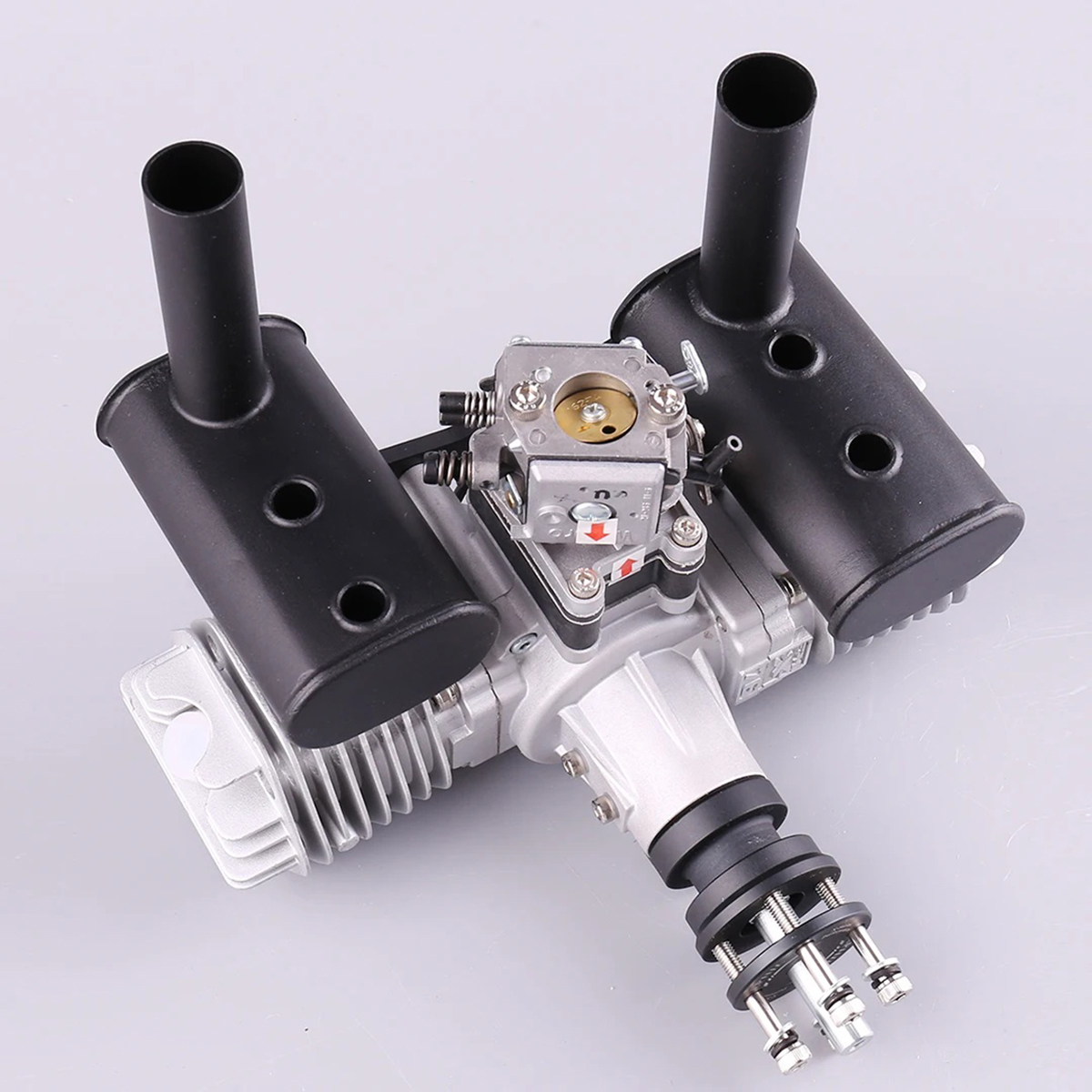

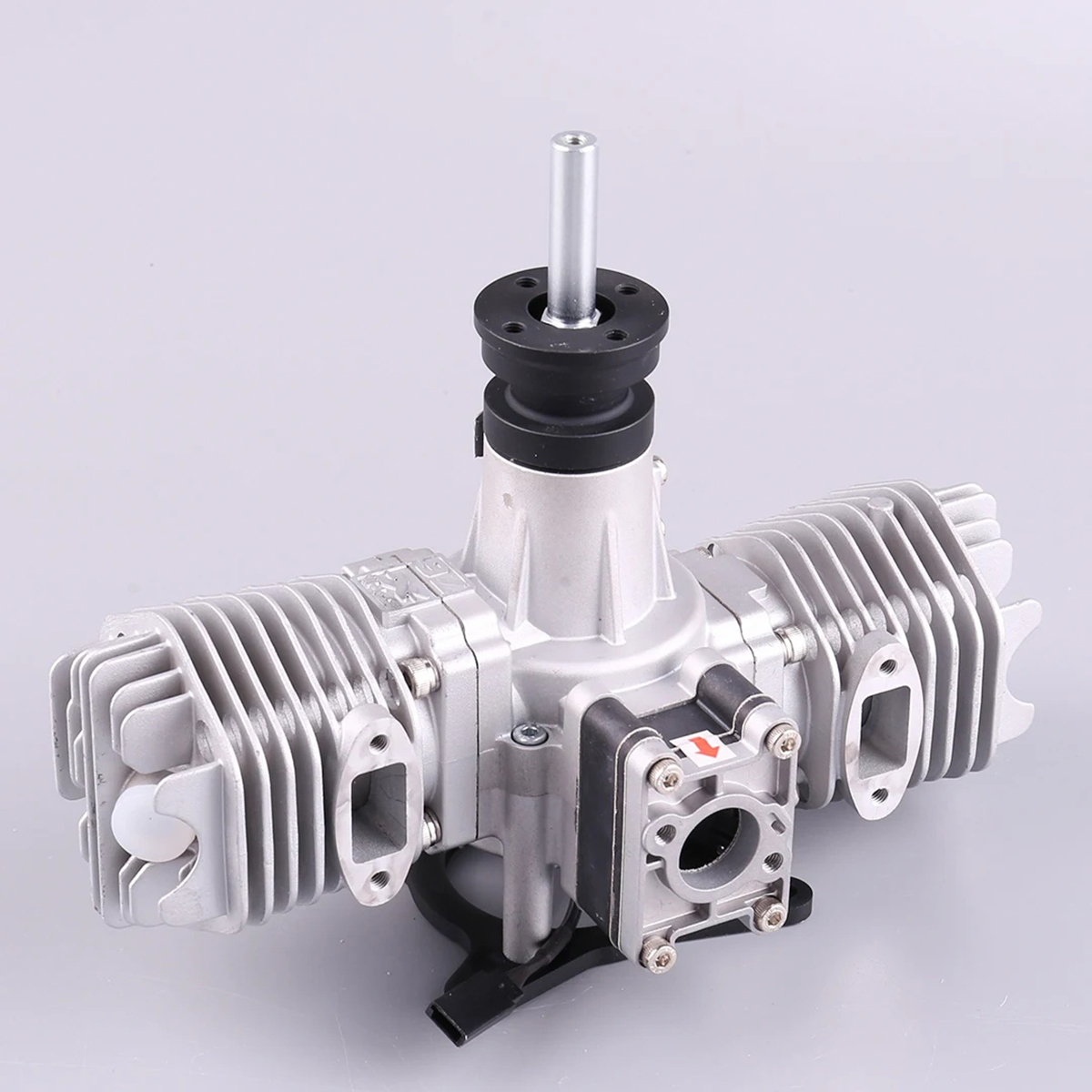

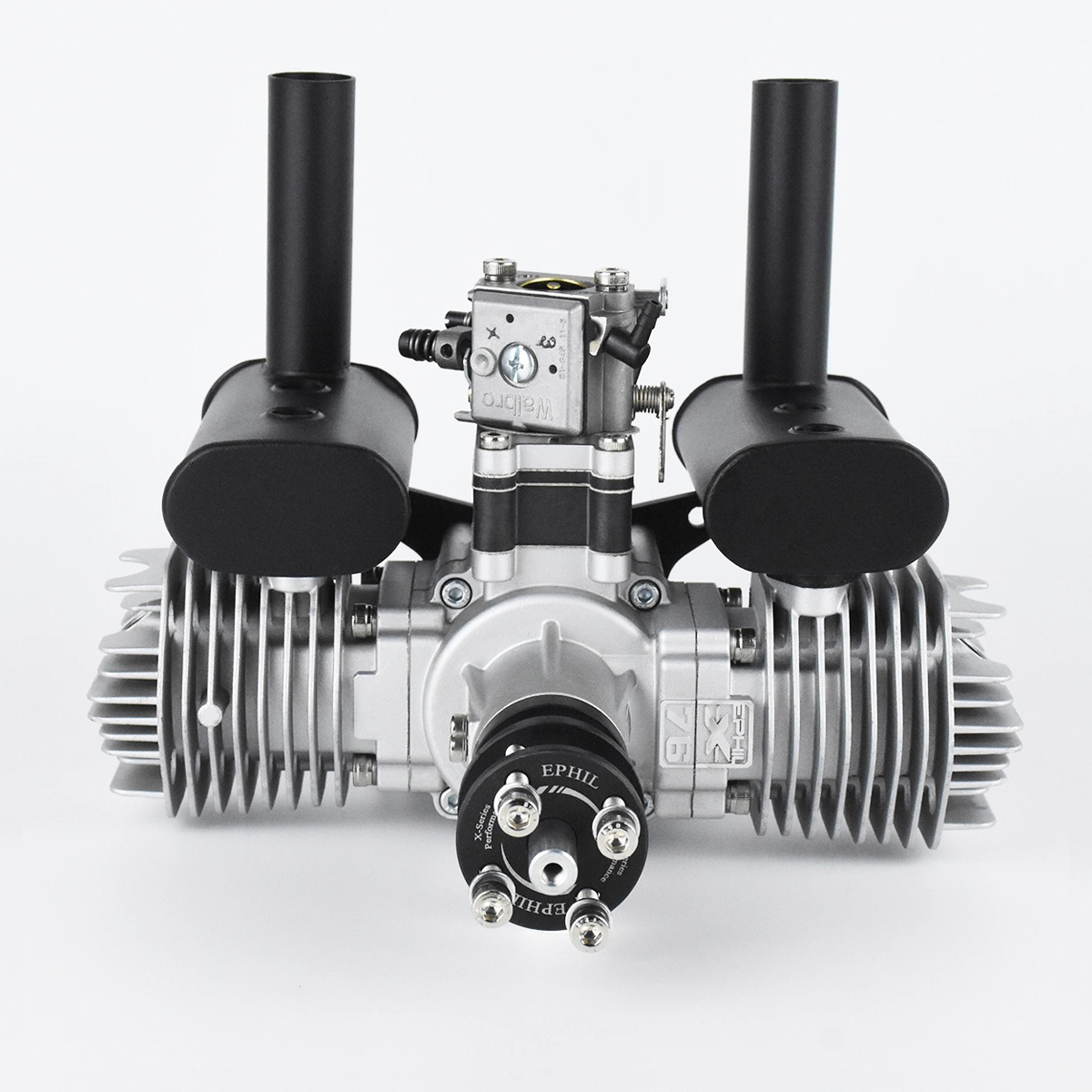

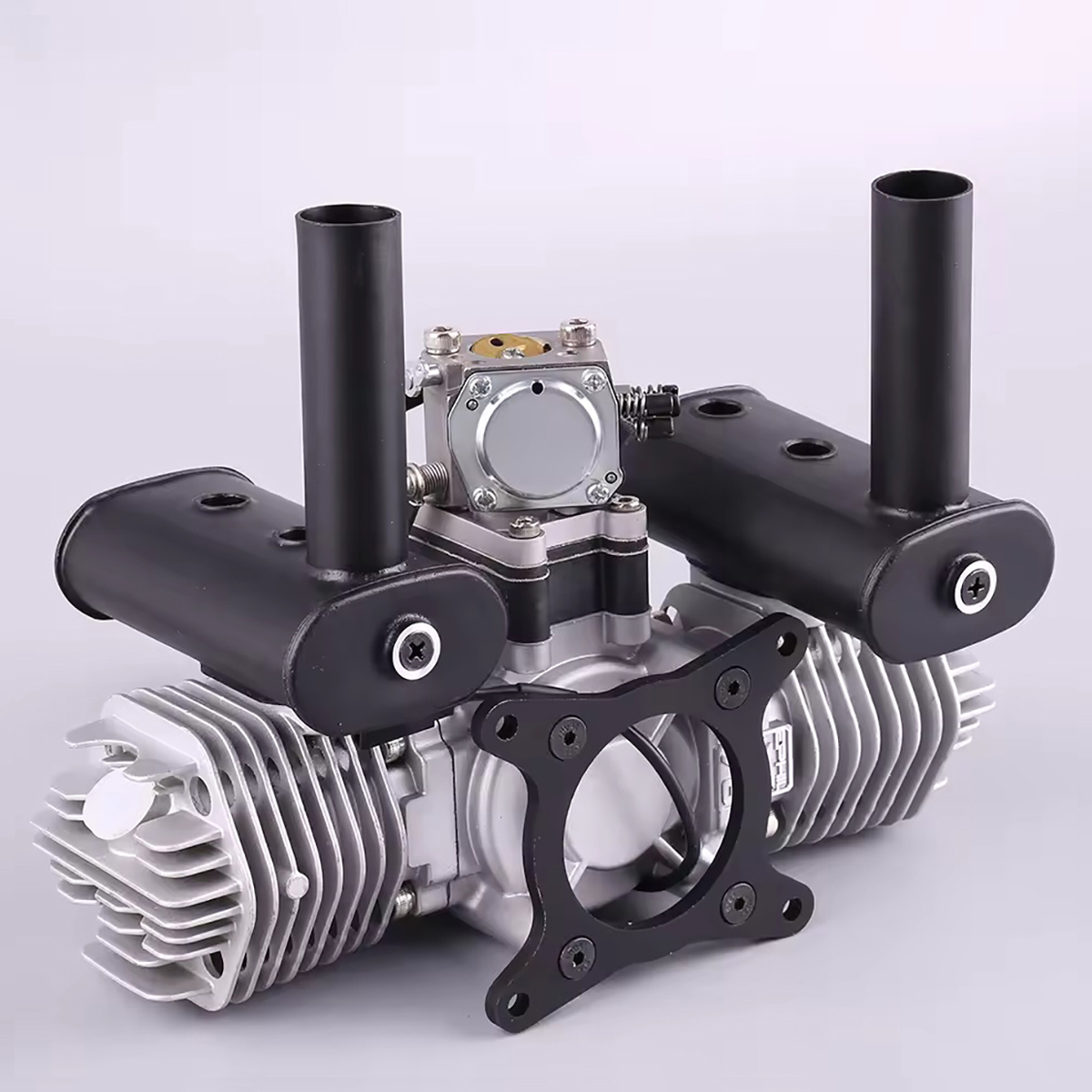

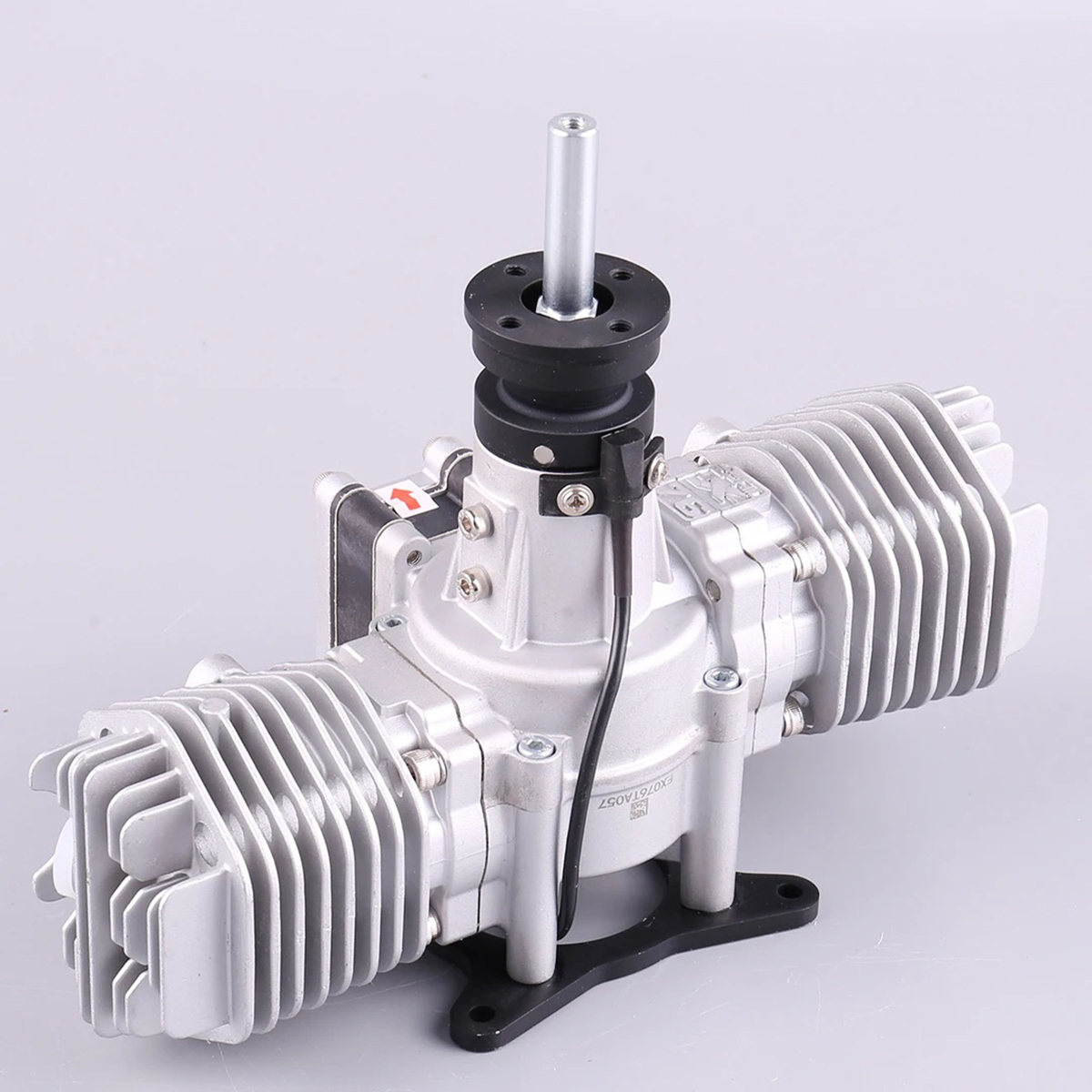

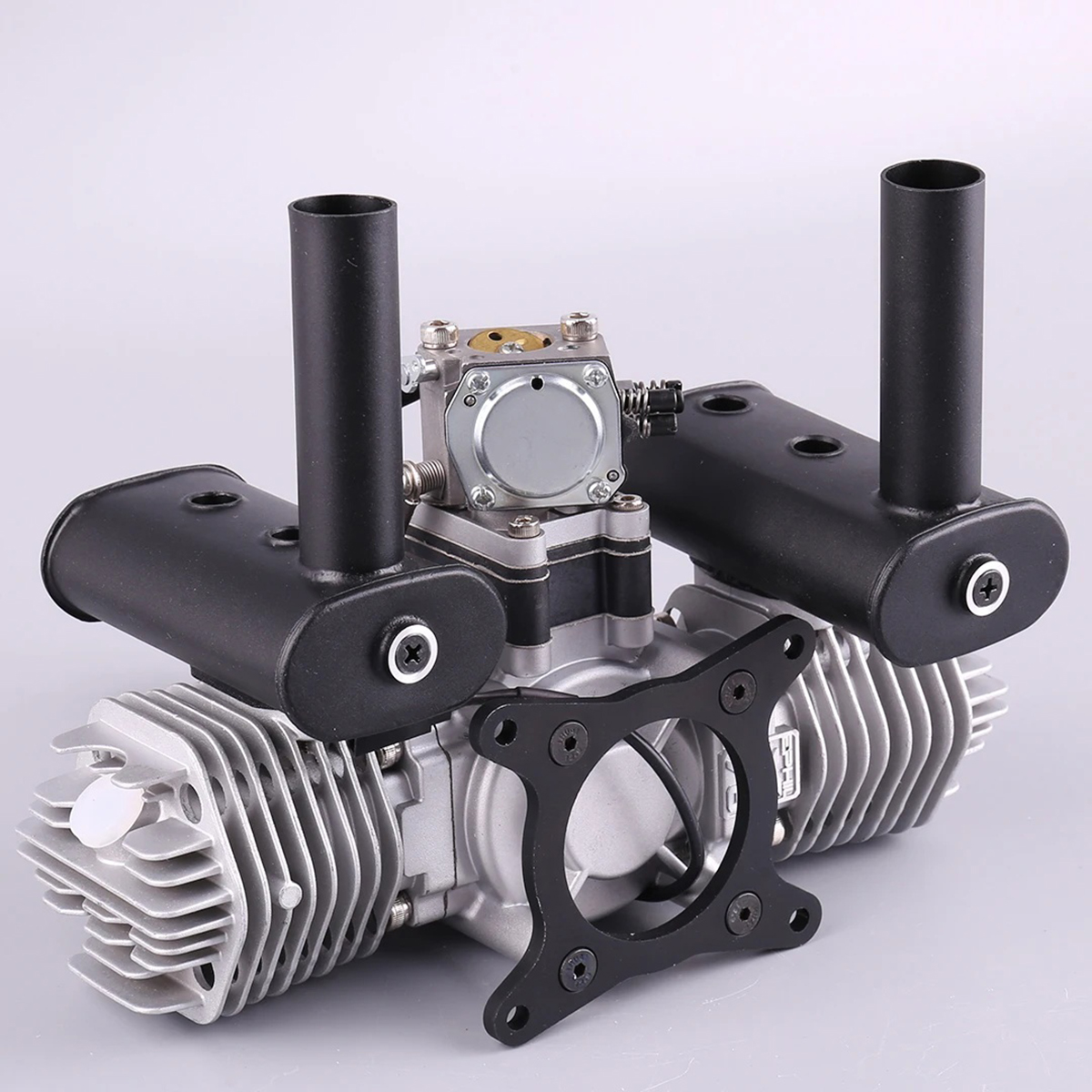

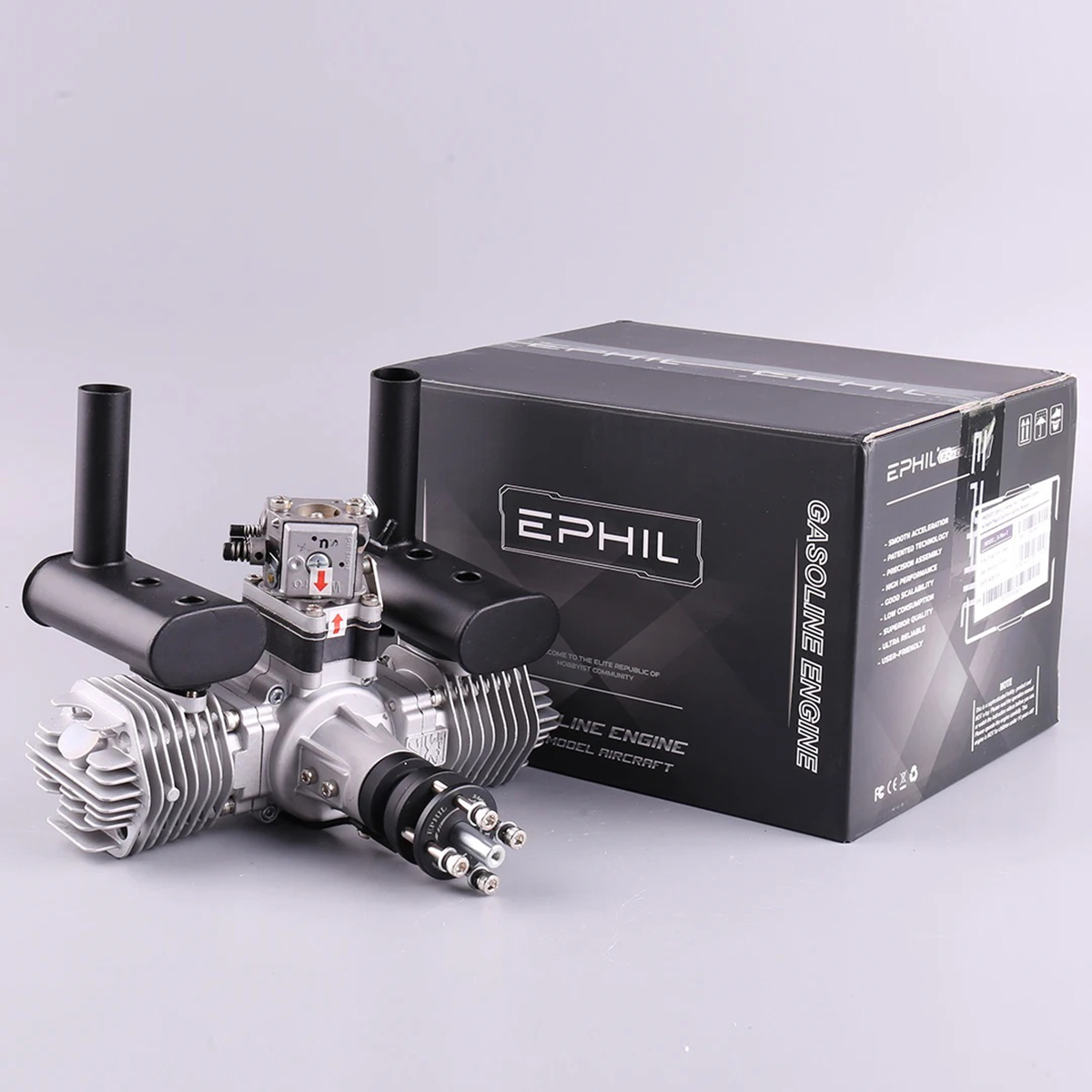

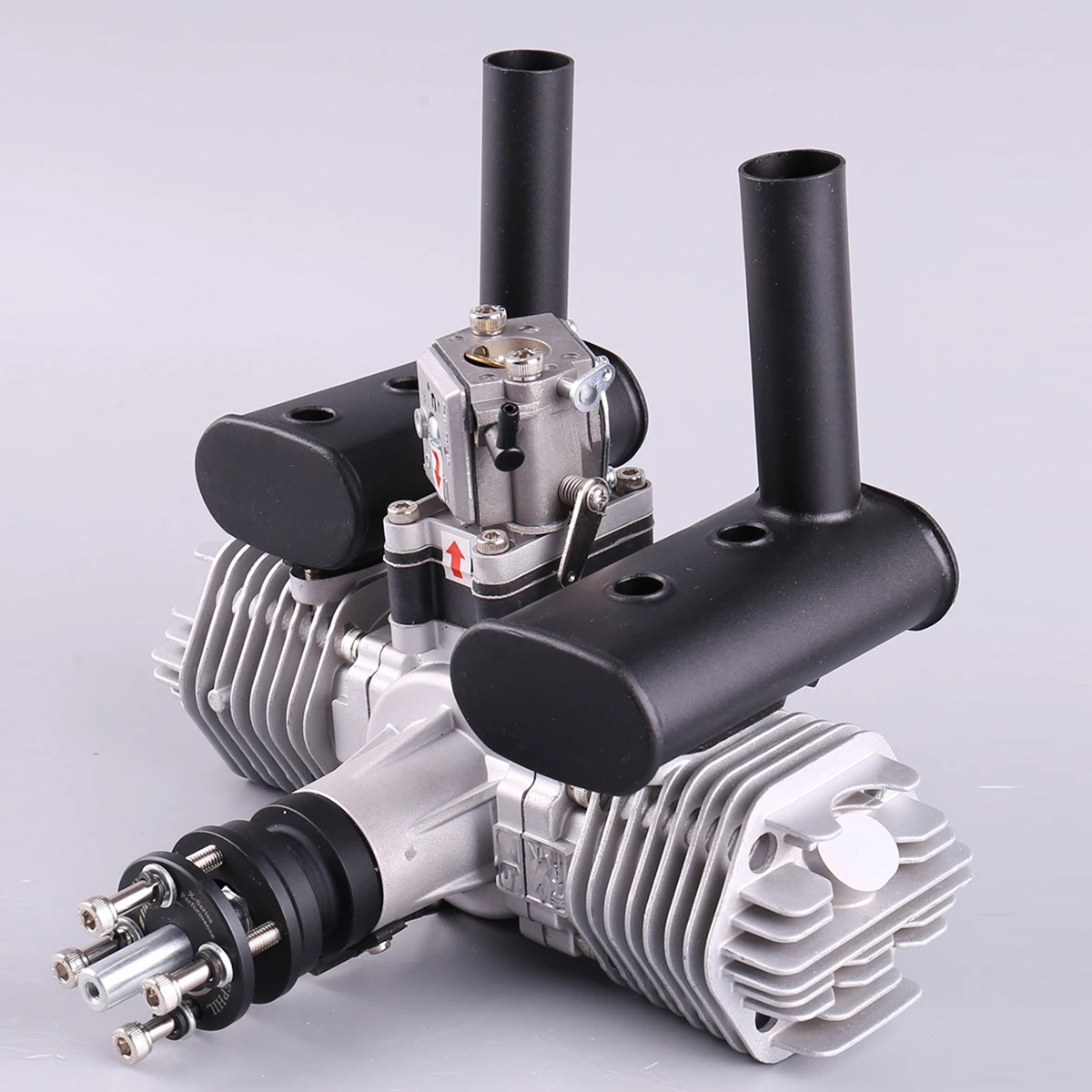

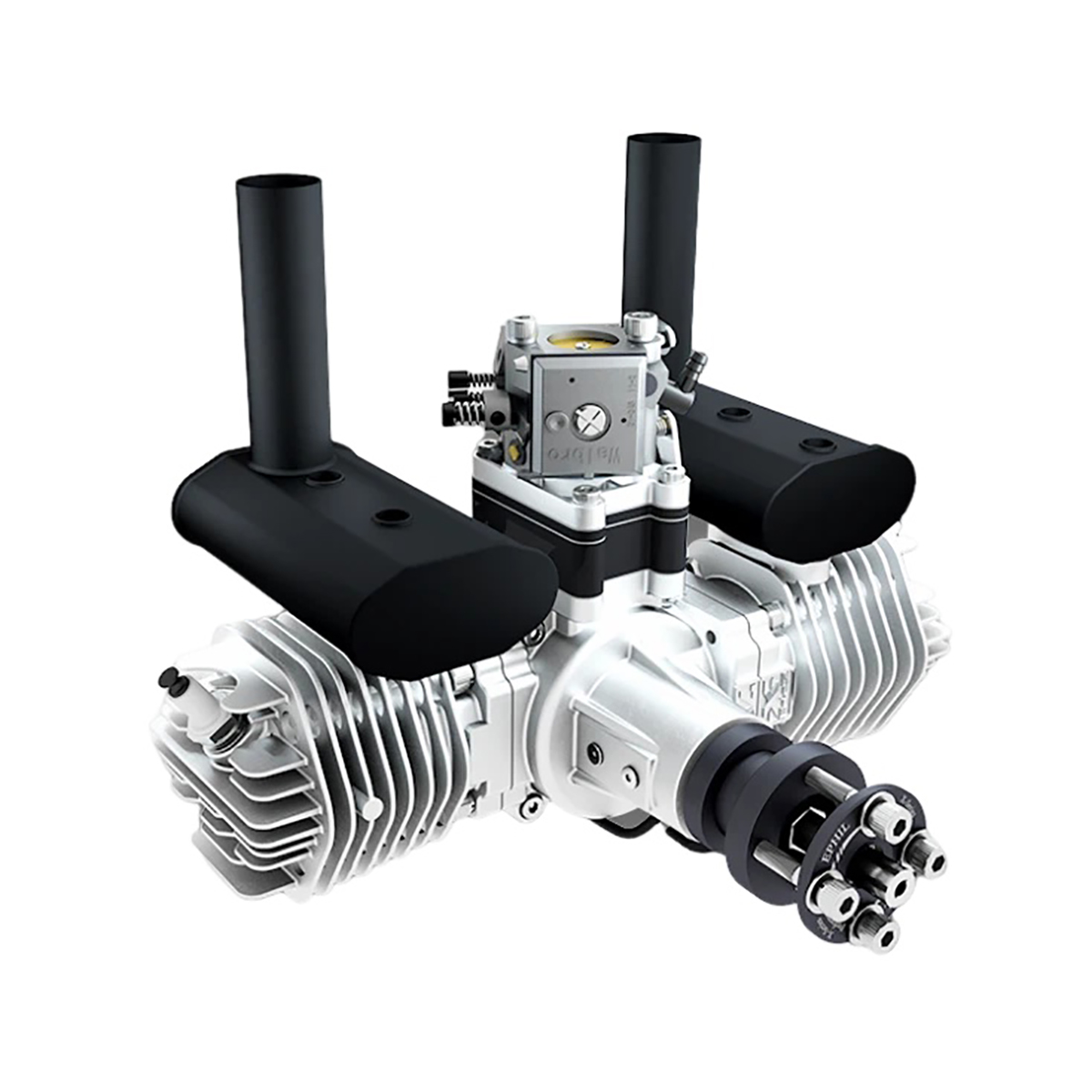

EPHIL X-76cc-T Gasoline Engine Opposed Twin Cylinder Two Stroke Large Displacement Engine for RC Airplane
EPHIL X-76cc-T Gasoline Engine Opposed Twin Cylinder Two Stroke Large Displacement Engine for RC Airplane
EPHIL X-76cc-T Gasoline Engine Opposed Twin Cylinder Two Stroke Large Displacement Engine for RC Airplane

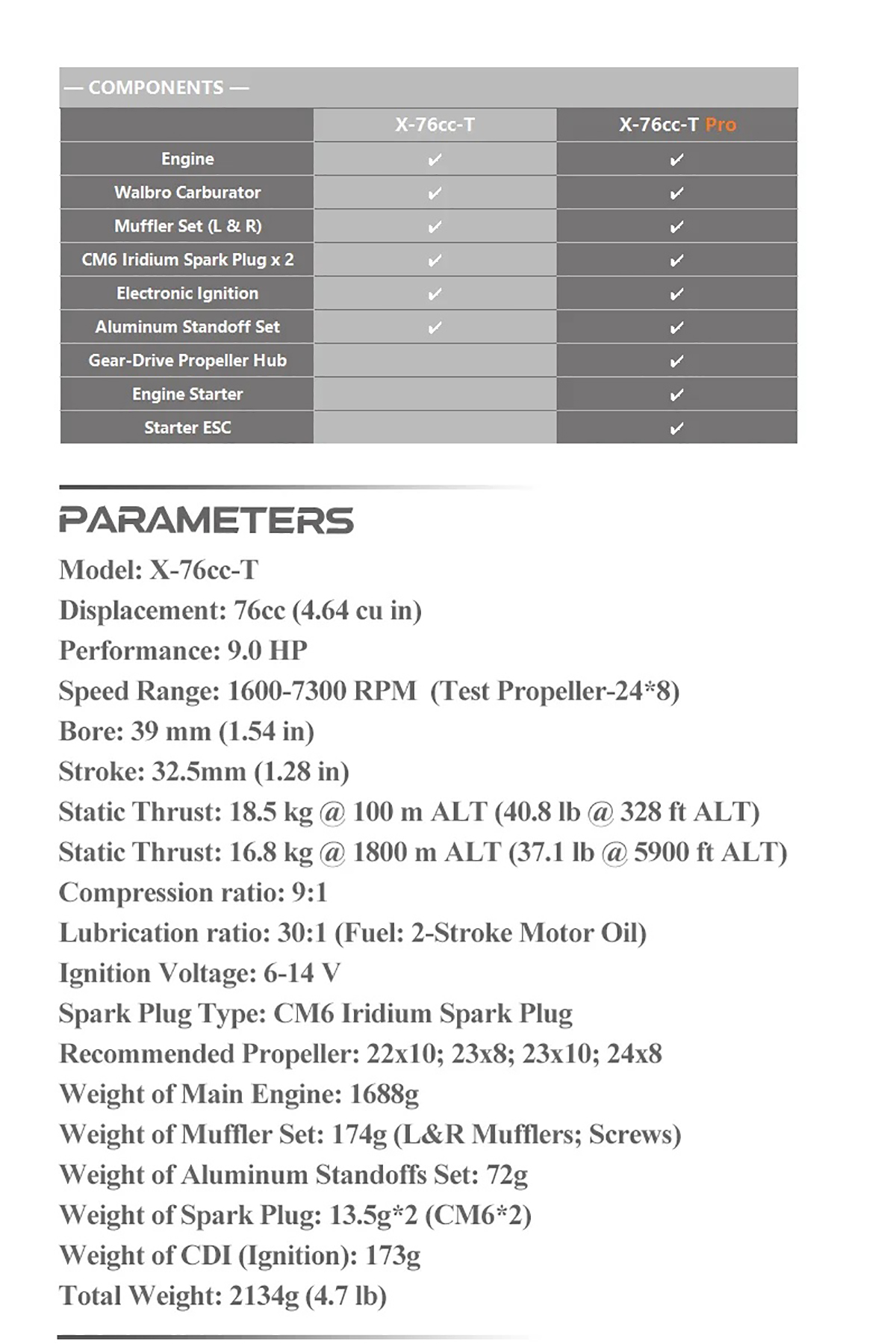

Model: X-76cc-T
Displacement: 76cc (4.64 cu in)
Performance: 9.0 HP
Speed Range: 1600-7300 RPM (Test Propeller-24*9)
Bore: 39 mm (1.54 in)
Stroke: 32.5mm (1.28 in)
Static Thrust: 18.5 kg @ 100 m ALT (40.8 lb @ 328 ft ALT)
Static Thrust: 16.8 kg @ 1800 m ALT (37.1 lb @ 5900 ft ALT)
Compression ratio: 9:1
Lubrication ratio: 30:1 (Fuel: 2-Stroke Motor Oil)
Ignition Voltage: 6-14 V
Spark Plug Type: CM6 Iridium Spark Plug
Recommended Propeller: 22×10; 23×8; 23×10; 24×8
Weight of Main Engine: 1688g
Weight of Muffler Set: 174g (L&R Mufflers; Screws)
Weight of Aluminum Standoffs Set: 72g
Weight of Spark Plug: 13.5g*2 (CM6*2)
Weight of CDI (Ignition): 173g
Total Weight: 2134g (4.7 lb)

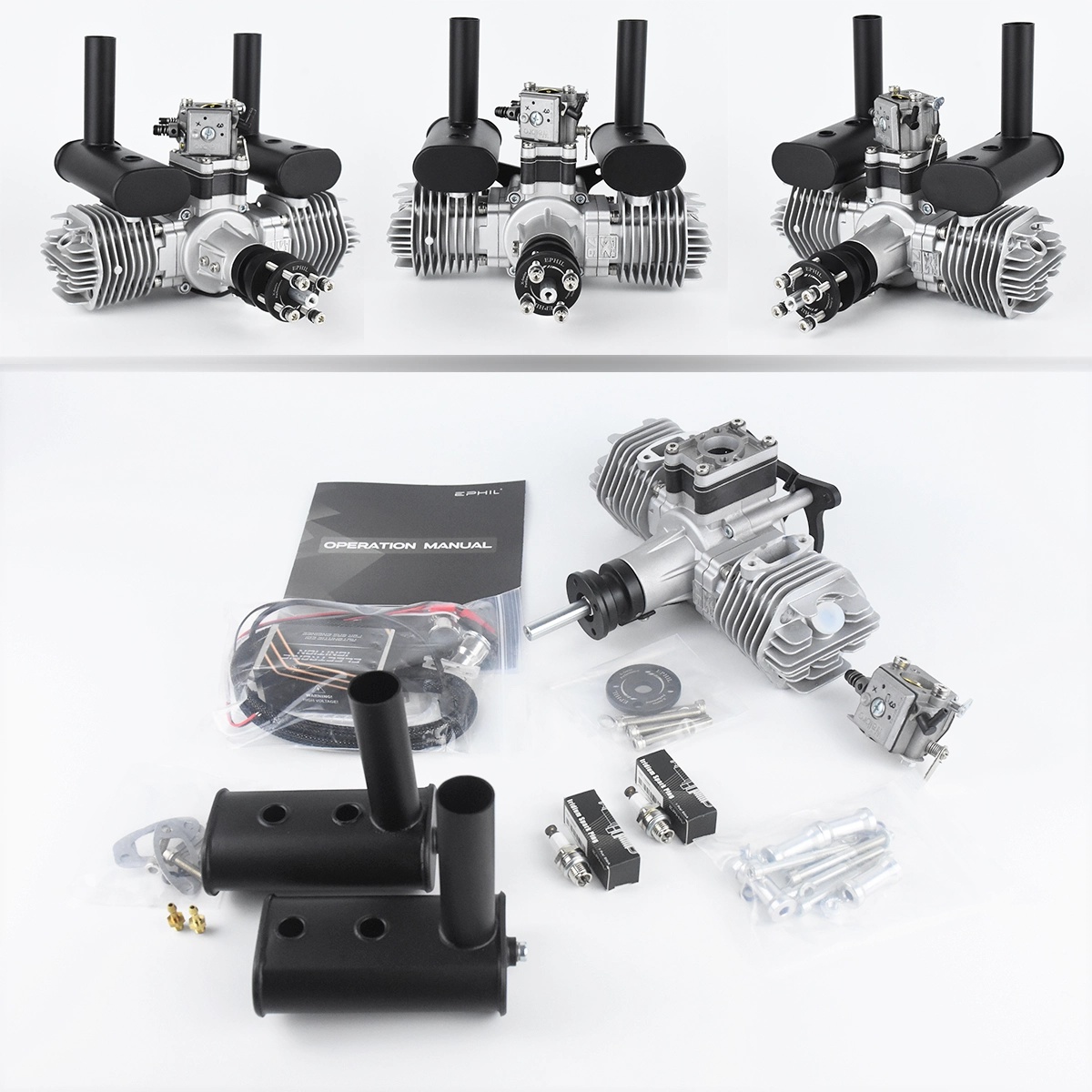

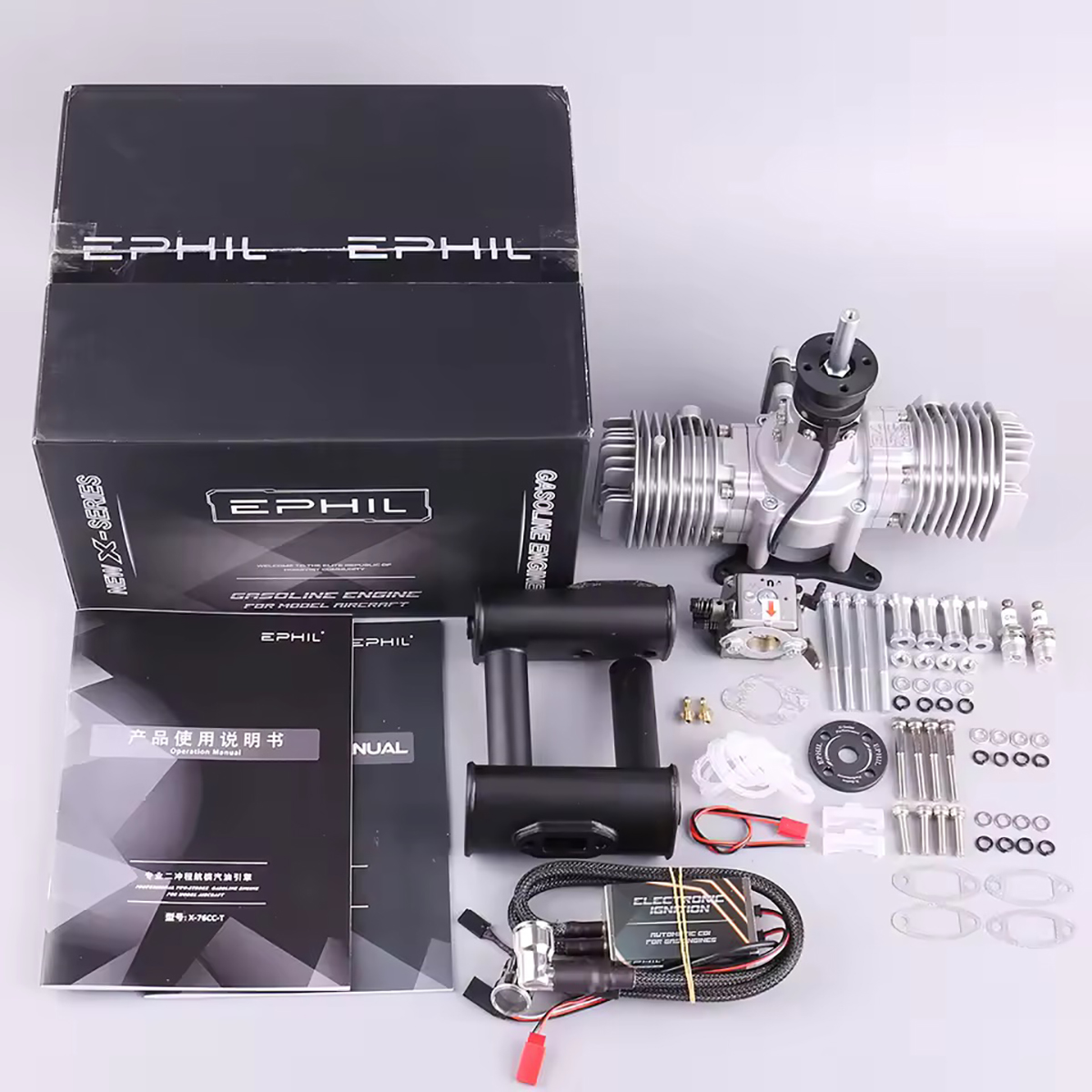

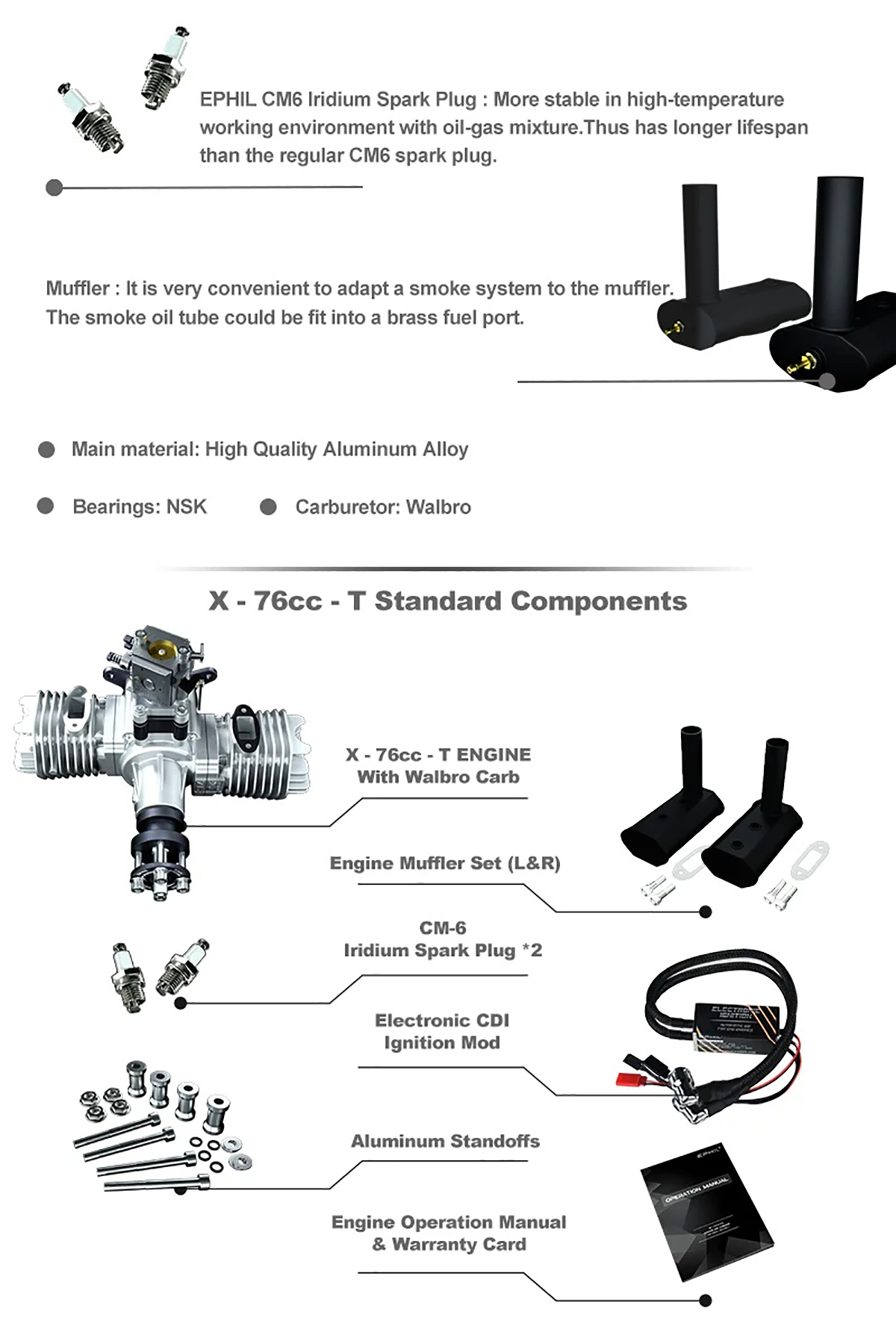

X-76cc-T Engine With Walbro Carb x1
Engine Muffler Set (L&R) x1
CM-6 lridium Spark Plug x 2
Electronic CDI lgnition Mod x1
Aluminum Standoffs Set x1
Engine Operation Manual & Warranty Card x1
