EPHIL XG-20cc-R Pro Glow Gasoline Engine Two Stroke Electric Starter Single Cylinder Rear Exhaust for RC Fixed-Wing
EPHIL XG-20cc-R Pro Glow Gasoline Engine Two Stroke Electric Starter Single Cylinder Rear Exhaust for RC Fixed-Wing
EPHIL XG-20cc-R Pro Glow Gasoline Engine Two Stroke Electric Starter Single Cylinder Rear Exhaust for RC Fixed-Wing

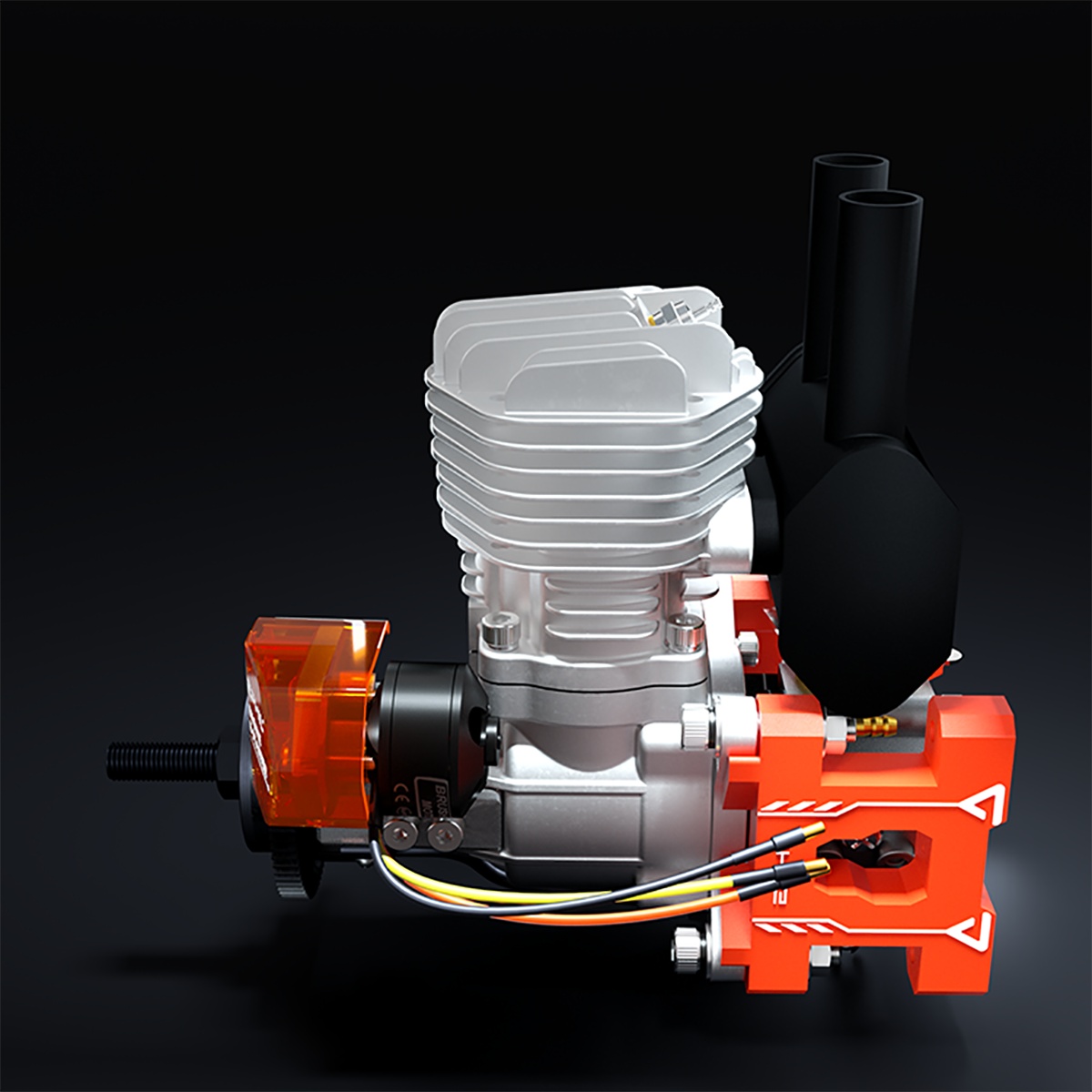

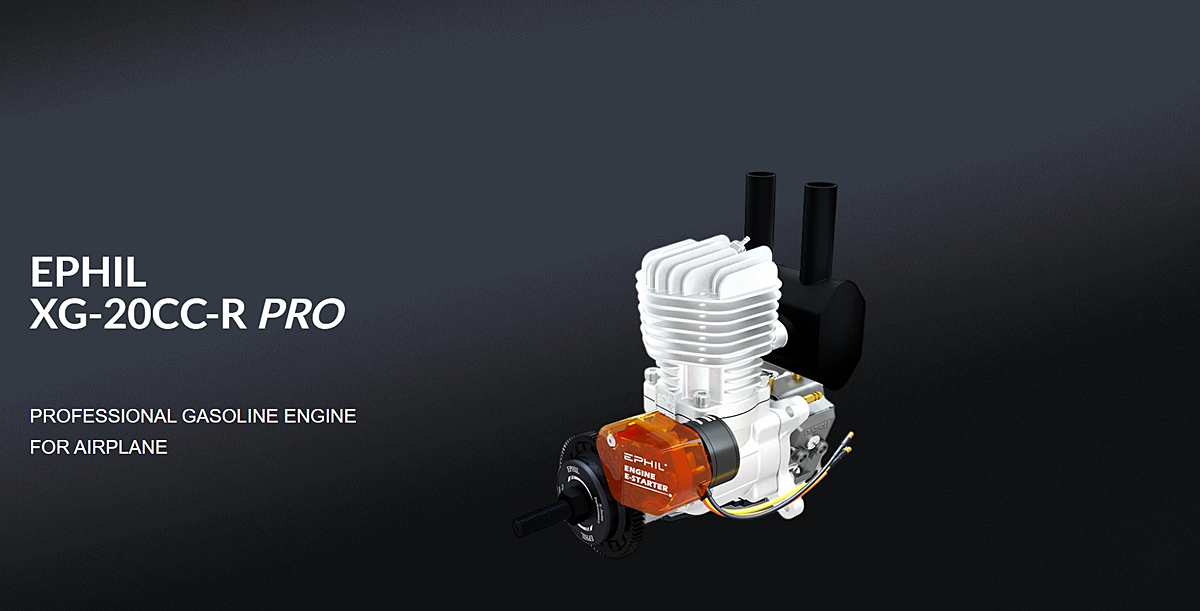

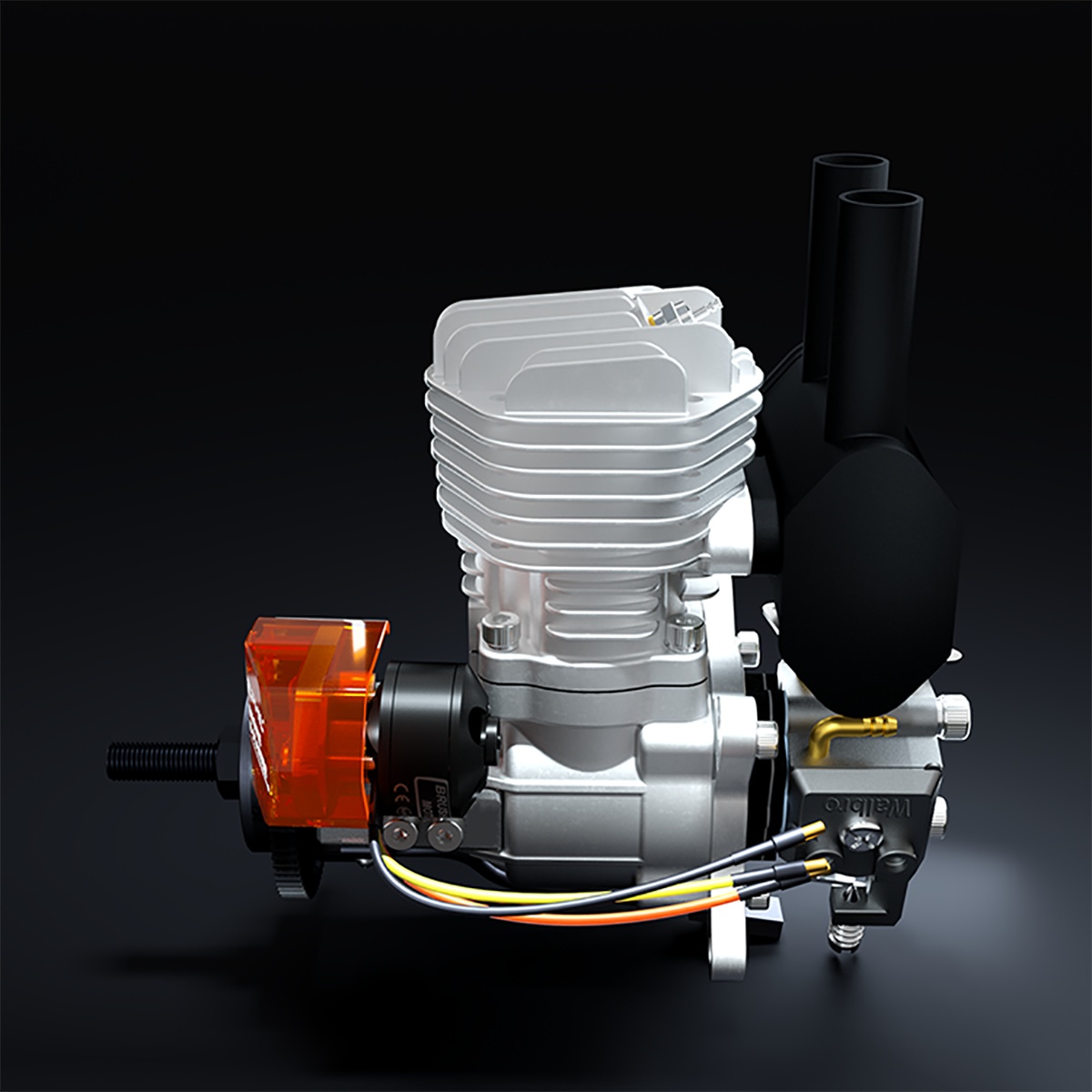

Model: XG-20cc-R Pro
Displacement: 20cc (1.22 cu in)
Performance: 2.4 HP
Speed Range: 2000-8500 RPM (Test Propeller-16*8)
Bore: 32 mm (1.26 in)
Stroke: 27mm (1.06 in)
Static Thrust: 6.9 kg @ 100 m ALT (15.2 lb @ 328 ft ALT)
Static Thrust: 5.3 kg @ 1800 m ALT (11.7 lb @ 5900 ft ALT)
Compression ratio: 9:1
Lubrication ratio: 30:1 (Fuel: 2-Stroke Motor Oil)
Ignition Voltage: 6-8.4 V
Glow Plug Type: E8 (or OS G5) Glow Plug & AET Power System
Recommended Propeller: 16×8; 14×10; 15×8; 16×6; 17×6
Weight of Main Engine: 697g
Weight of Muffler Set: 60g
Weight of Engine Mount Set: 65g
Weight of Glow Plug: 3.6g
Weight of AET (Ignition): 30g
Weight of Starter: 85g
Weight of ESC: 36g
Total Weight: 1099g (2.42 lb)

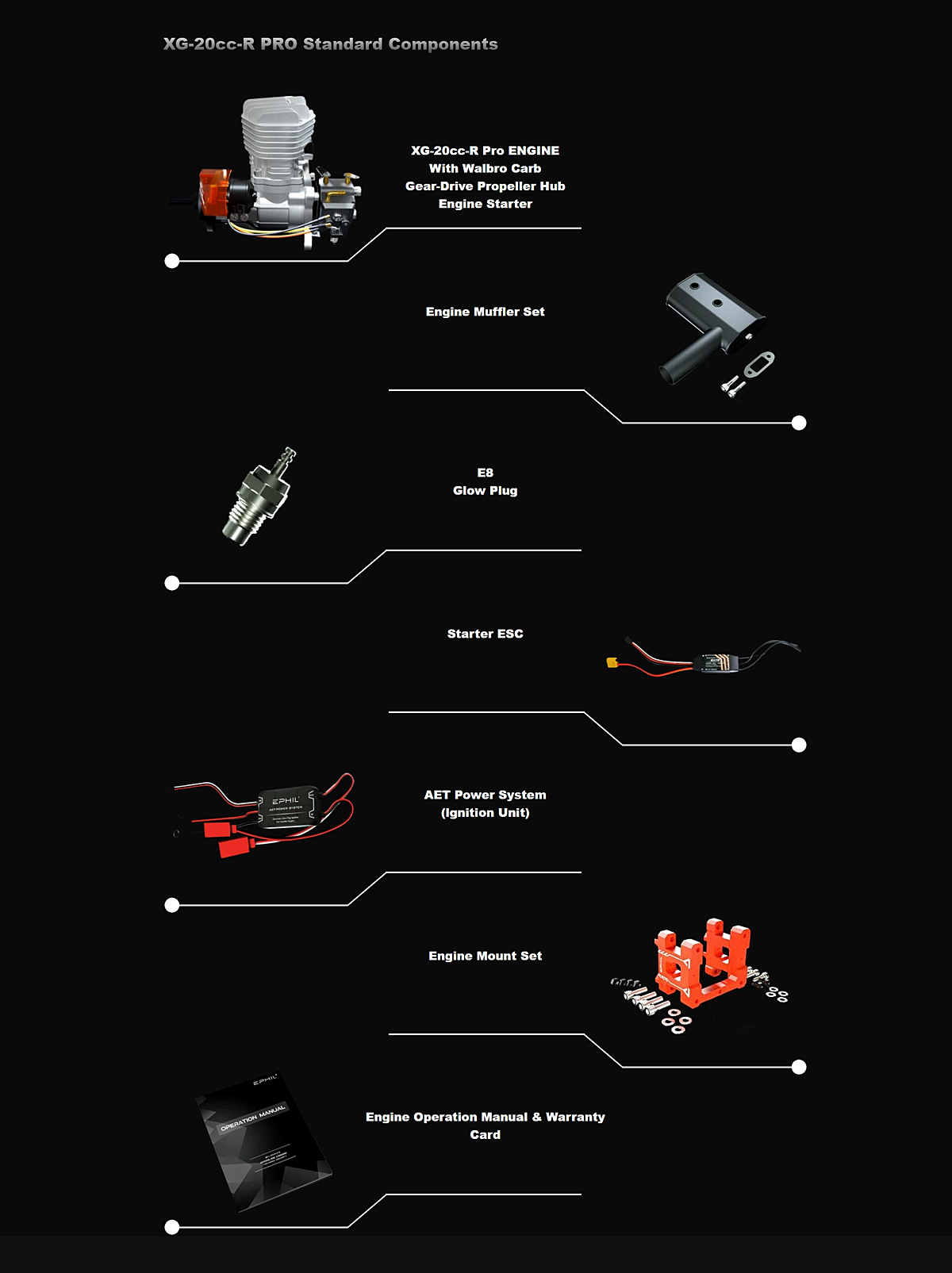

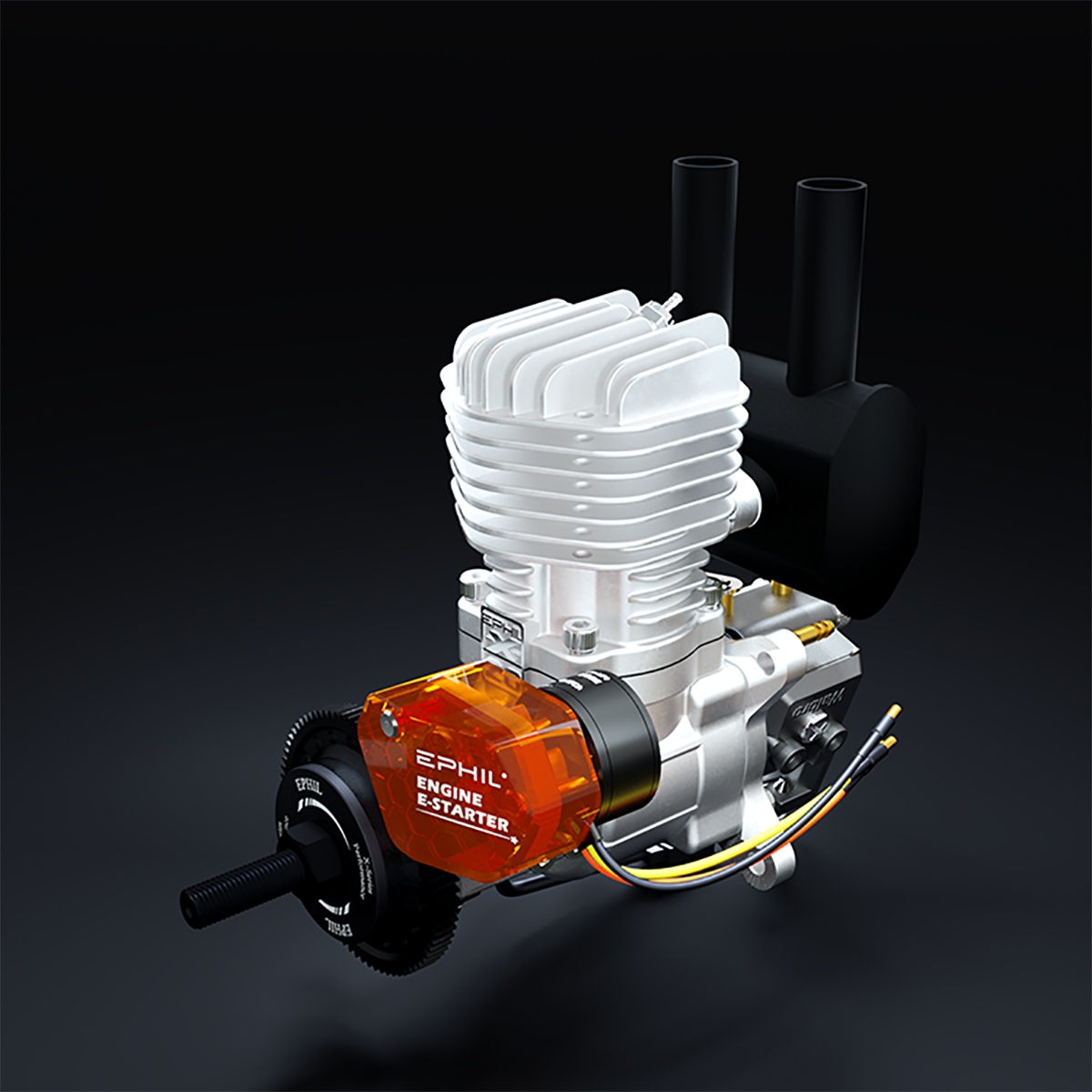

XG-20cc-R Pro Engine x1
Engine Muffler Set x1
E8 Glow Plug x1

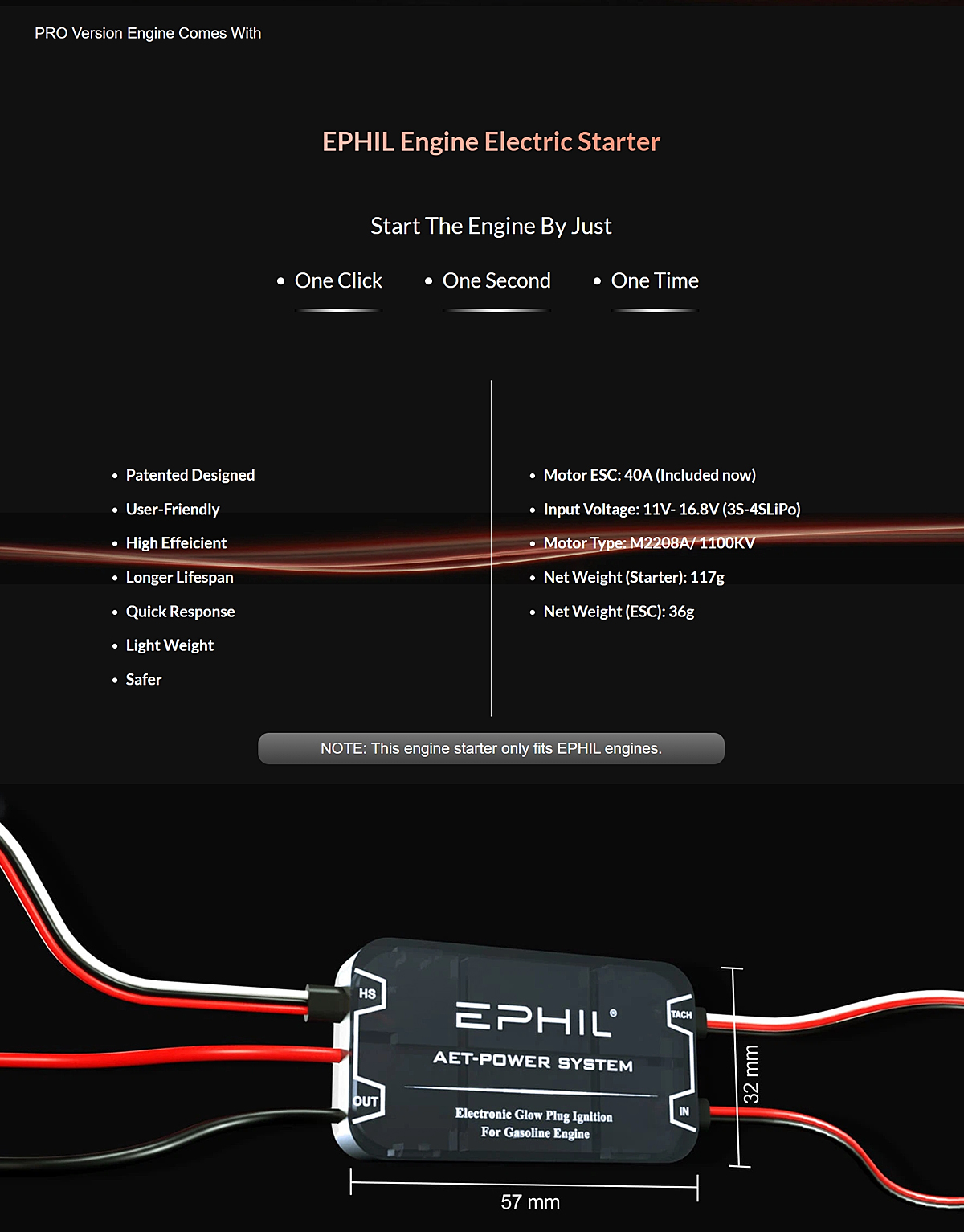

Starter ESC x1
AET Power System (lgnition Unit) x1
Engine Mount Set x1
Engine Operation Manual & Warranty Card x1
