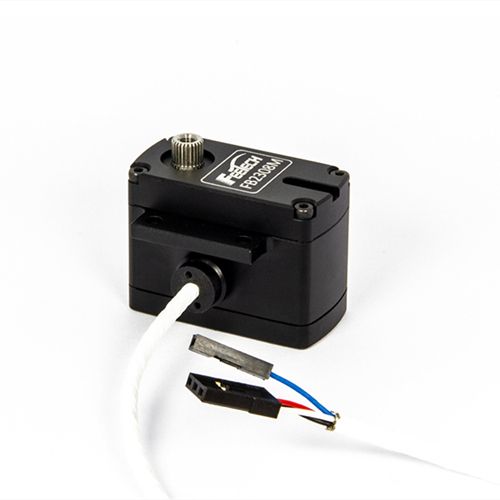

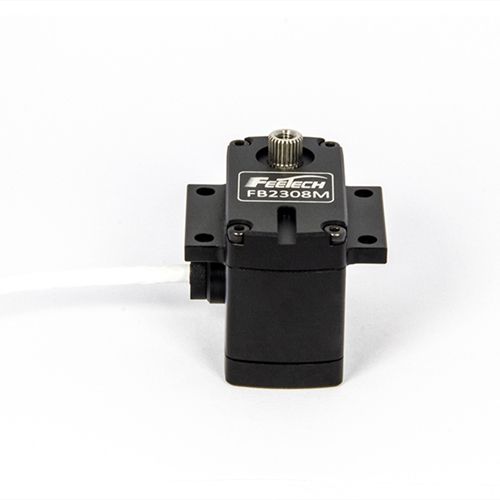

Model：FB2308M
Storage Temperature Range：-40℃～80℃
Operating Temperature Range: -20℃～60℃

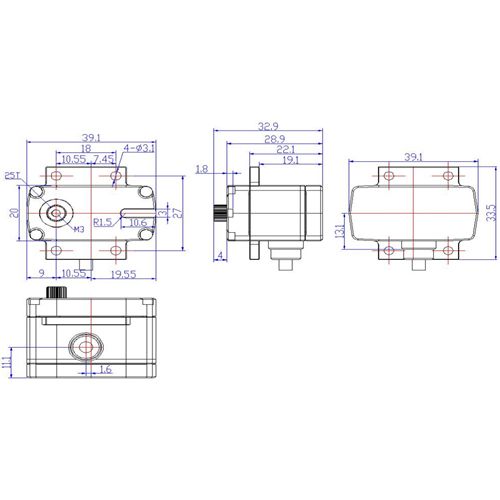

Size: A：39.1mm B：33.5mm C: 28.9mm
Weight: 59.5± 1g
Gear type: Steel
Limit angle: NO limit
Bearing: Ball bearings
Horn gear spline: 25T/5.9mm
Gear Ratio: 1/188
Case: Alumi num
Connector wire: 23CM
Motor: Brushless Motor
Operating Voltage Range: 12V
Idle current (atstopped) : 6MA@12V
No load speed: 0.133sec/60°@12V
Runnig current(at no load) : 135mA@12V
Peak stall torque: 7kg.cm@12V
Rated torque: 2.3kg.cm@12V
Stall current: 1.1A@12V
Command si gnal: Pulse width modification
Amplifier type: Digital comparator
Pulse width range: 500~2500 μ sec
Stop position: 1500 μ sec
Running degree: 360°(at 500→2500μsec)
Dead band width: ≤4 μ sec
Rotating direction: Counterclockwi se (at1500→2000 μ sec)
