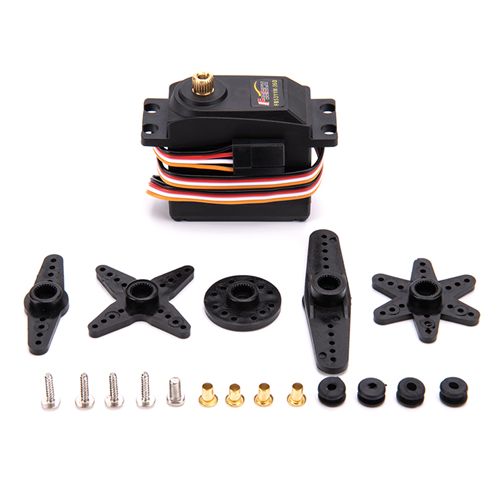

Model：FB5311M-360
Storage Temperature Range：-30℃～80℃
Operating Temperature Range：-15℃～70℃

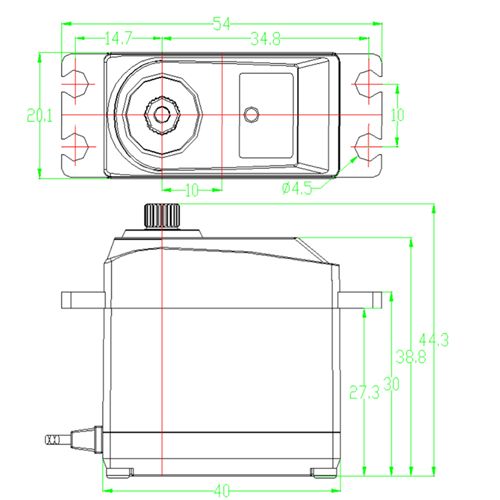

Size：A：40mm B：20.1mm C：38.8mm D：54mm
Weight：64g
Gear type：Copper Gear
Limit angle：No limit
Bearing：2 Ball bearings
Horn gear spline：25T(5.9mm)
Horn type：Plastic,POM
Case：Nylon & Fiberglass
Connector wire：300mm ±5 mm(Black ,Red,white and Orange)
Motor：Metal brush motor
Operating Voltage Range：4.8-6V
Idle current(at stopped)：5mA
No load speed：50RPM@6V
Runnig current(at no load)：150 mA @6V
Peak stall torque：15.5kg.cm@6V
Rated torque：5kg.cm@6V
Stall current：1800mA@6V
Running degree：360°Continuous rotation
Rotating direction：clockwise (when 1500～2000 µsec)；Stop (1500±20 µsec)；Counter clockwise (when 1500～1000 µsec)
Feedback Voltage：0V-3.3V For 0°~360°(when 1500～2000 µsec)
