Application Field
SM40BL It has the advantages of large angle absolute angle and controllable relative angle,According to the application of the robot, the structure is optimized.
Its ideal application field is:

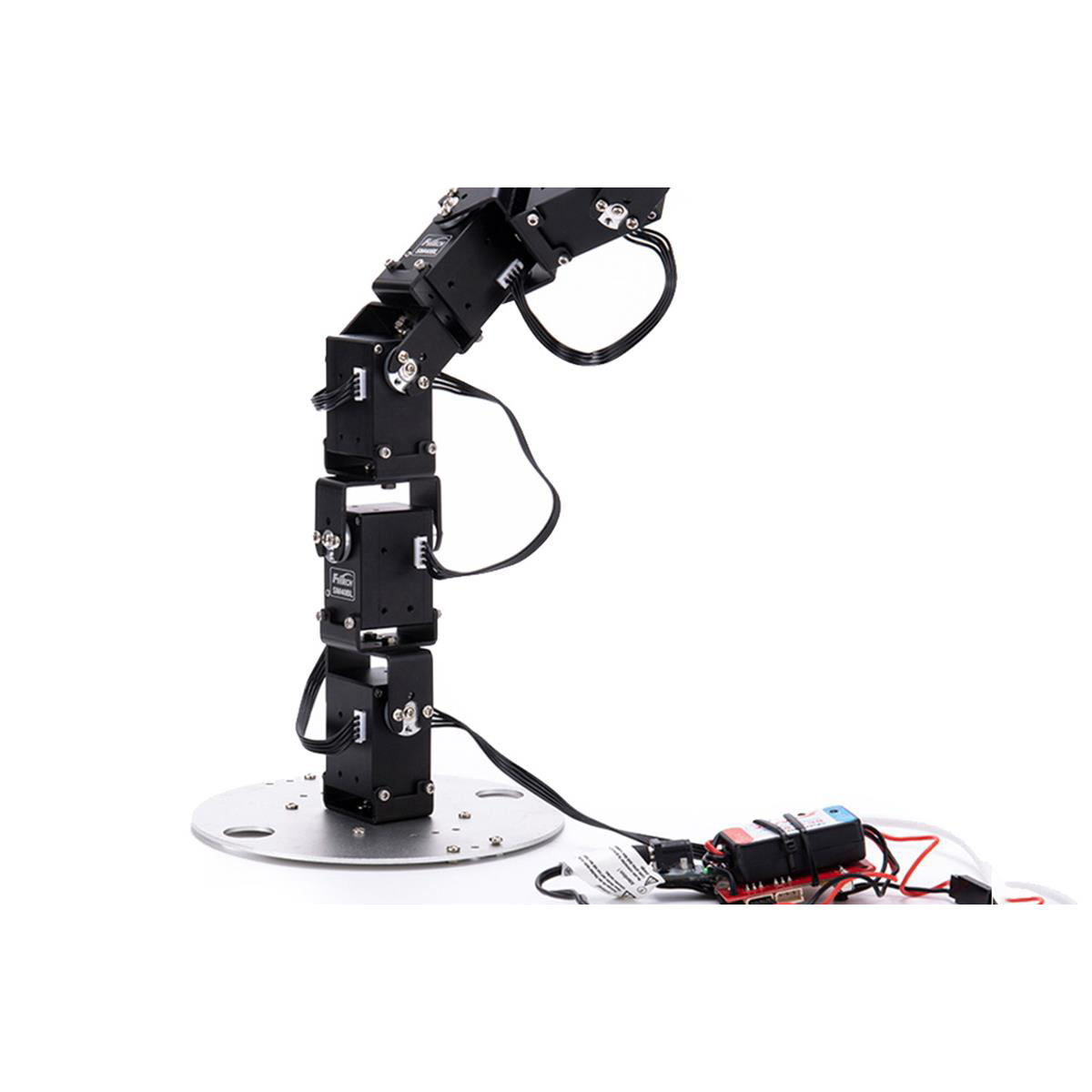

Small humanoid robot

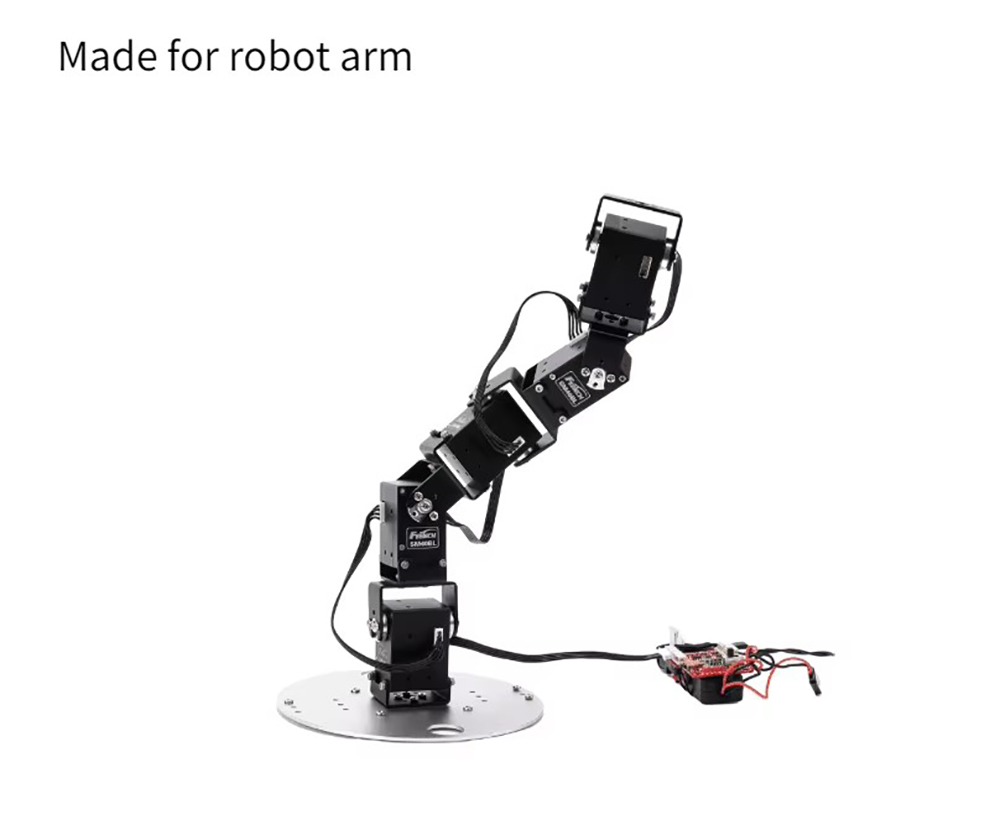

Small joint robot
Small Bionic robot
Robot wheel,Track drive
Industrial automation requiring simple position control

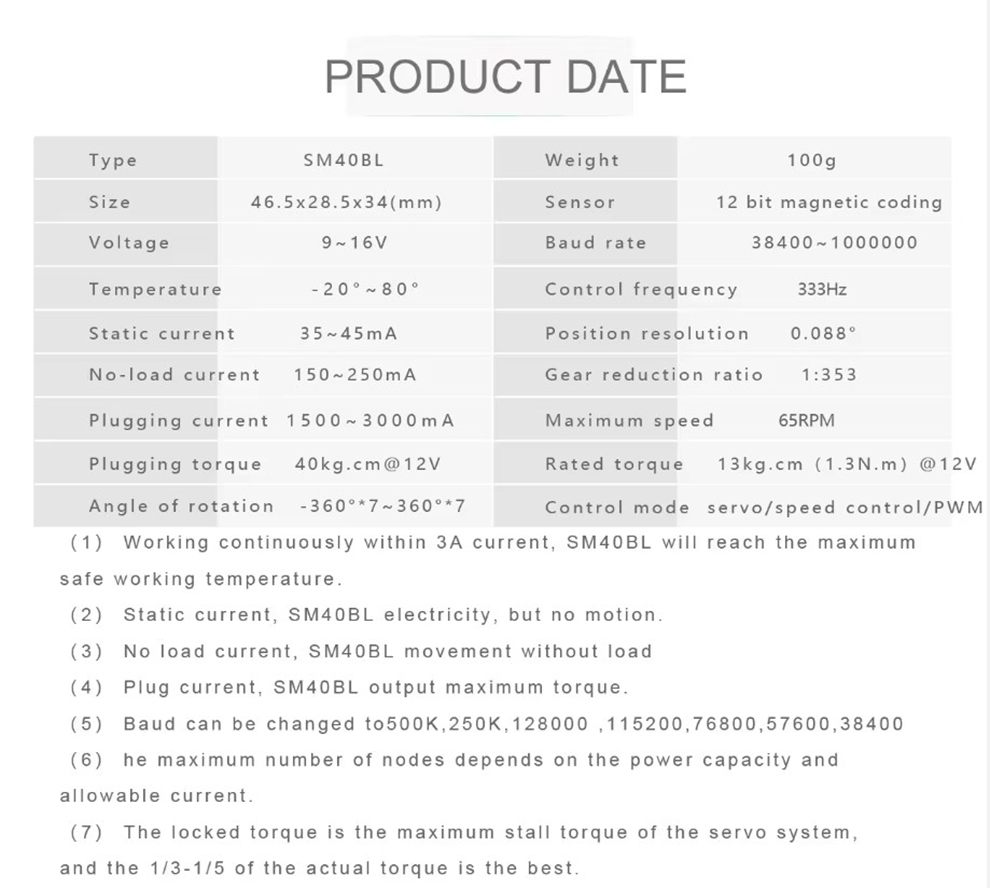

SM40BL robot servo adopts advanced servo control technology and 32 bit high speed ARM microprocessor, fast response, accurate positioning without jitter. Compared to the traditional RC servo 50Hz control frequency, the SM40BL series robot servo through the control frequency of up to 333Hz, to ensure the accuracy of position control and maintain the stability of the moment.

The SM40BL robot servo uses 12 bits high precision magnetic encoder to measure the position, the servo output shaft may rotate continuously for a whole week, the movement torque output is as high as 45kgf.cm.

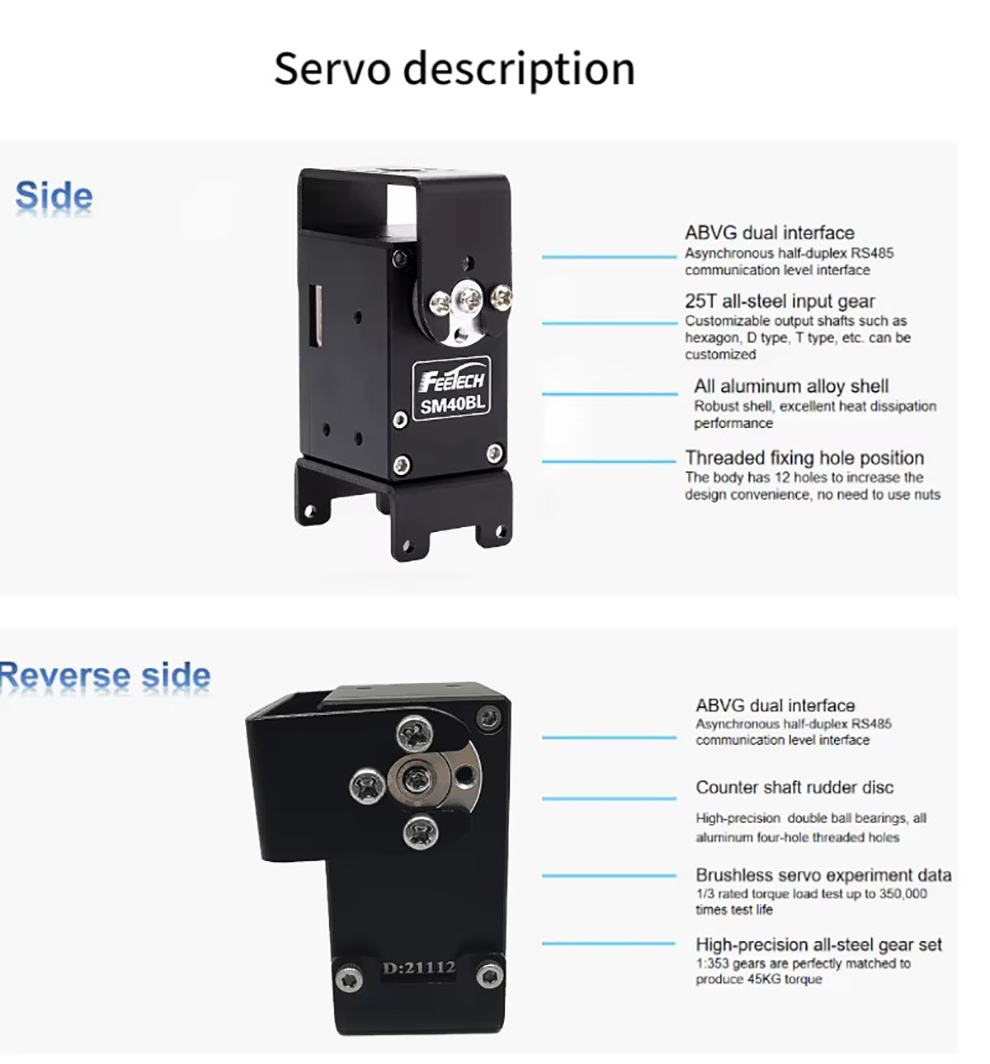

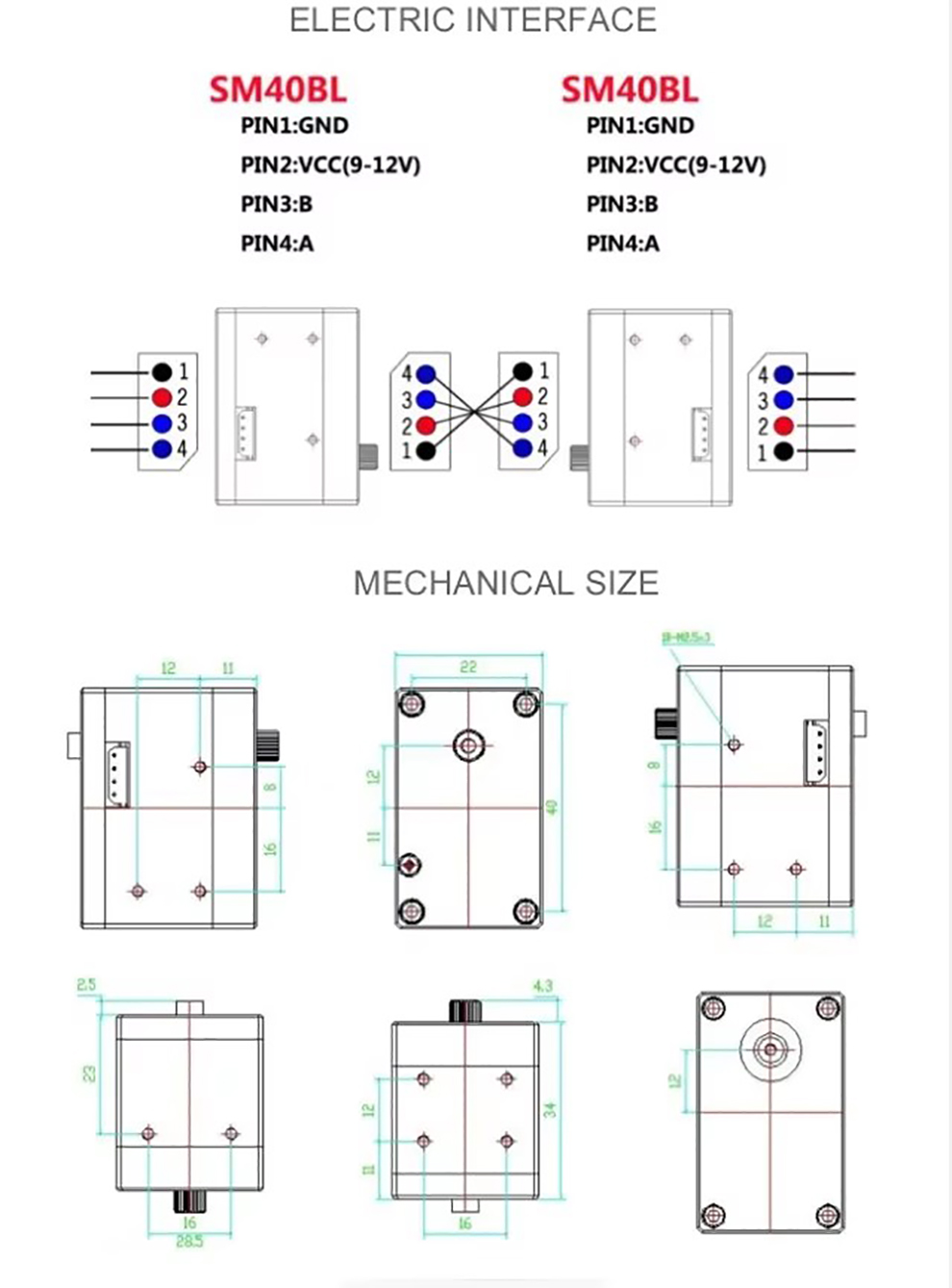

SM40BL has serial bus interface, the 254 robot servo can form a chain through the bus. Each servo can be set with different node addresses, multiple servo wheels can be unified motion can also be a single independent control.

The communication instruction set of SM40BL is completely open, and the servo communicates with the host computer through the asynchronous serial interface. The SM40BL can be set to either the motor mode or the position control mode by sending commands through the asynchronous serial interface.

In motor mode, SM40BL can be used as DC motor, speed adjustable; in position control mode, 0-360 degrees and multi circle arbitrary absolute and relative angle can be controlled within this range with accurate position control performance, speed control.

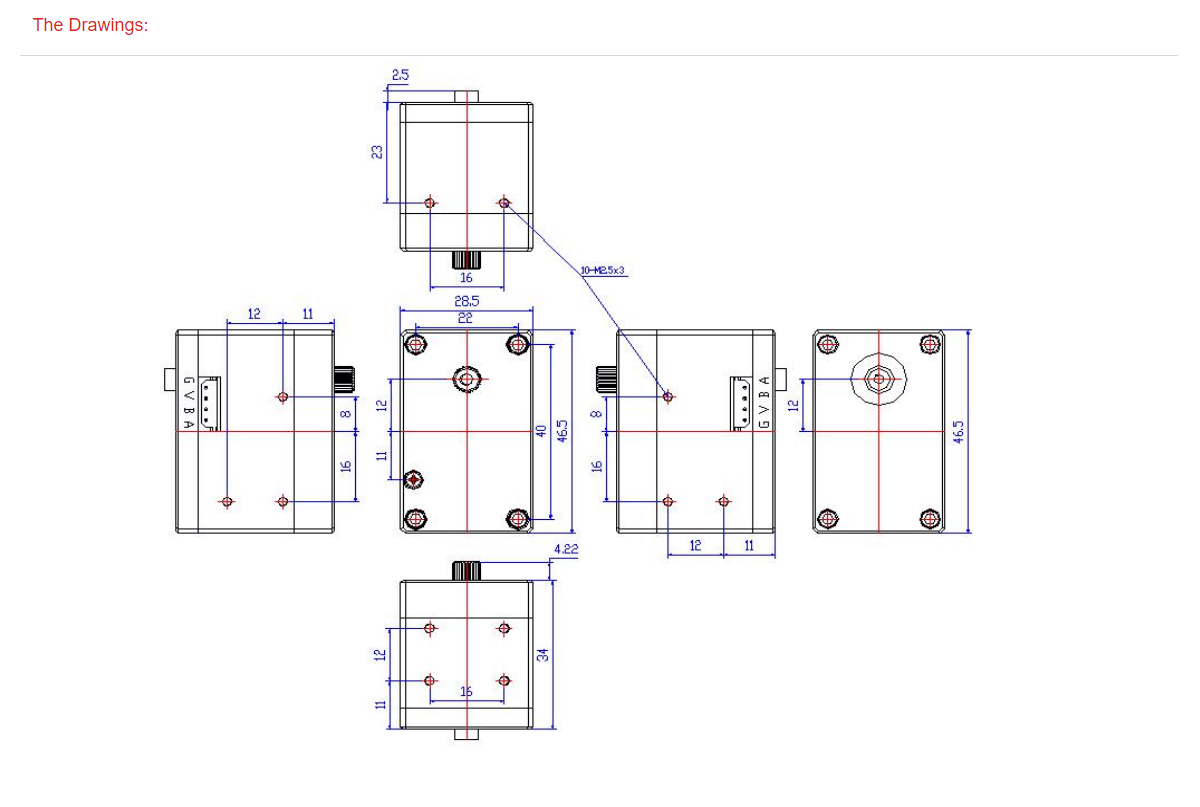

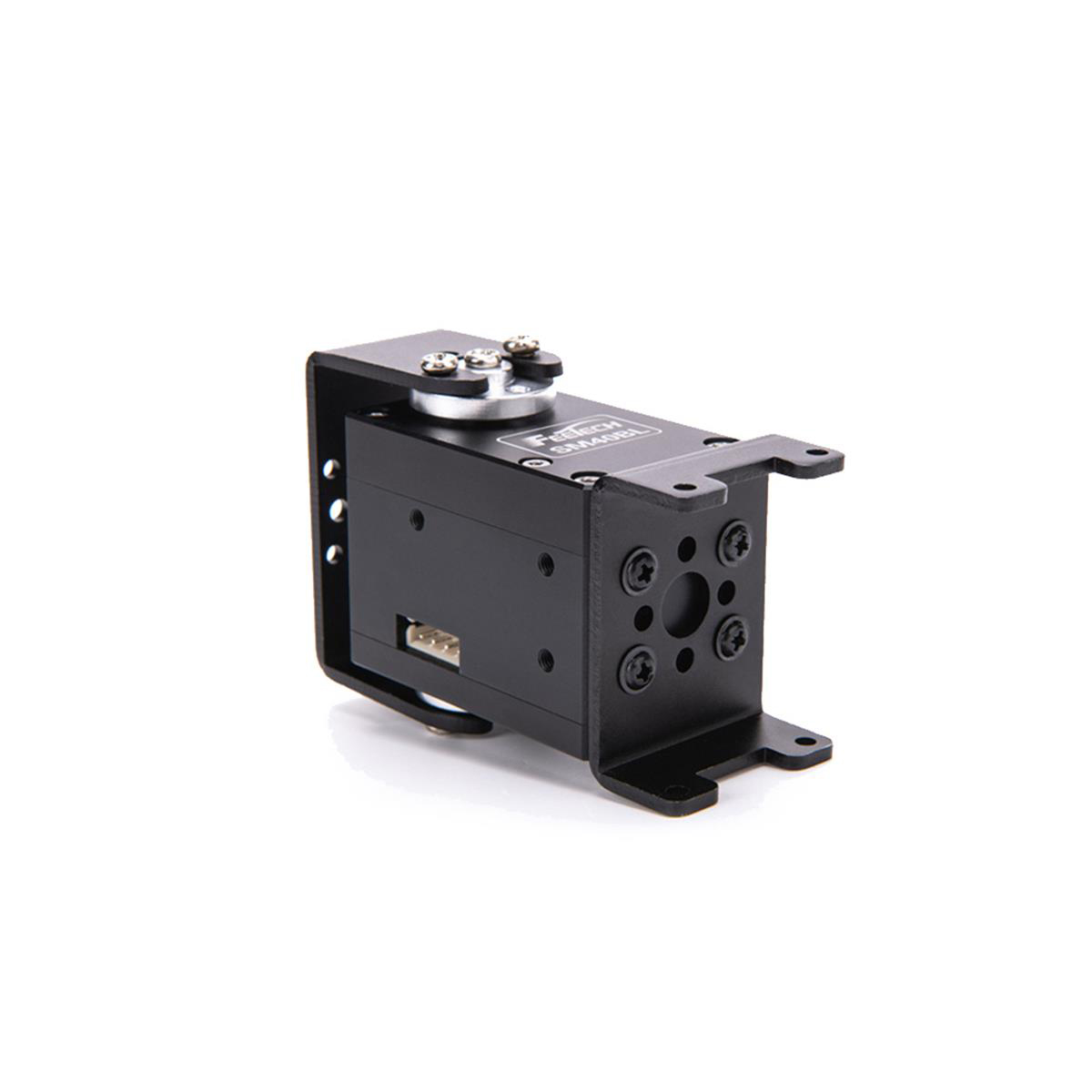

SM40BL robot servo and the founder of the multi – directional installation, user-friendly flexible model.
