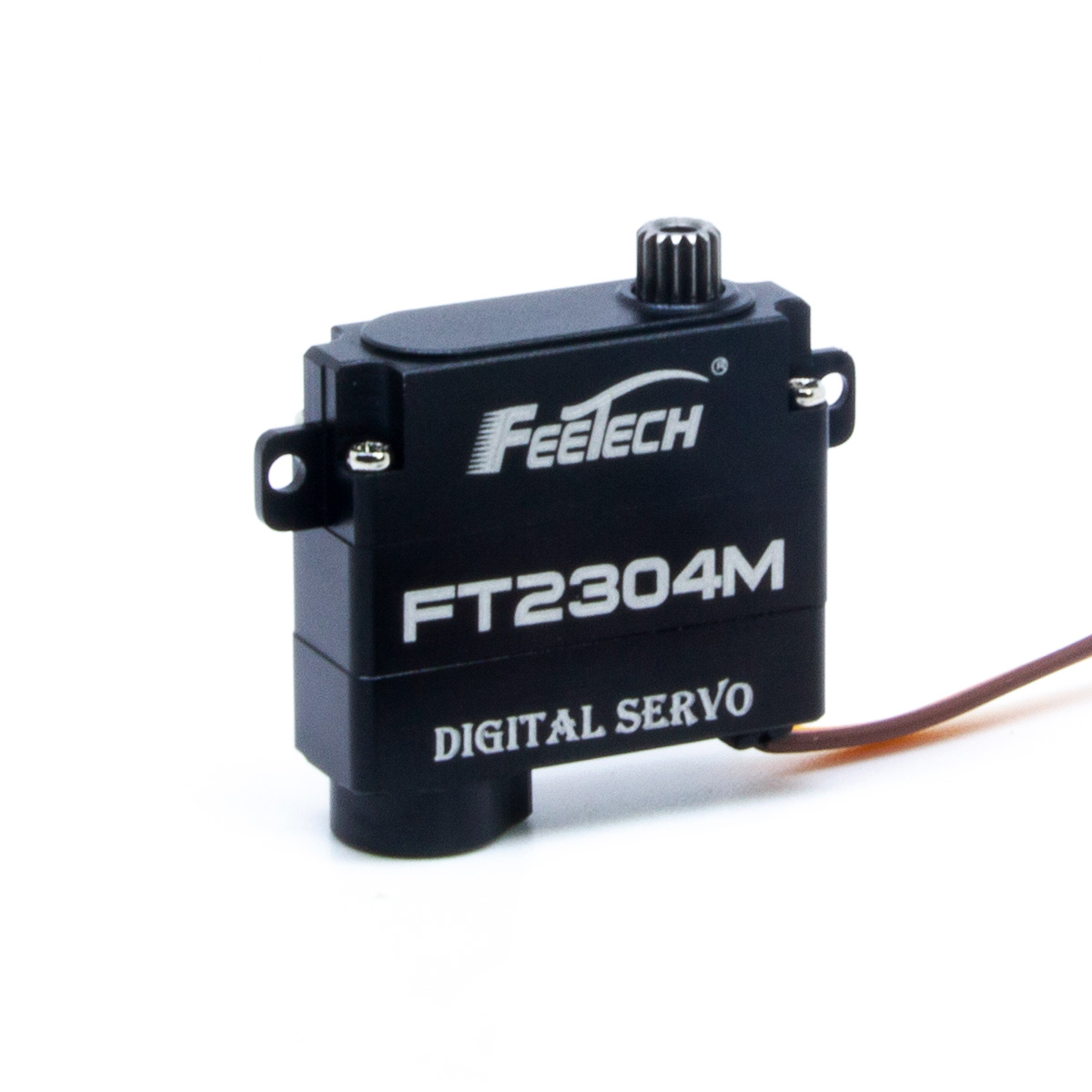

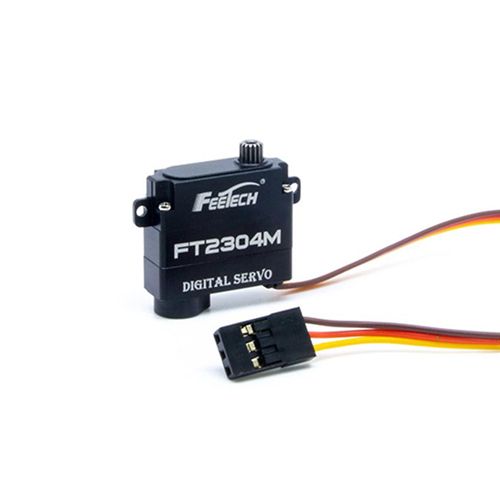

Model：FT2304M
Storage Temperature Range：-30℃～80℃
Operating Temperature Range：-20℃～60℃

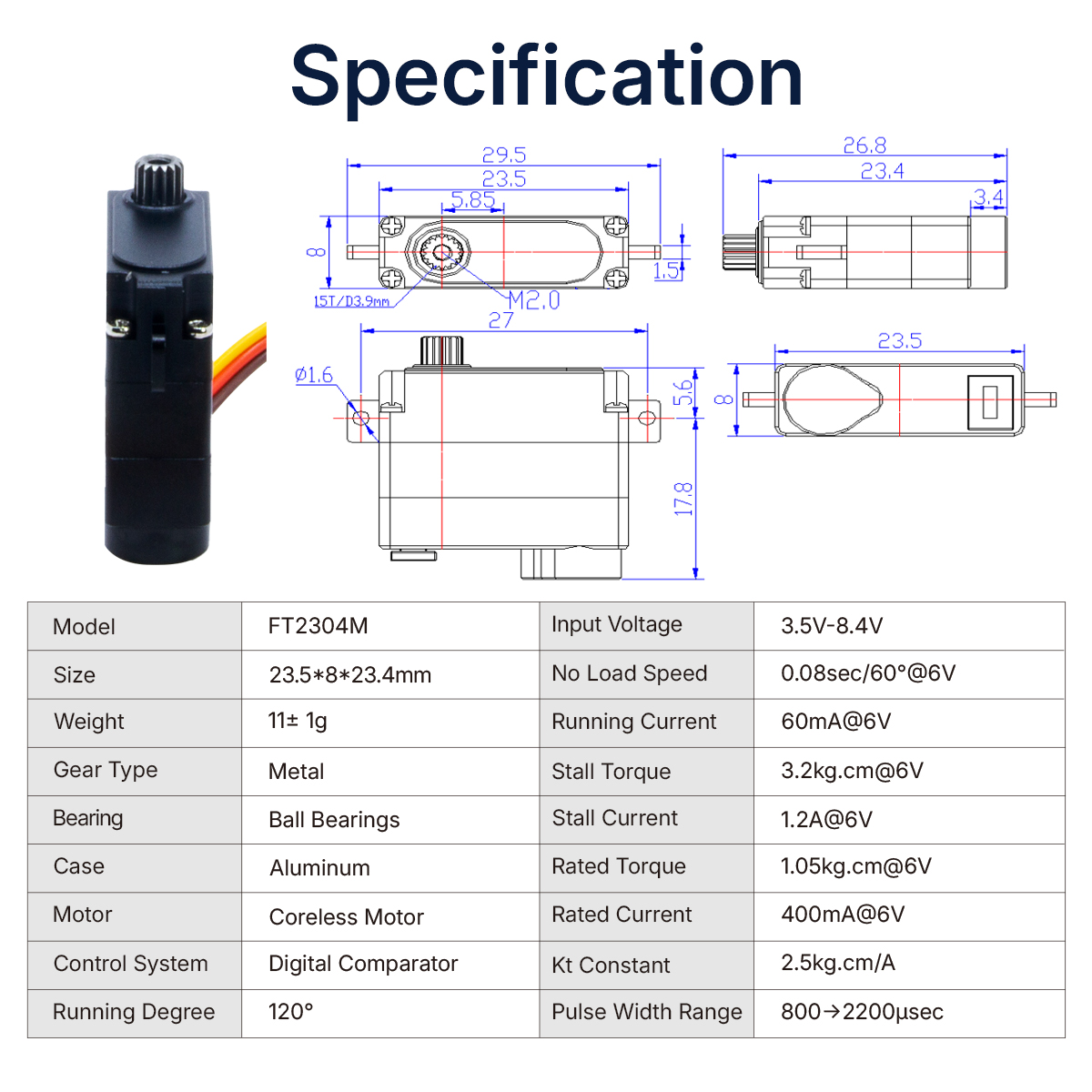

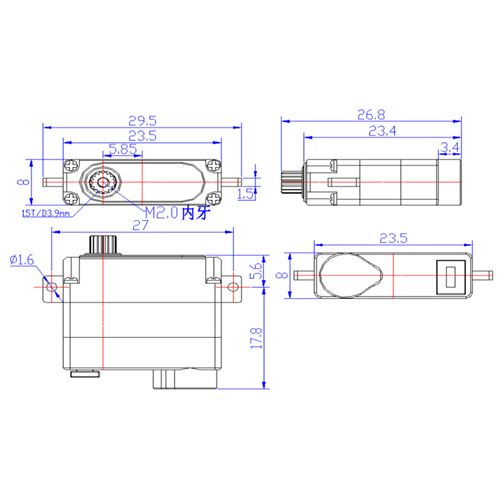

Size: A：23.5mm B：8mm C: 23.4mm

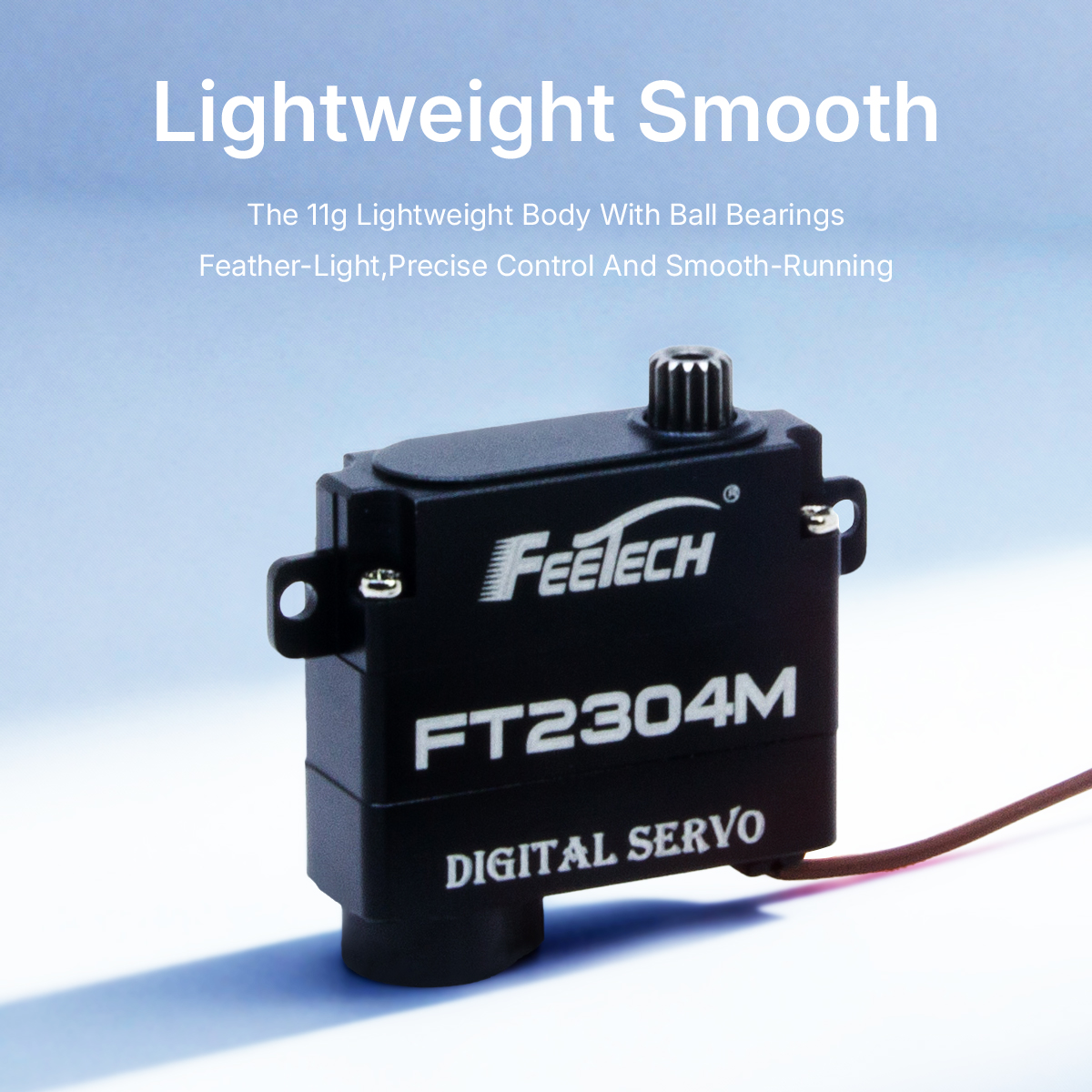

Weight：11± 1g

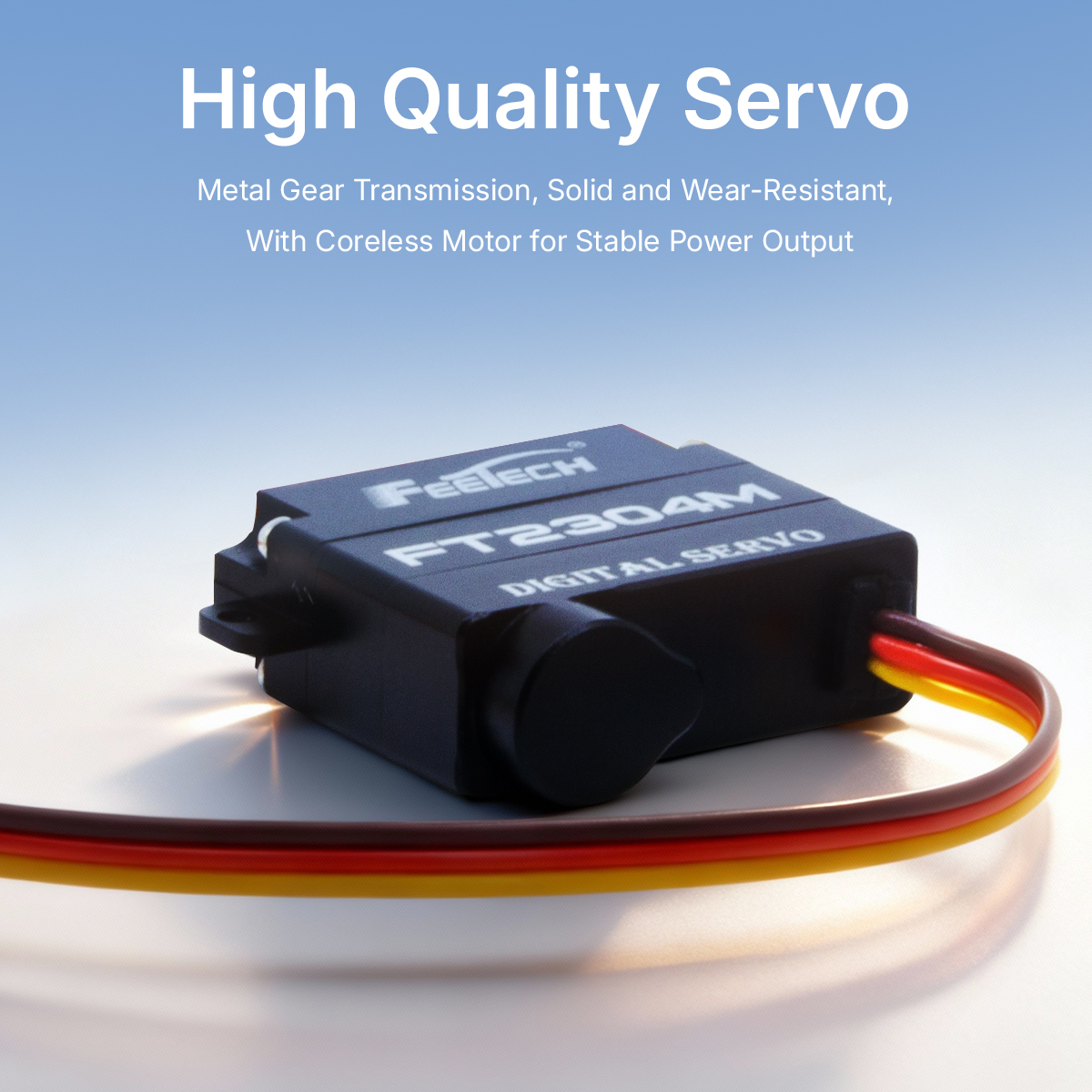

Gear type：Metal Gear
Limit angle：NO limit
Bearing：Ball bearings
Horn gear spline：15T/3.9mm
Case：Alumi num

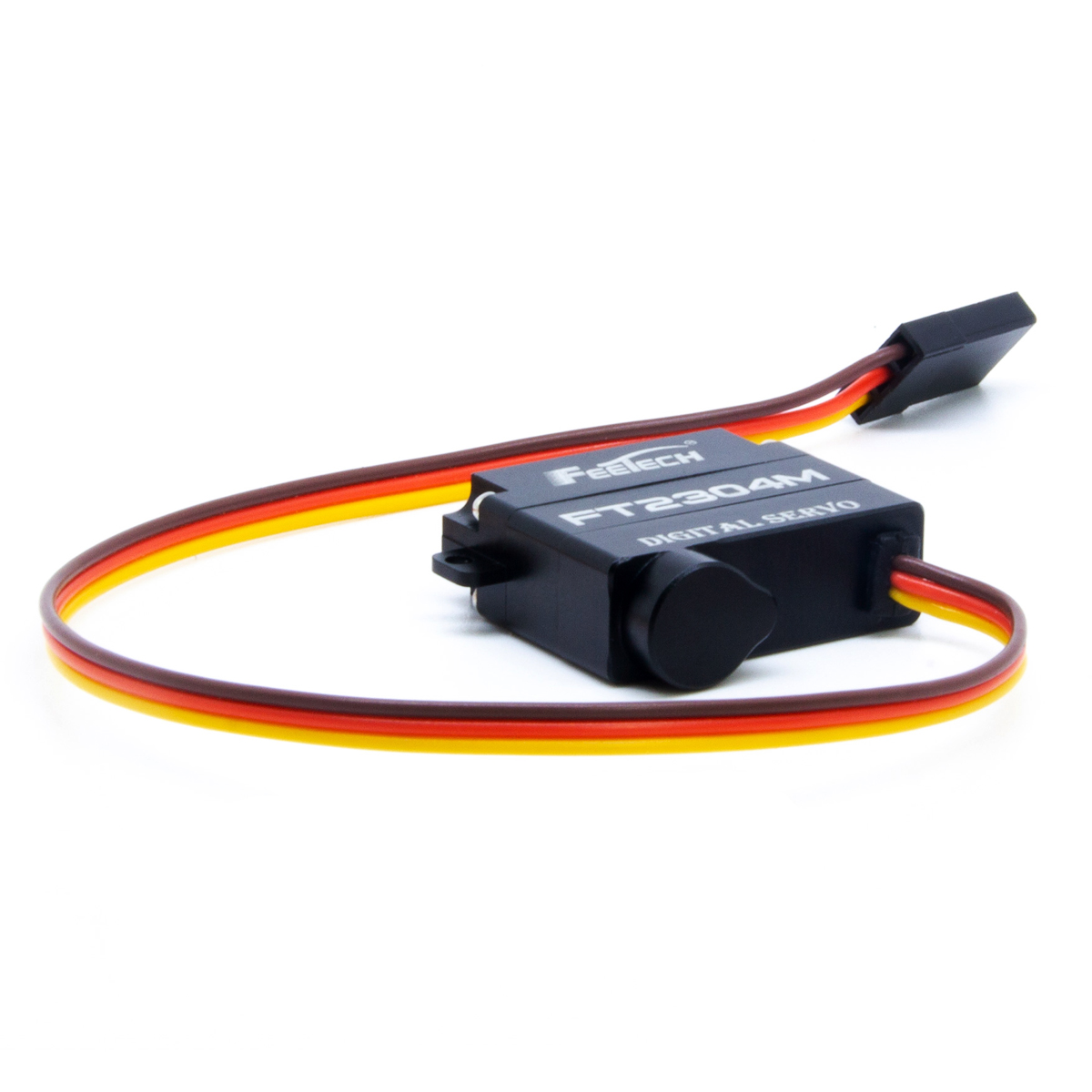

Connector wire：18CM

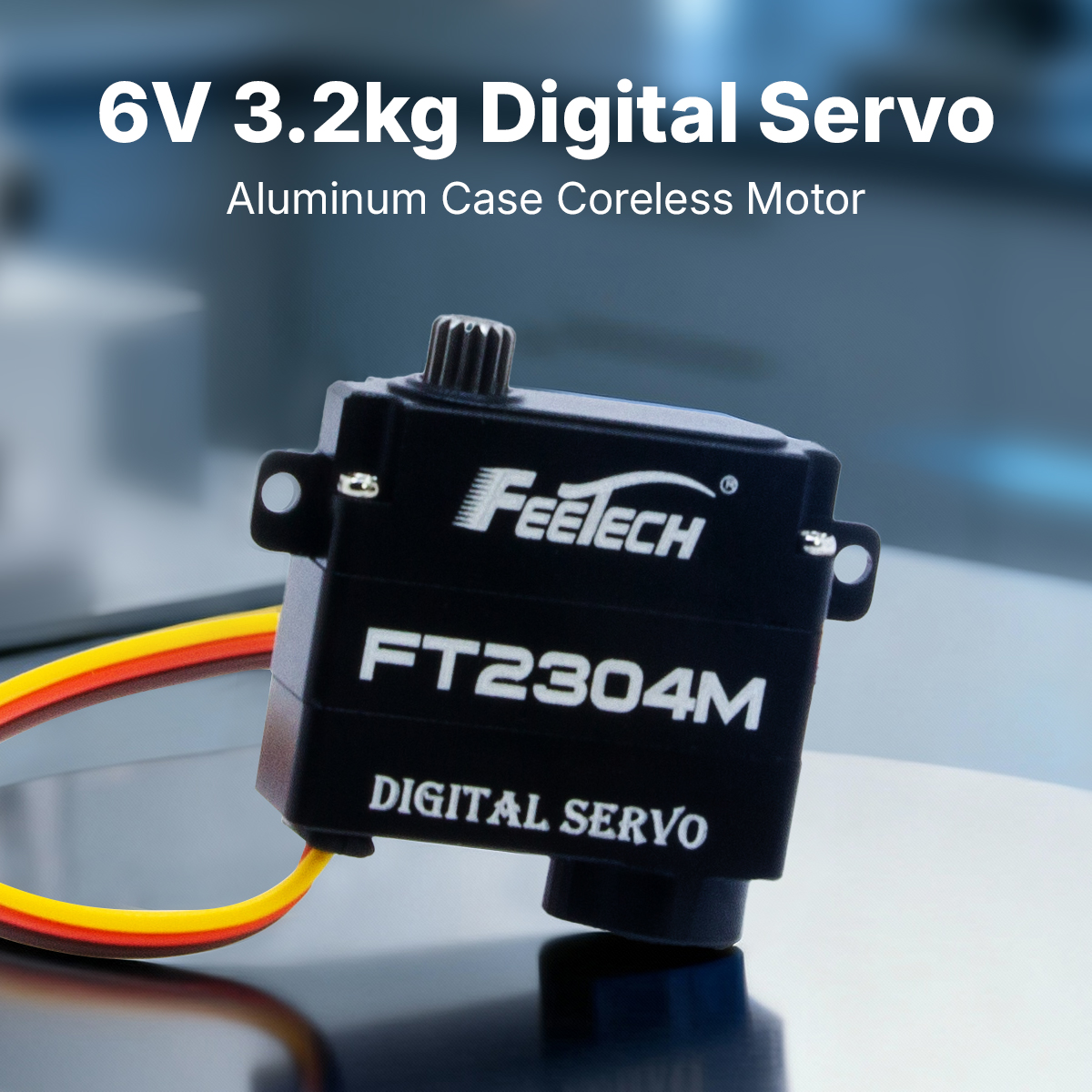

Motor：Coreless Motor
Operating Voltage Range：4.8-6V
Idle current (atstopped)：10MA@6V
No load speed：0.08sec/60°@6V
Runnig current(at no load)：60mA@6V
Peak stall torque：3.2kg.cm@6V
Rated torque：1.06kg.cm@6V
Stall current：1.2A@6V
Command si gnal：Pulse width modification
Amplifier type：Digital comparator
Pulse width rang：800~2200 μ sec
Stop position：1500 μ sec
Running degree：120°(at 800→2200μsec)
Dead band width：≤4 μ sec
Rotating direction：Counterclockwi se (1500→2000 μ sec)
