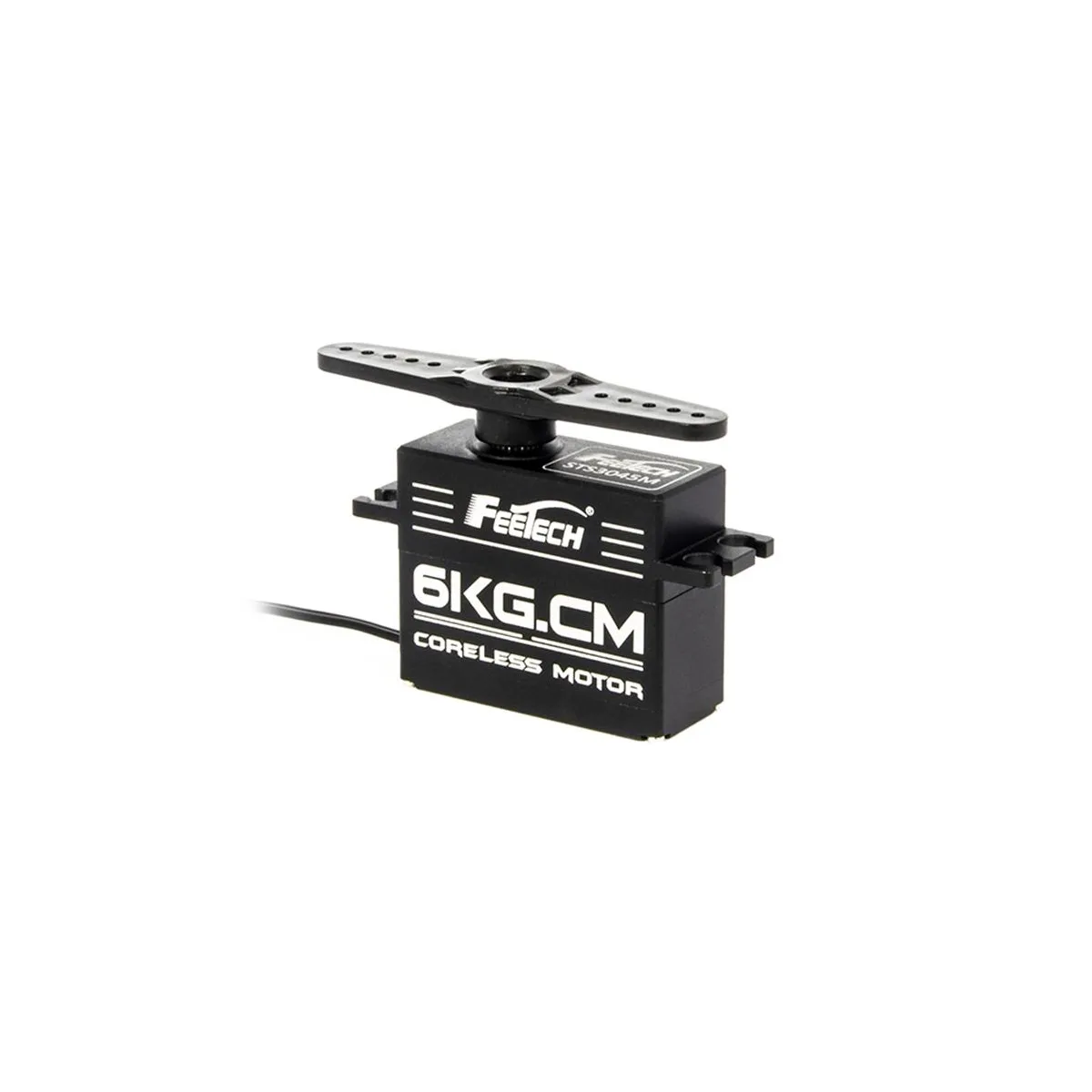

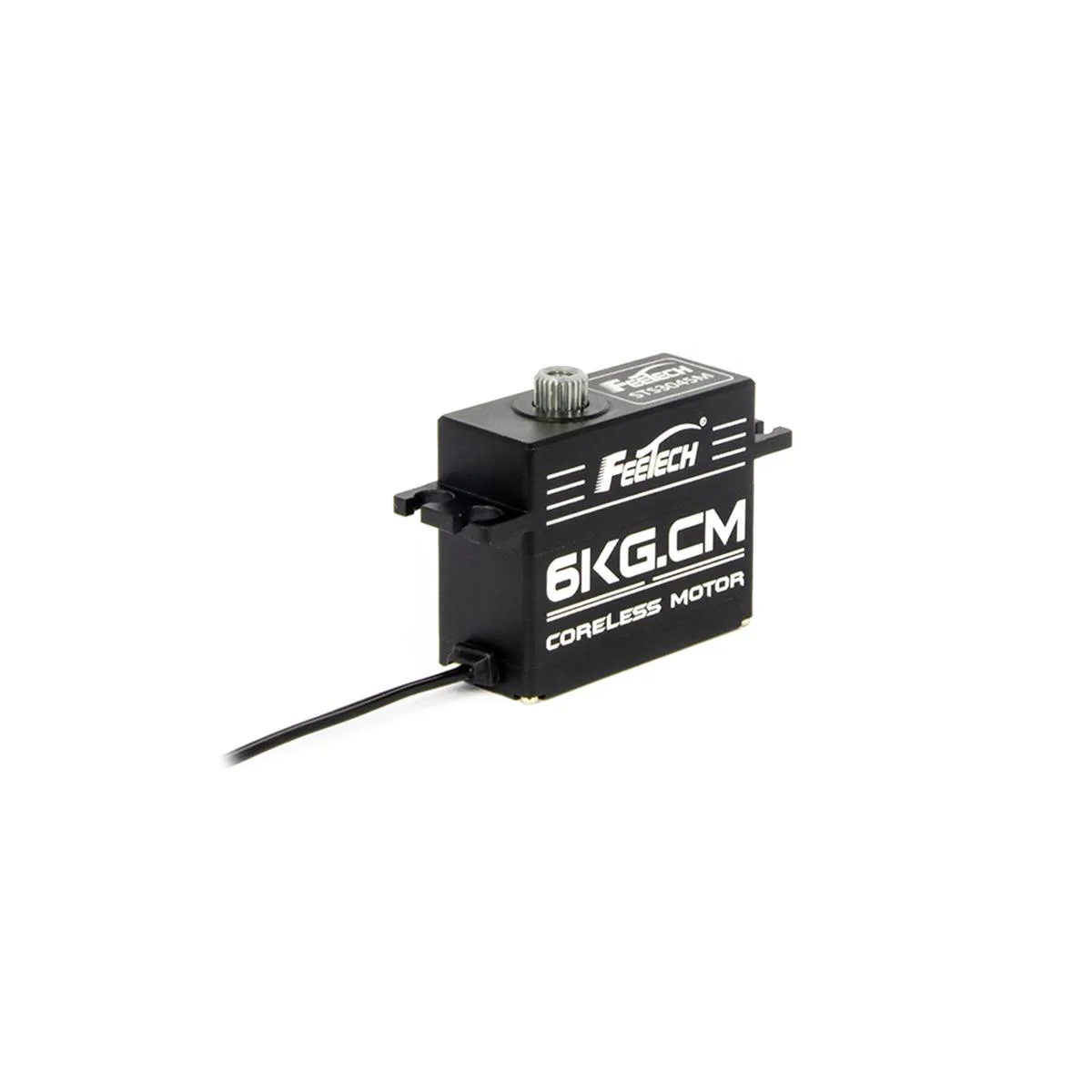

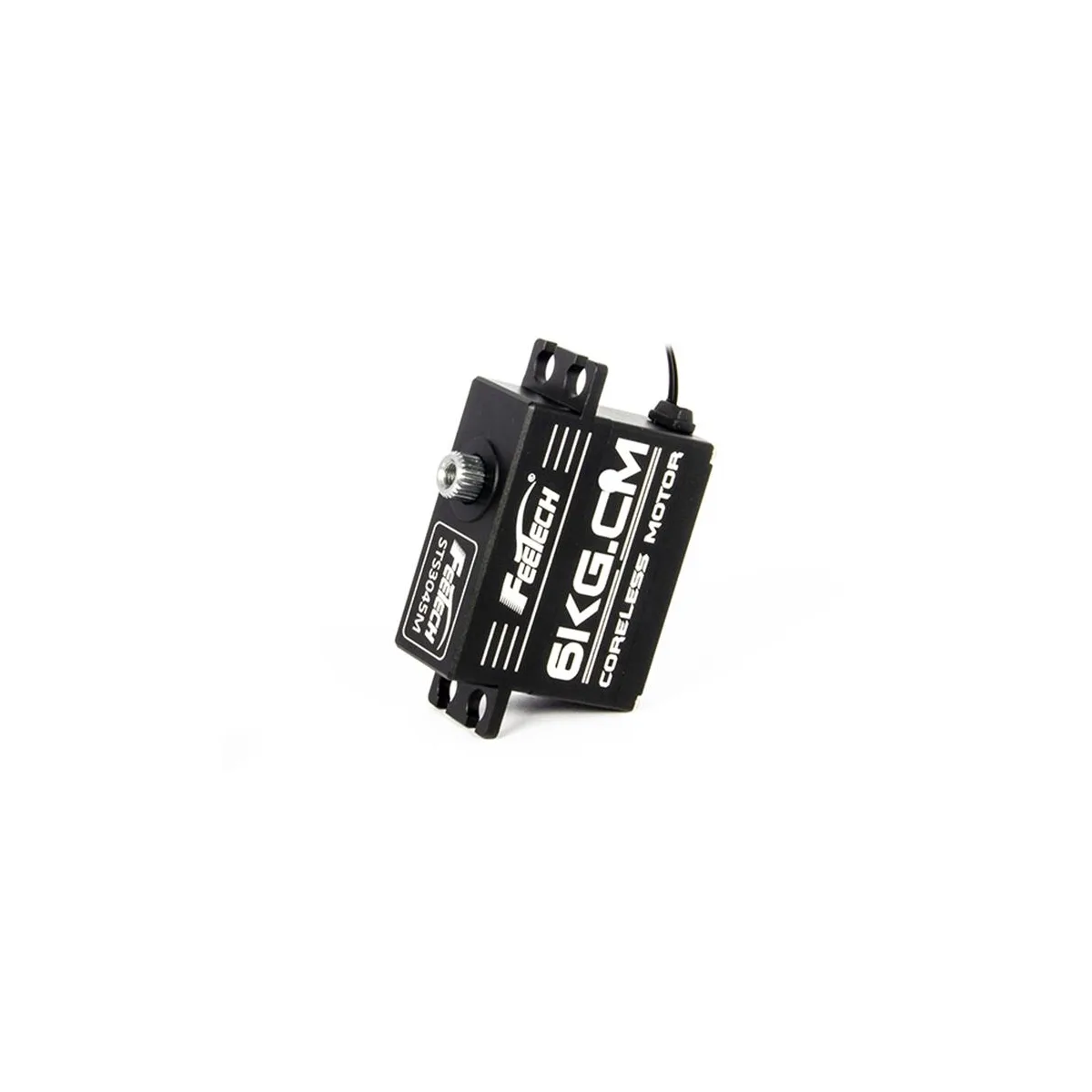

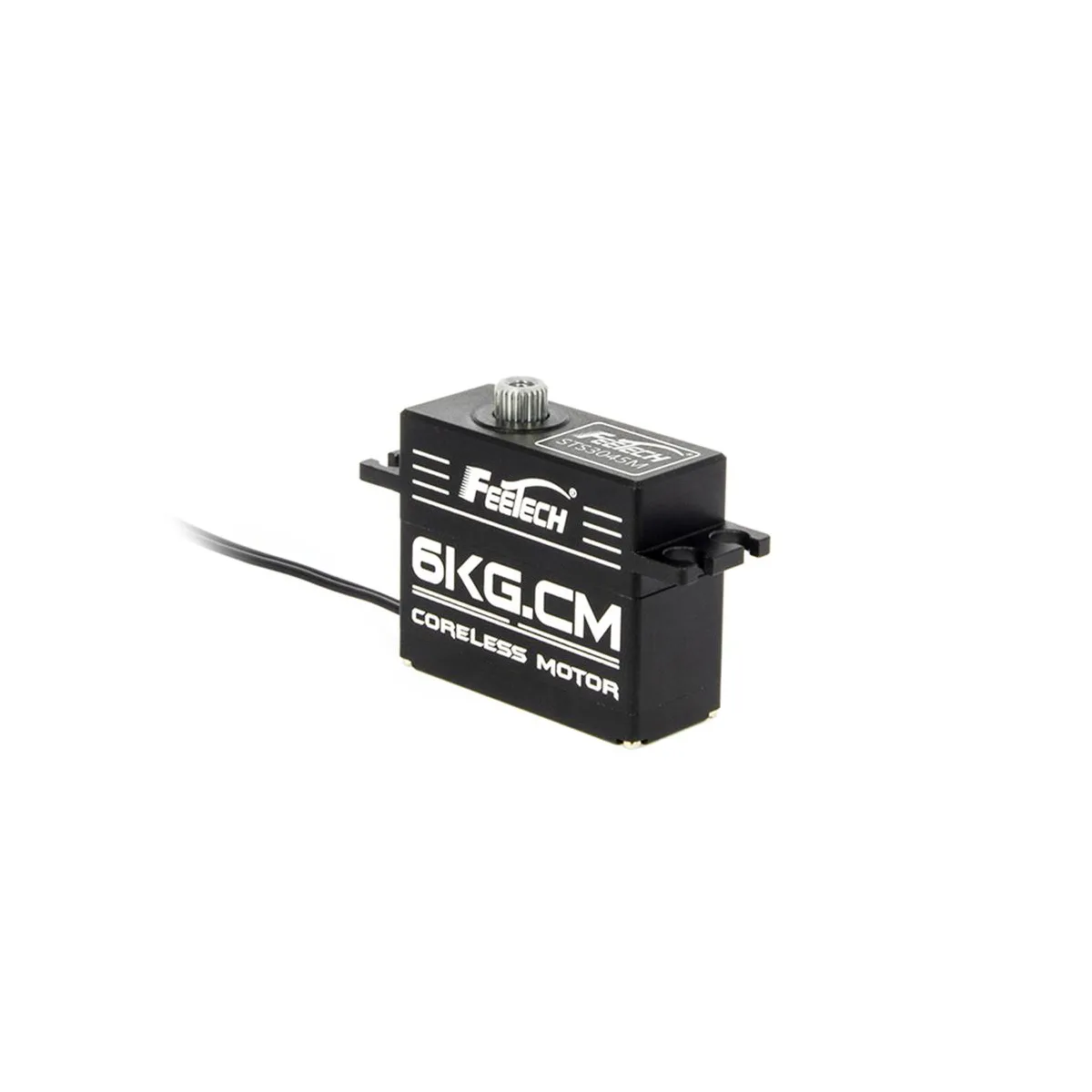

Feetech STS3045M 6V 6kg 360-degree steering gear is equipped with a self-researched and self-developed TTL control board
Feetech STS3045M 6V 6kg 360-degree steering gear is equipped with a self-researched and self-developed TTL control board
STS3045M is 6V 6kg serial bus smart servo，aluminum alloy case is used、corless motor、metal gearbox 、Feetech self researched and developed TTL control board，12 bit high precision magnetic coding sensor. The stall torque is 6kg.cm，can achieve 0-360 degrees any angle controllable，multi-turn continuous operation mode，it can realize the function of setting the middle point with one key，acceleration slow start and slow stop，can feedback position、speed、voltage、current、temperature、load parameters，thus, overload and over-current protection can be realized. It is suitable for application in industrial equipment, robot and Small torque drive application scenarios
Model: ST-3045-C001
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～60℃
Size: 36*15*29.2mm
Weight: 34.8±1g
Gear type: Metal Gear
Limit angle: NO limit
Bearing: Ball bearings
Horn gear spline: 25T/OD5.9mm
Horn type: Plastic, POM
Case: Aluminium
Connector wire: 15CM
Motor: Coreless motor
Operating Voltage Range: 4.8-7.4V
No load speed: 0.133sec/60°@6V
Running current(at no load): 120 mA@6V
Peak stall torque: 6kg.cm@6V
Rated torque: 2kg.cm@6V
Stall current: 1.4A@6V
Command signal: Digital Packet
Protocol Type: Half Duplex Asynchronous Serial Communication
ID range: 0-253
Communication Speed: 38400bps ~ 1 Mbps
Running degree: 360° (when 0~4096)
Feedback: Load, Position, Speed, Input Voltage, Temperature

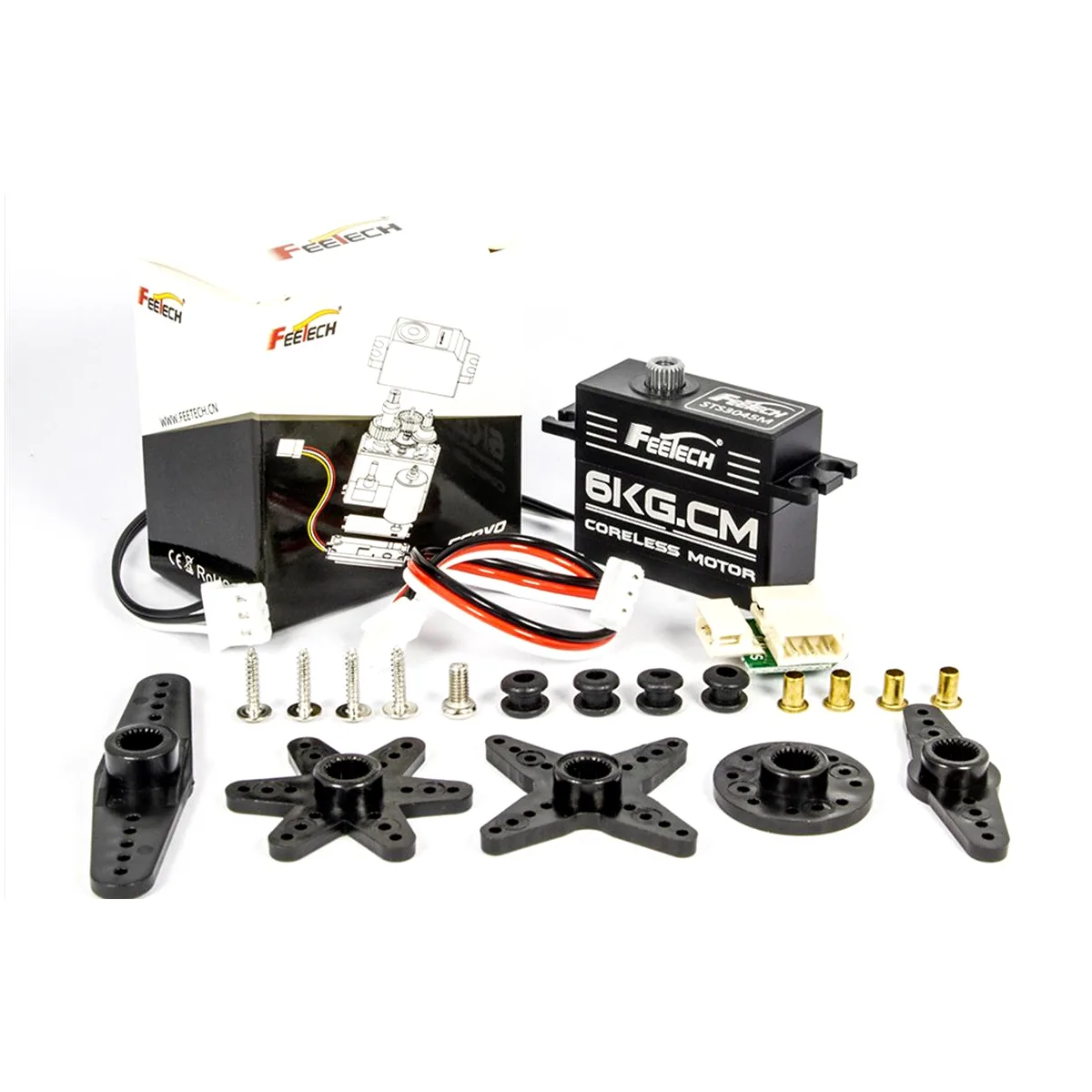

STS3045M Servo x1
