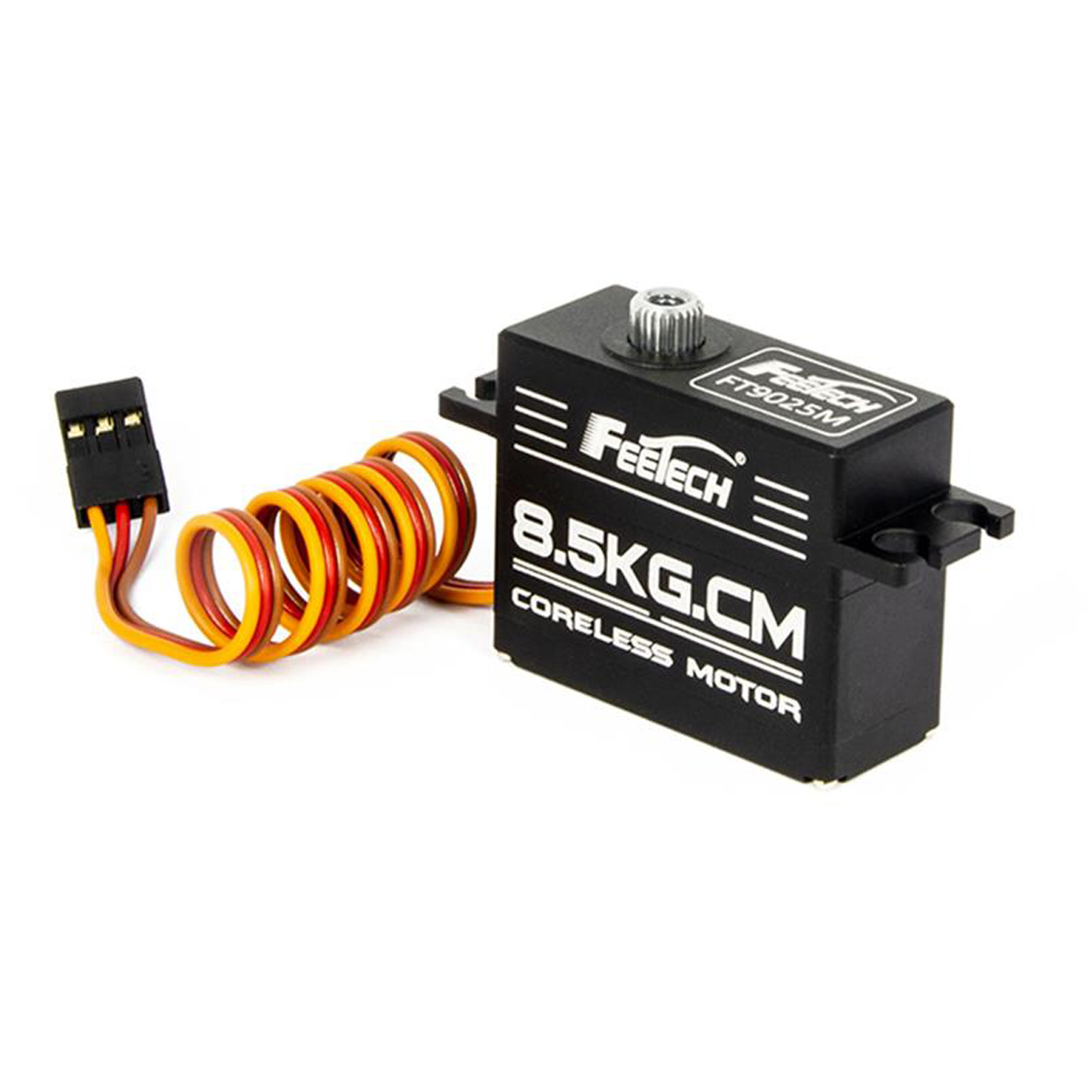

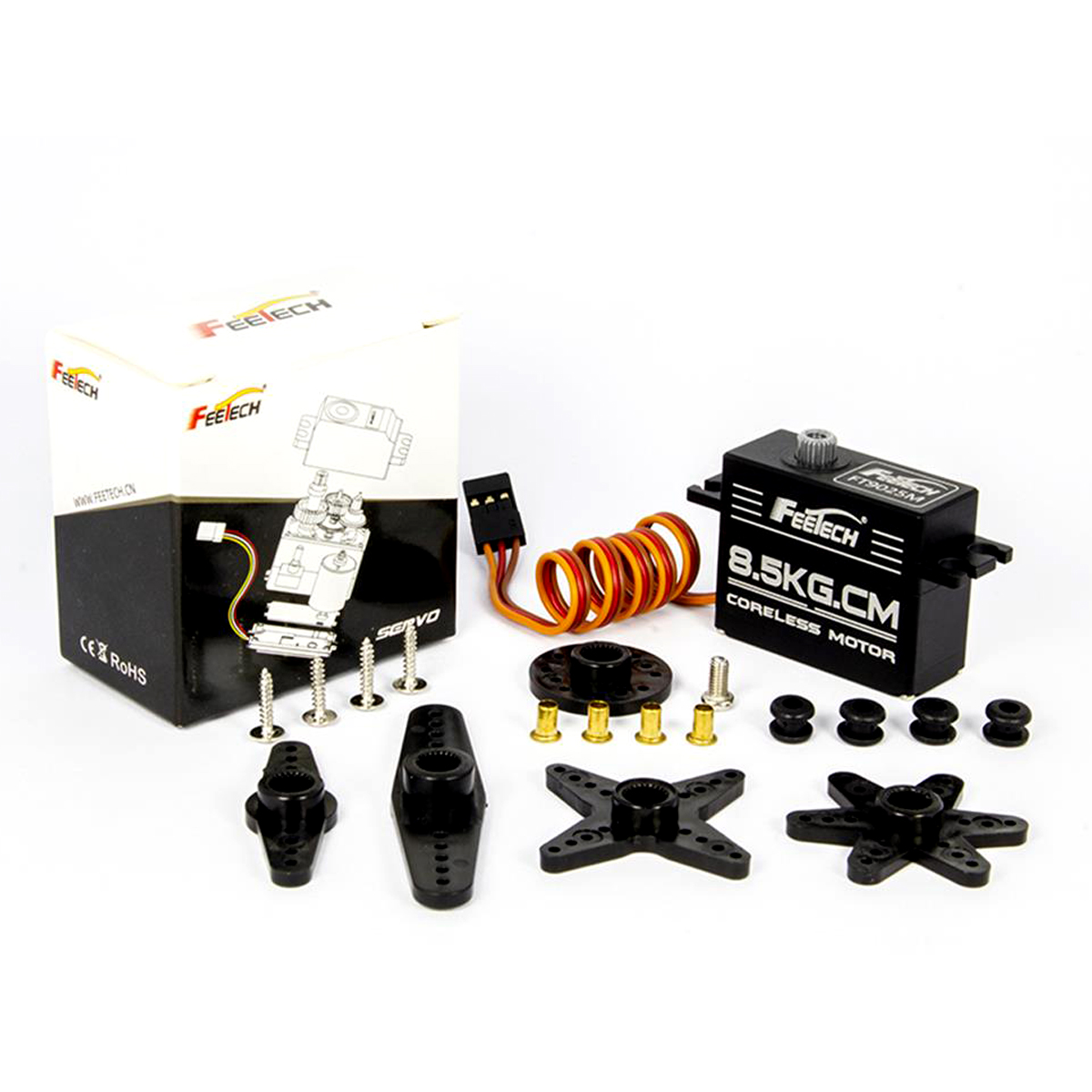

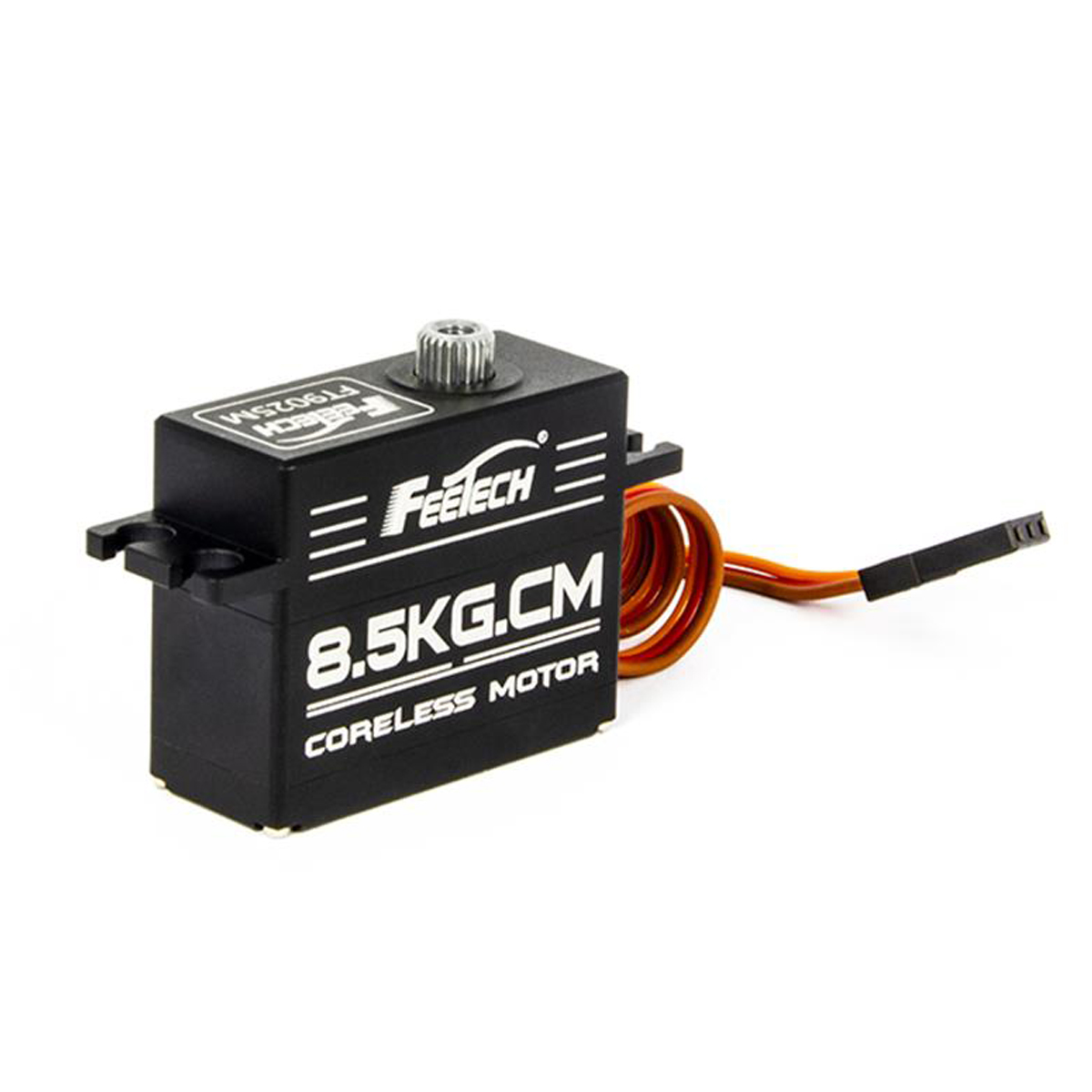

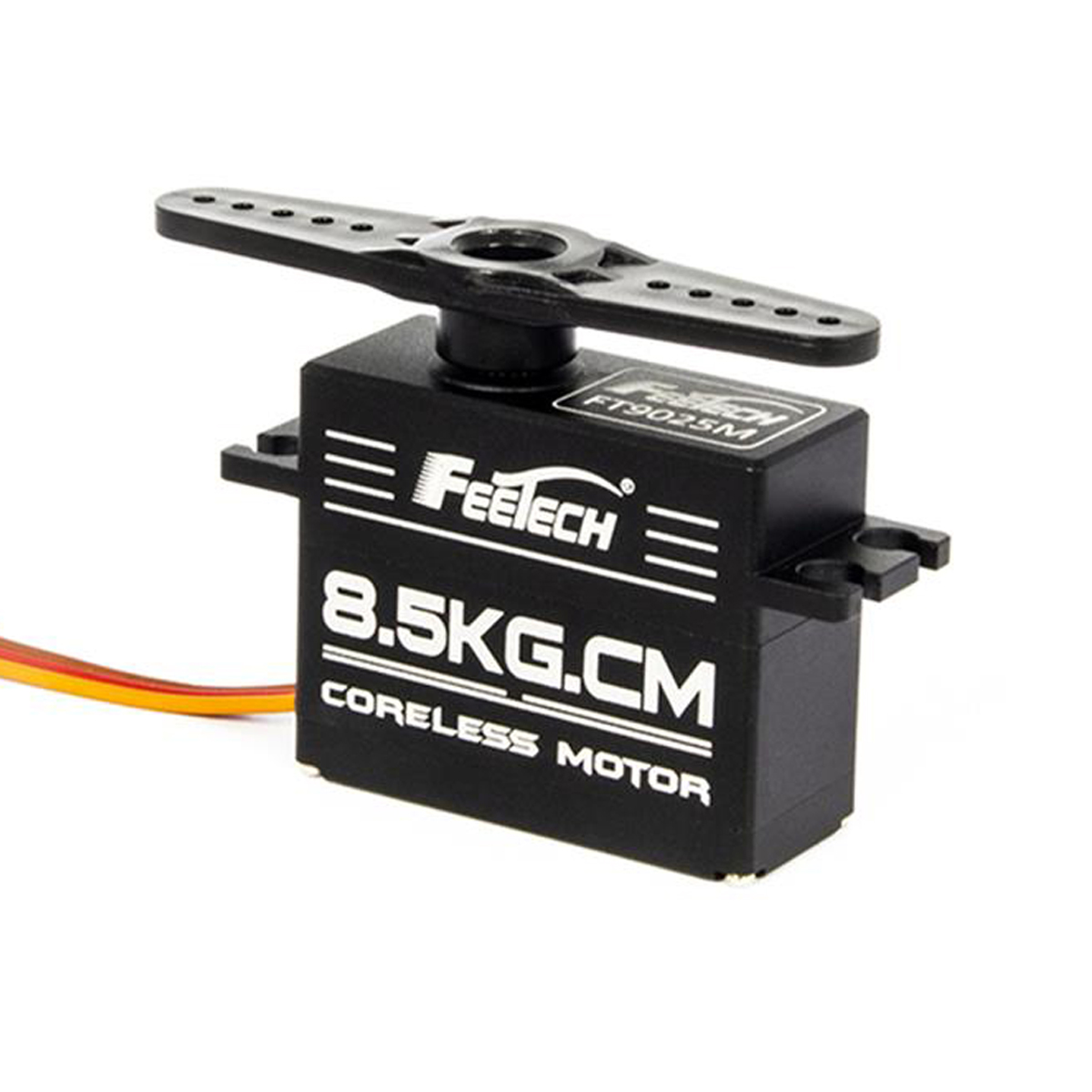

Model：FT9025M
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～60℃
Size: A：36mm B：15mm C: 29.2mm
Weight: 35.2± 1g
Gear type: Metal Gear
Limit angle: NO limit
Bearing: Ball bearings
Horn gear spline: 25T/5.9mm
Case: Alumi num
Connector wire: 25CM
Motor: Coreless Motor
Operating Voltage Range: 4.8-6V
Idle current (atstopped) : 6MA@6V
No load speed: 0.133sec/60°@6V
Runnig current(at no load) : 200mA@6V
Peak stall torque: 8.5kg.cm@6V
Rated torque: 2.8kg.cm@6V
Stall current: 1.4A@6V
Command si gnal: Pulse width modification
Amplifier type: Digital comparator
Pulse width range: 500~2500 μ sec
Stop position: 1500 μ sec
Running degree: 180°(at 500→2500μsec)
Dead band width: ≤4 μ sec
Rotating direction: Counterclockwi se (在1500→2000 μ sec)
