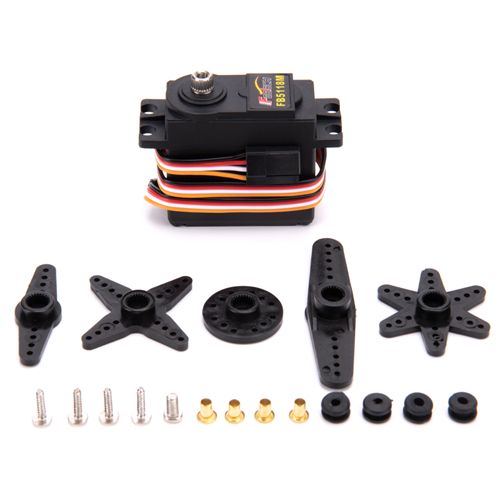

Model：FB5118M
Storage Temperature Range：-30℃～80℃
Operating Temperature Range：-15℃～70℃

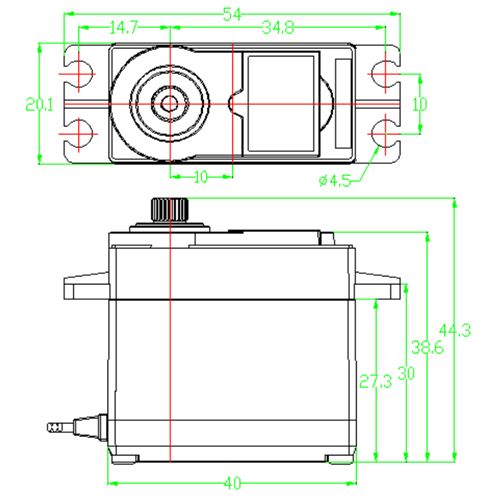

Size：A：40mm B：20.1mm C：38.3mm D：54mm
Weight：65g
Gear type：Steel Gear
Limit angle：No limit
Bearing：2 Ball bearings
Horn gear spline：25T(5.9mm)
Horn type：Plastic,POM
Case：Nylon & Fiberglass
Connector wire：300mm ±5 mm(Black ,Red,white and Orange)
Motor：Metal brush motor
Operating Voltage Range：6-7.4V
Idle current(at stopped)：5mA
No load speed：62RPM@6V
Runnig current(at no load)：150 mA @6V
Peak stall torque：17.5kg.cm@6V
Rated torque：6kg.cm@6V
Stall current：1800mA@6V
Running degree：300°（±5°）(when 500～2500 µsec)
Rotating direction：Cockwise (when 1000～2000 µsec)
Feedback Voltage：900usec-2.60V/1500usec-1.66V/2100us-0.72V
