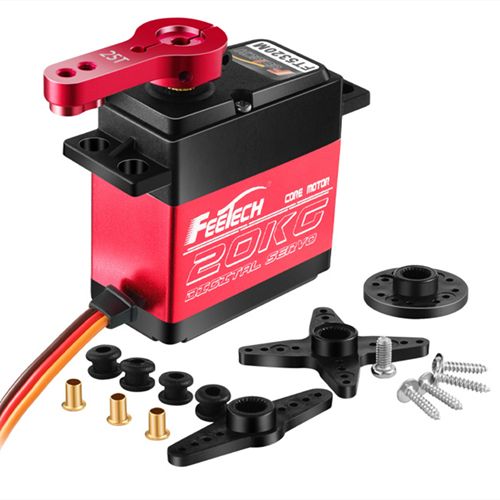

FEETECH FT5320M 7.4V 20kg.cm Digital 180 Degree Aluminum Medium Shell Copper Gear Iron Core Servo
FEETECH FT5320M 7.4V 20kg.cm Digital 180 Degree Aluminum Medium Shell Copper Gear Iron Core Servo
FEETECH FT5320M 7.4V 20kg.cm Digital 180 Degree Aluminum Medium Shell Copper Gear Iron Core Servo
-Model：FT-5320-C001
-Storage Temperature Range: -30℃～80℃
-Operating Temperature Range: -20℃～60℃

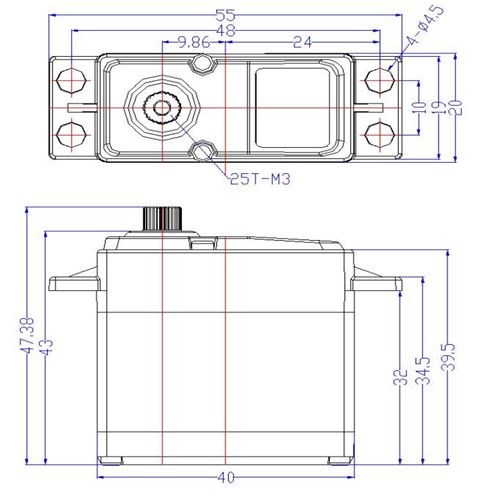

-Size:A：55mm B：20mm C: 43mm
-Weight: 67土1g

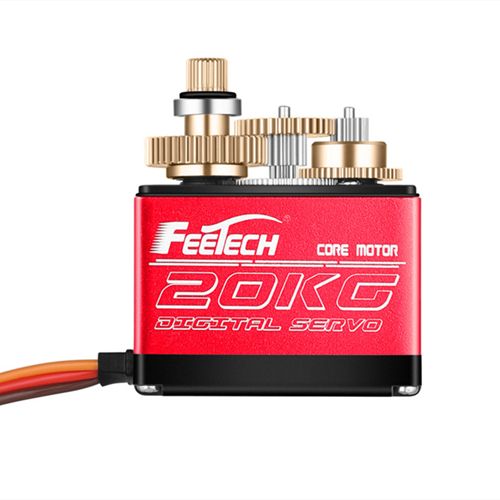

-Gear type: Copper Gear
-Limit angle: NO limit
-Bearing: Ball bearings
-Horn gear spline: 25T/5.9mm
-Horn type: Plastic
-Case: PA+A lumi num
-Connector wire: 30CM
-Motor: Core Motor
-Operating Voltage Range: 6V-7.4V
-Idle current (atstopped): 6MA@7.4V
-No load speed: 0.151sec/60°@7.4V
-Runnig current(at no load) : 120mA@7.4V
-Peak stall torque: 20kg.cm@7.4V
-Rated torque: 6.5kg.cm@7.4V
-Stall current: 3A@7.4V
-Command si gnal: Pulse width modification
-Amplifier type: Digital compara tor
-Pulse width range: 500~2500 μ sec
-Stop position: 1500 μ sec
-Running degree: 180° （at 500- > 2500 μ sec)
-Dead band width: ≤4 μ sec
-Rotating direction: Counterclockwise (at1500→2000 μ sec)

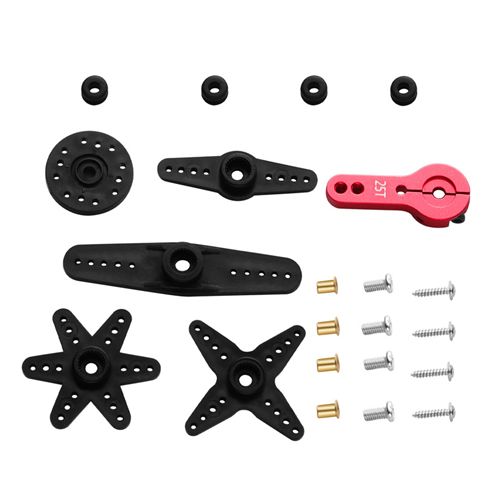

FT5320M Servo x1
