–High performance digital standard servo, can be common use in robots, mechanical arms, climbing cars and remote control toys.
–The main features are fast heat dissipation,big torque high compatibility ,sensitive and responsive ect.
–Good choice for university professors and students who are interested in developing software for robot parts.
–Advanced linearity and accuracy with precision potentiometers,stable,low noise,water-proof rubber seals screws
–Large Torque – 35kg.cm @7.4V

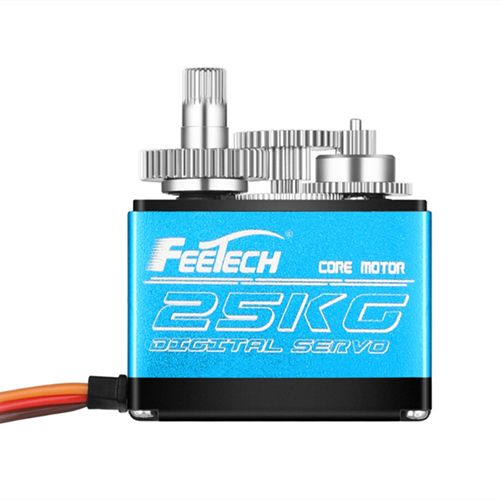

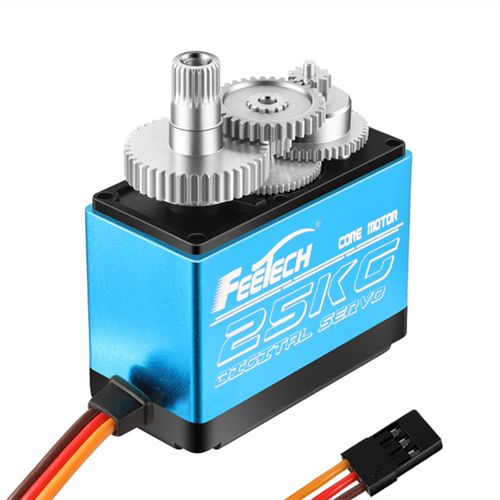

–High Quality Equipped with High-precision strong steel gears,CNC aluminium middle case
–Smart Control-Overload,Over temperature protection.

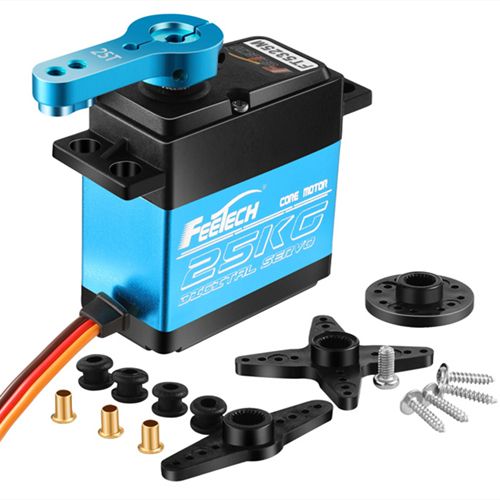

Model: FT5325M
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～60℃
Size: A：55mm B：20mm C:43mm
Weight: 67土1g
Gear type: Steel Gear
Limit angle: NO limit
Bearing: Ball bearings
Horn gear spline: 25T/5.9mm

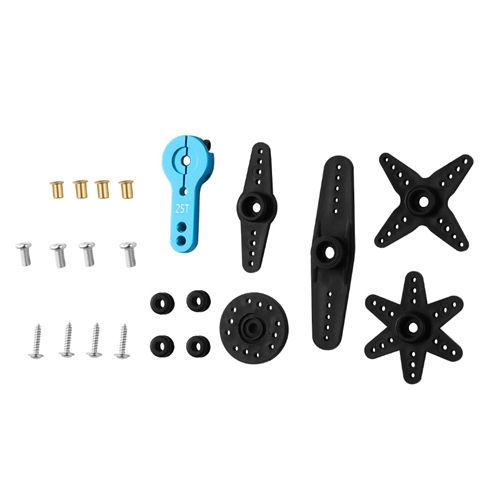

Horn type: Plastic, POM
Case: PA+Aluminium
Connector wire: 30CM
Motor: Core Motor
Operating Voltage Range: 6V-7.4V
Idle current (at stopped): 6MA@7.4V
No-load speed: 0. 151sec/60°@7.4V
Running current(at no load) : 120mA@7.4V
Peak stall torque: 25kg.cm@7.4V
Rated torque: 8.3kg.cm@7.4V
Stall current: 3.5A@7.4V
Command signal: Pulse width modification
Amplifier type: Digitalcompara tor
Pulse width range: 900~2100usec
Stop position: 1500 sec
Running degree: 180° Continuous Rotation
Dead bandwidth: +/-25 μsec
Rotating direction: Counterclockwise (在1 500→2000μ sec
