– Control model is PWM
– Control system type: Digital comparator
– Operating angle: 180°
– Pulse width range: 500~2500μsec
– Electronic protection: locked rotor for 3 seconds (after the steering gear is locked, the output torque will exceed the overload torque and continue to protect the torque after 3 seconds, the overload torque and protection time can be modified)

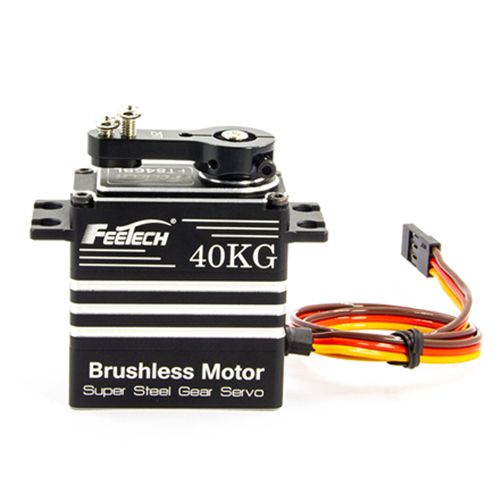

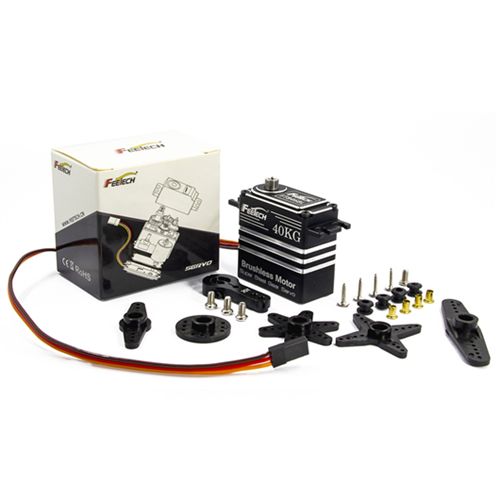

Brand: FEETECH
Model: FT846BL
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～60℃
Size: A：40mm B：20mm C: 38mm
Weight: 91.5± 1g
Gear type: Steel
Limit angle: NO limit
Bearing: Ball bearings
Horn gear spline: 25T/5.9mm
Gear Ratio: 1/378
Case: Alumi num
Connector wire: 30CM
Motor: Brushless Motor
Operating Voltage Range: 4V-8.4V
Idle current (atstopped) : 6MA@7.4V
No load speed: 0.151sec/60°@7.4V
Runnig current(at no load) : 300mA@7.4V
Peak stall torque: 40kg.cm@7.4V
Rated torque: 13.5kg.cm@7.4V
Stall current: 4.4A@7.4V
Command si gnal: Pulse width modification
Amplifier type: Digital comparator
Pulse width range: 500~2500 μ sec
Stop position: 1500 μ sec
Running degree: 180° at 500→2500 μ sec)
Dead band width: ≤4 μ sec
Rotating direction: Counterclockwi se (1500→2000 μ sec)
