– Control model is PWM
– Control system type: Digital comparator
– Pulse width range: 500~2500μsec
– Electronic protection: locked rotor for 3 seconds (after the steering gear is locked, the output torque will exceed the overload torque and continue to protect the torque after 3 seconds, the overload torque and protection time can be modified)

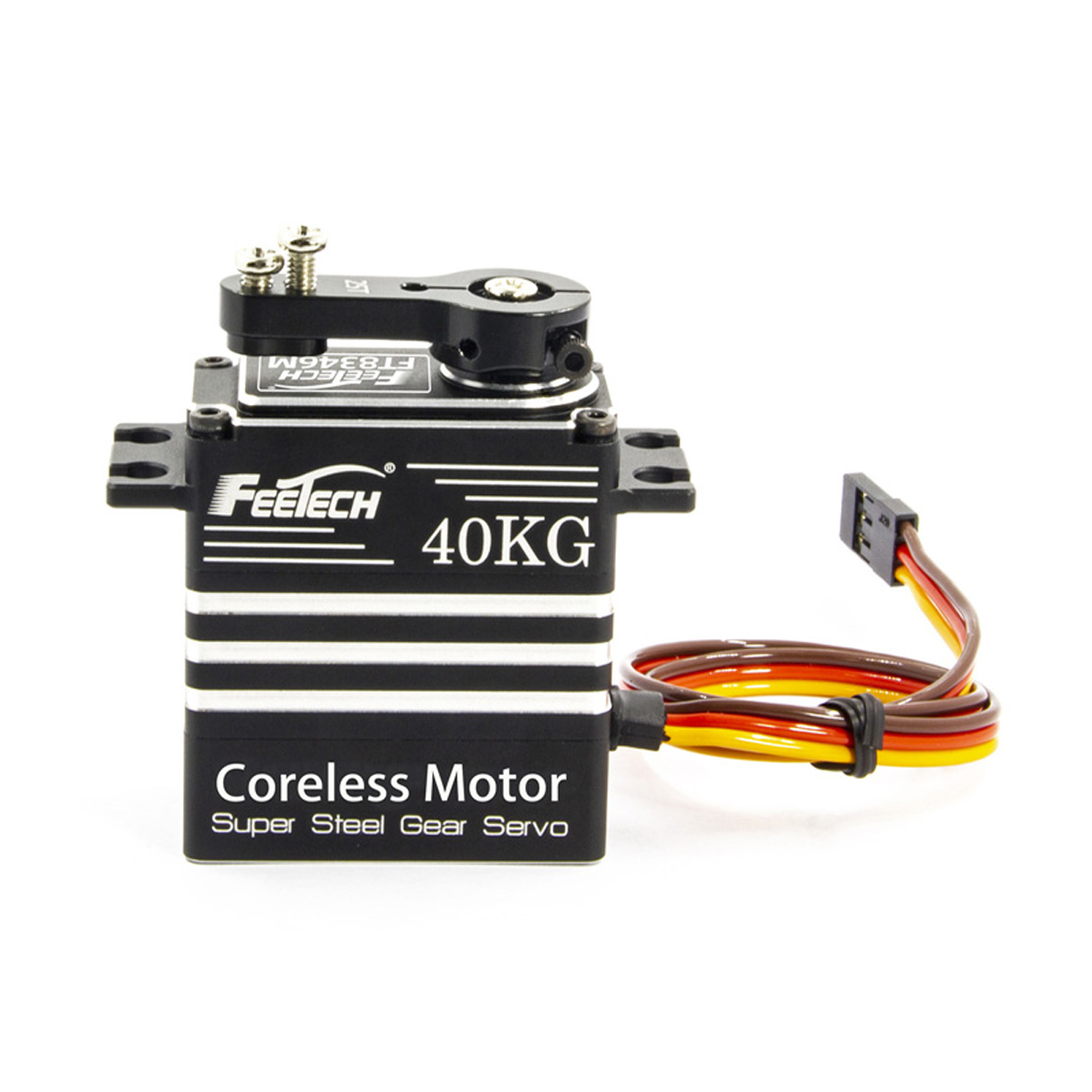

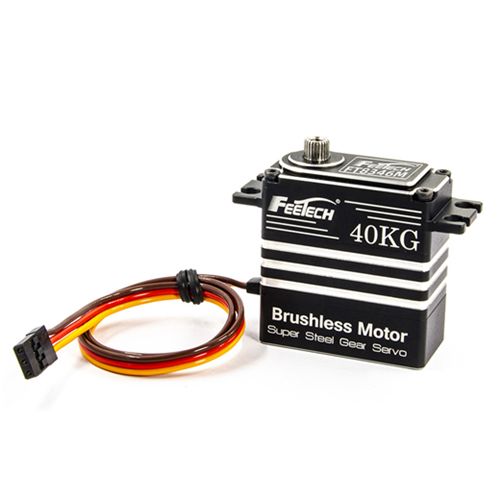

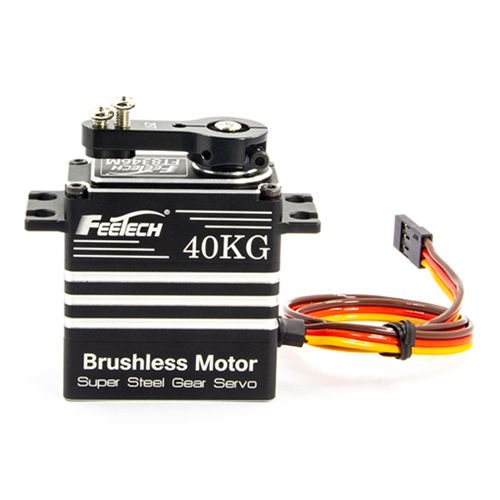

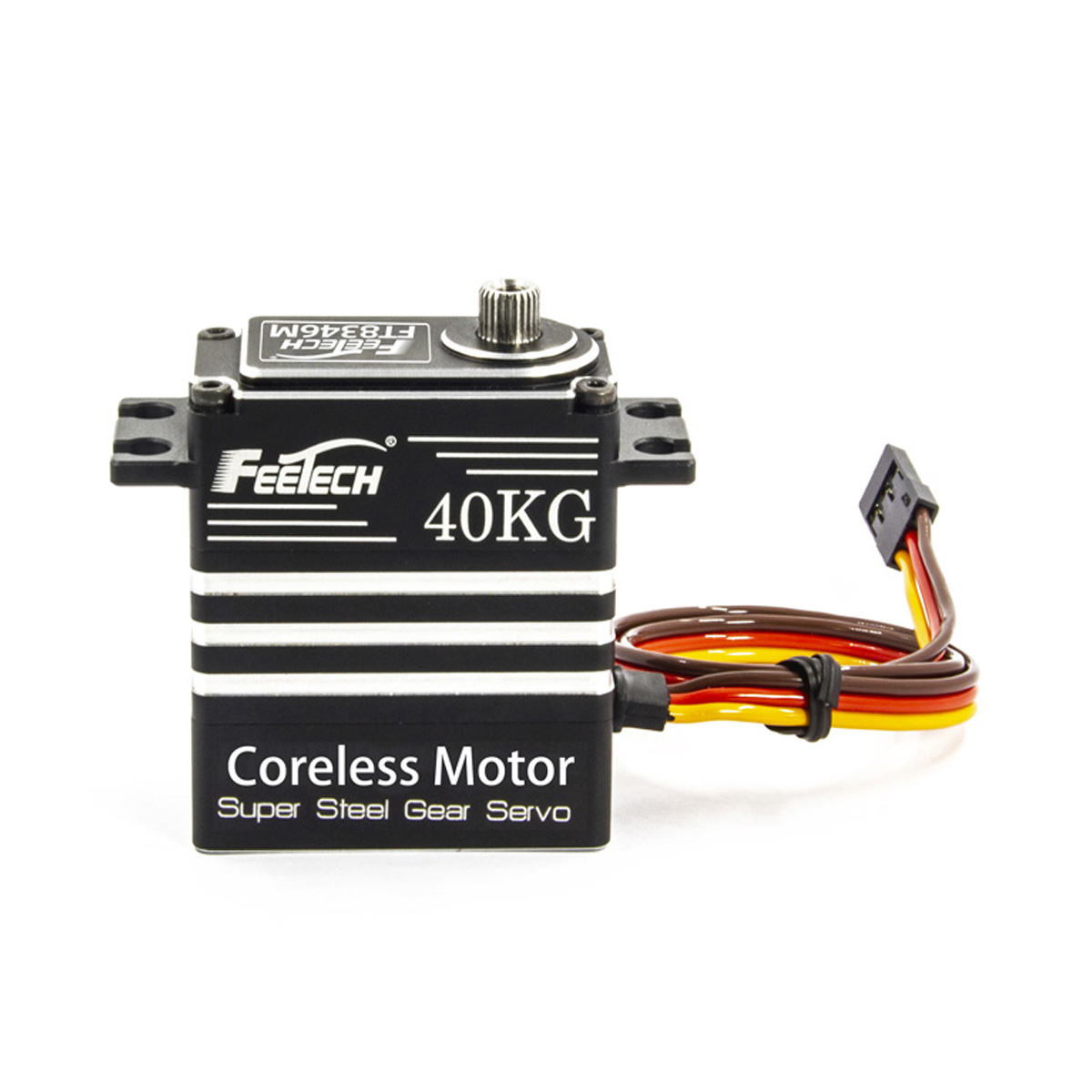

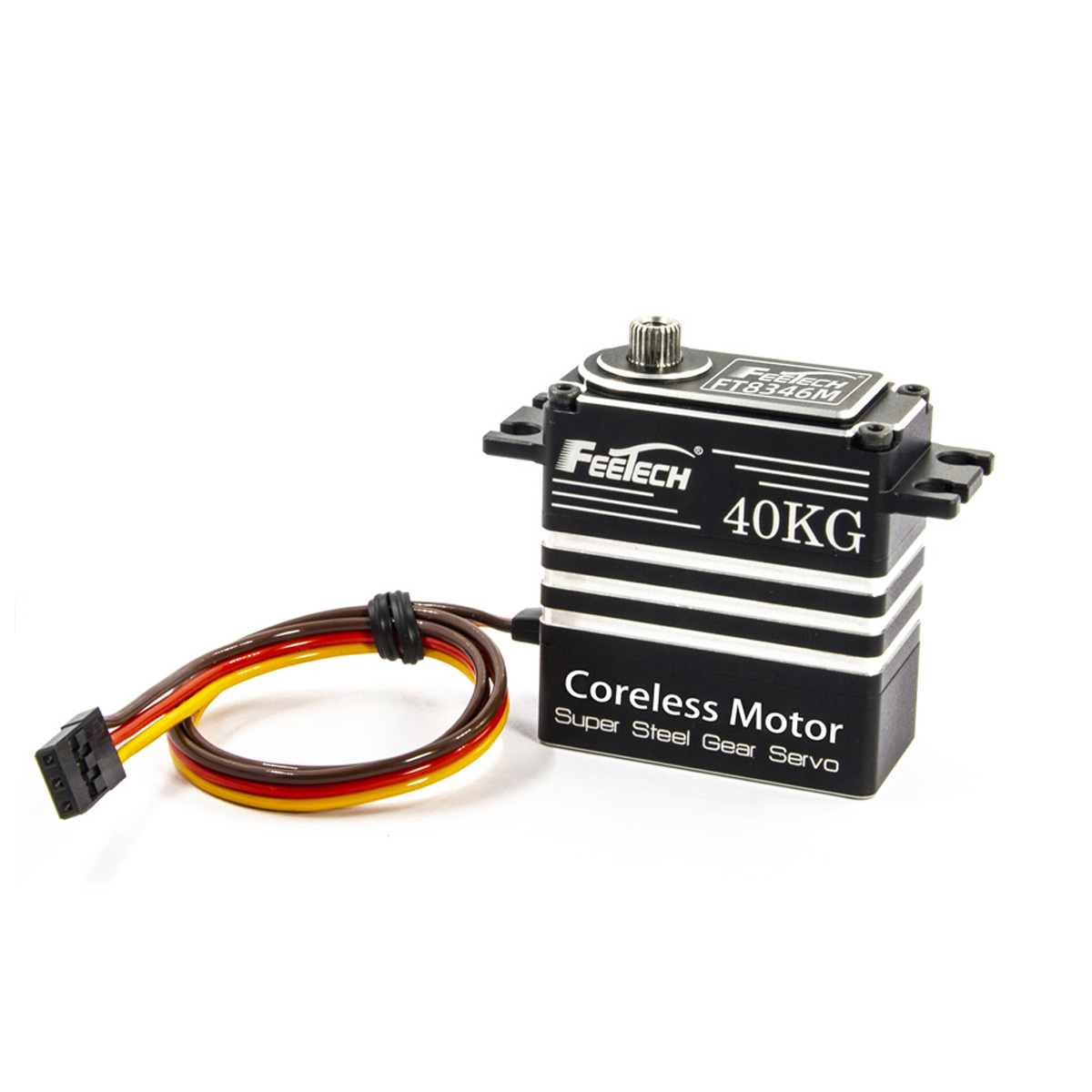

Model: FT8346M
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～60℃

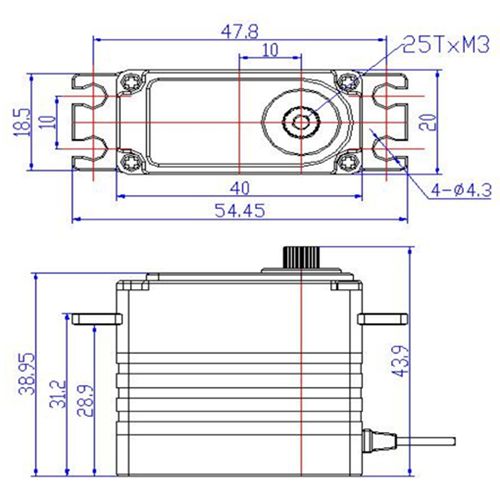

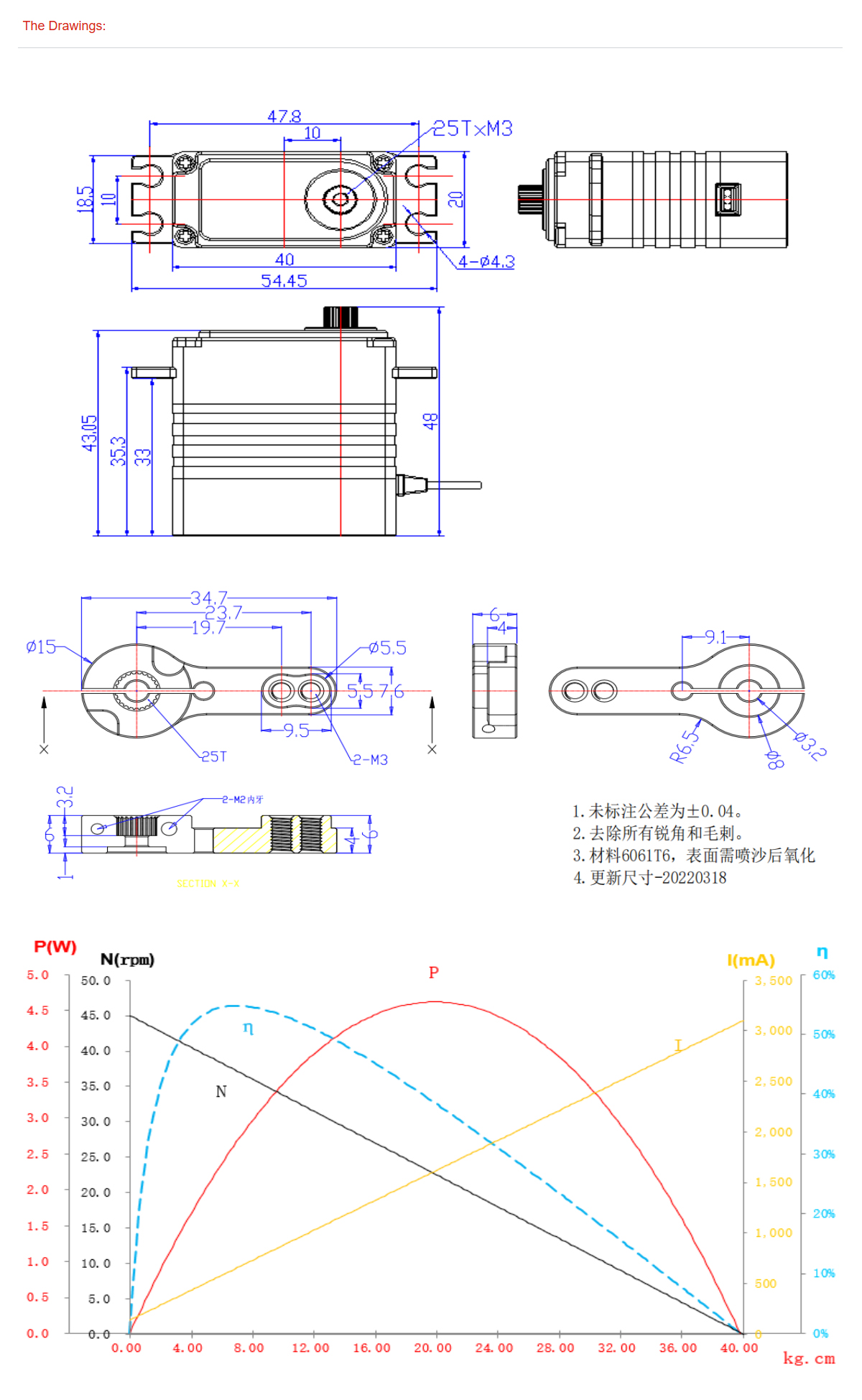

Size: 40*20*43.05mm
Weight: 91.5±1g
Gear Type: Steel
Limit Angle: No Limit
Bearing: Ball Bearings
Horn Gear Spline: 25T/5.9mm
Gear Ratio: 1/378
Case: Aluminum
Connector Wire Length: 30CM
Motor: Coreless Motor
Operating Voltage Range: 4V-8.4V
Idle Current (at Stopped): 6mA@7.4V
No Load Speed: 0.22sec/60°@7.4V
Running Current (at No Load): 300mA@7.4V
Peak Stall Torque: 40kg.cm@7.4V
Rated Torque: 13.5kg.cm@7.4V
Stall Current: 3.1A@7.4V
Control System Type: Pulse Width Modification
Amplifier Type: Digital Comparator
Pulse Width Range: 500~2500μsec
Stop Position: 1500μsec
Running Degree: 360° (at 500→2500μsec)
Dead Band Width: ≤4μsec
Rotating Direction: Counterclockwise (at 1500→2000μsec)
