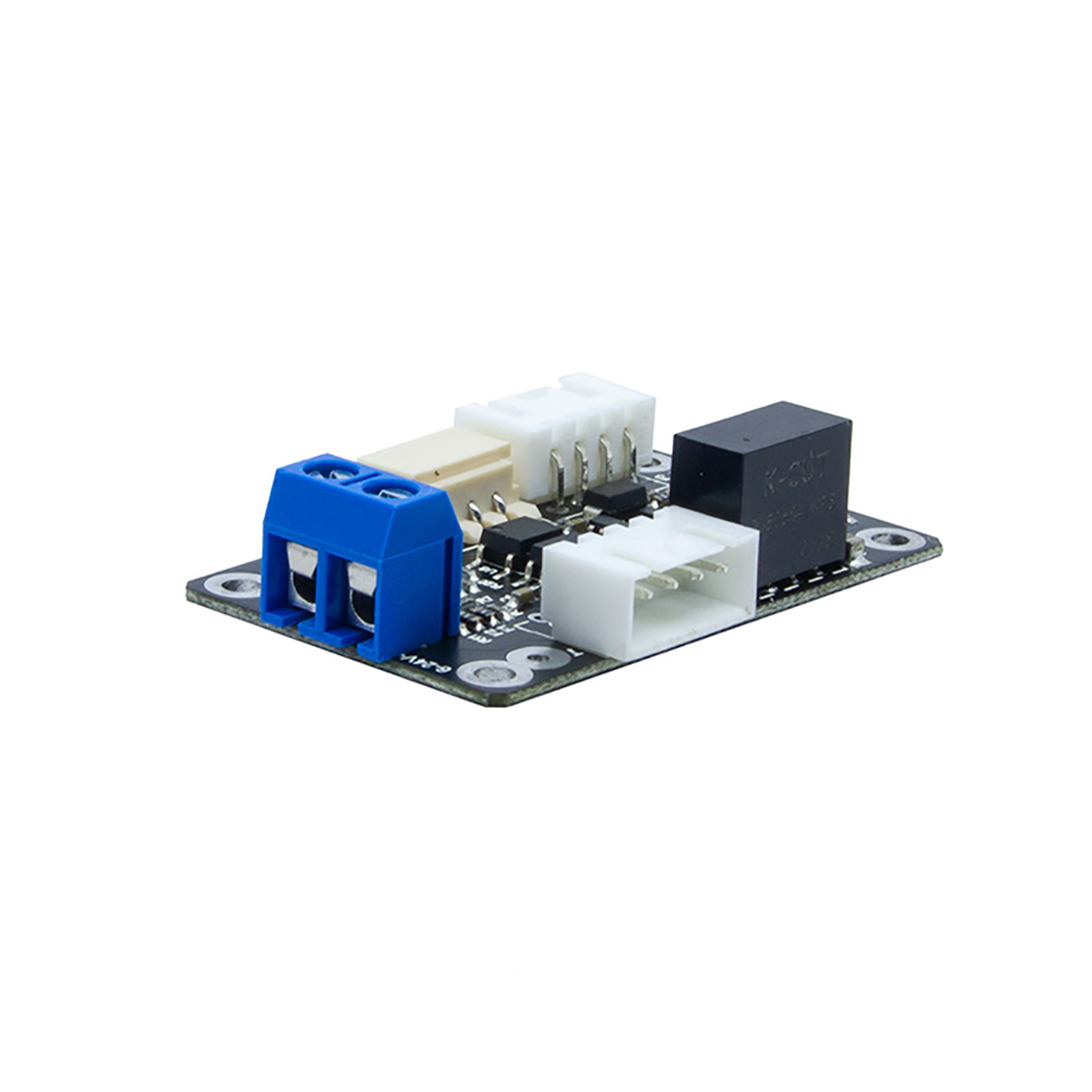

Feetech FE-SNIS-C001 RS485 Signal Isolation to RS485/TTL Single Bus Module

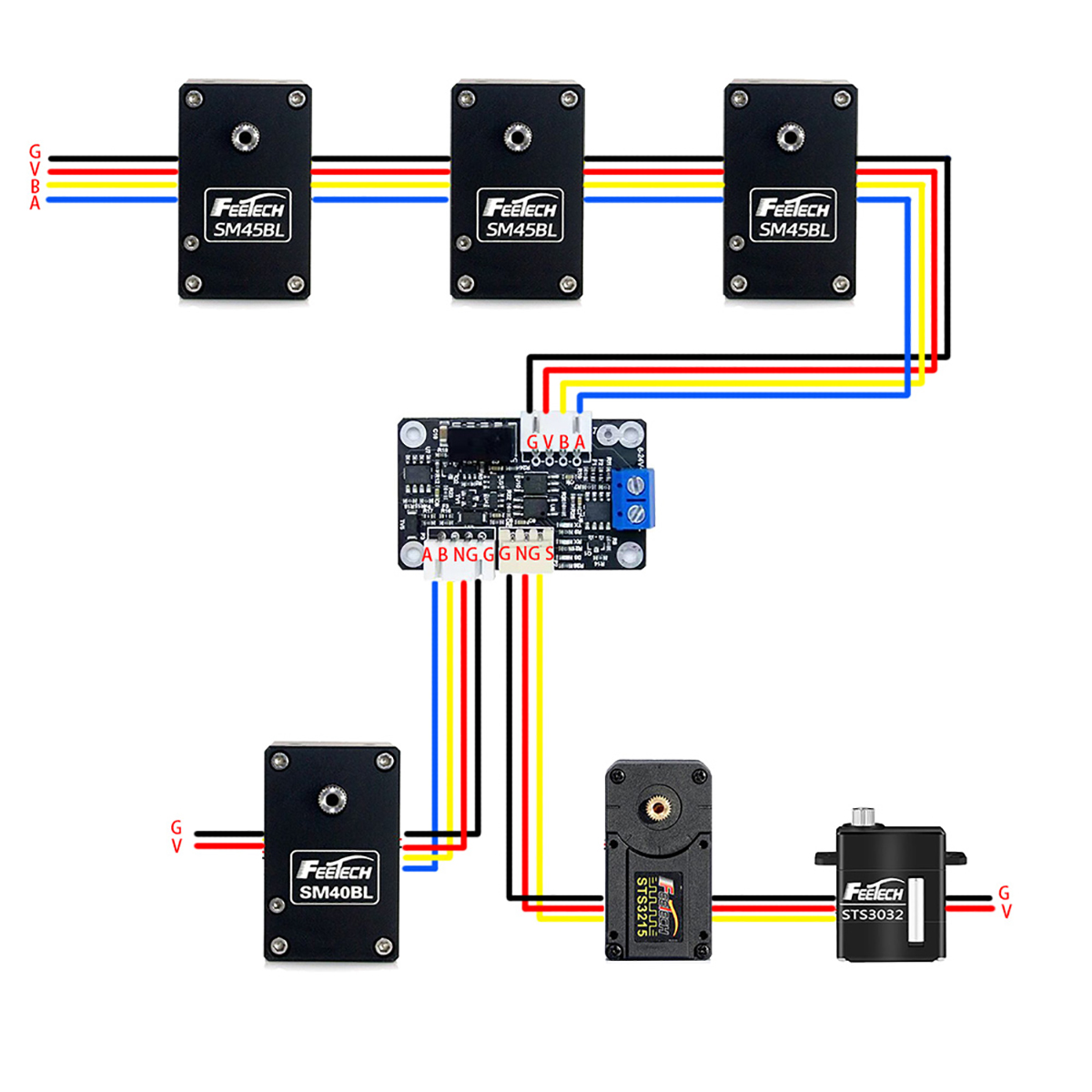

FE-SNIS-C001 is an industrial-grade RS485 communication signal conversion module with isolation function. It isolates the input RS485 signal level and converts the output RS485 and TTL only bus signal level. The isolated and converted signal can be used for RS485 and FEETECH brand TTL single bus servo for simultaneous control.
This product is suitable for industrial-grade scenarios, with strong anti-interference capability, input power reverse polarity protection, electrical protection, and surge EFT protection.
Model: FE-SNIS-C001

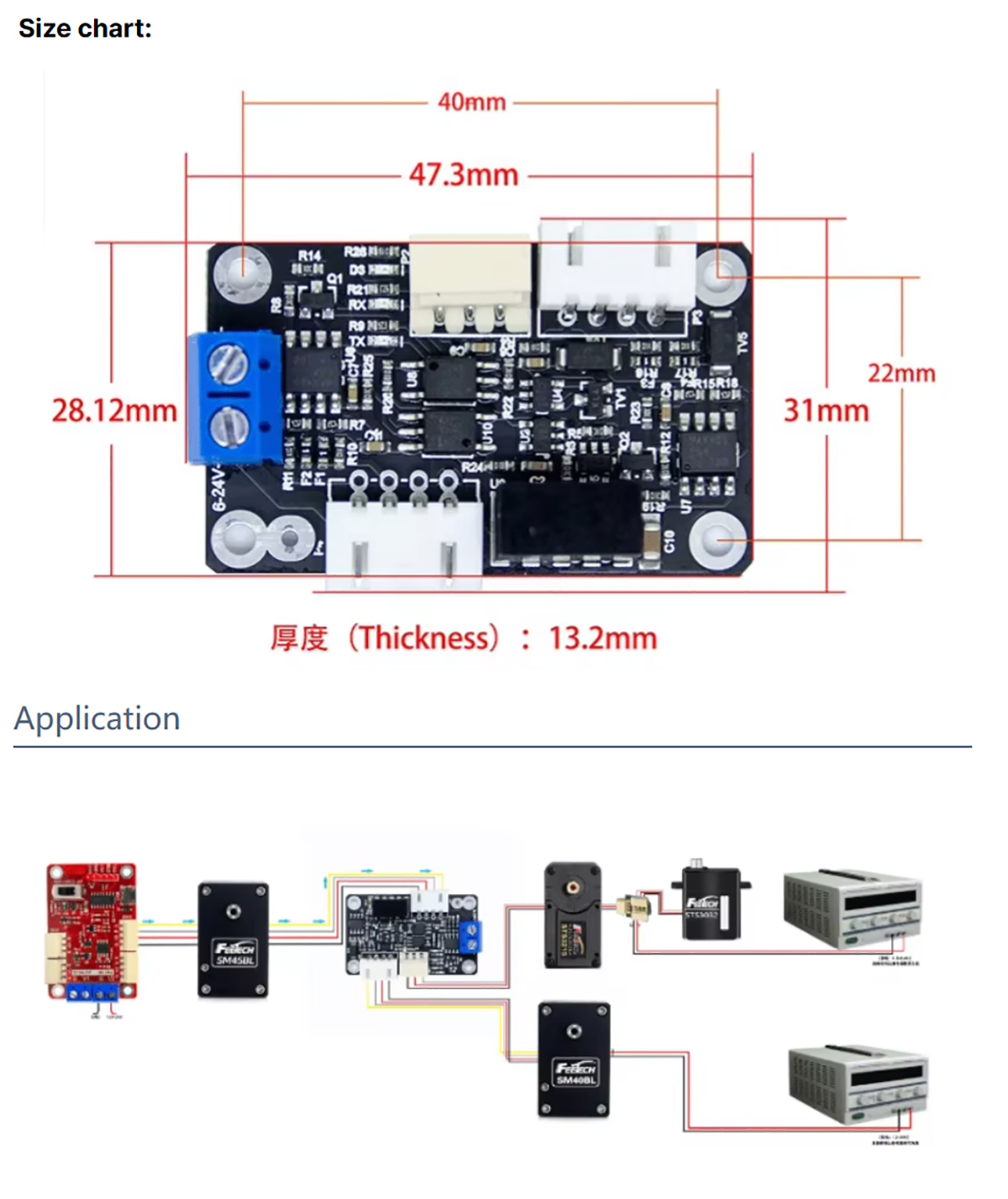

Size：47.3*31*13.2mm
Power Supply Voltage： DC6-24V
Baud Rate：50bps-1Mbps
Input Port: XH-4AWD (RS485 Level)
Output Port: 5264-3-TTL + XH-4-RS485
FE-SNIS-C001 RS485 Signal Isolation Board x1
