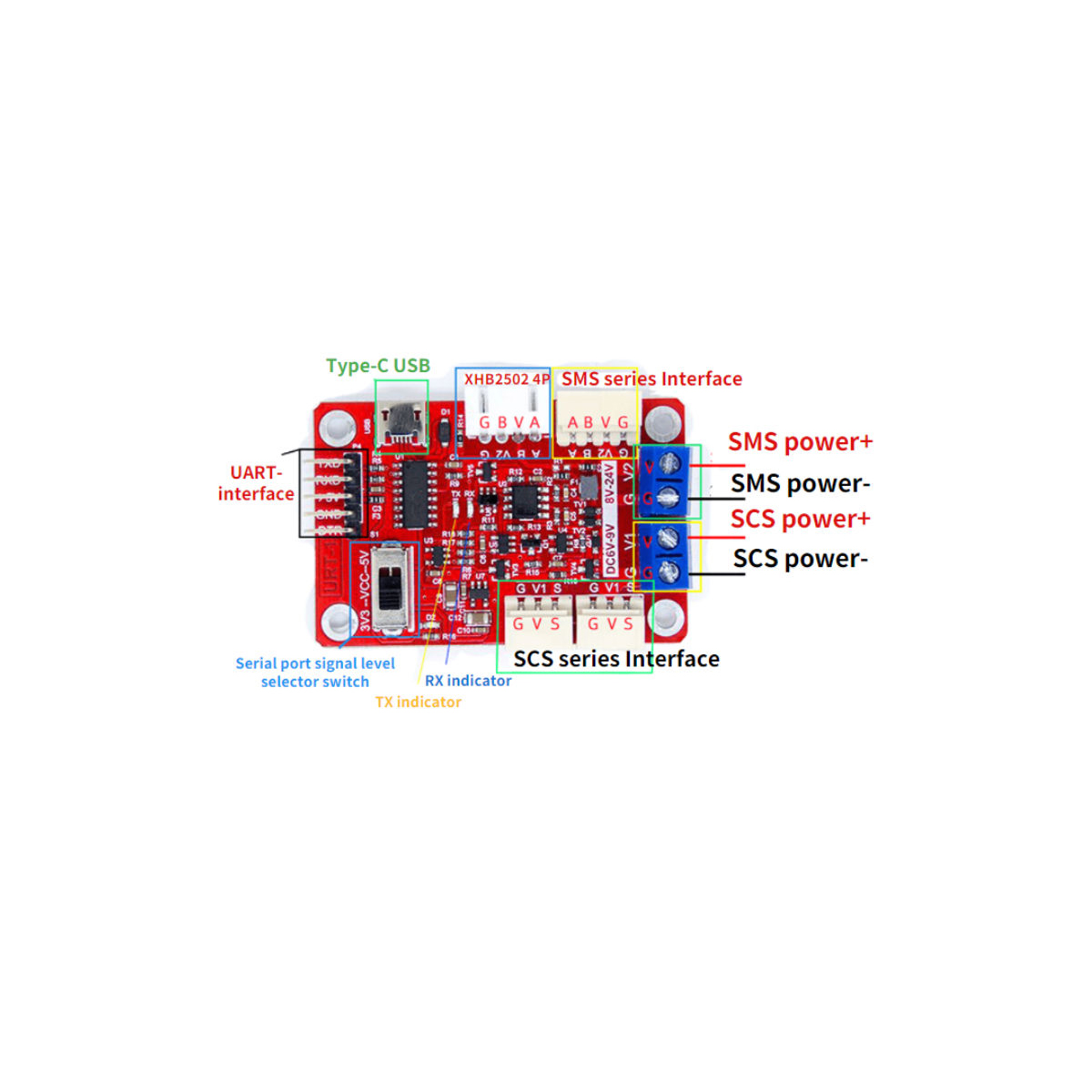

Full speed USB device interface, compatible with USB V2.0
Support baud rate 50bps~1Mbps
5V and 3V3 UART serial port signal level can be switched freely
Supports 32/64 bit Windows 10/8.1/8/7/VISTA/XP, SERVER 2016/2012/2008/20032000/ME/98
Microsoft digital signature authentication
SMS and SCS series servos can be shared by one serial port for control
The serial port signal is asynchronous half duplex communication mode, and the hardware automatic diversion needs no additional enable IO
The interface of servo system adopts error proofing connection to ensure proper connection
UART interface is general pin way, can be used as USB to serial port output, also can connect MCU UART to control the steering gear
With signal level power indicator (D1), TX (D2) and RX (D3) indicator, convenient to view data status
The 5V voltage is supplied from the USB, otherwise the external voltage is supplied to the 5V
500mA overcurrent protection and overvoltage protection for USB power supply belt
