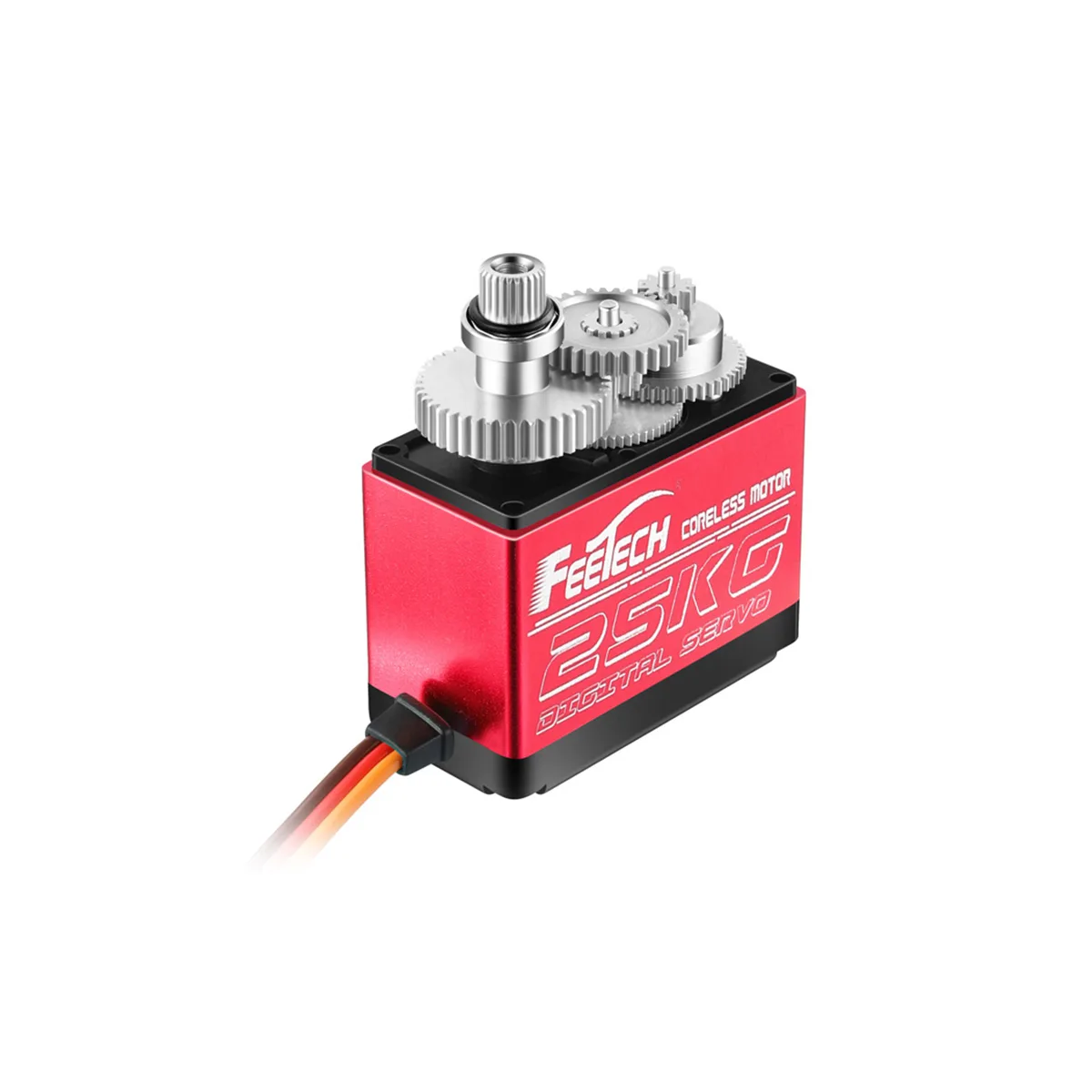

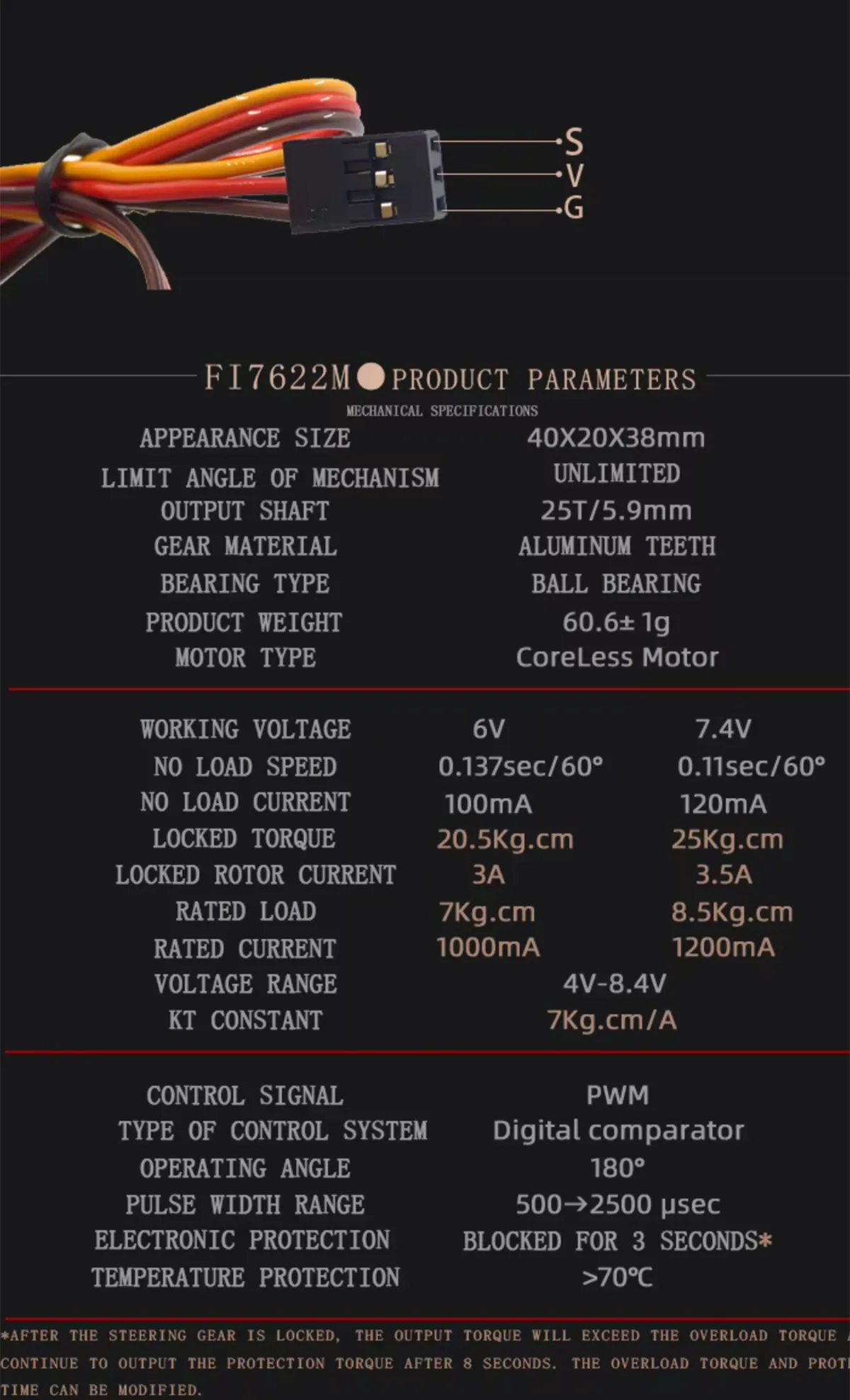

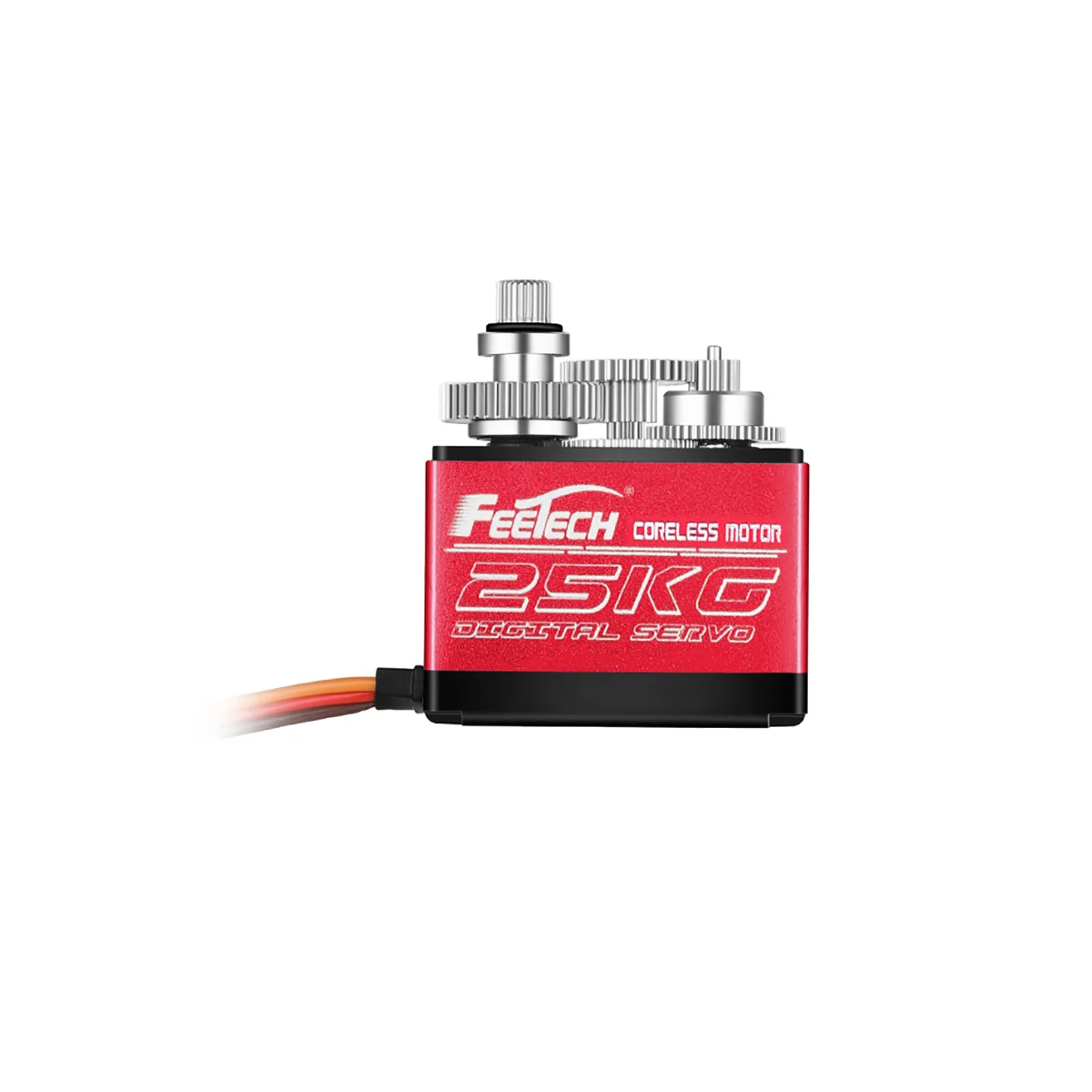

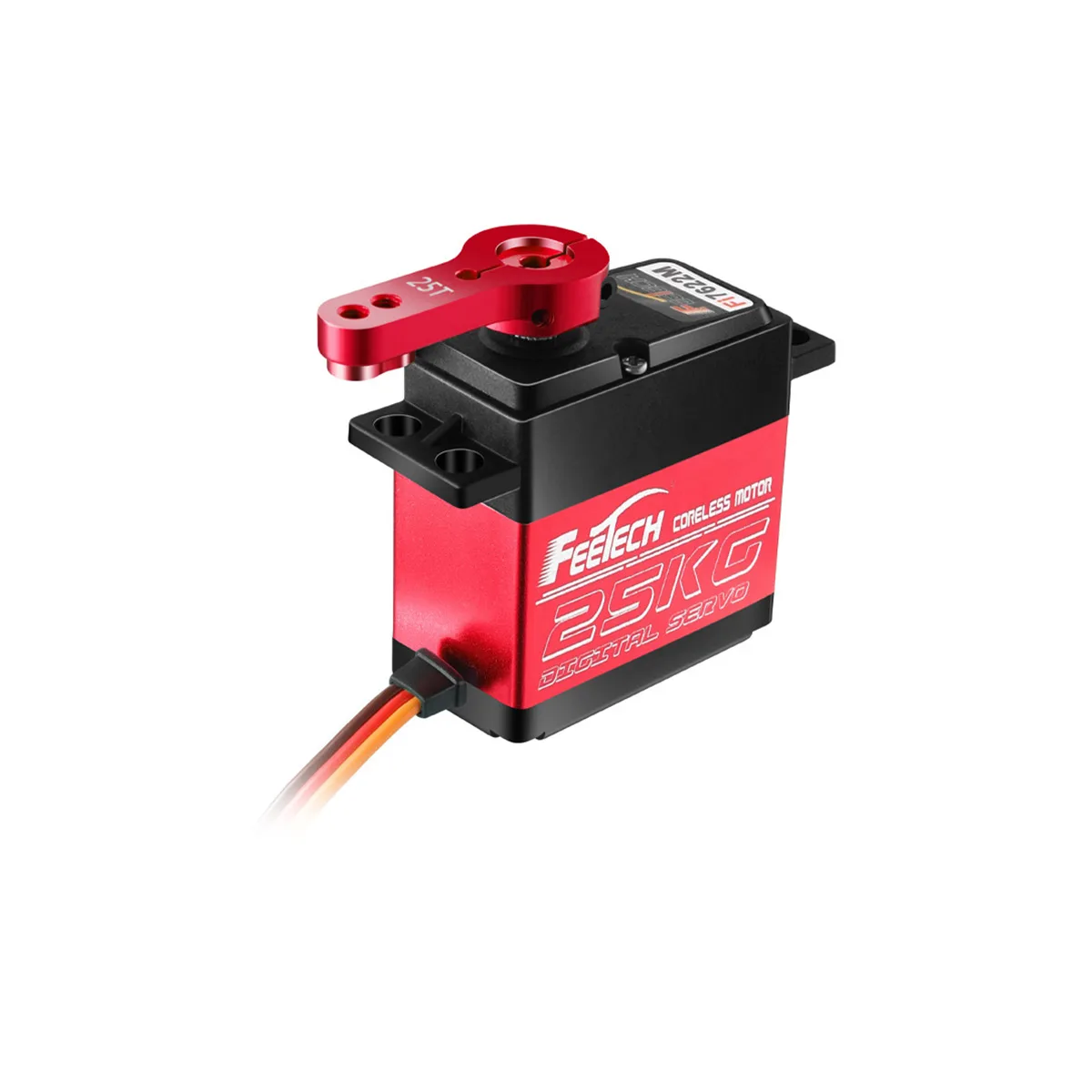

Model: FI-7622-C001
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～60℃

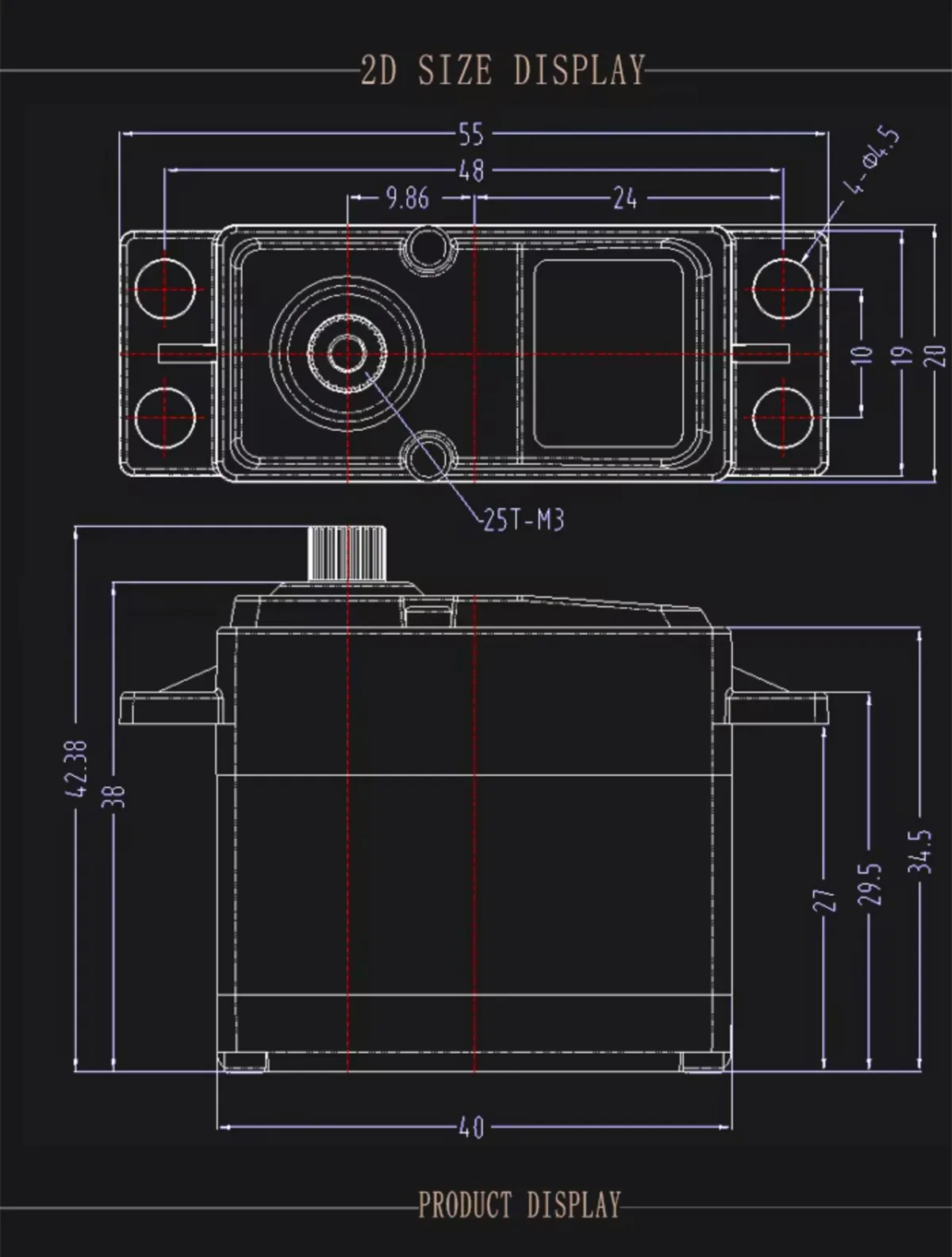

Size: 55*20*38mm
Weight: 66.6±1g

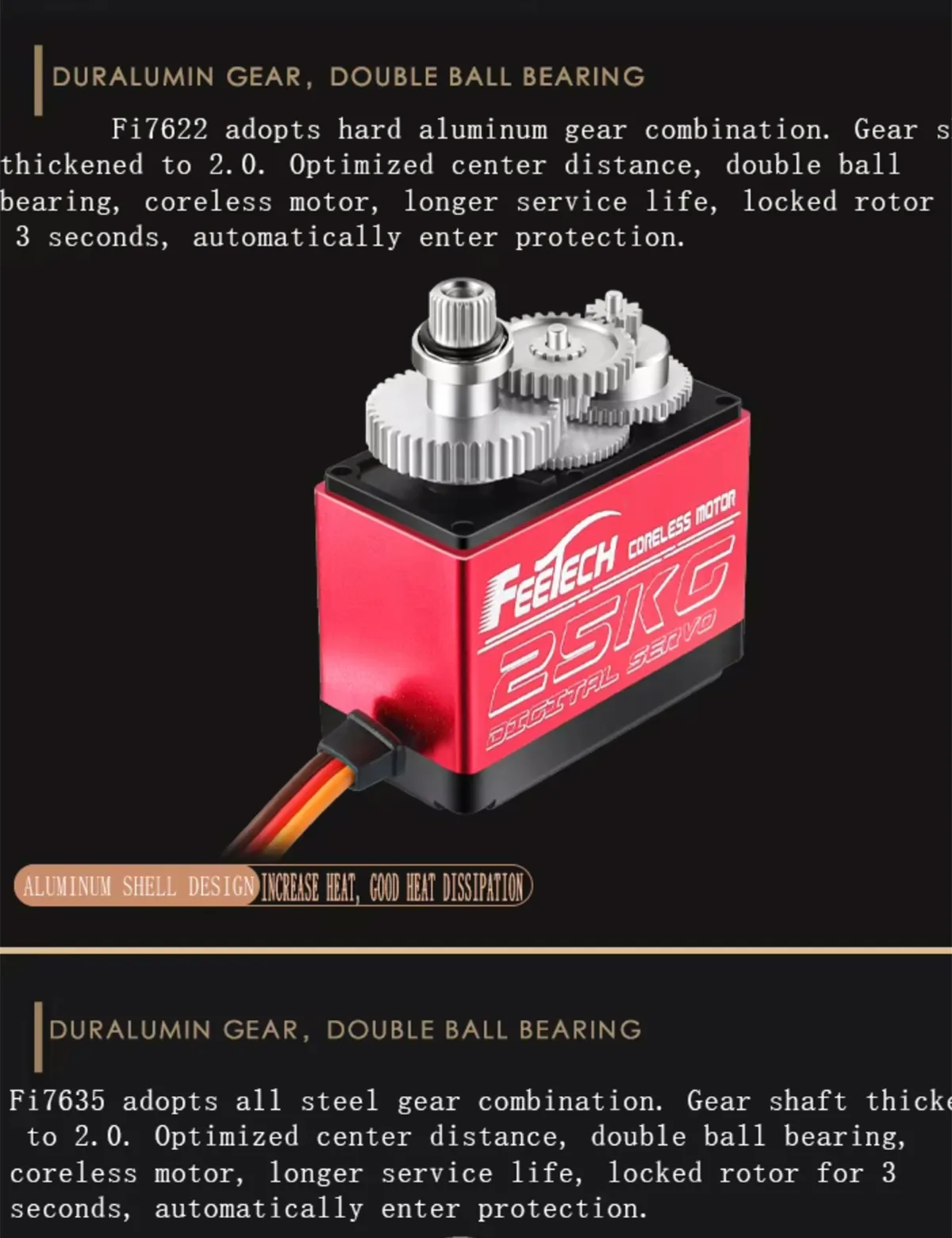

Gear type: Metal Gear
Limit angle: NO limit
Bearing: Ball bearings
Horn gear spline: 25T/5.9mm
Horn type: Plastic
Case: PA+Aluminum
Connector wire: 30CM
Motor: Coreless Motor
Operating Voltage Range: 6V-8.4V
Idle current (at stopped): 6mA@7.4V
No load speed: 0.11sec/60°@7.4V
Running current(at no load): 120mA@7.4V
Peak stall torque: 25kg.cm@7.4V
Rated torque: 8.5kg.cm@7.4V
Stall current: 3.5A@7.4V
Command signal: Pulse width modification
Amplifier type: Digital comparator
Pulse width range: 500~2500 μsec
Stop position: 1500 μsec
Running degree: 180° (at 500→2500 μsec)
Dead band width: ≤4 μsec
Rotating direction: Counterclockwise (at 1500→2000 μsec)
