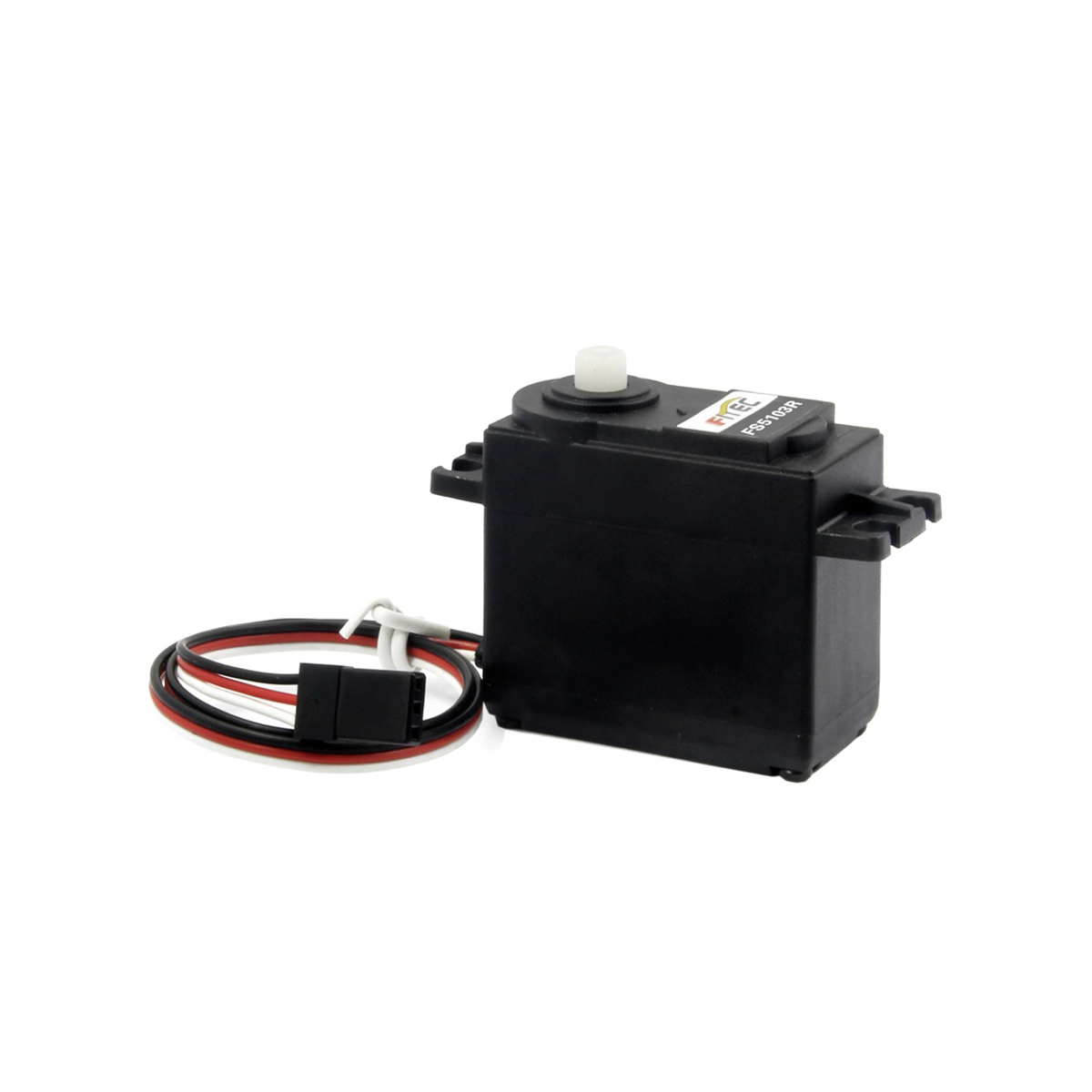

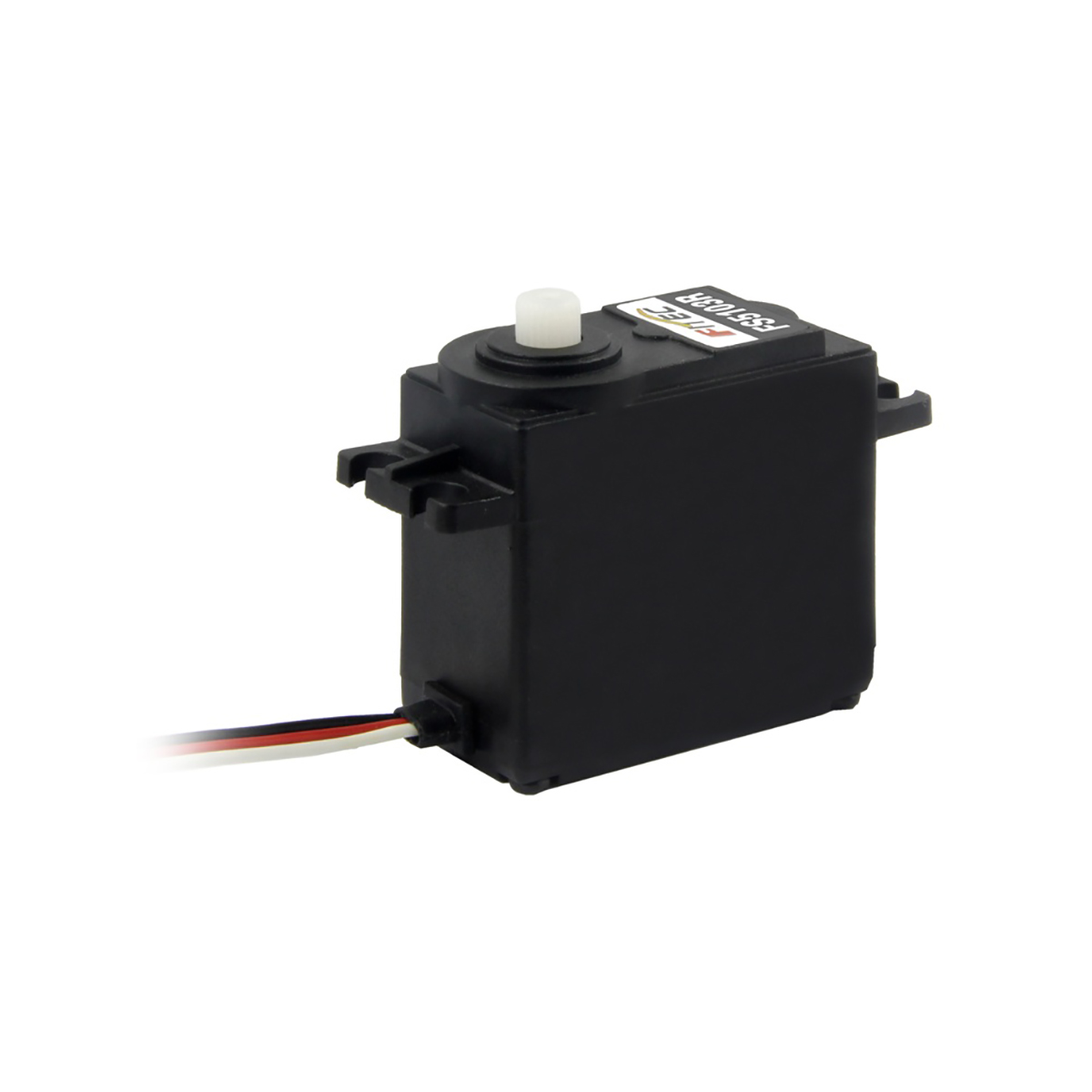

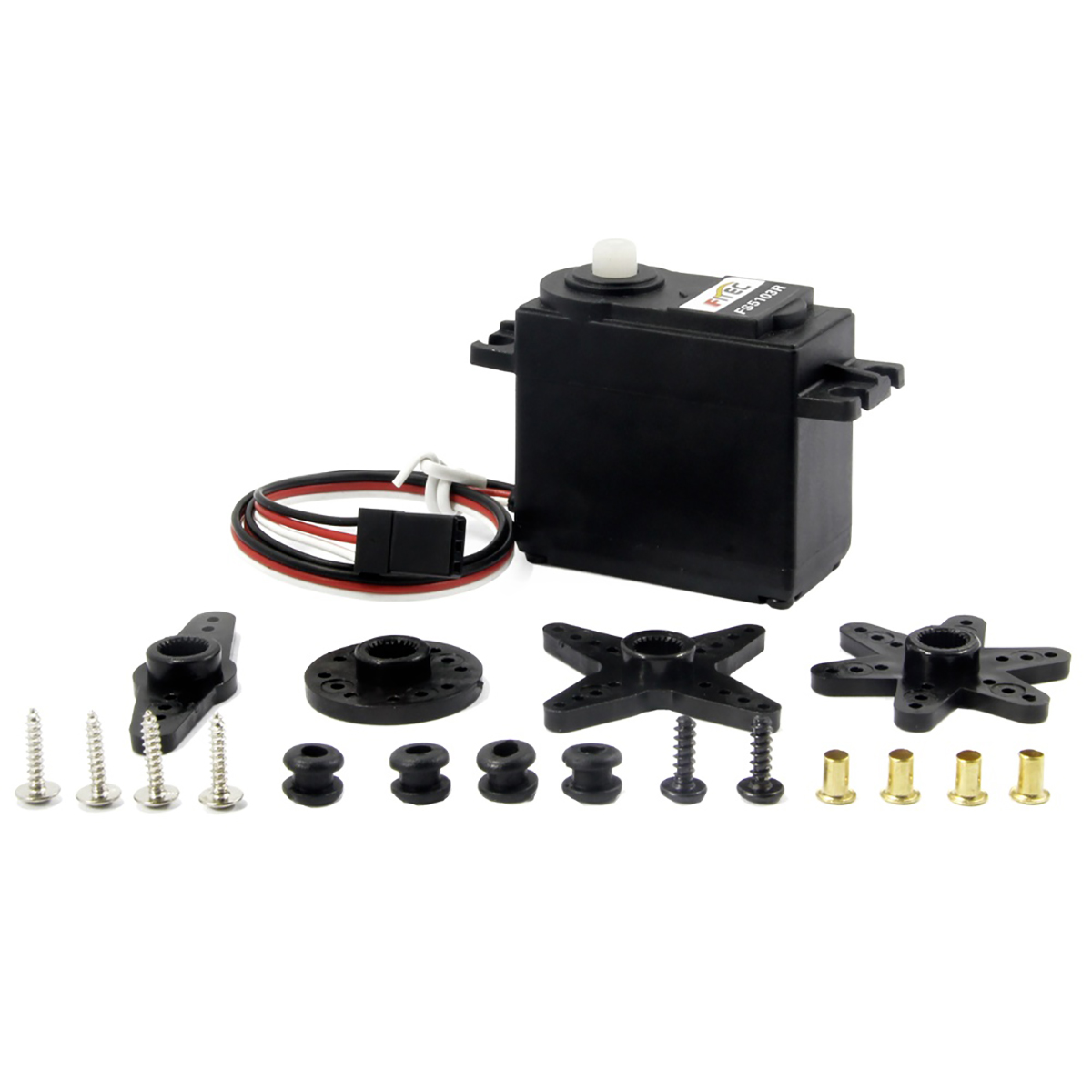

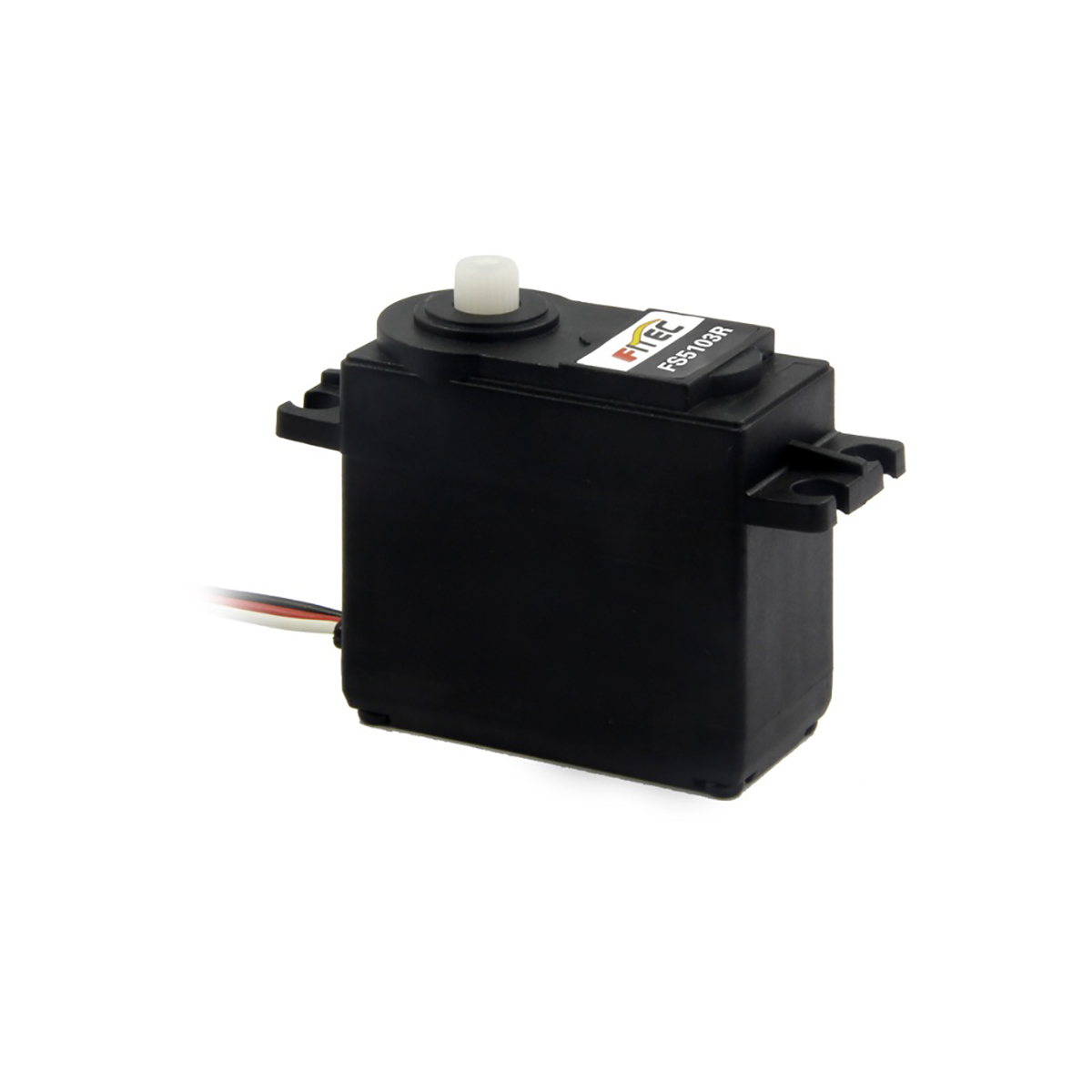

Model: FS-5103-C002
Storage temperature range: -30℃～80℃
Operating temperature range: -15℃～60℃
Size: 40.15*20.15*37.2mm
Weight: 41.5±1g
Gear type: POM
Limit angle: No limit
Bearing: Ball bearings
Horn gear spline: 25T/5.9mm
Horn type: Plastic, POM
Case: PA+Fiber
Connector wire: 30cm
Motor: Core motor
Operating voltage range: 4V-8.4V
No load speed: 0.125sec/60°@6V
Running current(at no load): 210mA@6V
Peak stall torque: 3.2kg.cm@6V
Rated torque: 1.0kg.cm@6V
Stall current: 1.1A@6V
Command signal: Pulse width modification
Control system type: Analog comparator
Pulse width range: 1200→1800 μsec
Stop position: 1500（±9）μsec
Running degree: 360°Continuous rotation
Dead band width: ≤18 μsec
Rotating direction: Counterclockwise (at 1500→1800μsec)
