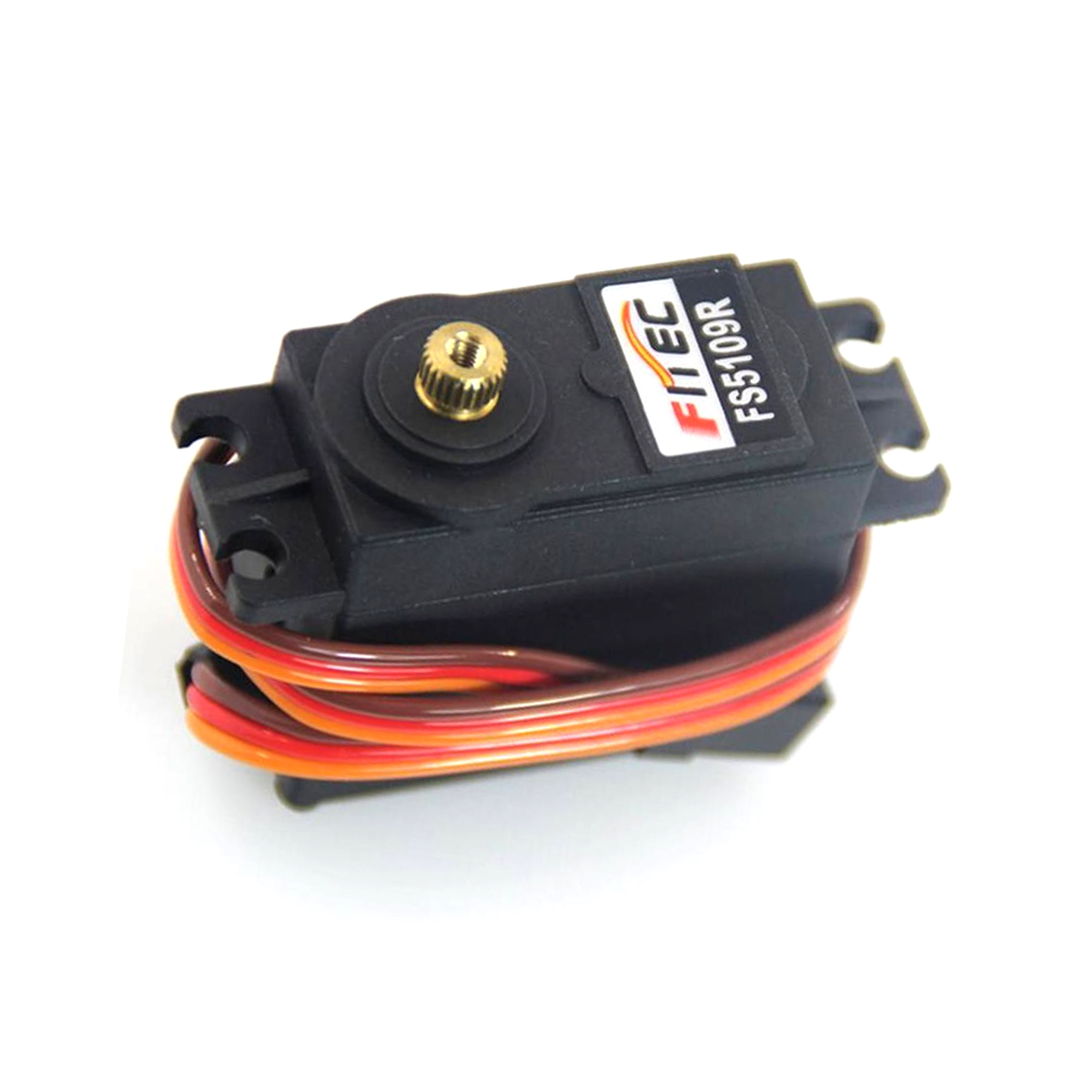

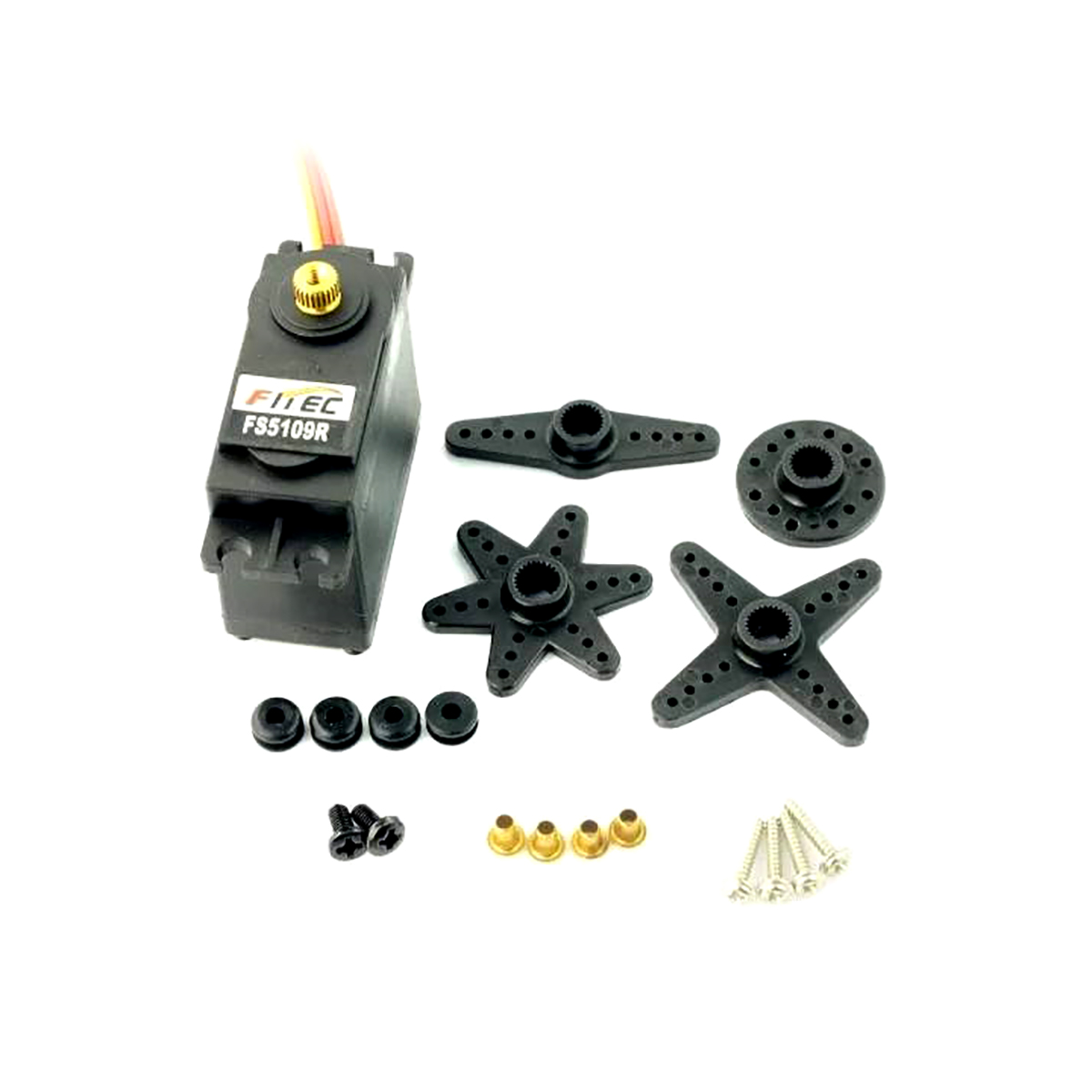

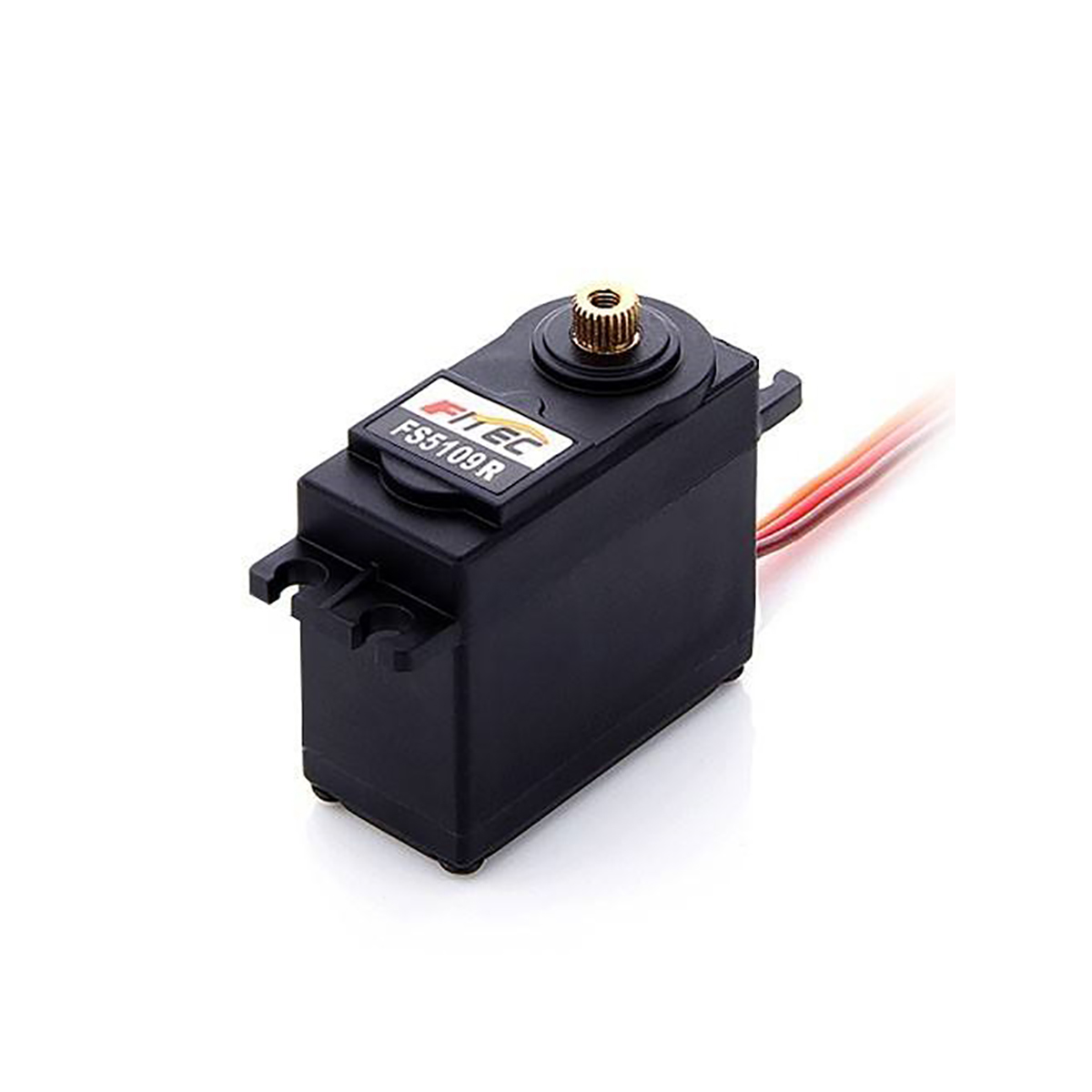

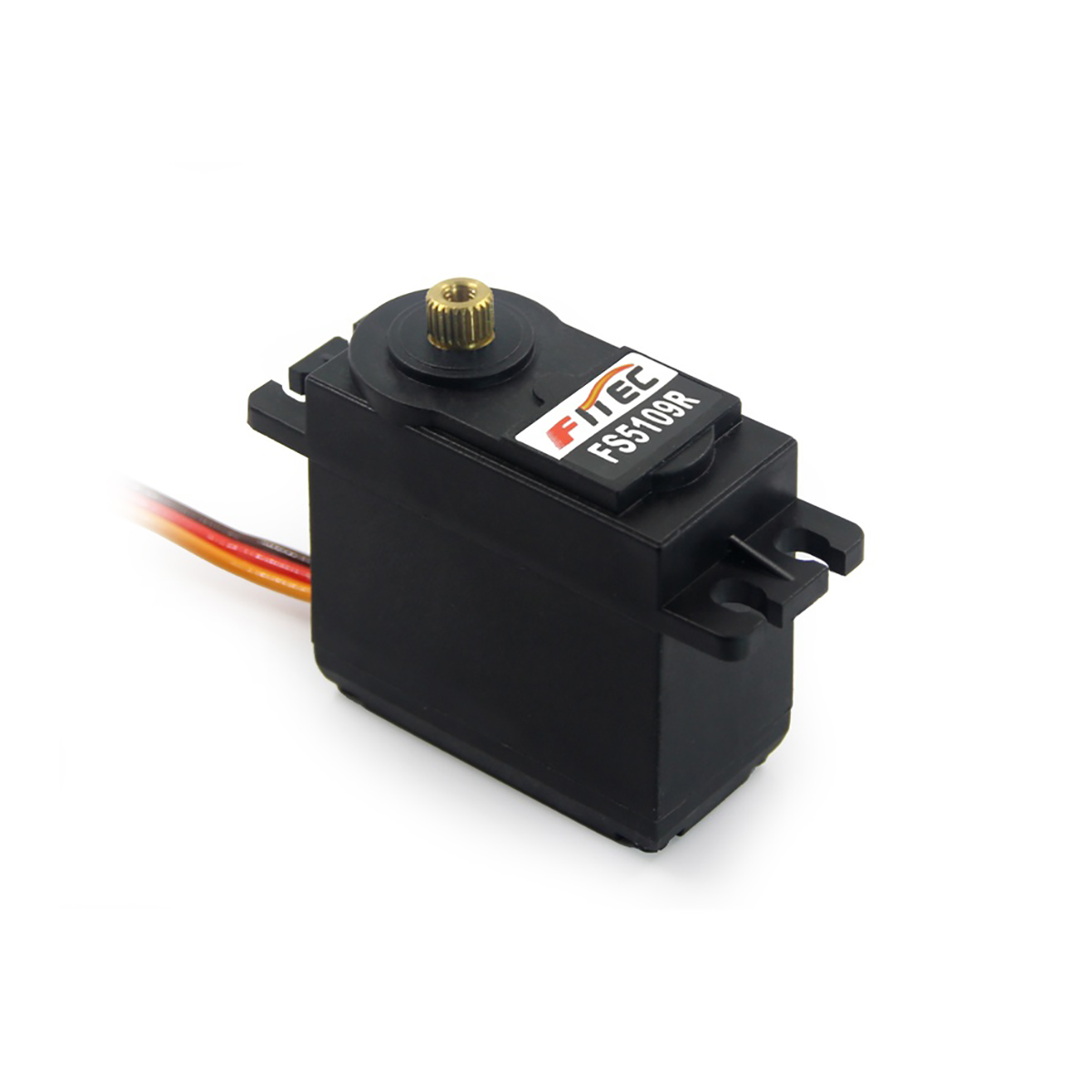

Model: FS-5109-C001
Storage temperature range: -30℃～80℃
Operating temperature range: -15℃～70℃
Size: 40.1*20.1*38.9mm
Weight: 60.6±1g
Gear type: Copper
Limit angle: No limit
Bearing: Ball bearings
Horn gear spline: 25T/5.9mm
Horn type: Plastic, POM
Case: PA+Fiberglass
Connector wire: 30cm
Motor: Core motor
Operating voltage range: 4-8.4V
Idle current (at stopped): 6mA@6V
No load speed: 50RPM@6V
Running current(at no load): 150mA@6V
Peak stall torque: 10.2kg.cm@6V
Rated torque: 3.4kg.cm@6V
Stall current: 1.7A@6V
Command signal: Pulse width modification
Amplifier type: Digital comparator
Pulse width range: 1000~2000usec
Stop position: 1500μsec
Running degree: 360°Continuous rotation (at 1000→2000μsec)
Dead band width: ≤65μsec
Rotating direction: Counterclockwise (at 1500→2000μsec)
