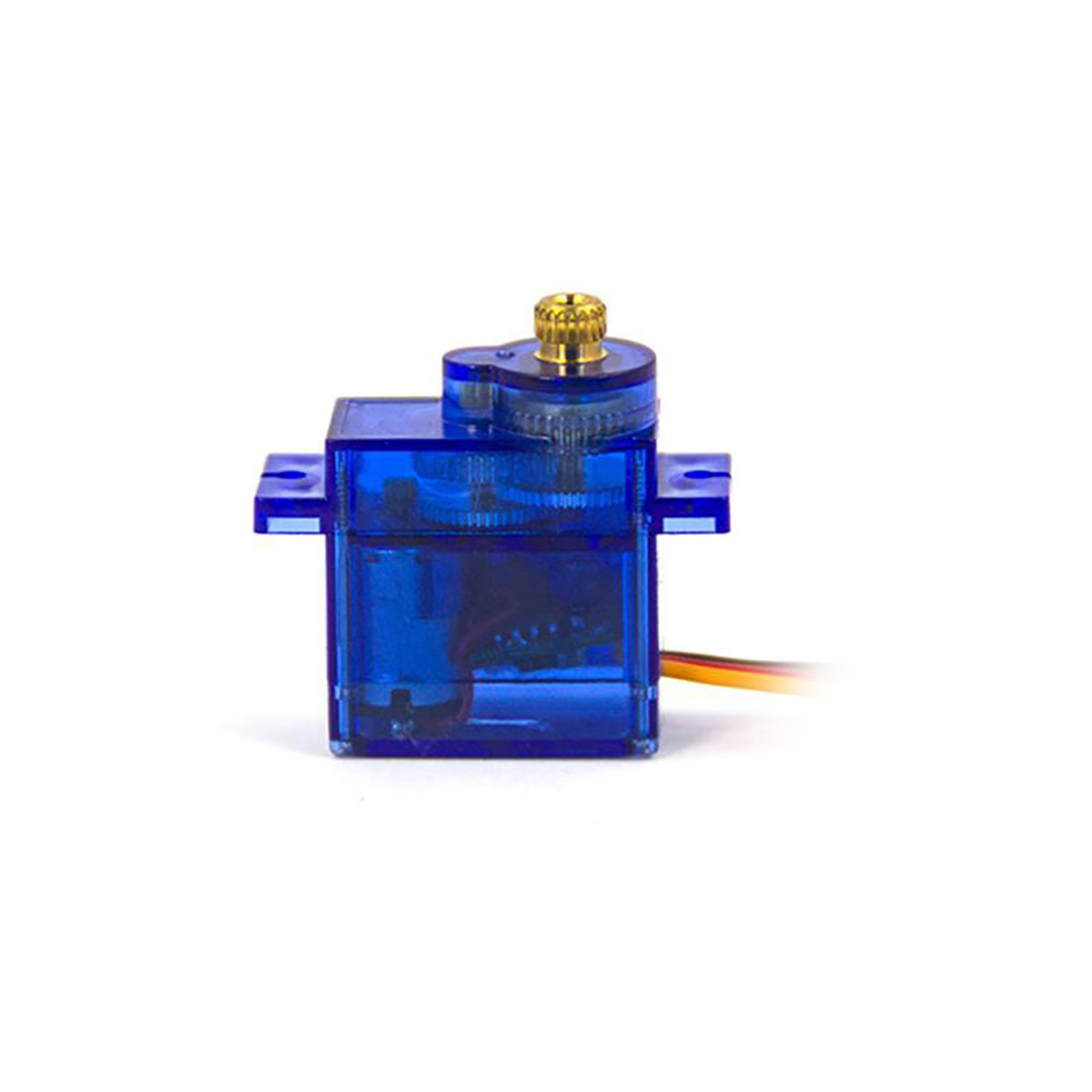

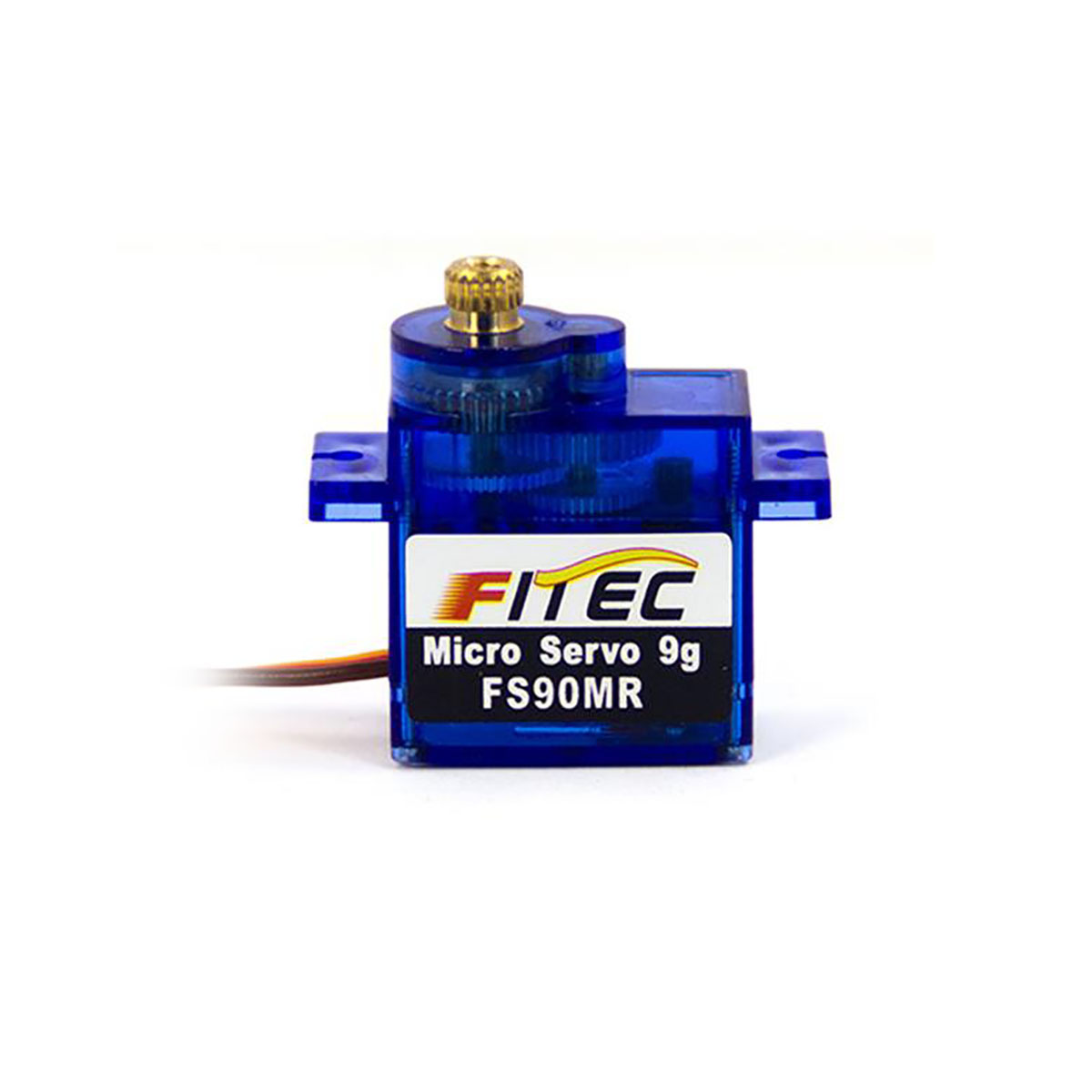

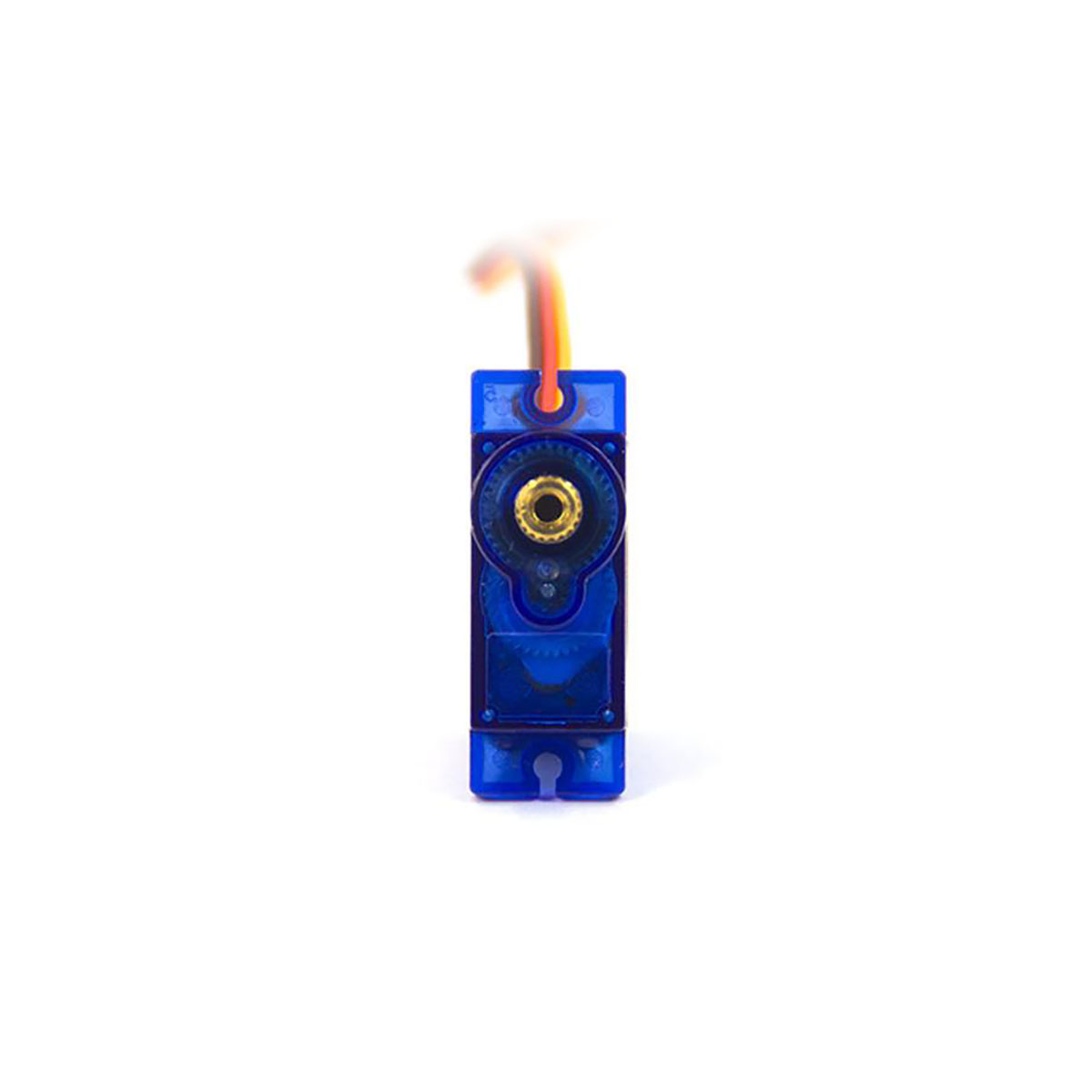

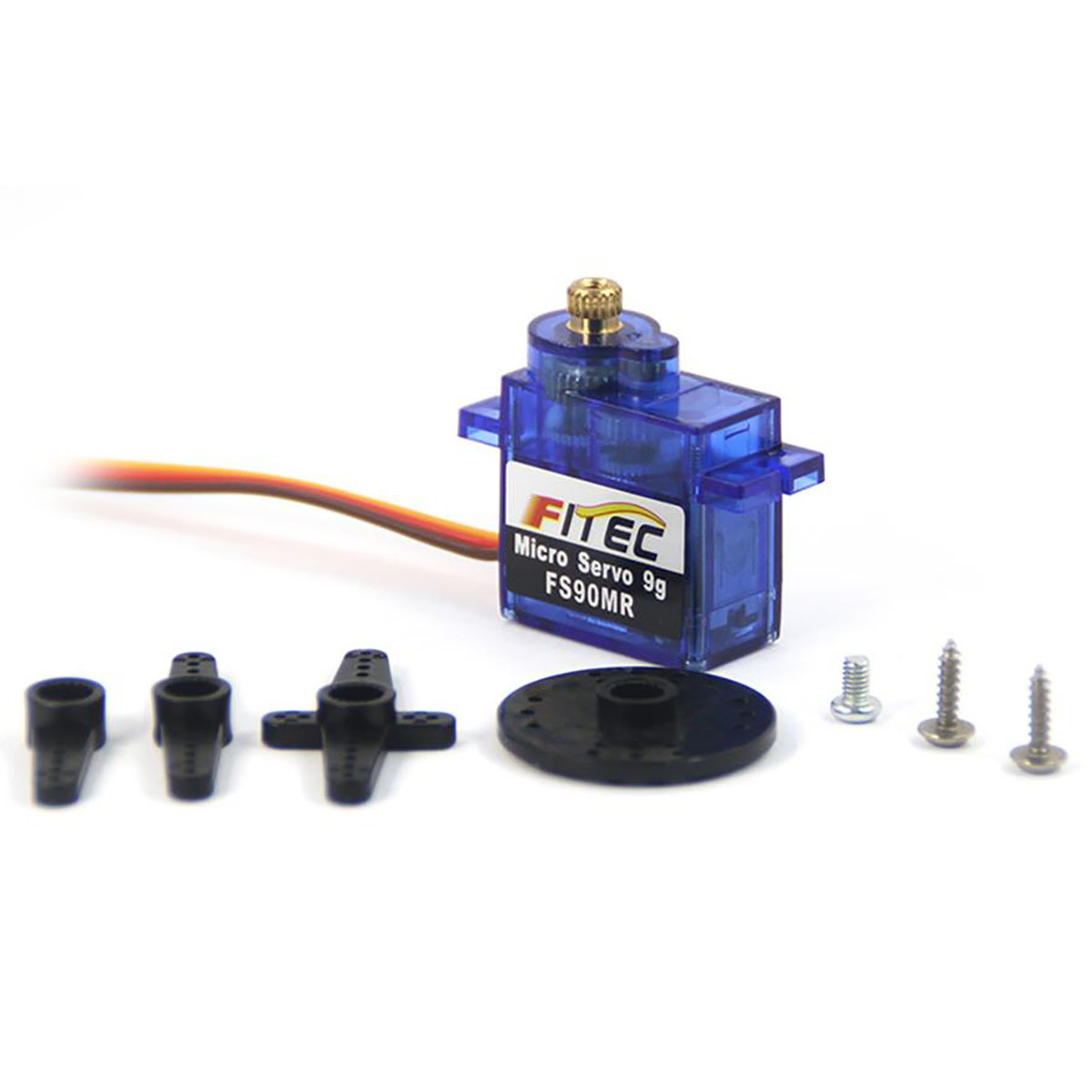

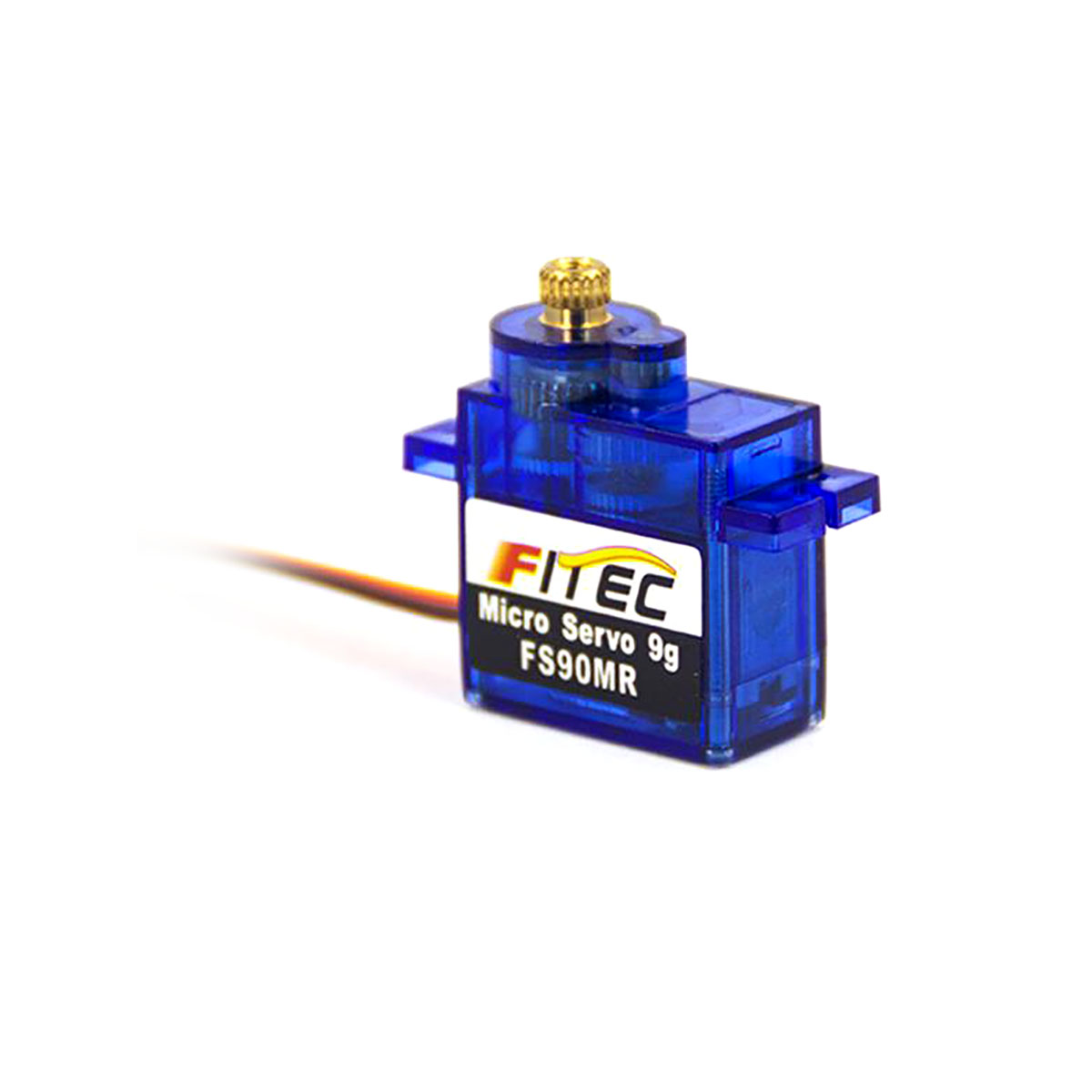

Model: FS-90MR-C002
Storage temperature range: -30℃～80℃
Operating temperature range: -10℃～60℃
Size: 22.5*12.1*26.7mm
Weight: 12.7±1g
Gear type: POM
Limit angle: No limit
Bearing: NO
Horn gear spline: 20T/4.7mm
Gear ratio: 1/263
Case: PC plastic
Connector wire: 25cm
Motor: Core motor
Operating voltage range: 3V-6V
Idle current (at stopped): 6mA@6V
No load speed: 100RPM/60°@6V
Running current(at no load): 160mA@6V
Peak stall torque: 2.2kg.cm@6V
Rated torque: 0.7kg.cm@6V
Stall current: 800mA@6V
Command signal: Pulse width modification
Amplifier type: Digital comparator
Pulse width range: 1400→1600μsec
Stop position: 1500μsec
Running degree: 360°Continuous rotation (at 1400→1600μsec)
Dead band width: ≤90μsec
Rotating direction: Counterclockwise (at 1500→1600μsec)
