FEETECH FT-DC-002 2WD programmable Robot Platform

SKU FT-DC-002 Category Tag Brand:

FEETECH FT-DC-002 2WD programmable Robot Platform

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

 FEETECH 2WD Mini Smart Robot Mobile Platform Kit FT-DC-002
1.All about fun and creativity.
2.Easy-to-assemble,an all-in-one solution for kids to improve the hands-on ability about?
programming, electronics, and robotics.
3.Enjoy the pleasure of DIY (add all kinds of sensors,infrared ray,
free become to obstacle-avoidance car.
line-following vehicle, remote control car,etc),provides infinite possibilities.
4.Compatible with any controller. (Arduino,Raspberry PI,Banana PI,etc)

Mini Smart Robot Mobile Platform uses 2 DC motor gear box(1:48/1:120/1:180) to drive. High speed up to 200RPM,at 200mA/6V and 90rpm/150mA/3V

Two plastic wheels are press-fit onto DC motor gear box output gear shaft, and easy to make a nice drive solution for small robots. The wheels have silicone tires and measure 60mm (2.36″) in diameter.

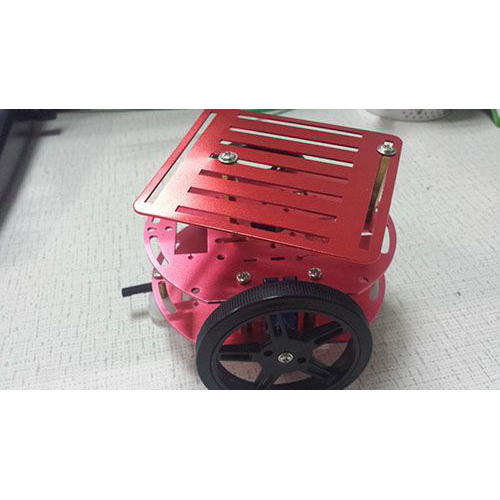

This Mini Smart Robot Mobile Platform frame make with 5051 aluminum alloy and anodize color (The factory default is red. Can do other color if need. ).

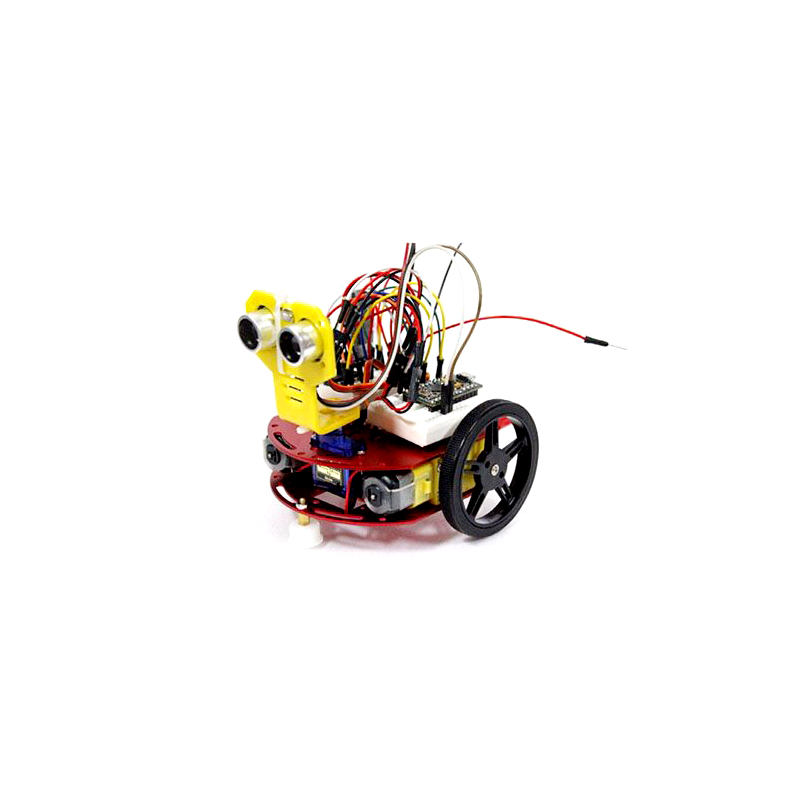

Mini Robot Mobile Platform can assembly with Arduino controller.

Easy to add all kinds of sensor and let it to work at your idea.

This is a good start kit for student.

Size(L*W*H): 100mm*80mm*27mm

Weight: 150g

Drive: 2WD

Frame: 1.5mm aluminum alloy structure, light weight and high strength

Color: Red(other color if need)

Work voltage: 3~6V

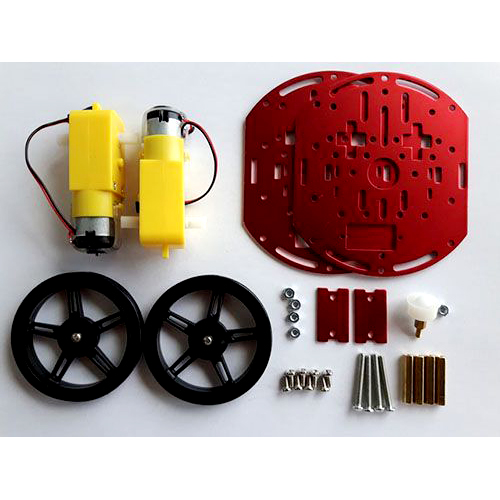

DC motor gear box x 2pcs(Gear Ratio 1:48;1:120;1:256Three type gear box)
WHEEL x 2pcs
Frame(body bracket) x 2pcs
DC bracket x 2pcs
Bull ‘s-eye bearing wheel x 1PCS
Screw 1 SET
