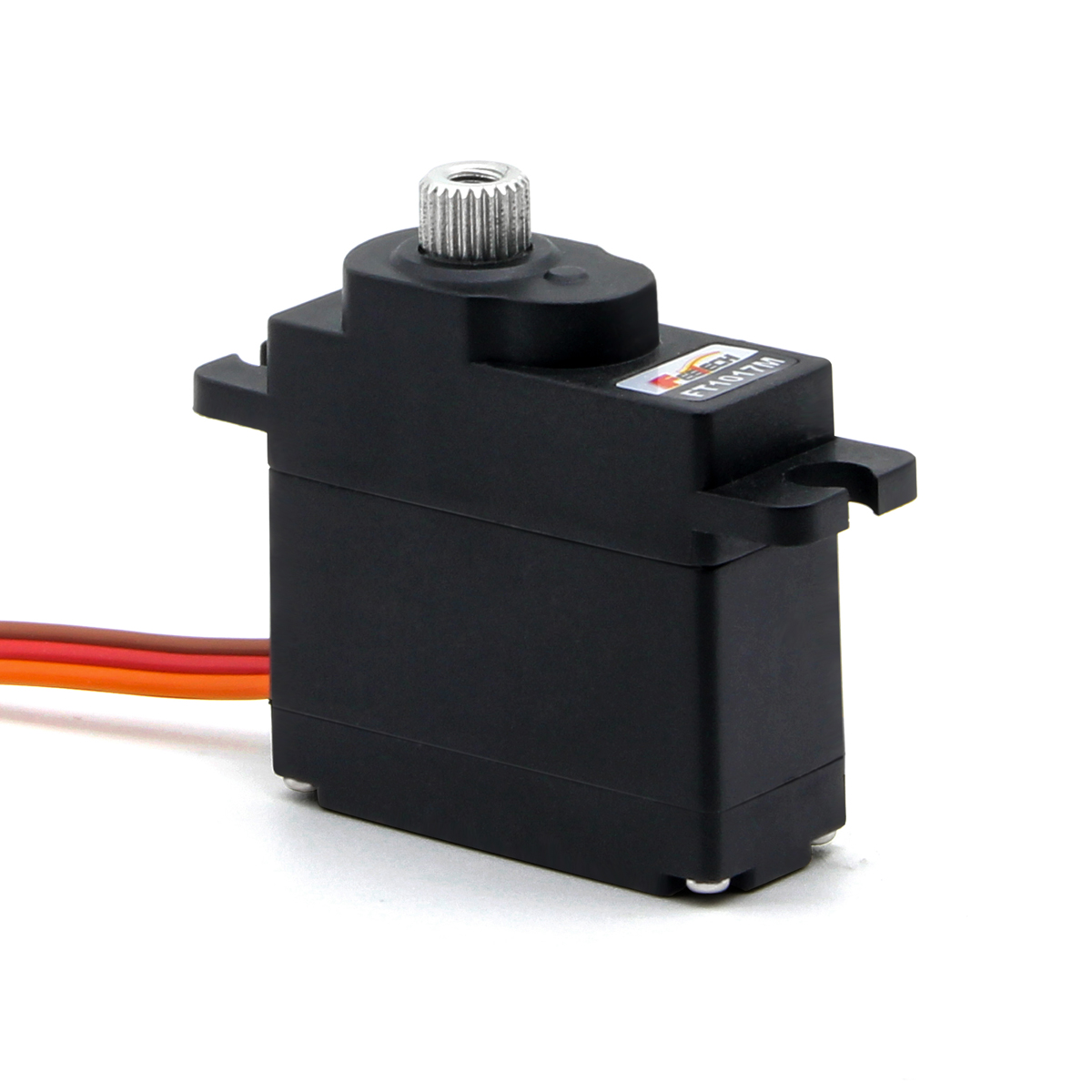

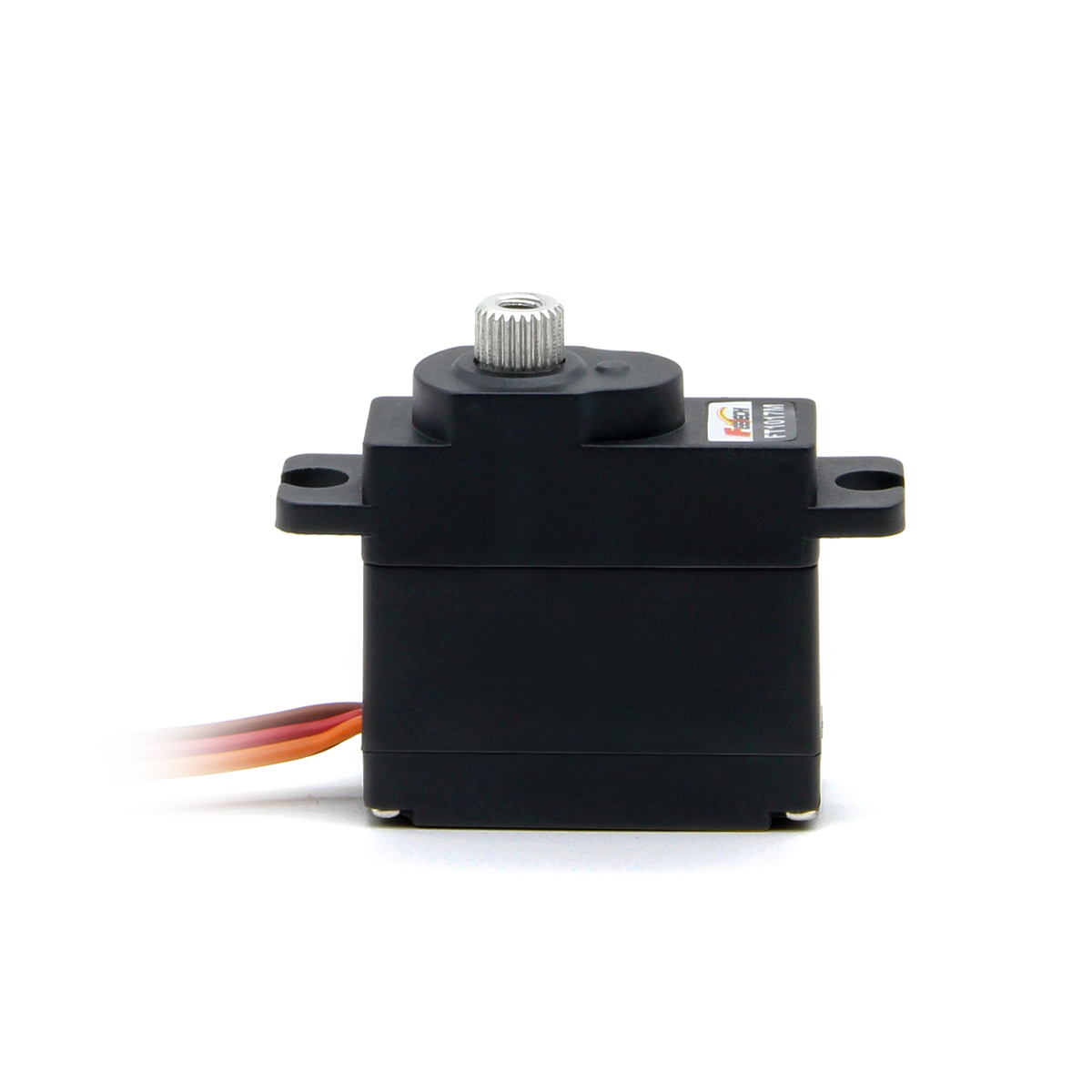

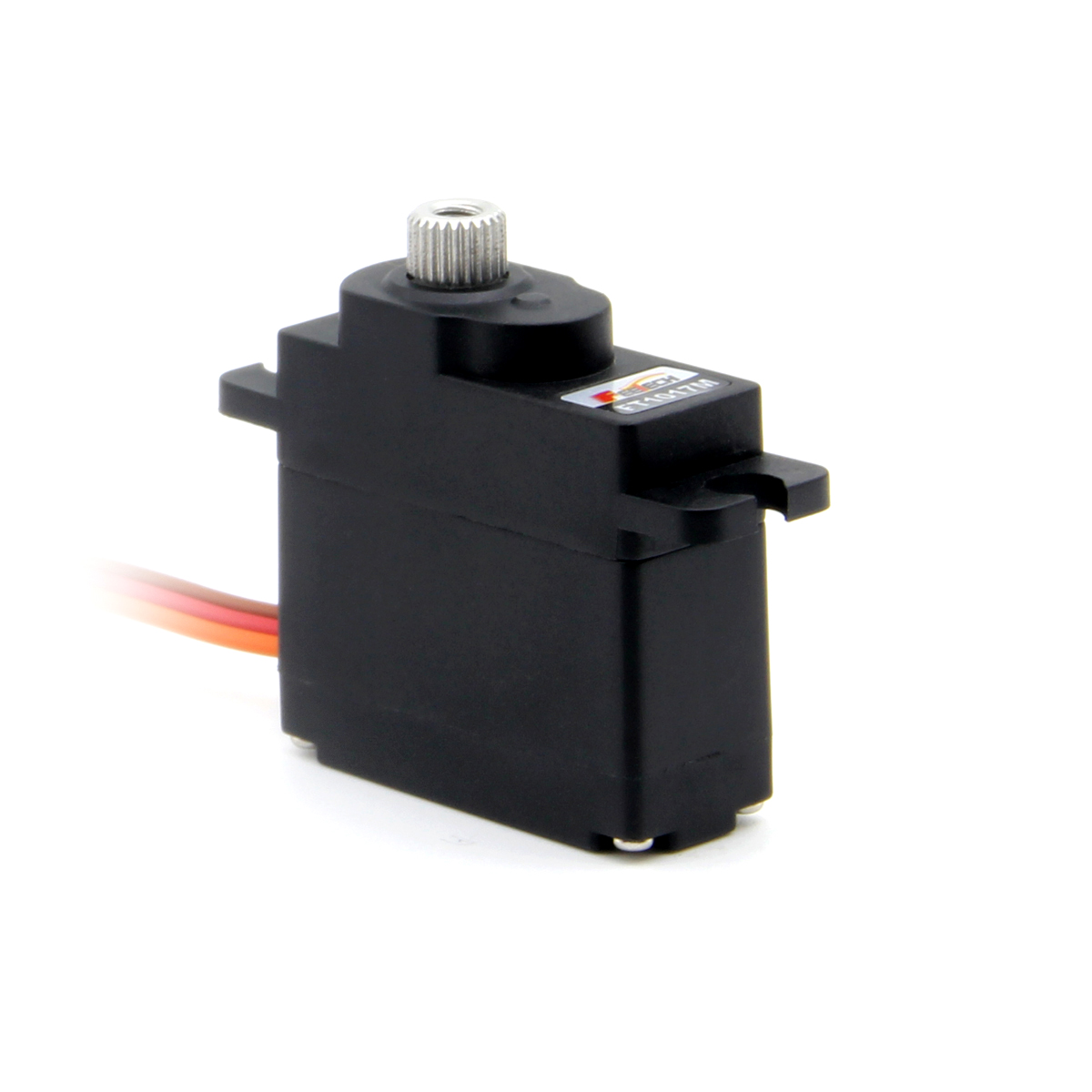

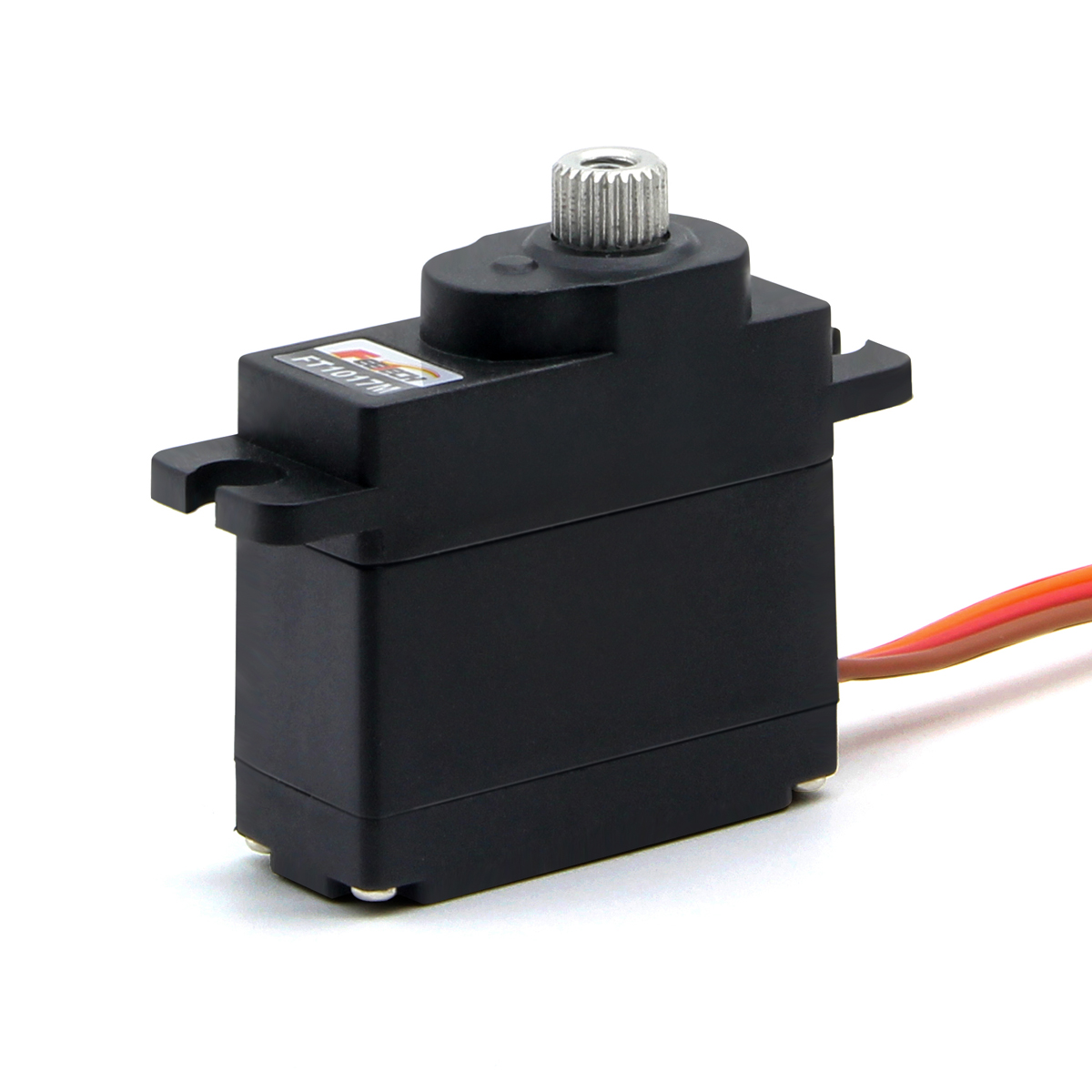

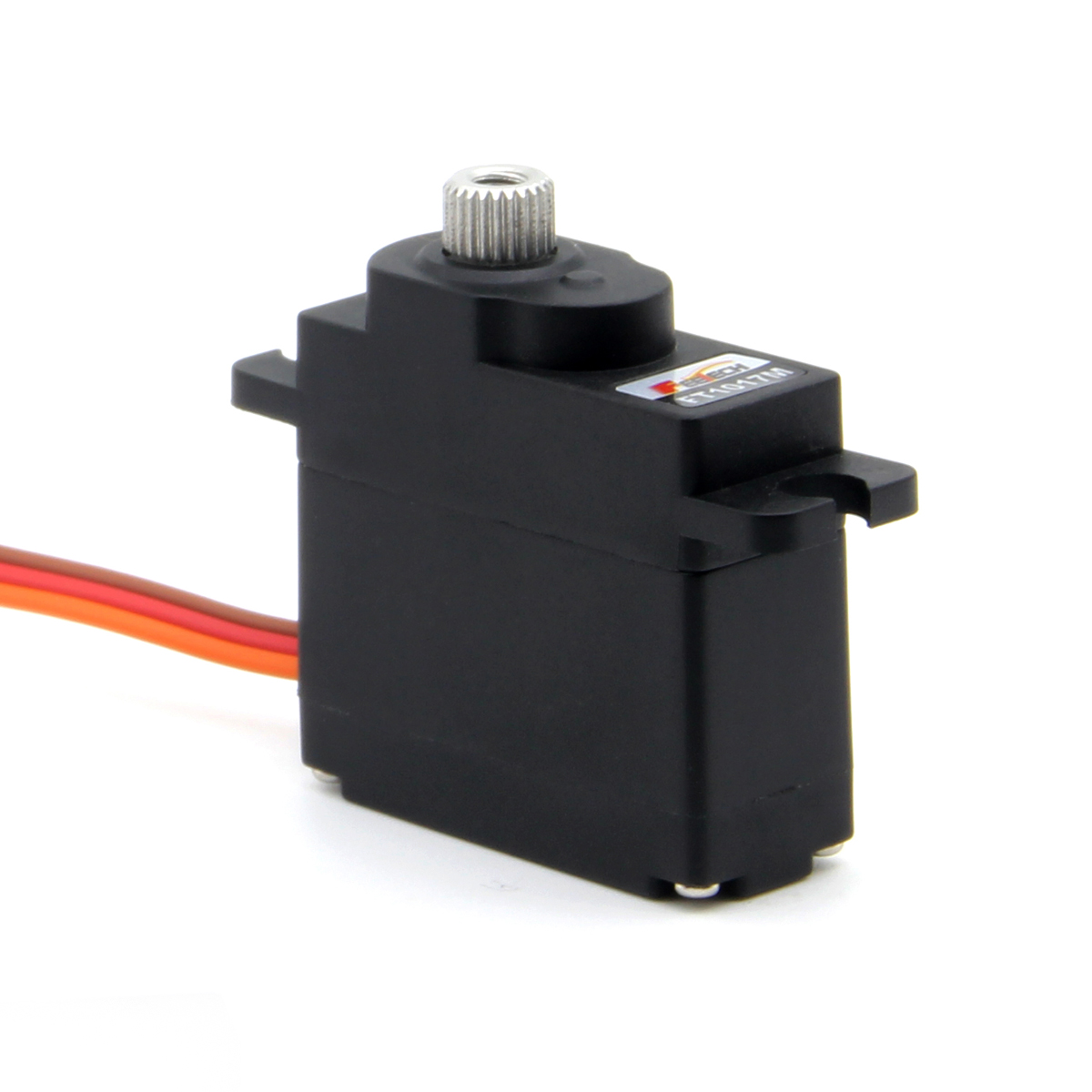

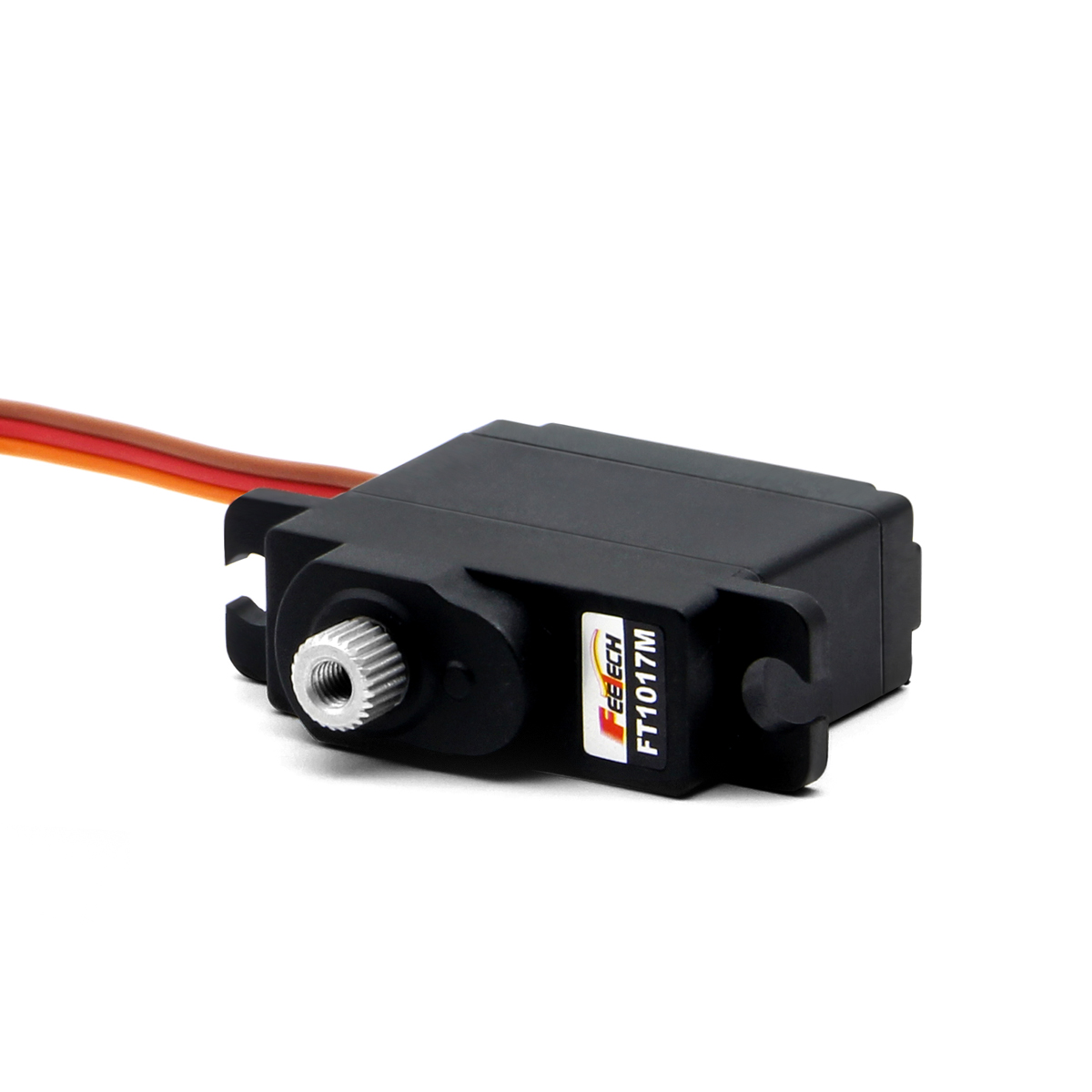

Feetech FT1017M 6V 5.5kg Metal Gear Core Motor 180 Degree Micro Digital Servo for RC Car Model Robot
Feetech FT1017M 6V 5.5kg Metal Gear Core Motor 180 Degree Micro Digital Servo for RC Car Model Robot
The Servo Motor FT1017M is a workhorse standard servo with a range of 180 degrees that can be used in many applications and is one of the best values for a general-purpose servo.
Micro size servo
Strong, can lift 8lbs positioned 1cm from the center of the shaft
180-degree rotation

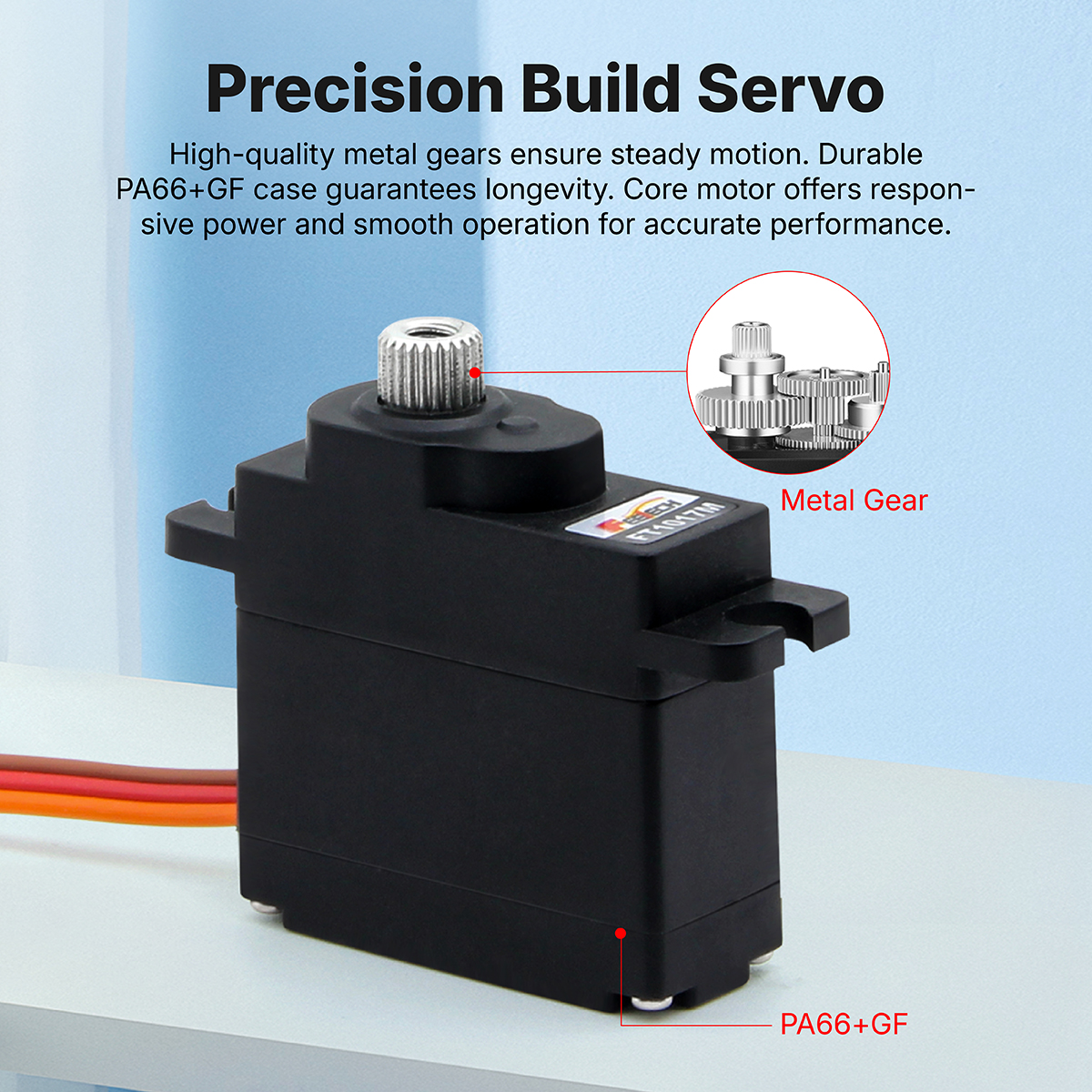

Metal gears
Digital drive

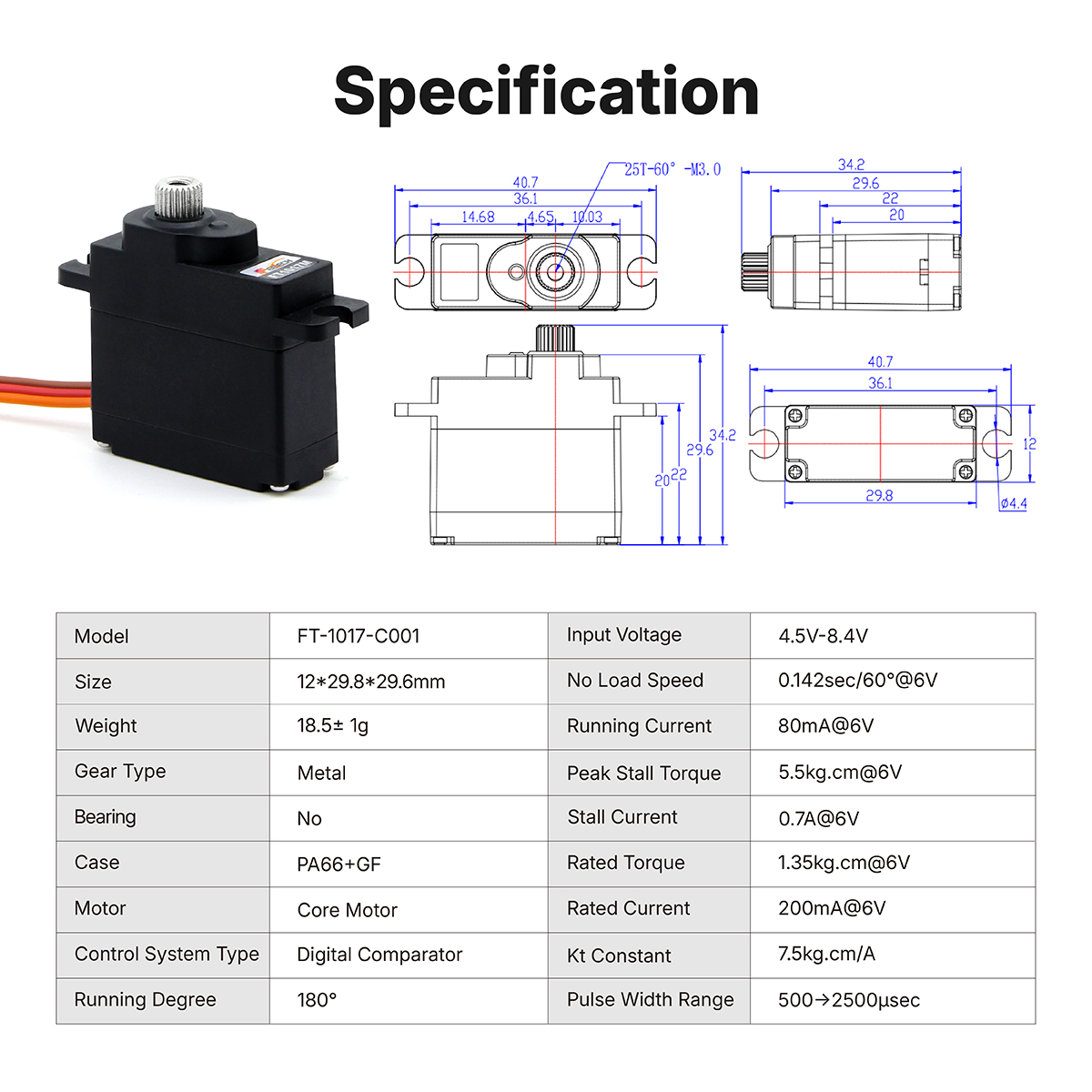

Model: FT-1017-C001
Storage temperature range: -30℃～70℃
Operating temperature range: -20℃～60℃
Size: 12*29.8*29.6mm
Weight: 18.5±1g
Gear type: Metal
Limit angle: No limit
Bearing: NO
Horn gear spline: 25T/5.9mm
Case: PA66+GF

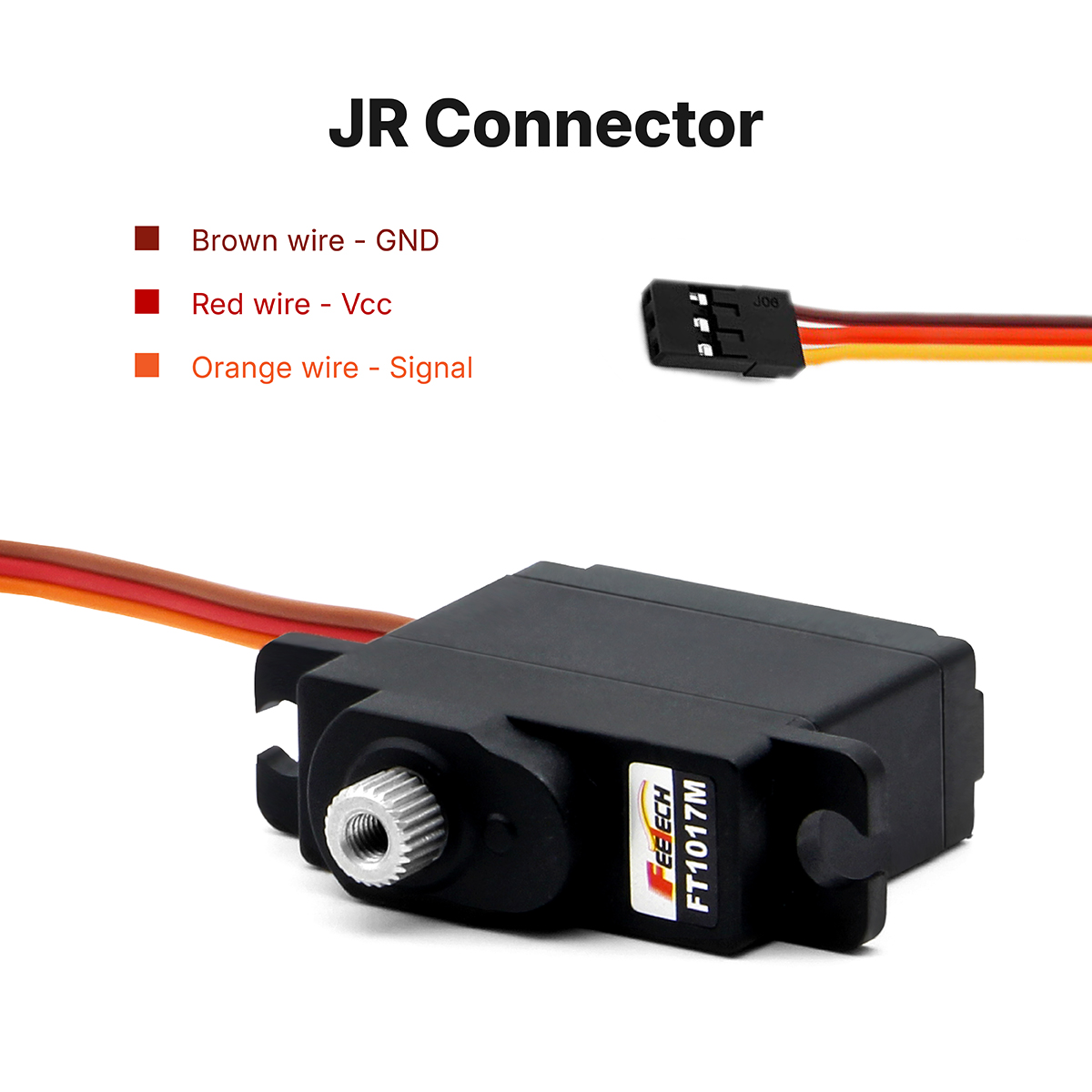

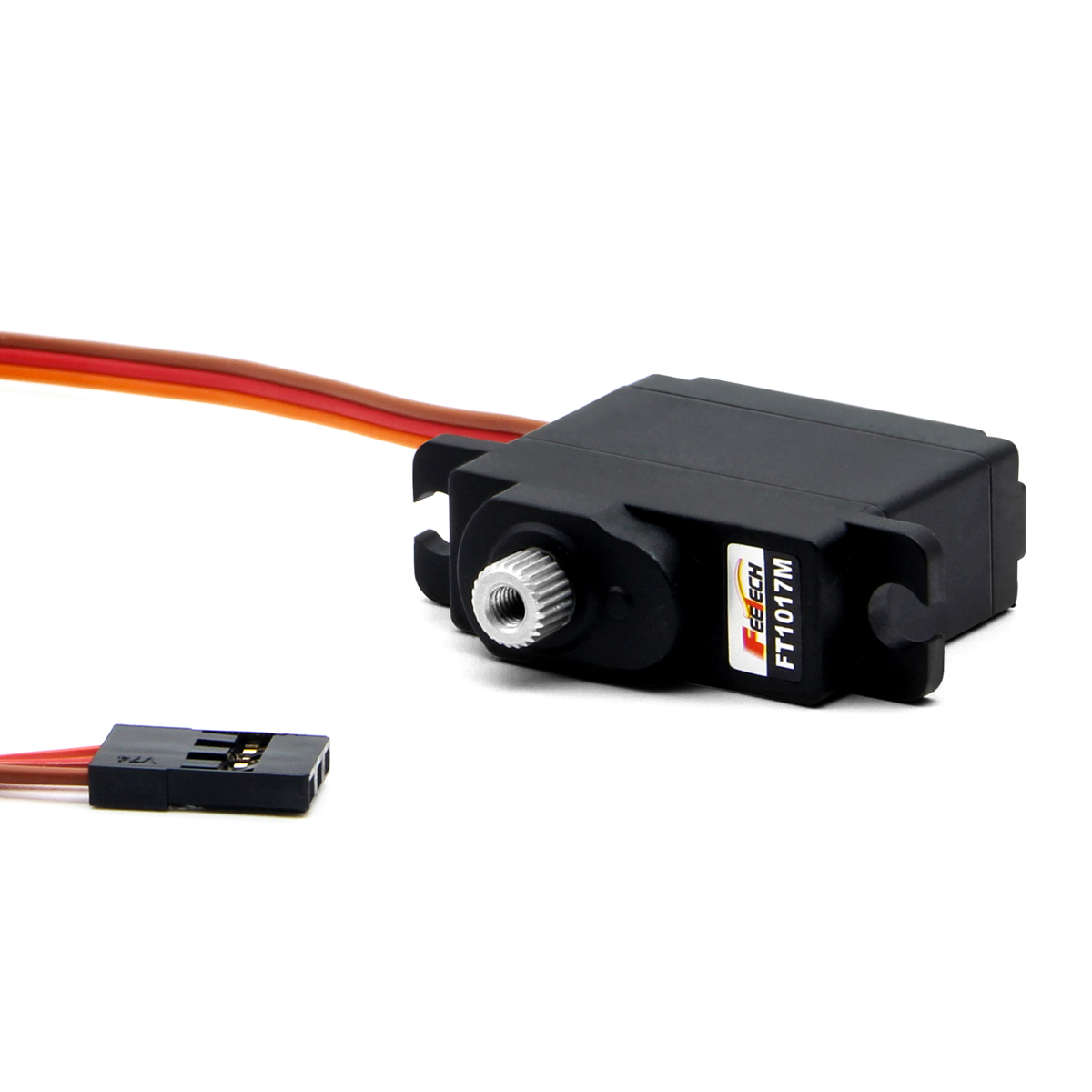

Connector wire: 25±1cm
Motor: Core motor

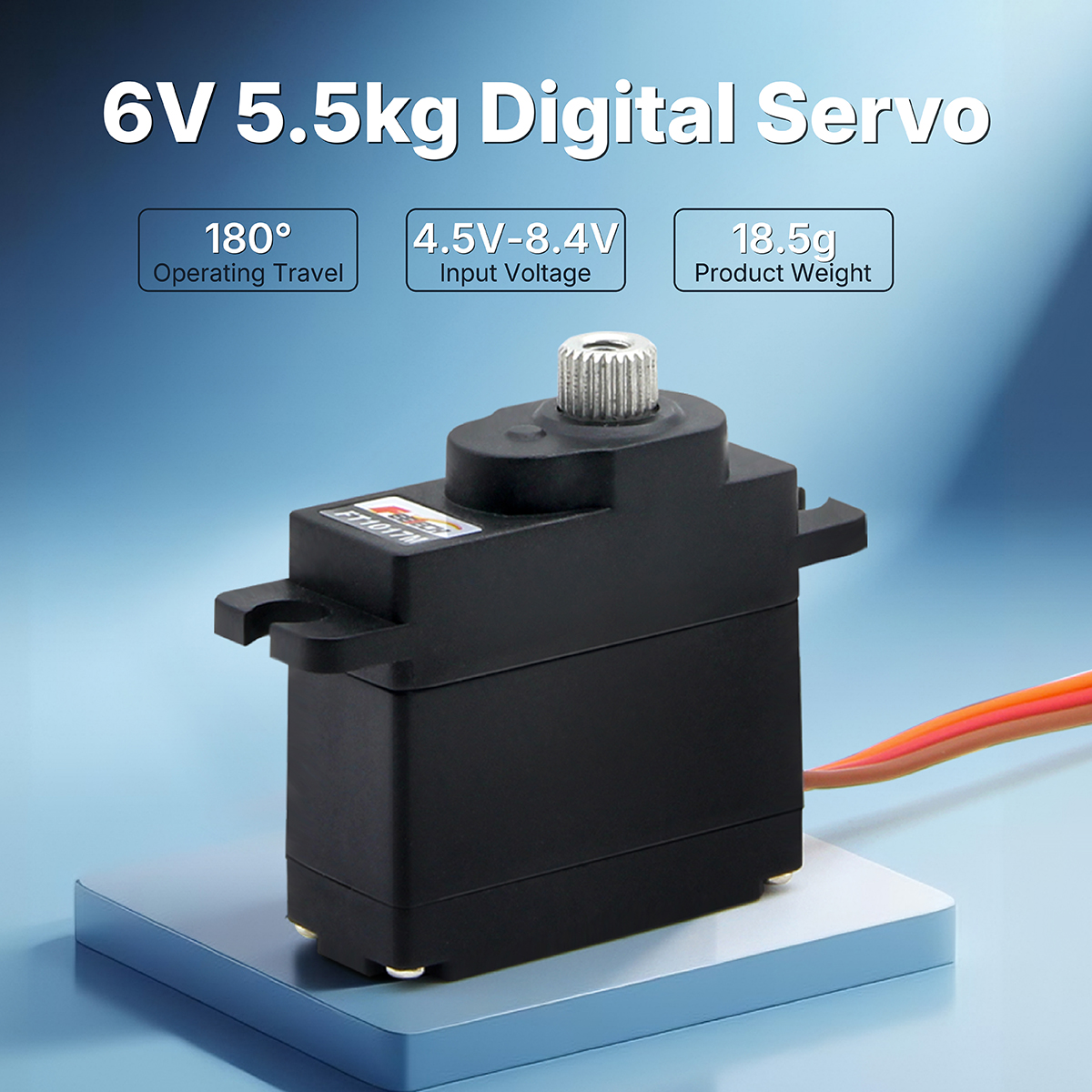

Operating voltage range: 4.5-8.4V
Idle current (at stopped): 7mA@6V
No load speed: 0.142sec/60°(70RPM)@6V
Running current(at no load): 80mA@6V
Peak stall torque: 5.5kg.cm@6V
Rated torque: 1.35kg.cm@6V
Command signal: Pulse width modification
Amplifier type: Digital comparator
Pulse width range: 500→2500 μsec
Stop position: 1500 μsec
Running degree: 180°(at 500→2500μsec)
Dead band width: ≤4 μsec
Rotating direction: Counterclockwise (at 500→2500μsec)

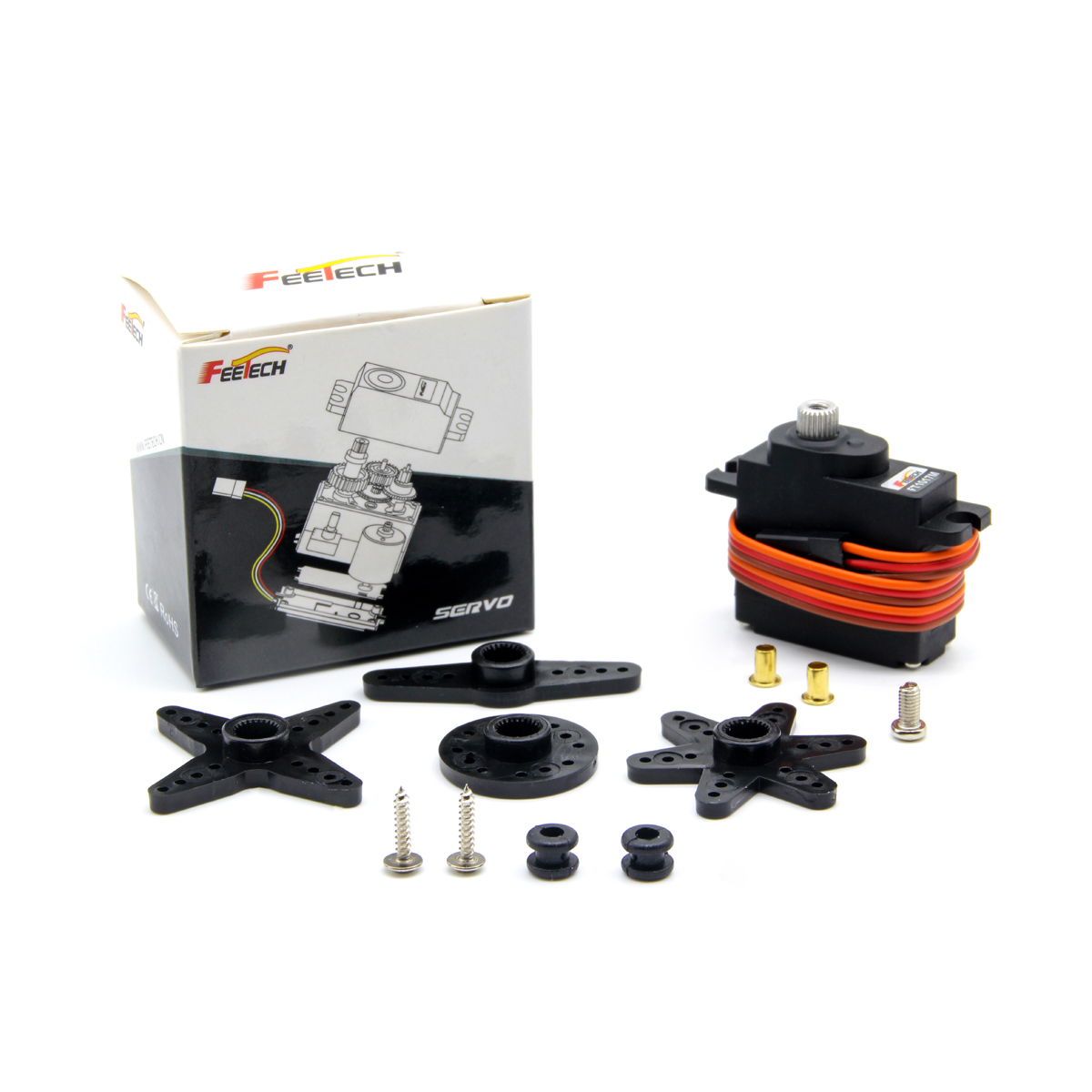

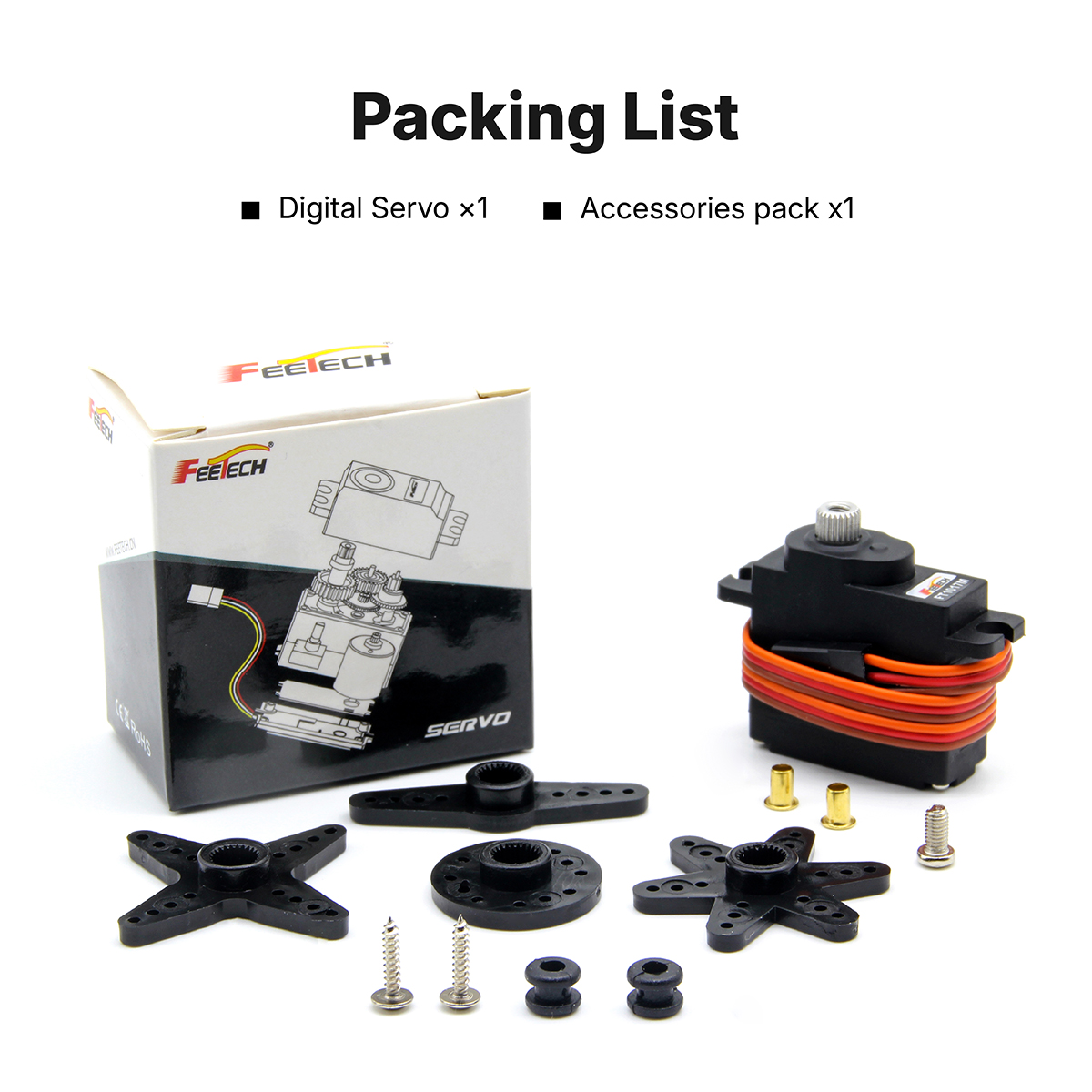

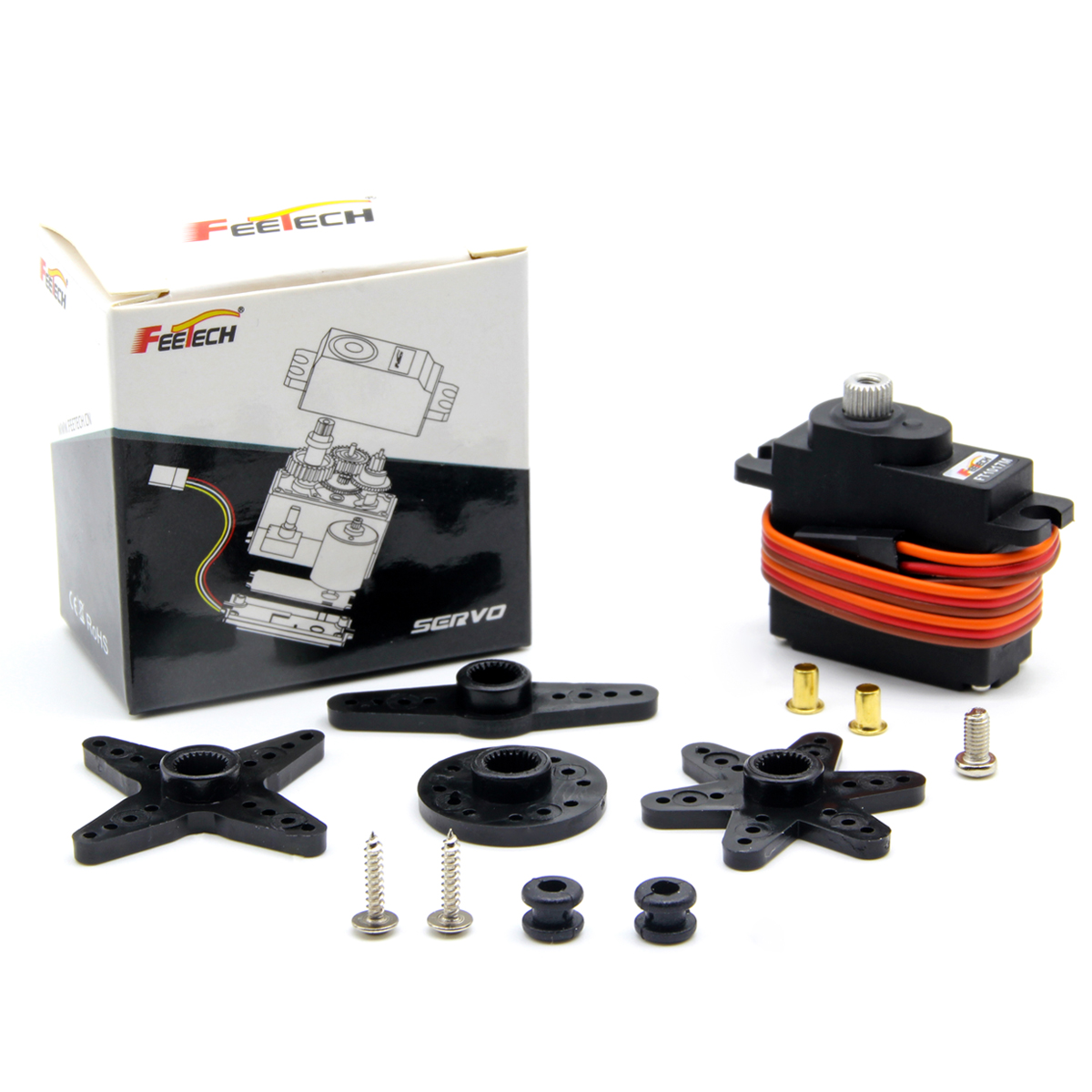

FT1017M Servo x1
