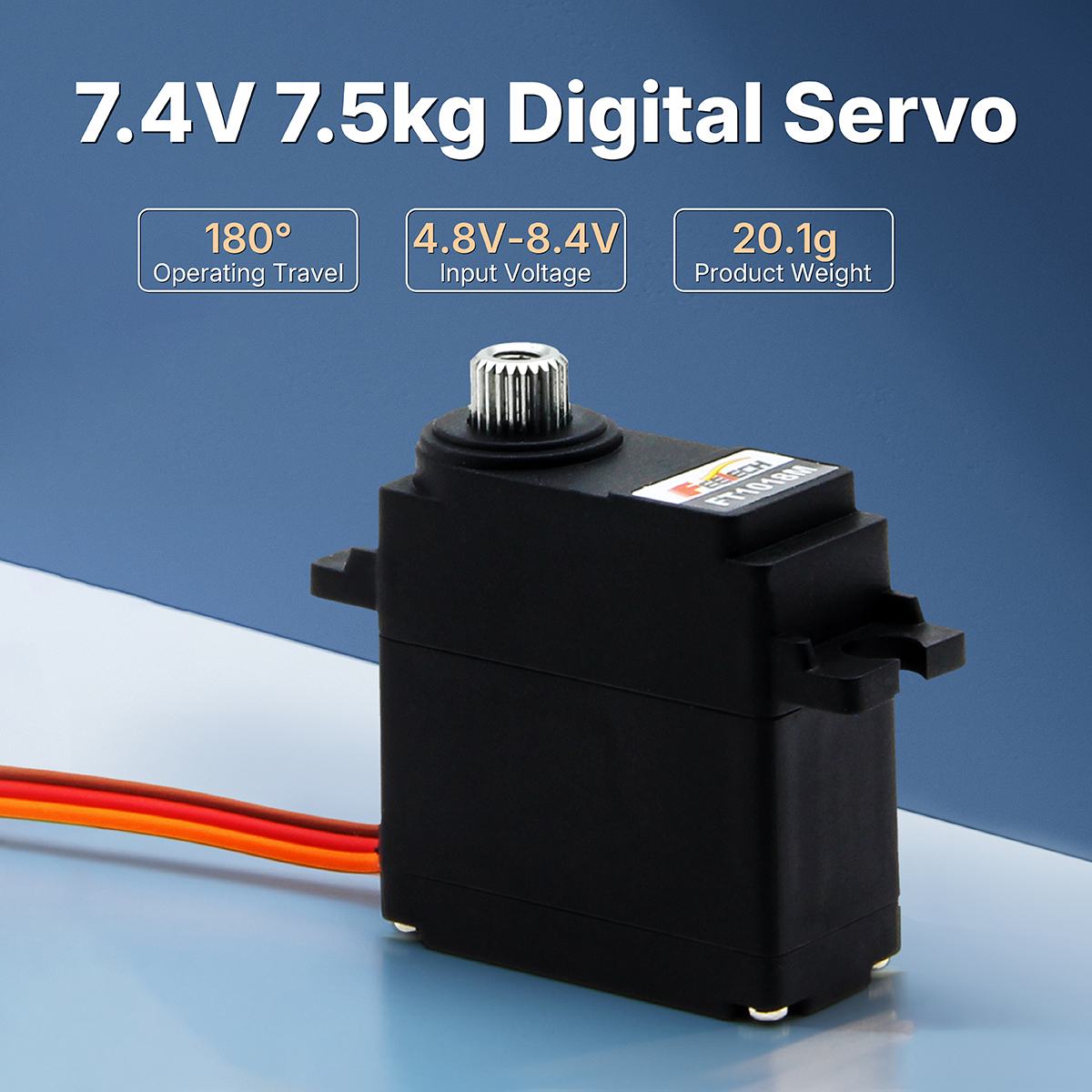

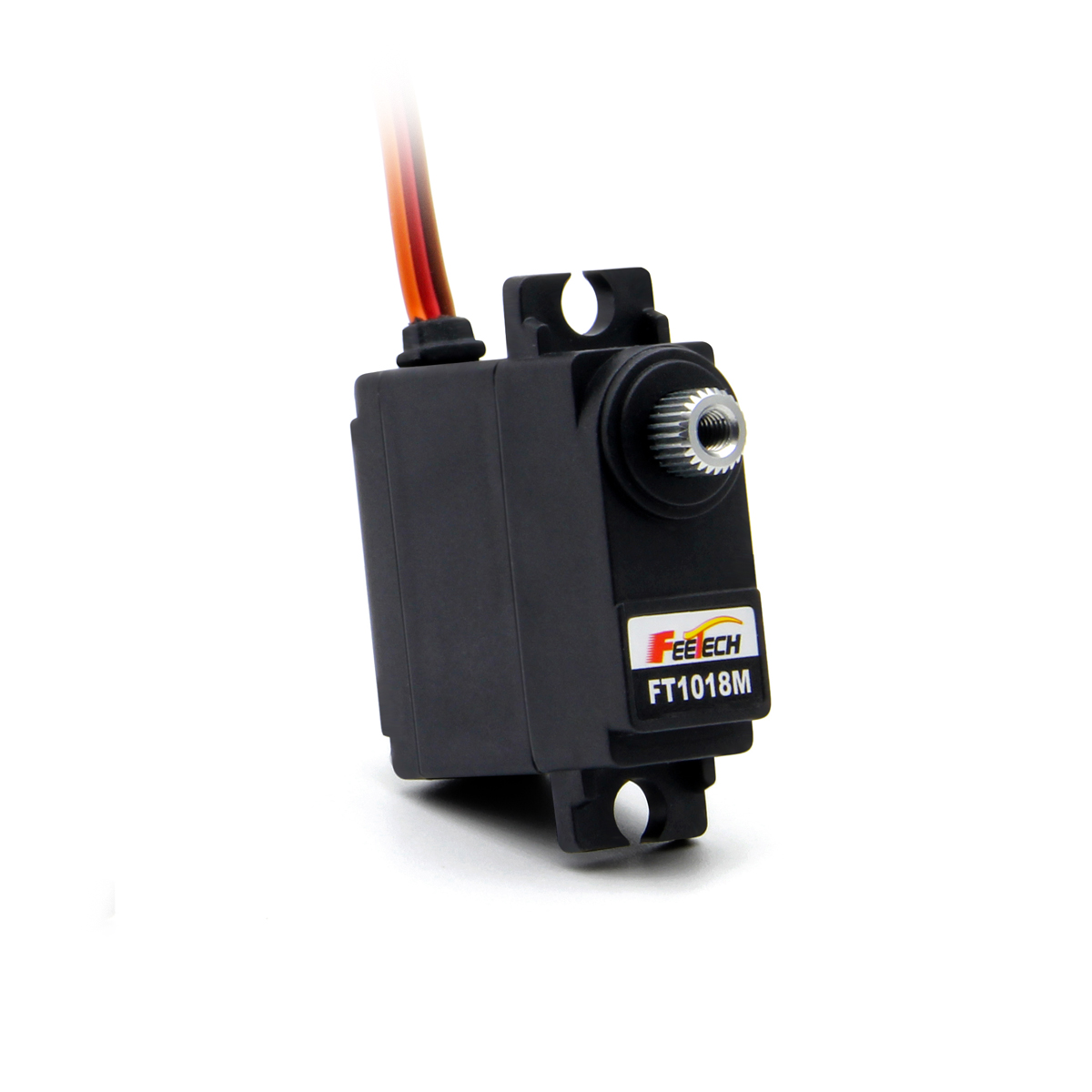

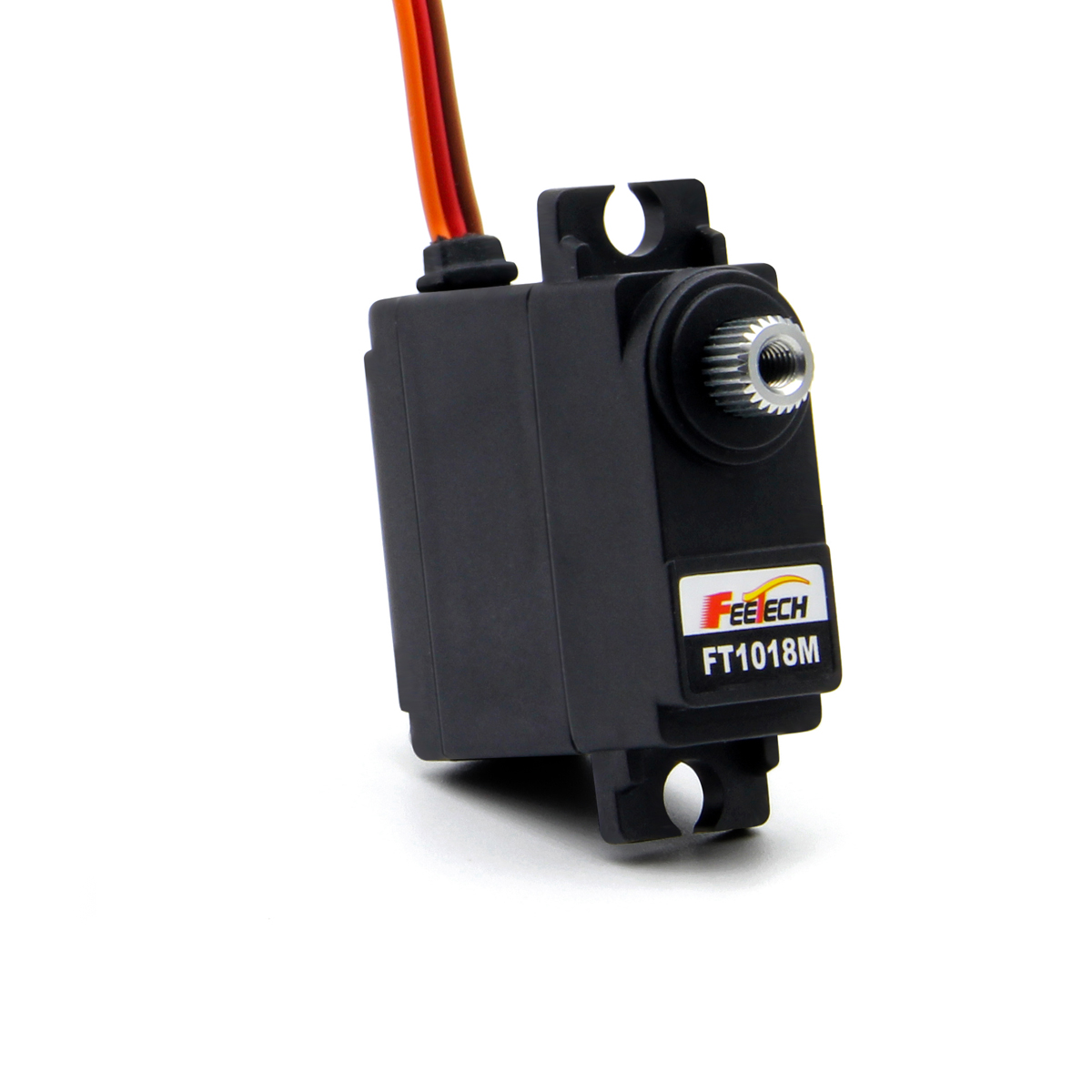

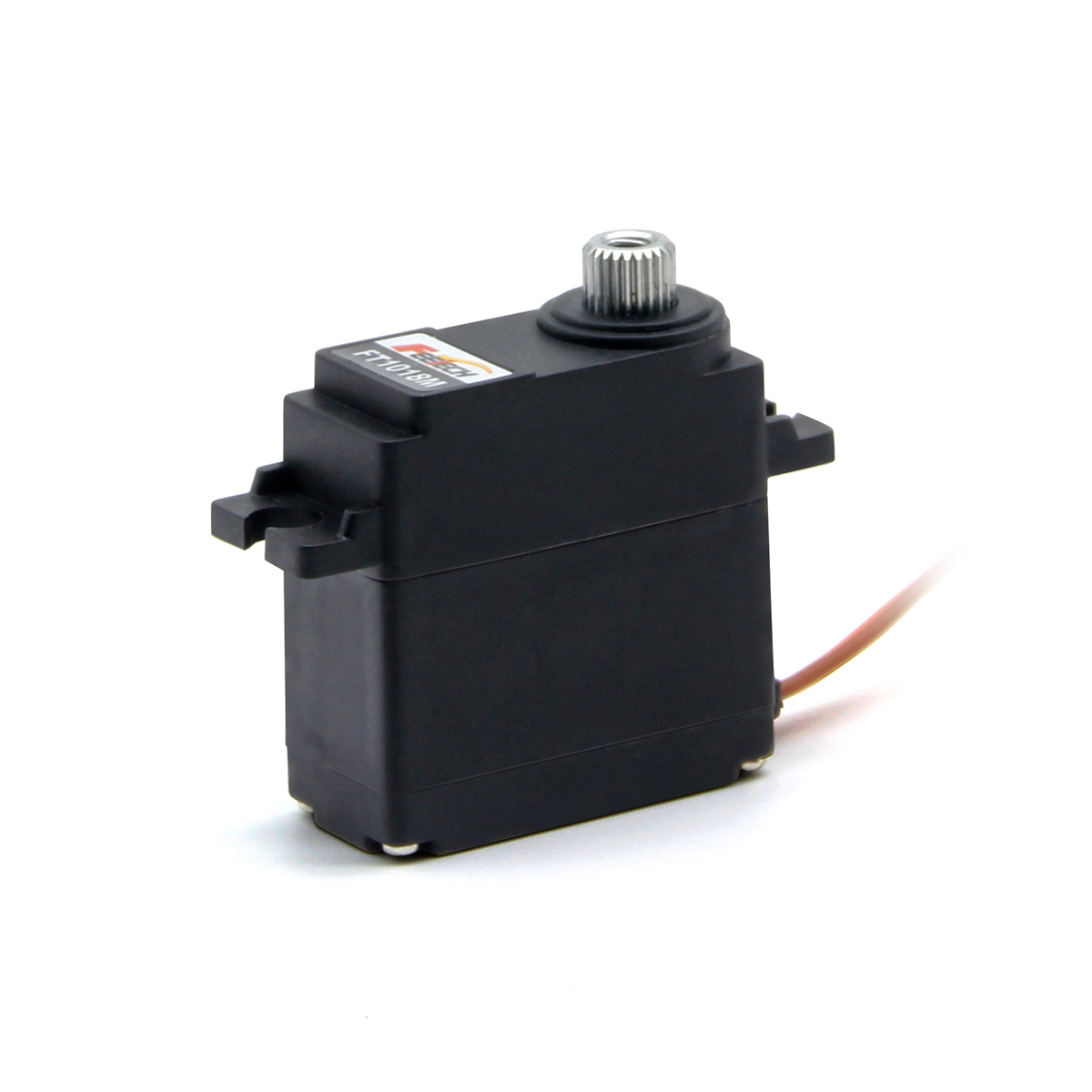

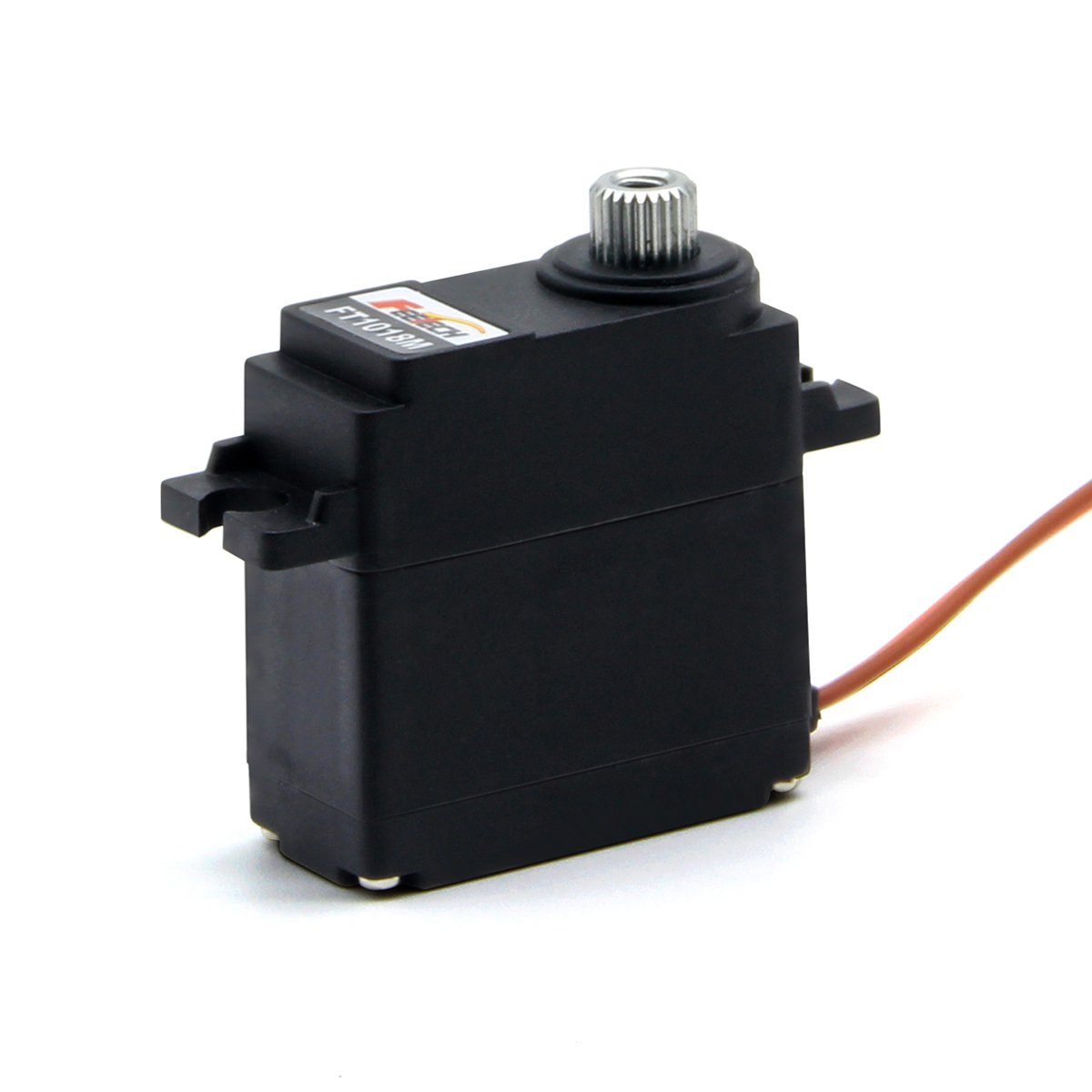

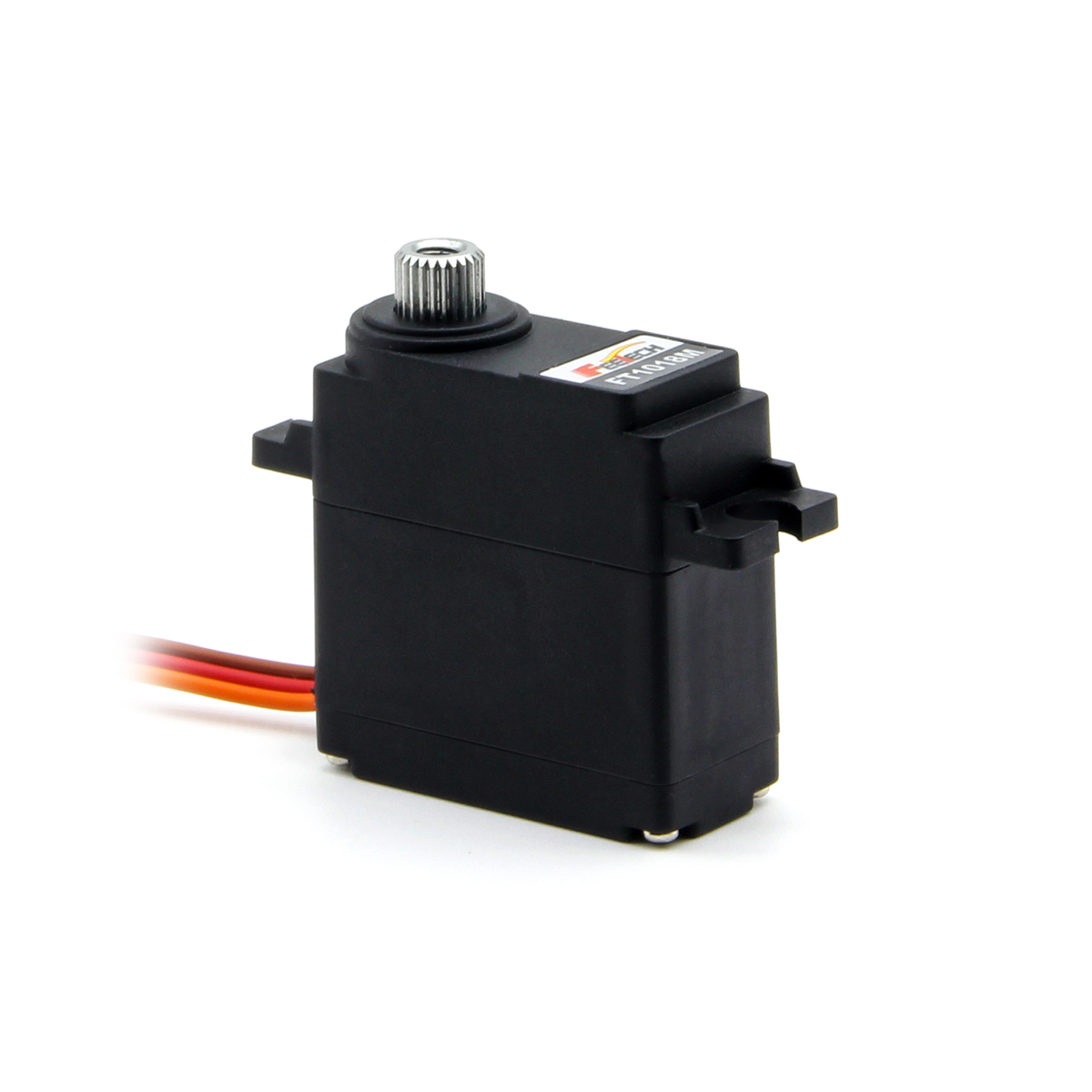

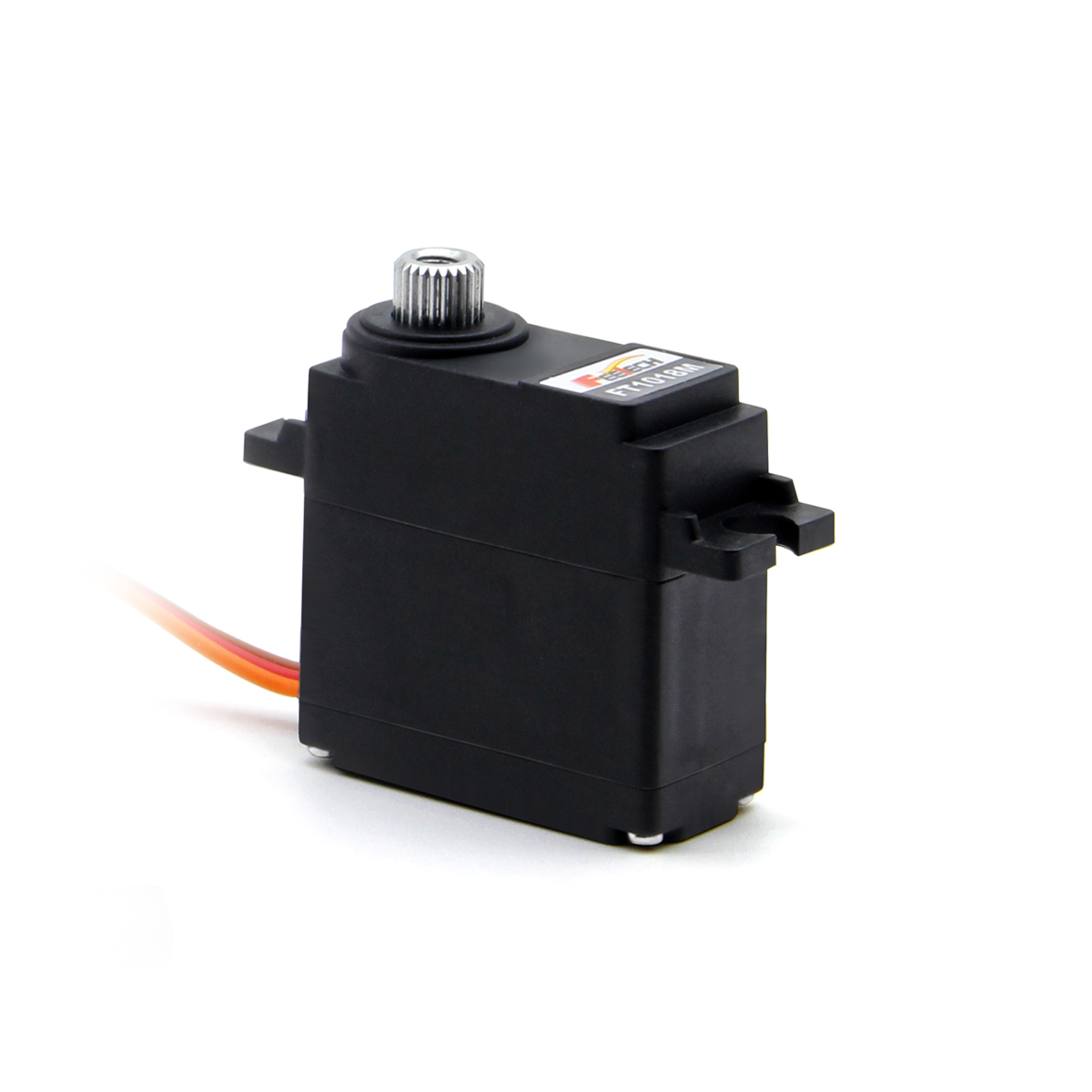

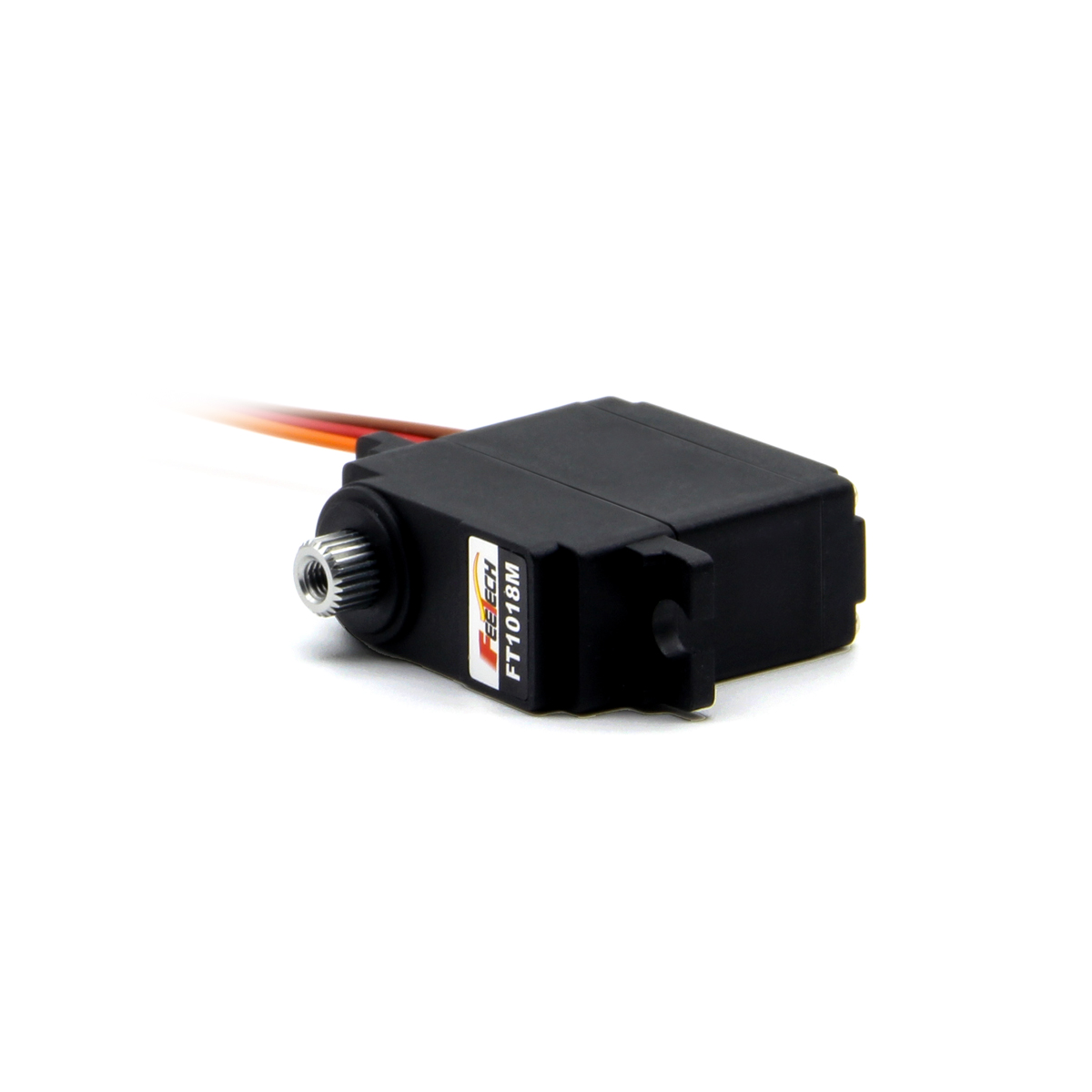

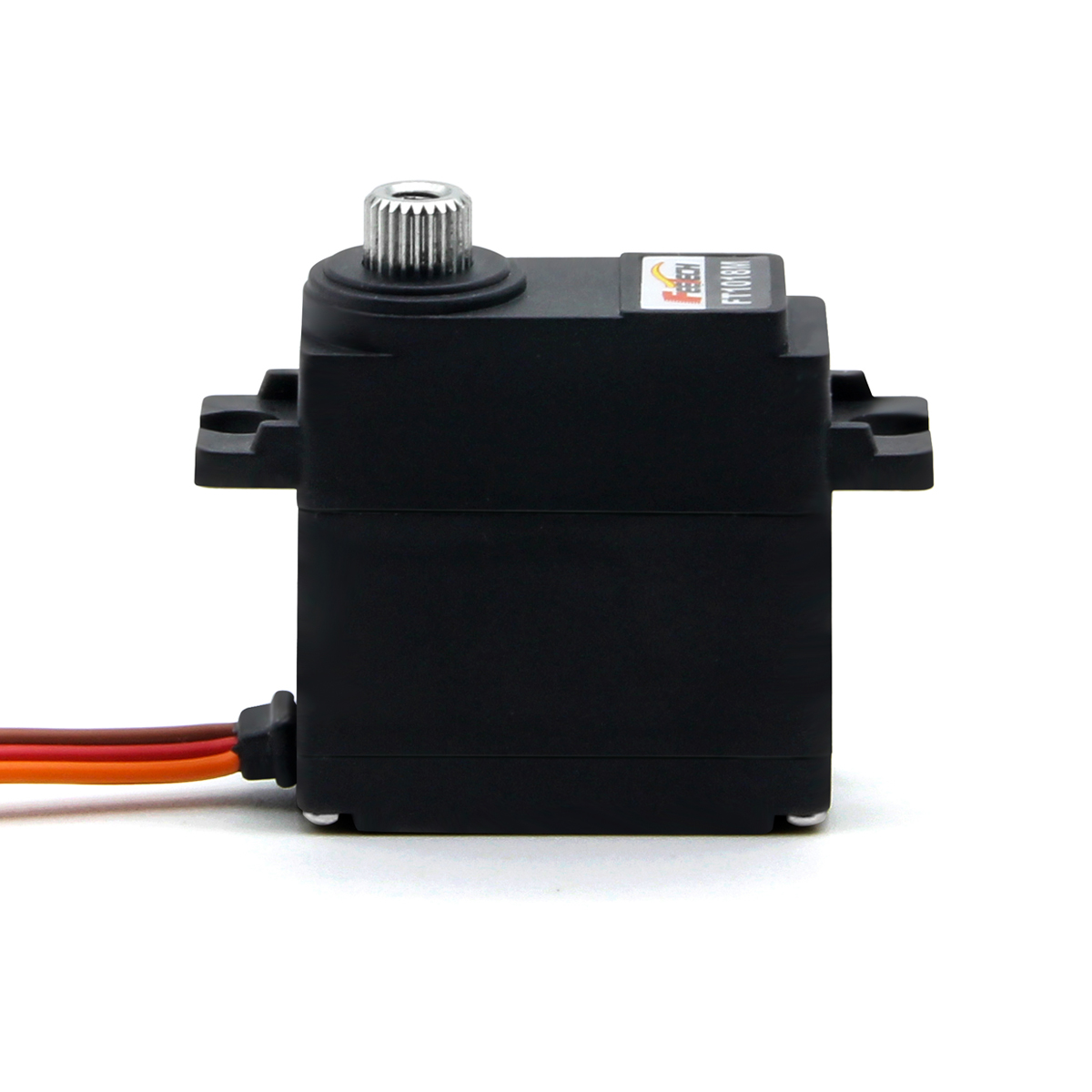

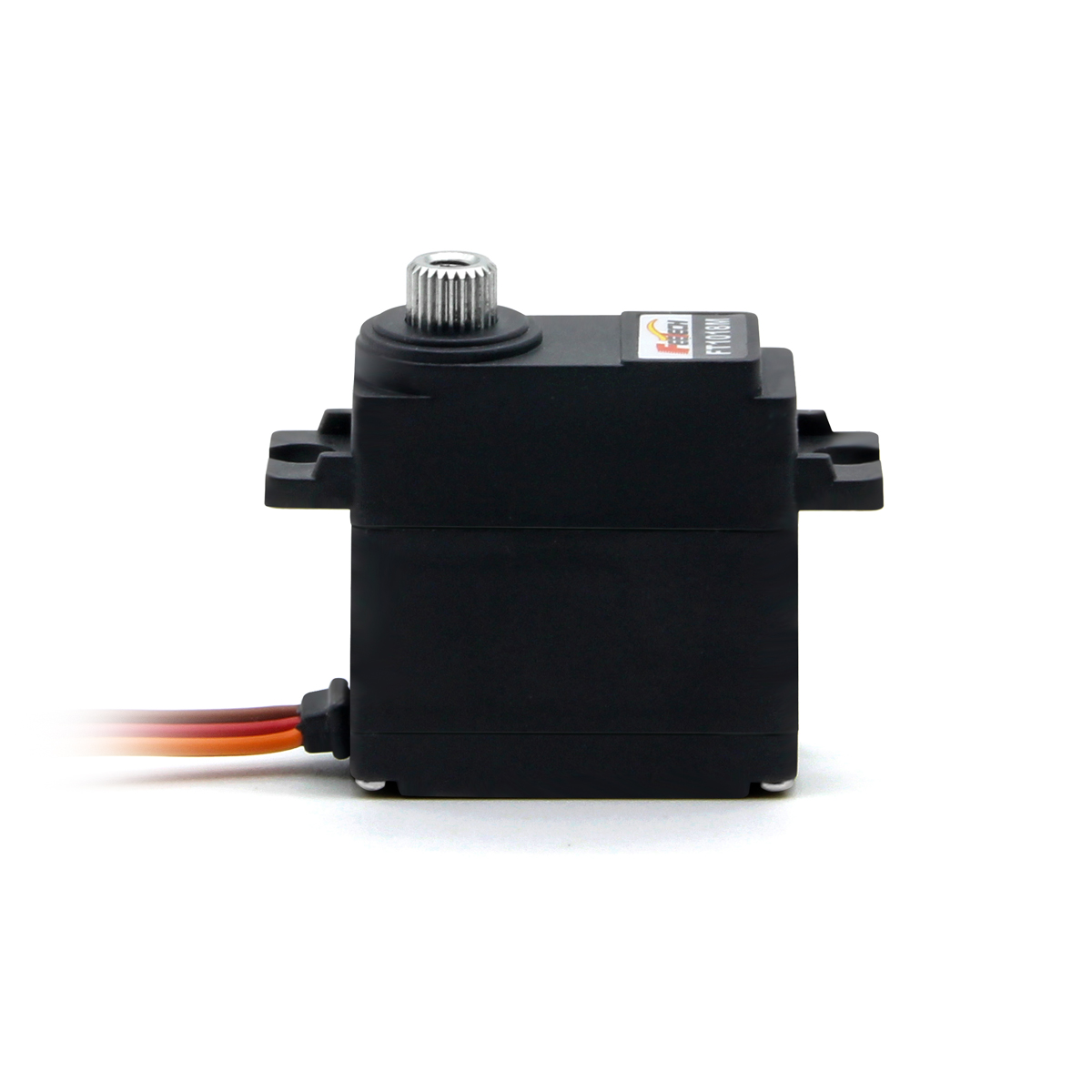

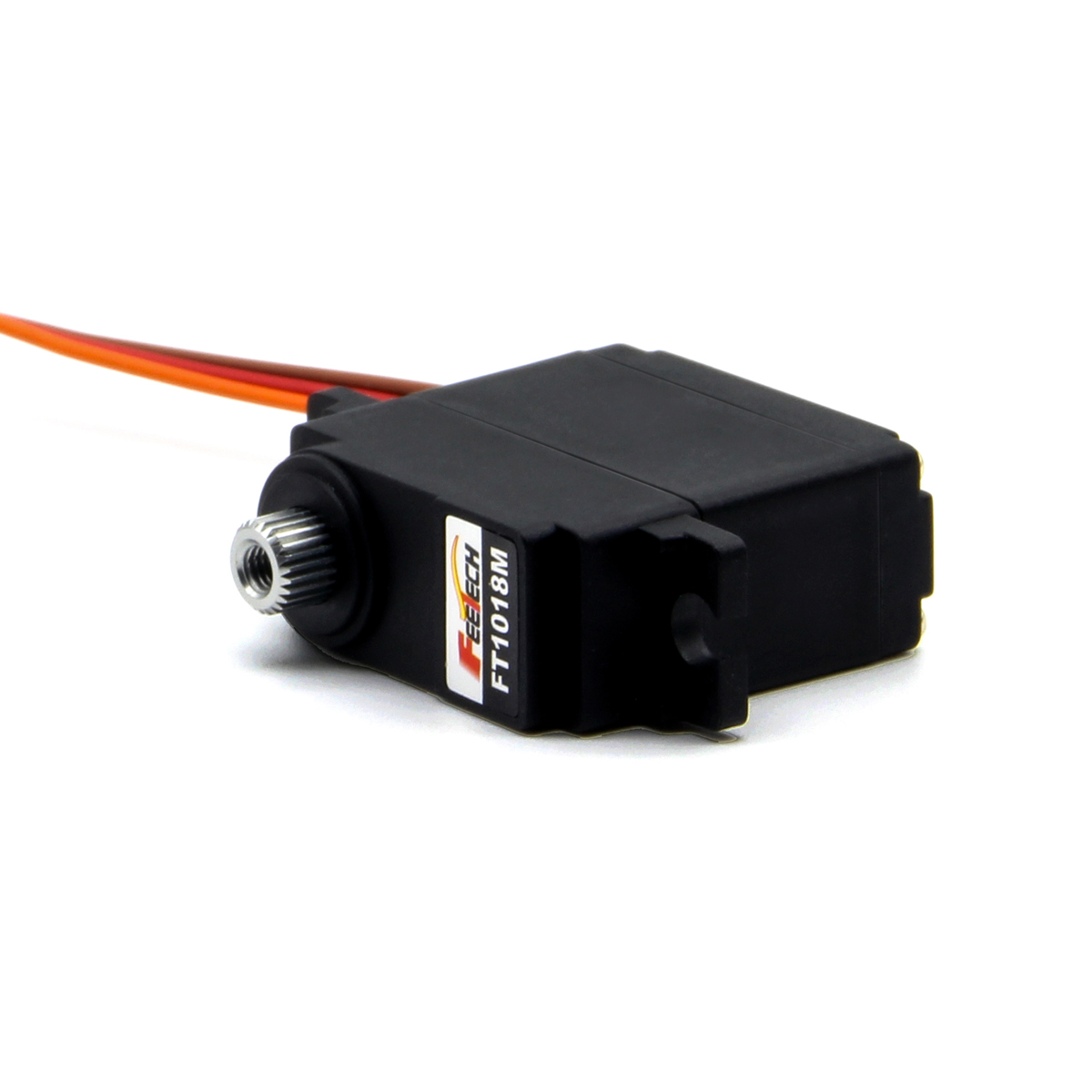

Feetech FT1018M 7.4V 7.5kg Metal Gear Core Motor 180 Degree Digital Servo for RC Car Airplane
Feetech FT1018M 7.4V 7.5kg Metal Gear Core Motor 180 Degree Digital Servo for RC Car Airplane
The Servo Motor FT1018M is a workhorse standard servo with a range of 180 degrees that can be used in many applications and is one of the best values for a general-purpose servo.
Micro size servo
Strong, can lift 8lbs positioned 1cm from the center of the shaft
180-degree rotation
Metal gears
Digital drive

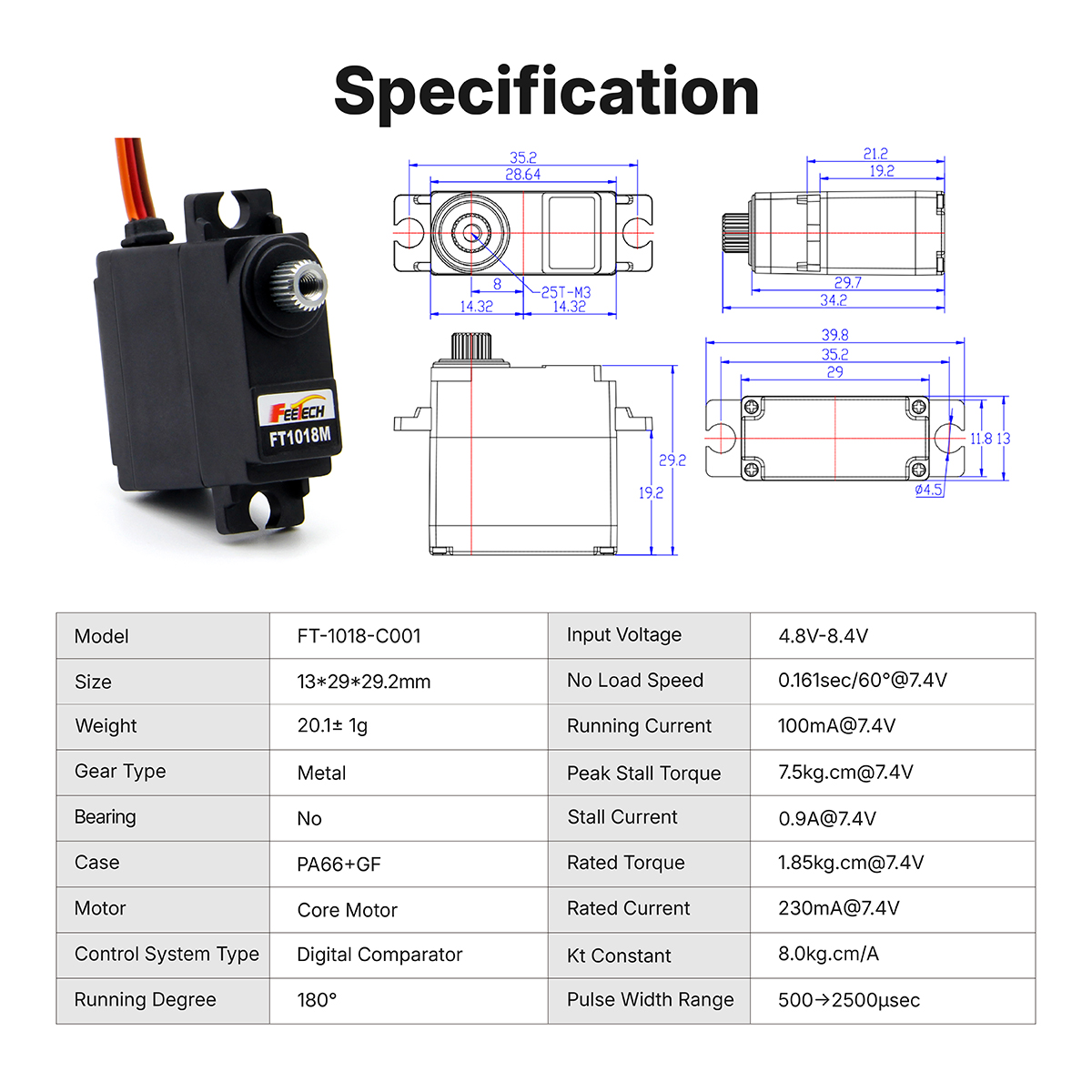

Model: FT-1018-C001
Storage temperature range: -30℃～70℃
Operating temperature range: -20℃～60℃
Size: 13*29*29.2mm
Weight: 20.1±1g

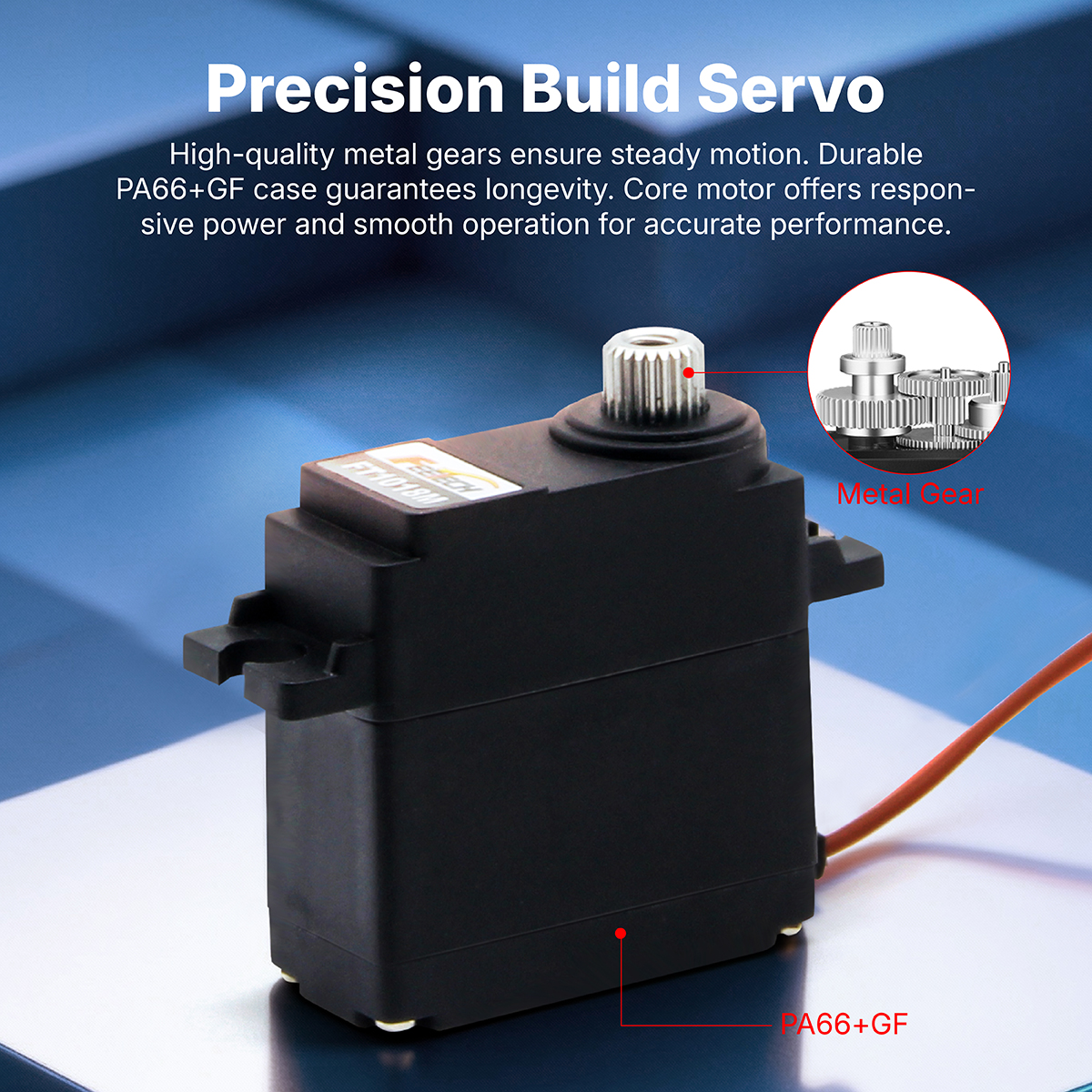

Gear type: Metal
Limit angle: No limit
Bearing: Ball bearings
Horn gear spline: 25T/5.9mm
Case: PA66+GF

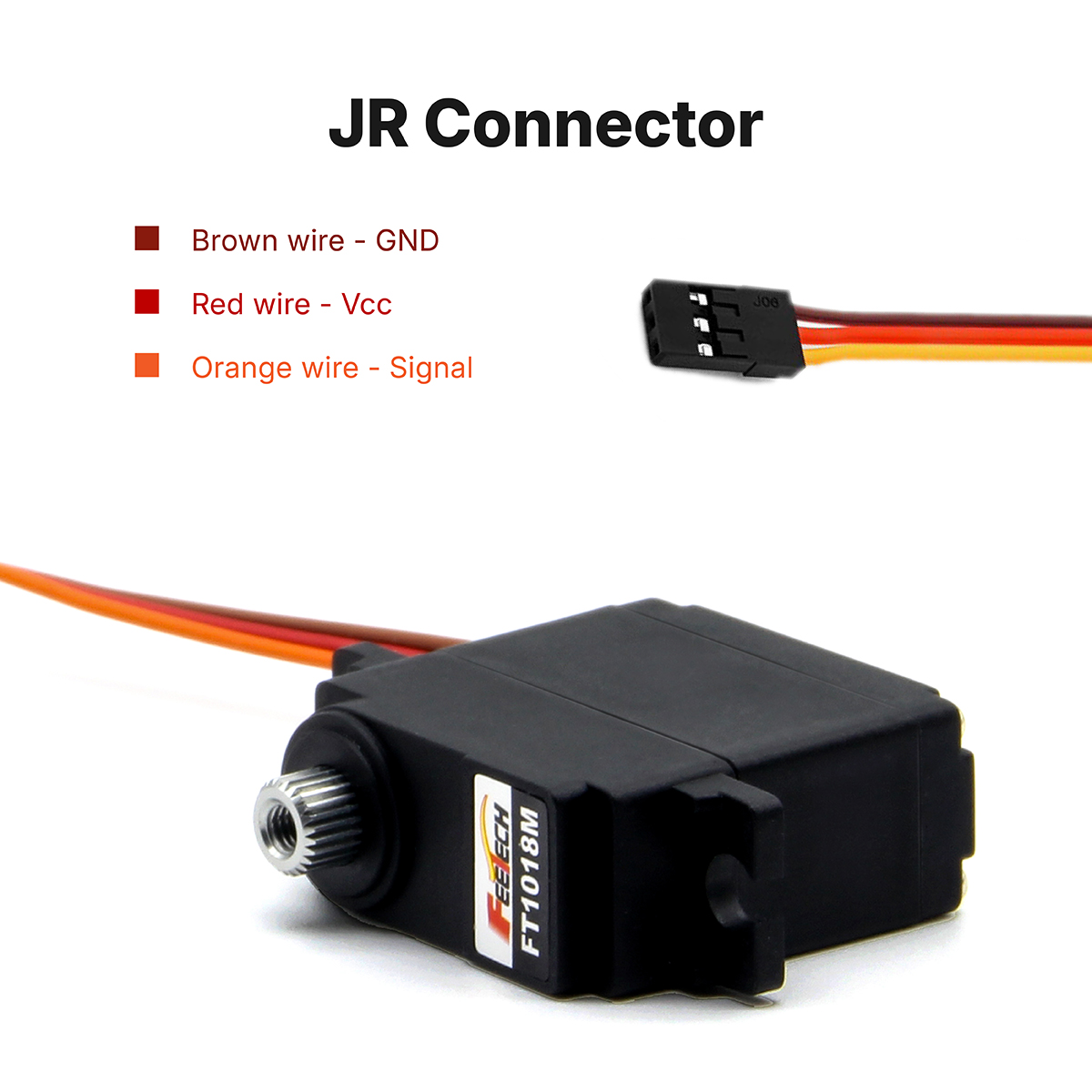

Connector wire: 25±1cm
Motor: Core motor
Operating voltage range: 4.8-8.4V
Idle current (at stopped): 7mA@7.4V
No load speed: 0.161sec/60°(62RPM)@7.4V
Running current(at no load): 100mA@7.4V
Peak stall torque: 7.5kg.cm@7.4V
Rated torque: 1.85kg.cm@7.4V
Command signal: Pulse width modification
Amplifier type: Digital comparator
Pulse width range: 500→2500 μsec
Stop position: 1500 μsec
Running degree: 180°(at 500→2500μsec)
Dead band width: ≤4 μsec
Rotating direction: Counterclockwise (at 500→2500μsec)

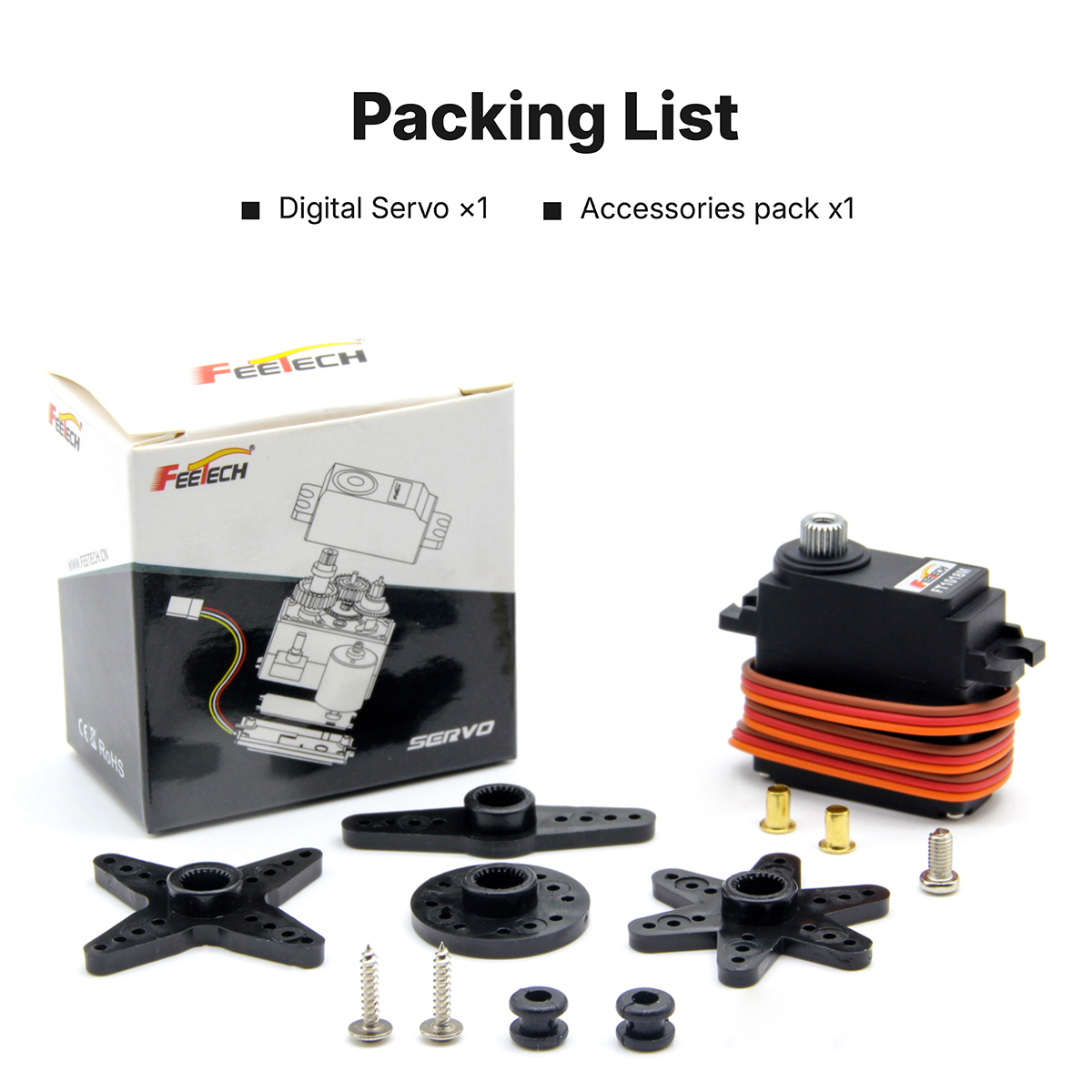

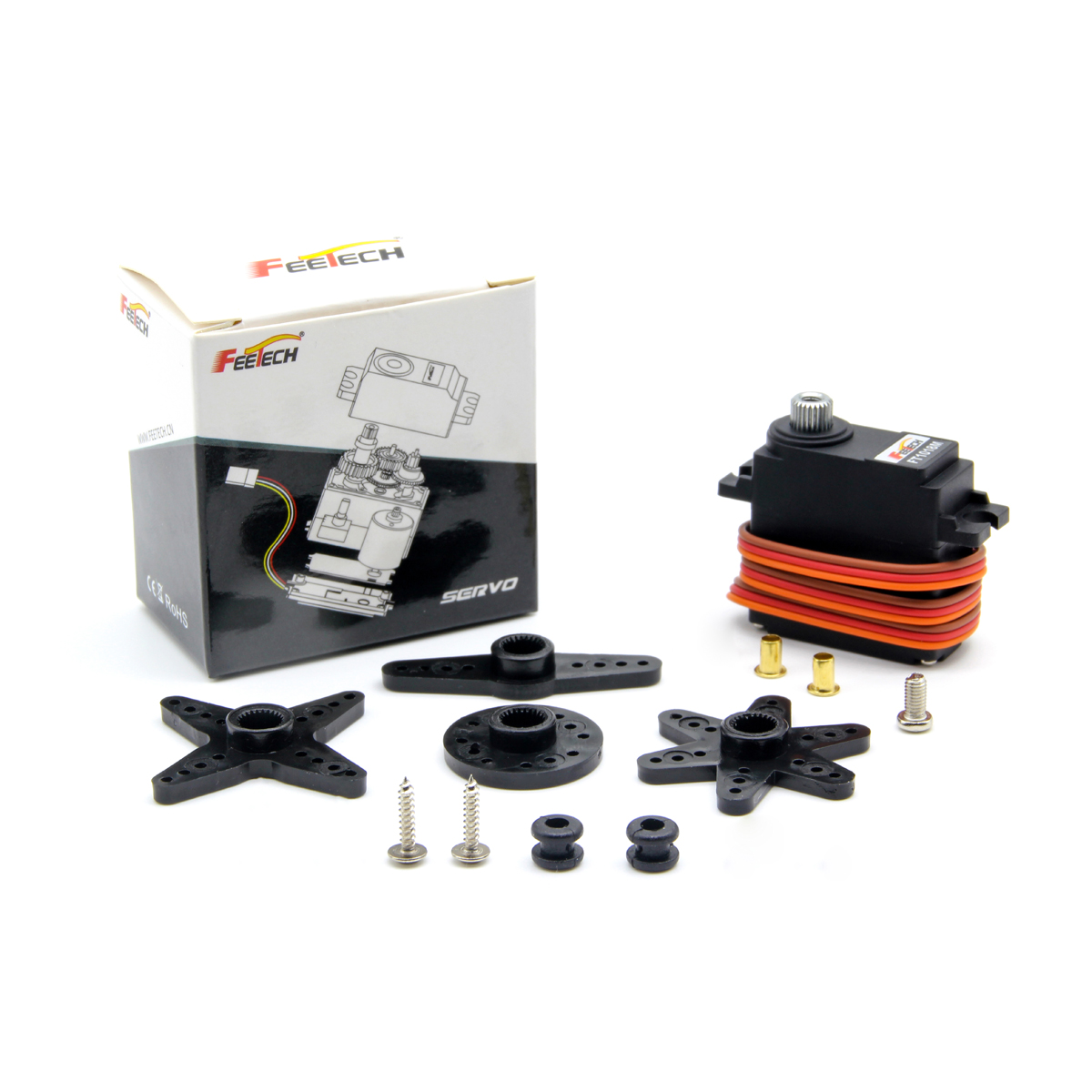

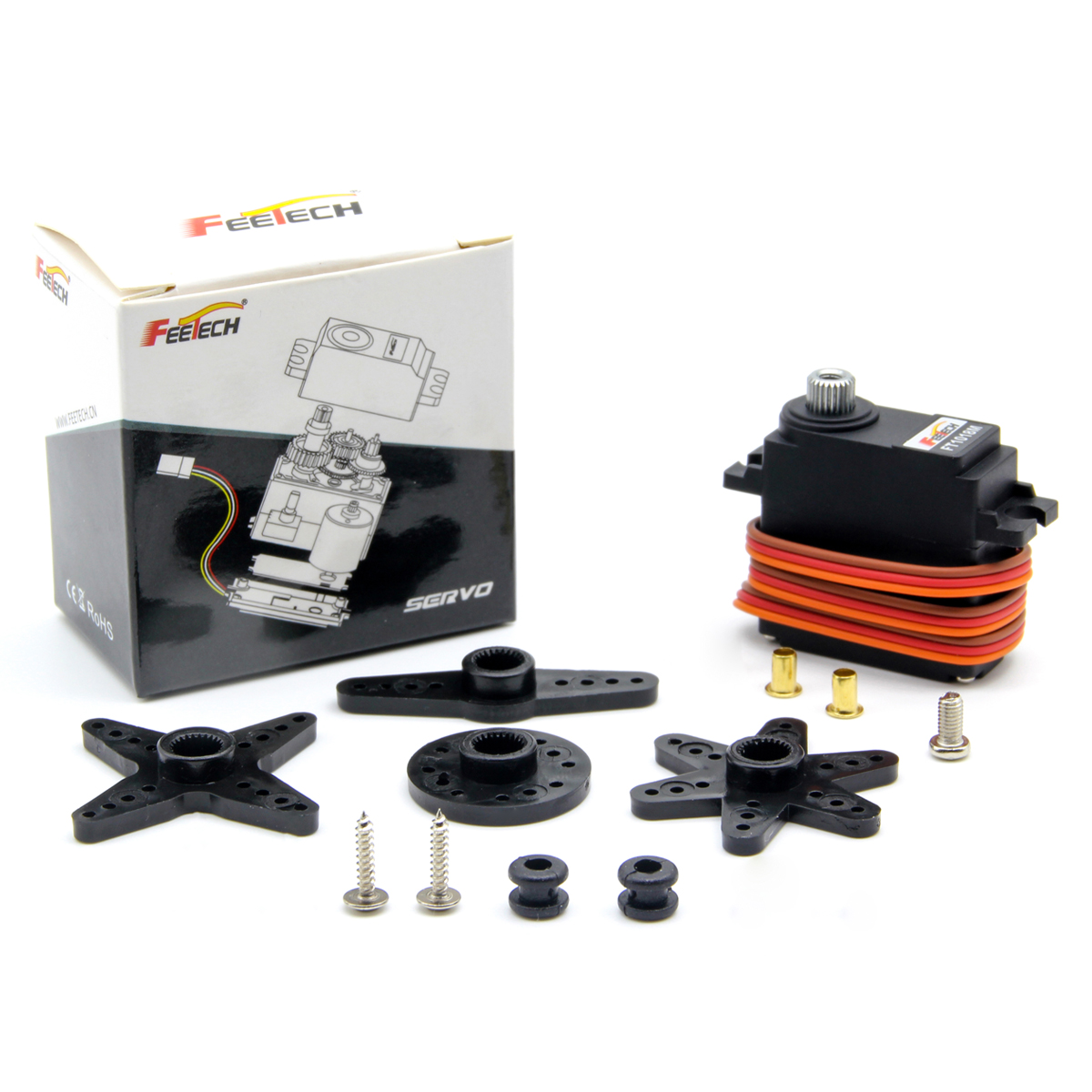

FT1018M Servo x1
