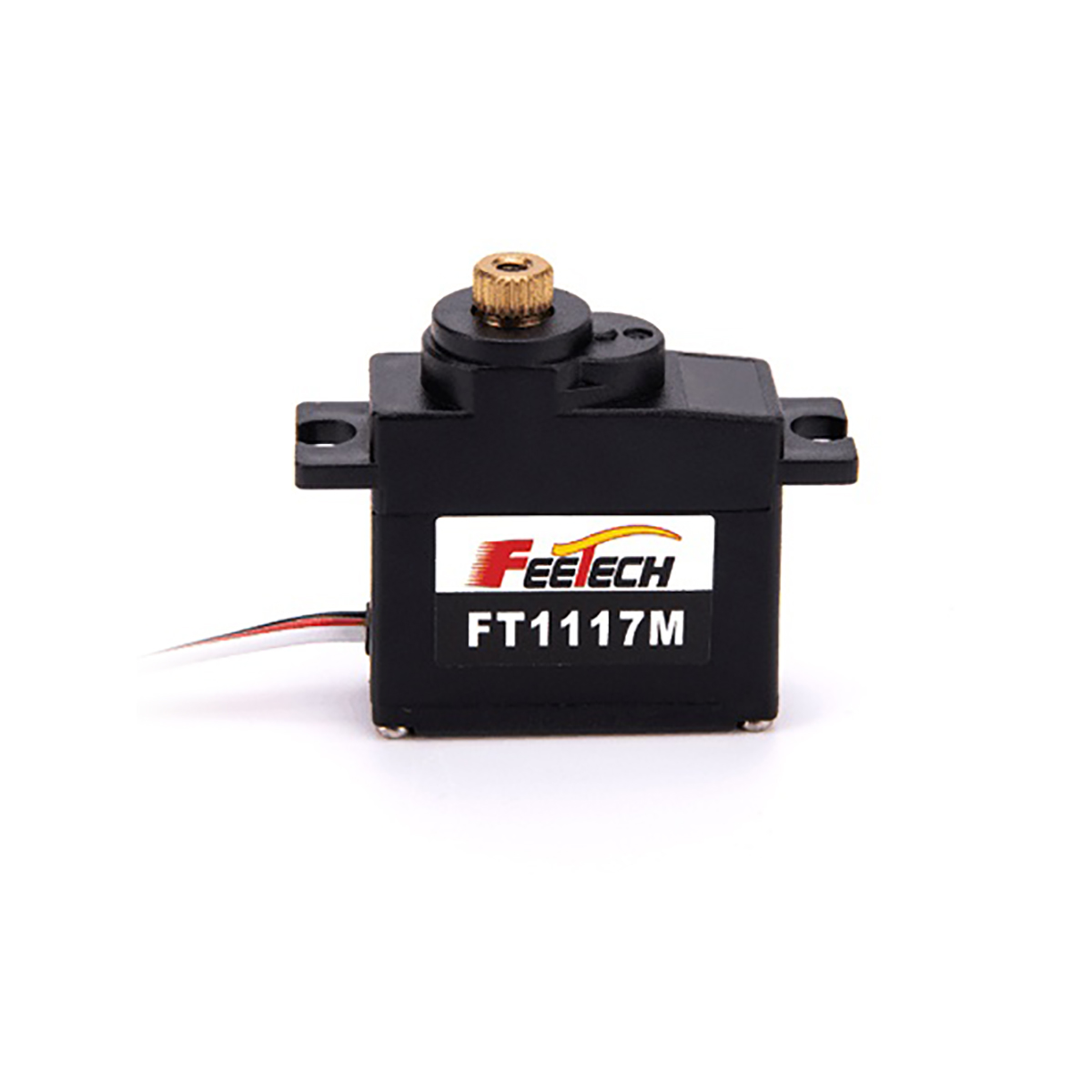

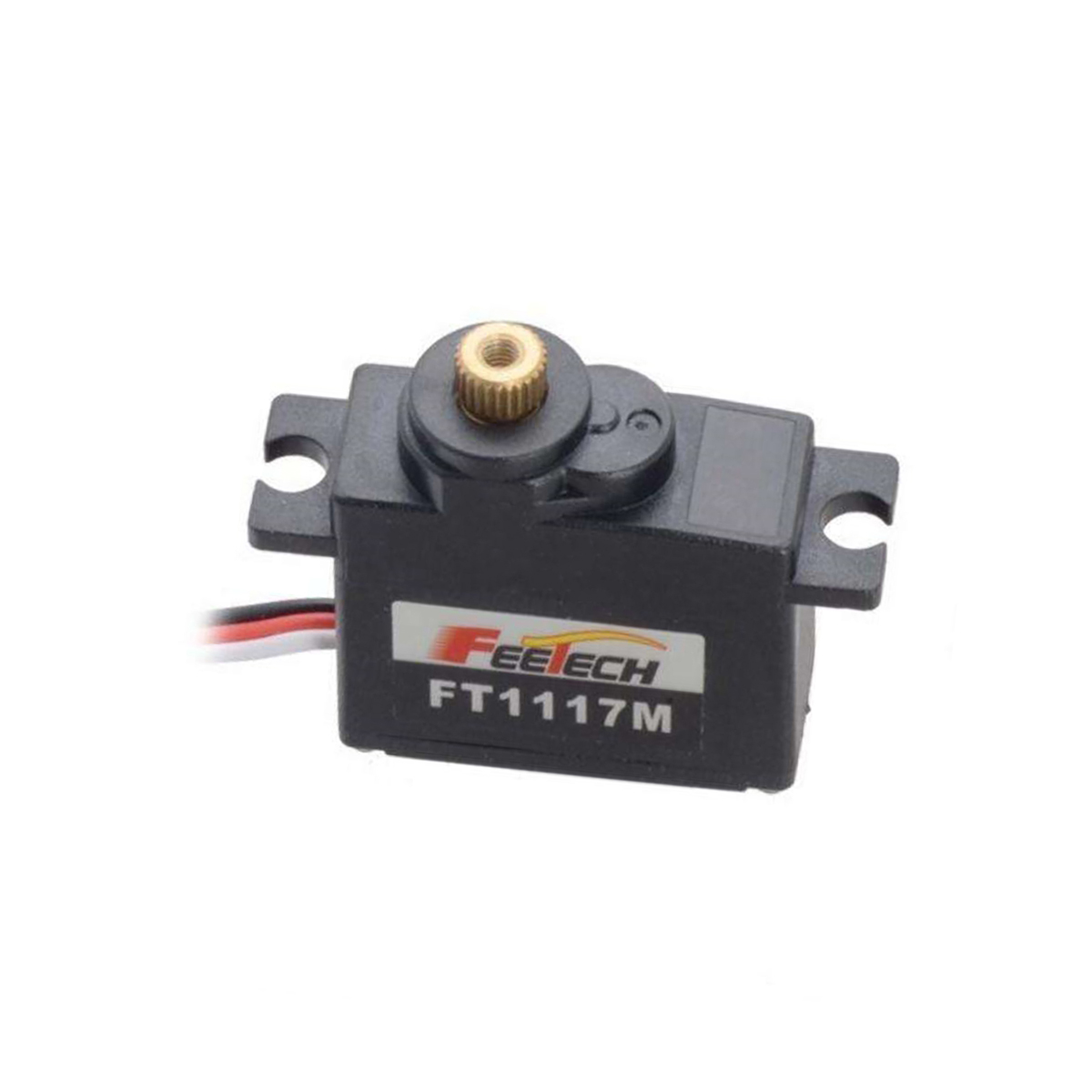

Model: FT-1117-C001
Storage temperature range: -30℃～80℃
Operating temperature range: -15℃～70℃
Size: 30*12*31.7mm
Weight: 20.5g±0.2g

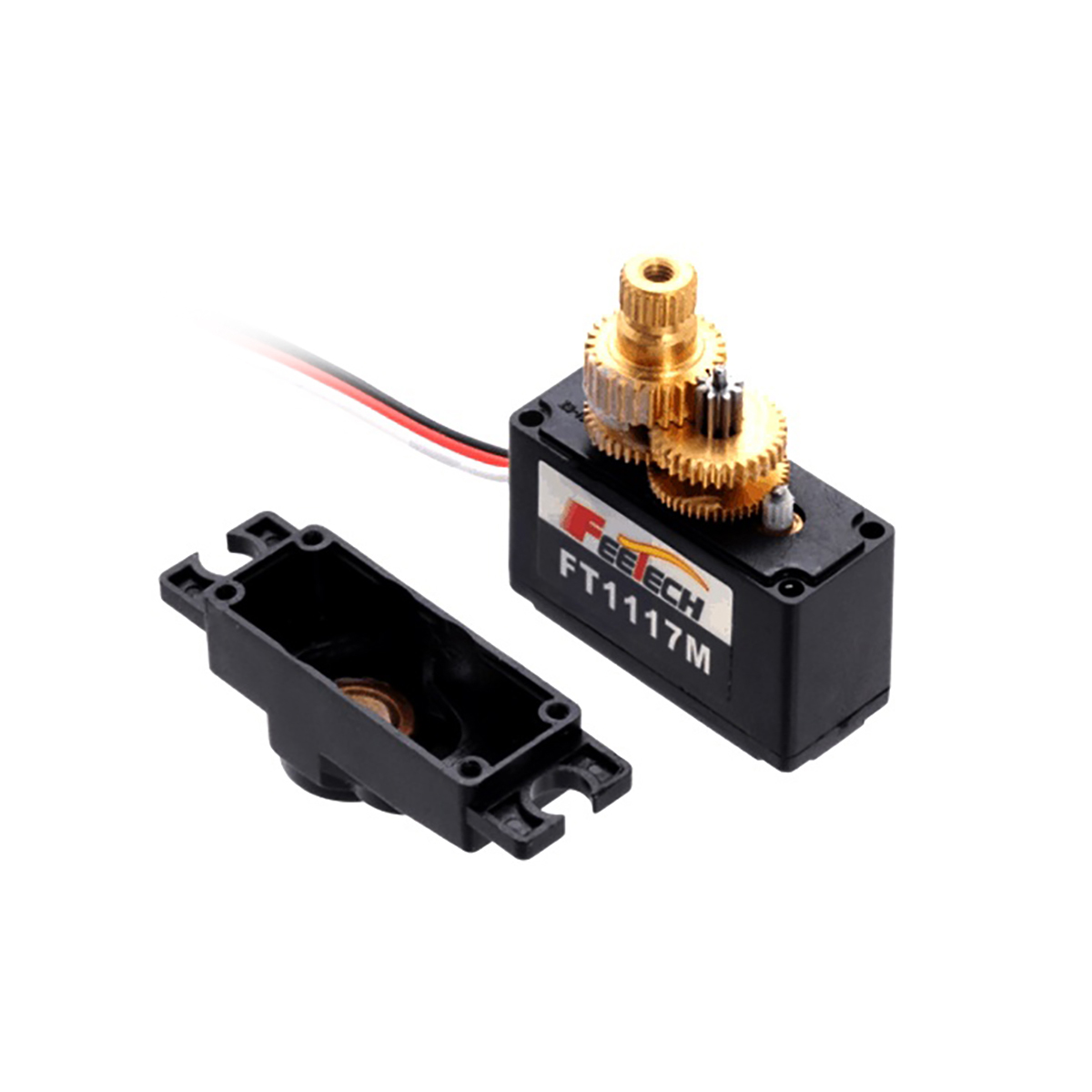

Gear type: Metal gear
Limit angle: 200 degree
Bearing: No ball bearings
Horn gear spline: 25T(5.8mm)
Case: ABS

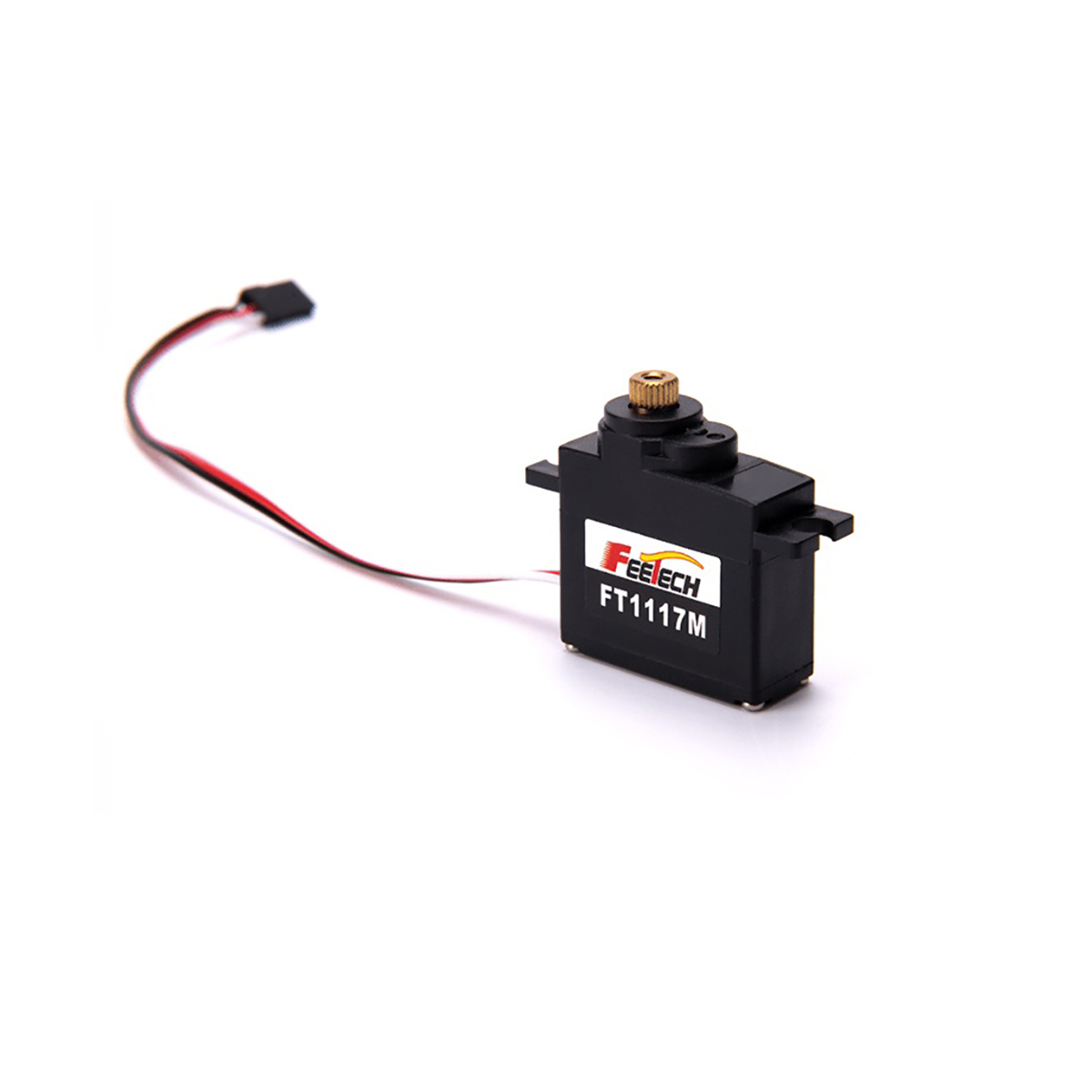

Connector wire: 200mm±5mm
Motor: Core motor
Operating voltage range: 4.8-6V
Idle current (at stopped): 6mA@6V
No load speed: 0.11sec/60°@6V
Running current(at no load): 150mA@6V
Peak stall torque: 3.5kg.cm@6V
Rated torque: 1.16kg.cm@6V
Stall current: 800mA@6V
Command signal: Pulse width modification
Amplifier type: Analog comparator
Pulse width range: 900~2100μsec
Stop position: 1500μsec
Running degree: 120°(when 900～2100μsec)
Dead band width: 2μsec
Rotating direction: CW (when 1500～900µsec), CCW (when 1500～2100µsec)
