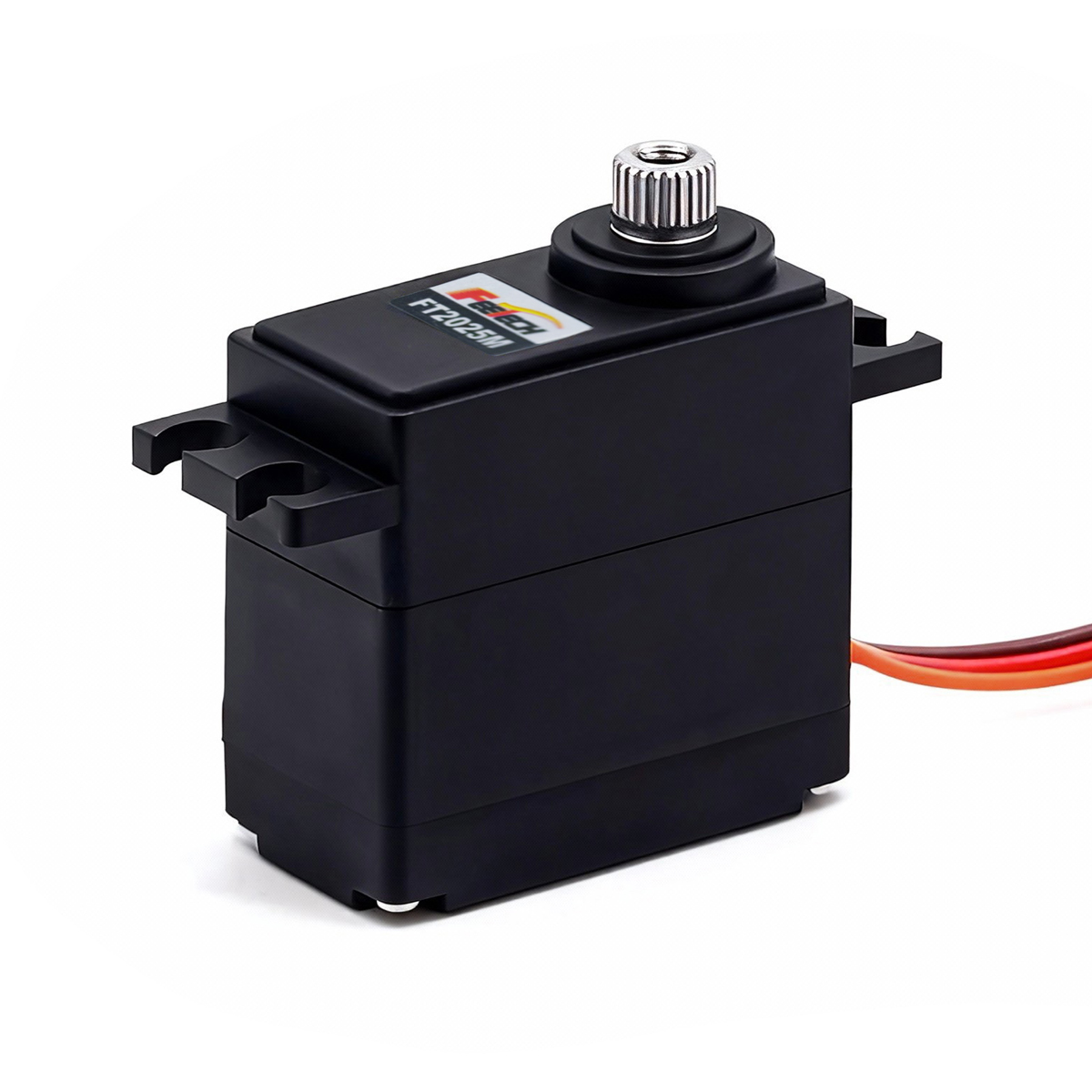

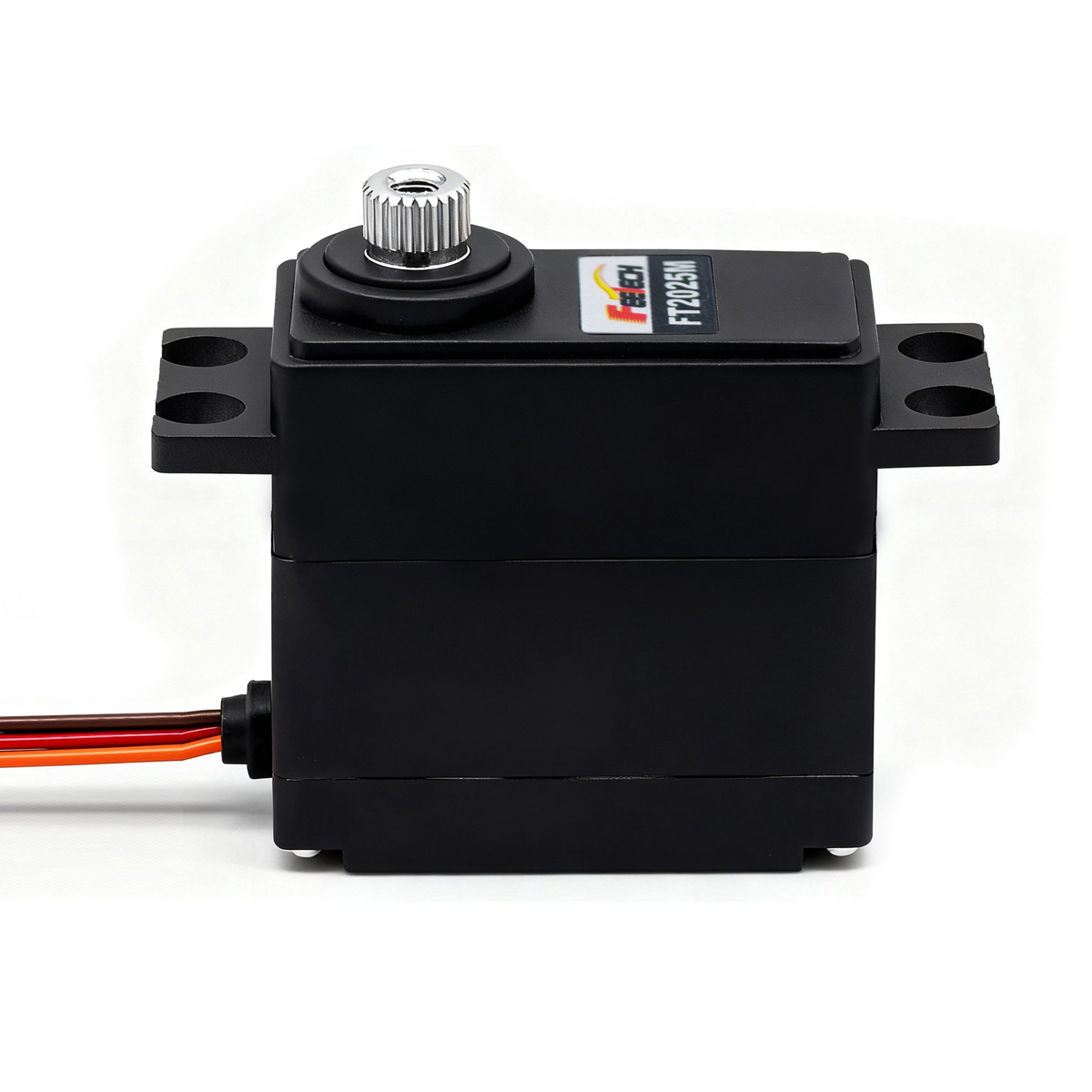

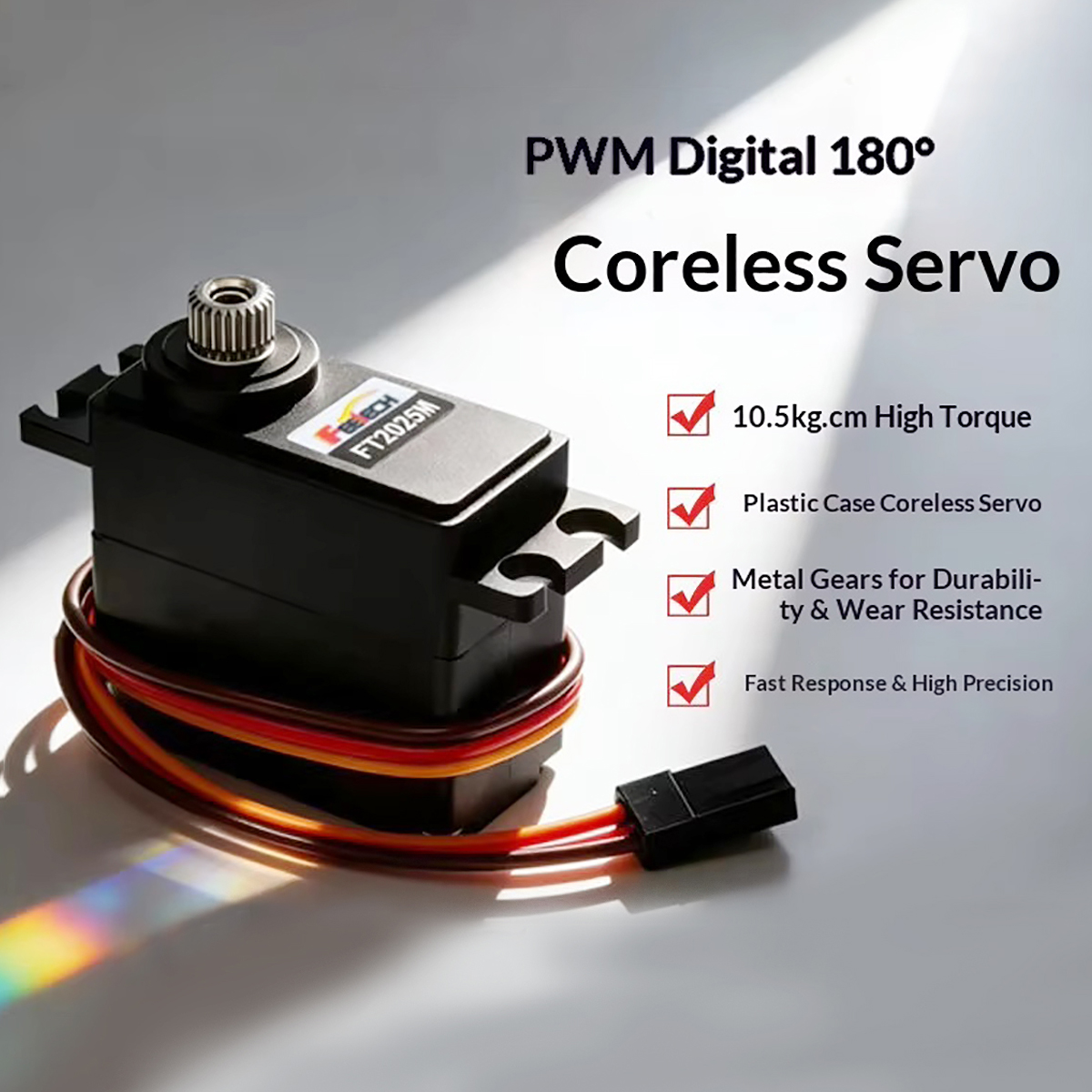

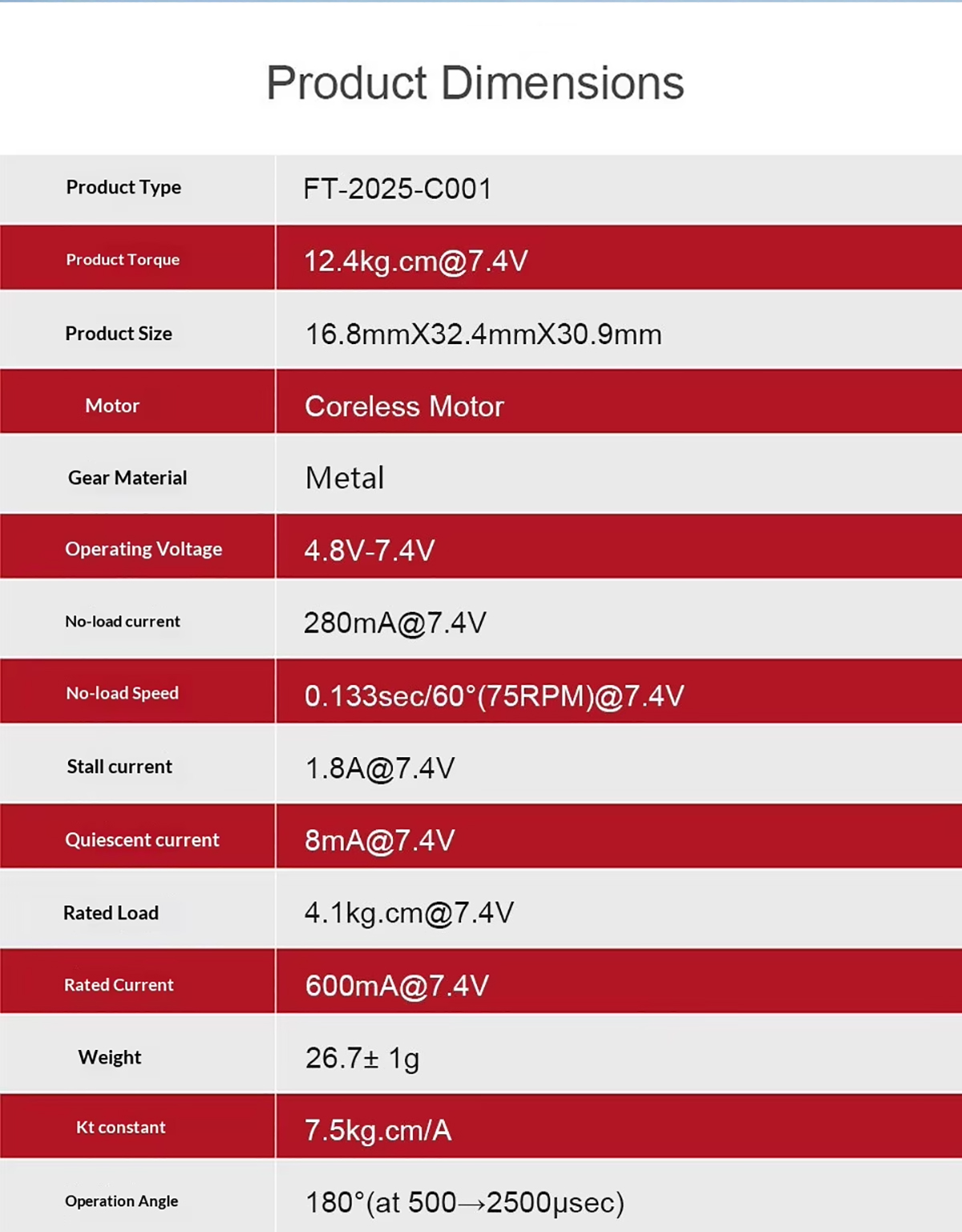

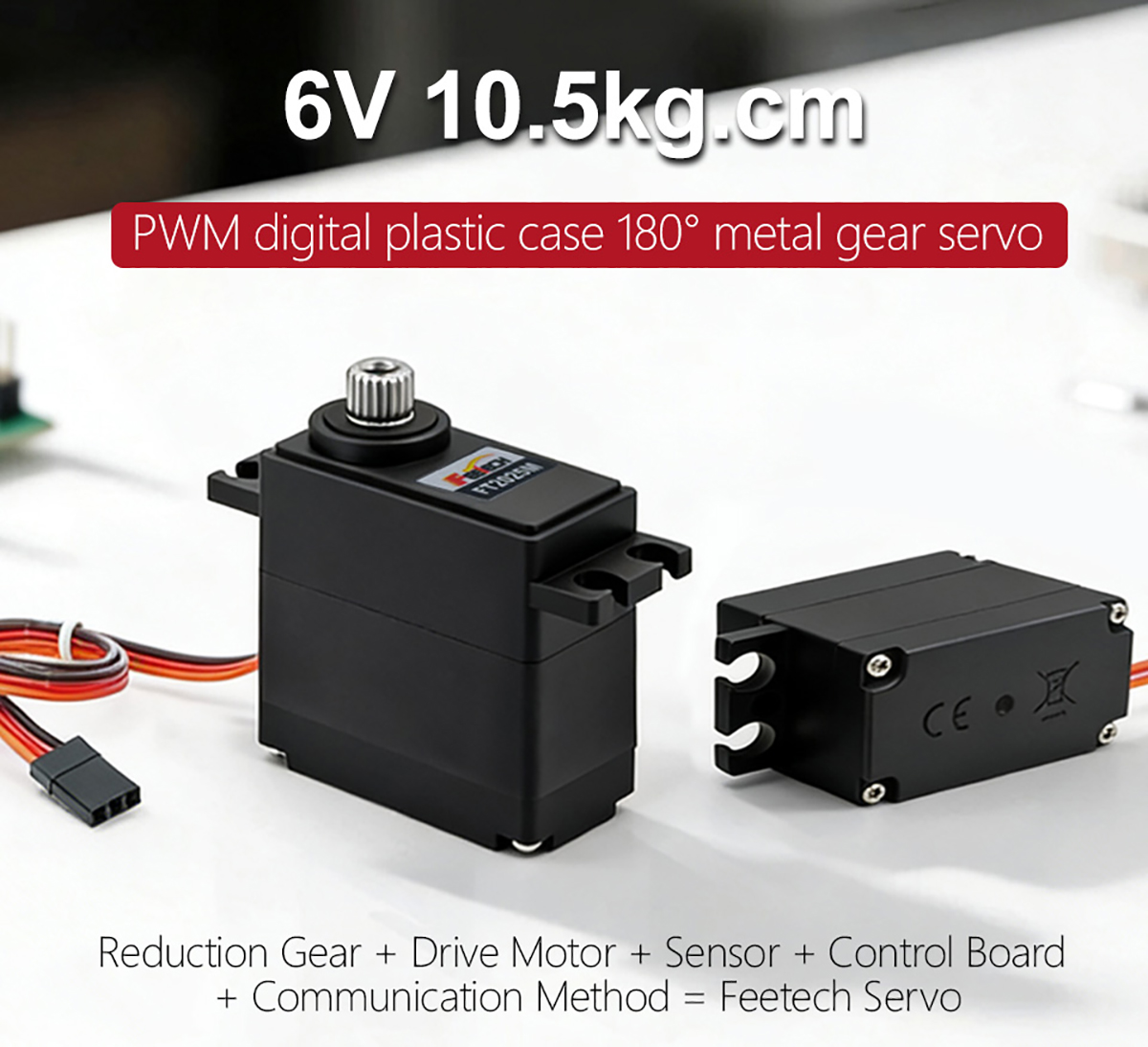

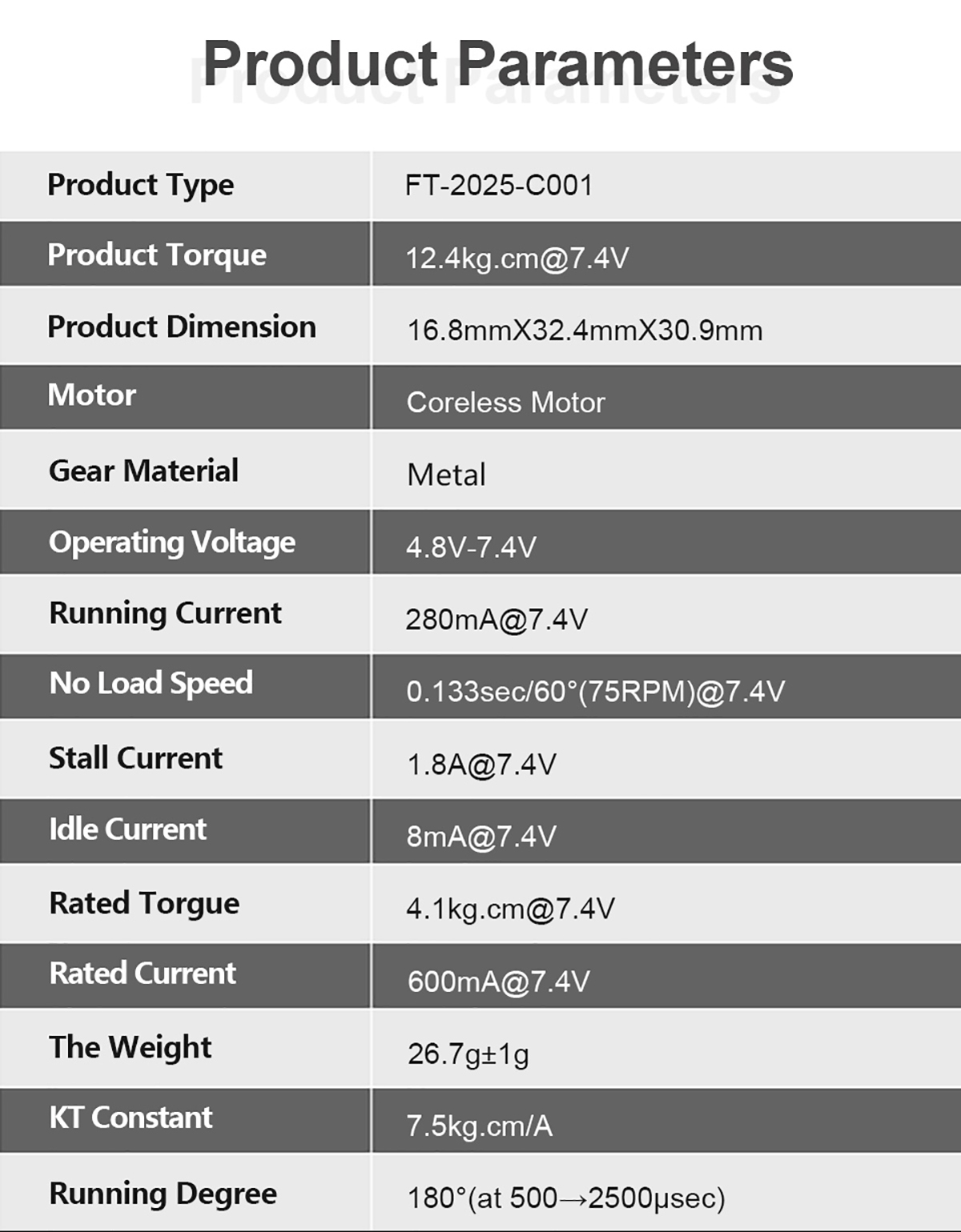

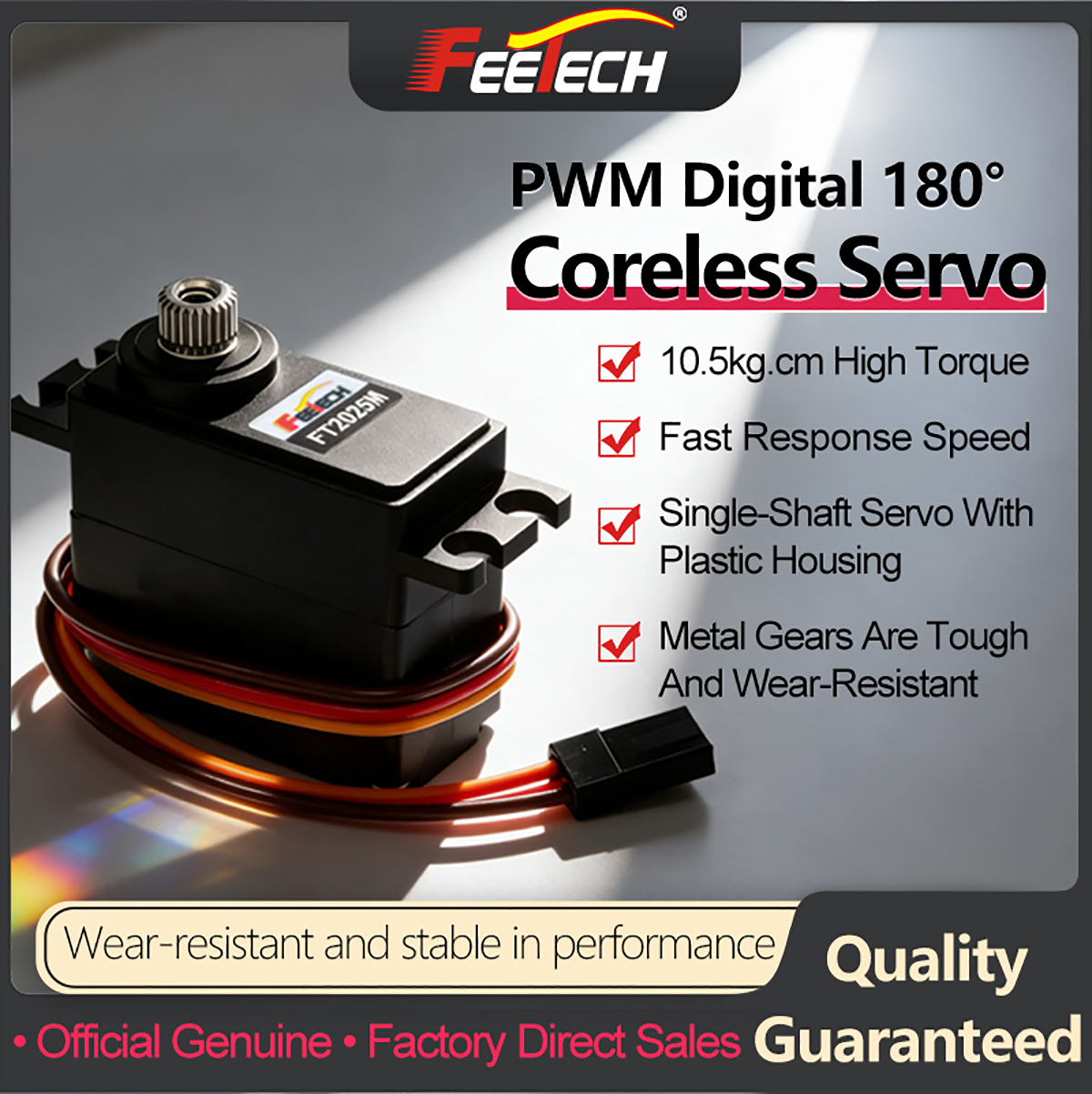

Model: FT-2025-C001
Storage Temperature Range: -30℃～70℃
Operating Temperature Range: -20℃～60℃

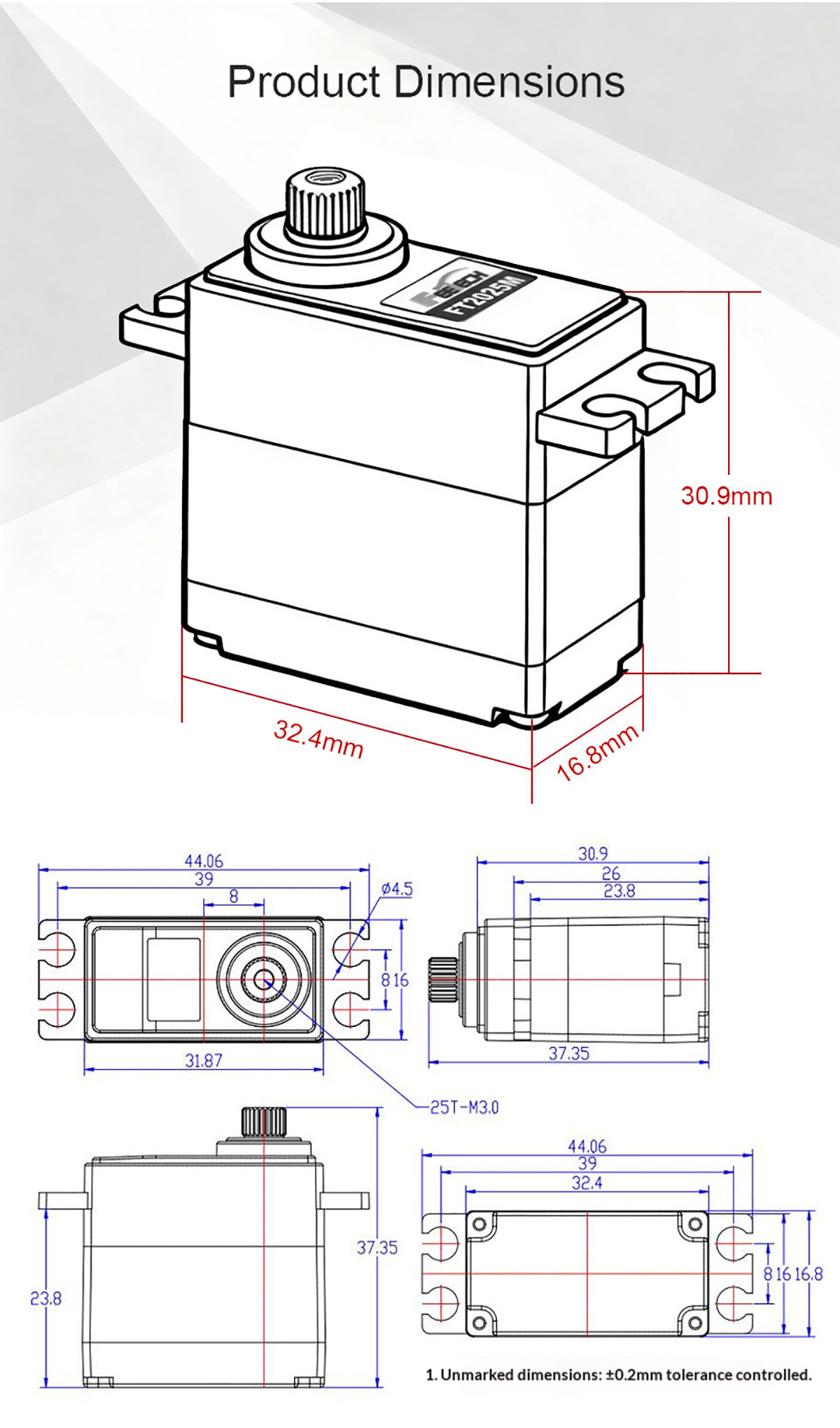

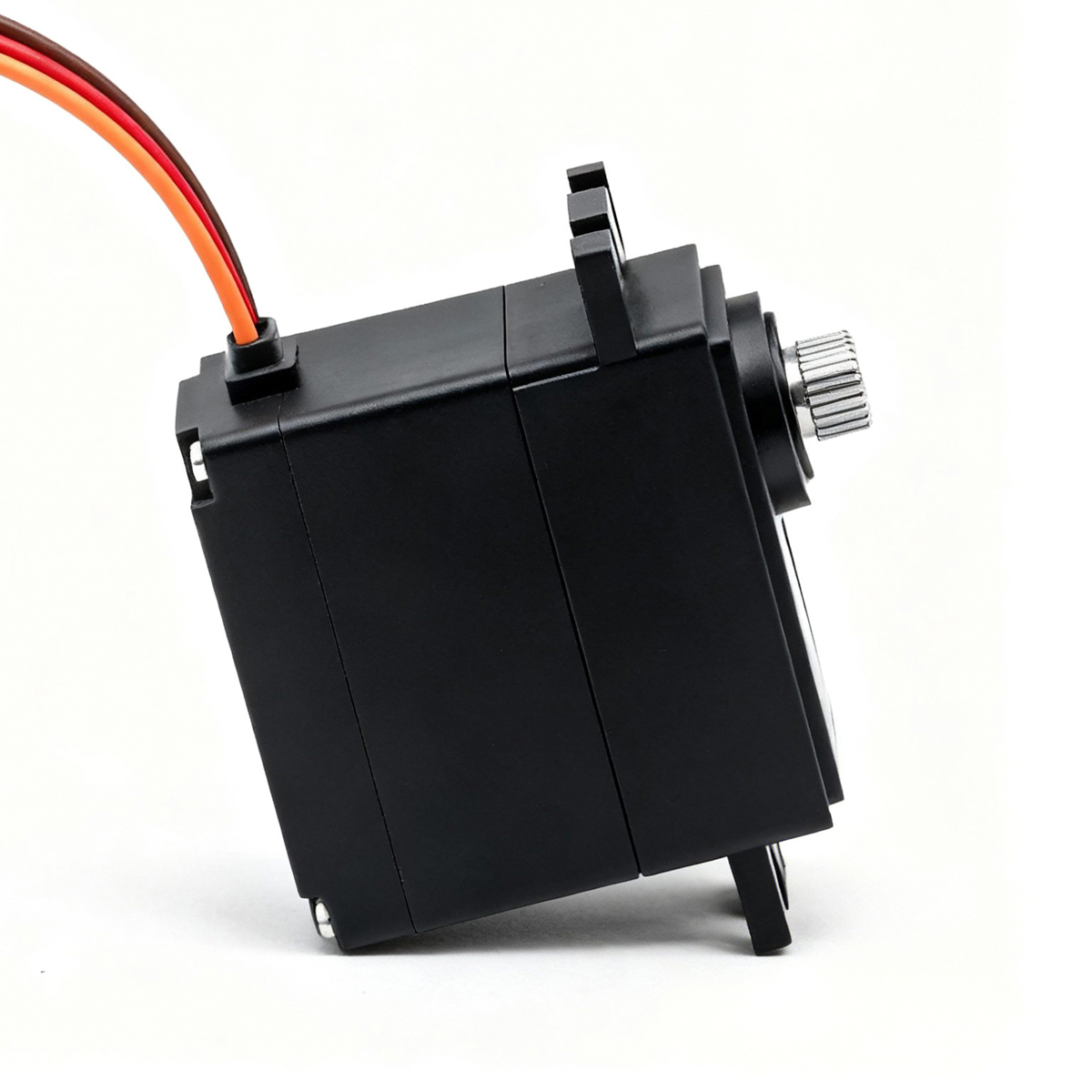

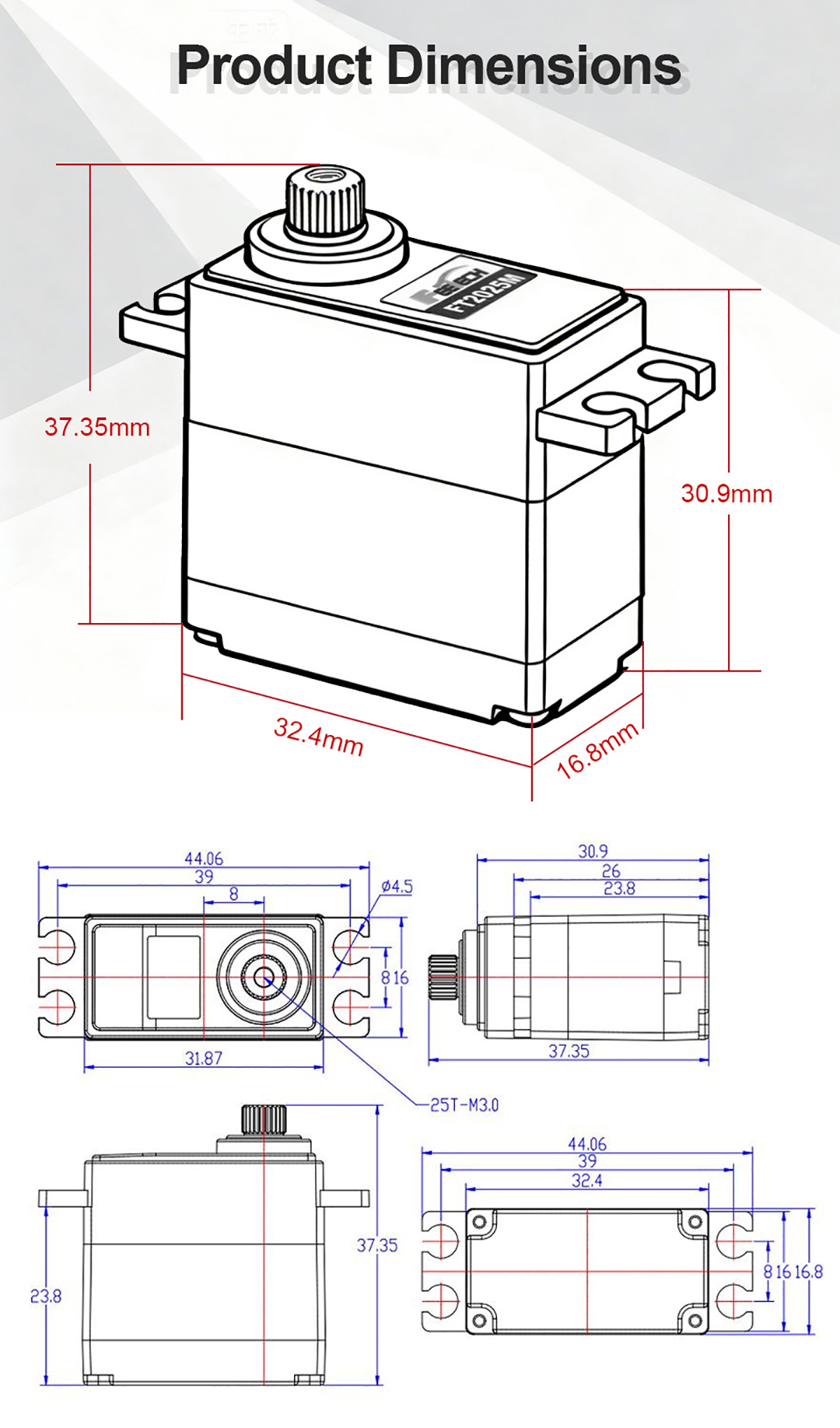

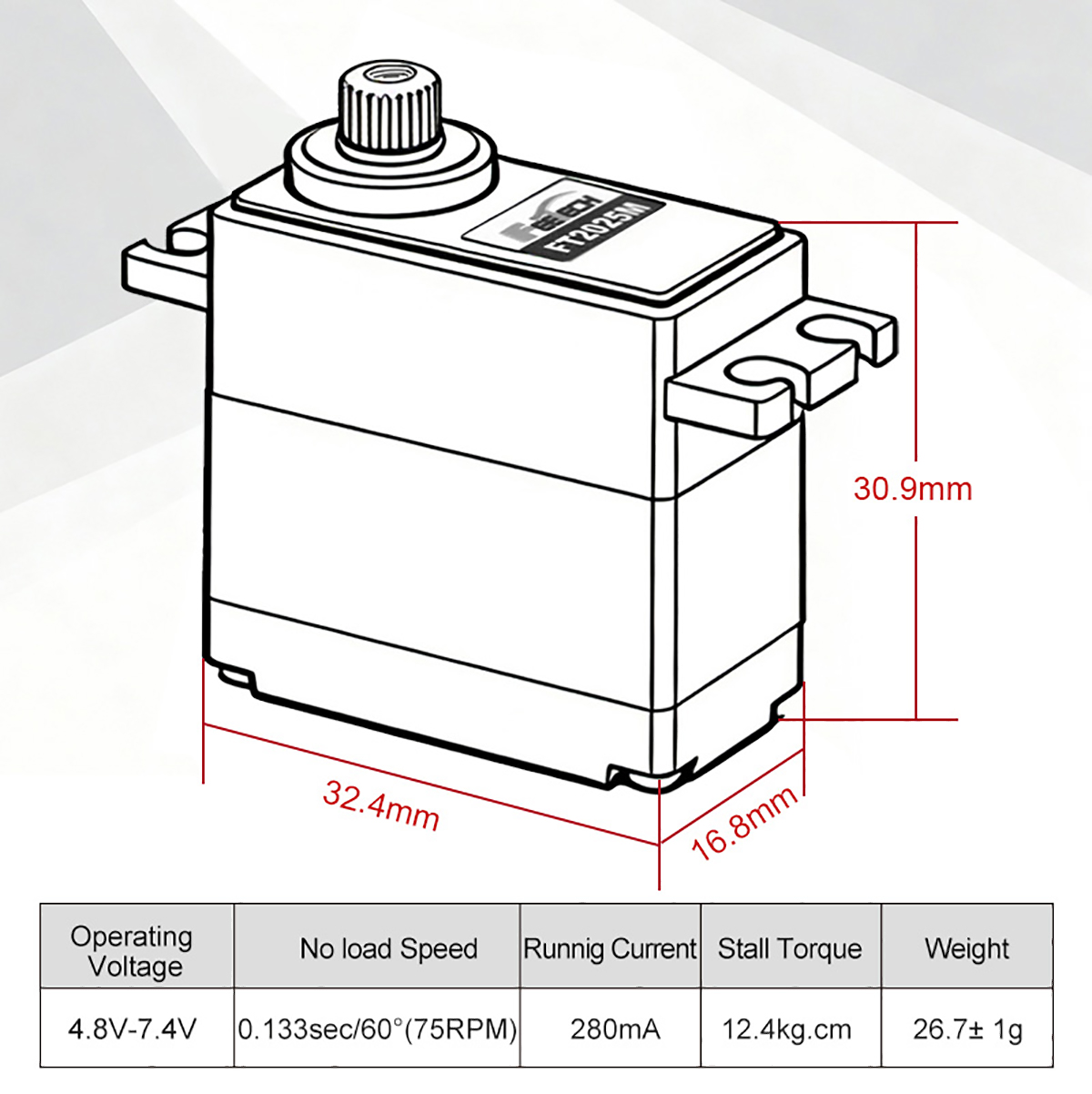

Size: 16.8*32.4*30.9mm
Weight: 26.7±1g

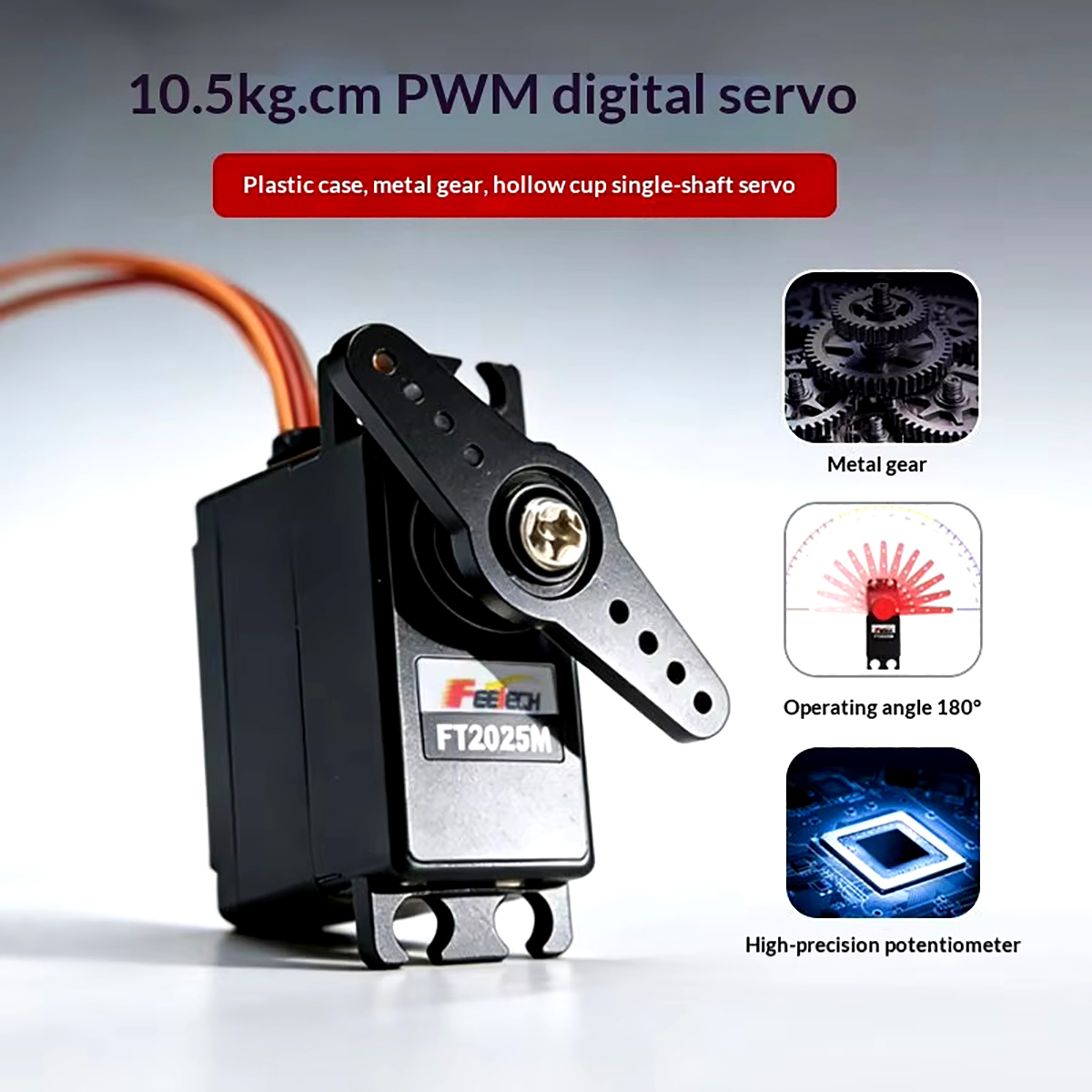

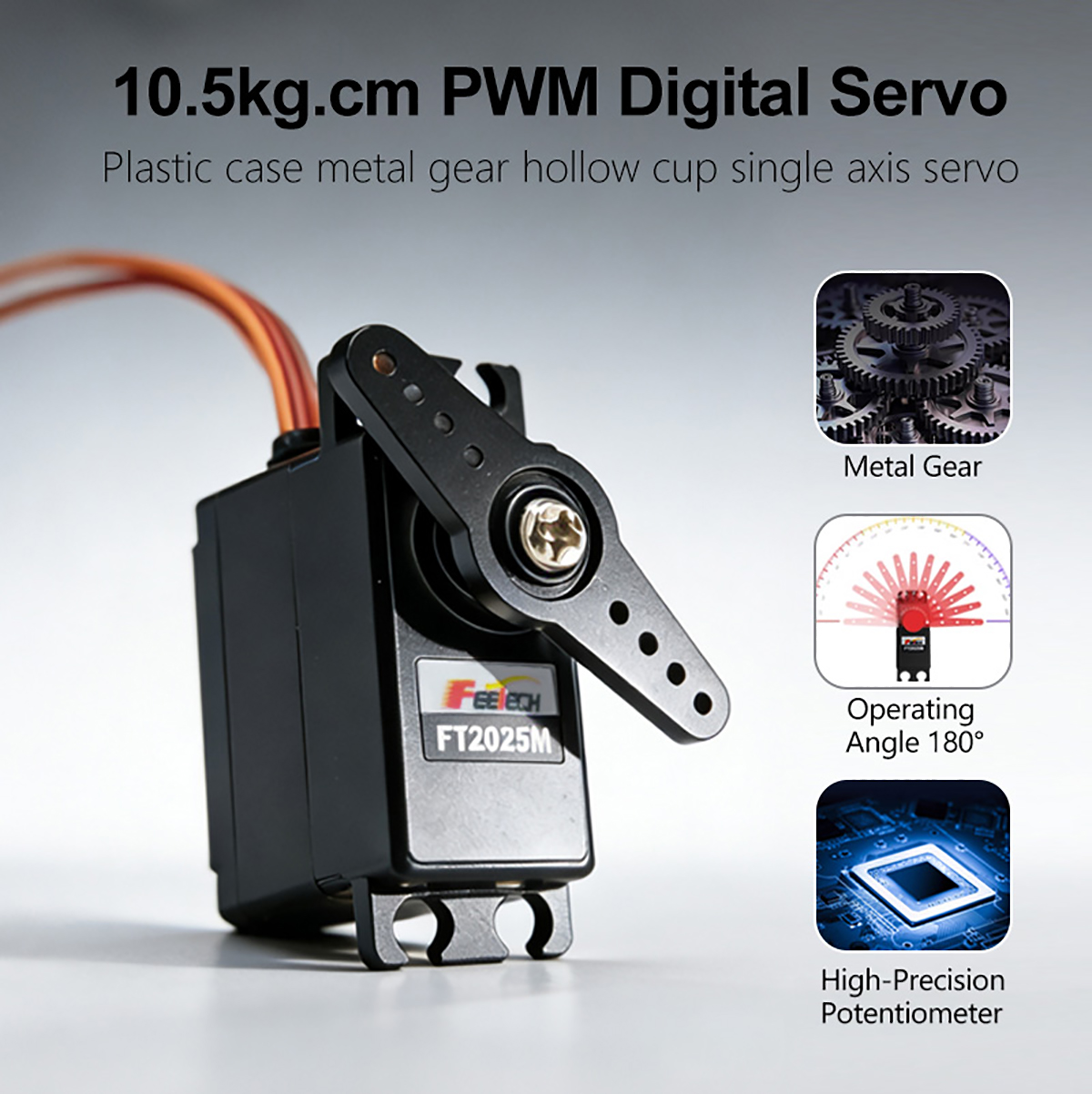

Gear Type: Metal
Limit Angle: No limit
Bearing: Ball Bearings

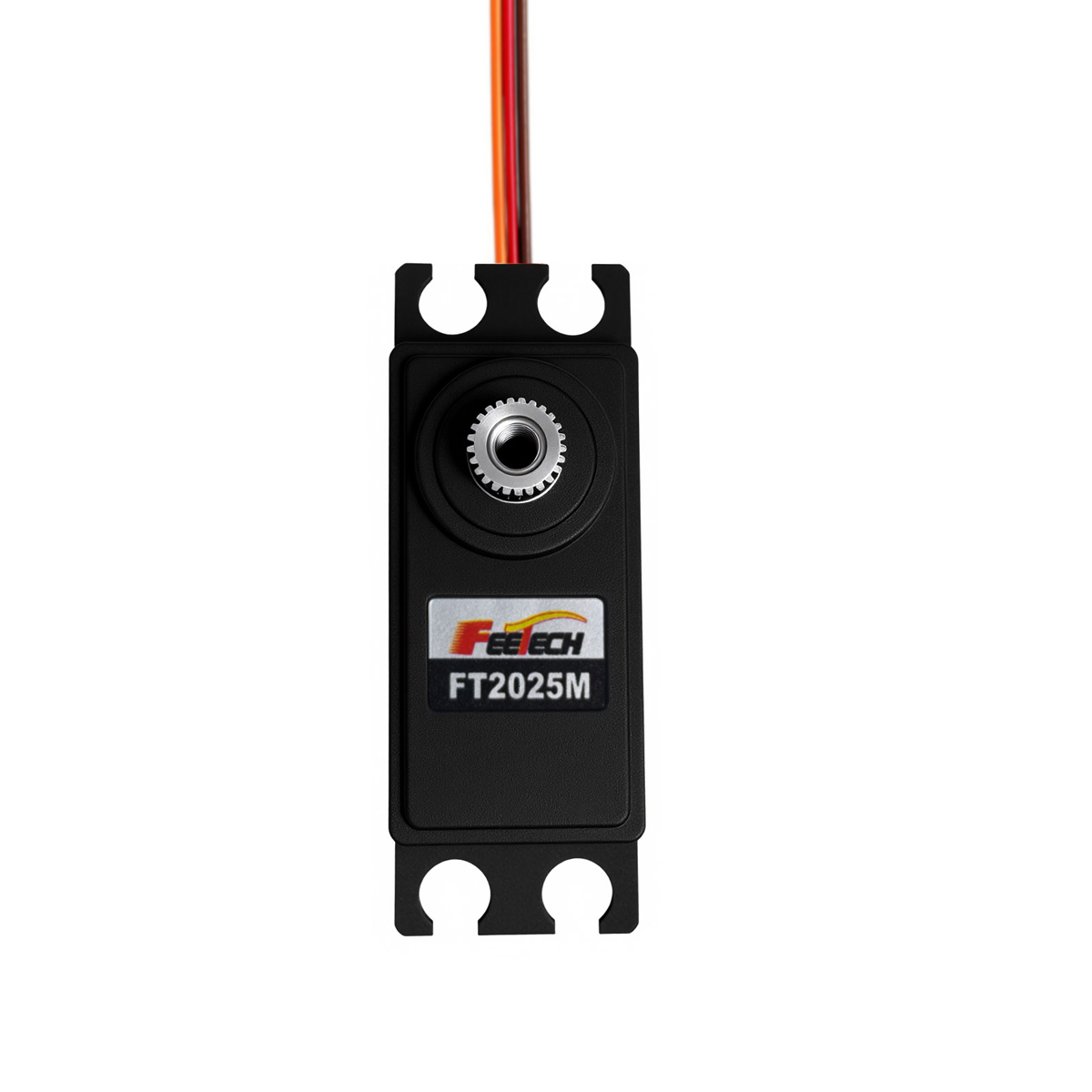

Horn Gear Spline: 25T/5.9mm
Gear Ratio: 1/361

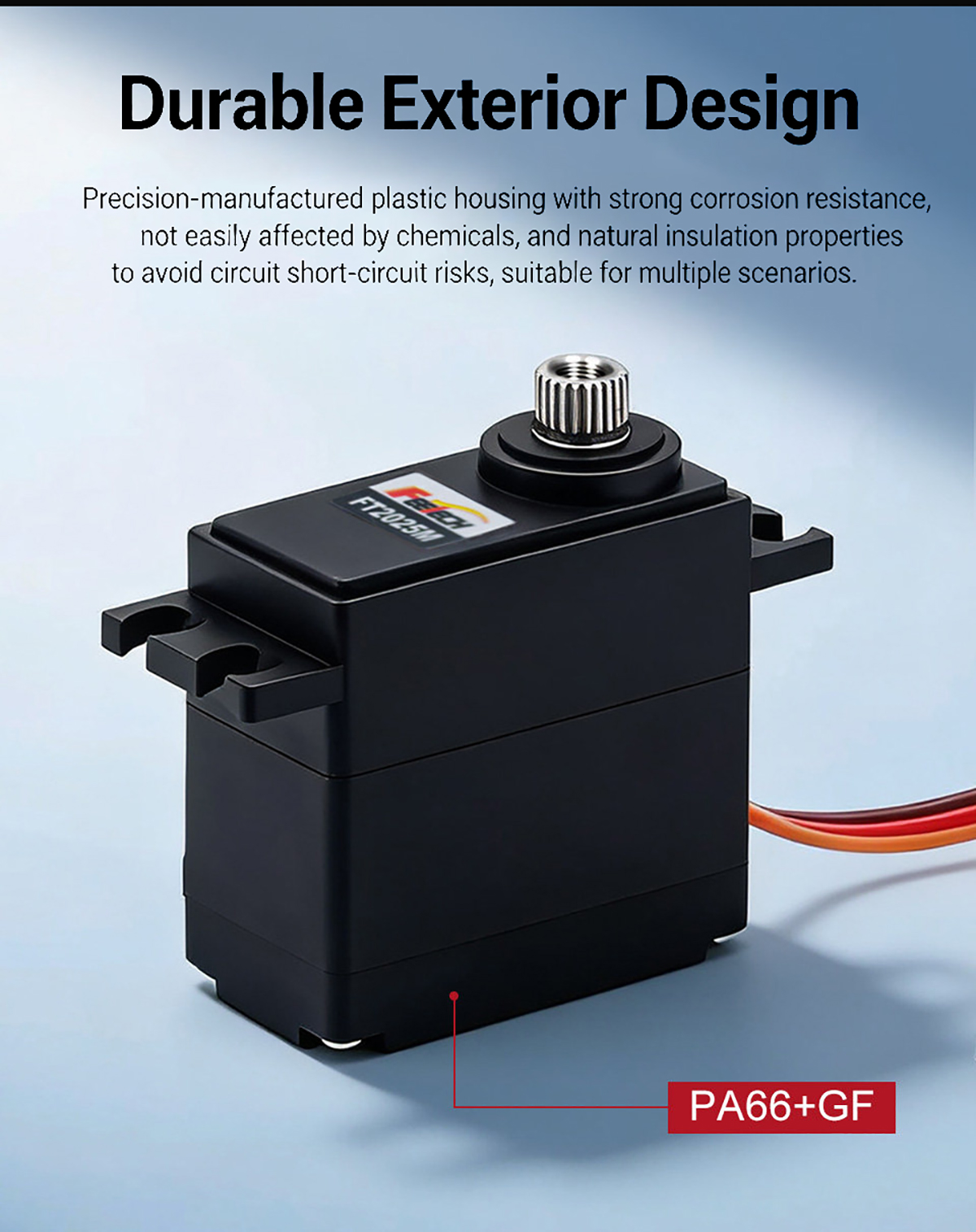

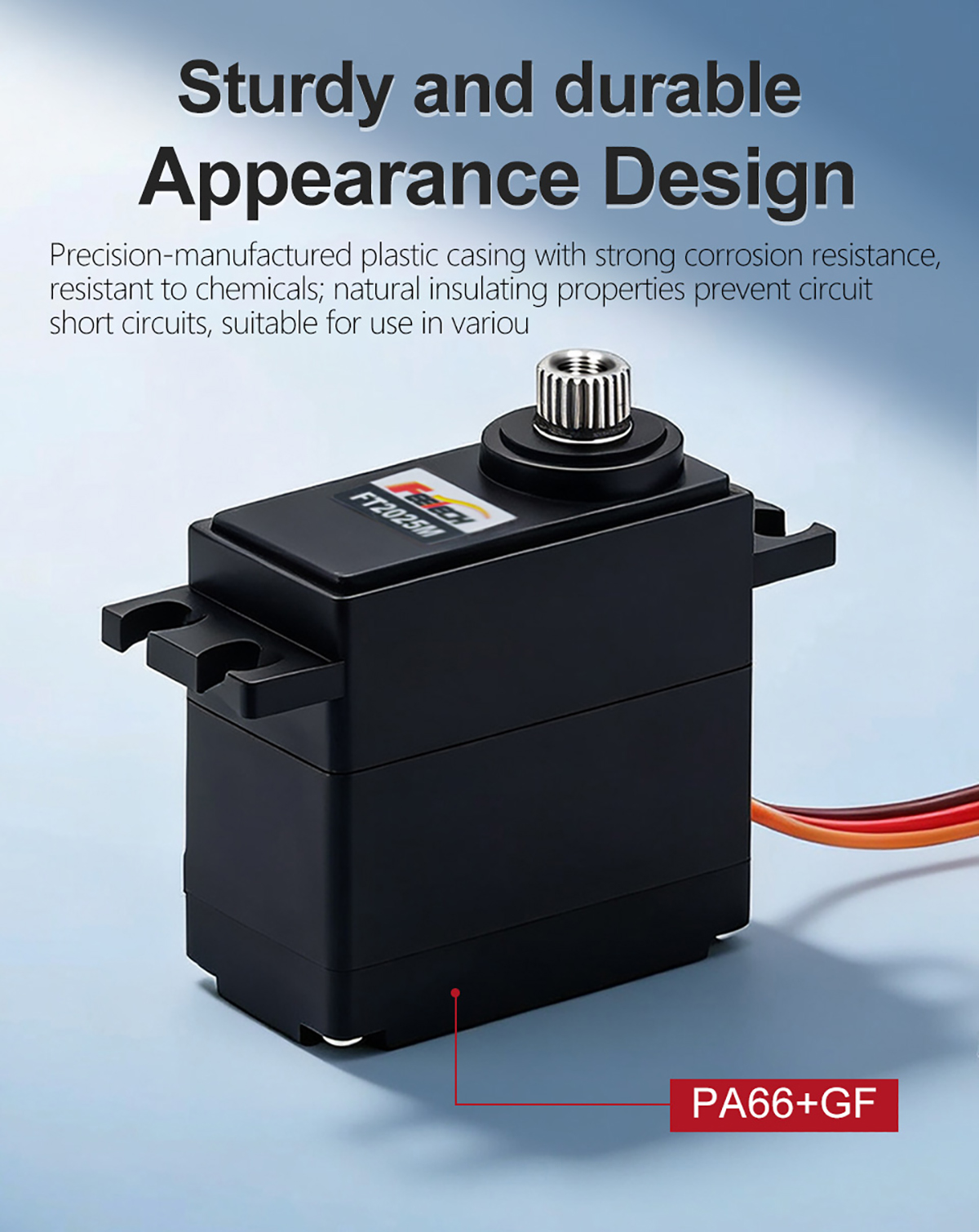

Case: PA66+GF

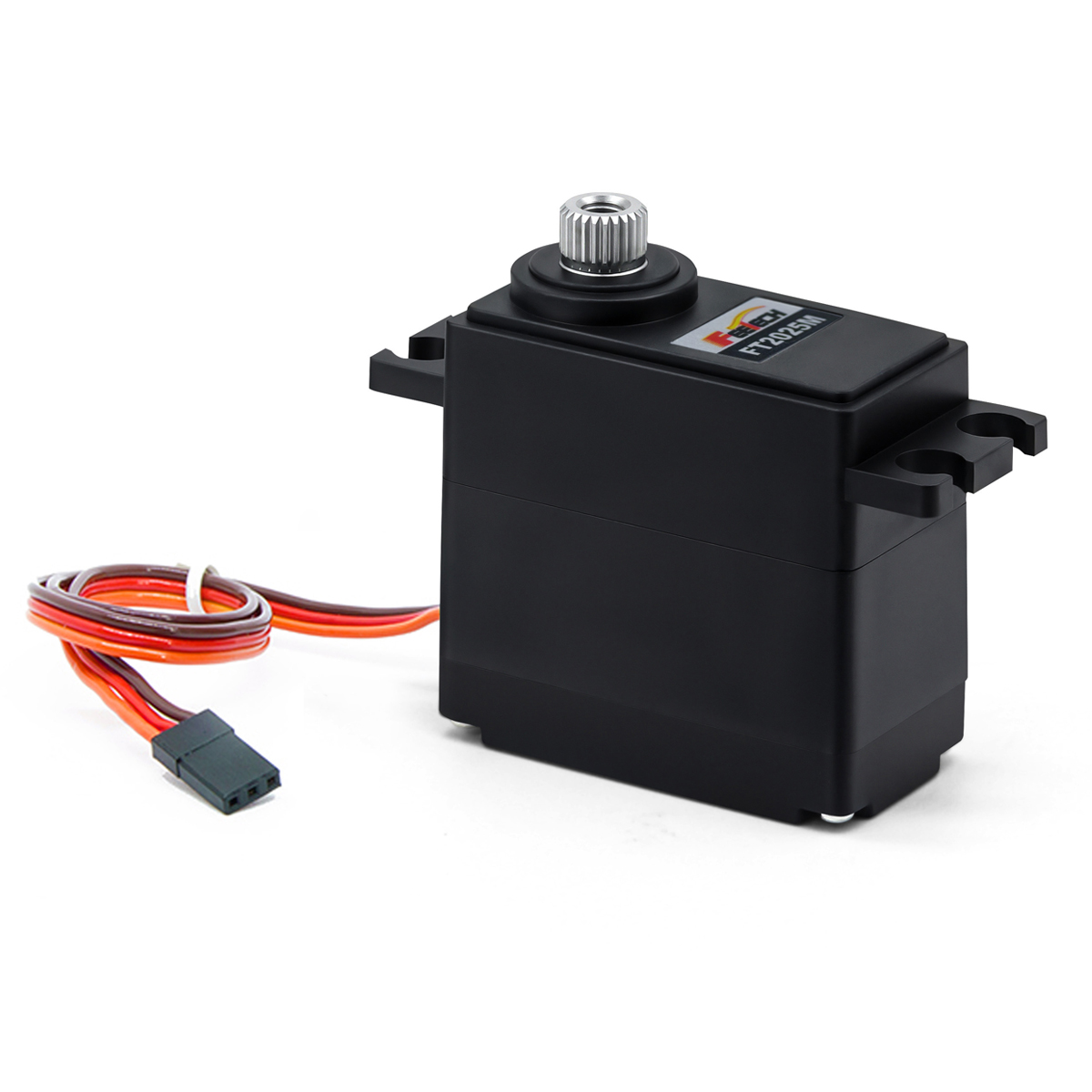

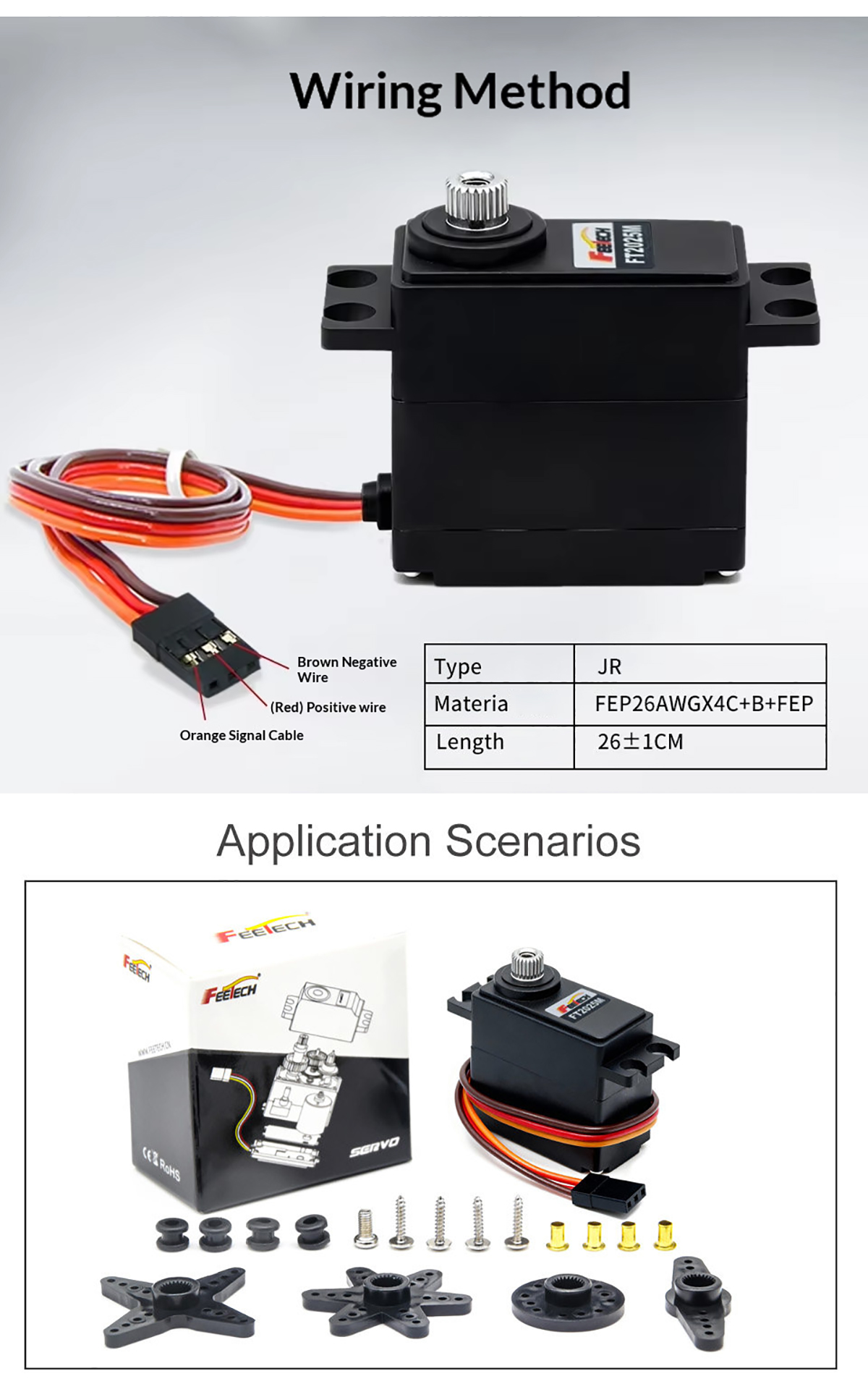

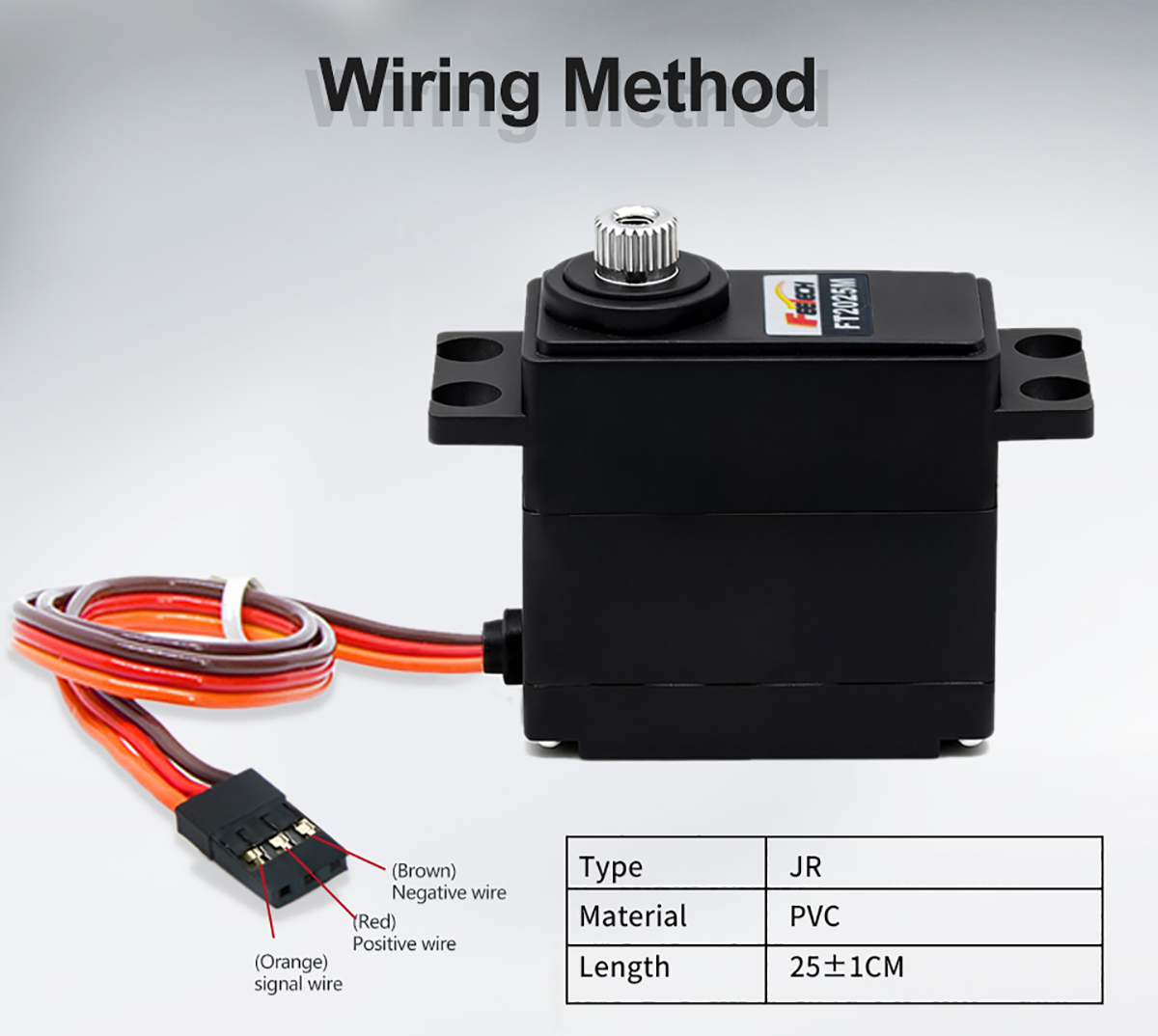

Connector Wire: 25±1cm

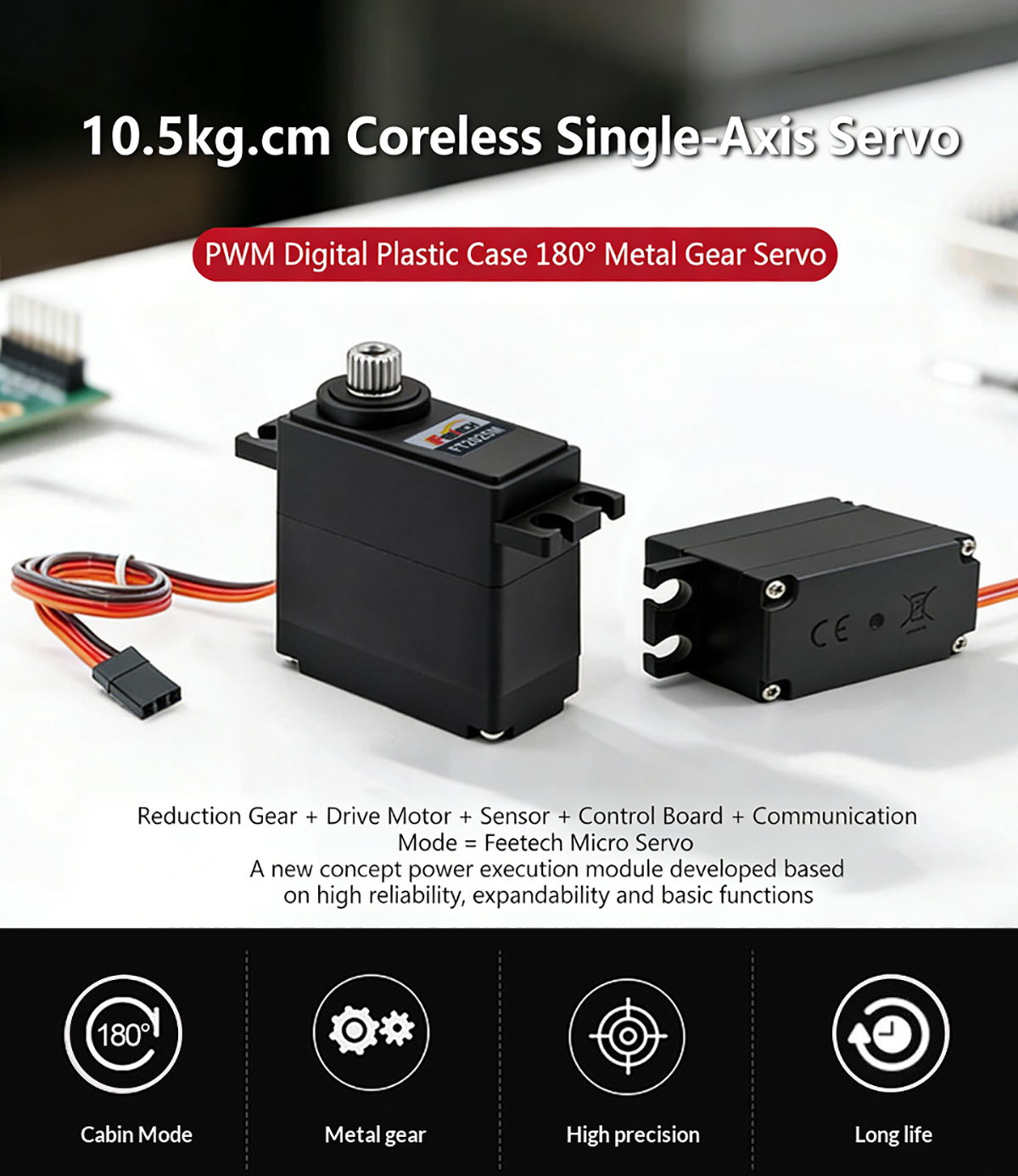

Motor: Coreless Motor
Operating Voltage Range: 4.8V-7.4V
Idle Current (at Stopped): 8mA@7.4V

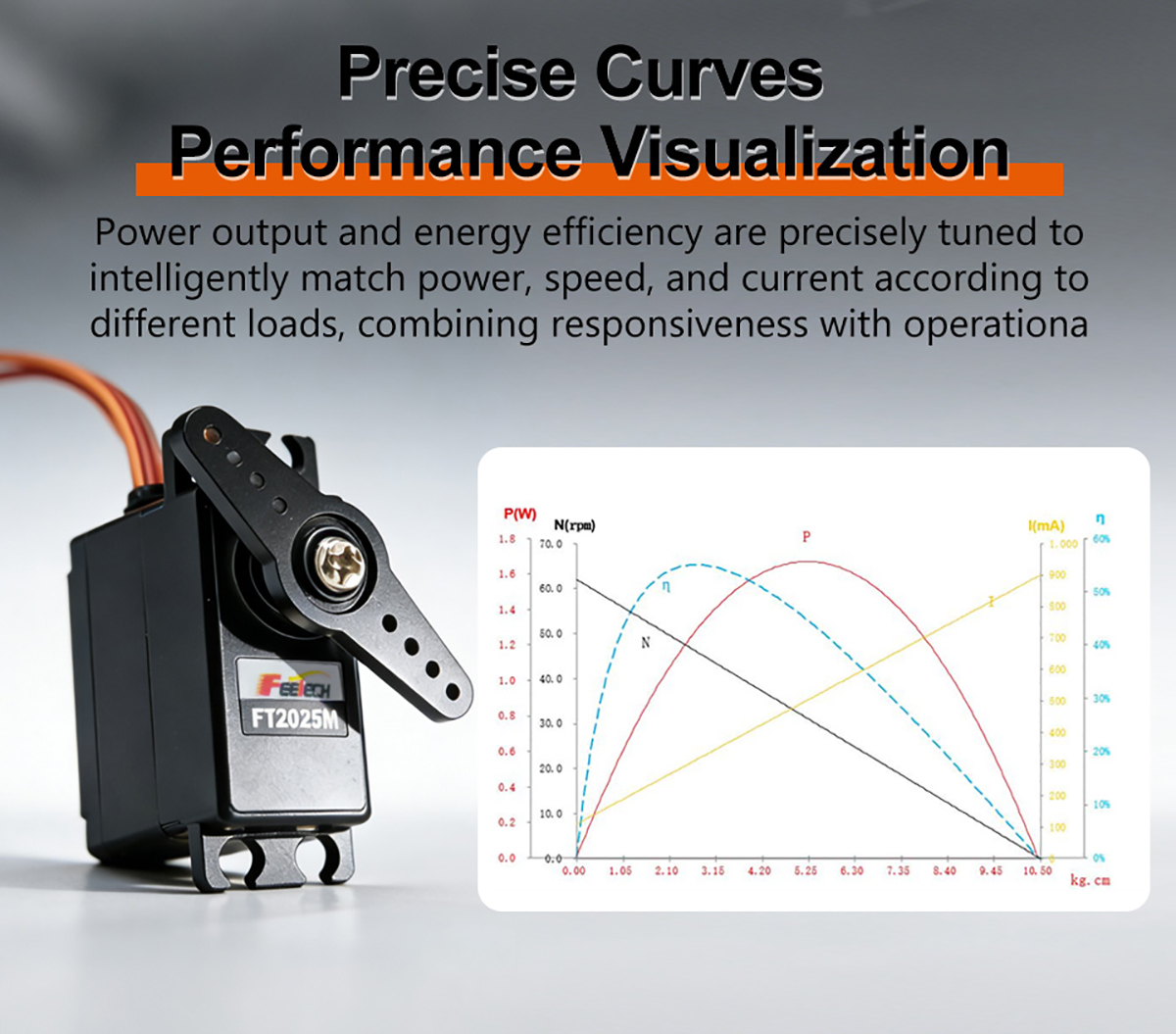

No Load Speed: 0.133sec/60° (75RPM)@7.4V
Running Current (at No Load): 280mA@7.4V
Peak Stall Torque: 12.4kg.cm@7.4V
Rated Torque: 4.1kg.cm@7.4V
Stall Current: 1.8A@7.4V
Rated Current (±10%): 600mA@7.4V
Command Signal: Pulse Width Modification
Amplifier Type: Digital Comparator

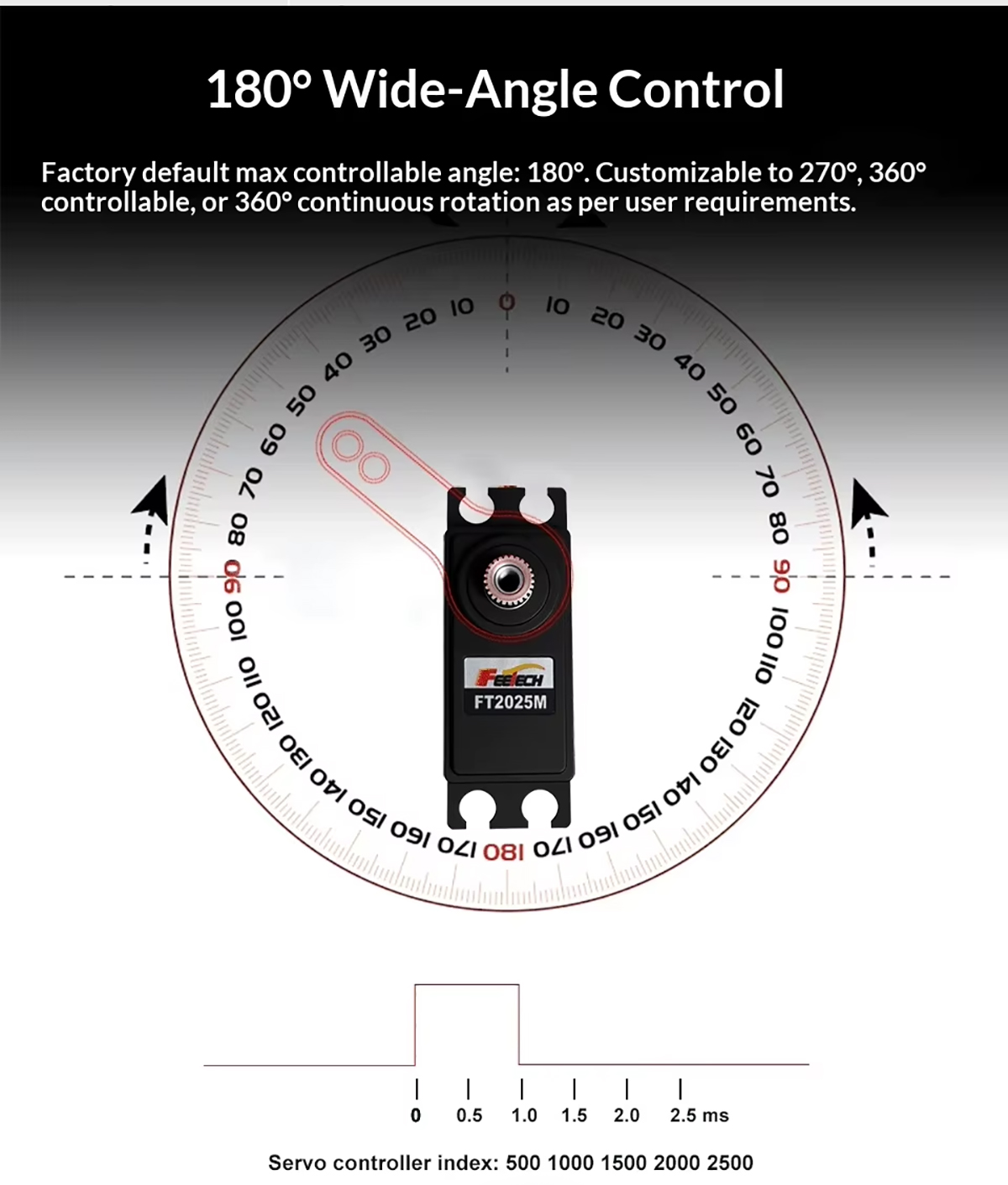

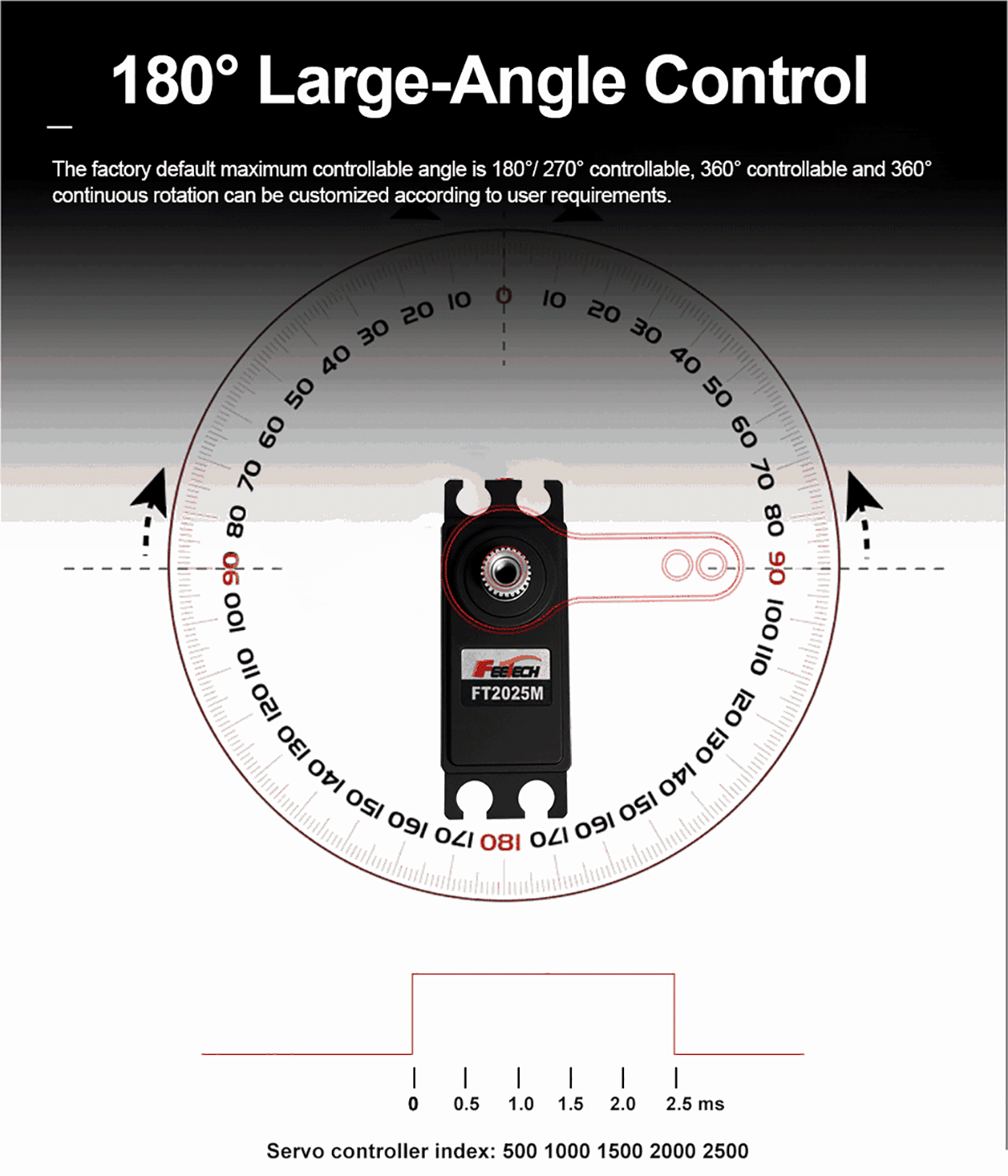

Pulse Width Range: 500~2500 μsec
Stop Position: 1500 μsec
Running Degree: 180°(at 500→2500μsec)
Dead Band Width: ≤4 μsec
Rotating Direction: Counterclockwise (at 500→2500 μsec)
