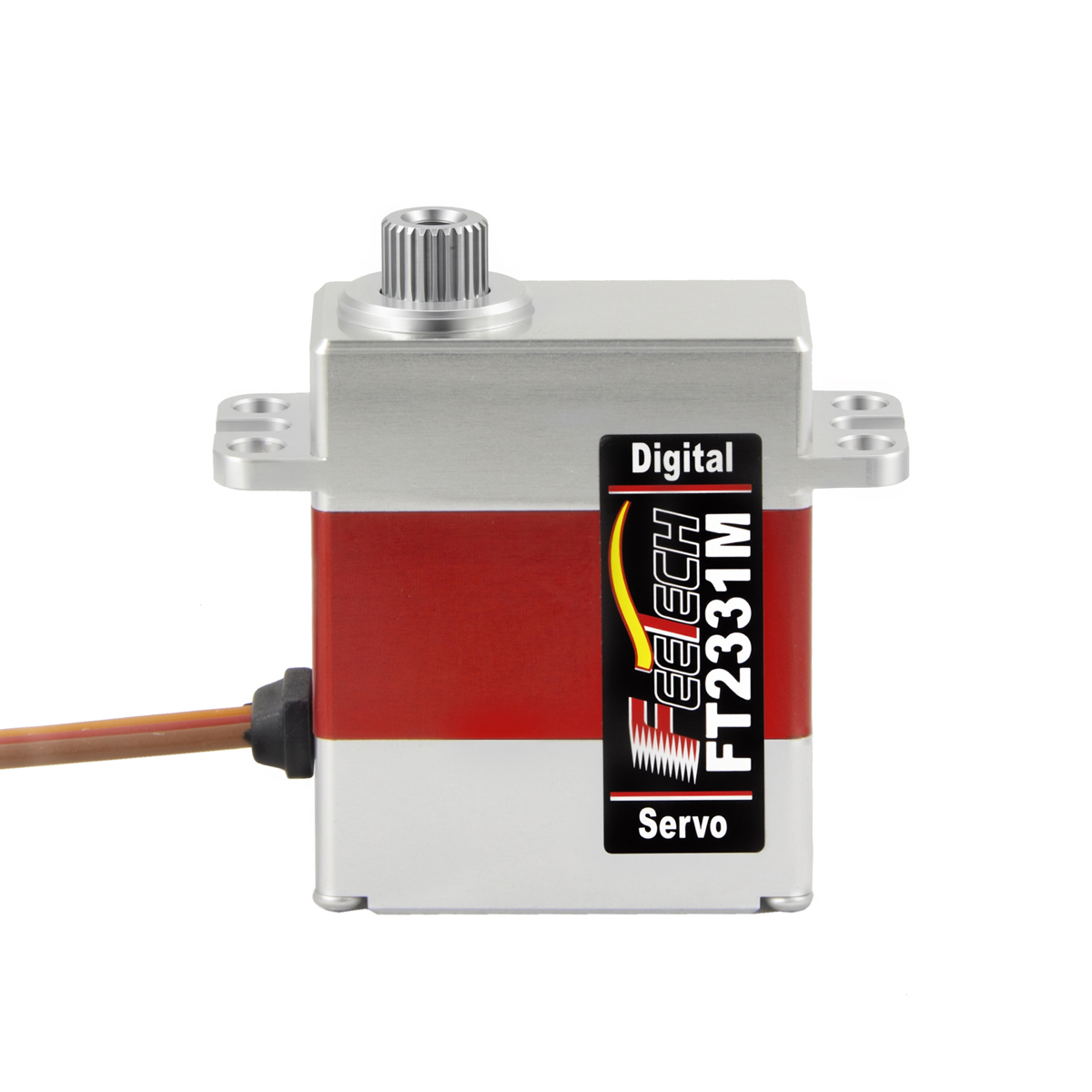

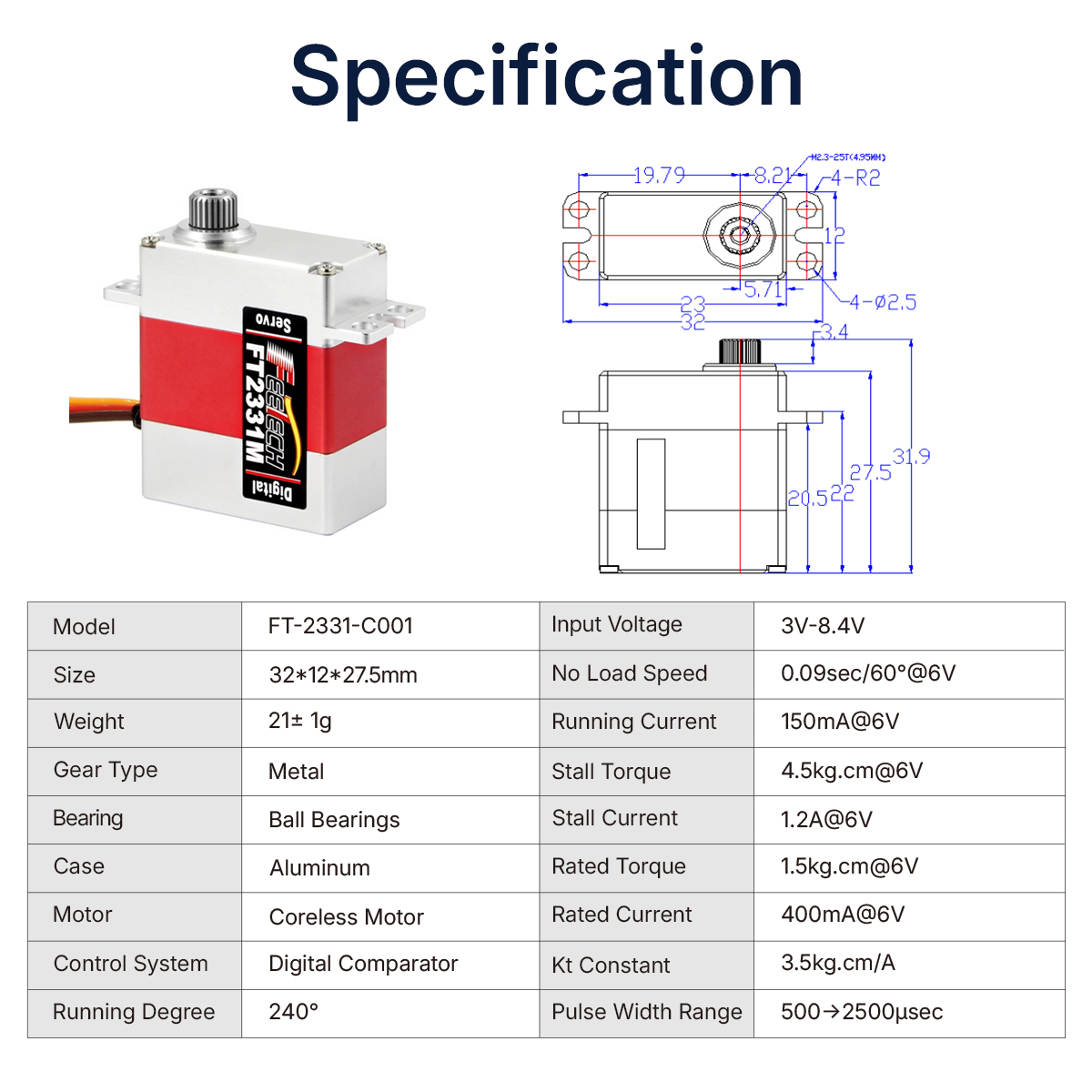

Model: FT-2331-C001
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -15℃～70℃
Size: 32mm*12mm*27.5mm
Weight: 20g±0.2g (0.71oz)

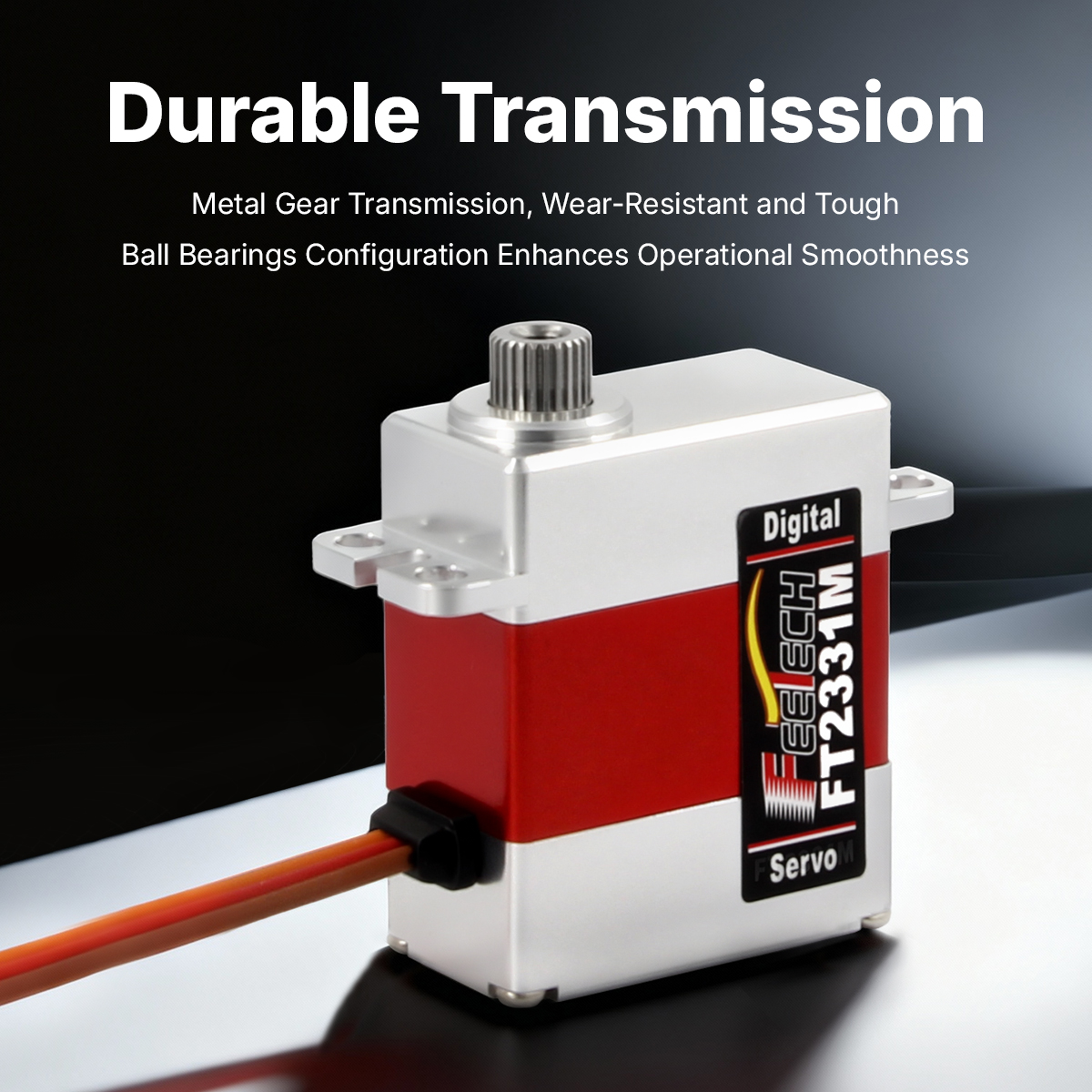

Gear Type: Metal Gear
Limit Angle: No limit
Bearing: 2 Ball Bearings
Horn Gear Spline: 25T (OD 4.92mm)

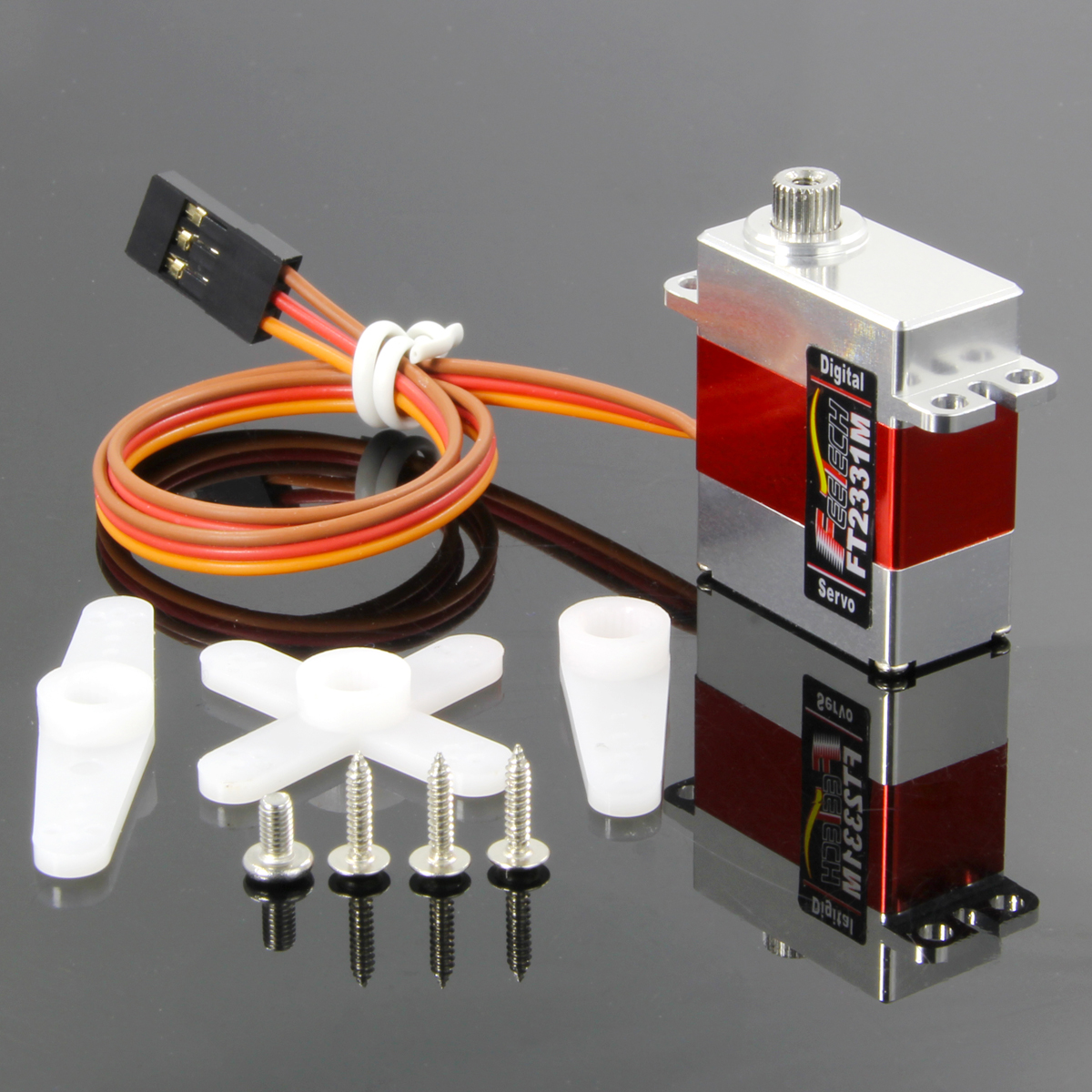

Horn Type: Plastic (POM)
Case: Aluminium
Connector Wire: 150mm±5mm
Motor: Coreless Motor
Operating Voltage Range: 4.8V-6V
Idle Current (at Stopped): 4.8mA-6.0mA
No Load Speed: 0.07sec/60°@6V
Running Current (at No Load): 150mA@6V
Peak Stall Torque: 3.5kg.cm@6V
Rated Torque: 1.16kg.cm@6V
Stall Current: 1000mA@6V
Command Signal: Pulse Width Modification
Amplifier Type: Digital Controller
Pulse Width Range: 900~2100μsec
Stop Position: 1500μsec
Running Degree: 240°(at 500→2500μsec)
Dead Band Width: 2μsec
Rotating Direction: Counterclockwise (when 1000~2000μsec)
