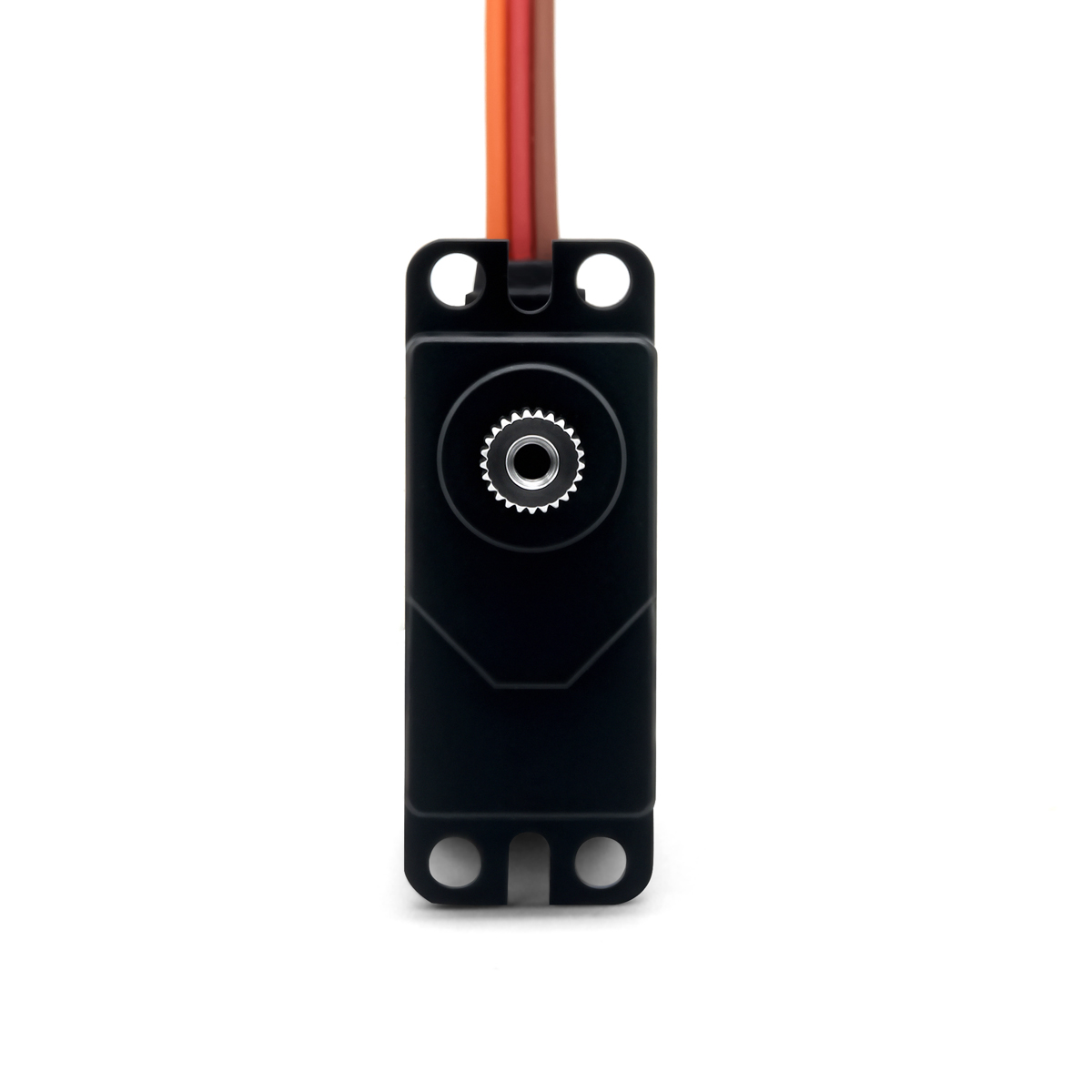

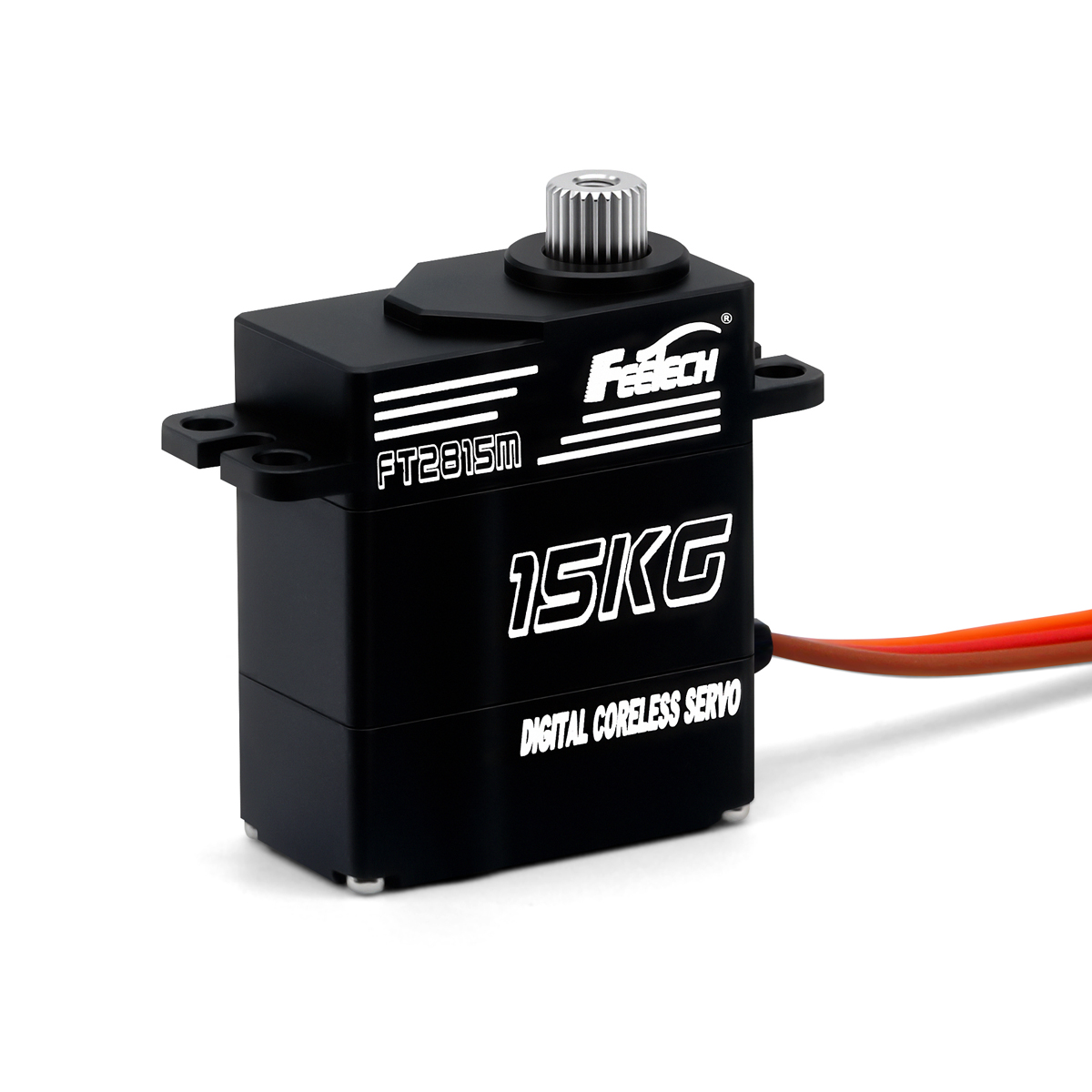

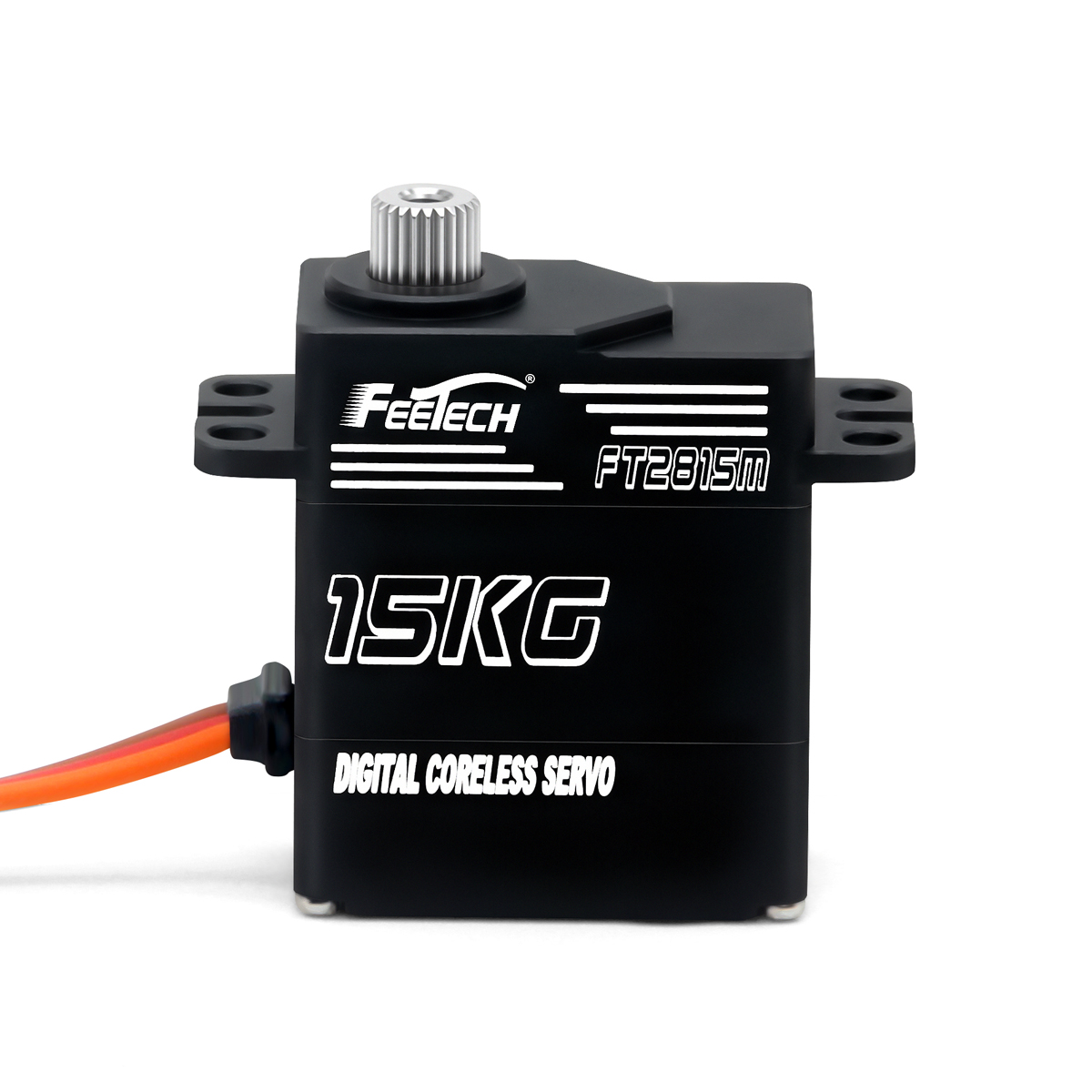

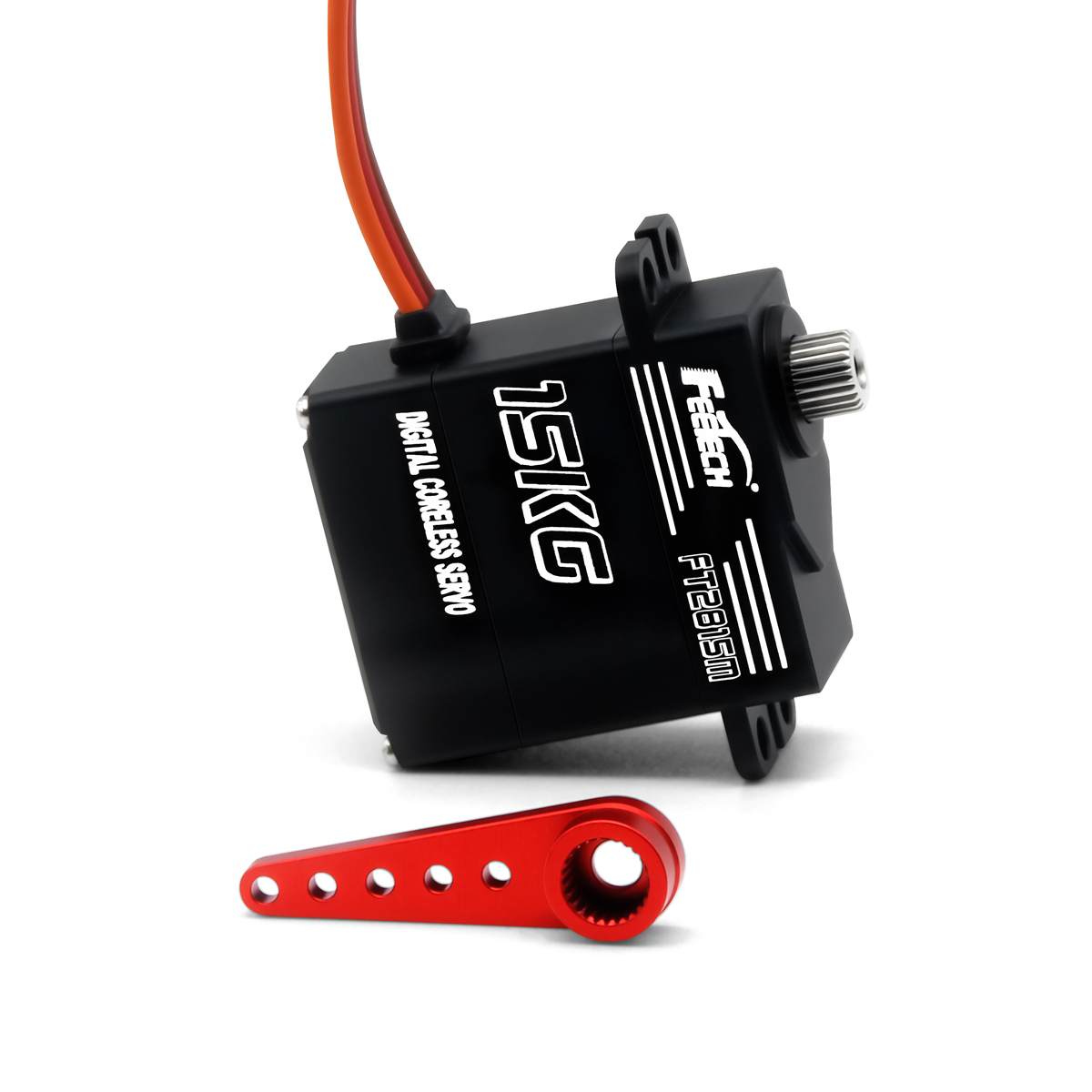

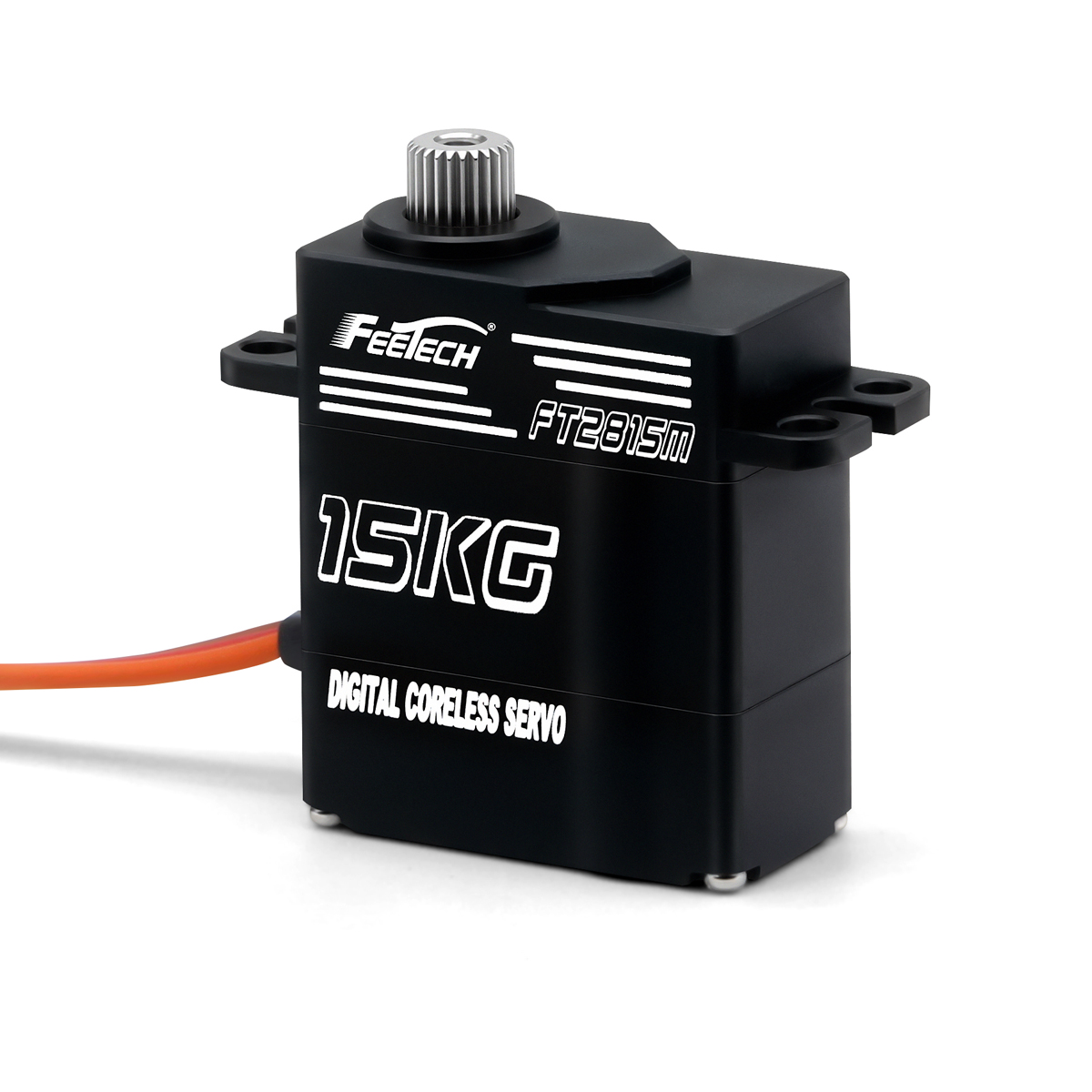

Feetech FT2815M 7.4V 15kg Metal Gear Aluminum Case Coreless Motor Digital Servo for RC Helicopter Fix-Wing
Feetech FT2815M 7.4V 15kg Metal Gear Aluminum Case Coreless Motor Digital Servo for RC Helicopter Fix-Wing
The shell is made of CNC： all aluminum alloy coreless servo
The all aluminum alloy shell has good thermal conductivity and higher machining accuracy with CNC.
The corrosion resistance of aluminum is further improved by anodizing the shell.
Copper steel combination and bearing design：
Copper gears are used for high speed, with good wear resistance and self lubrication;
The use of steel gear at low speed can improve the strength of reduction gear and prolong the service life of the servo
Motor supply chain selection：
The coreless motor is used as the power source, which has no iron core, small rotor inductance,
good response, high efficiency, small volume and easy to obtain large torque

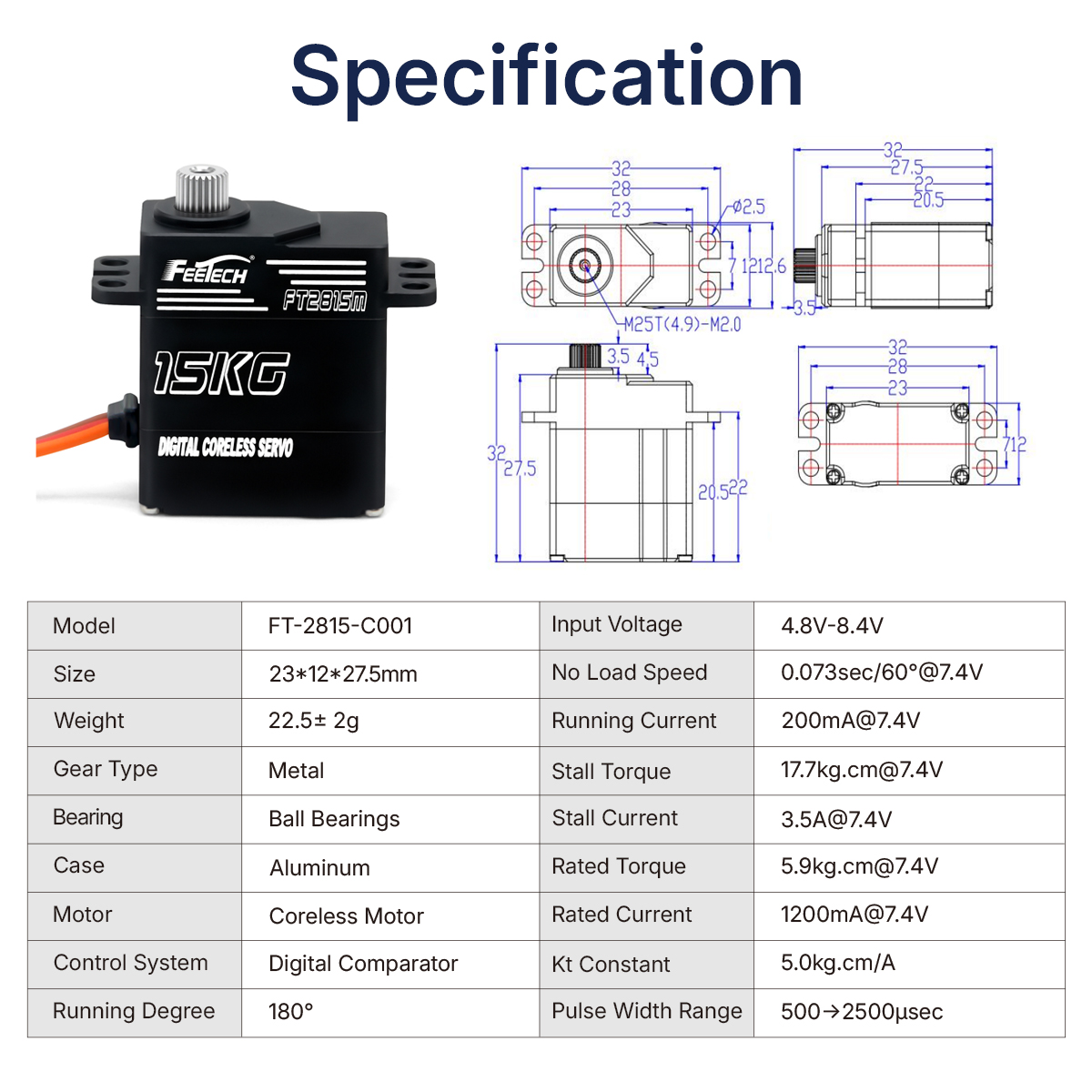

Model: FT-2815-C001
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～60℃
Size: 23*12*27.5mm
Weight: 22.5±2g
Gear Type: Metal Gear
Limit Angle: No Limit

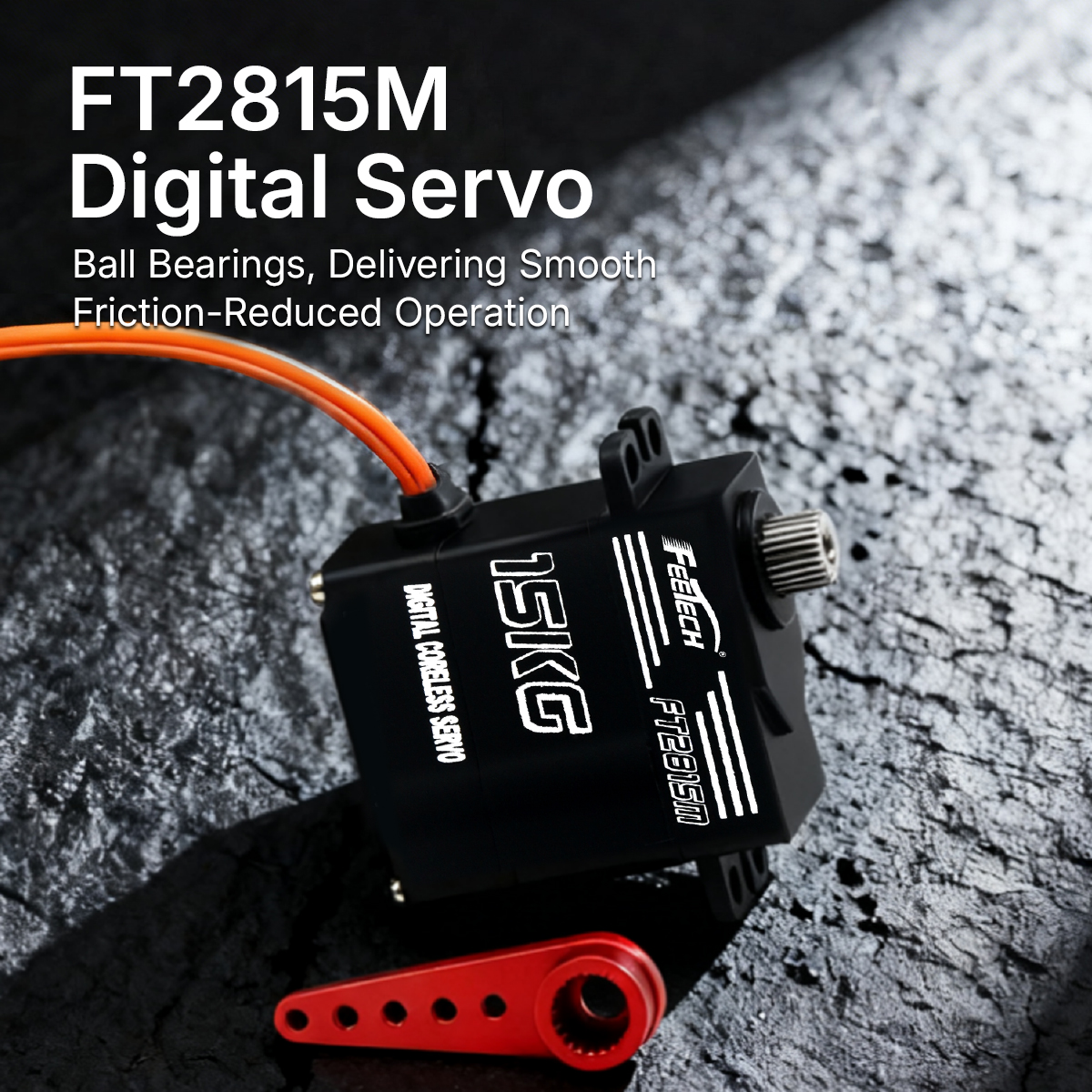

Bearing: Ball Bearings
Horn Gear Spline: 25T/4.95mm
Case: Aluminum
Connector Wire: 25±0.5CM
Motor: Coreless Motor
Operating Voltage Range: 4.8V-8.4V
Idle Current (At Stopped): 6mA@8.4V
No Load Speed: 0.065sec/60°(153RPM)@8.4V
Running Current (At No Load): 250mA@8.4V
Peak Stall Torque: 19.5kg.cm@8.4V
Rated Torque: 6.5kg.cm@8.4V
Stall Current: 1300mA@8.4V
Command Signal: Pulse Width Modification
Control System Type: Digital Comparator
Pulse Width Range: 500→2500μsec
Neutral Position: 1500μsec
Running Degree: 180±5°(at 500→2500μsec)
Dead Band Width: ≤8μsec
Rotating Direction: Counterclockwise (at 1500→2000μsec)

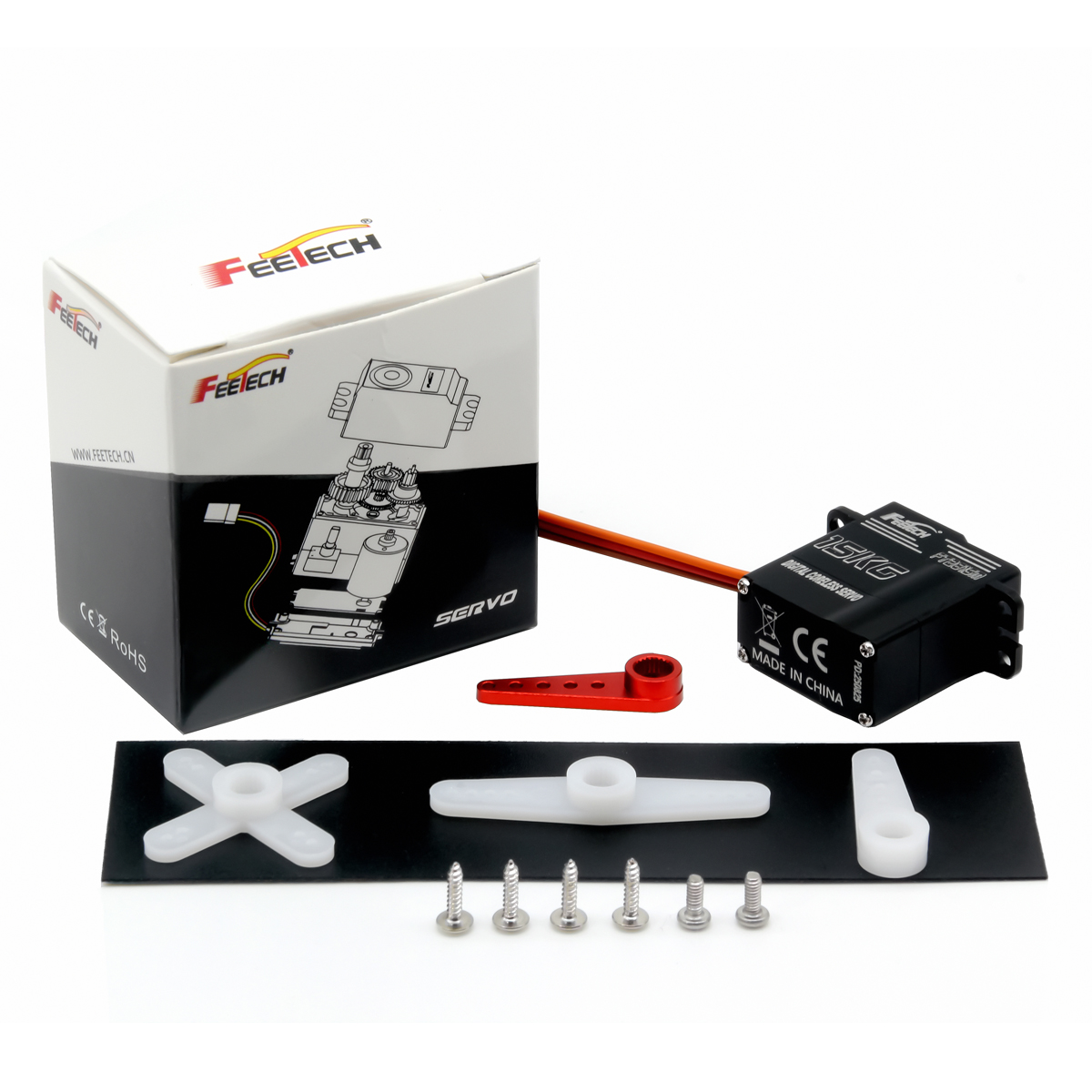

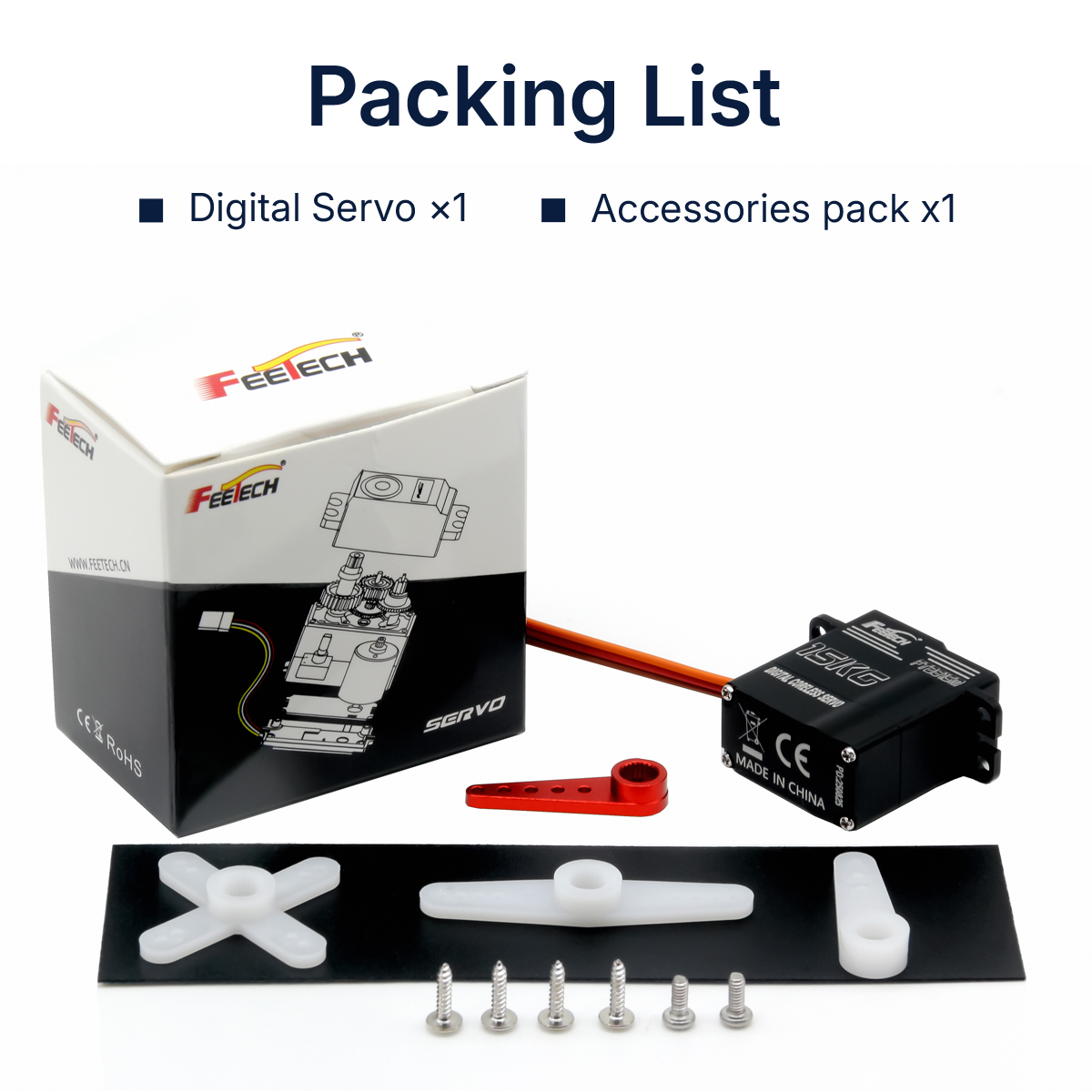

FT2815M Servo x1
