Model: FT-3322-C001
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～60℃

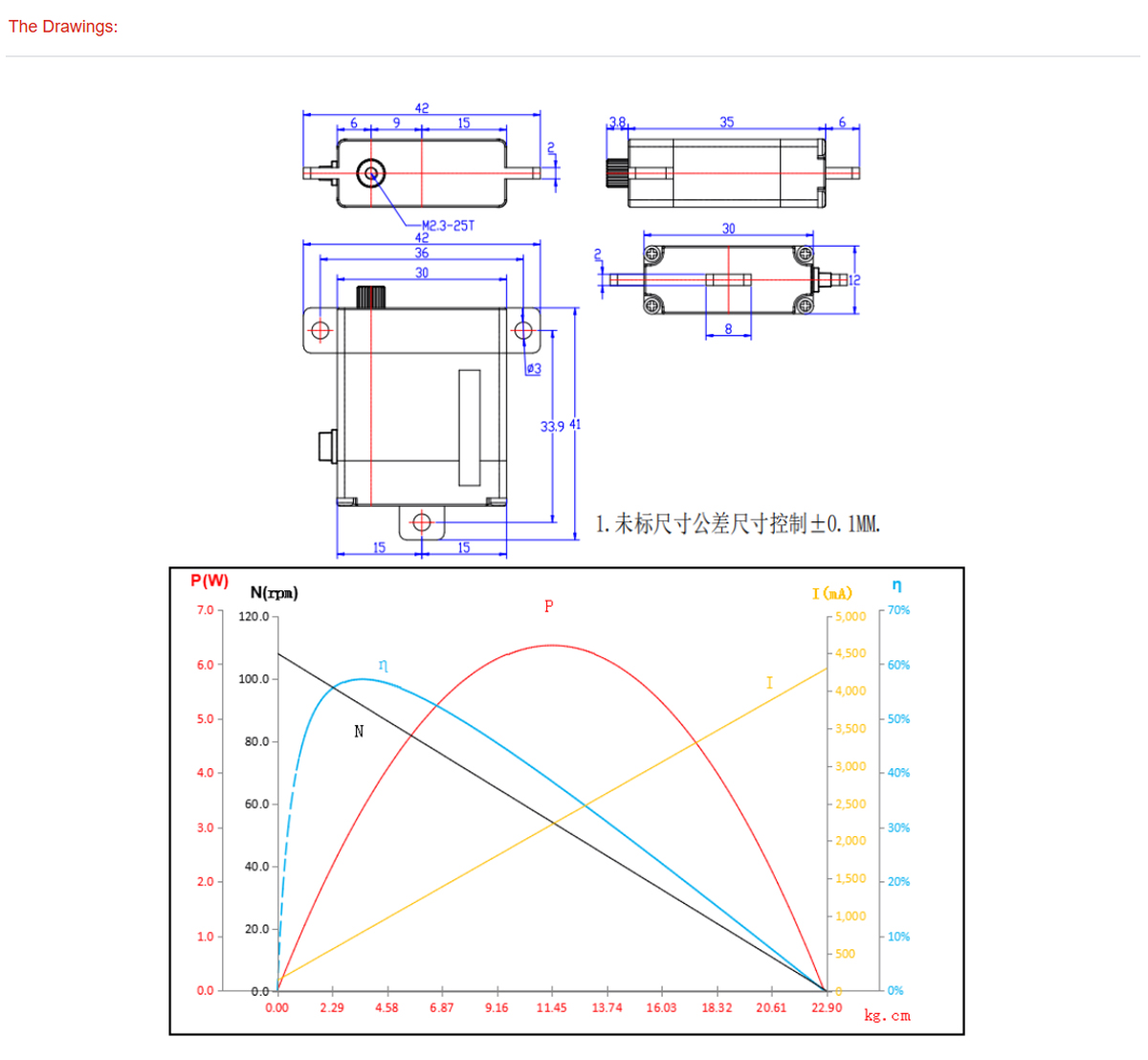

Size: 30*12*35mm
Weight: 32.6±2g
Gear Type: Metal Gear
Limit Angle: No Limit
Bearing: Ball Bearings
Horn Gear Spline: 25T/4.95mm
Case: Aluminium
Connector Wire: 250±5mm
Motor: Coreless Motor
Operating Voltage Range: 4.8V-7.4V
Idle Current (At Stopped): 6mA@7.4V
No Load Speed: 0.093sec/60°(108RPM)@7.4V
Running Current (At No Load): 140mA@7.4V
Peak Stall Torque: 22.9kg.cm@7.4V
Rated Torque: 7.6kg.cm@7.4V
Command Signal: Pulse Width Modulation (PWM)
Amplifier Type: Digital Comparator
Pulse Width Range: 500→2500μsec
Stop Position: 1500μsec
Running Degree: 180±5°(at 500→2500μsec)
Dead Band Width: ≤4μsec
Rotating Direction: Counterclockwise (at 1500→2000μsec)
