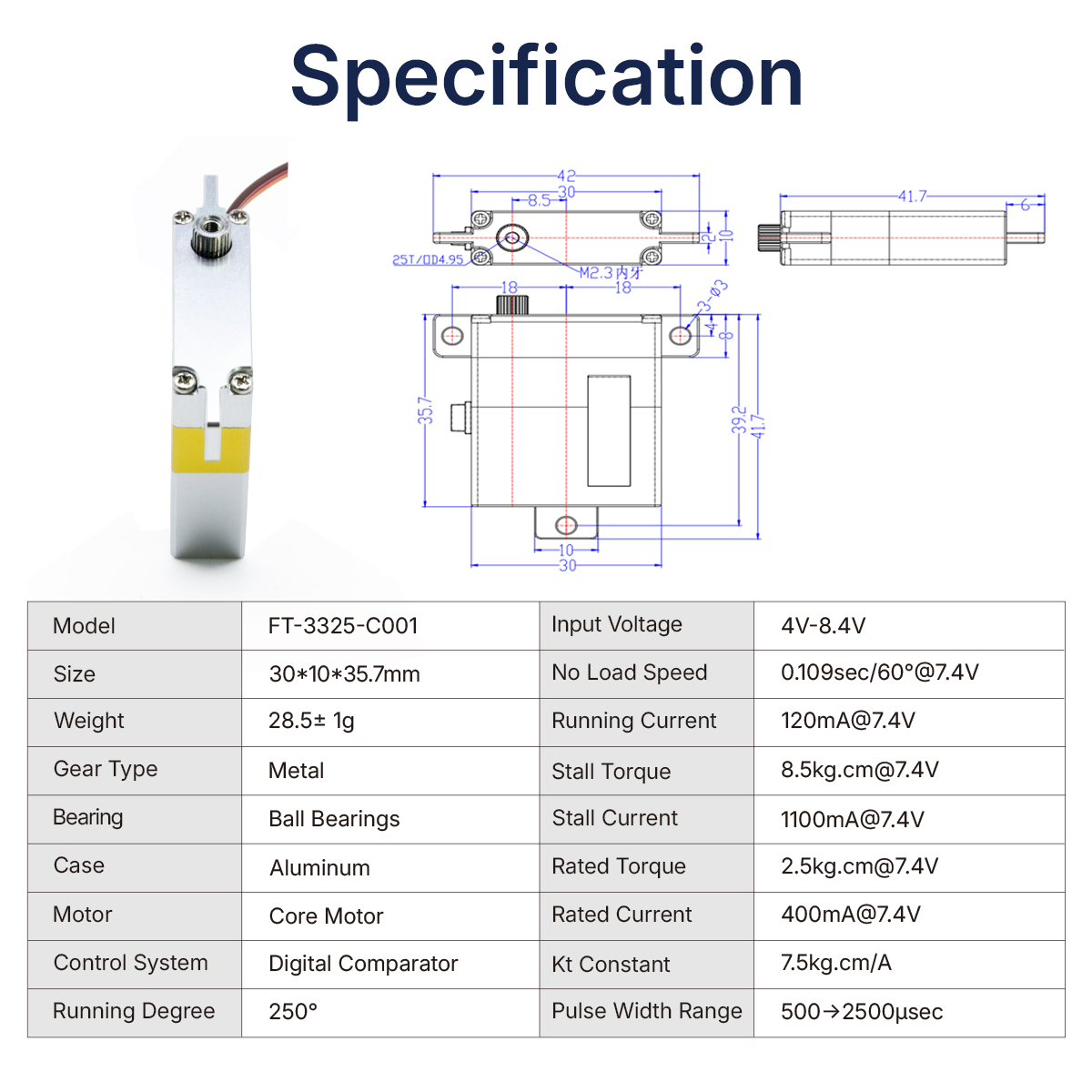

Model: FT-3325-C001
Storage temperature range: -30℃～80℃
Operating temperature range: -15℃～70℃

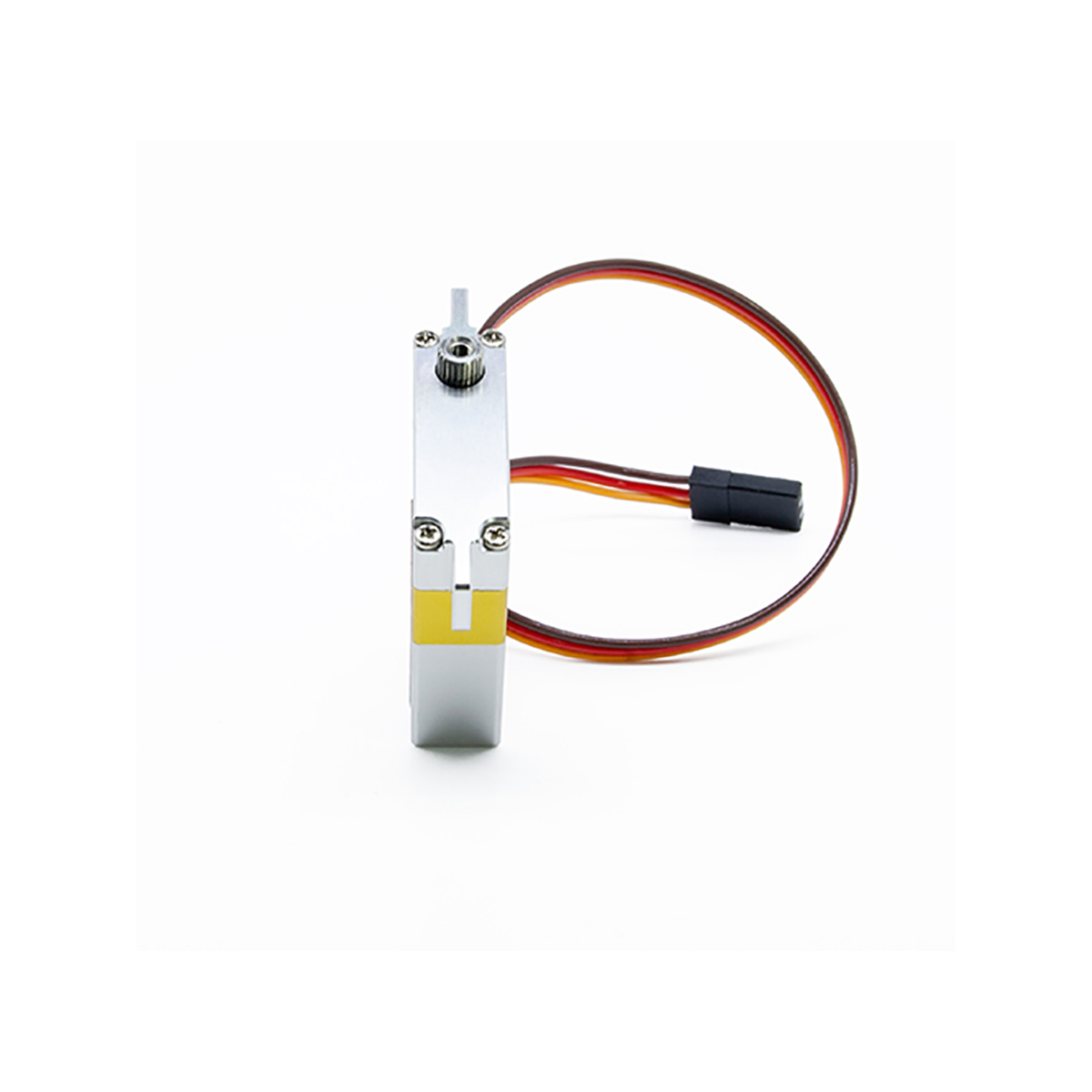

Size: 30*10*35.7mm
Weight: 28.5±1g

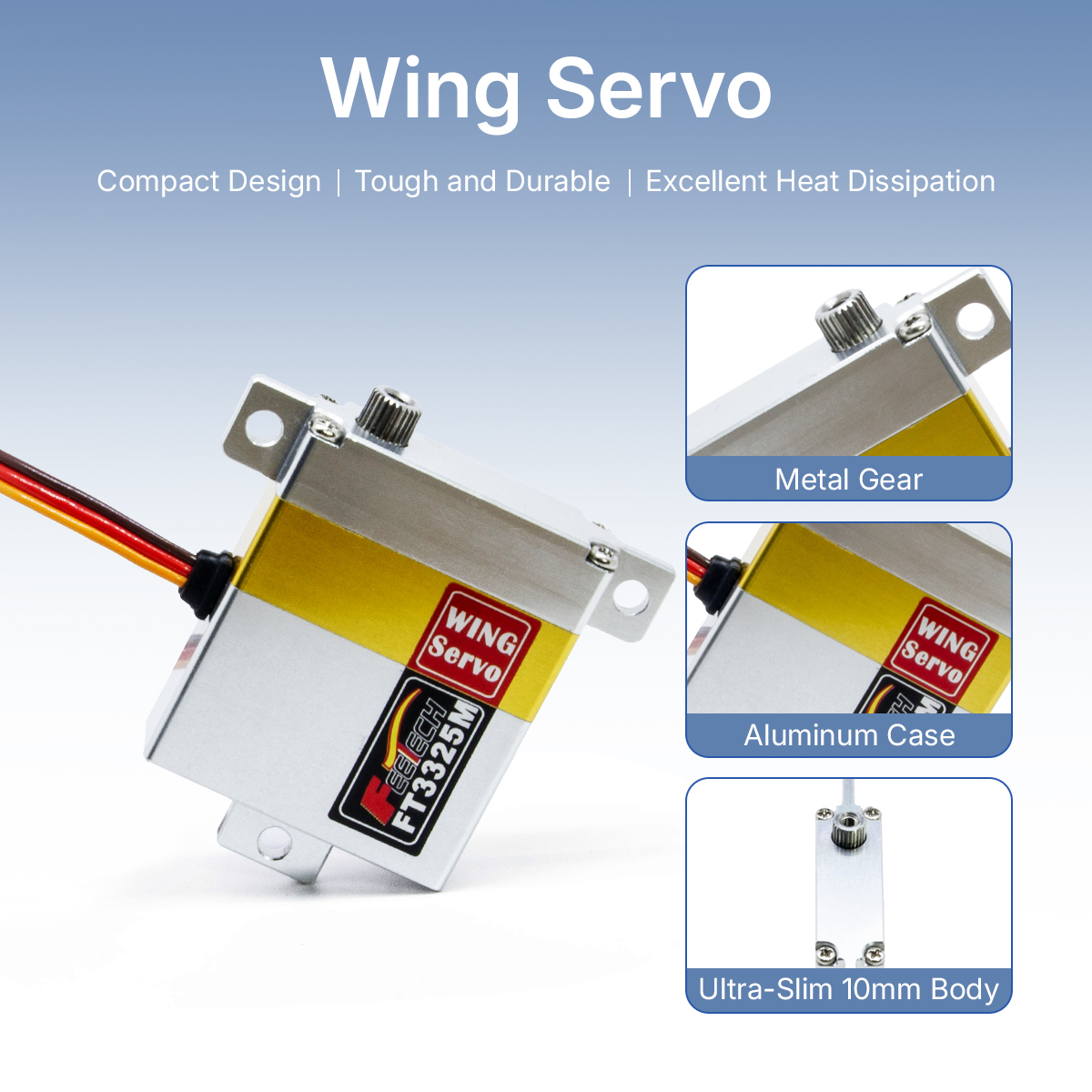

Gear type: Metal gear
Limit angle: No limit
Bearing: Ball bearings
Horn gear spline: 25T/4.95mm

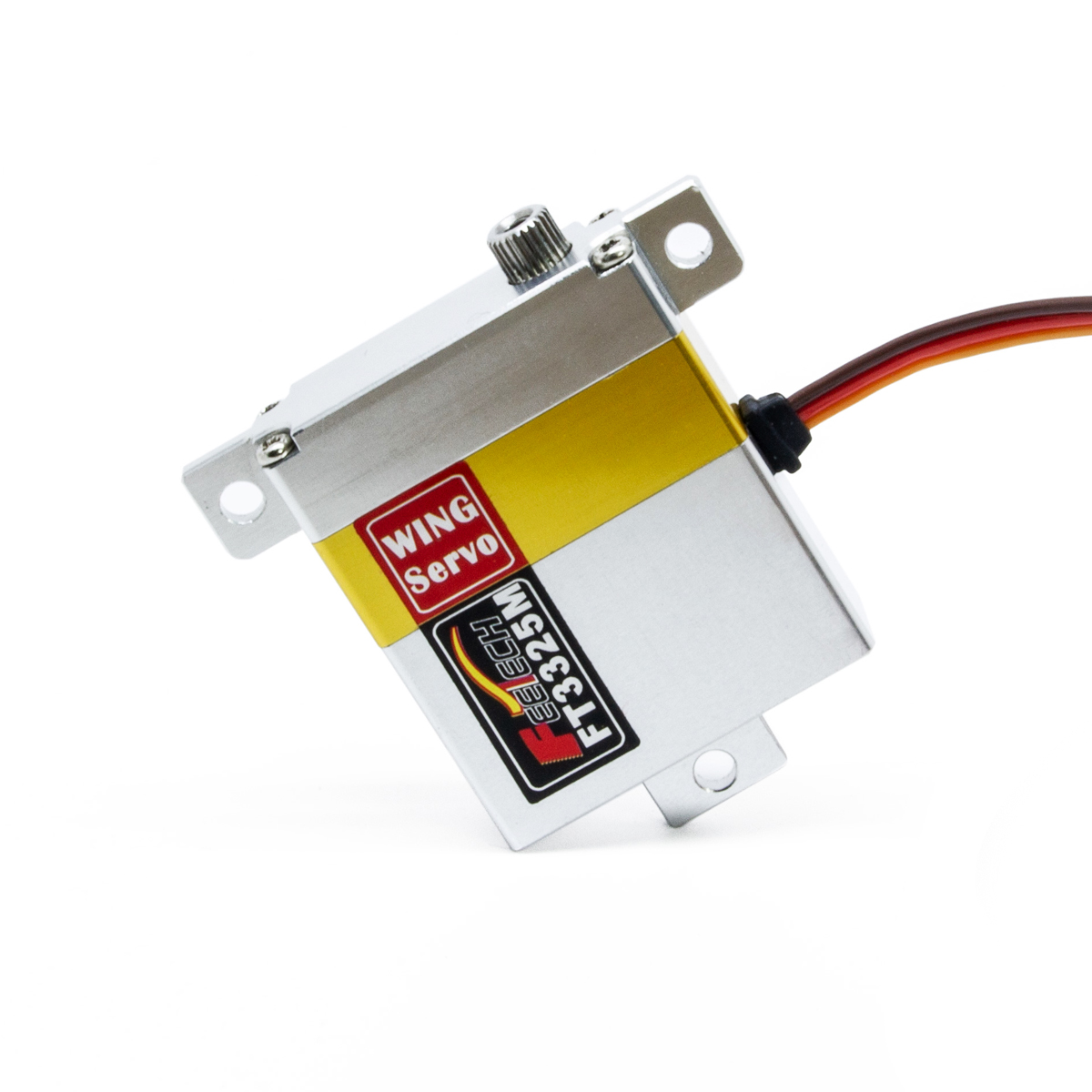

Case: Aluminium

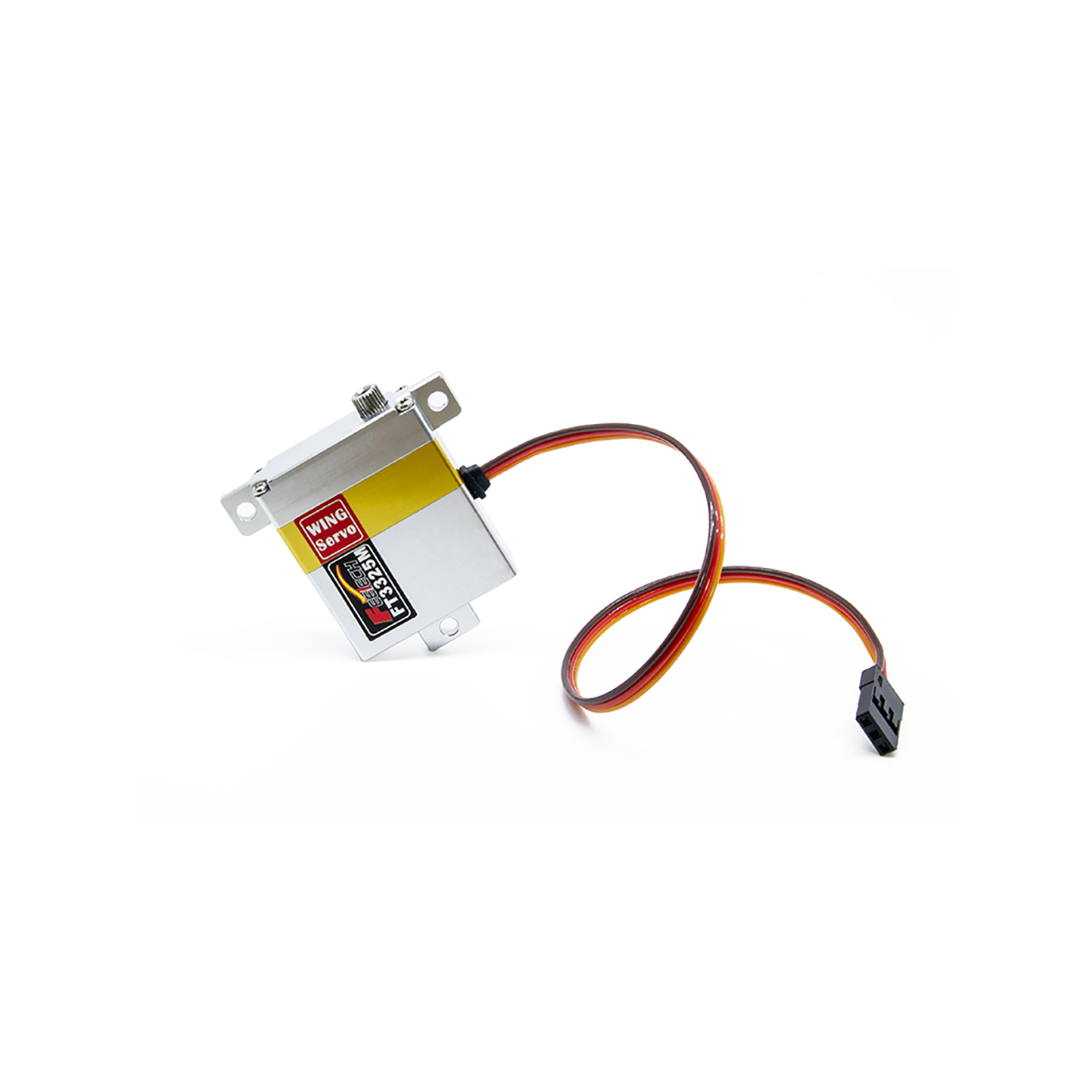

Connector wire: 25cm
Motor: Core motor
Operating voltage range: 6-8.4V
Idle current (at stopped): 6mA
No load speed: 0.095sec/60degree(105RPM)@8.4V
Running current(at no load): 150mA@8.4V
Peak stall torque: 9.5kg.cm@8.4V
Rated torque: 3.1kg.cm@8.4V
Stall current: 1200mA@8.4V
Command signal: Pulse width modification
Amplifier type: Digital comparator
Pulse width range: 500→2500 μsec
Stop position: 1500 μsec

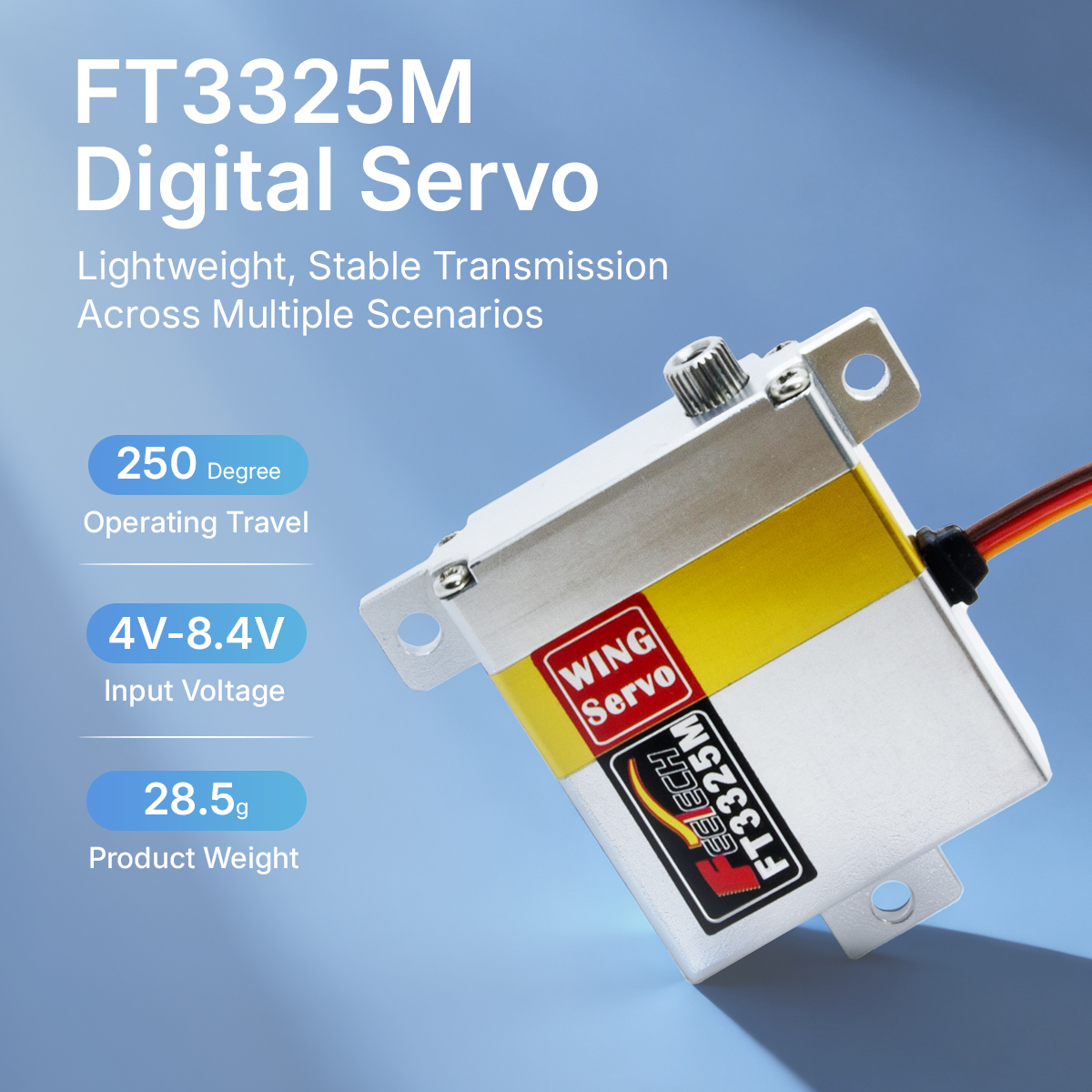

Running degree: 250°(at 500→2500μsec)
Dead band width: ≤8 μsec
Rotating direction: Counterclockwise (at 1500→2000μsec)
