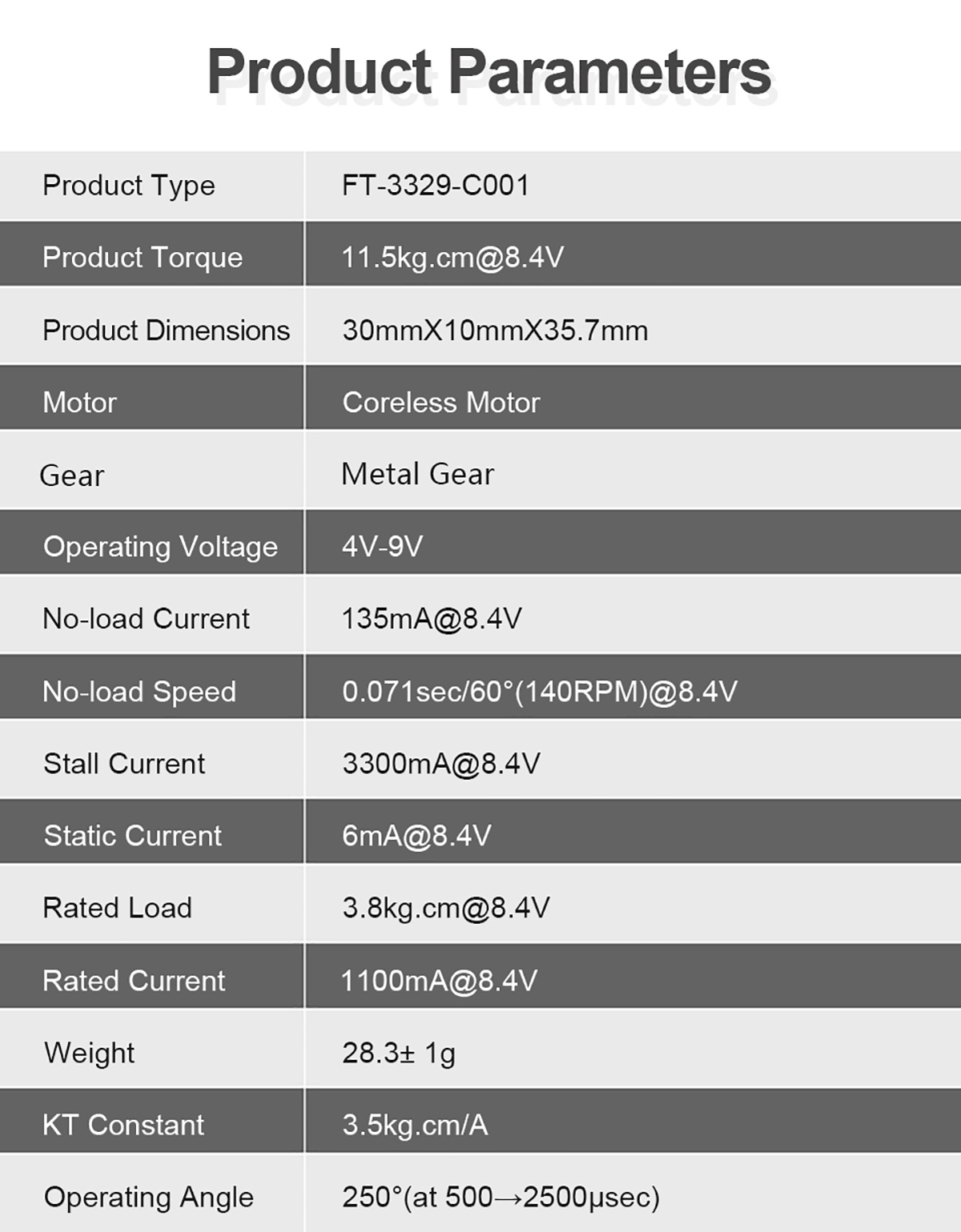

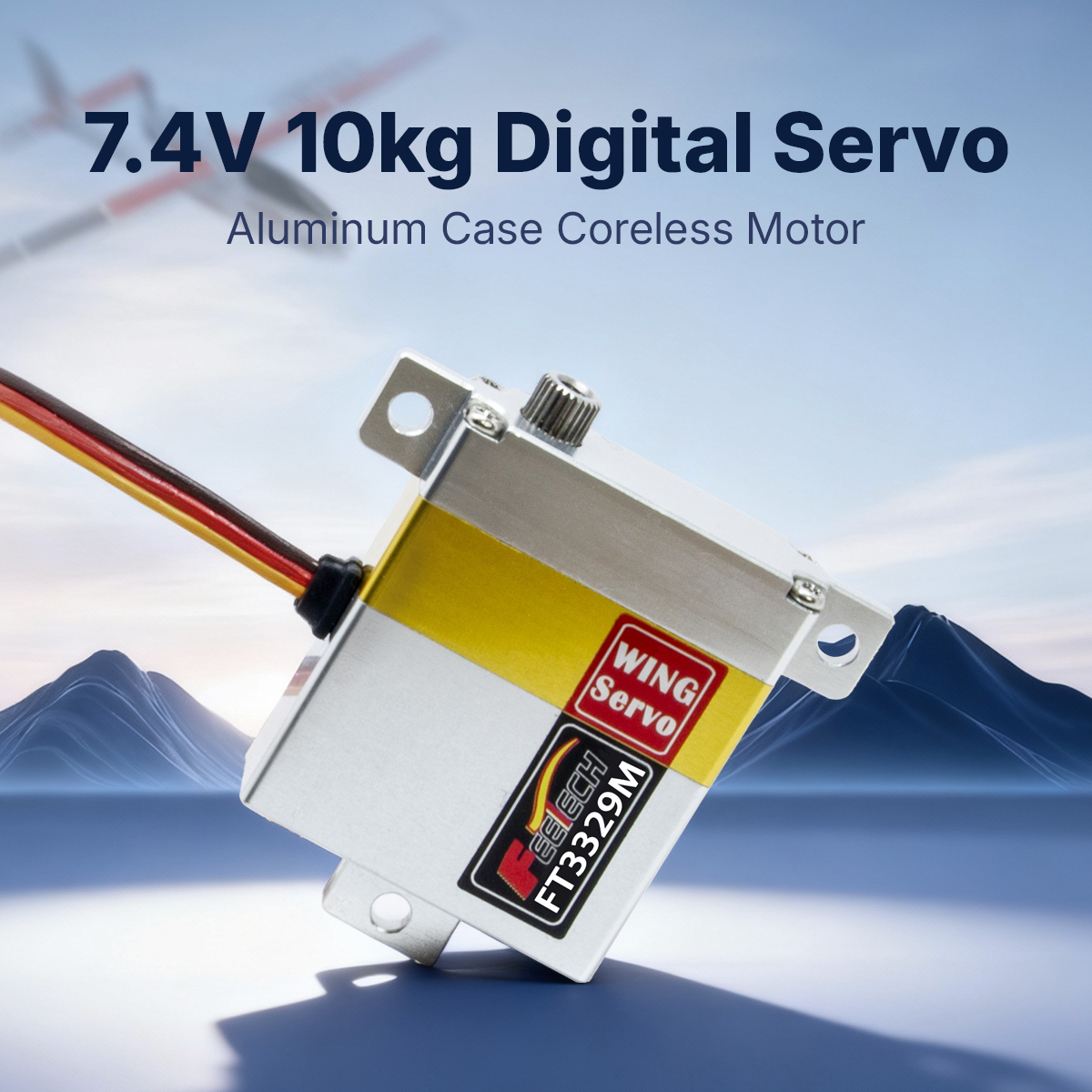

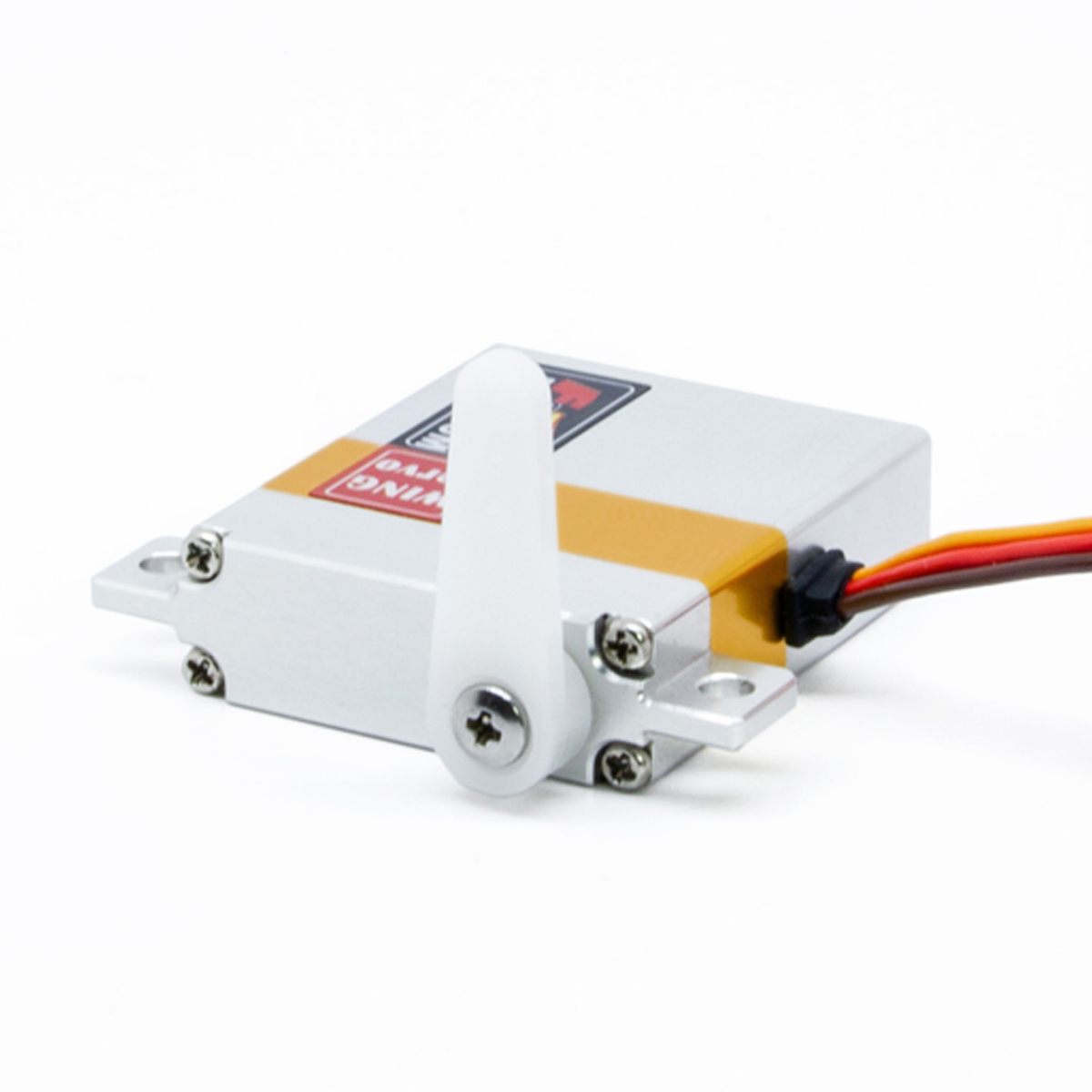

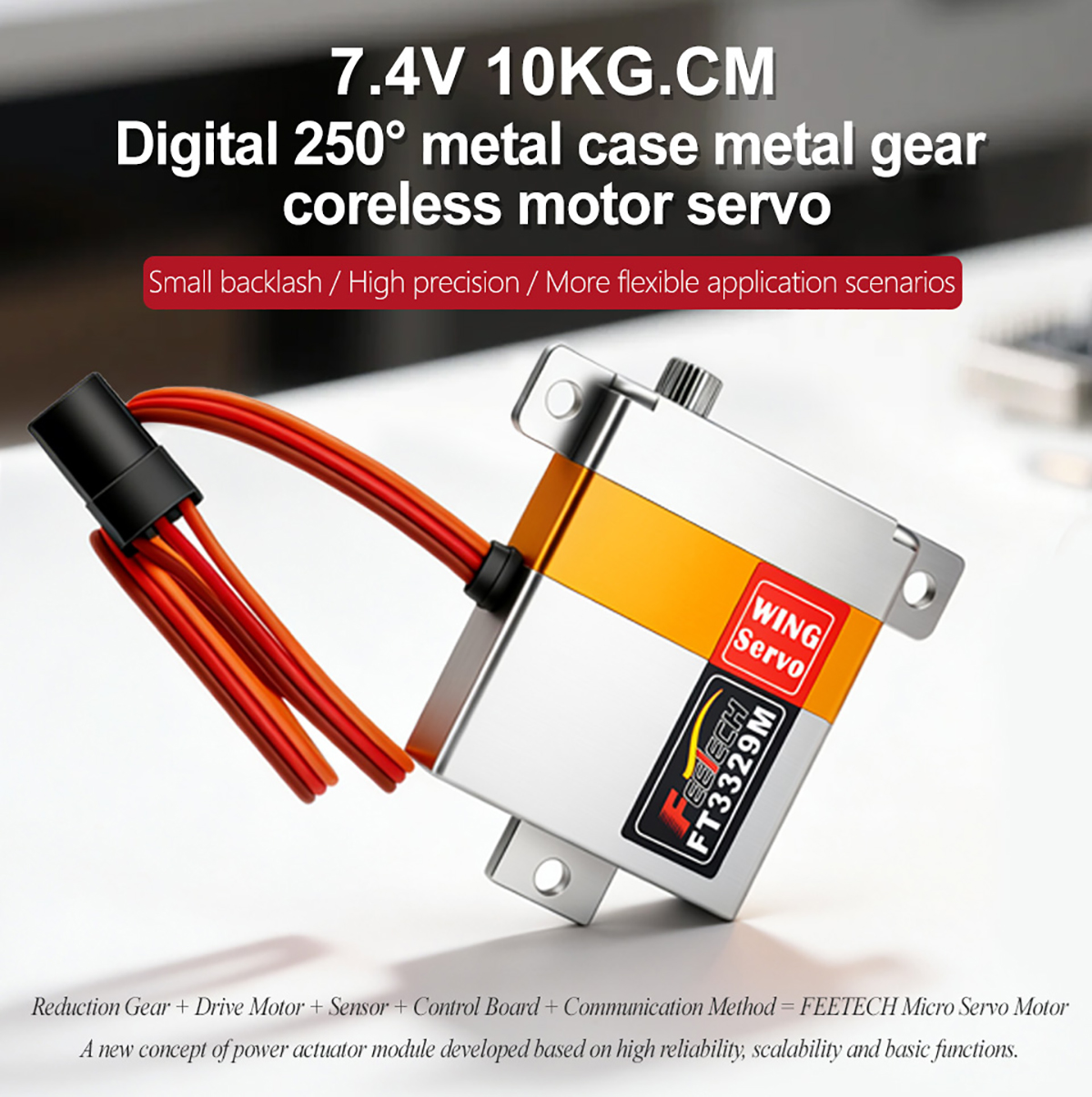

Model: FT-3329-C001
Storage temperature range: -30℃～80℃
Operating temperature range: -20℃～60℃

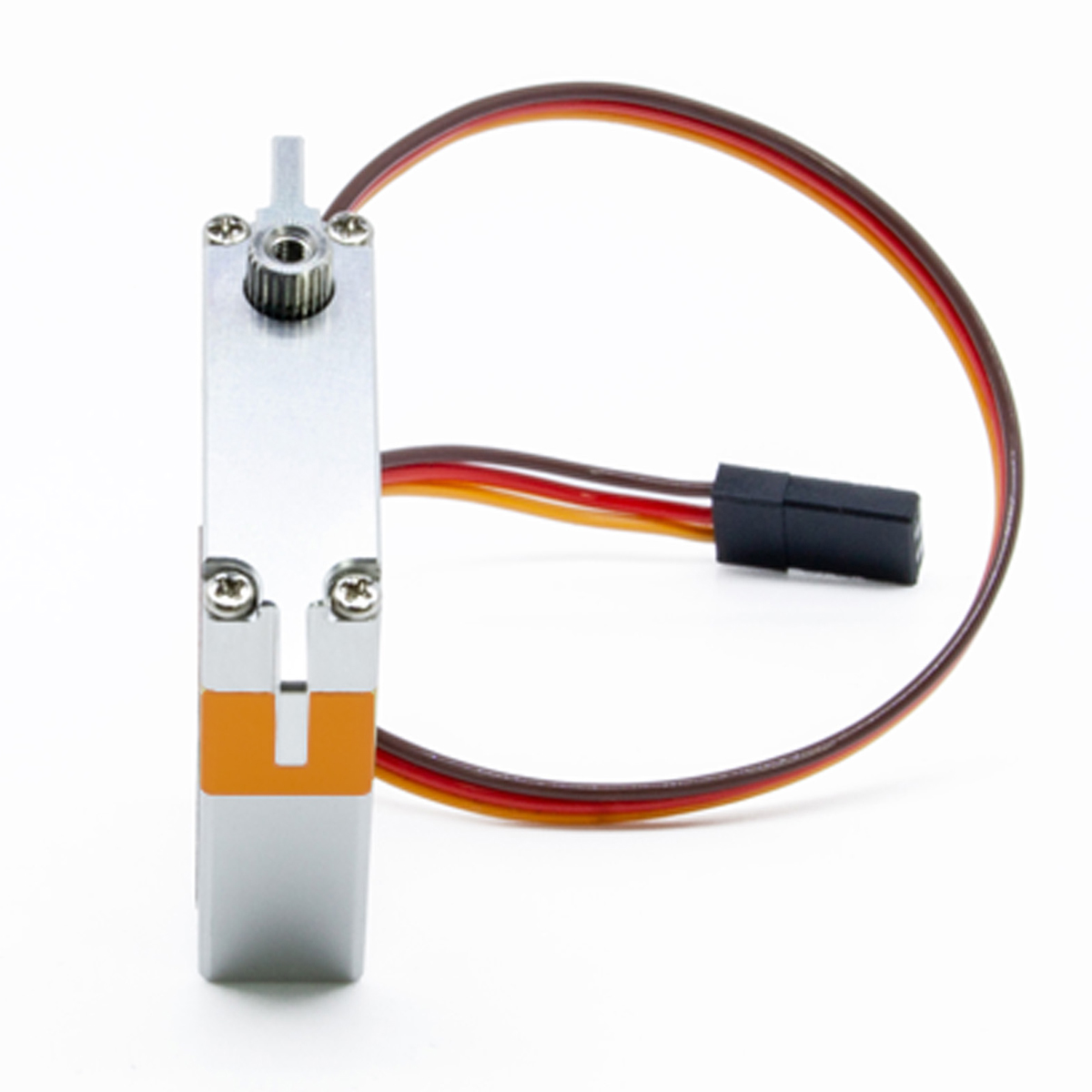

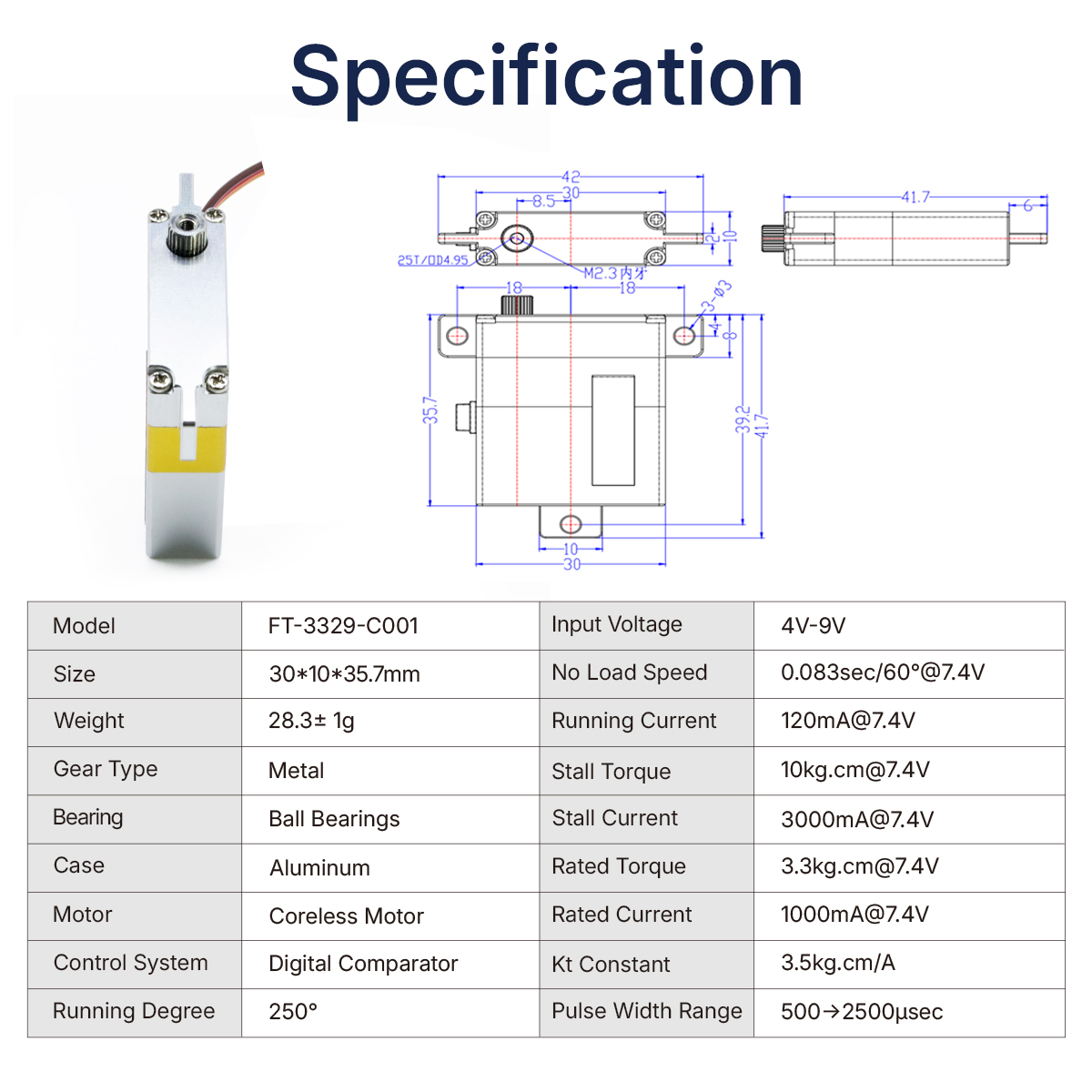

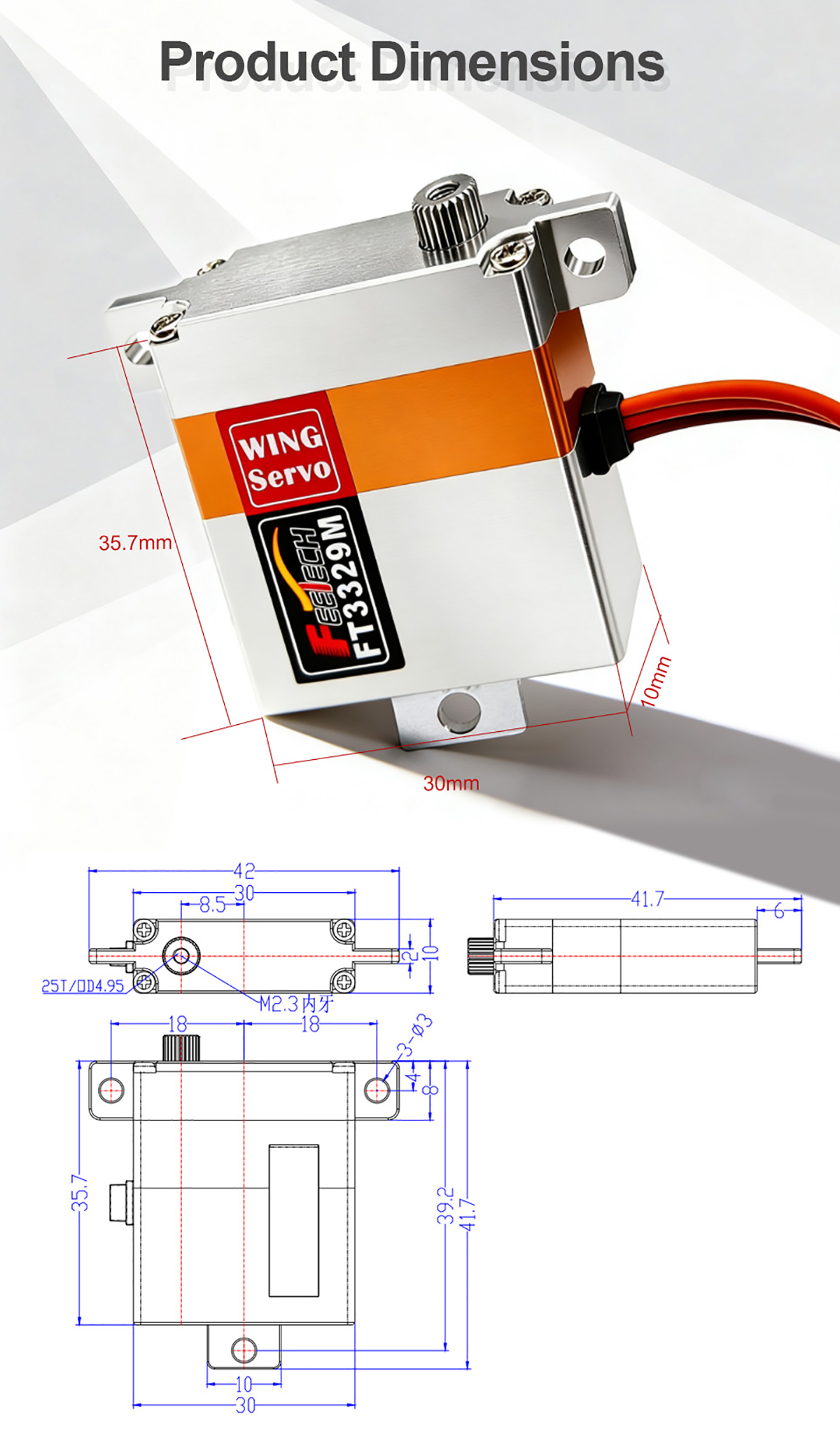

Size: 30*10*35.7mm
Weight: 28.3±1g

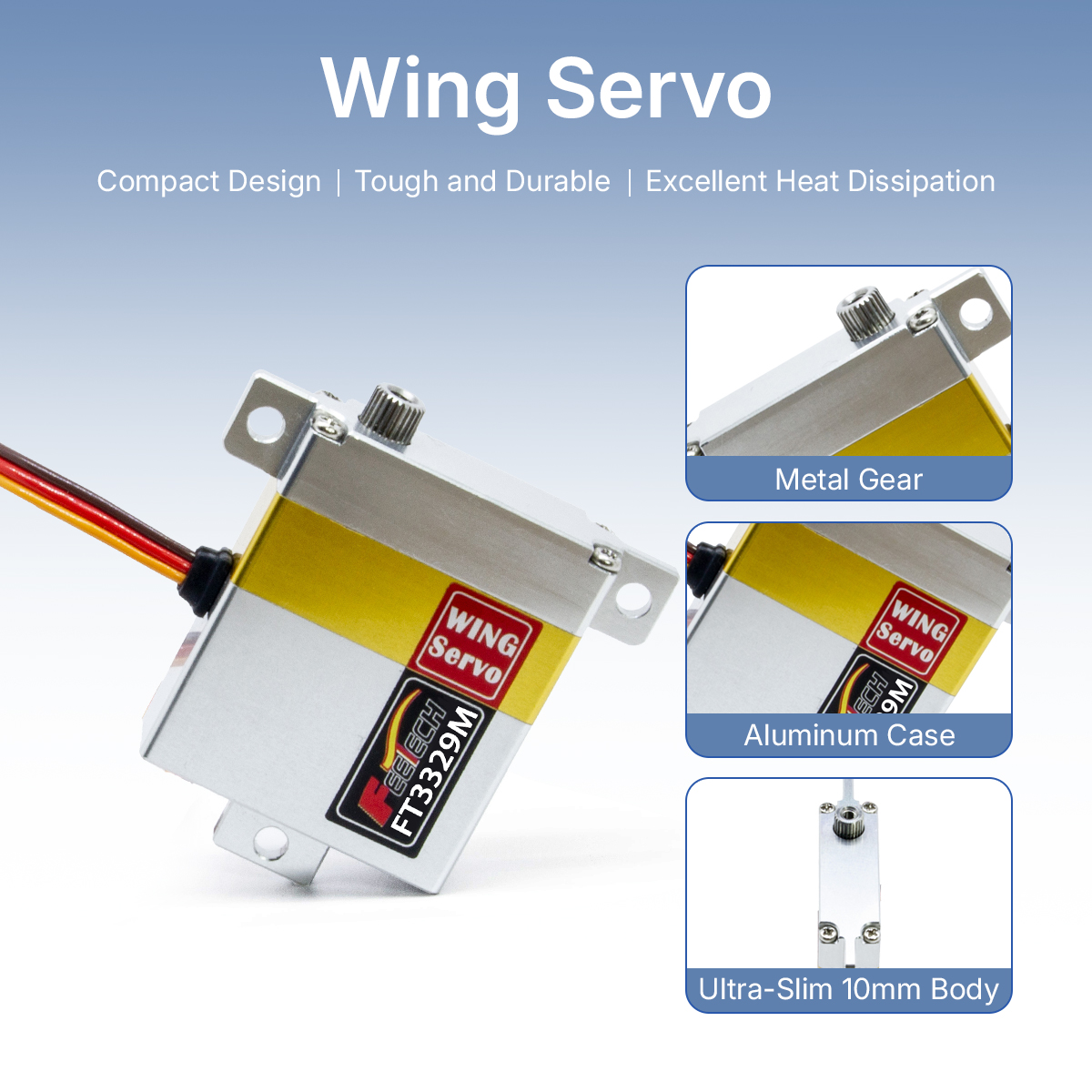

Gear type: Metal gear
Limit angle: No limit
Bearing: Ball bearings
Horn gear spline: 25T/4.95mm

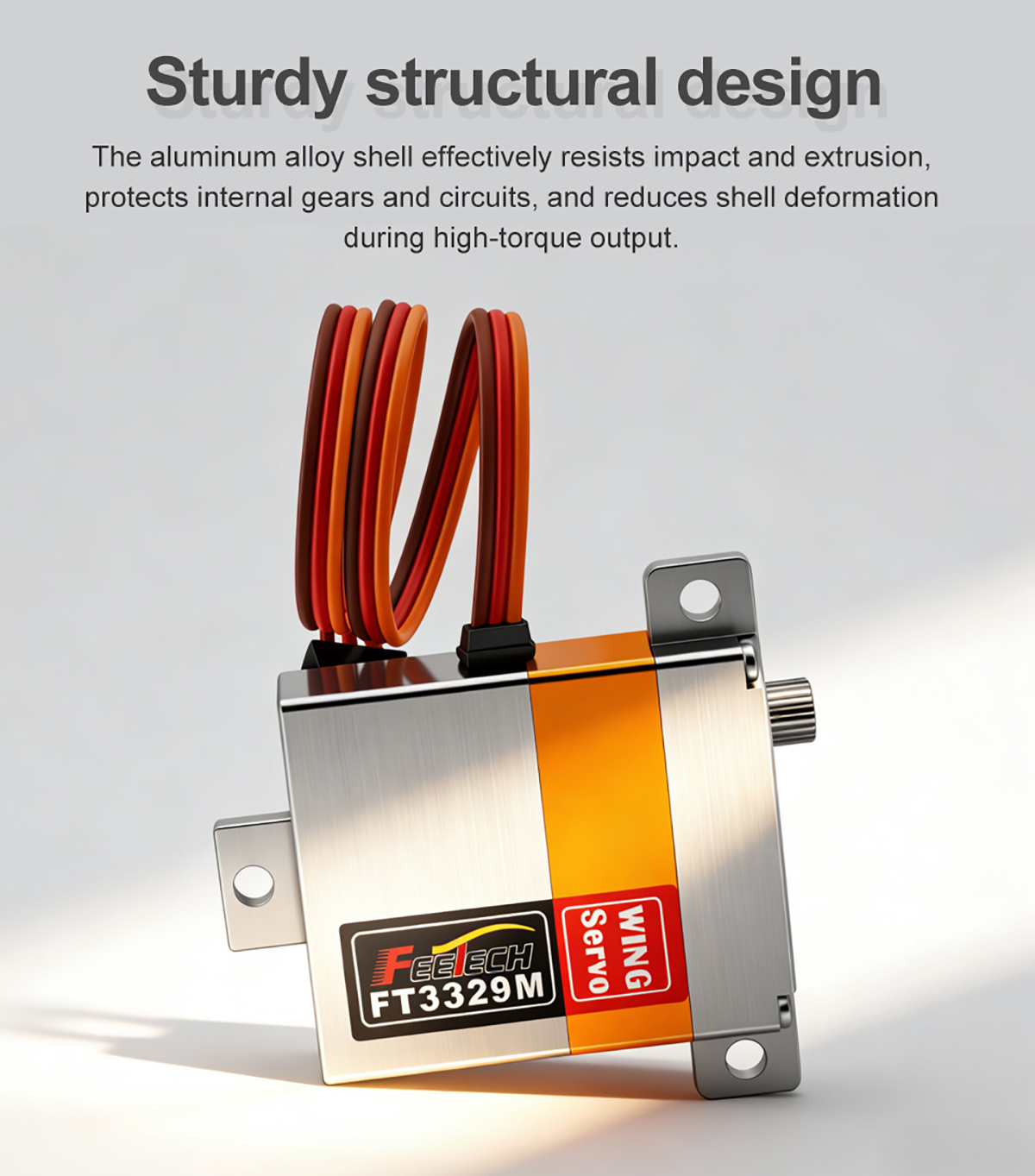

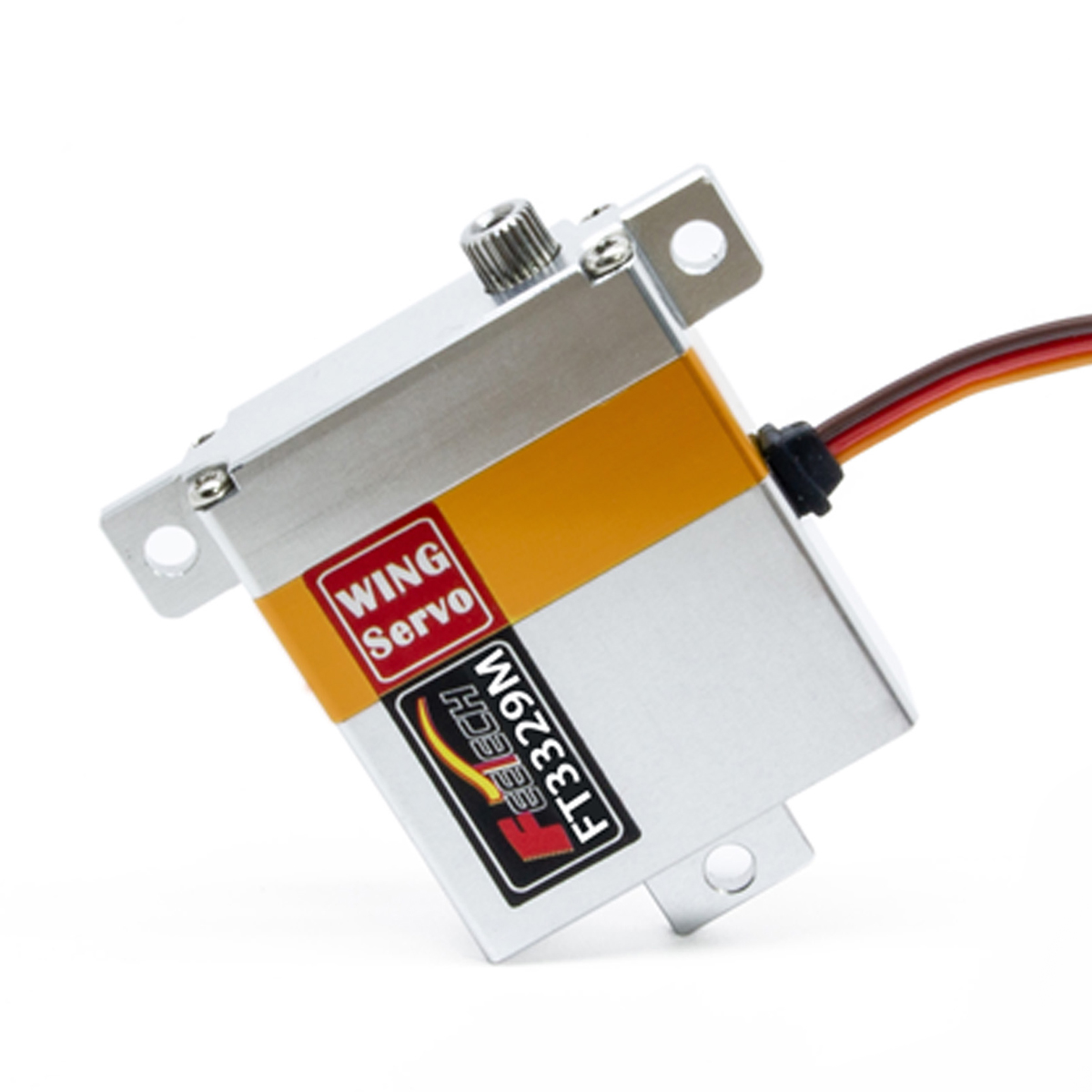

Case: Aluminium

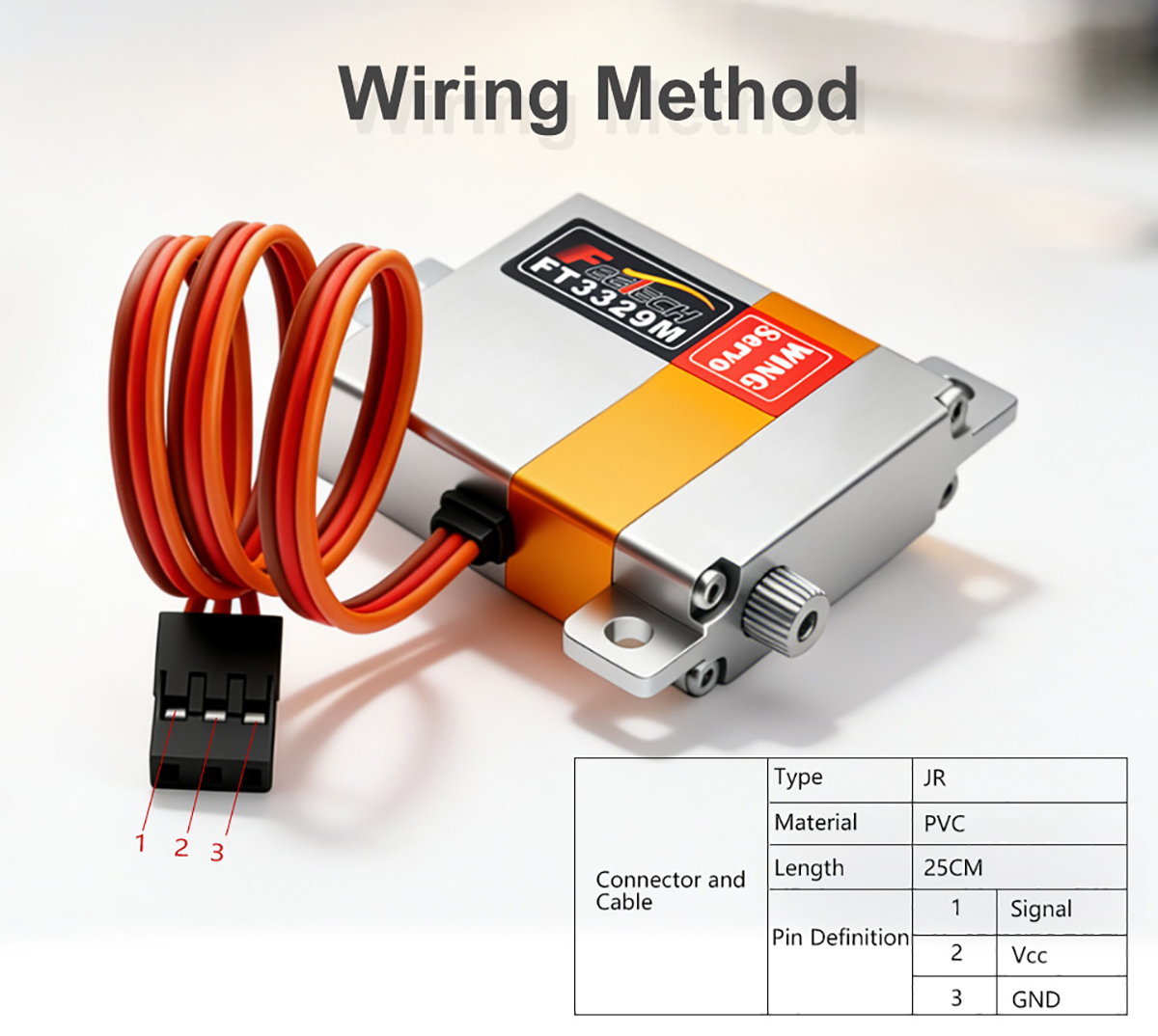

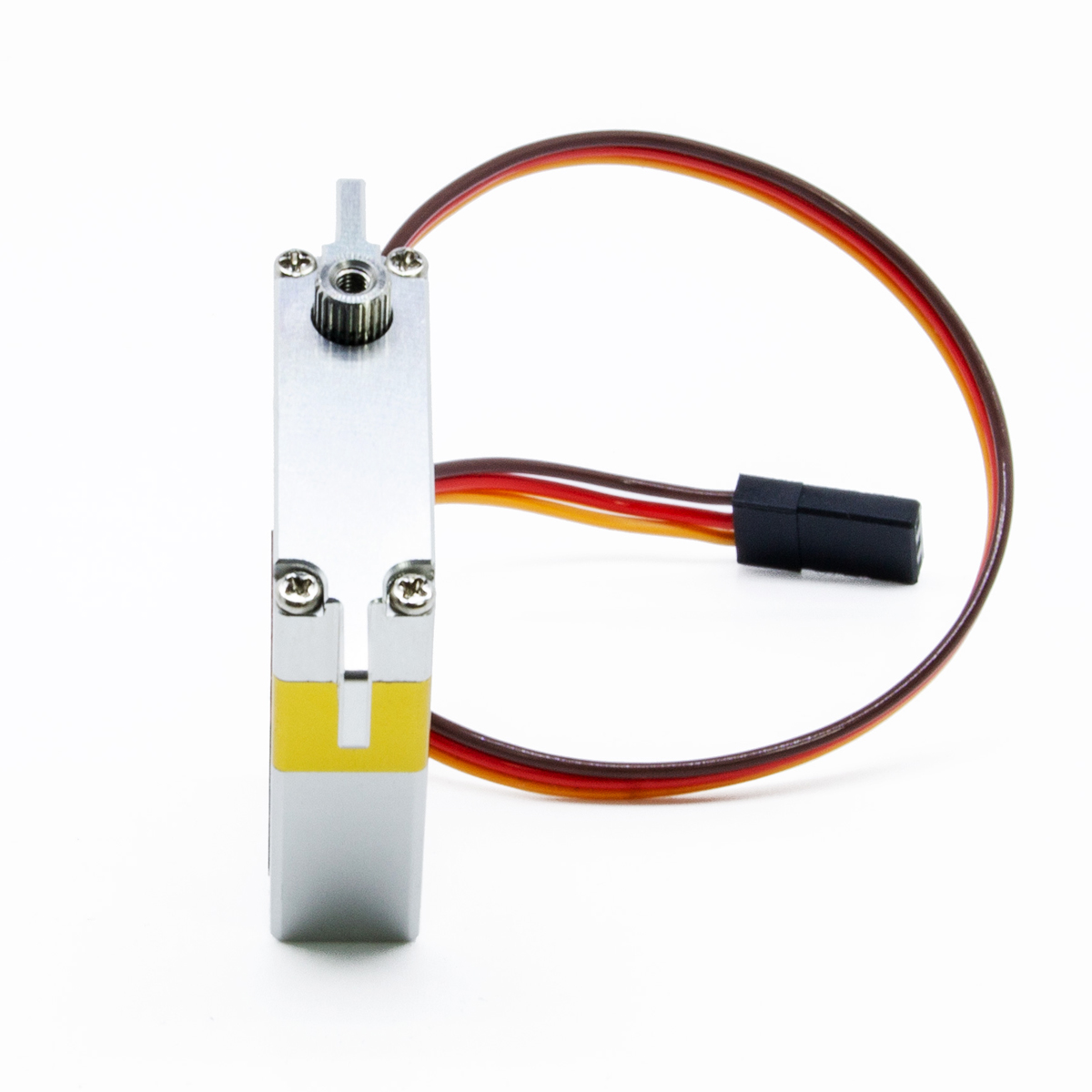

Connector wire: 25cm
Motor: Coreless motor

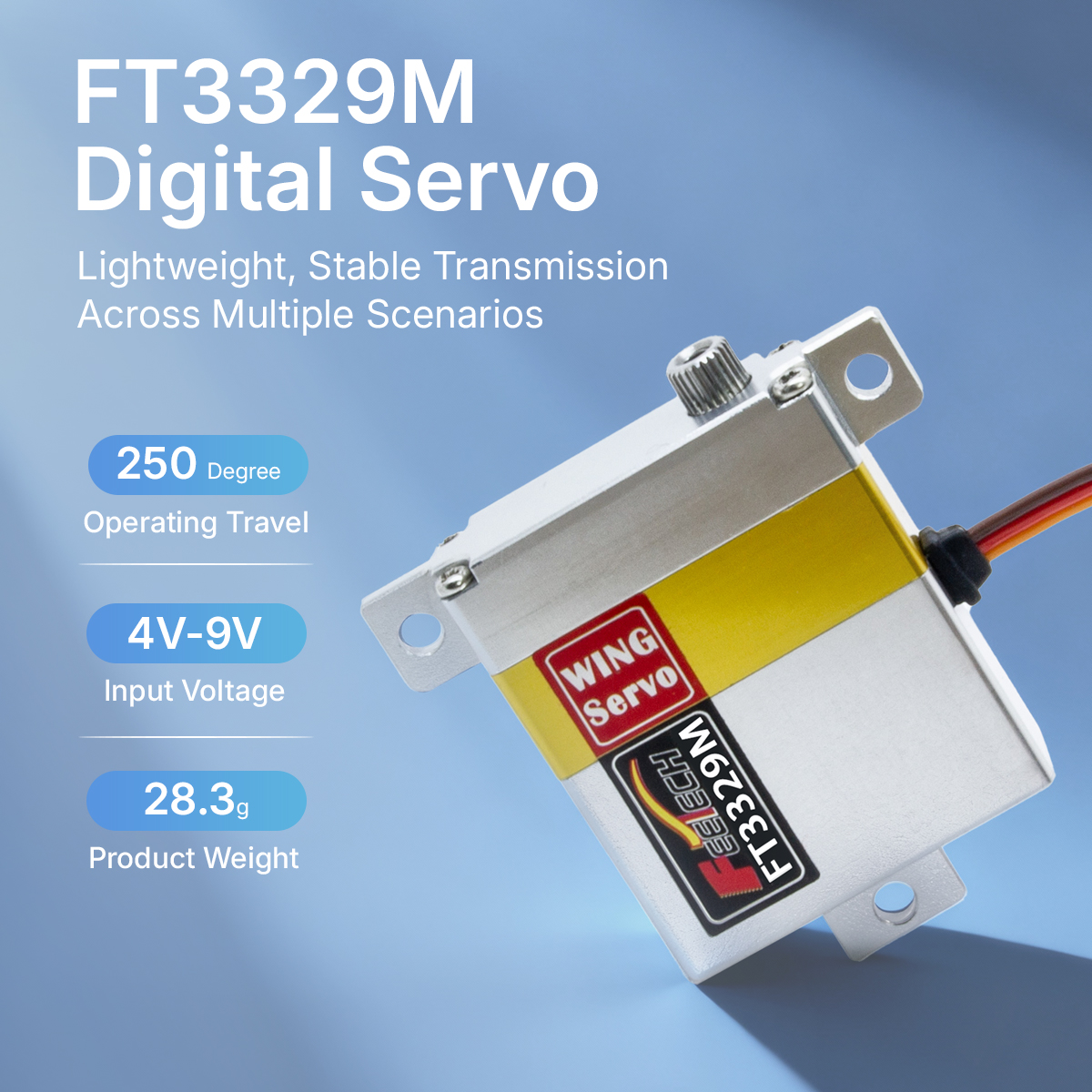

Operating voltage range: 4-9V
Idle current (at stopped): 6mA

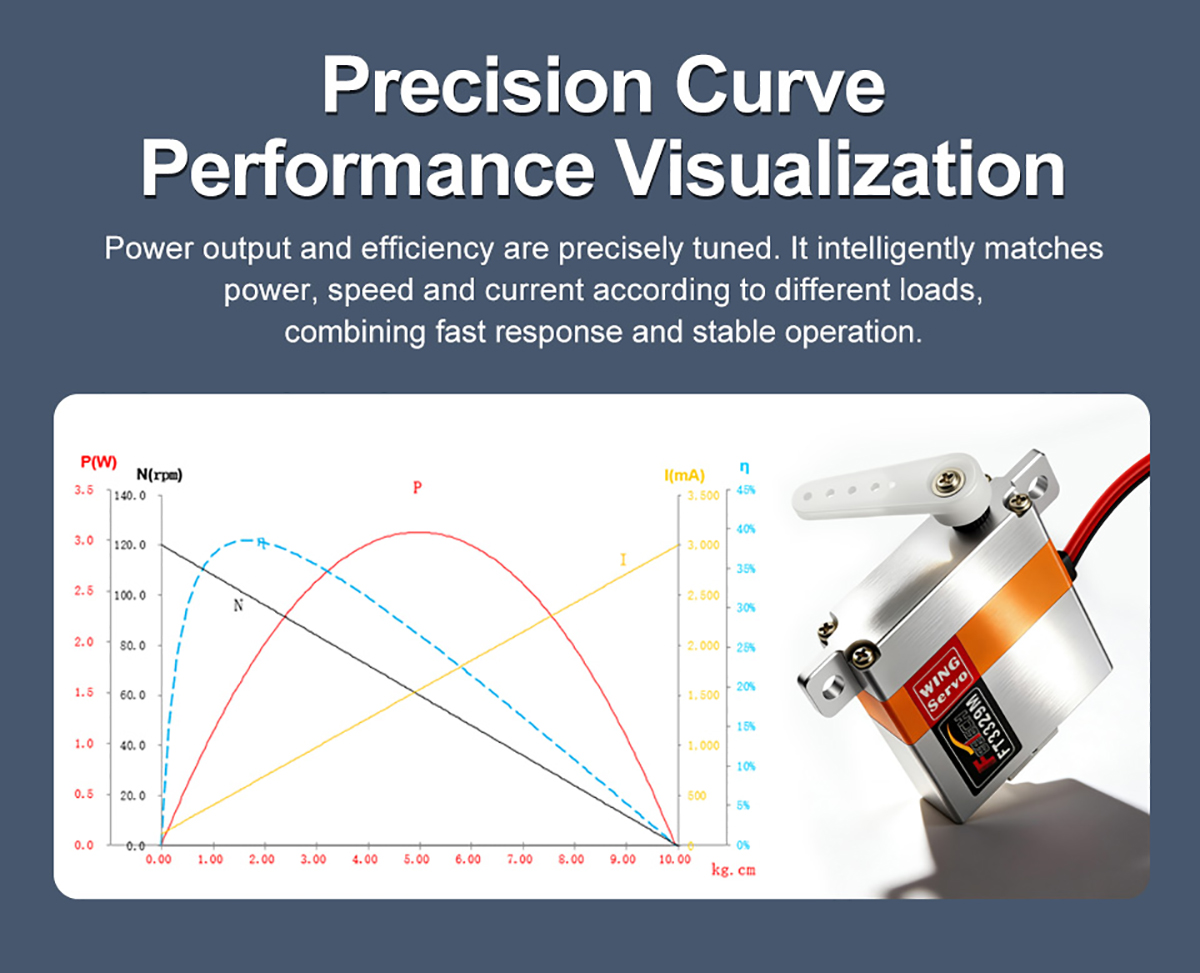

No load speed: 0.071sec/60degree(140RPM)@8.4V
Running current(at no load): 135mA@8.4V
Peak stall torque: 11.5kg.cm@8.4V
Rated torque: 3.8kg.cm@8.4V
Command signal: Pulse width modification
Amplifier type: Digital comparator
Pulse width range: 500→2500 μsec
Stop position: 1500 μsec

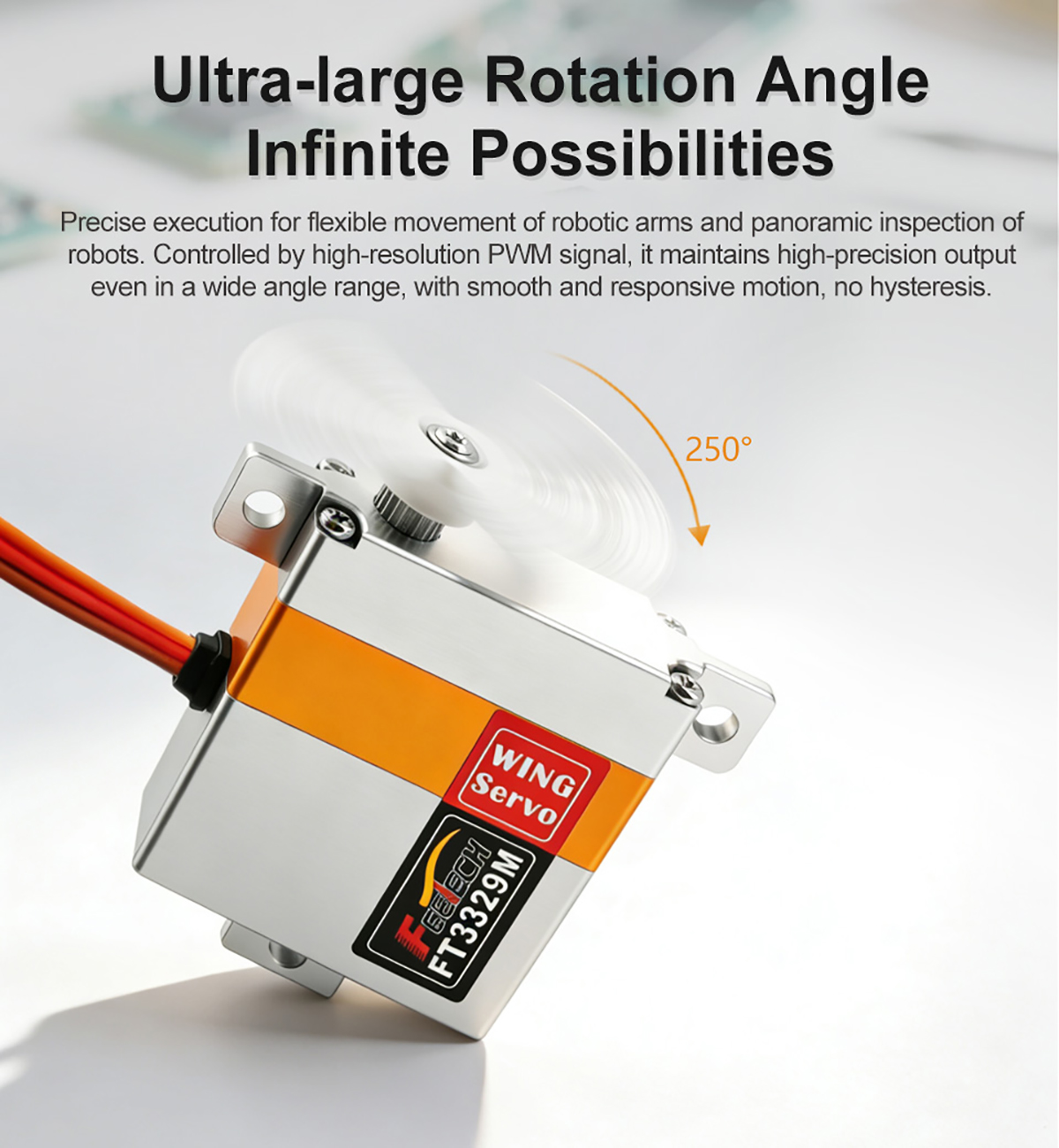

Running degree: 250°(at 500→2500μsec)
Dead band width: ≤8 μsec
Rotating direction: Counterclockwise (at 1500→2000μsec)
