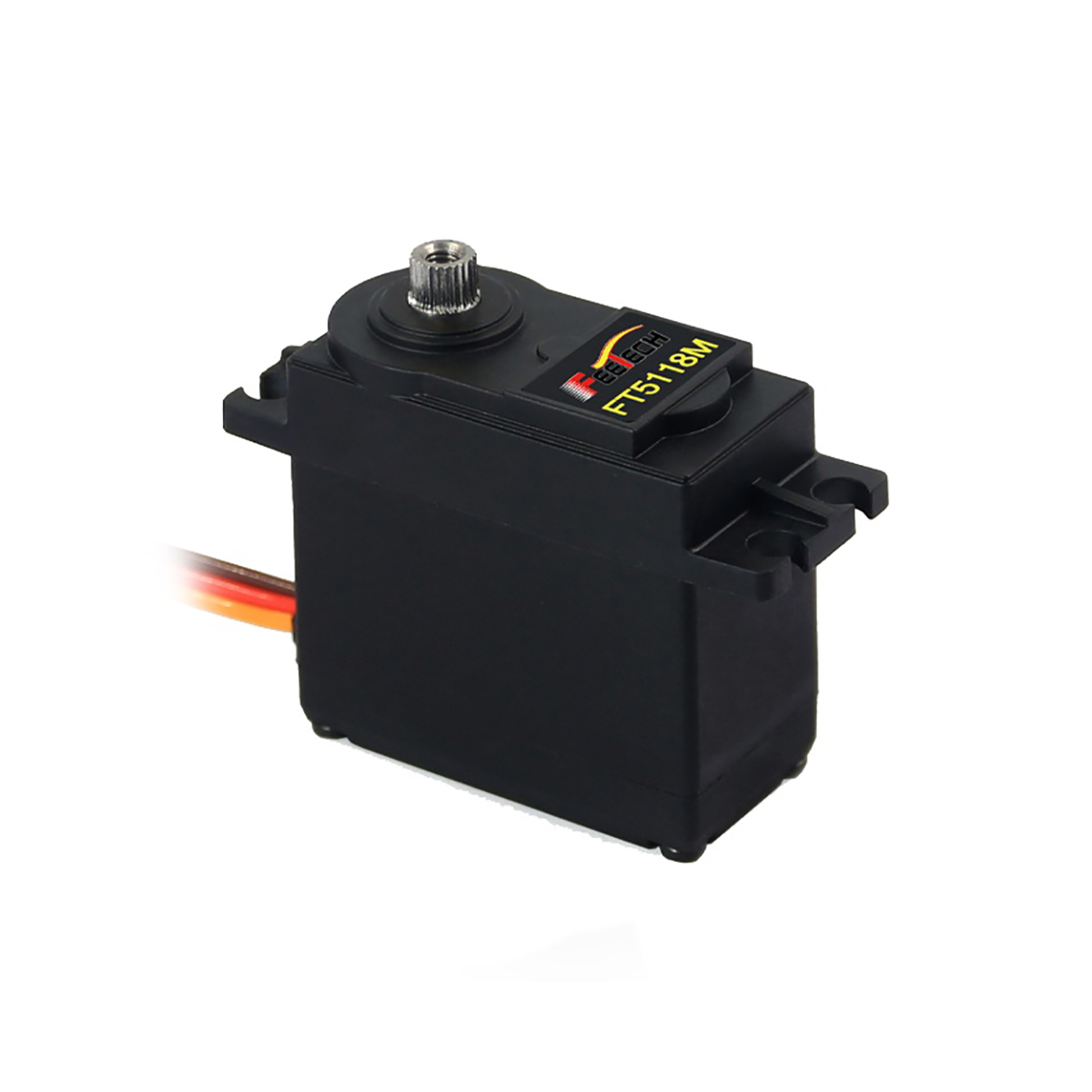

Model: FT-5118-C001

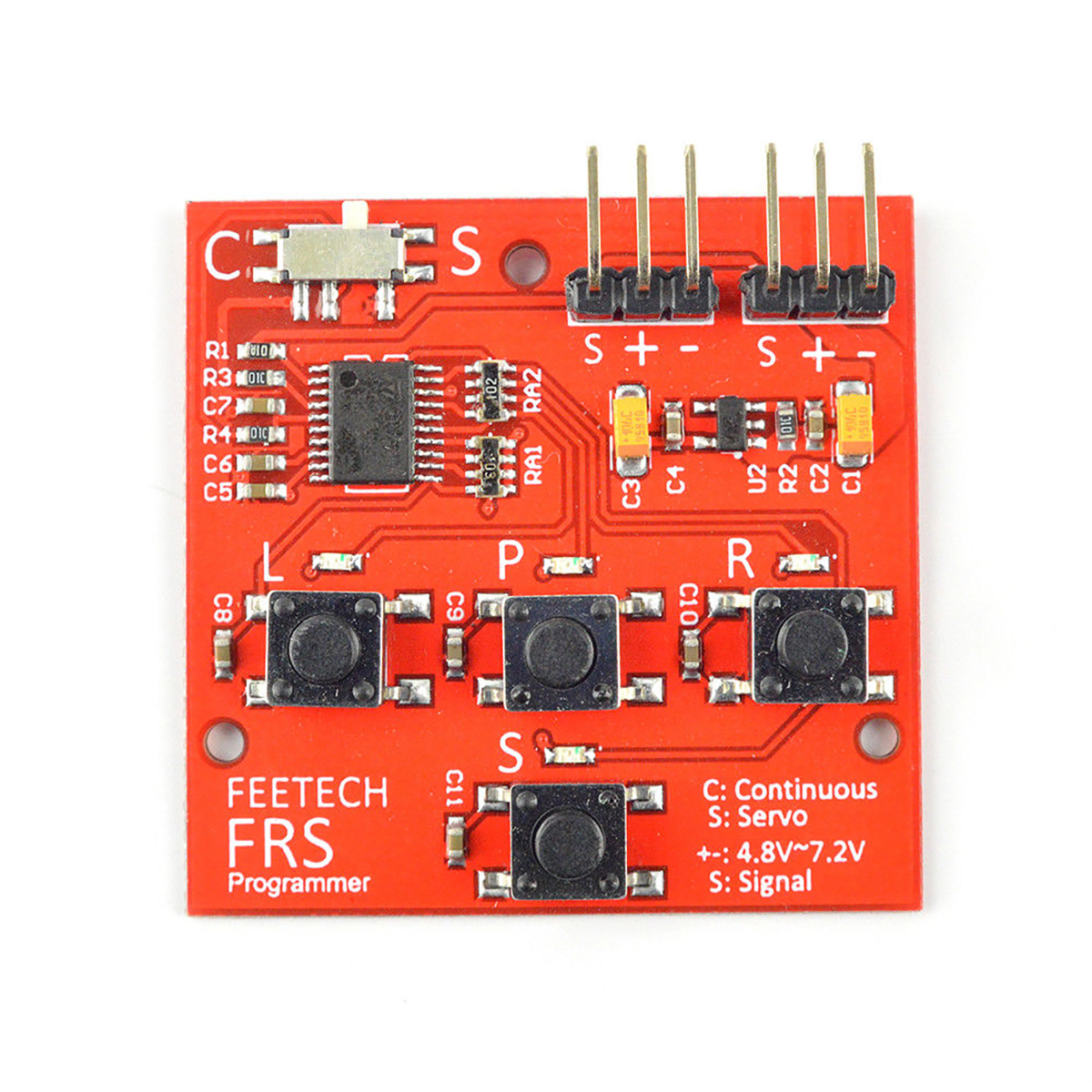

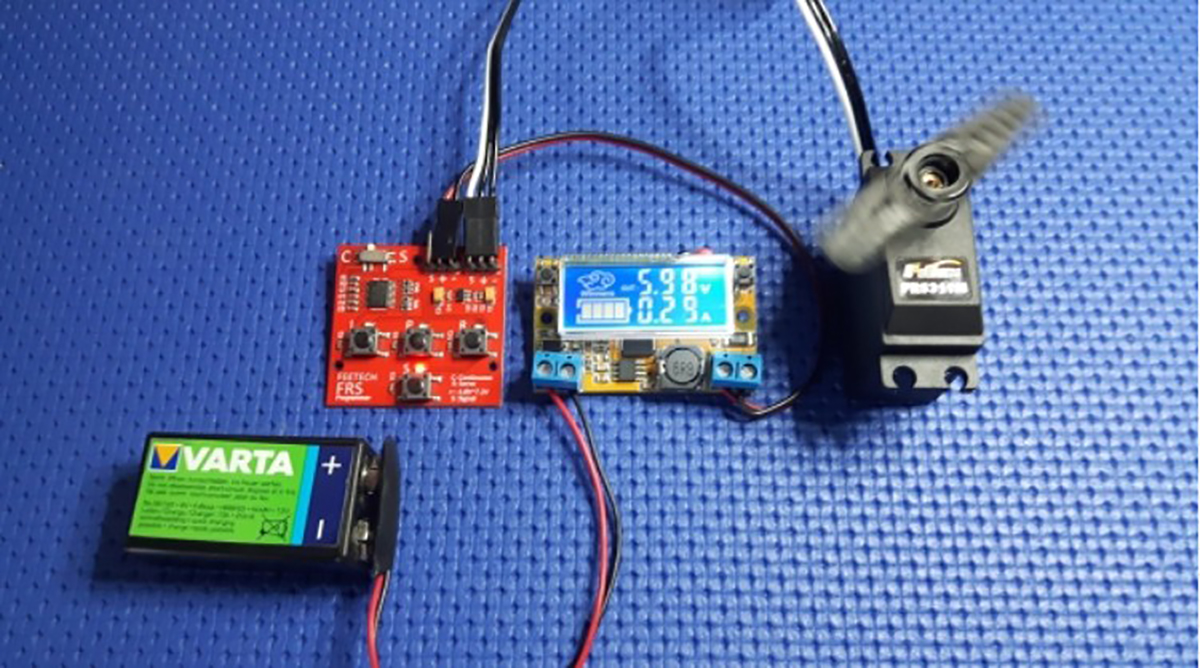

Supporting dual-mode switching debug board: FRS (Click to jump)
Storage temperature range: -30℃～80℃
Operating temperature range: -15℃～70℃

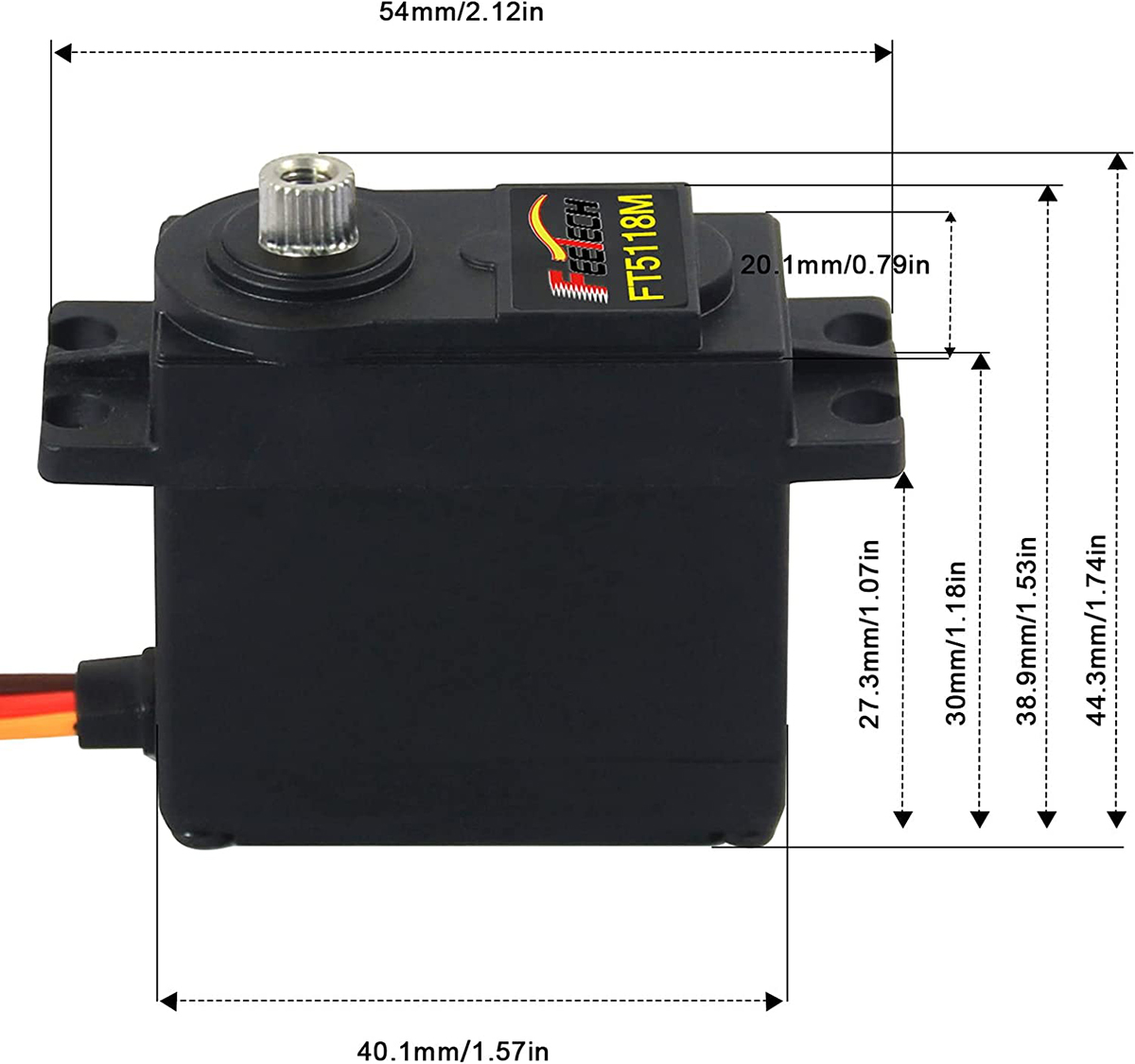

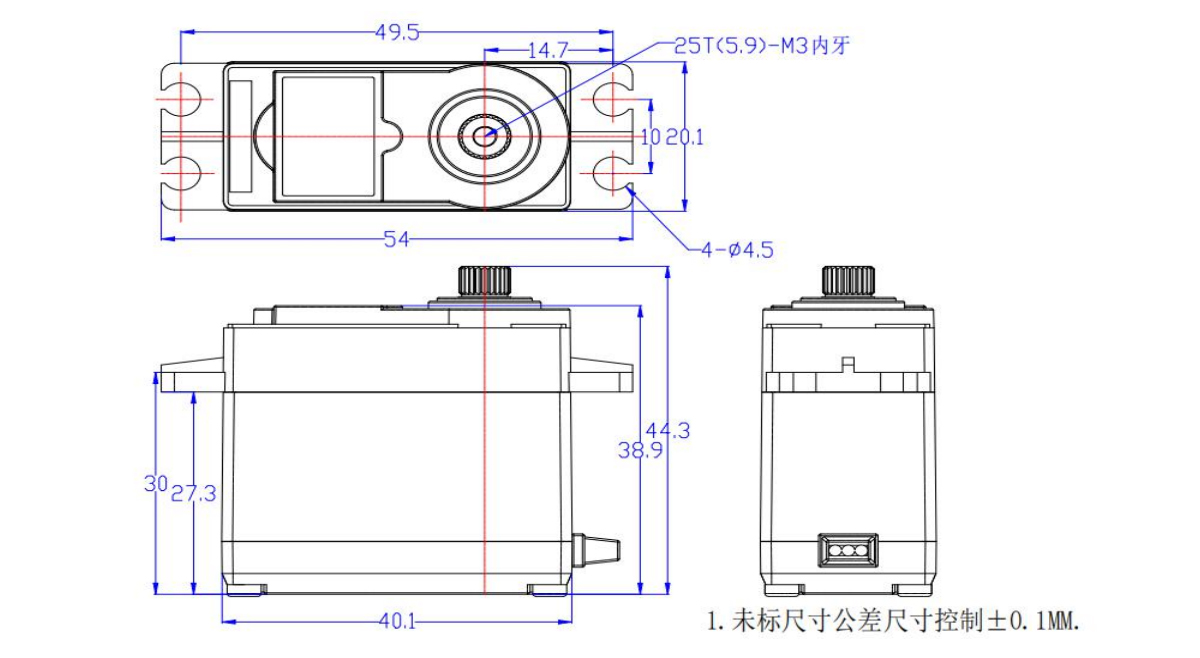

Size: 40.1*20.1*38.9mm

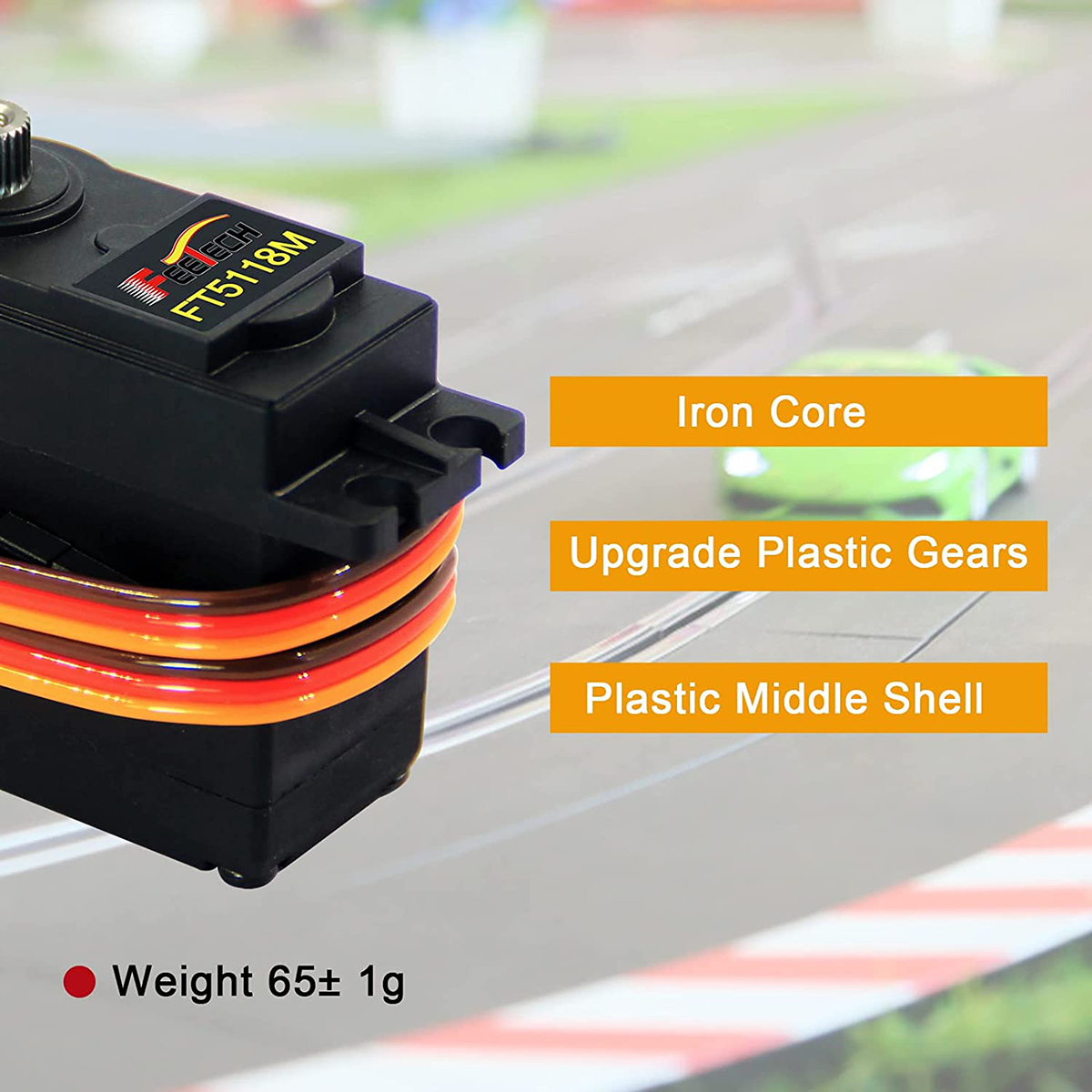

Weight: 65±1g
Gear type: Steel
Limit angle: No limit
Bearing: Ball bearings
Horn gear spline: 25T/5.9mm
Horn type: Plastic, POM
Case: PA+Fiberglass

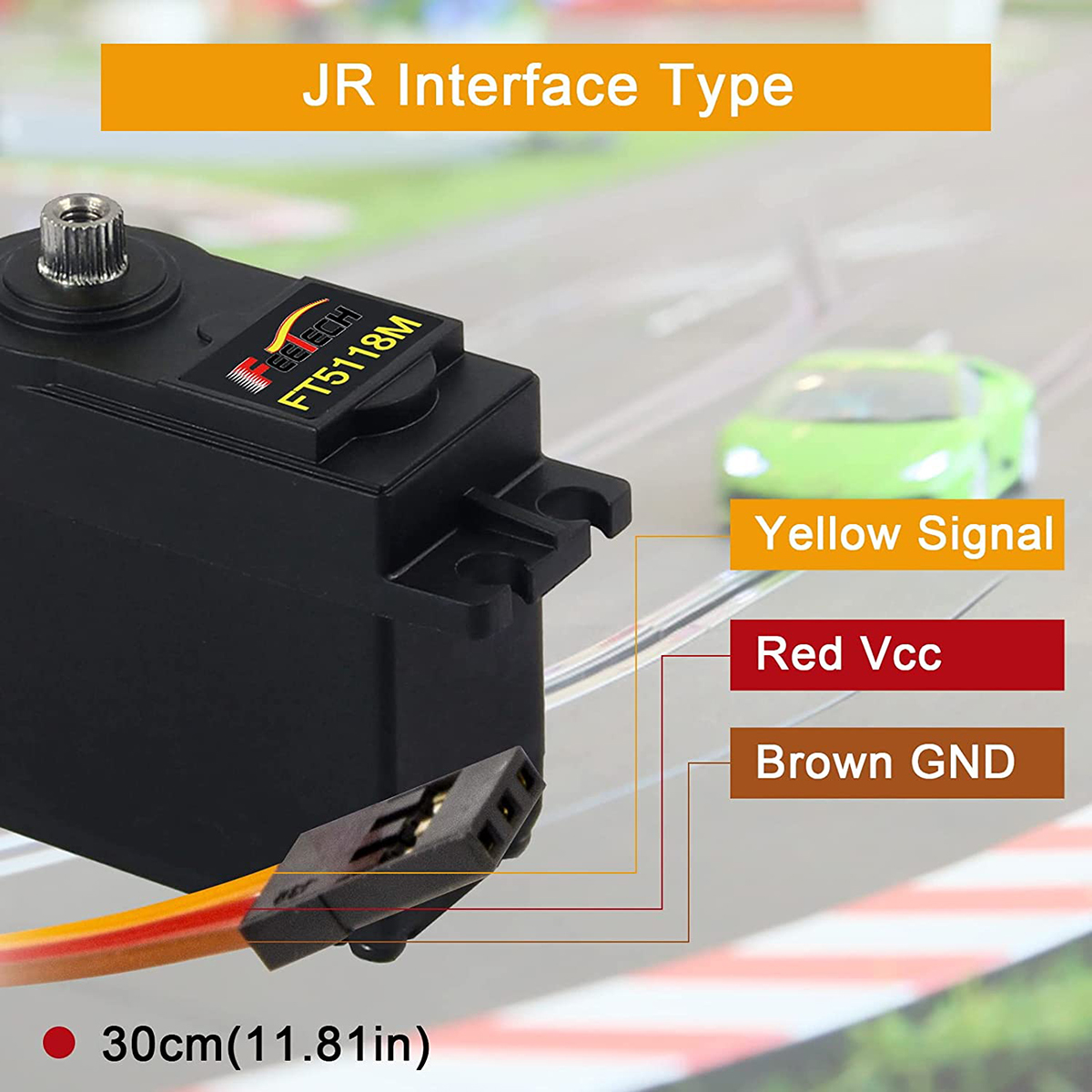

Connector wire: 30cm
Motor: Core motor
Operating voltage range: 4-8.4V
Idle current (at stopped): 6mA@6V
No load speed: 0.167sec/60°@6V
Running current(at no load): 150mA@6V
Peak stall torque: 17.5kg.cm@6V
Rated torque: 6kg.cm@6V
Stall current: 2.1A@6V
Running degree: 280° (at 500→2500μsec)
Rotating direction: Counterclockwise (at 1500→2000μsec)
