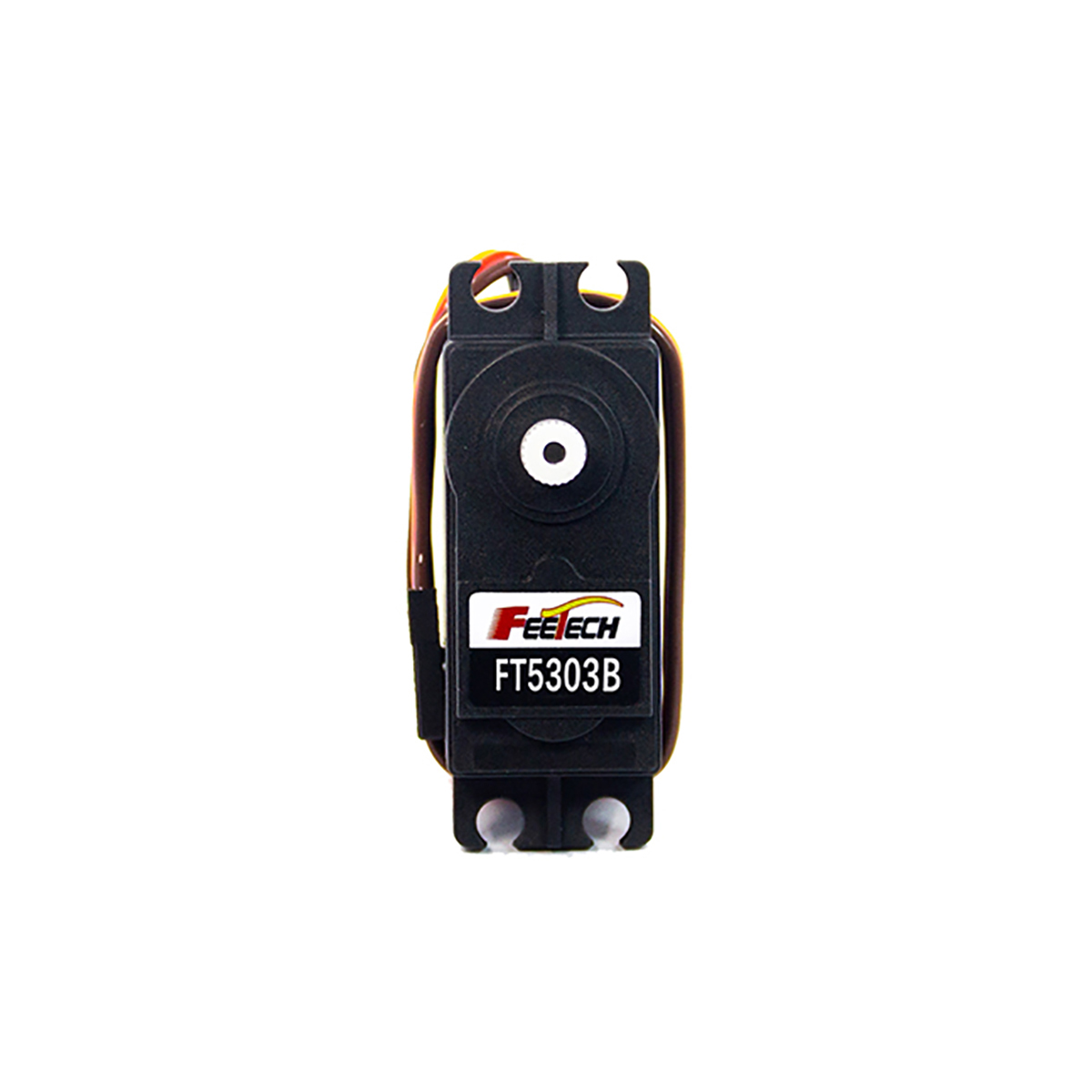

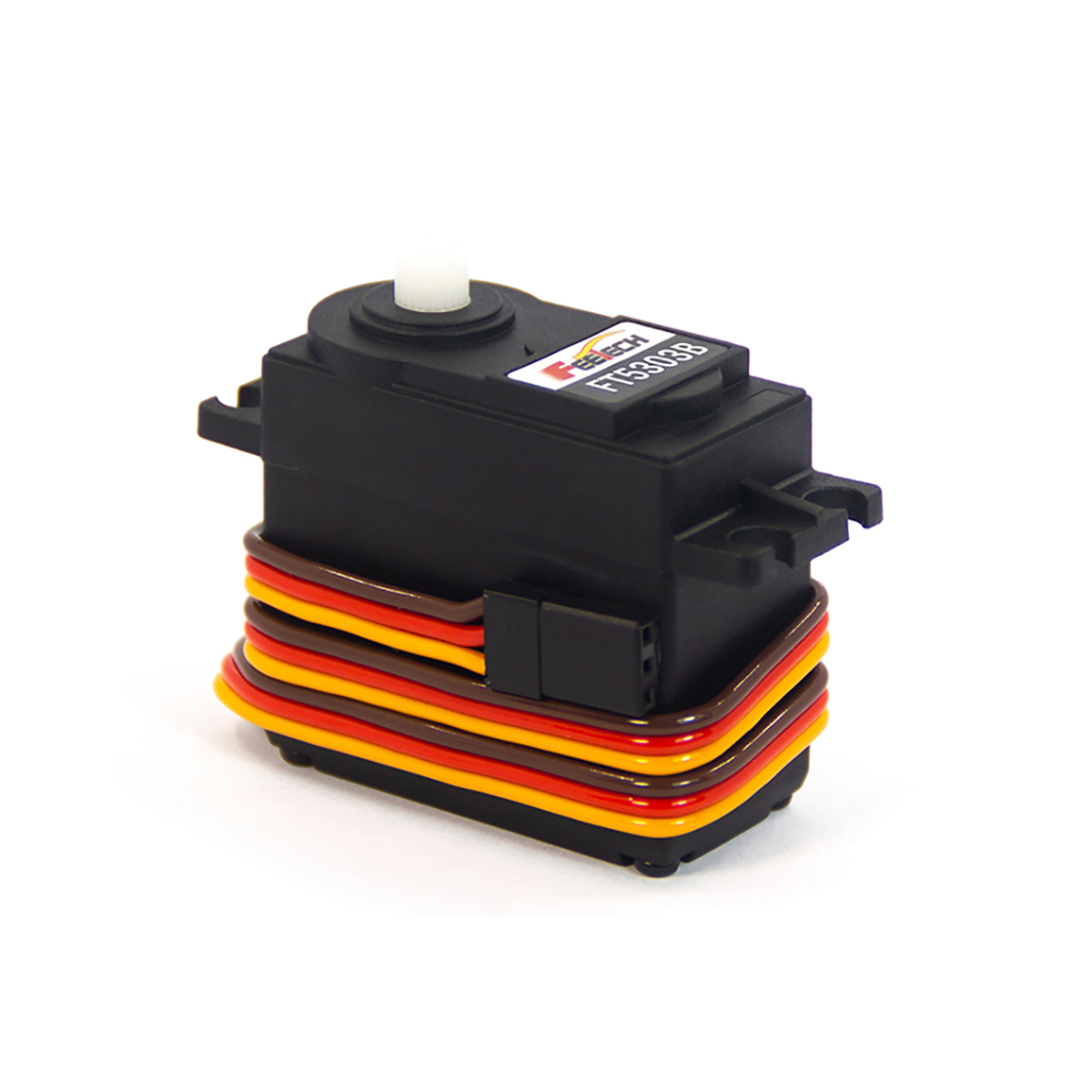

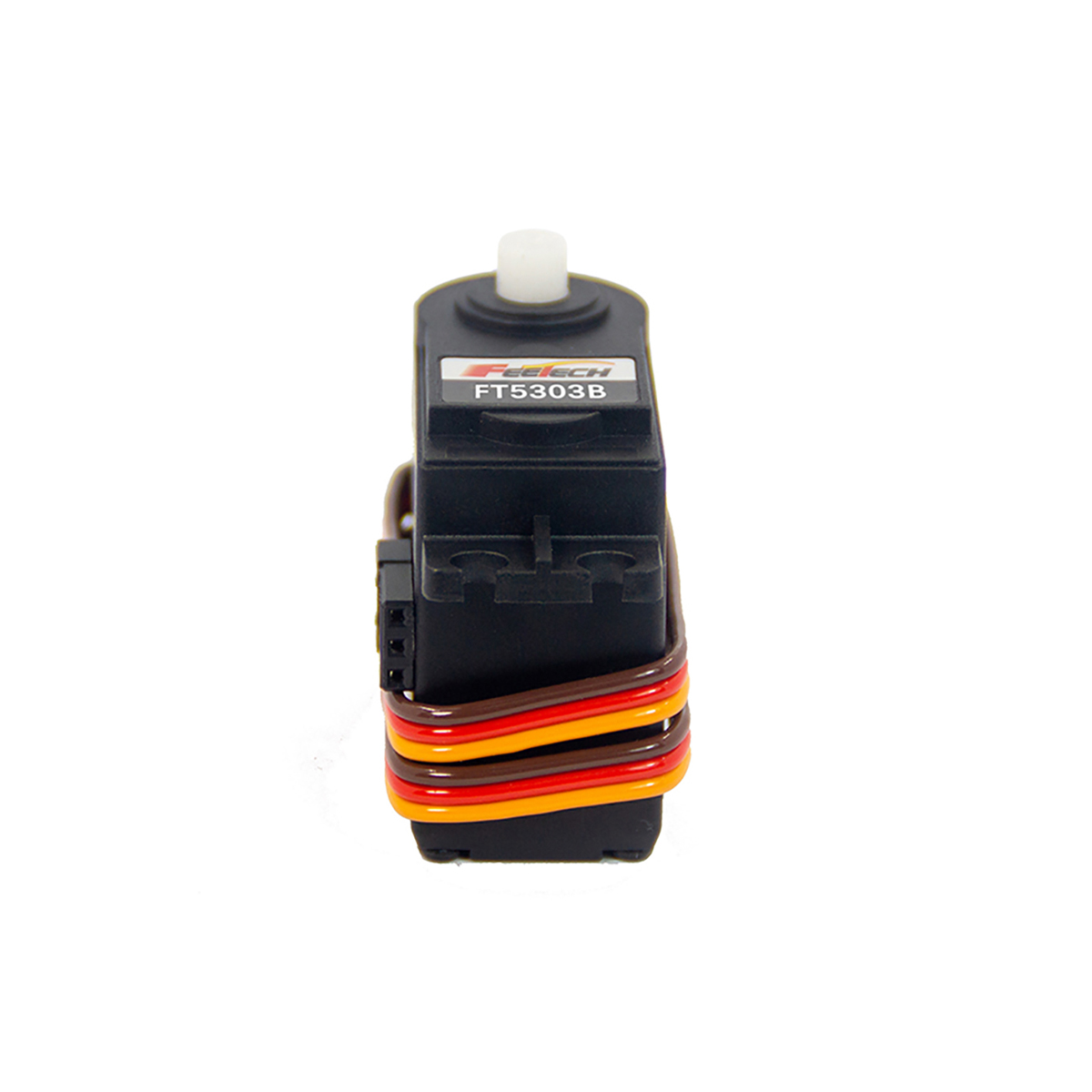

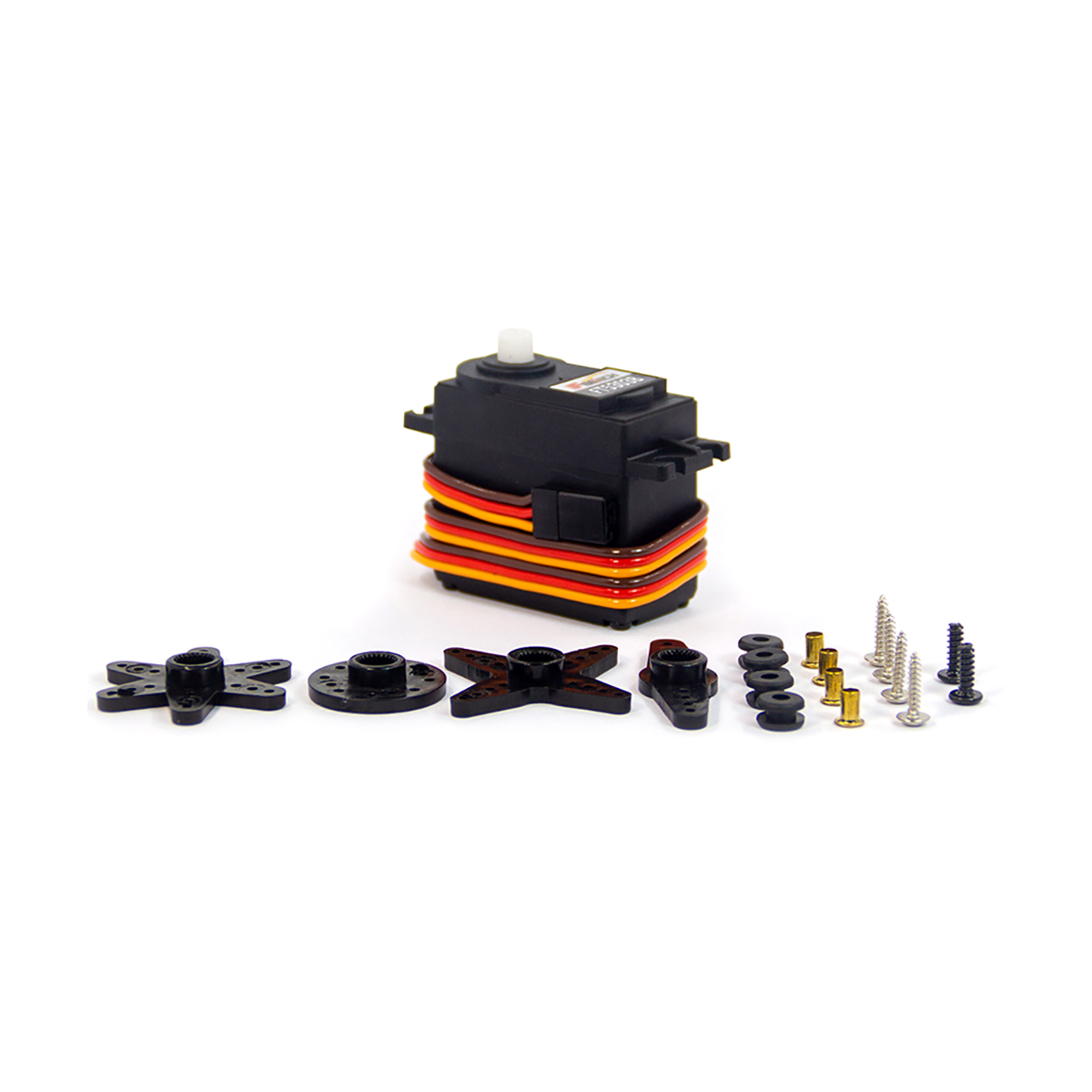

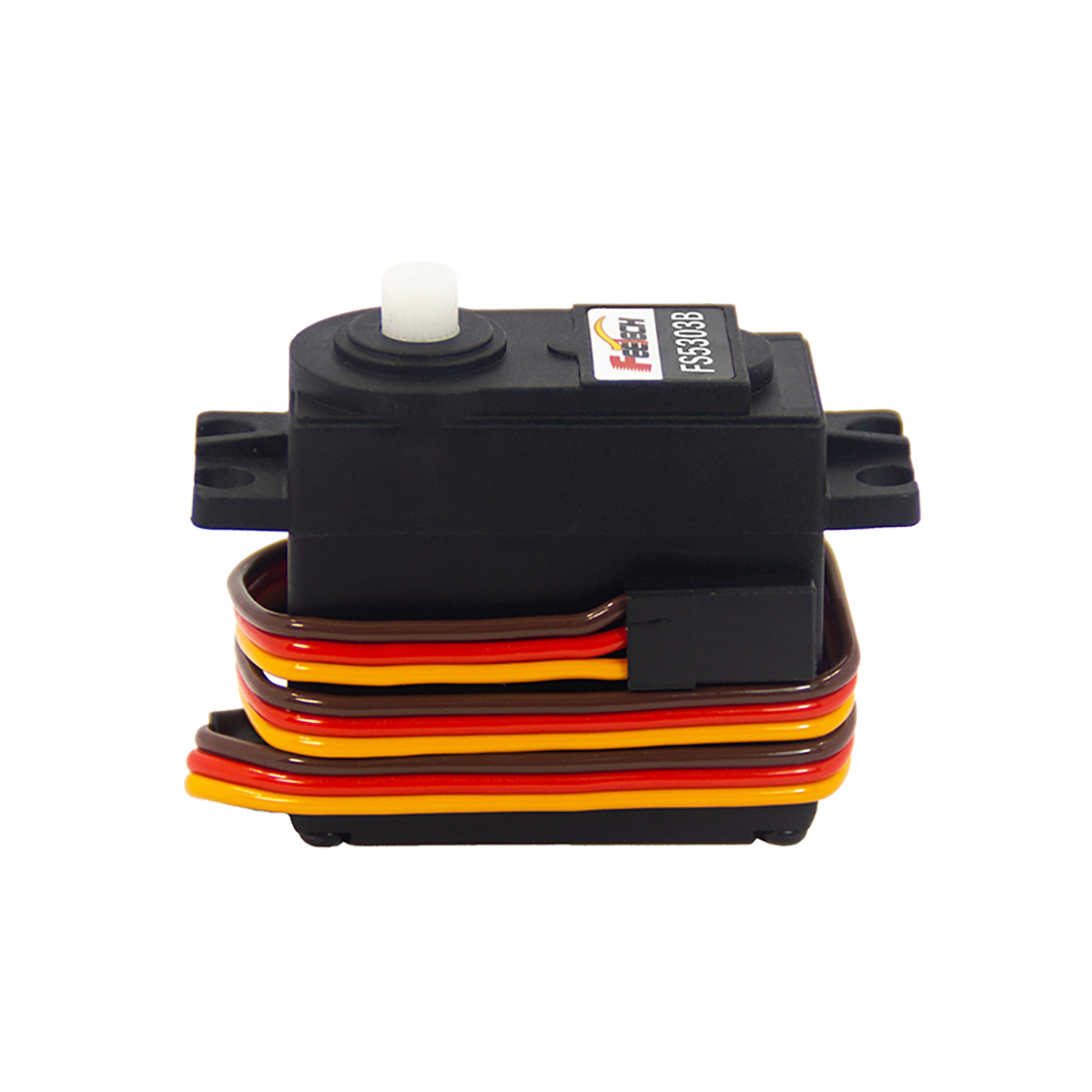

Model: FT-5303-C001
Storage temperature range: -30℃～80℃
Operating temperature range: -15℃～70℃
Size: 40.15*20.15*37.55mm
Weight: 40g±0.2g (1.41oz)
Gear type: Plastic gear (Nylon & POM)
Limit angle: 200°±5°
Bearing: 2 Ball bearings
Horn gear spline: 25T
Horn type: Plastic, POM
Case: Nylon & Fiberglass
Connector wire: 300mm±5mm
Motor: Metal brush motor
Operating voltage range: 3-6V
Idle current (at stopped): 5mA-6mA
No load speed: 0.16sec/60°@6V
Running current(at no load): 180mA@6V
Peak stall torque: 3.5kg.cm@6V
Rated torque: 1.0kg.cm@6V
Stall current: 850mA@6V
Command signal: Pulse width modification
Amplifier type: Digital comparator
Pulse width range: 500~2500μsec
Neutral position: 1500μsec
Running degree: 180° (when 500~2500μsec)
Dead band width: 5μsec
Rotating direction: Counterclockwise (when 1000~2000μsec)
