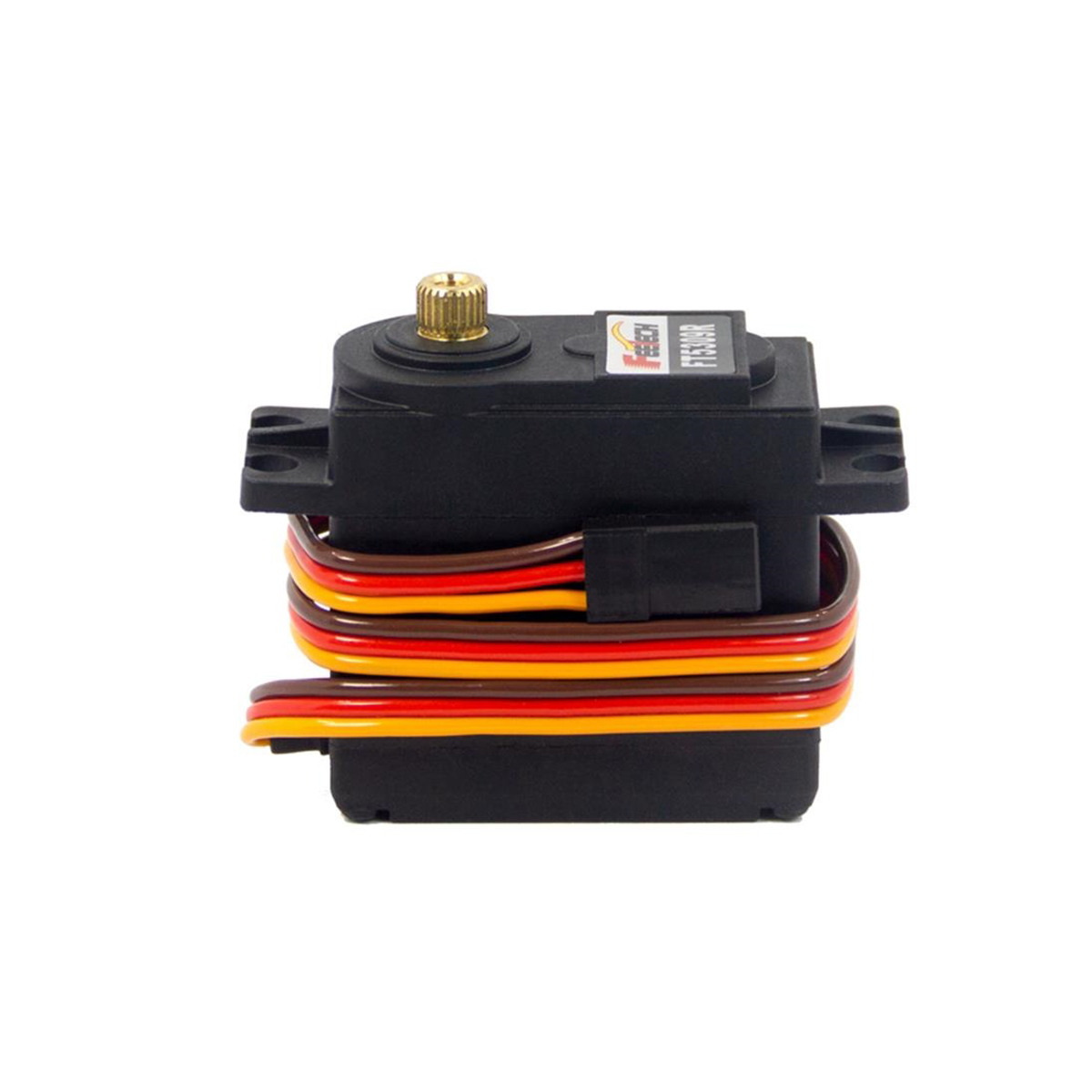

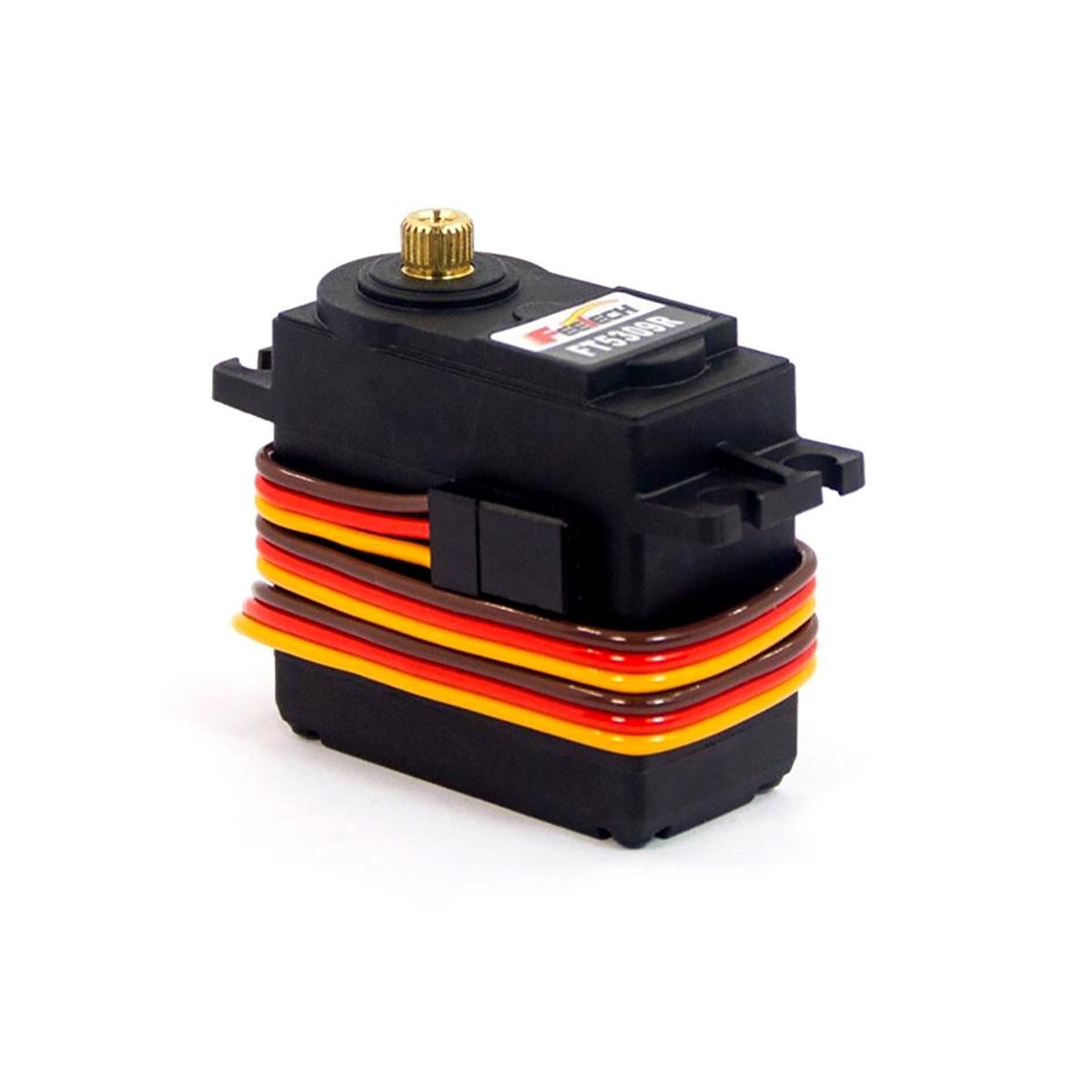

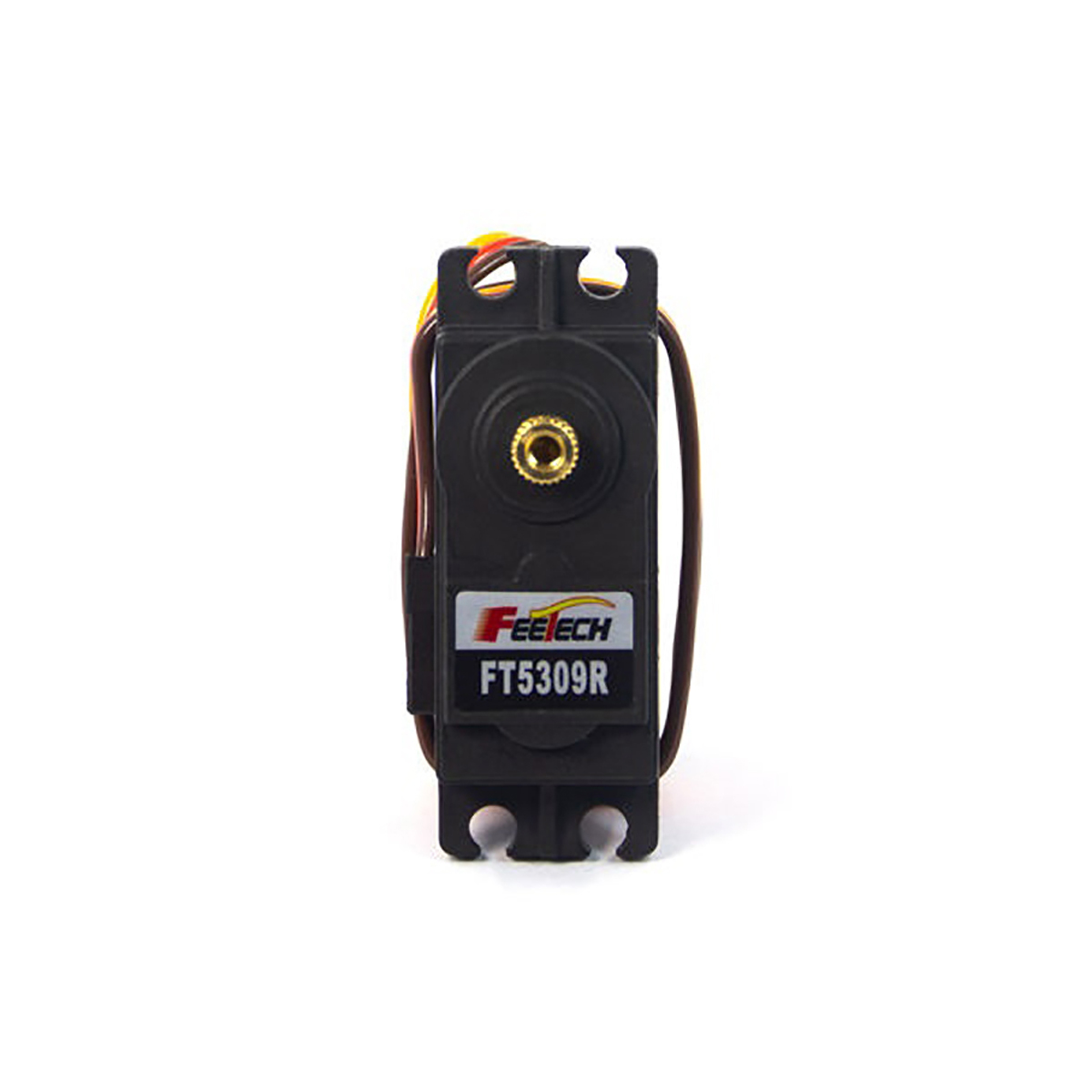

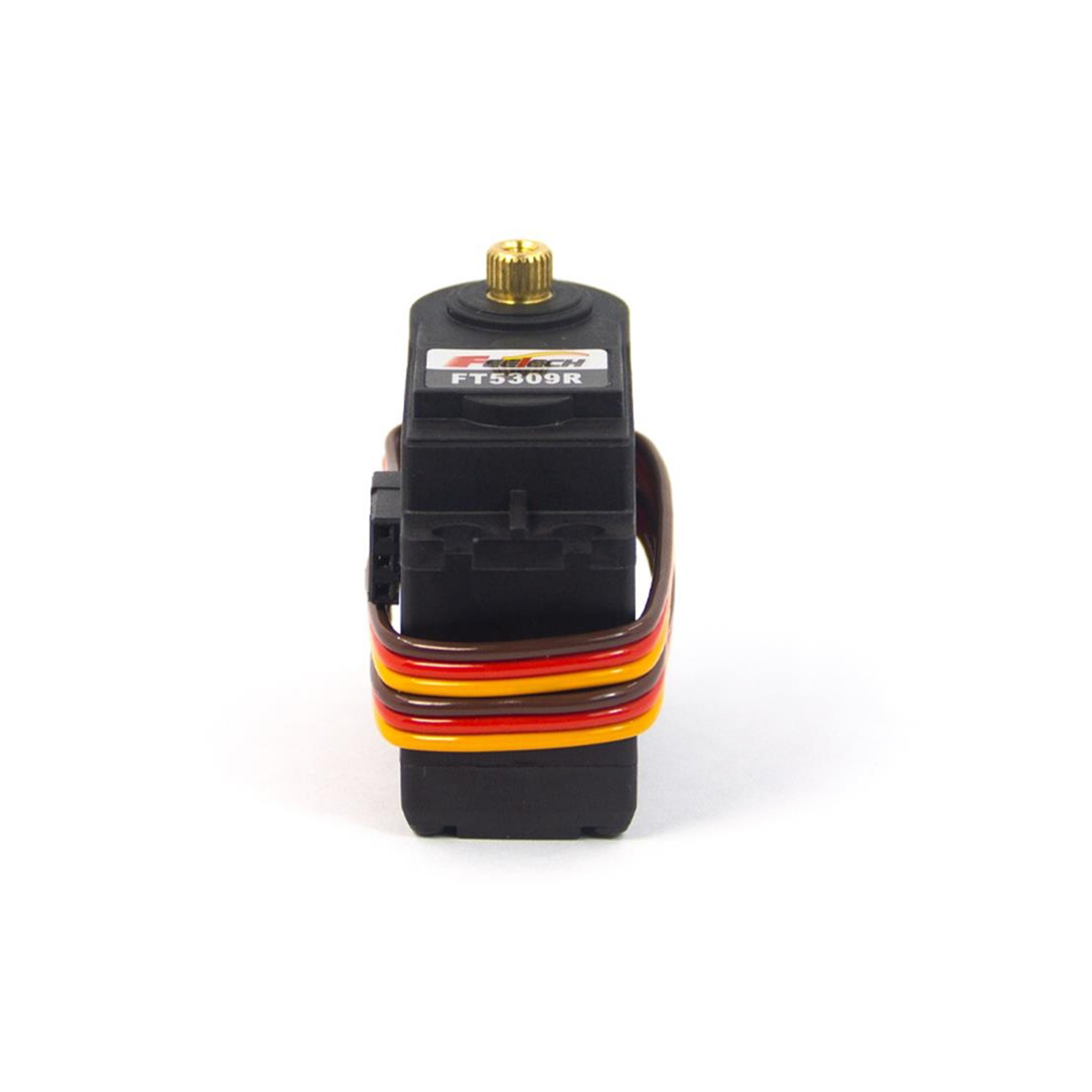

Feetech FT5309R 6V 9kg 360 Degree Continuous Rotation Plastic Case Copper Gear Digital Servo
FT5309R is standard size Digital high speed continuous rotation servo from Feetech
the functionality of a light-duty standard servo, continuous rotation servo, high-speed servo,
Like most continuous rotation servo, is controlled by a 50 Hz pulse-width-modulation signal.
Control signal response is nicely linear across the speed control range.
Model: FT-5309-R001
Storage temperature range: -30℃～80℃
Operating temperature range: -15℃～70℃
Size: 40.15*20.15*38.95mm
Weight: 59g±1g
Gear type: Copper gear (Gear ratio=135:1)
Limit angle: No limit
Bearing: No ball bearings
Horn gear spline: 25T (OD5.96mm)
Horn type: Plastic, POM
Case: Nylon & Fiberglass
Connector wire: 300mm±5mm（JR）(Brown, Red and Orange)
Motor: Metal brush motor
Operating voltage range: 4.8-6V
Idle current (at stopped): 5mA
No load speed: 110RPM@6V
Running current(at no load): 210mA@6V
Peak stall torque: 9.5kg.cm@6V
Rated torque: 3kg.cm@6V
Stall current: 2200mA@6V
Running degree: 360°Continuous rotation
Rotating direction:
Counterclockwise (when 1500～2000 µsec)
Stop (1500±20 µsec)
Clockwise (when 1500～1000 µsec)

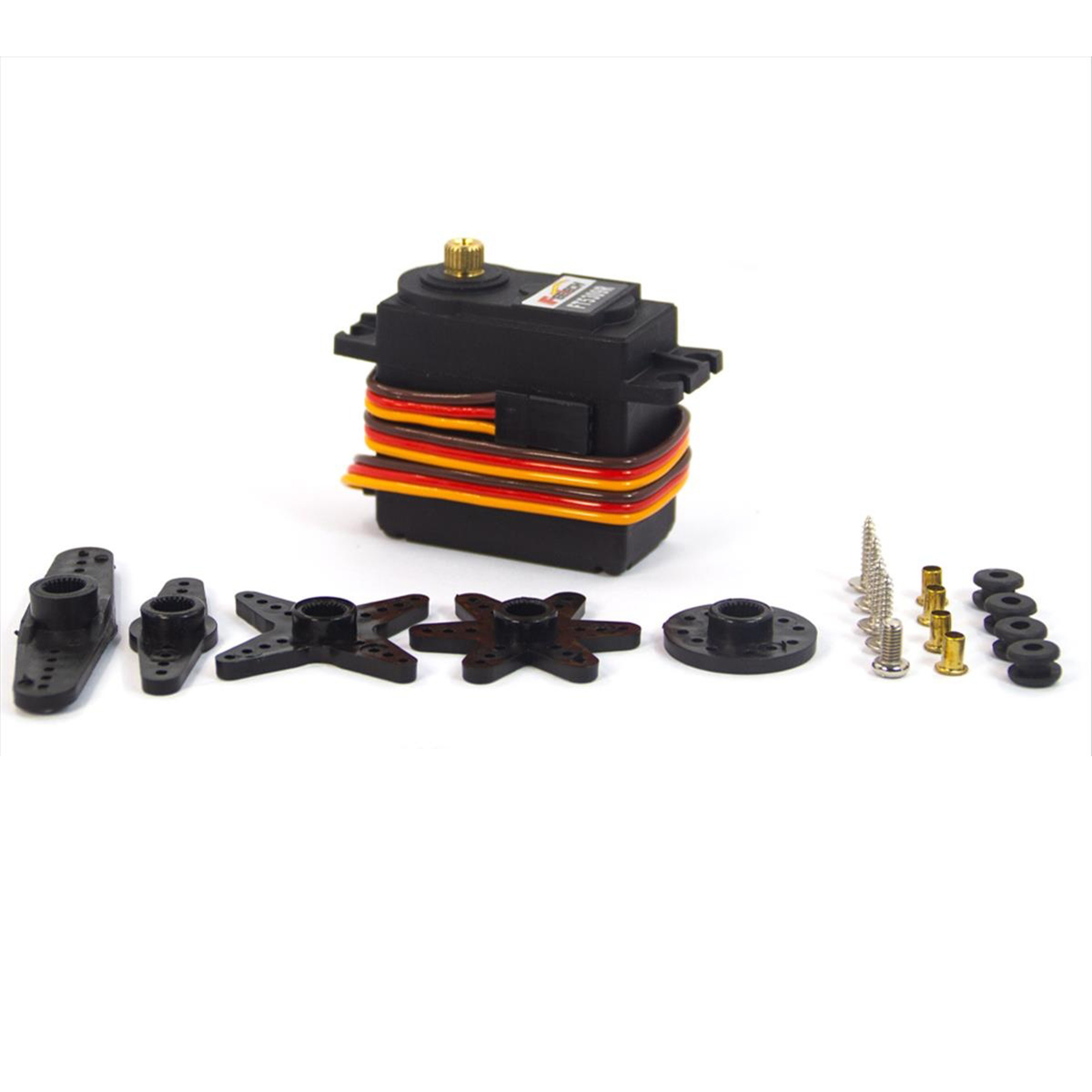

FT5309R Servo x1
