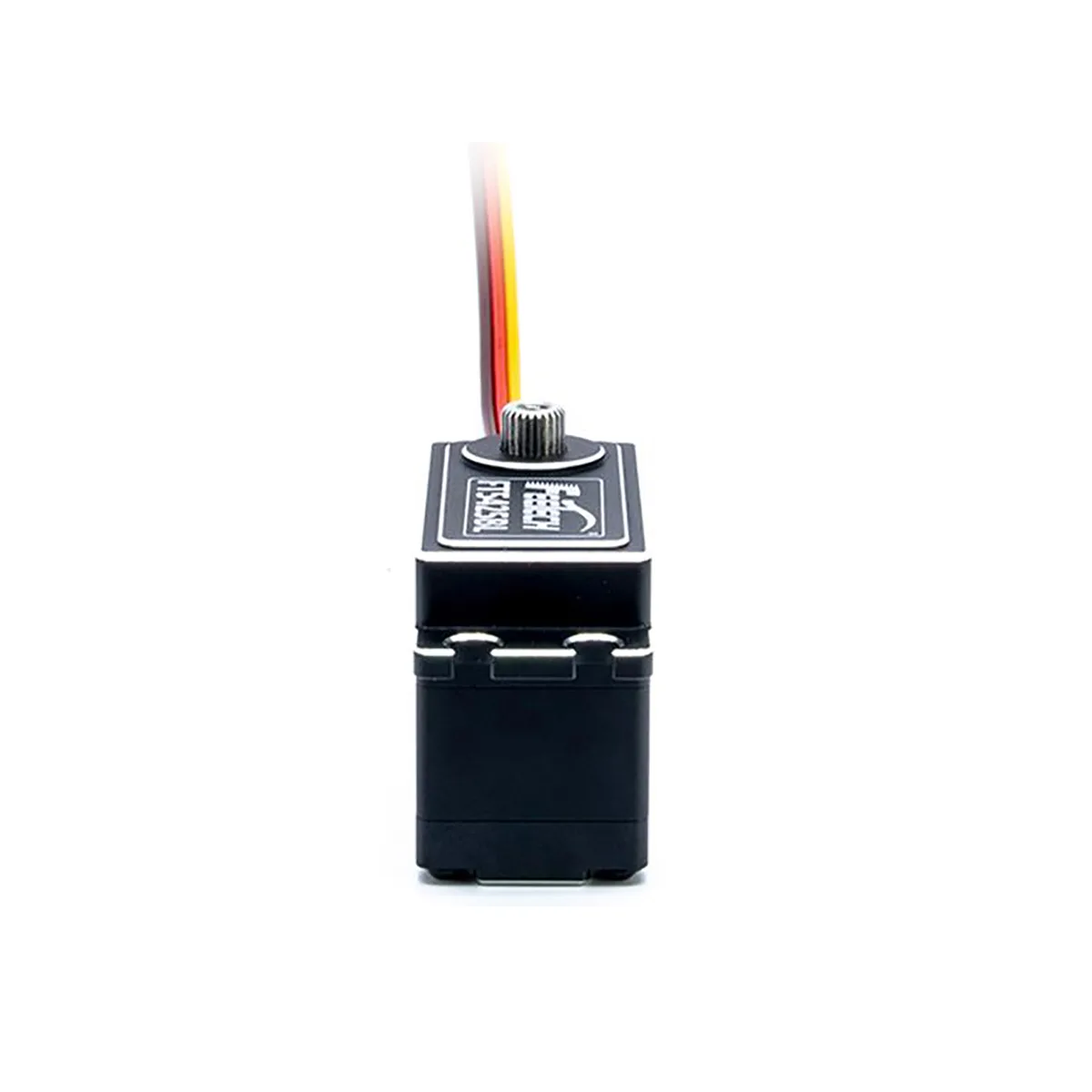

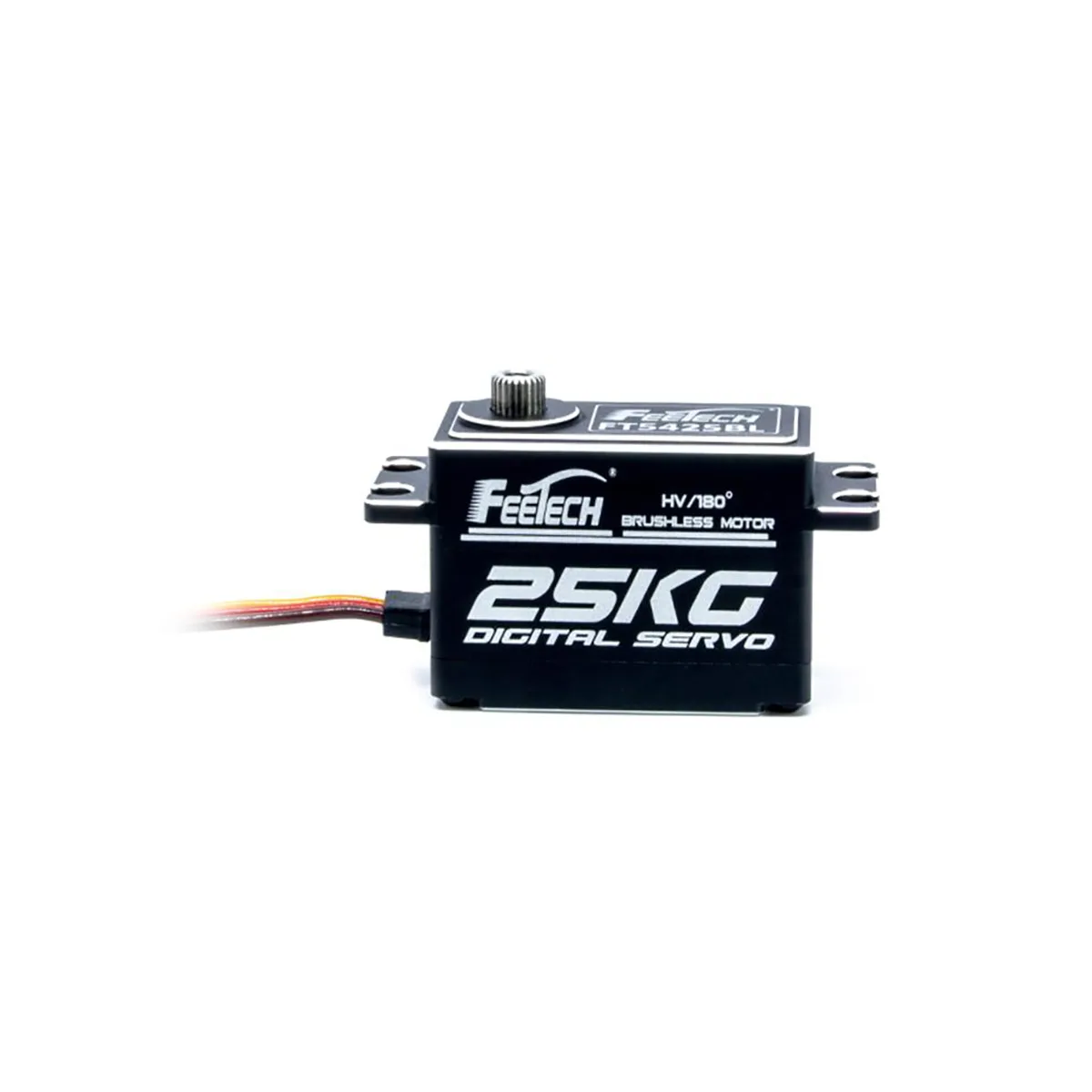

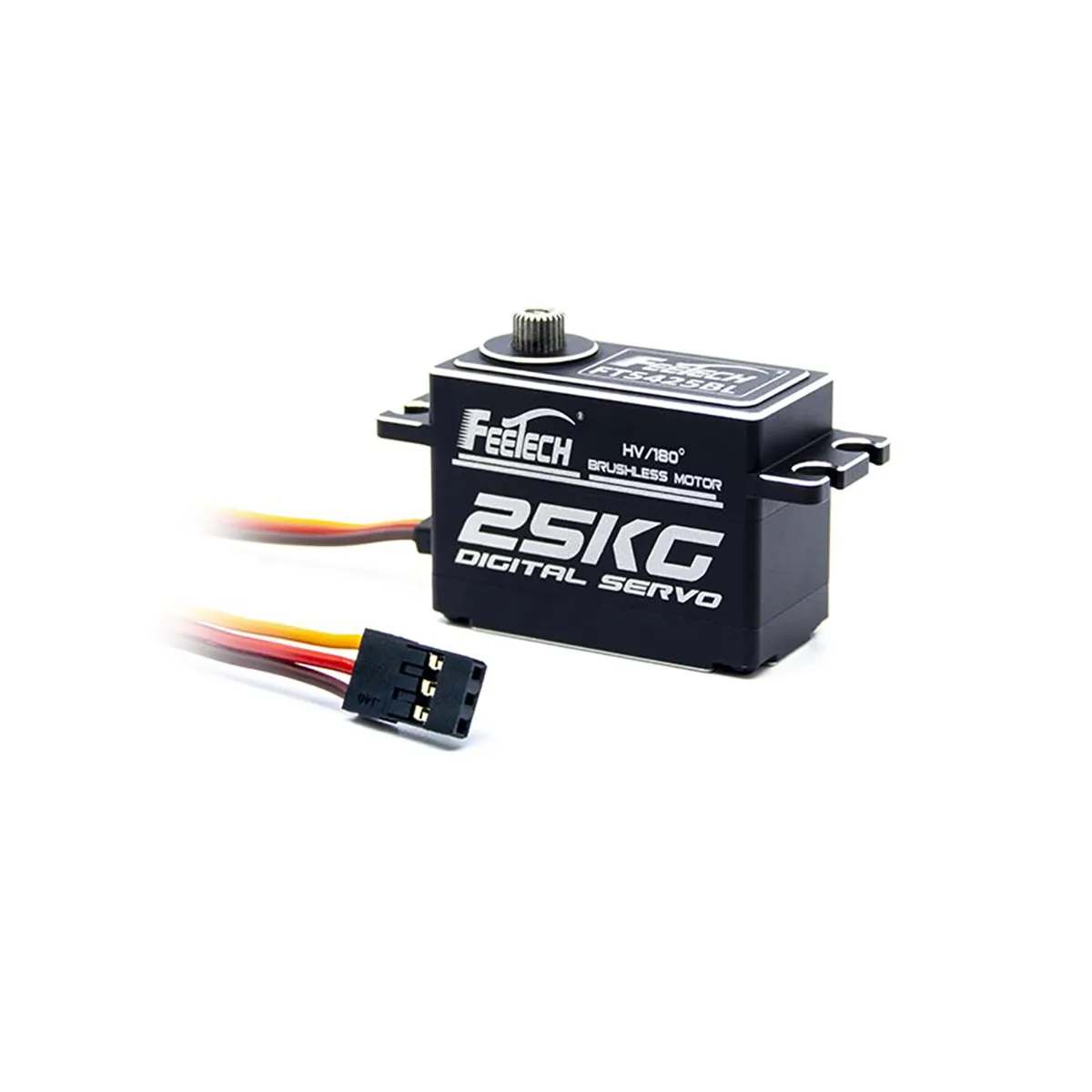

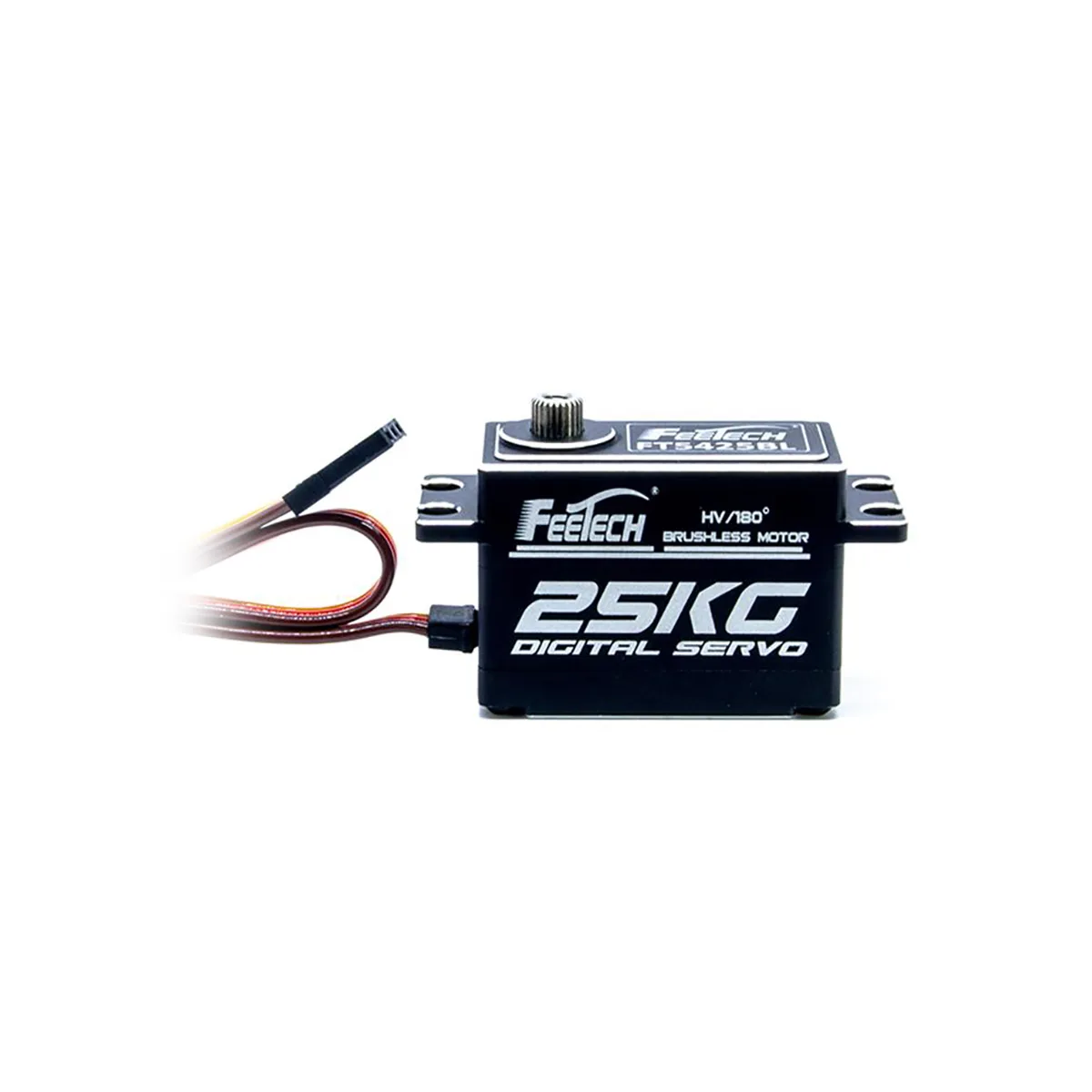

Feetech FT5425BL 7.4V 25kg Brushless Motor 180 Degree Metal Gear Digital Servo for Car Helicopters
Feetech FT5425BL 7.4V 25kg Brushless Motor 180 Degree Metal Gear Digital Servo for Car Helicopters
FT5420M it is light weight and fast heat dissipation design, upgrade to full stainless steel gears, it will be more reliable to be used for your models.
Fast cooling heat sink case
Extra strong steel gears
High precision magnetic sensor
Long lifespan brushless motor
Ideal for 1/10, 1/12 touring cars, racing cars on road, airplane, 1/10 scale surface, boat, aircraft applications
Model: FT-5425-C001
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～60℃
Size: 40.6*20*30mm
Weight: 67.6±1g
Gear type: Steel
Limit angle: NO limit
Bearing: Ball bearings
Horn gear spline: 25T/5.9mm
Gear Ratio: 1/258
Case: Aluminum
Connector wire: 30CM
Motor: Brushless Motor
Operating Voltage Range: 4V-12V
Idle current (at stopped): 6mA@8.4V
No load speed: 0.08sec/60°@8.4V
Running current(at no load): 180mA@8.4V
Peak stall torque: 28.5kg.cm@8.4V
Rated torque: 9.5kg.cm@8.4V
Stall current: 5A@8.4V
Command signal: Pulse width modification
Amplifier type: Digital comparator
Pulse width range: 500~2500 μsec
Stop position: 1500 μsec
Running degree: 180°±5° (at 500→2500μsec)
Dead band width: ≤4 μsec
Rotating direction: Counterclockwise (at 1500→2000 μsec)

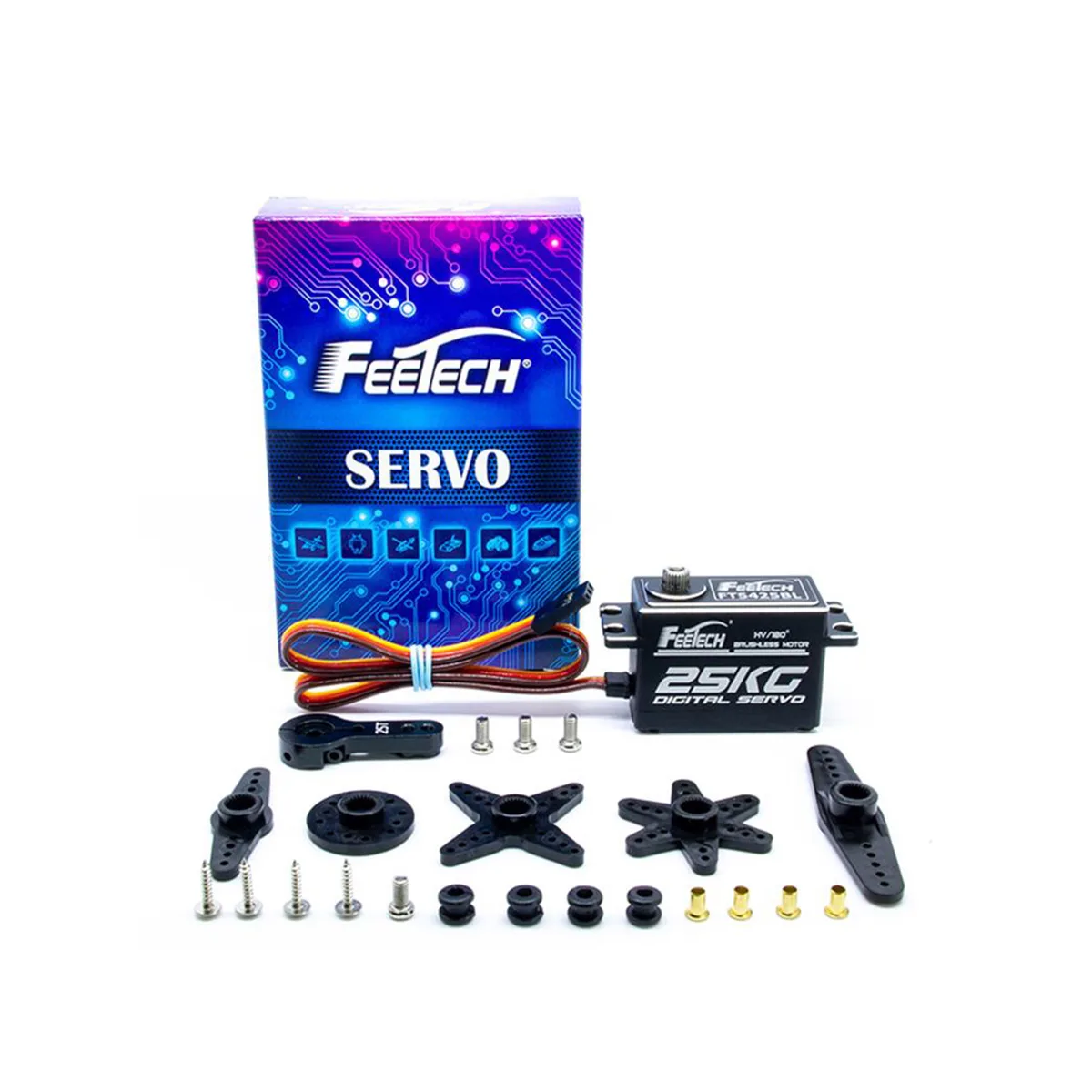

FT5425BL Servo x1
