Model: FT-5910-C001
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～60℃

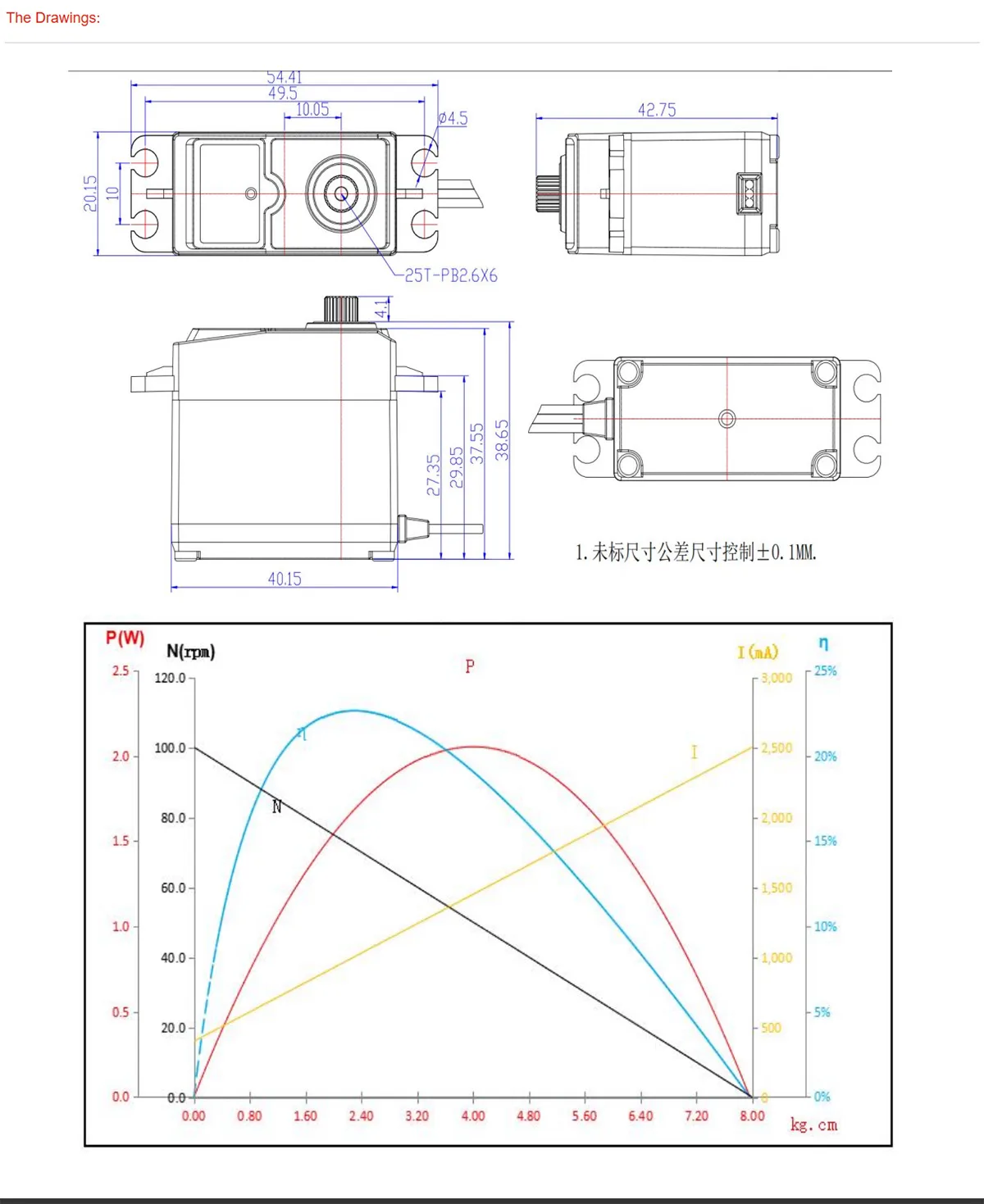

Size: 40.15*20.15*37.55mm
Weight: 41.5±1g
Gear type: PA+Fiber
Limit angle: 200°
Bearing: Ball bearings
Horn gear spline: 25T/5.9mm
Gear Ratio: 1/206
Case: PA+Fiber
Connector wire: 30CM
Motor: Core Motor
Operating Voltage Range: 4-8.4V
Idle current (at stopped): 8mA@7.4V
No load speed: 0.1sec/60°(100RPM)@7.4V
Running current(at no load): 400mA@7.4V
Peak stall torque: 8kg.cm@7.4V
Rated torque: 2.4kg.cm@7.4V
Stall current: 2.7A@7.4V
Command signal: Pulse width modification
Control System Type: Digital comparator
Pulse width range: 500~2500 μsec
Stop position: 1500 μsec
Running degree: 180°±5°(at 500→2500μsec)
Dead band width: ≤4 μsec
Rotating direction: Counterclockwise (at 1500→2000 μsec)
