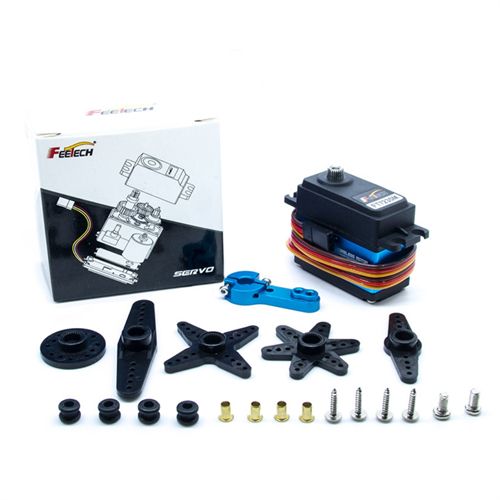

Model：FT-7235-C001
Storage Temperature Range：-20℃～80℃
Operating Temperature Range：-10℃～60℃

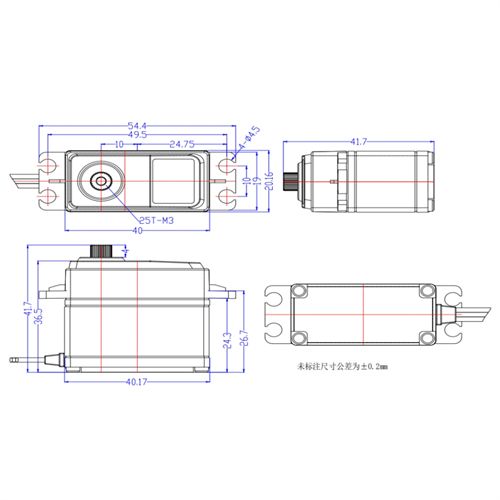

Size：A：40.7mm B：36.5mm C: 20.16mm
Weight：64.5± 1g
Gear type：Steel
Limit angle：NO limit
Bearing：Ball bearings
Horn gear spline：25T/5.9mm
Gear Ratio：1/275
Case：Alumi num
Connector wire：30±0.5CM
Motor：Core Motor
Operating Voltage Range：4-9V
Idle current (atstopped)：10mA@8.4V
No load speed：0.098sec/60°(102RPM)@8.4V
Runnig current(at no load)：340mA@8.4V
Peak stall torque：34.2kg.cm@8.4V
Rated torque：11.4kg.cm@8.4V
Stall current：3.6A@8.4V
Command si gnal：Pulse width modification
Control System Type：Digital comparator
Pulse width range：500~2500 μ sec
Stop position：1500 μ sec
Running degree：180°± 5°(at 500→2500μsec)
Dead band width：≤4 μ sec
Rotating direction：Counterclockwi se (at1500→2500 μ sec)
Electronic Protection：Stall 8sec
