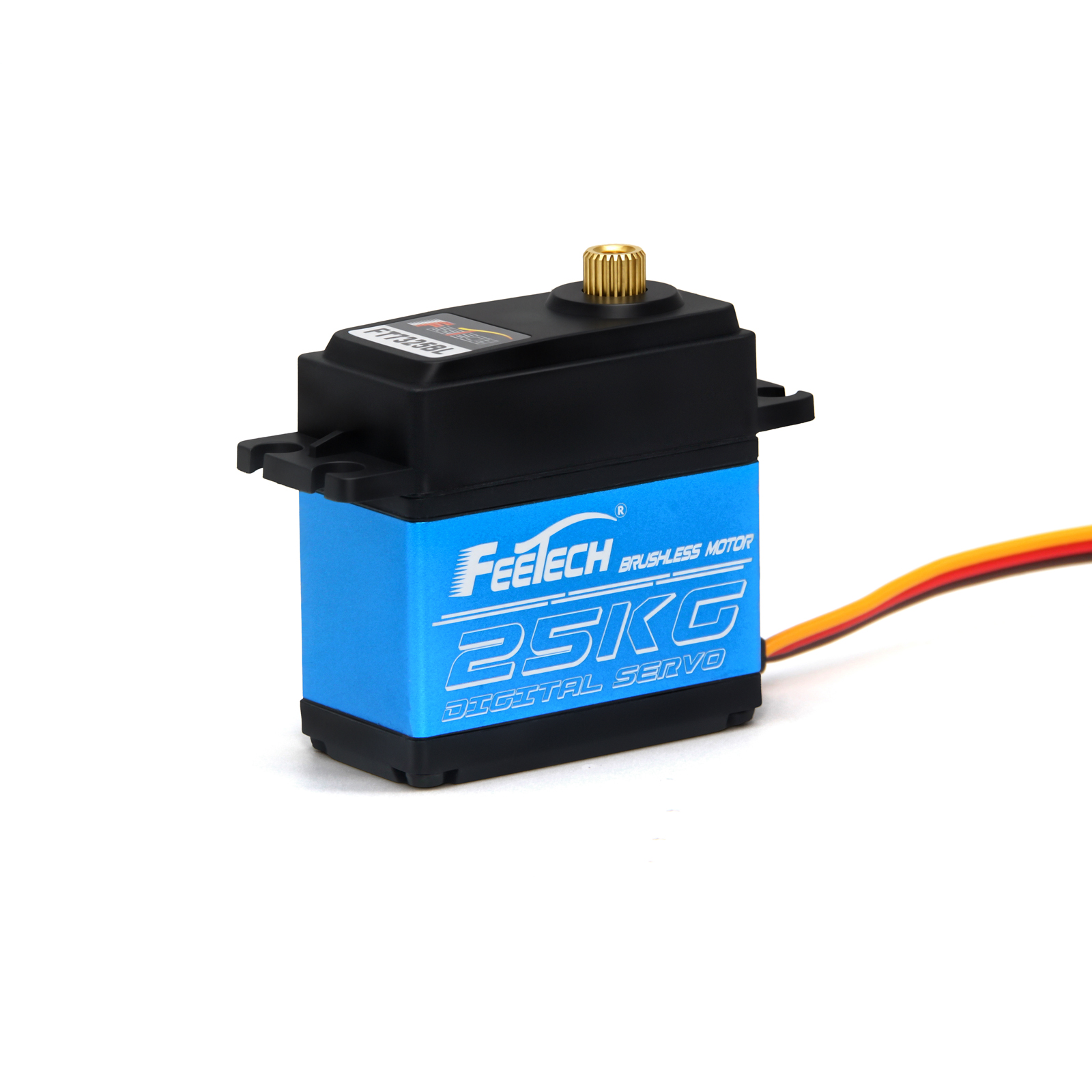

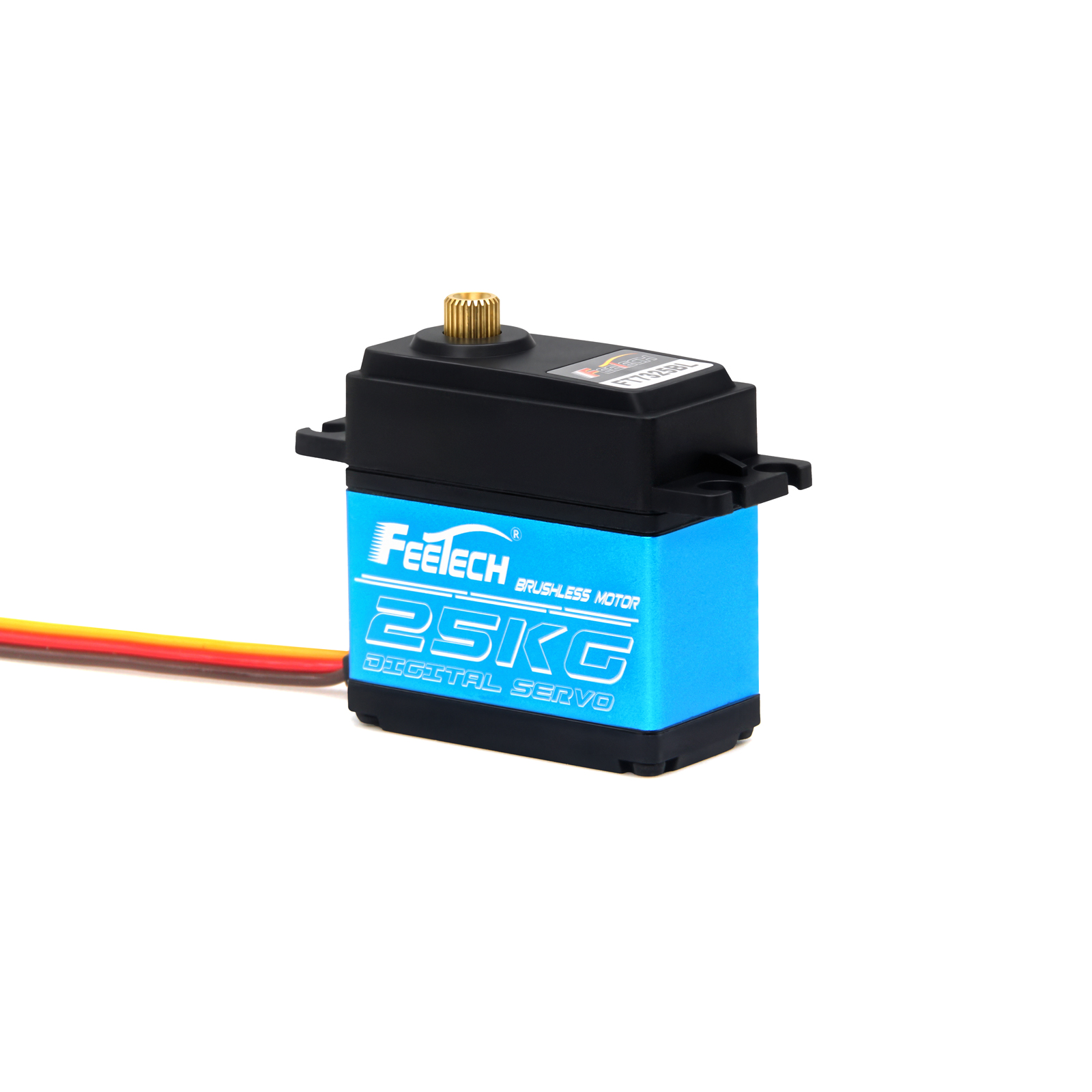

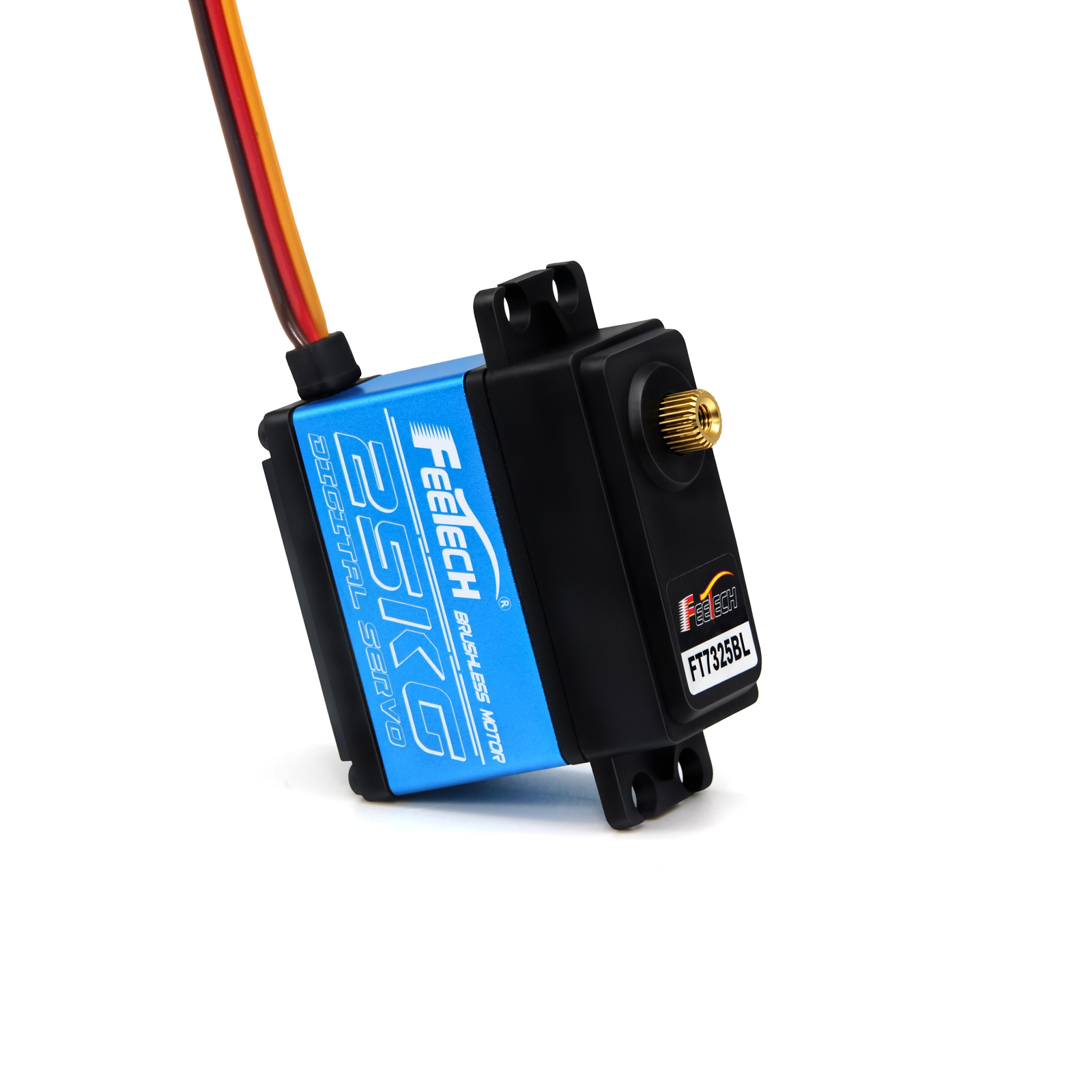

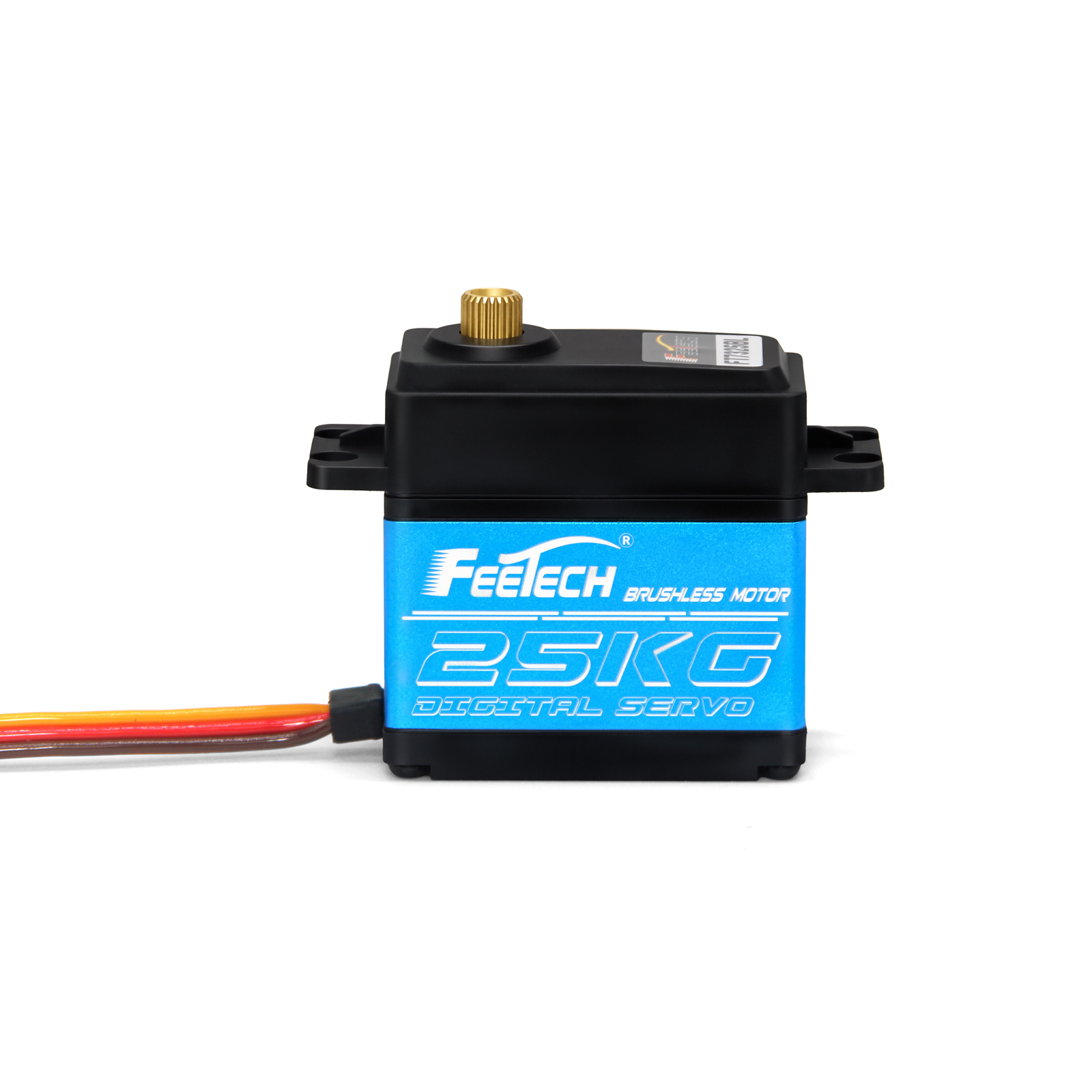

Model：FT-7325-C001
Storage Temperature Range: -20℃～80℃
Operating Temperature Range: -10℃～60℃

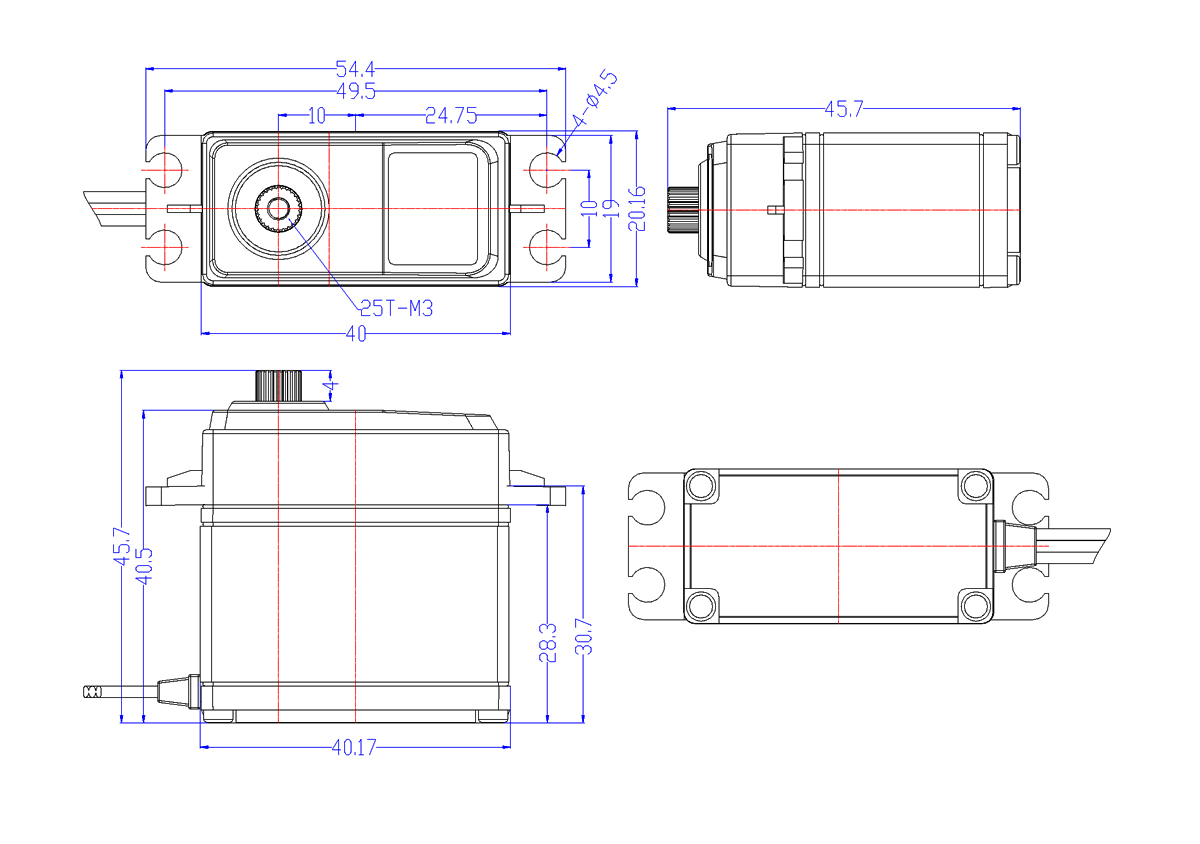

Size: 40.16X20.16X40.05mm
Weight: 64.5±1g
Case material: Aluminum
Gear material: Metal
Bearing type: Copper
Angle Sansor: Carbon-Film Potentiometer

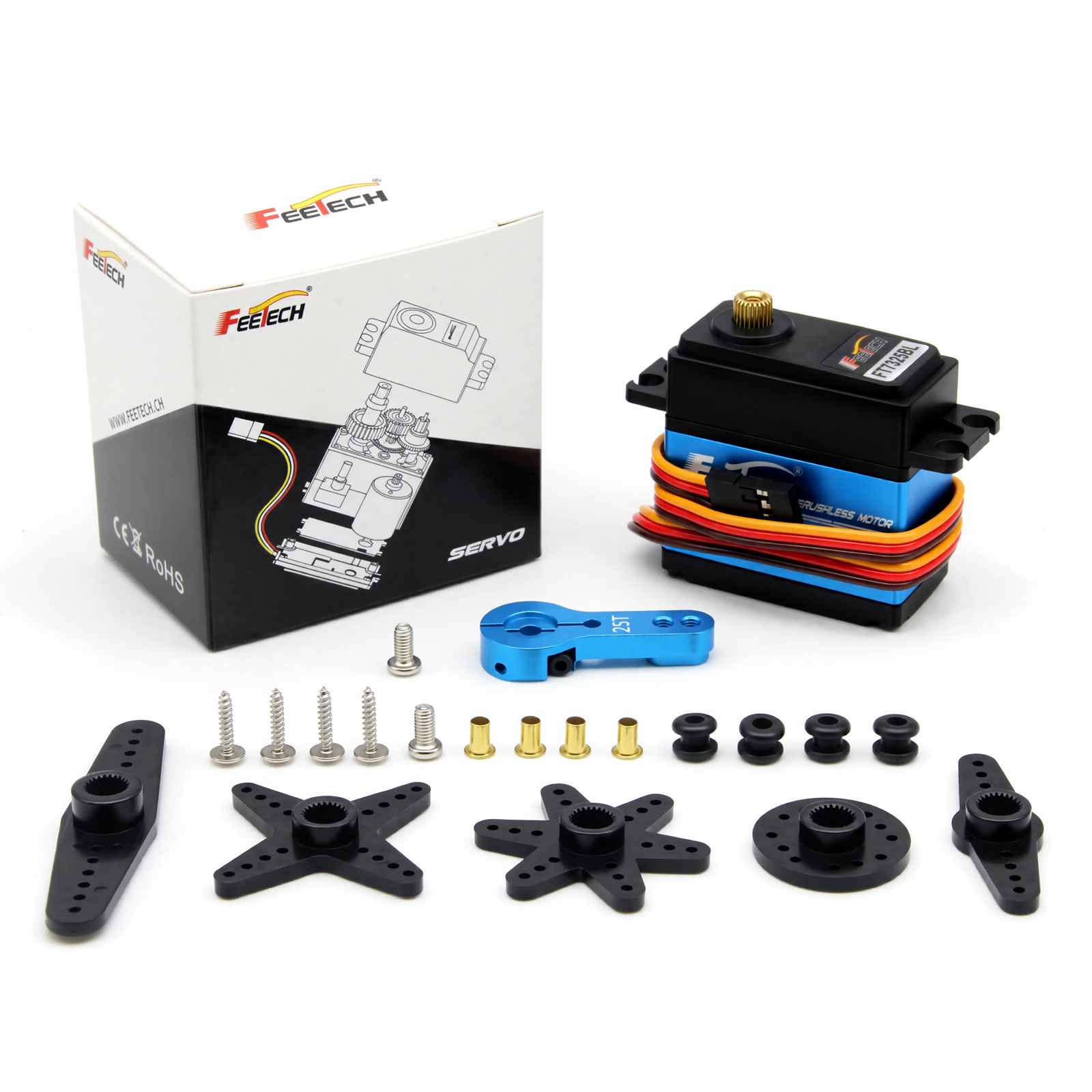

Horn Type: 25T/5.9mm
Gear Ratio: 1/275
Back Lash: ≦0.5°
The rocker screw: M3X6
Motor: Brushless Motor
Input Voltage Range: 4.8V-8.4V
No Load Speed±10%: 0.111sec/60°(90RPM)@7.4V
Running Current (no load)±10%: 350mA @7.4V
Stall Torque (at locked): 24.9kg.cm @7.4V
Stall Current (at locked): 5.2A @7.4V
Idle Current (at stopped)±10%: 20mA @7.4V
Rated Torgue≦: 8.3kg.cm @7.4V
Rated Current≦: 1700mA @7.4V
Kt: 4.8kg.cm/A
Command Signal: Pulse width modification
Control System Type: Digital comparator
Operating Travel: 180°±5°(at 500→2500μsec)
Left&Right Travelling Angledeviation: ≤ 5°
Centering Deviation: ≦1°
Neutral Position: 1500μsec
Dead Band Width: ≤4μsec
Rotating Direction: Counterclockwise (at 500→2500μsec)
Pulse Width Range: 500→2500μsec
Electronic Protection: Stall 8sec
