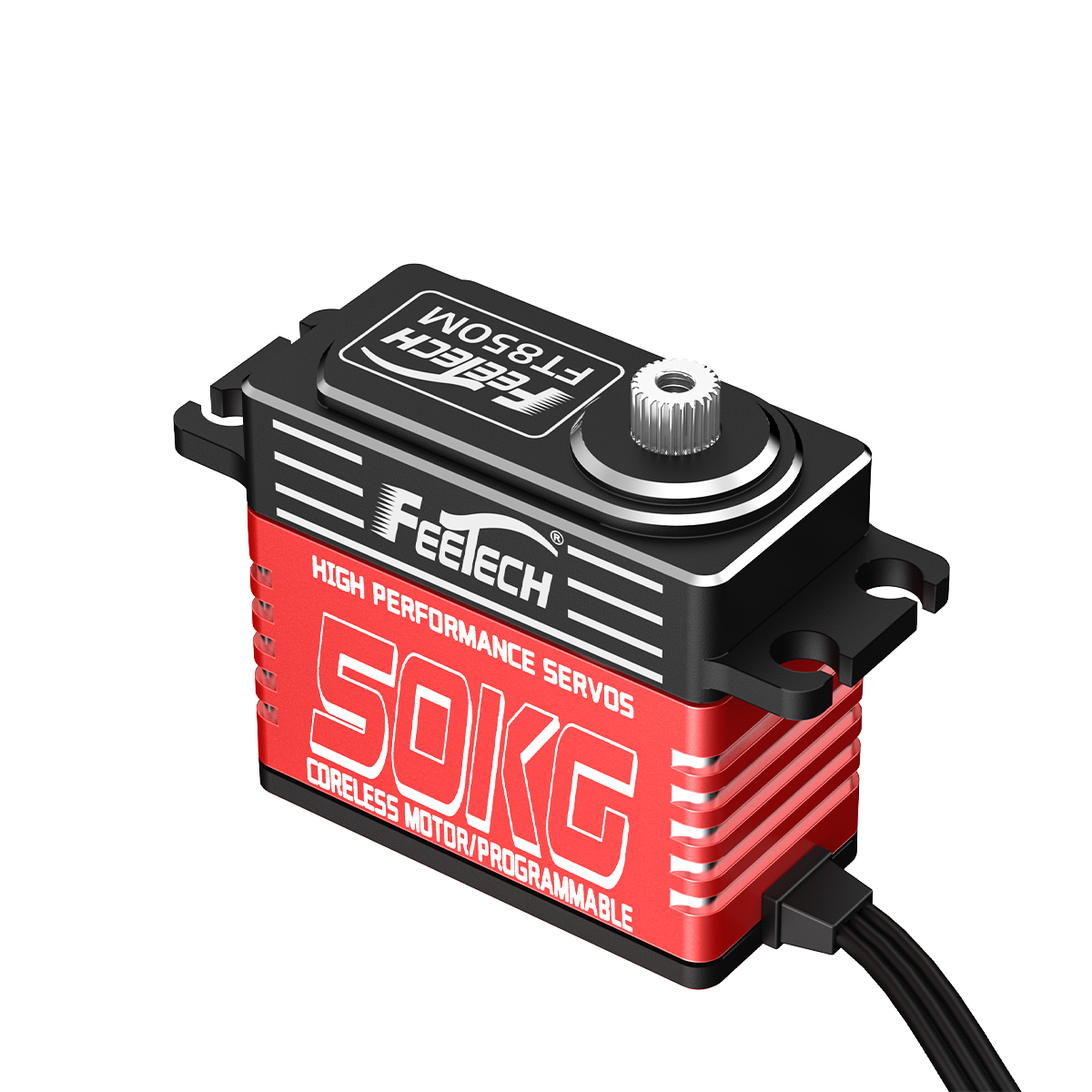

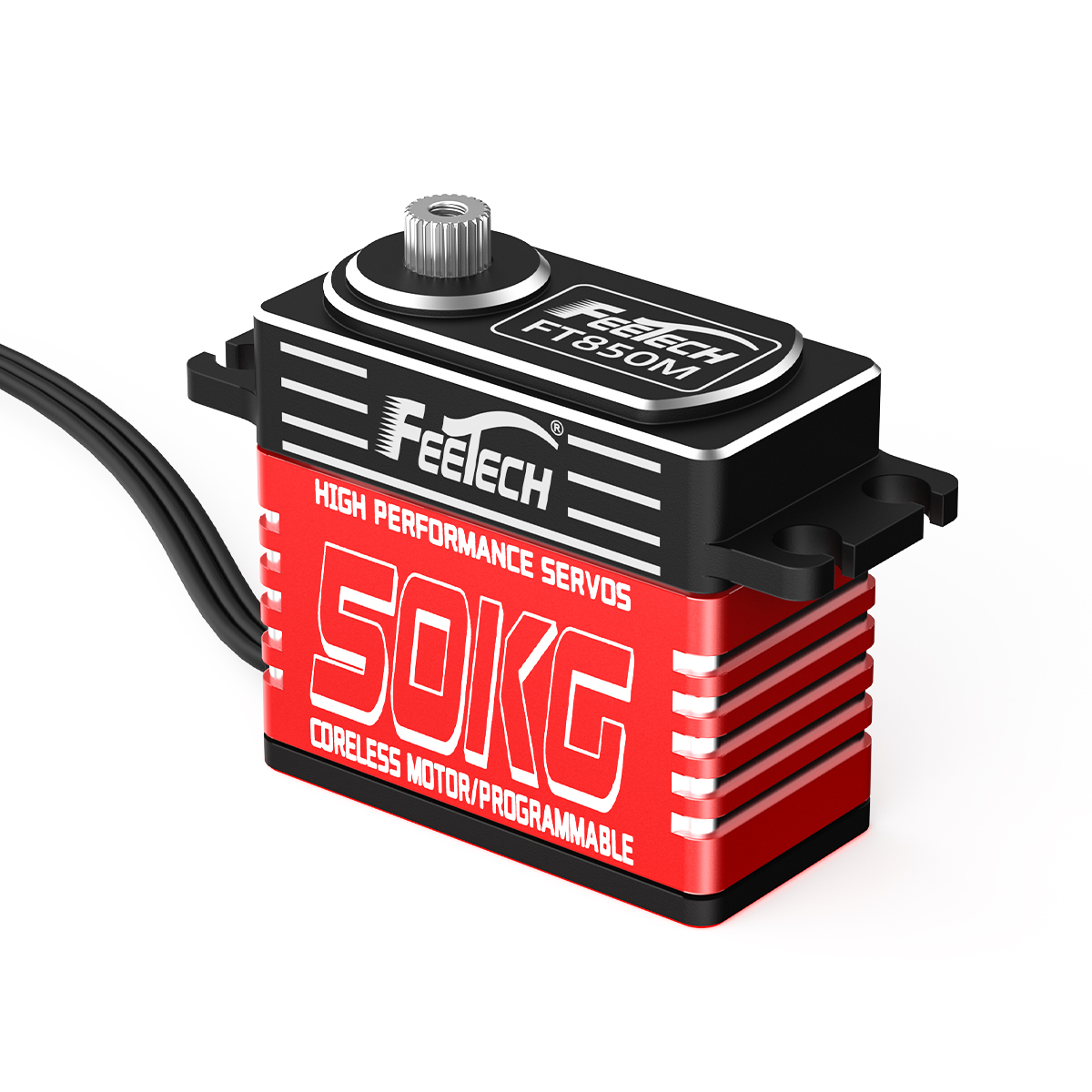

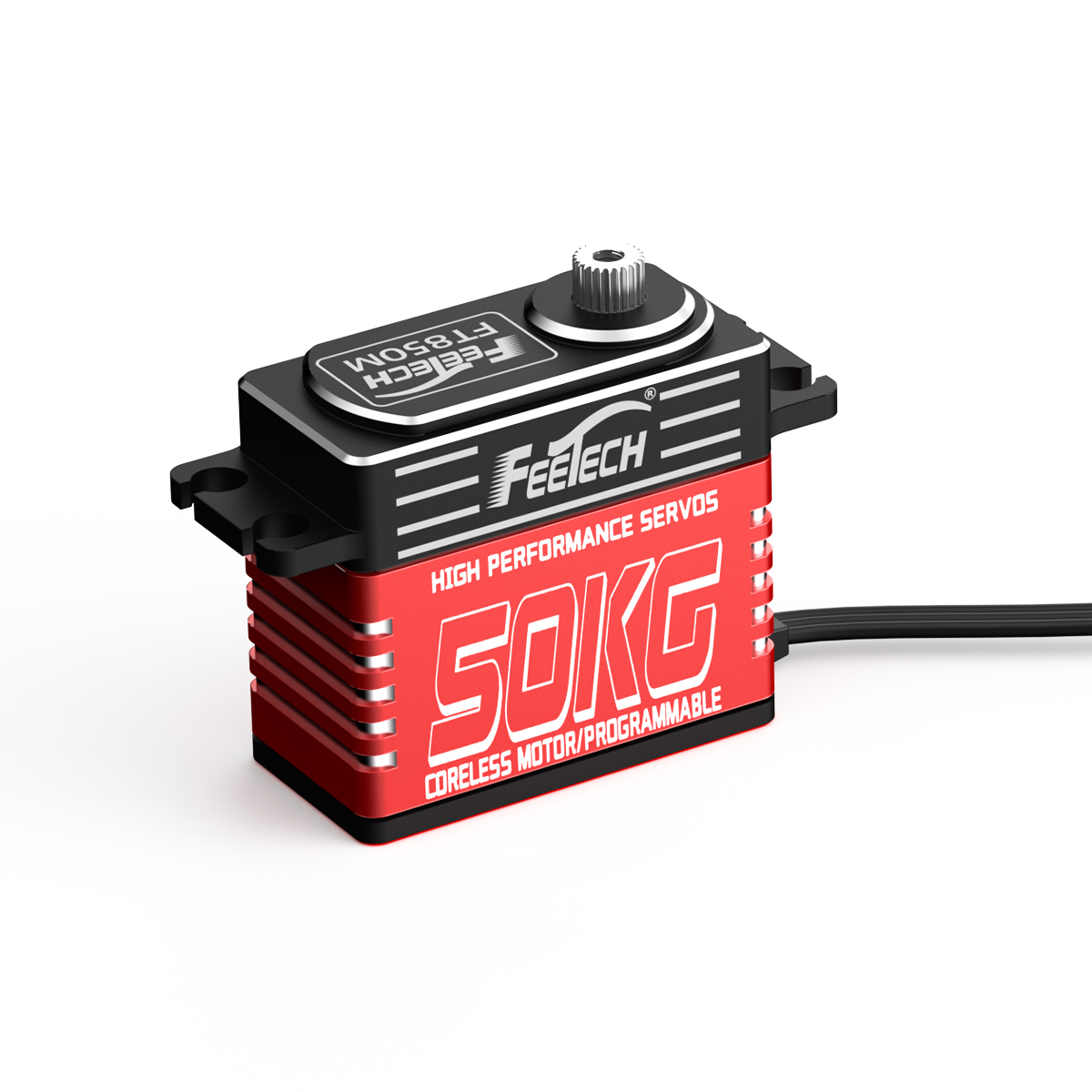

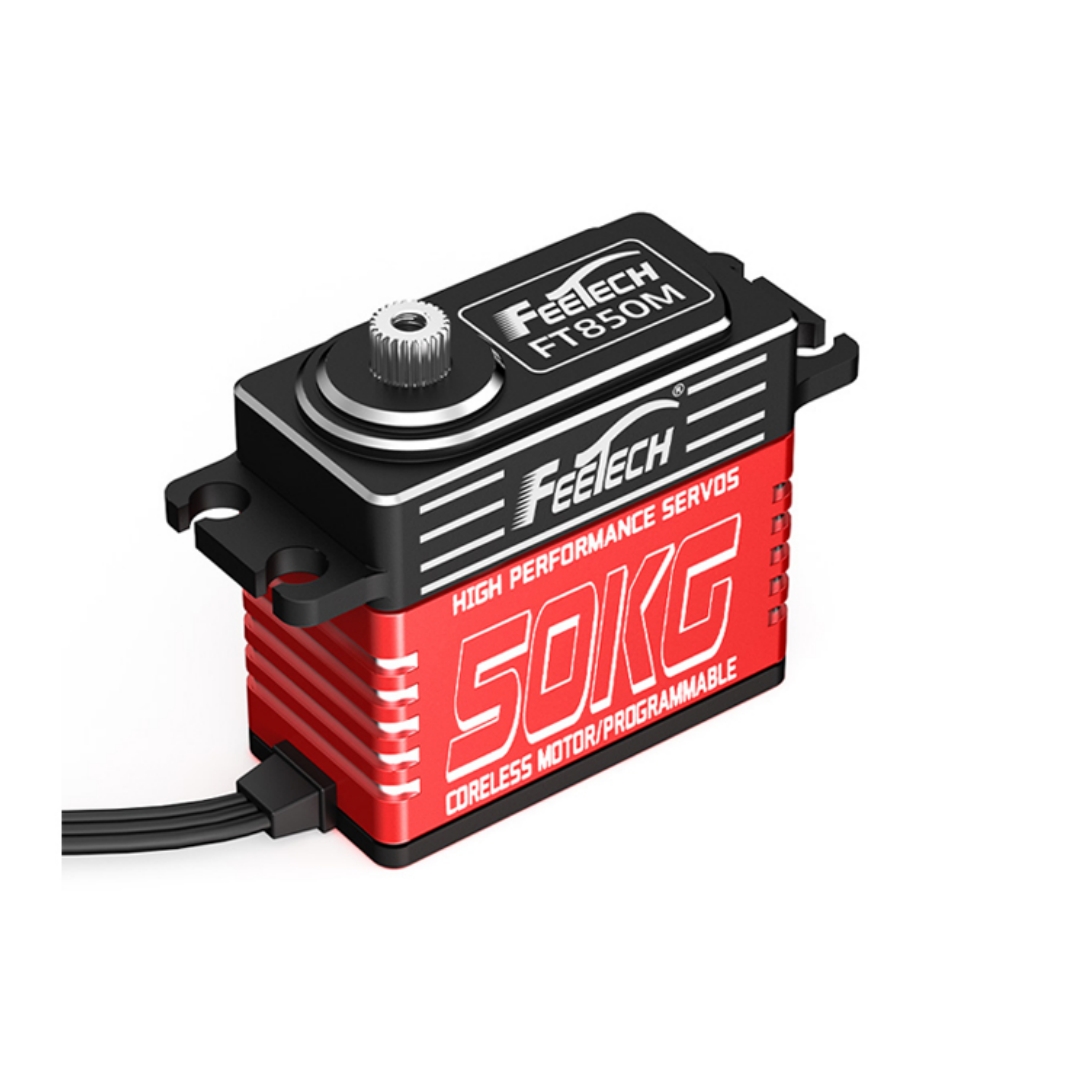

Model: FT-850M-C001

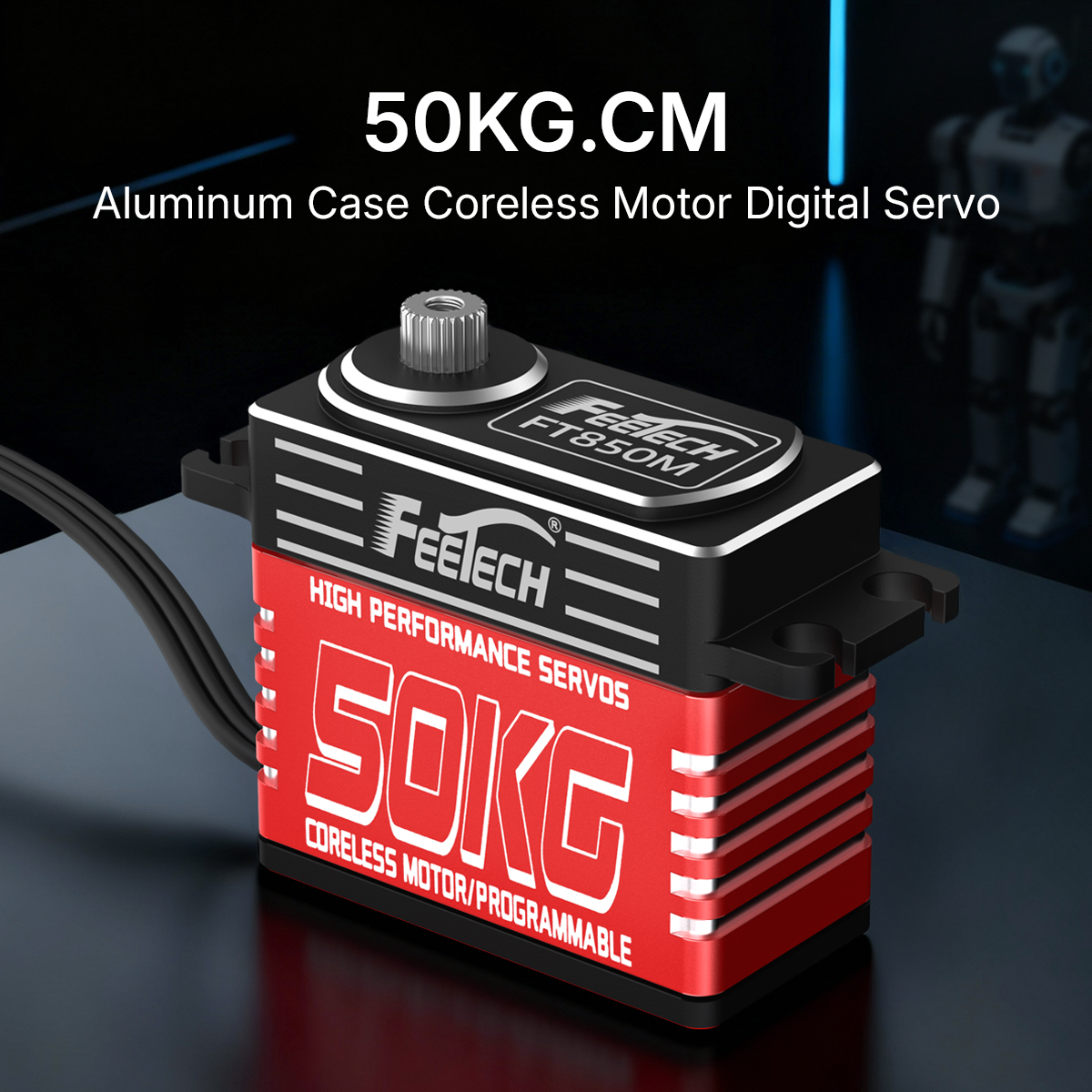

Product Name: 7.4V 50KG 180 Degree Servo
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～60℃
Size: A：40mm B：20mm C: 36.4mm
Weight: 72± 2g

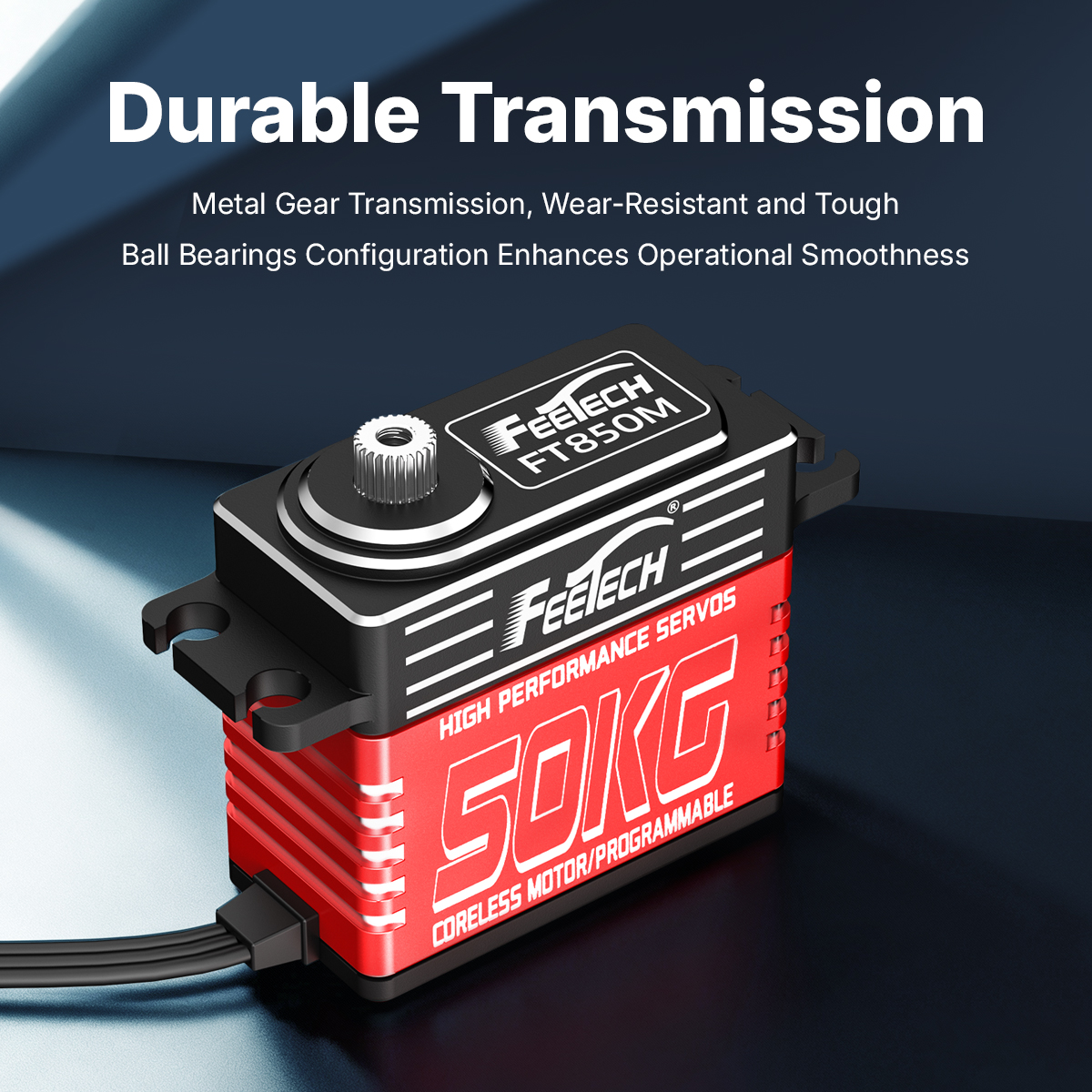

Gear type: METAL GEAR
Limit angle: NO
Bearing: Ball bearings
Horn gear spline: 25T/5.9mm
Gear Ratio： 1/280
Case: Aluminum

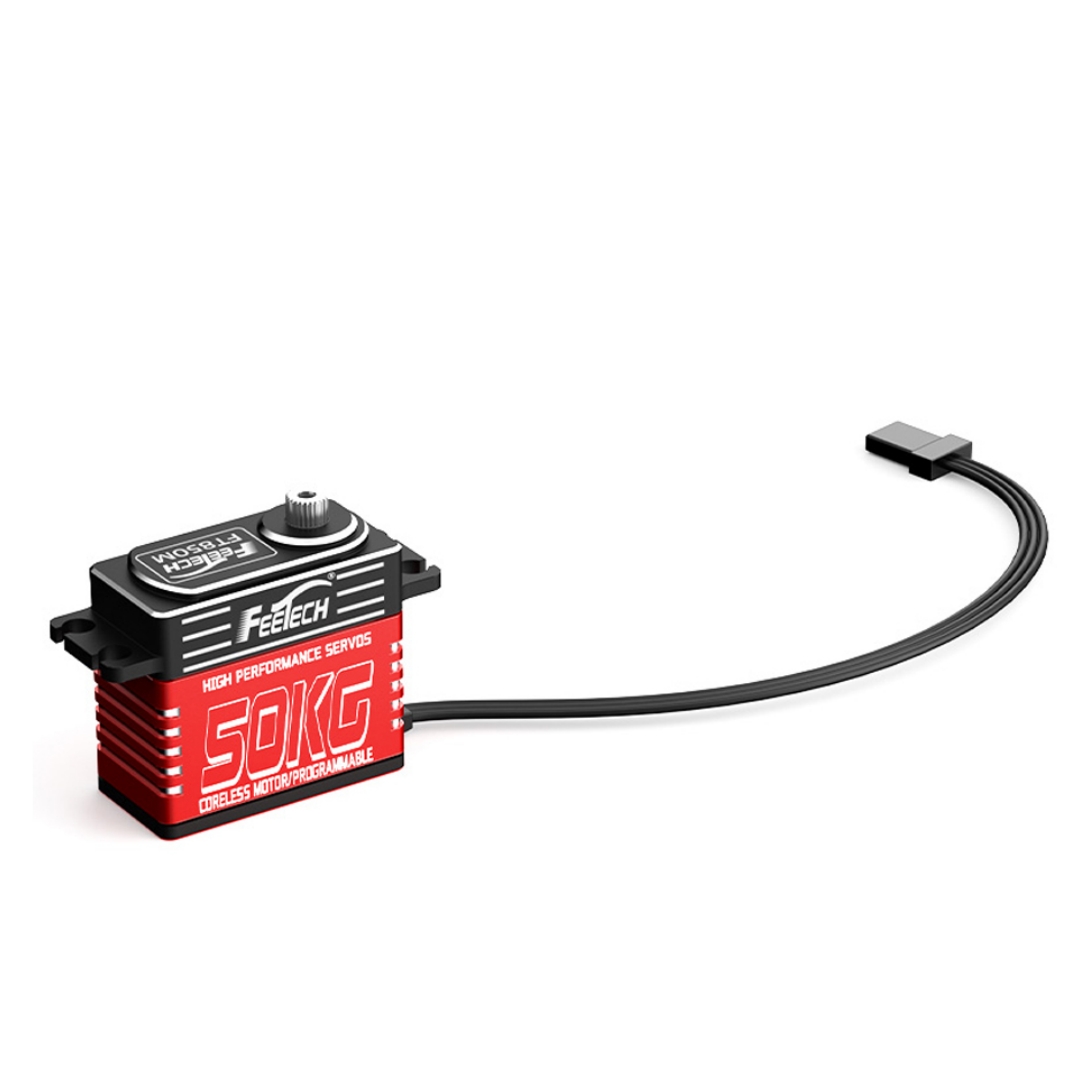

Connector wire: 35CM
Motor: Coreless Motor
Operating Voltage Range: 5-9V(Can be used in 12V version)
Idle current (atstopped): 36mA@8.4V
No load speed: 0.098sec/60°(102RPM)@8.4V
Running current(at no load): 420mA@8.4V
Peak stall torque: 55kg.cm@8.4V
Rated torque: 9.4kg.cm@8.4V
Command signal: Pulse width modulation
Control System Type: Digital comparator
Pulse width range: 500~2500 μ sec
Stop position: 1500 μ sec
Running degree: 180±5°(at 500→2500μsec)
Dead band width: ≤4 μ sec
Rotating direction: Counterclockwise(at500→2500 μsec)
Electronic Protection: Stall 4sec
