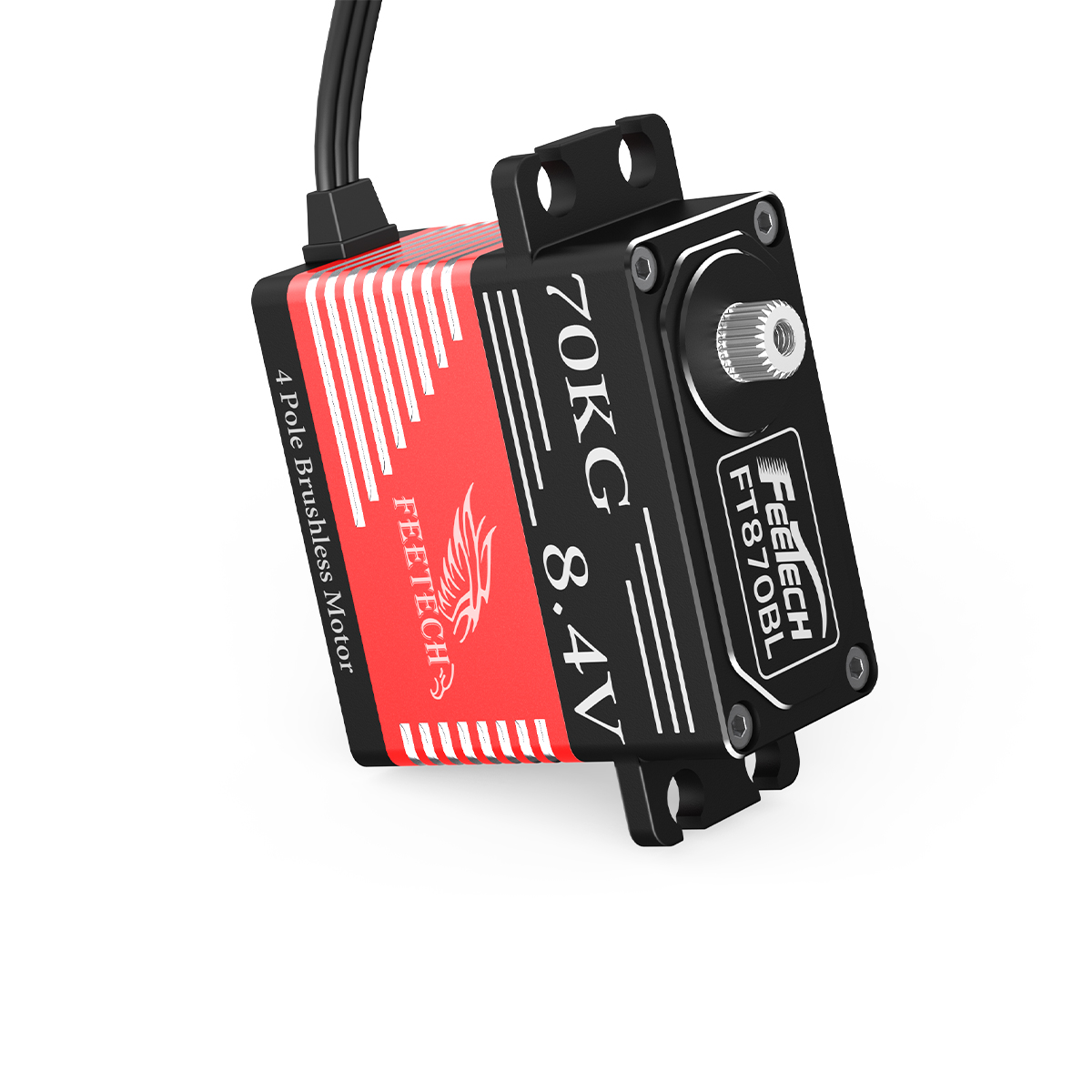

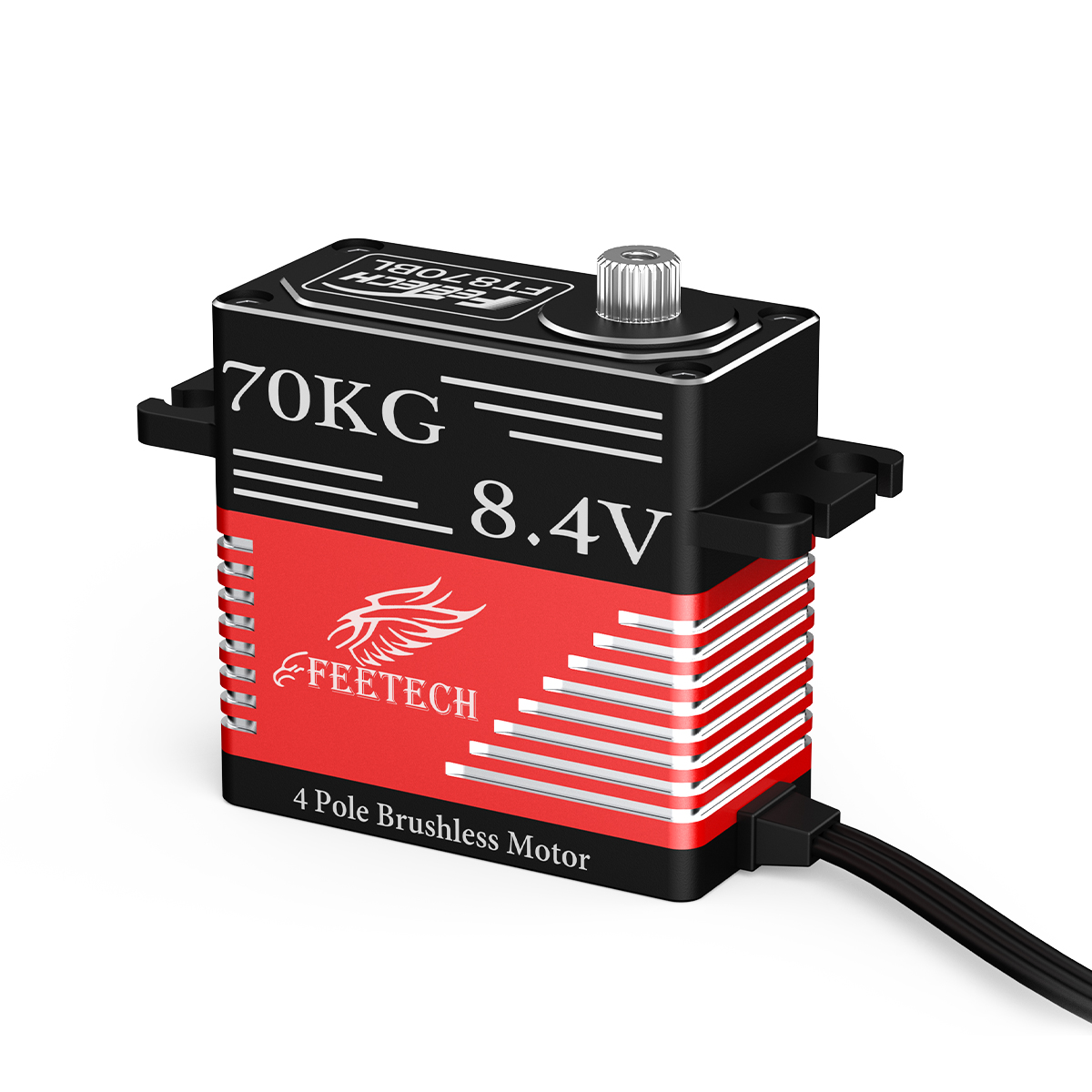

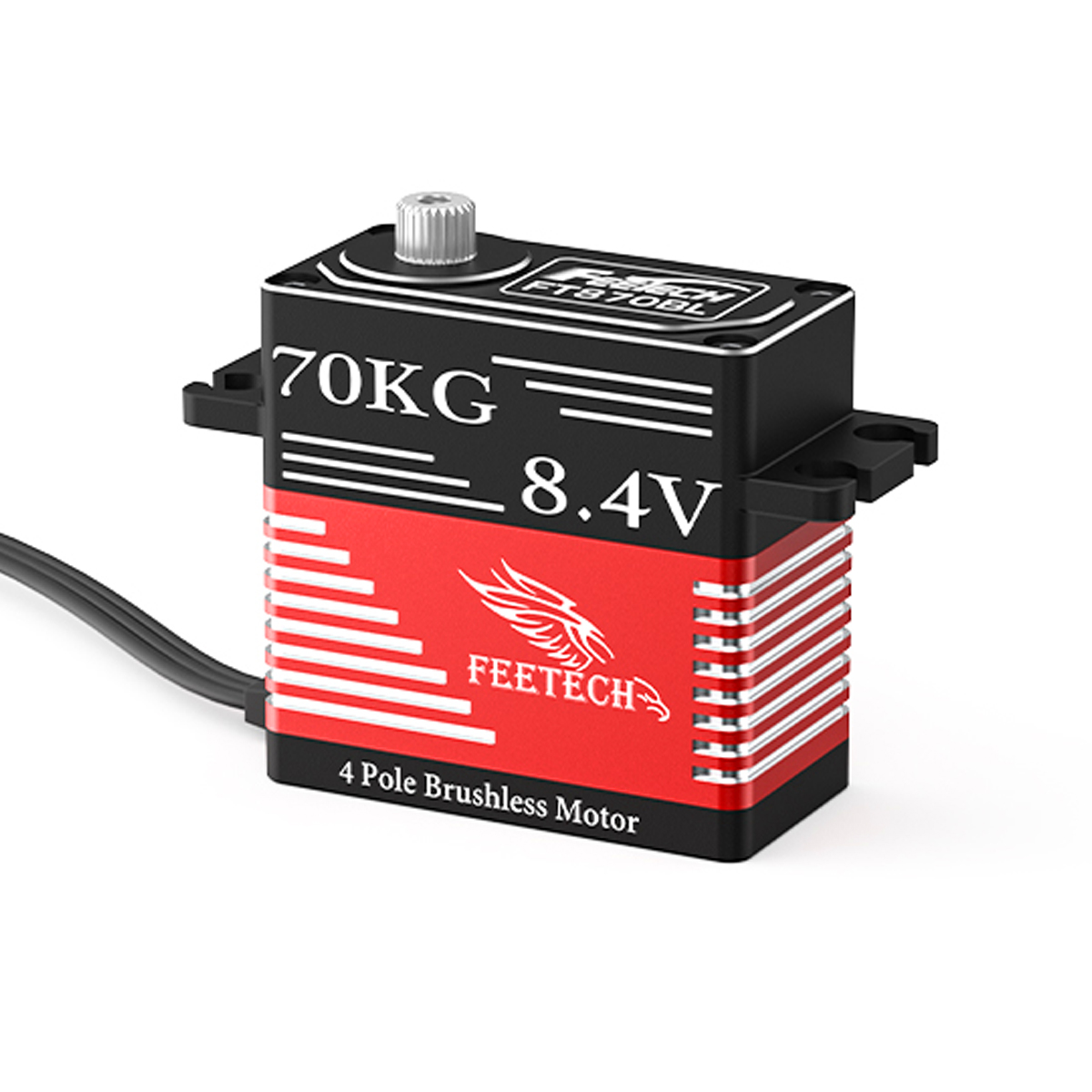

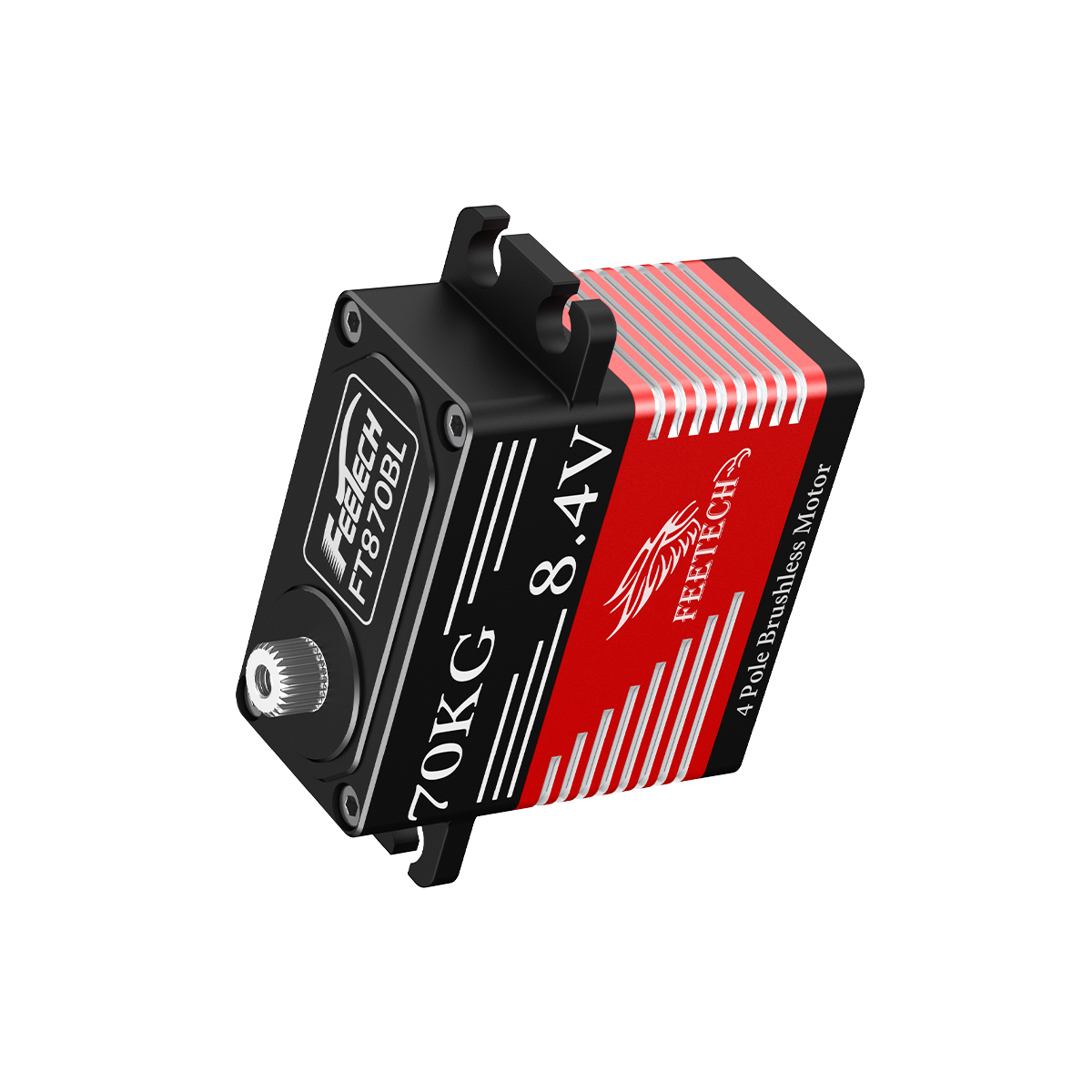

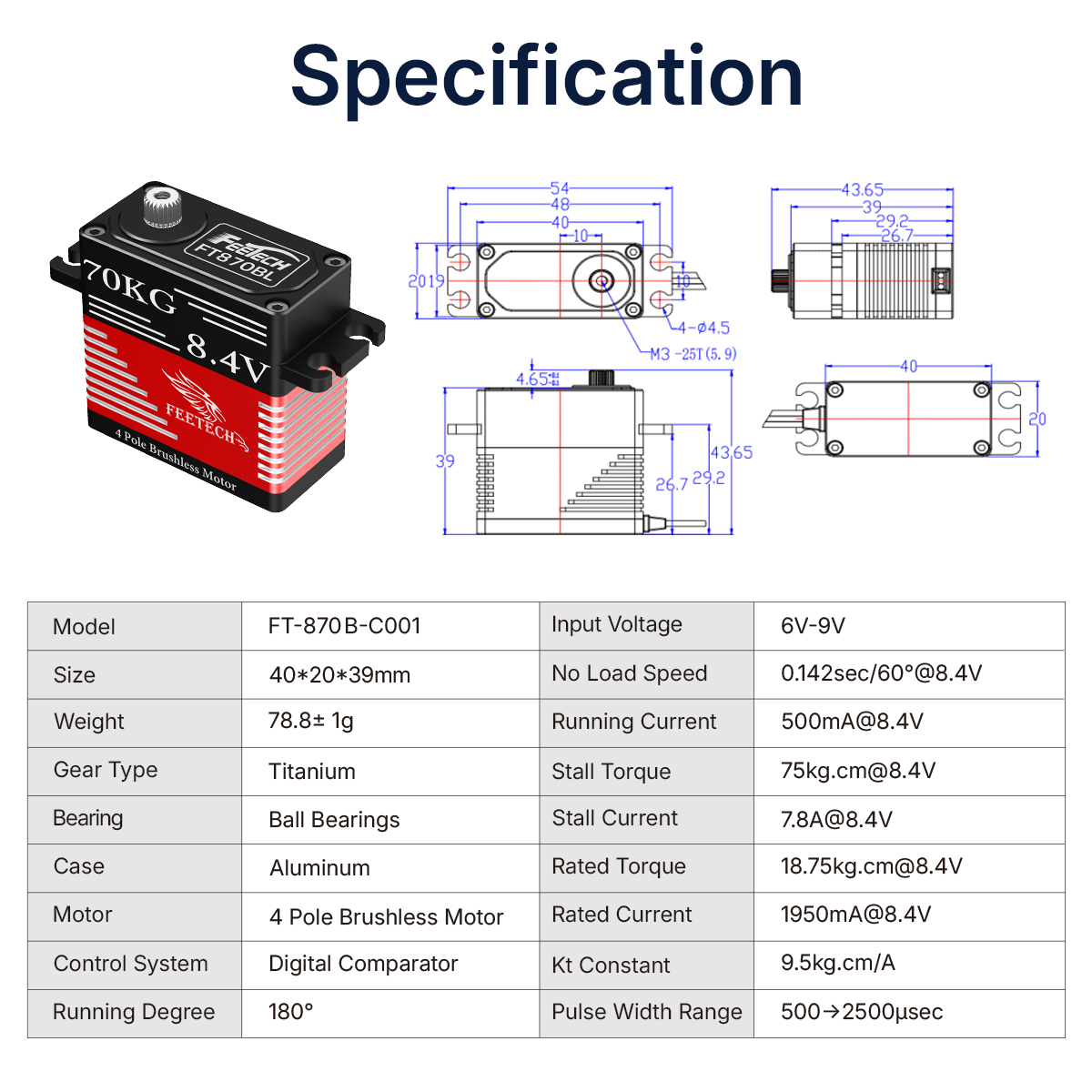

Model：FT-870B-C001

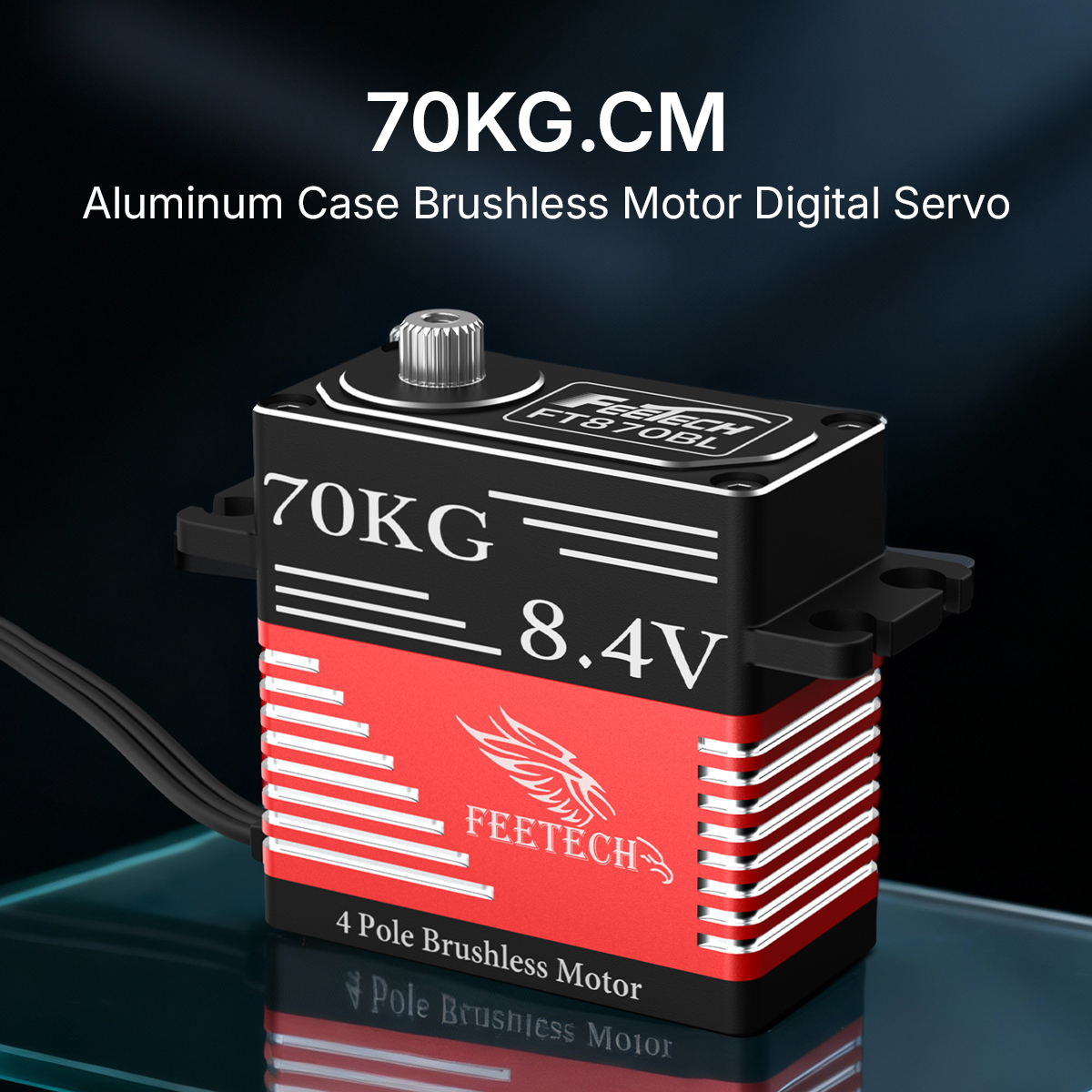

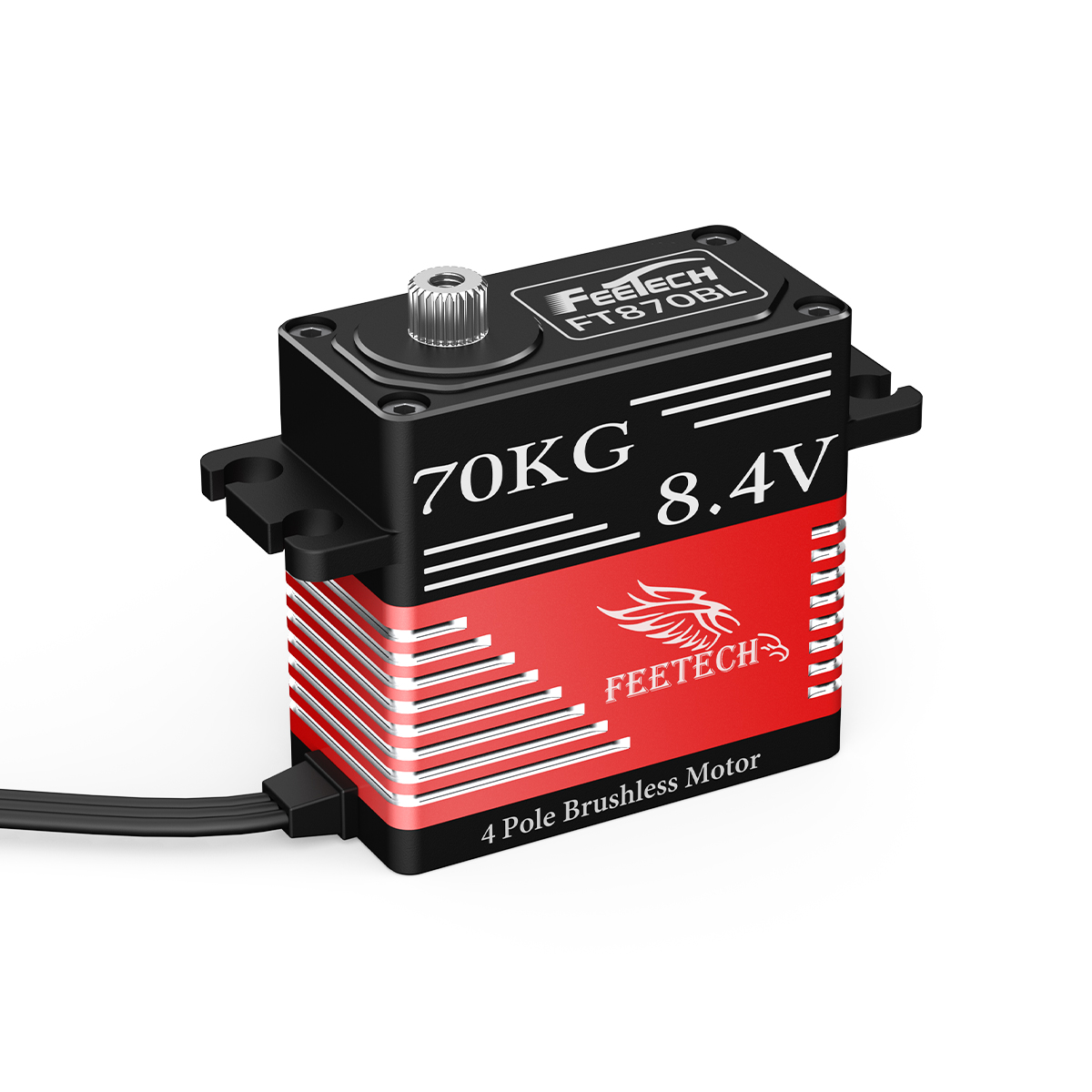

Product Name:7.4V 70KG 180 Degree Servo
Storage Temperature Range：-30℃～80℃
Operating Temperature Range：-20℃～60℃
Size: A：40mm B：20mm C: 39mm
Weight: 78.8± 1g
Gear type:Titanium
Limit angle:NO
Bearing: Ball bearings
Horn gear spline:25T/5.9mm
Gear Ratio：1/356
Case:Aluminum

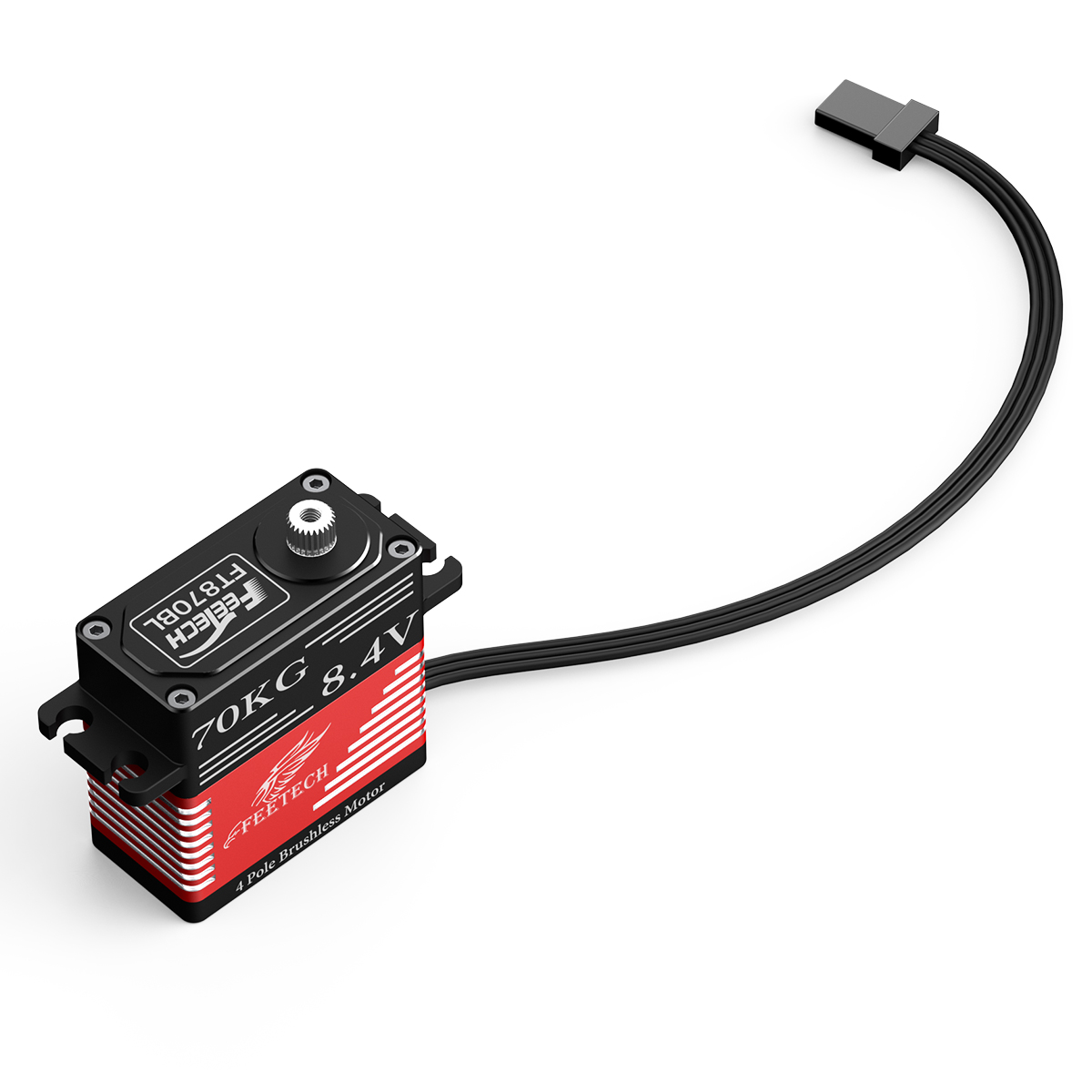

Connector wire: 30±0.5CM

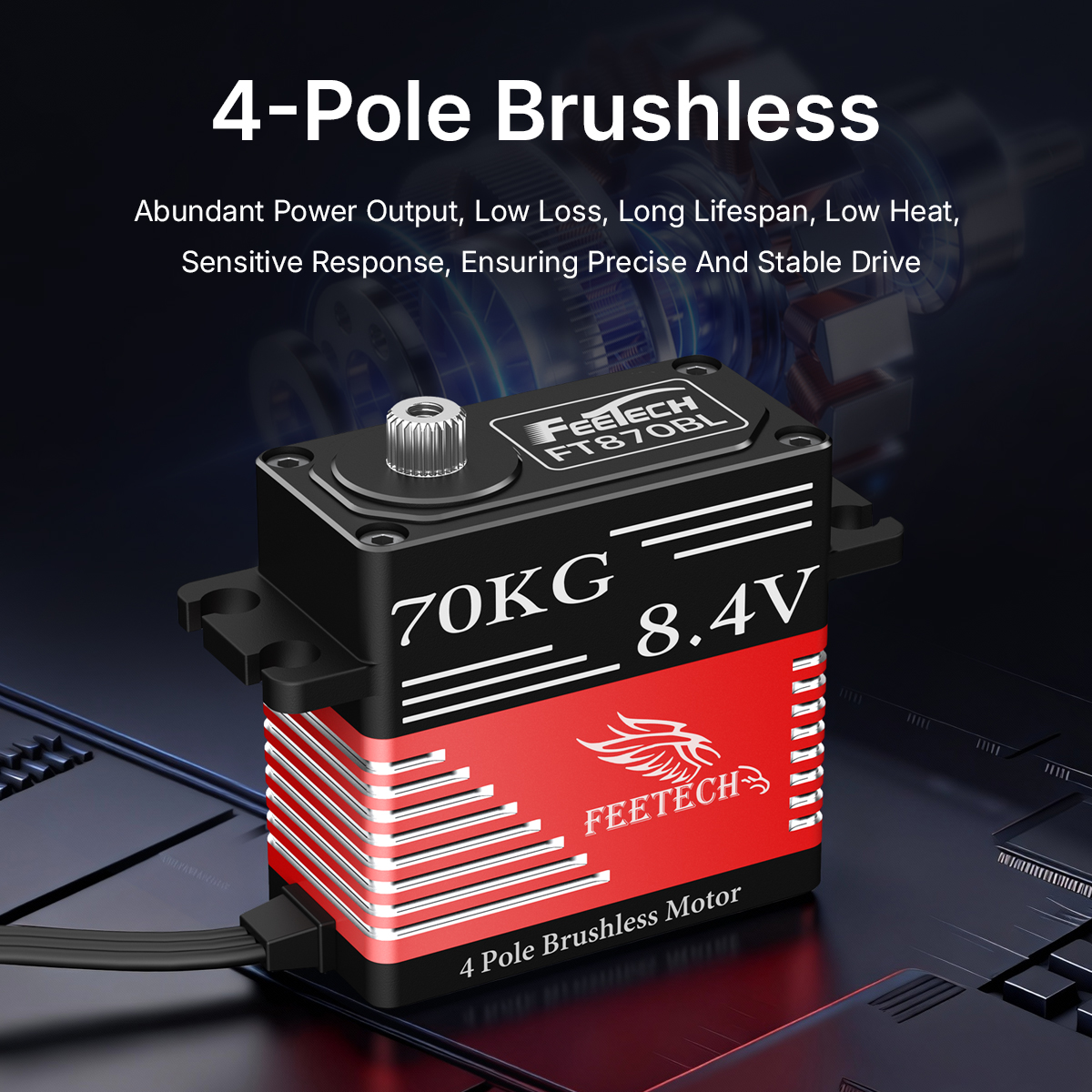

Motor:4 Pole Brushless Motor
Operating Voltage Range: 6-9V
Idle current (atstopped)：26mA@8.4V
No load speed:0.142sec/60°(70RPM)@8.4V
Runnig current(at no load) :500mA@8.4V
Peak stall torque:75kg.cm@8.4V
Rated torque:18.75kg.cm@8.4V
Command signal：Pulse width modulation
Control System Type：Digital comparator
Pulse width range：500~2500 μ sec
Stop position：1500 μ sec
Running degree：180±5°(at 500→2500μsec)
Dead band width：≤4 μ sec
Rotating direction：Counterclockwise(at1500→2000 μsec)
