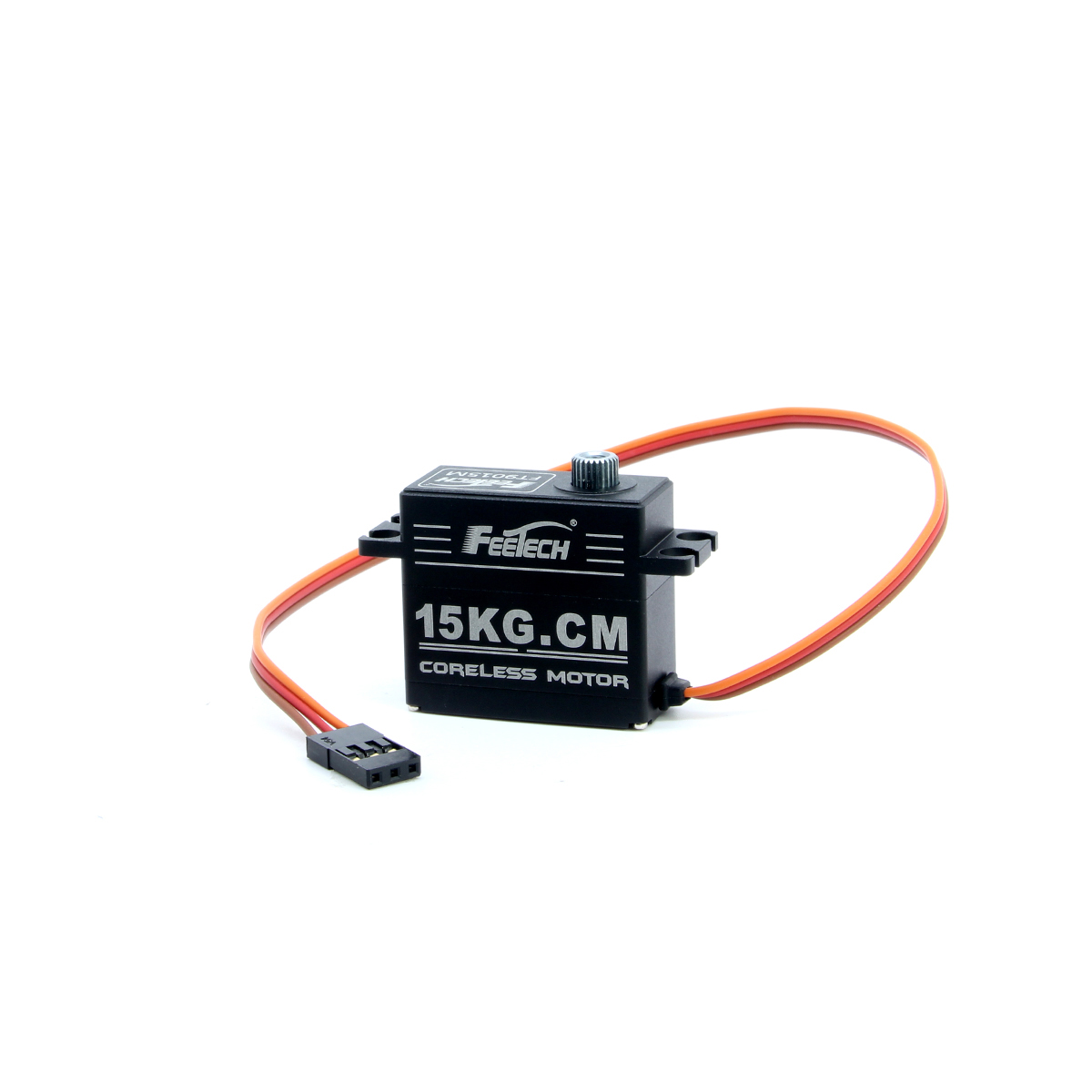

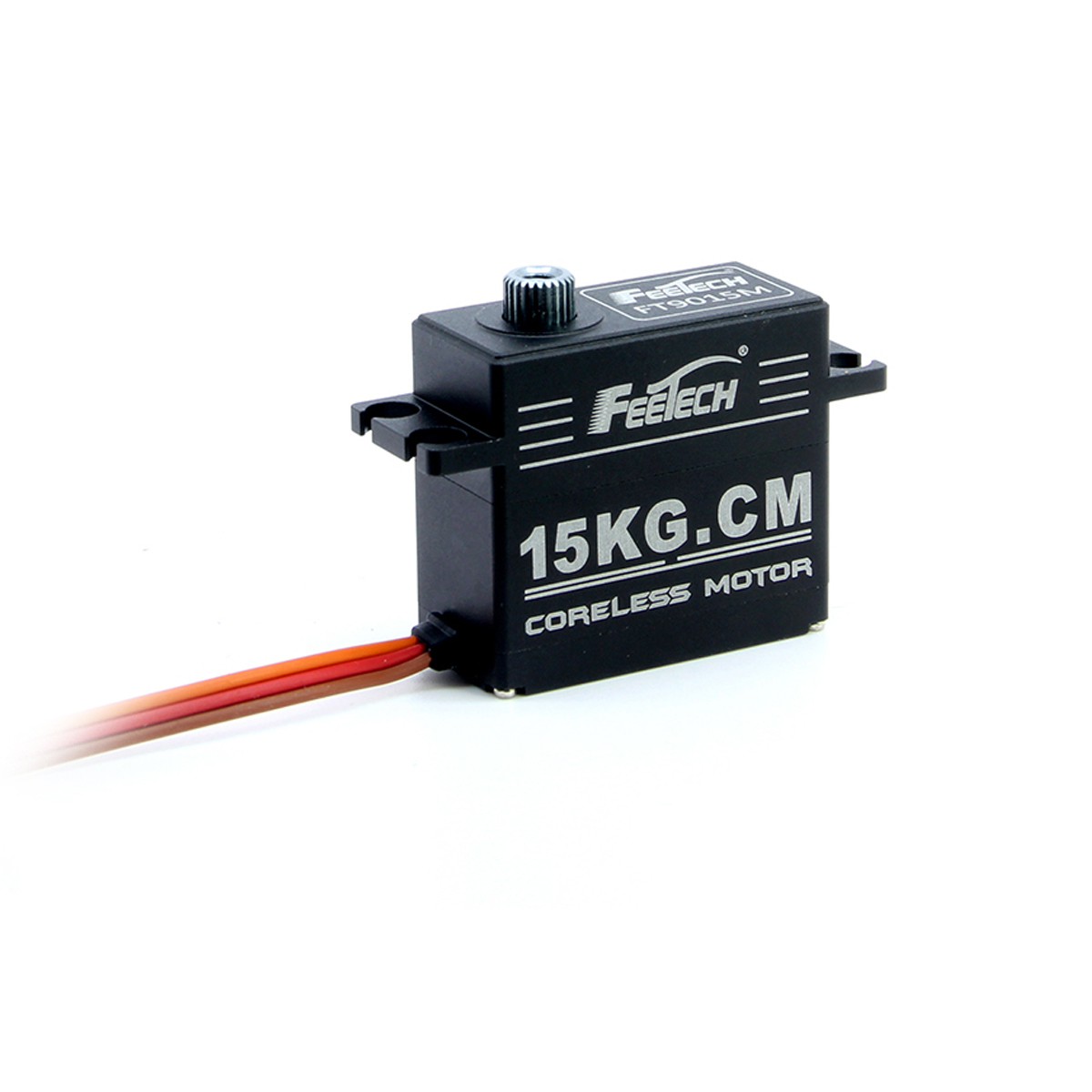

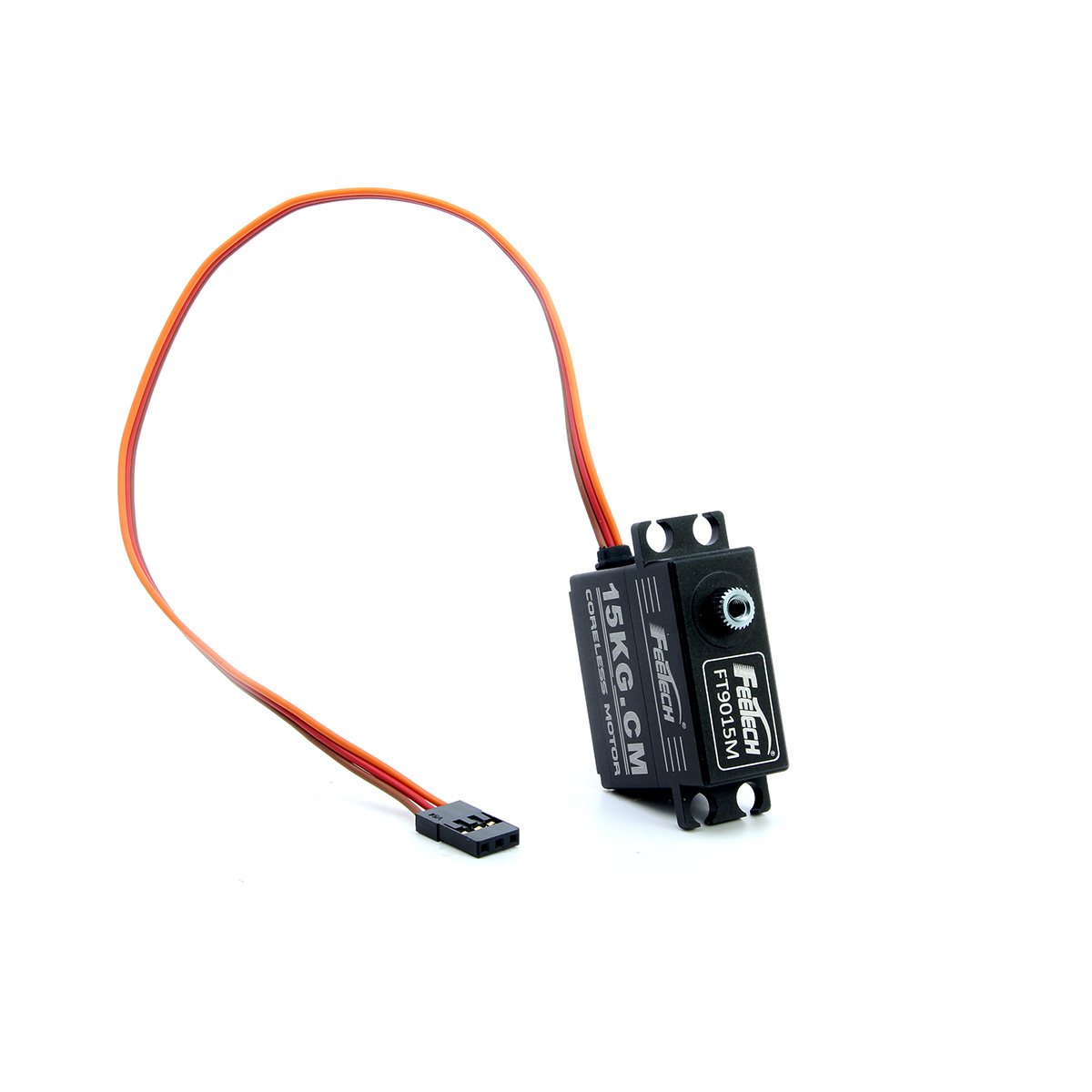

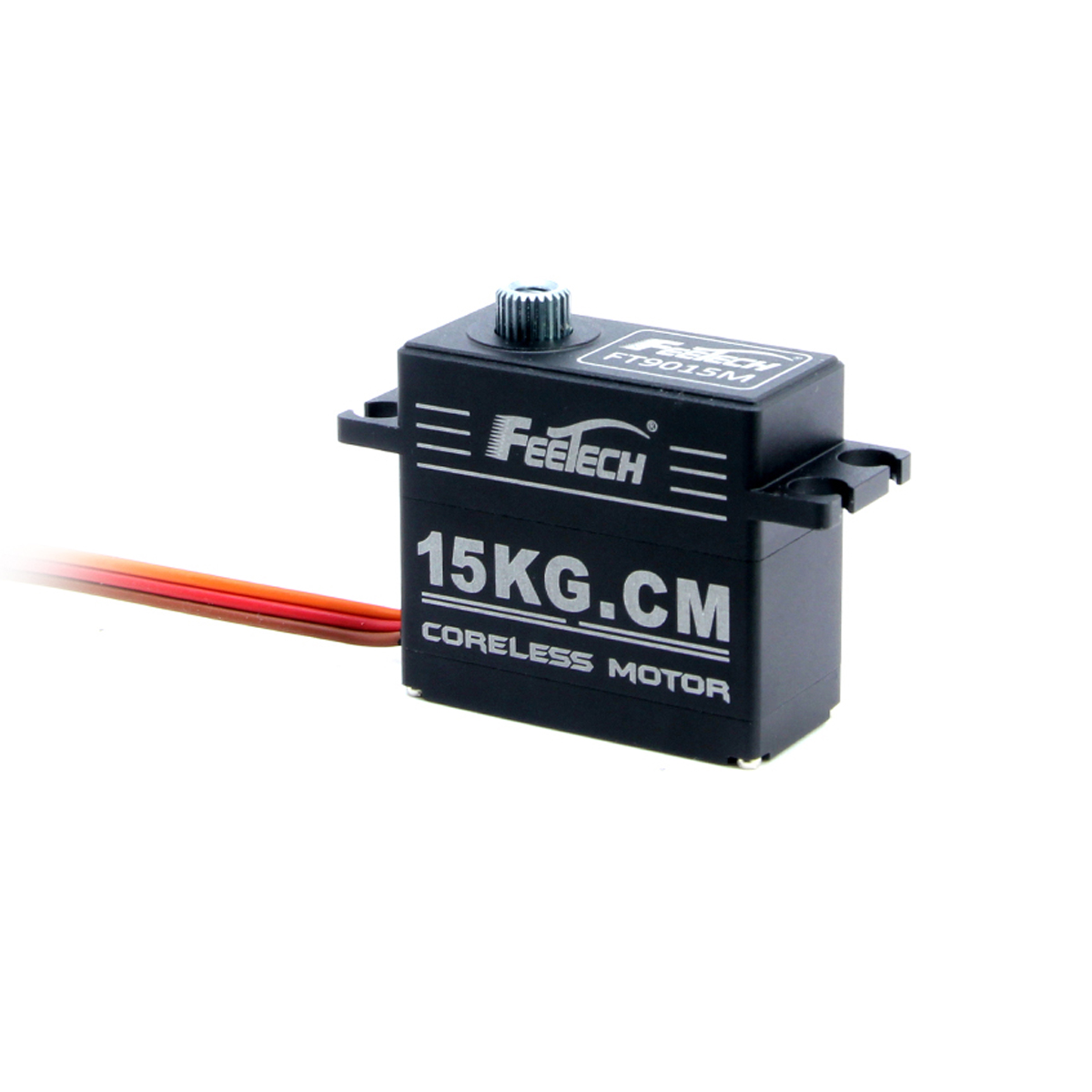

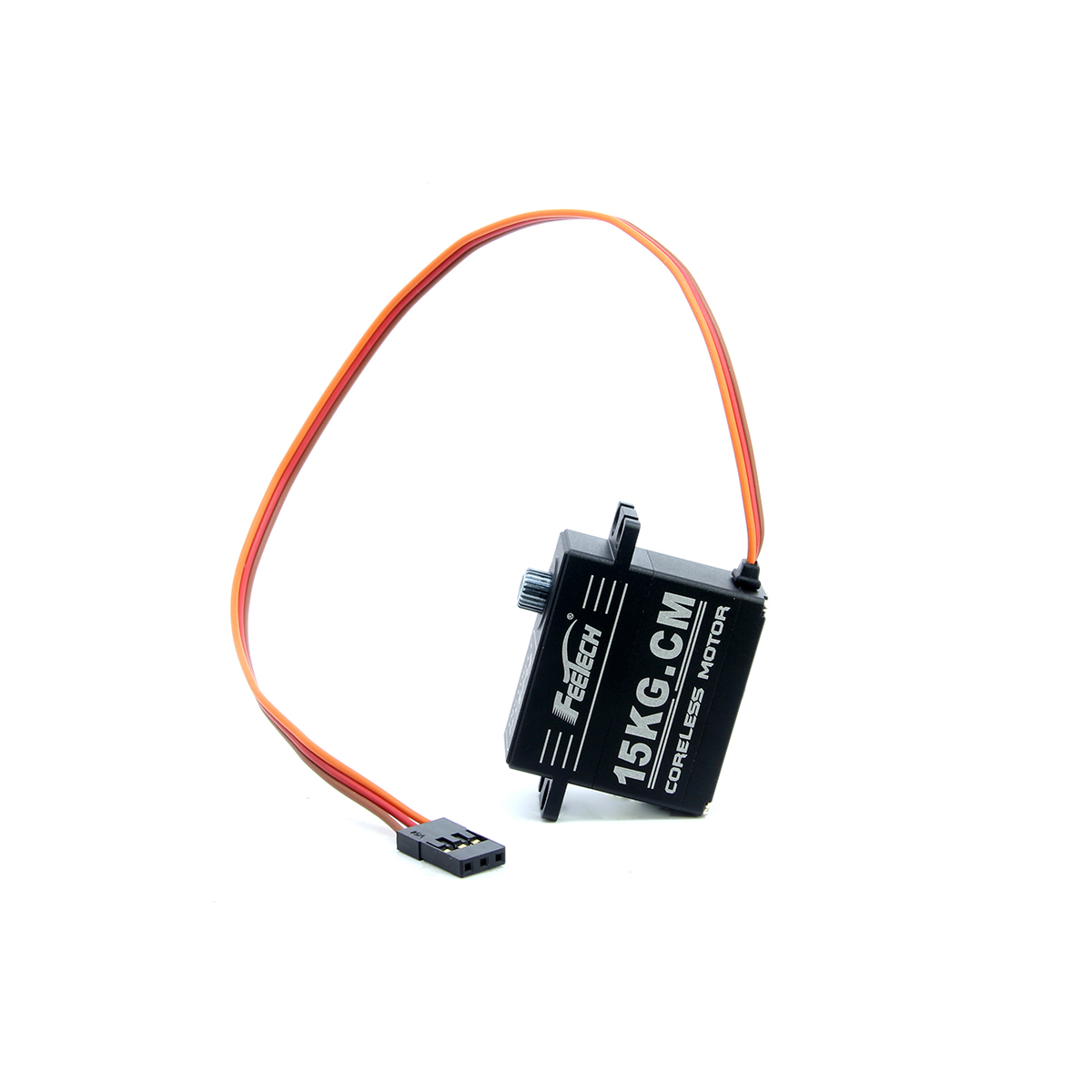

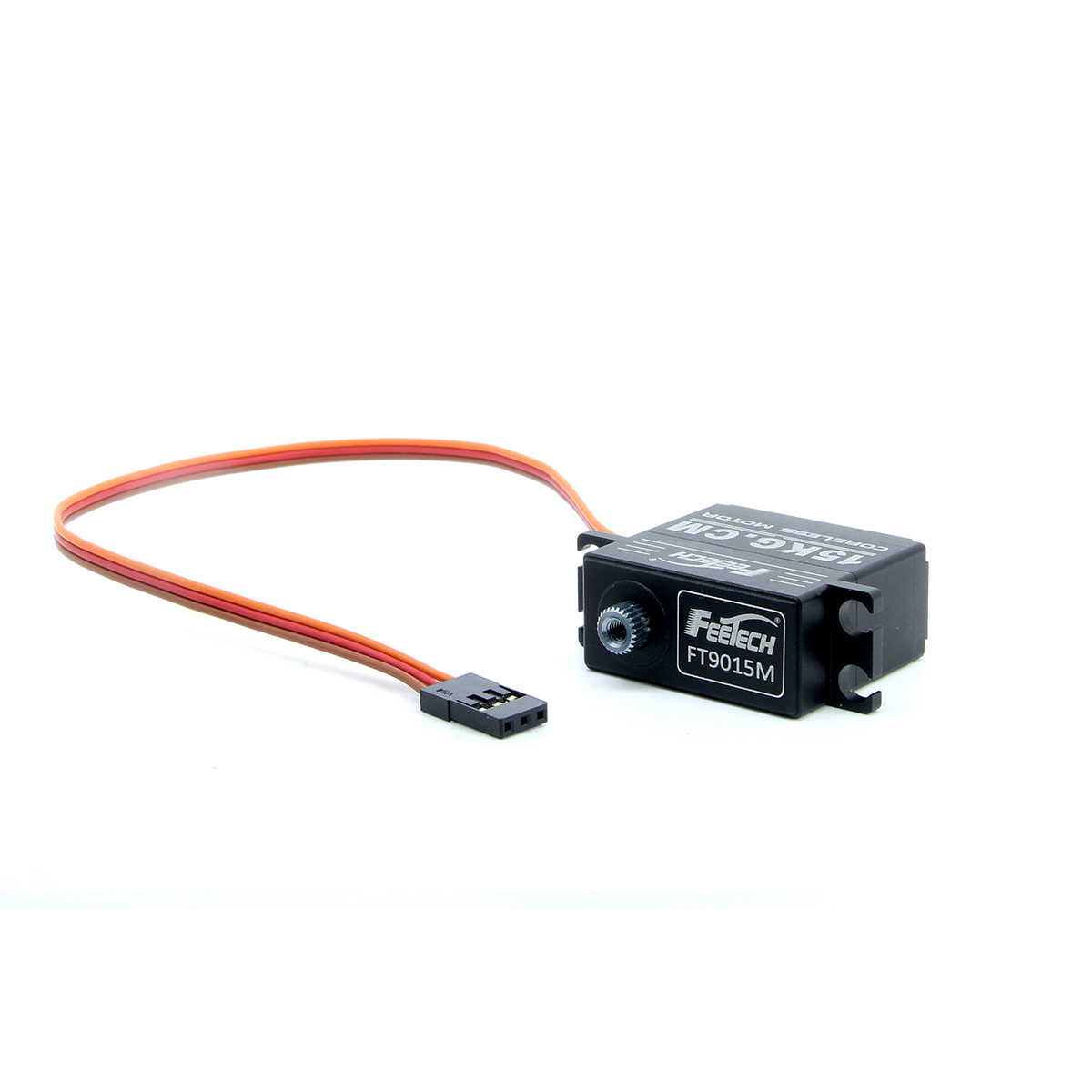

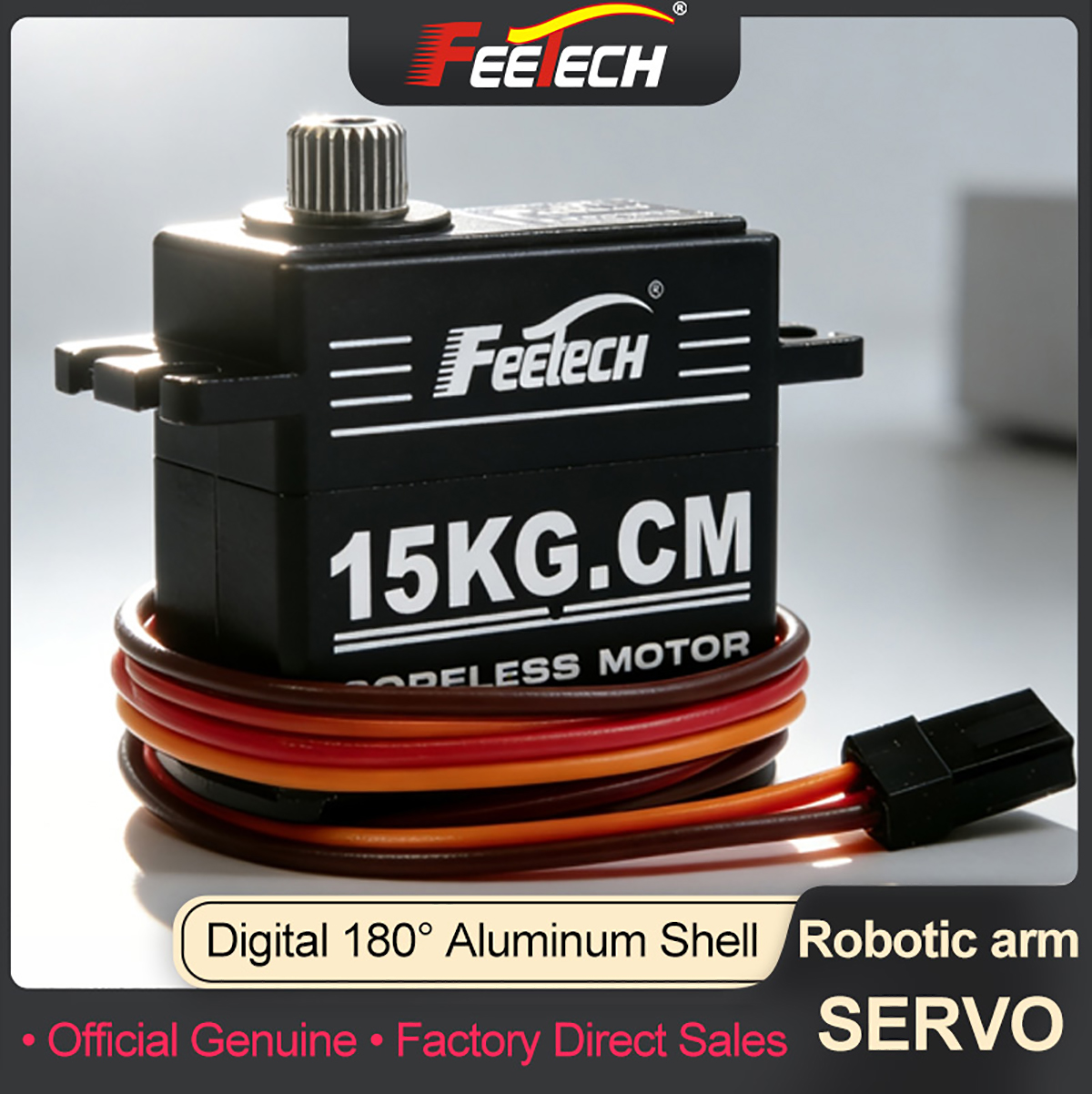

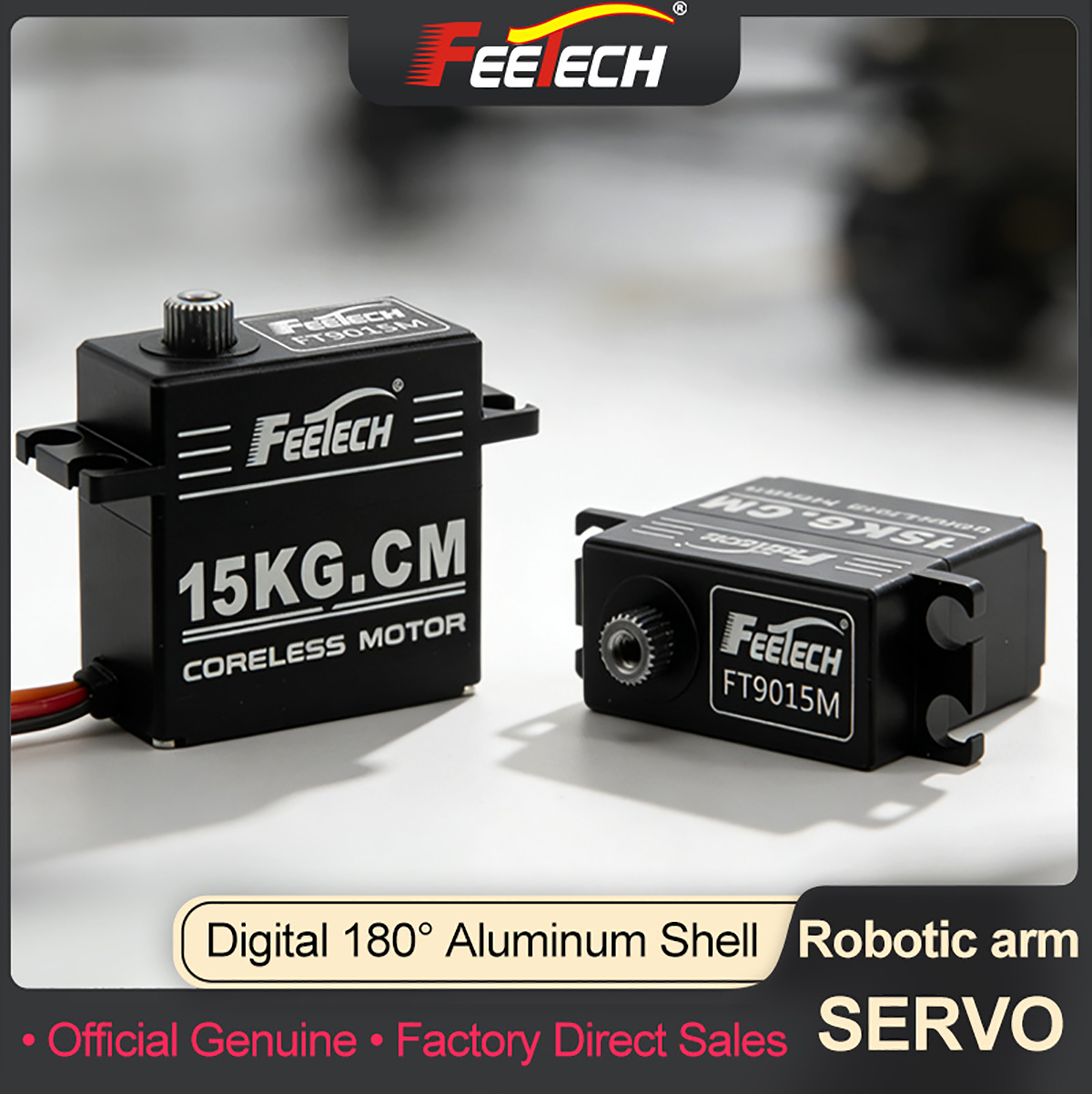

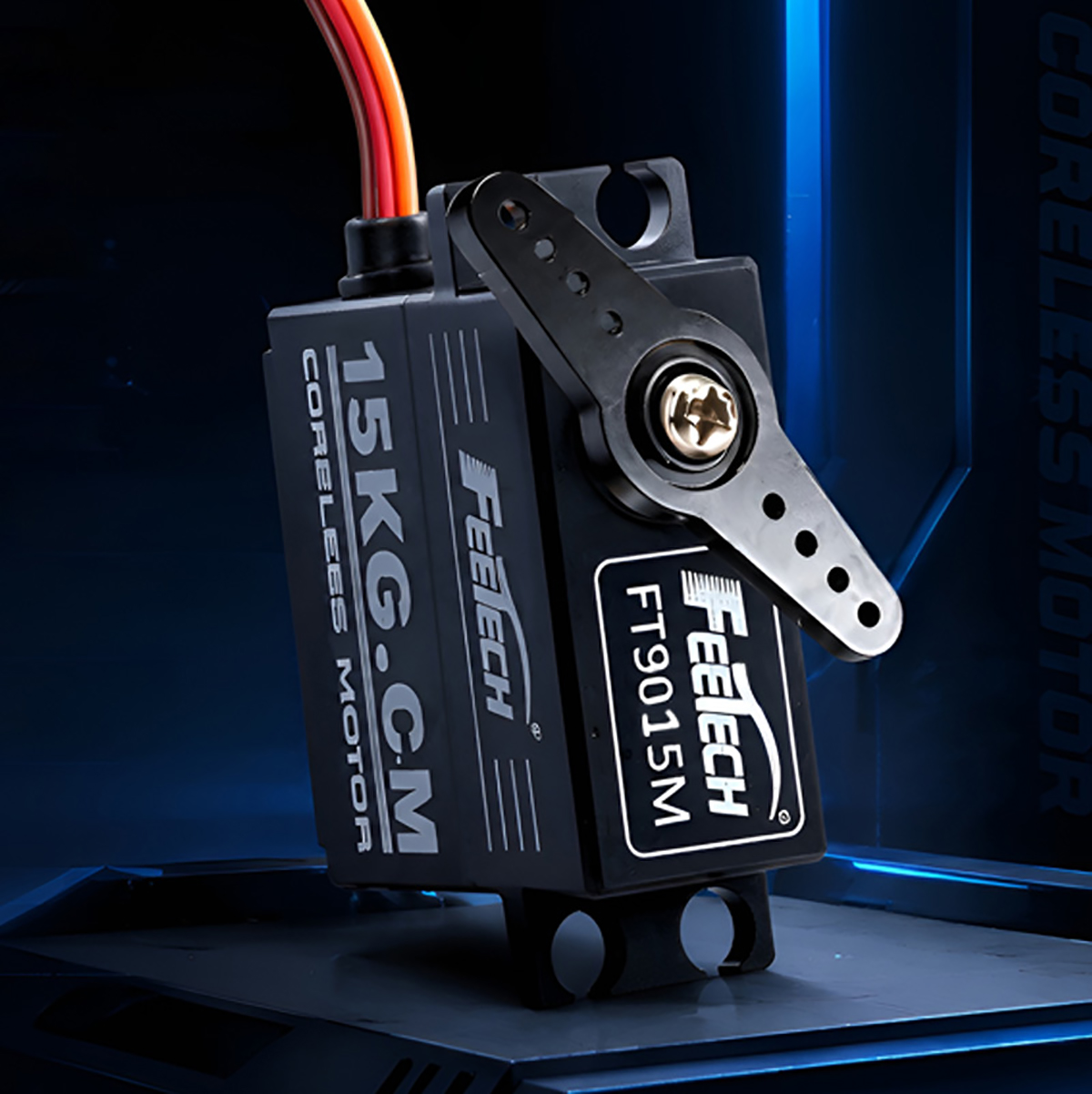

Feetech FT9015M 7.4V 15kg Torque 180 Degree Metal Gear Coreless Motor Digital Servo

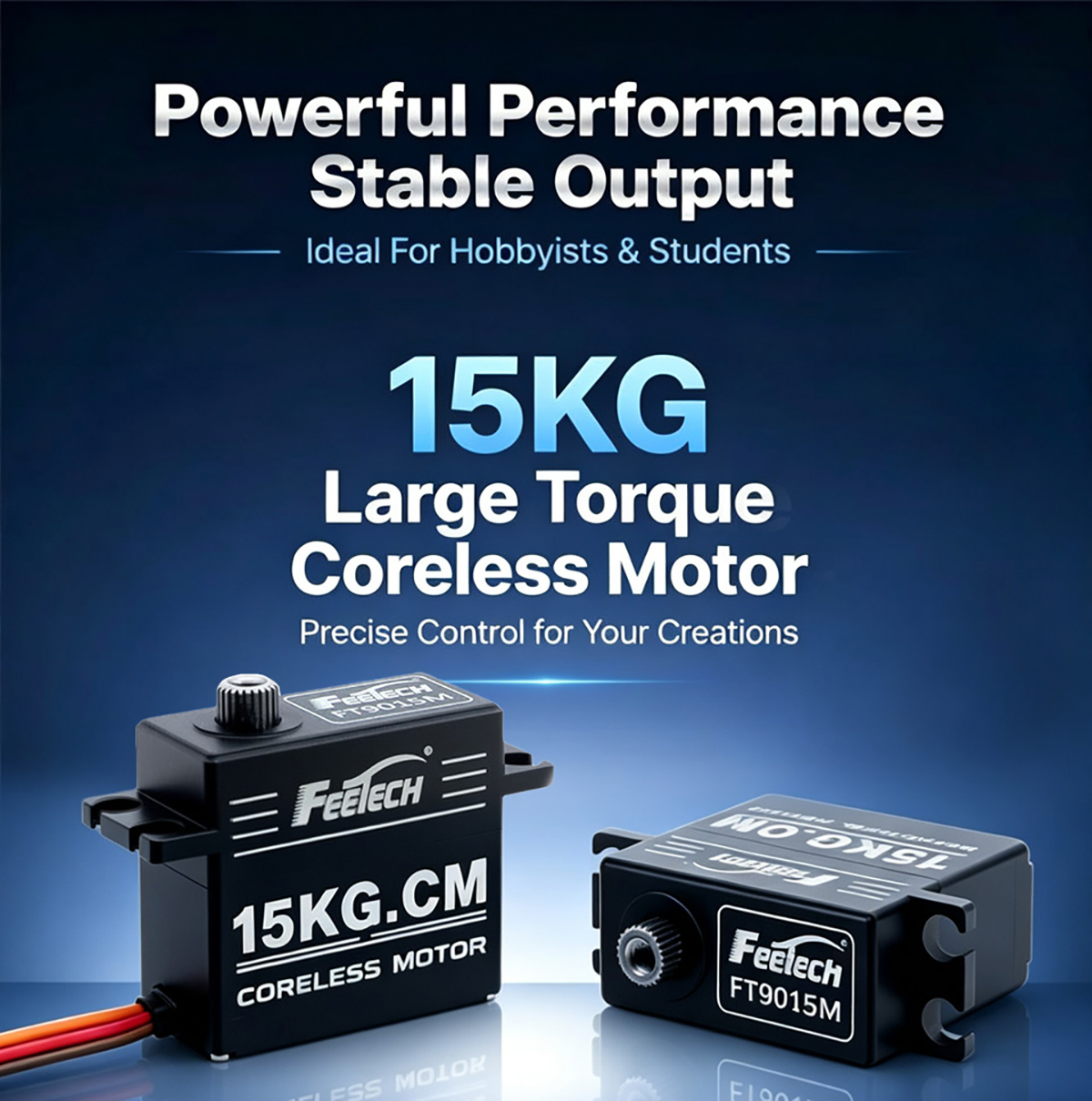

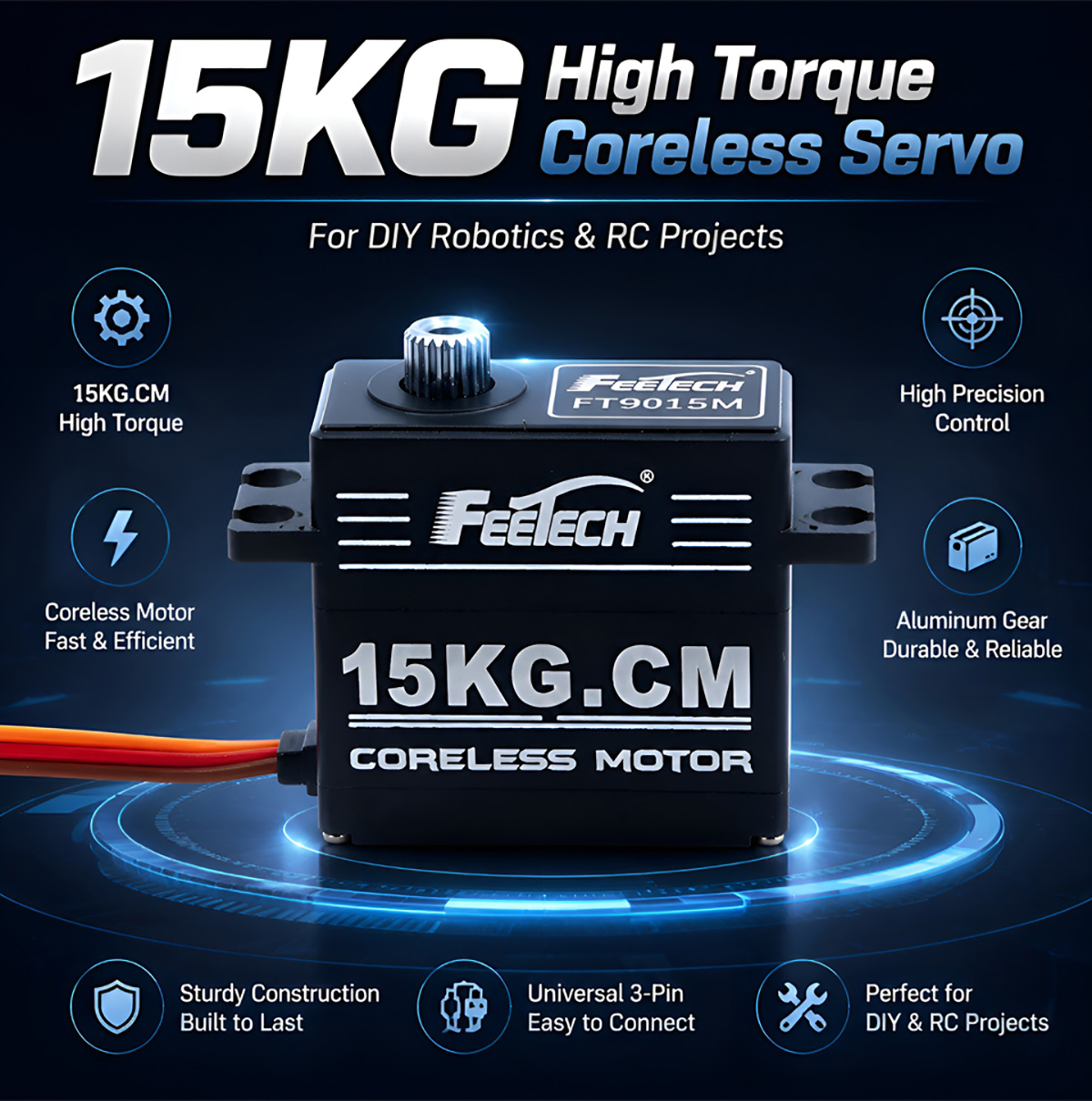

FT9015M is a Small body, big torque servo ! lightweight,smart but powerful!The low profile size is only 32X15X29.2mm; 7.4V 15kg.cm digital 180 degree aluminum shell metal gear coreless servo.
Recommended use: competition glider, lightweight aircraft, small rc helicopters, small rc cars, small rc boats.
Model: FT-9015-C001
Storage temperature range: -30℃～80℃
Operating temperature range: -20℃～60℃

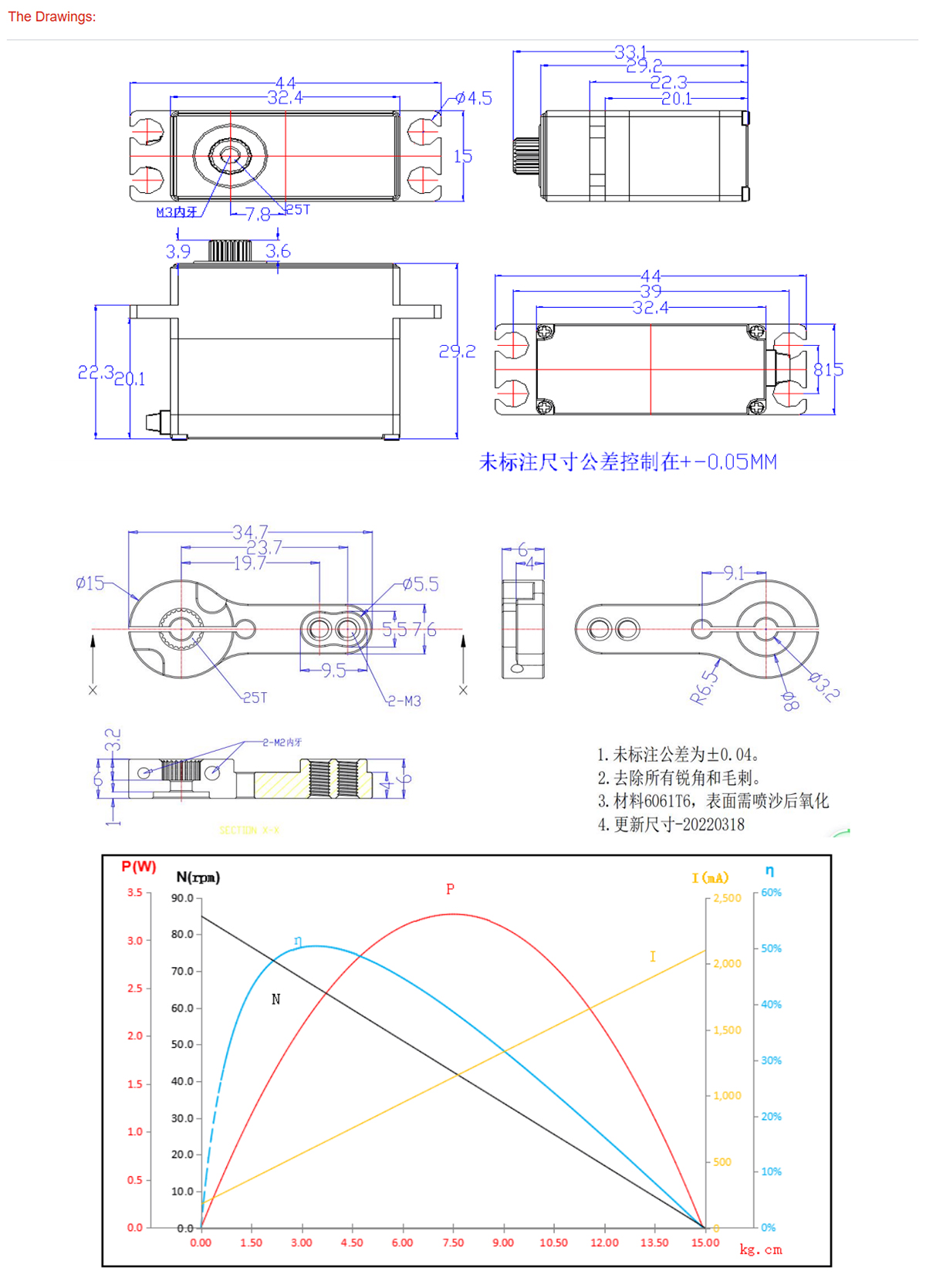

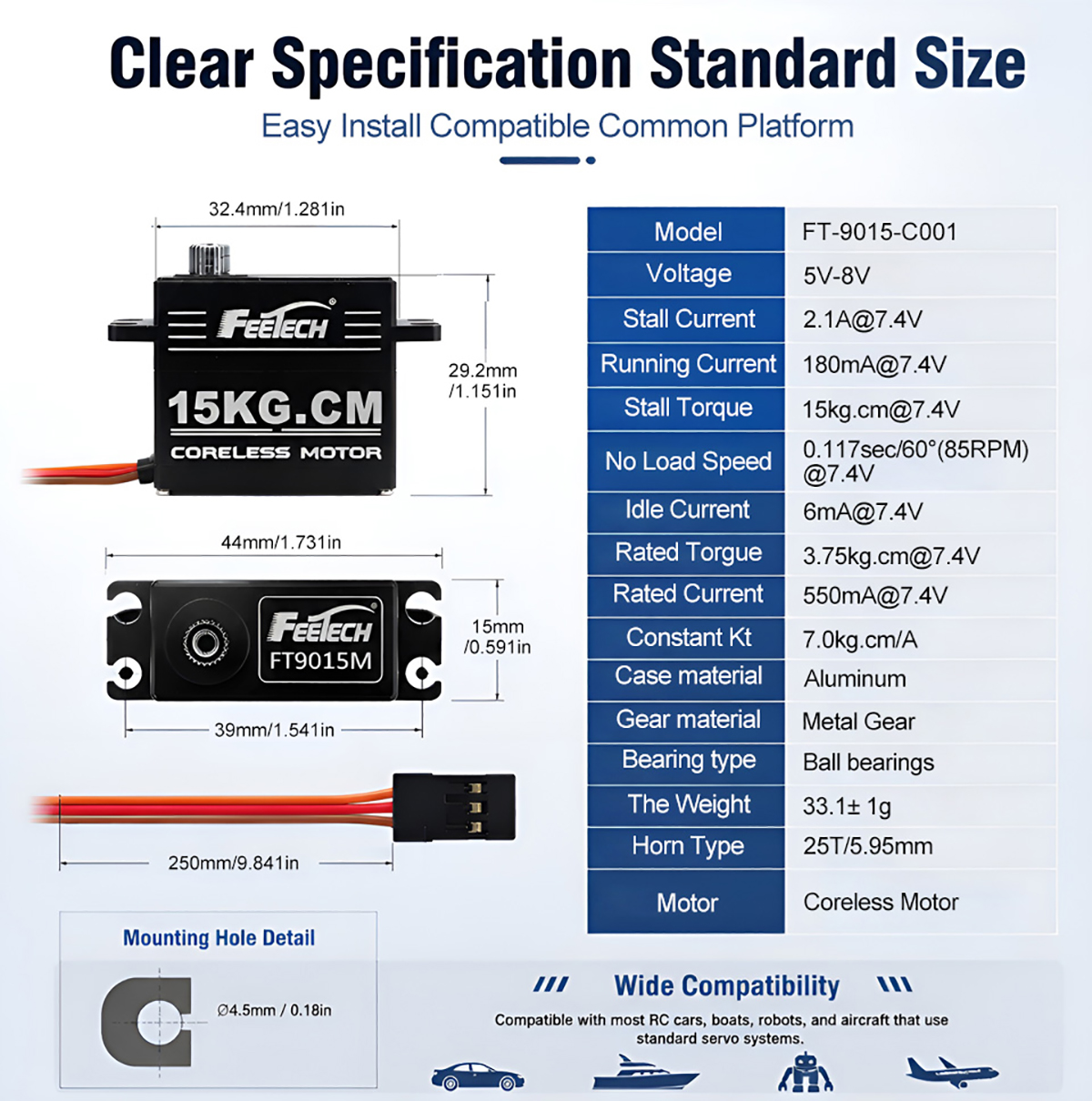

Size: 32*15*29.2mm
Weight: 33.1±1g
Gear type: Metal gear
Limit angle: No limit
Bearing: Ball bearings
Horn gear spline: 25T/5.95mm
The rocker phantom: 0°

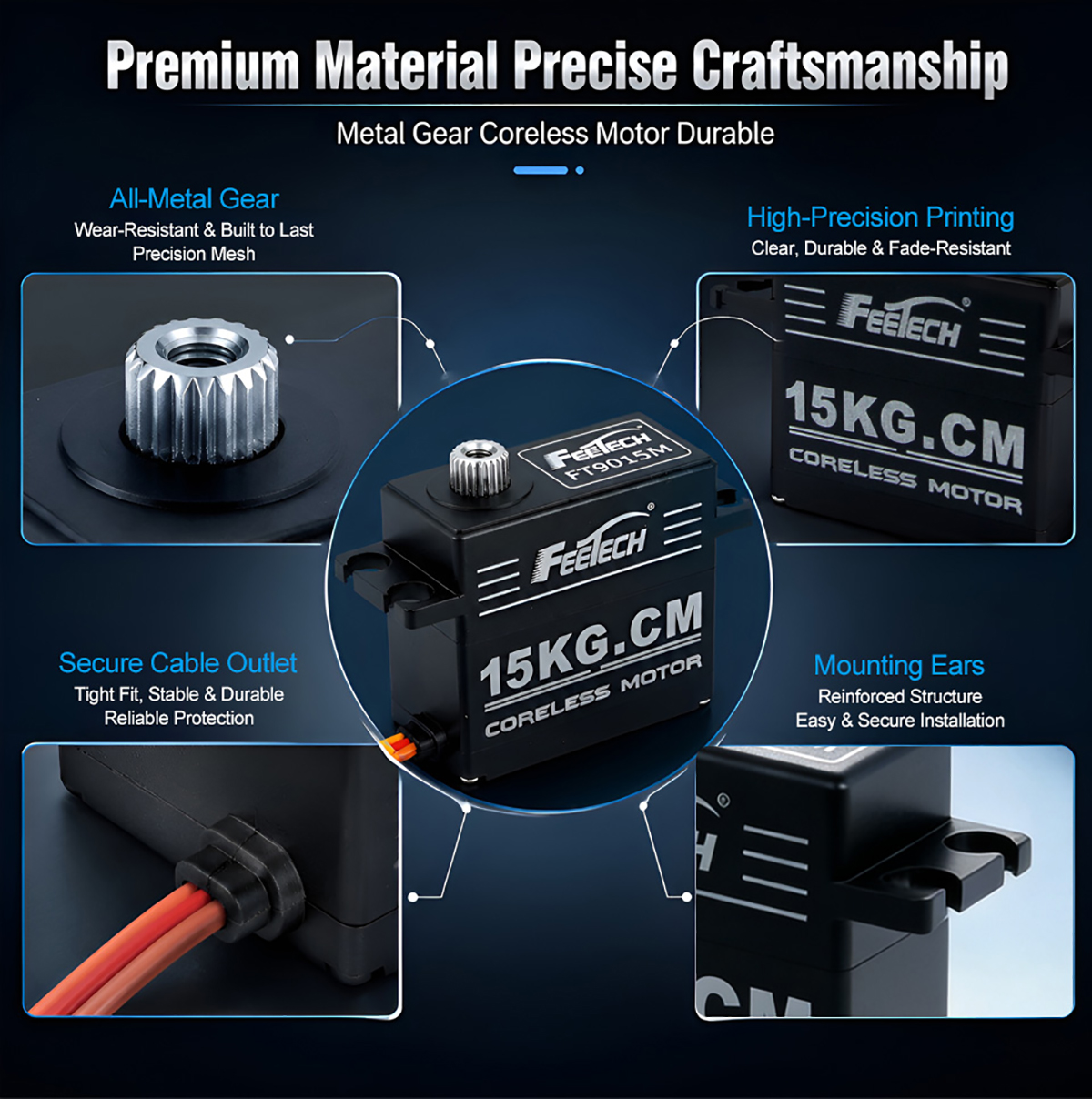

Case: Aluminum
Connector wire: 25cm

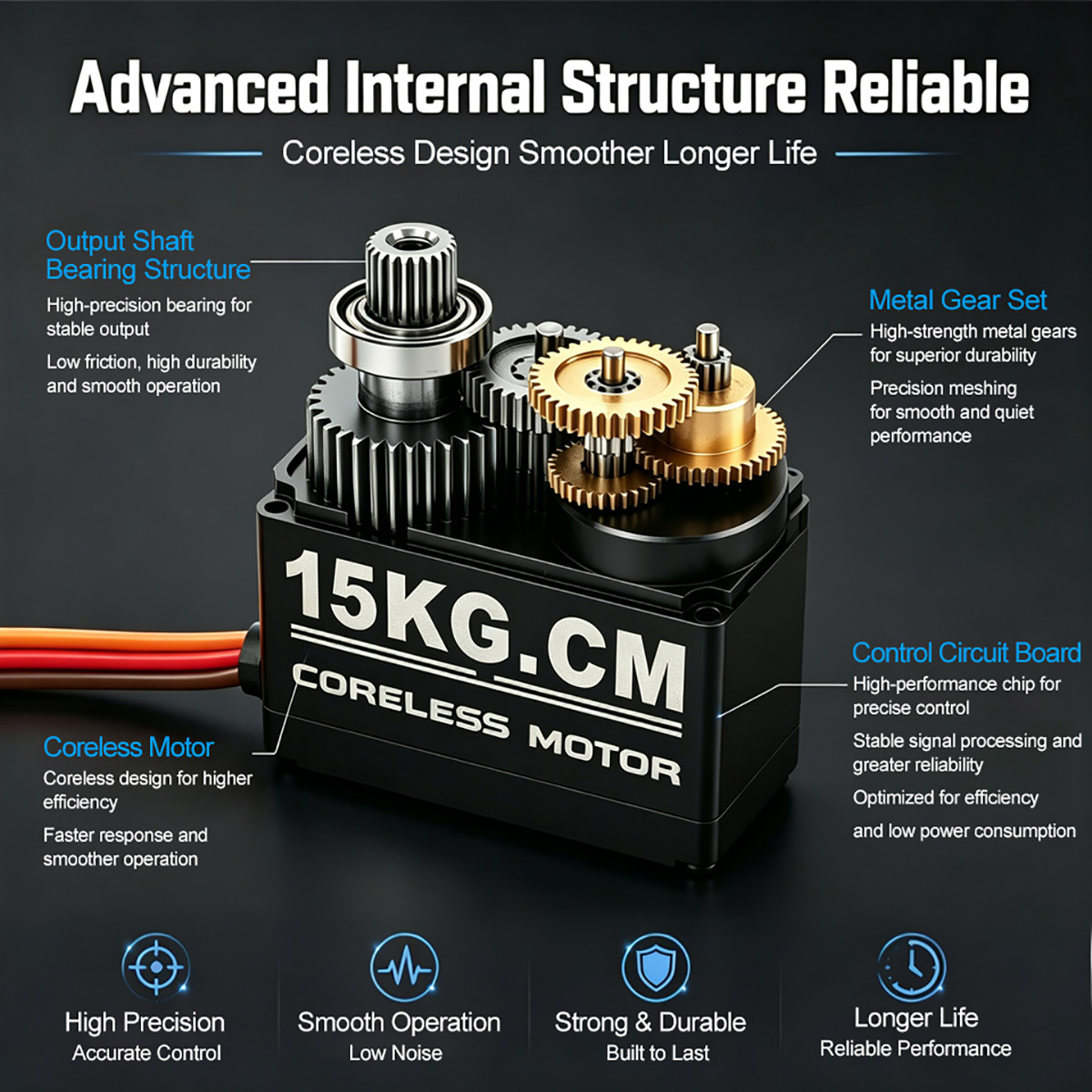

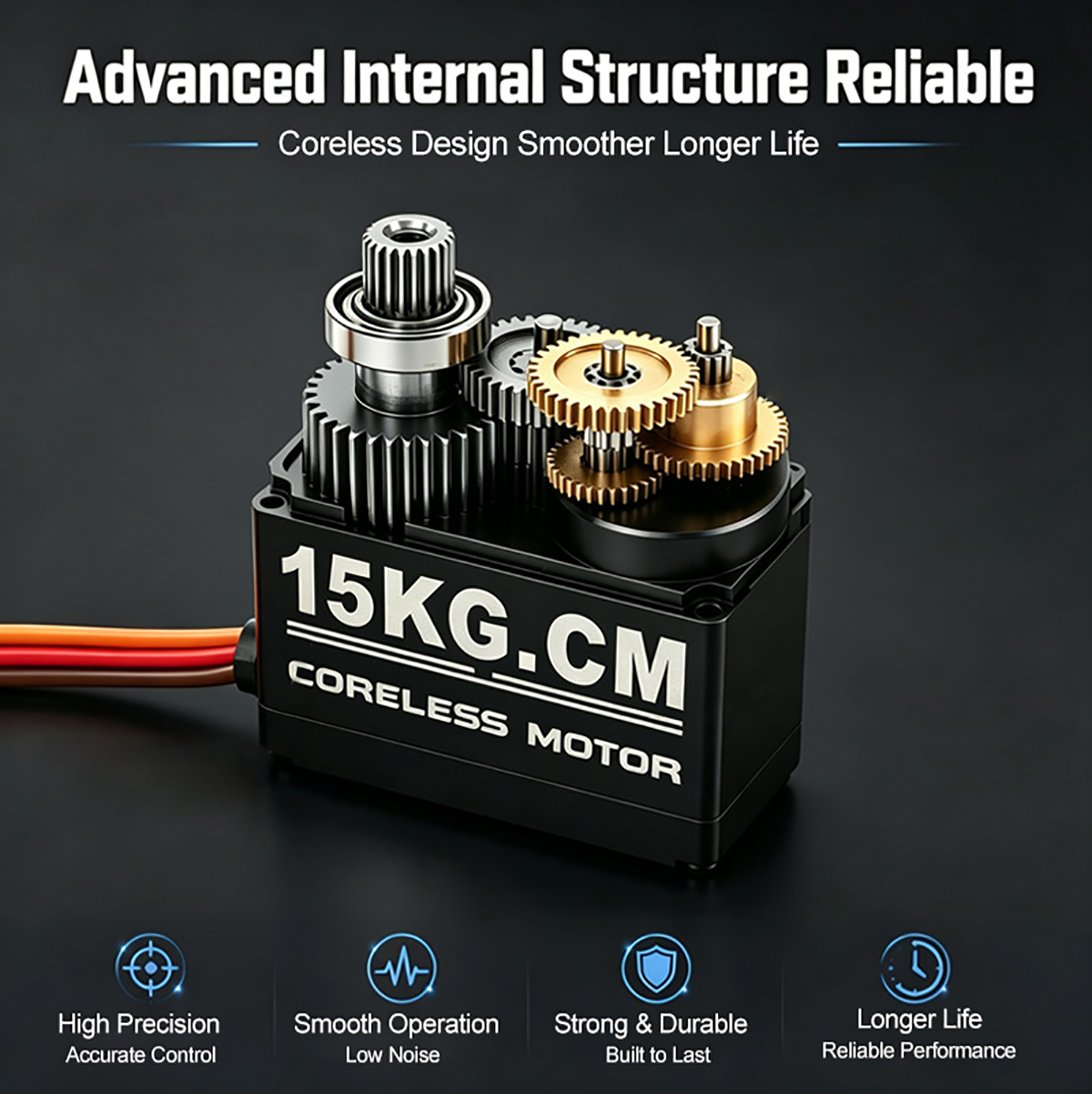

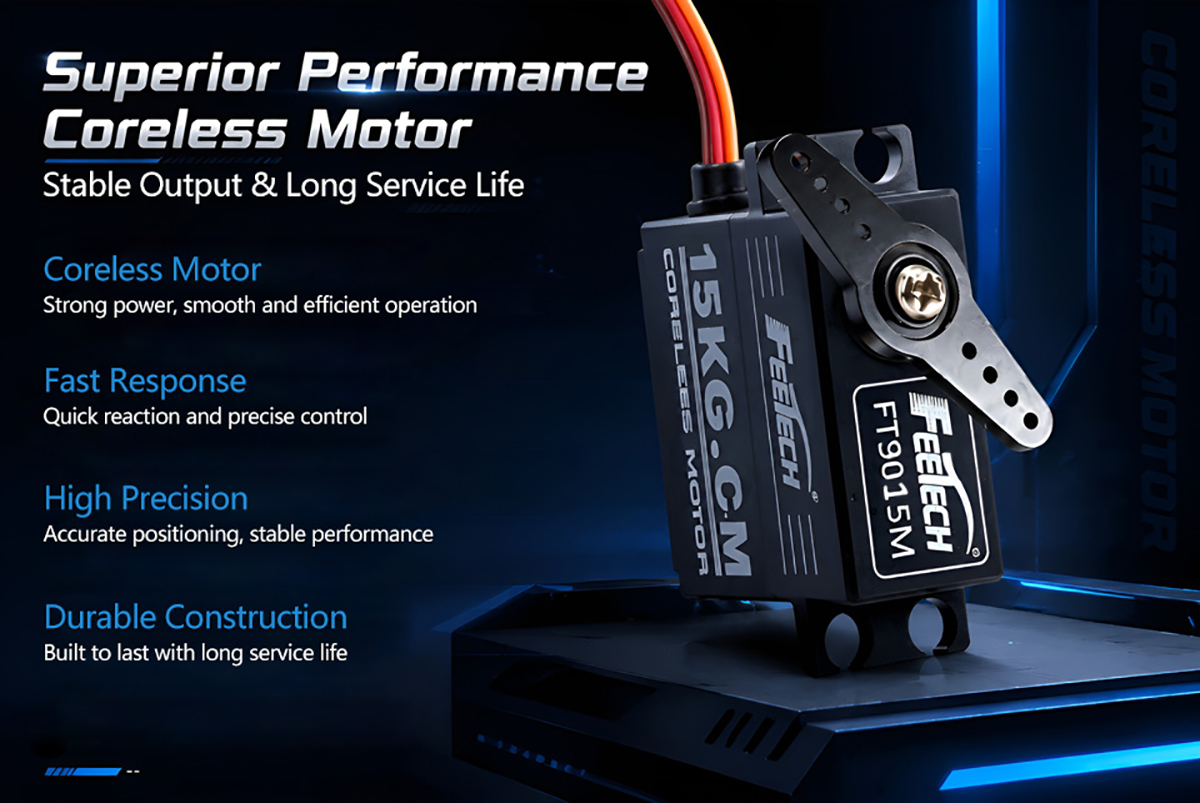

Motor: Coreless motor
Operating voltage range: 5-8V
Idle current (at stopped): 6mA@7.4V
No load speed: 0.117sec/60°@7.4V
Running current(at no load): 180mA@7.4V
Peak stall torque: 15kg.cm@7.4V
Rated torque: 3.75kg.cm@7.4V
Stall current: 2.1A@7.4V
Command signal: Pulse width modification
Amplifier type: Digital comparator
Pulse width range: 500~2500usec
Stop position: 1500μsec
Running degree: 180° (at 500→2500μsec)
Dead band width: ≤4μsec
Rotating direction: Counterclockwise (at 1500→2000μsec)

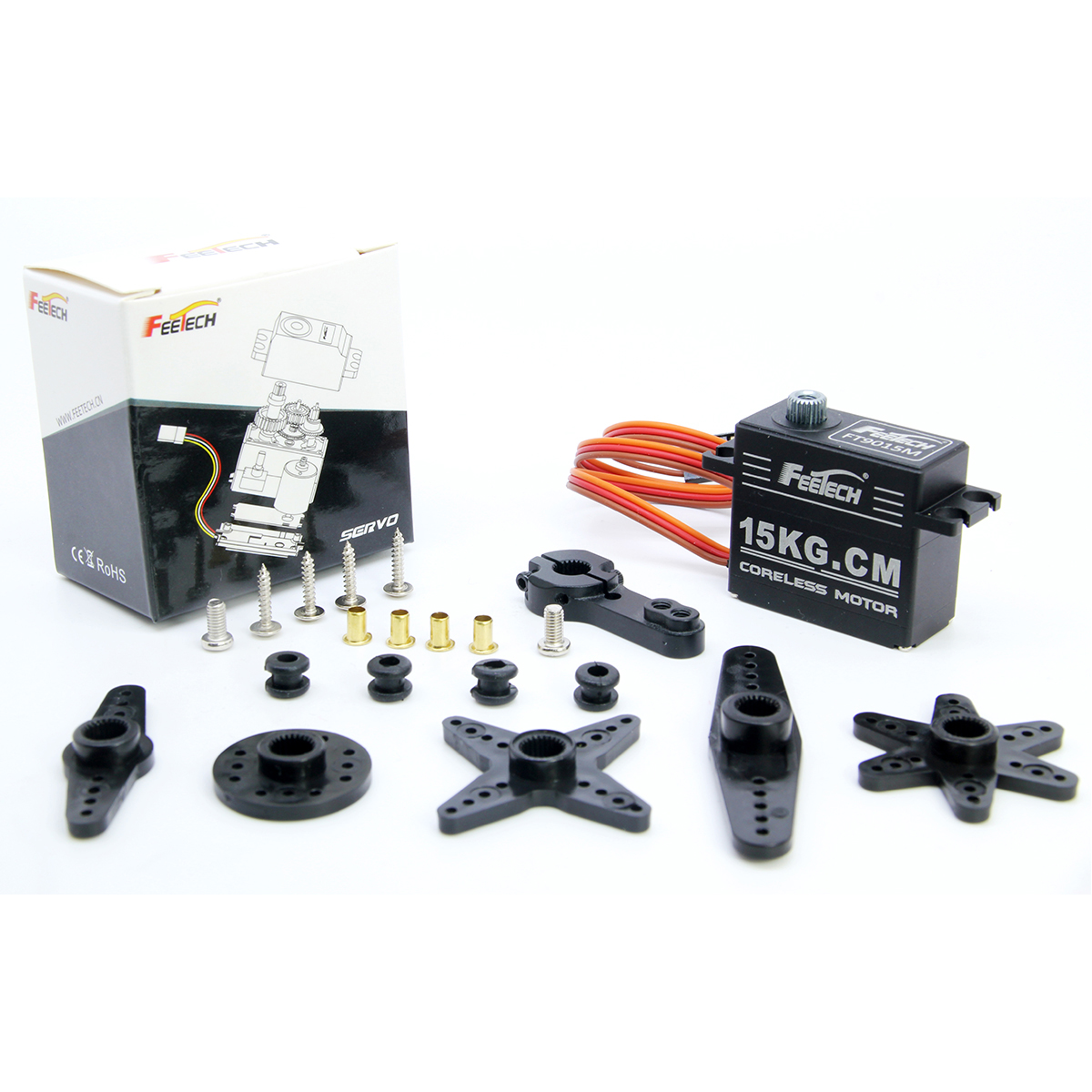

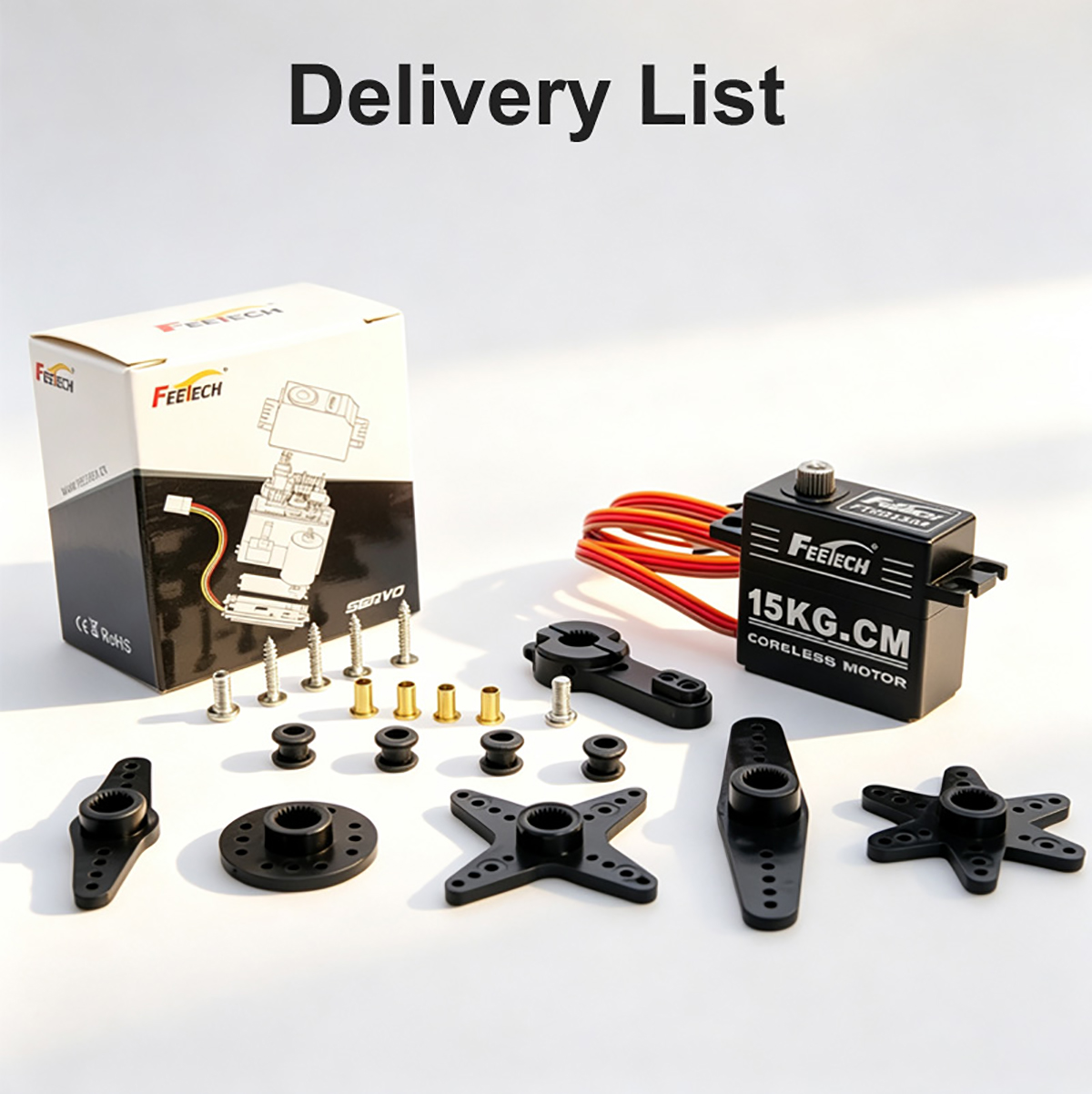

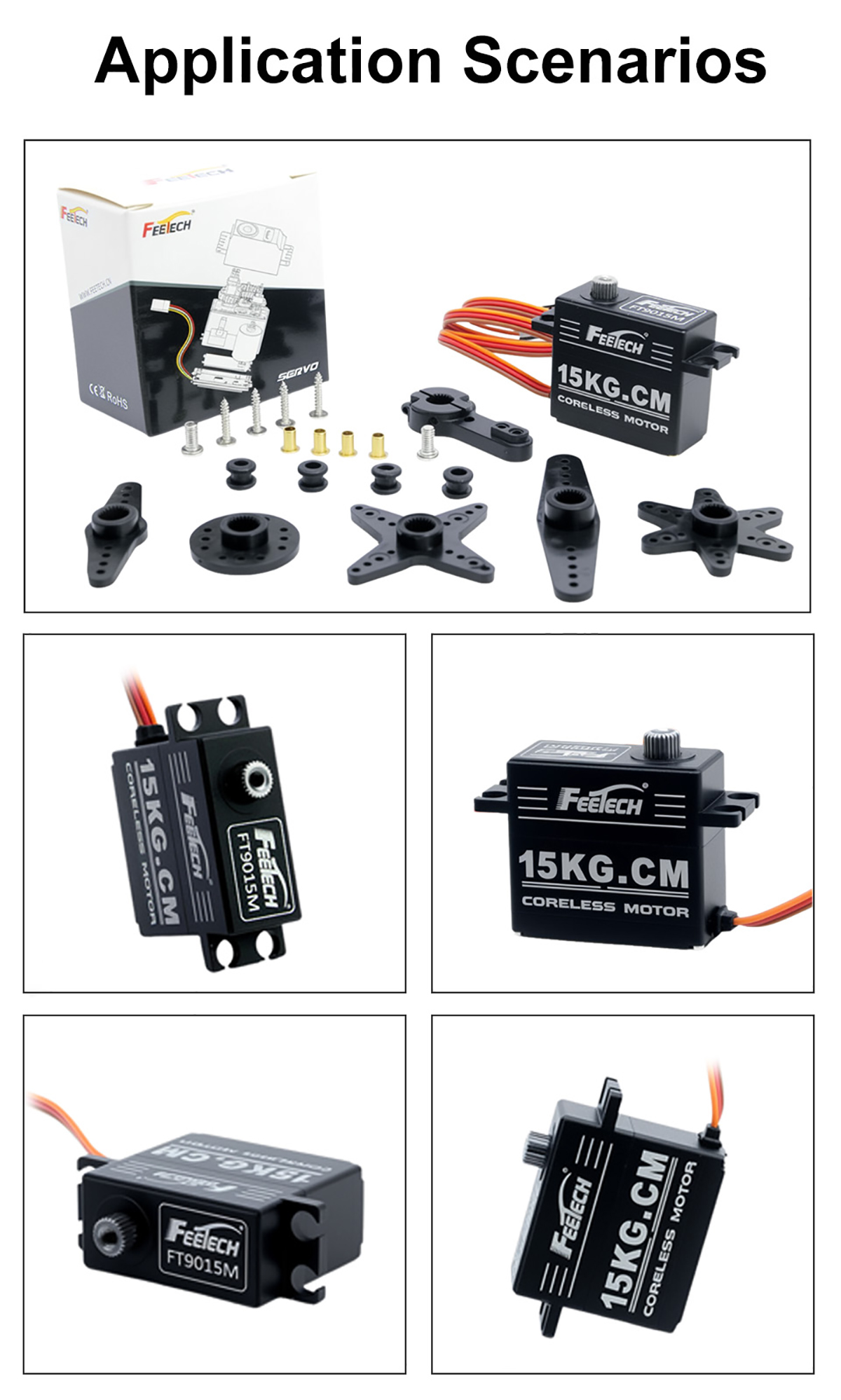

FT9015M Servo x1
