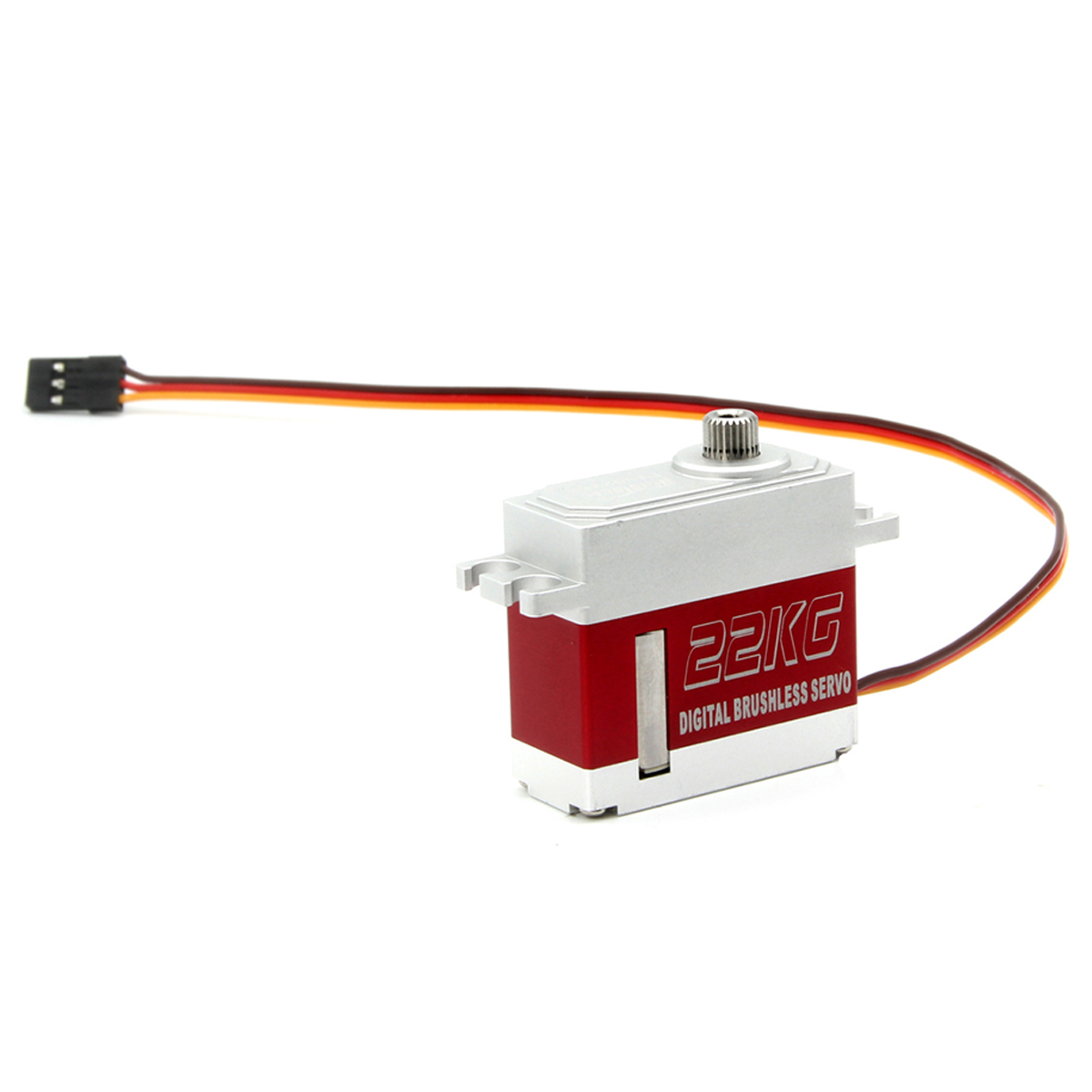

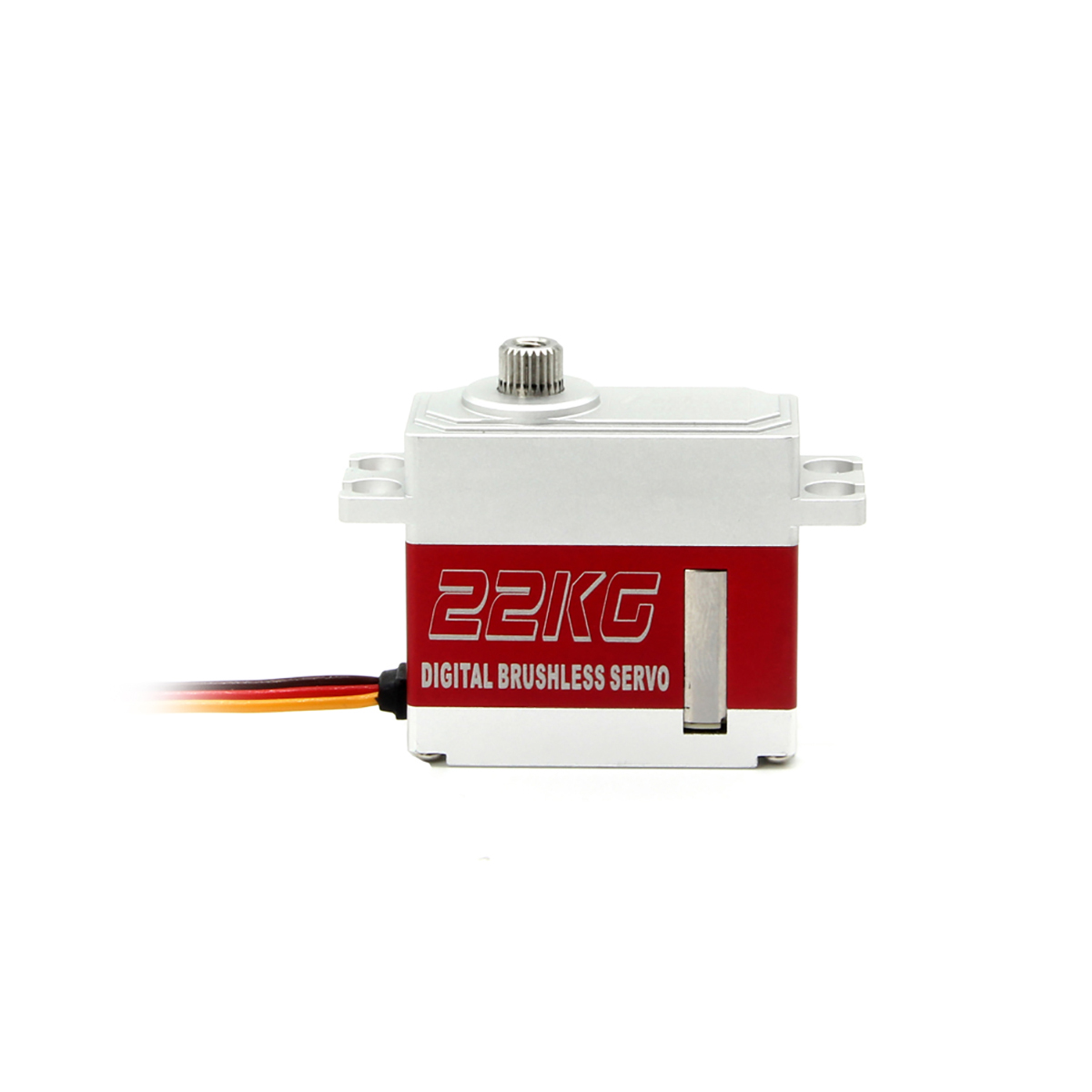

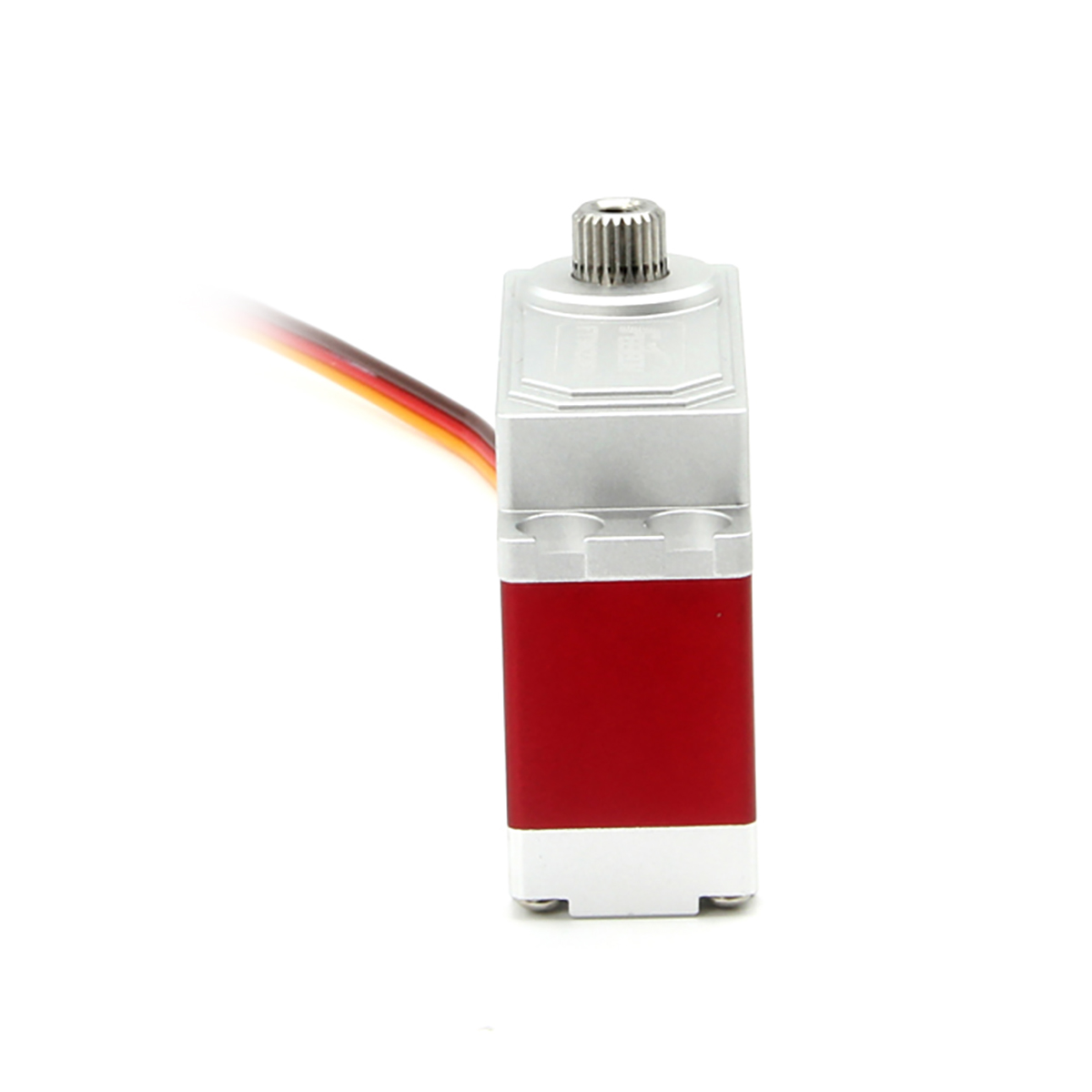

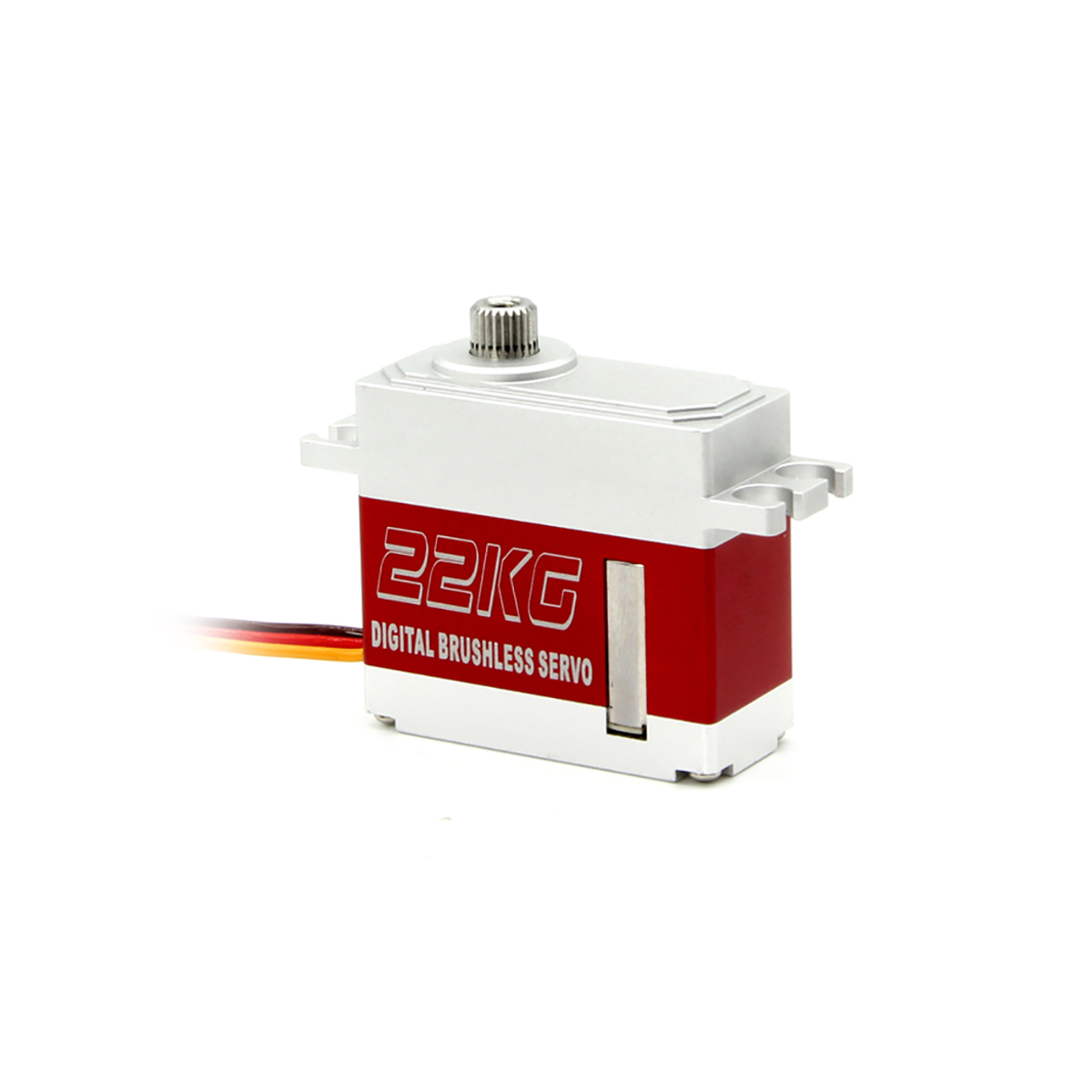

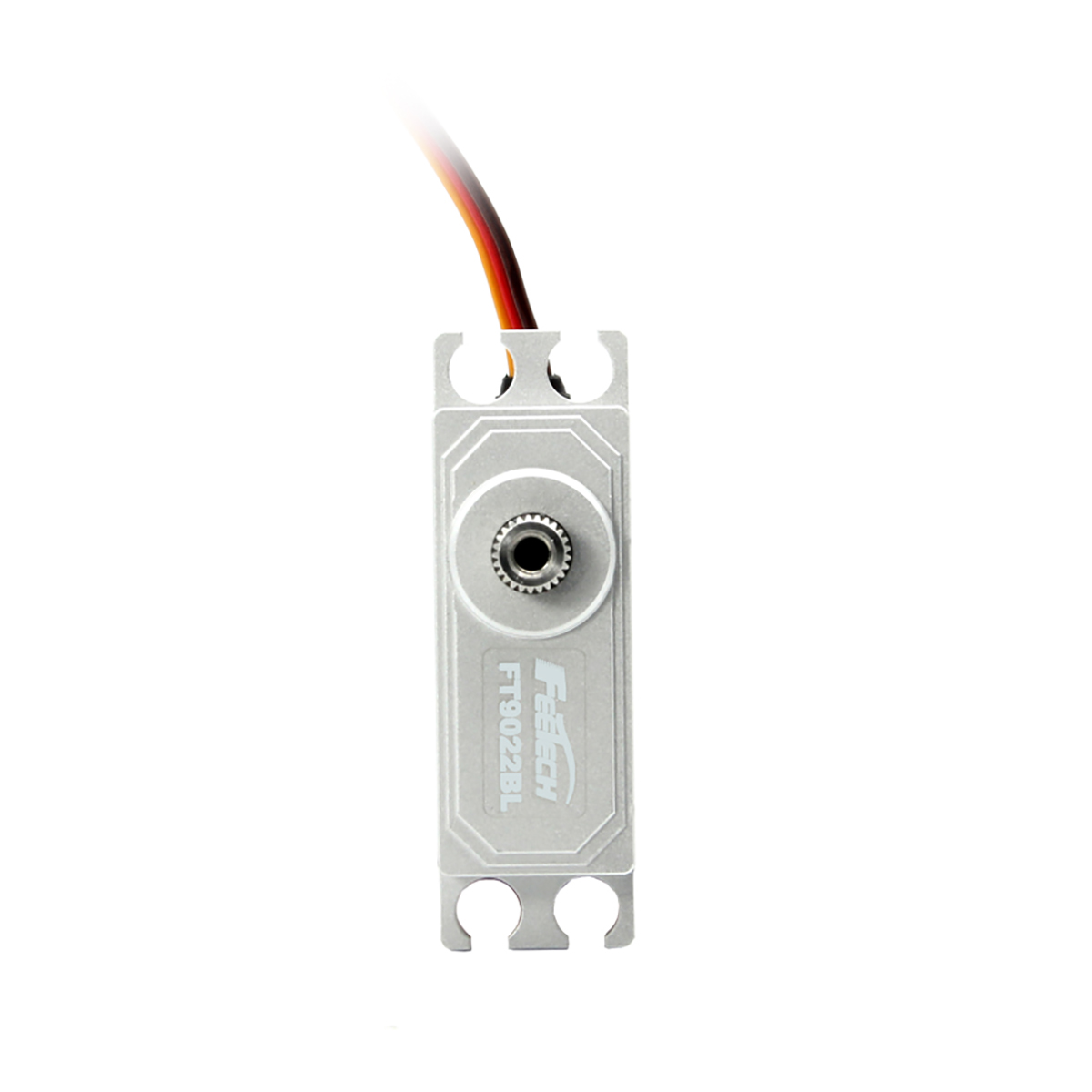

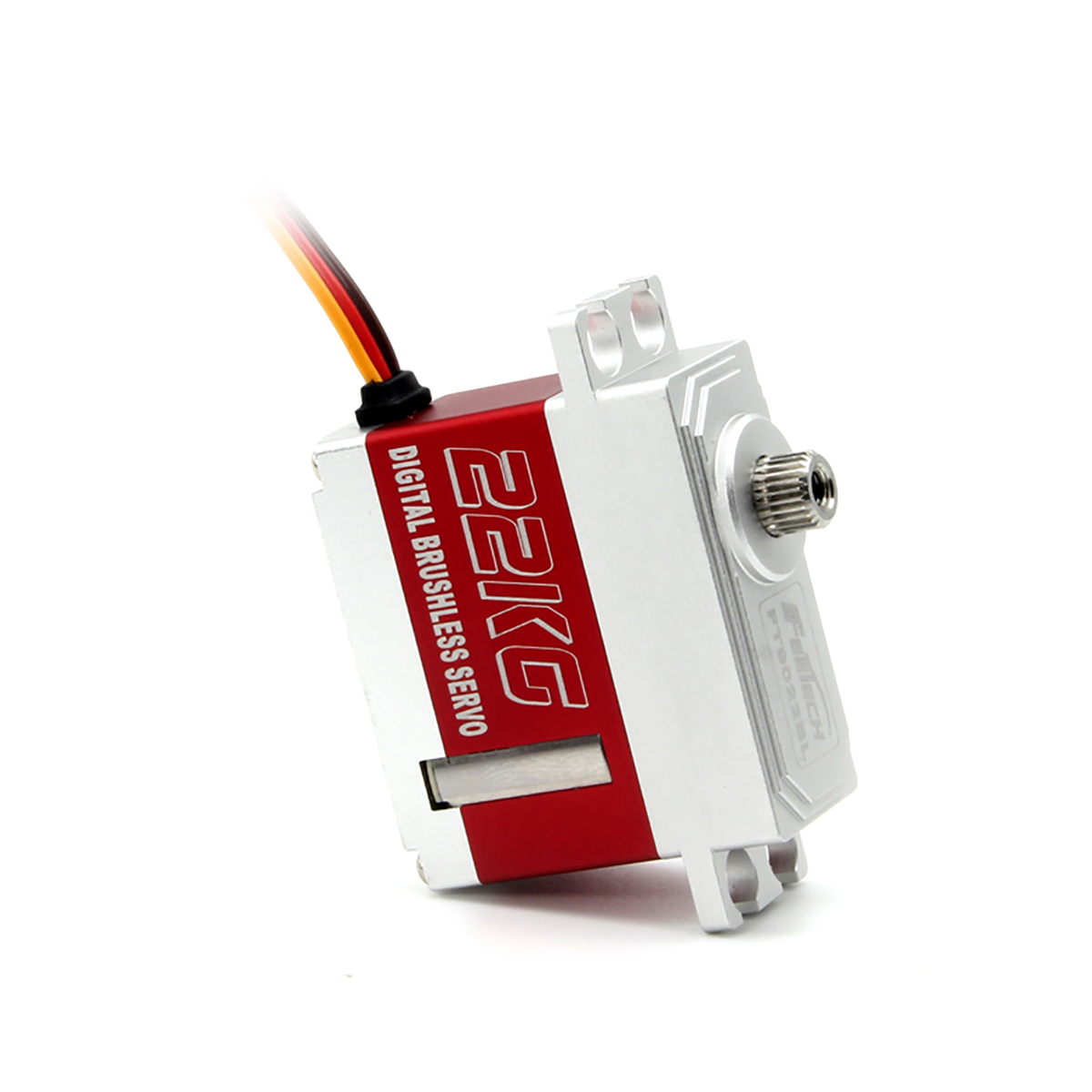

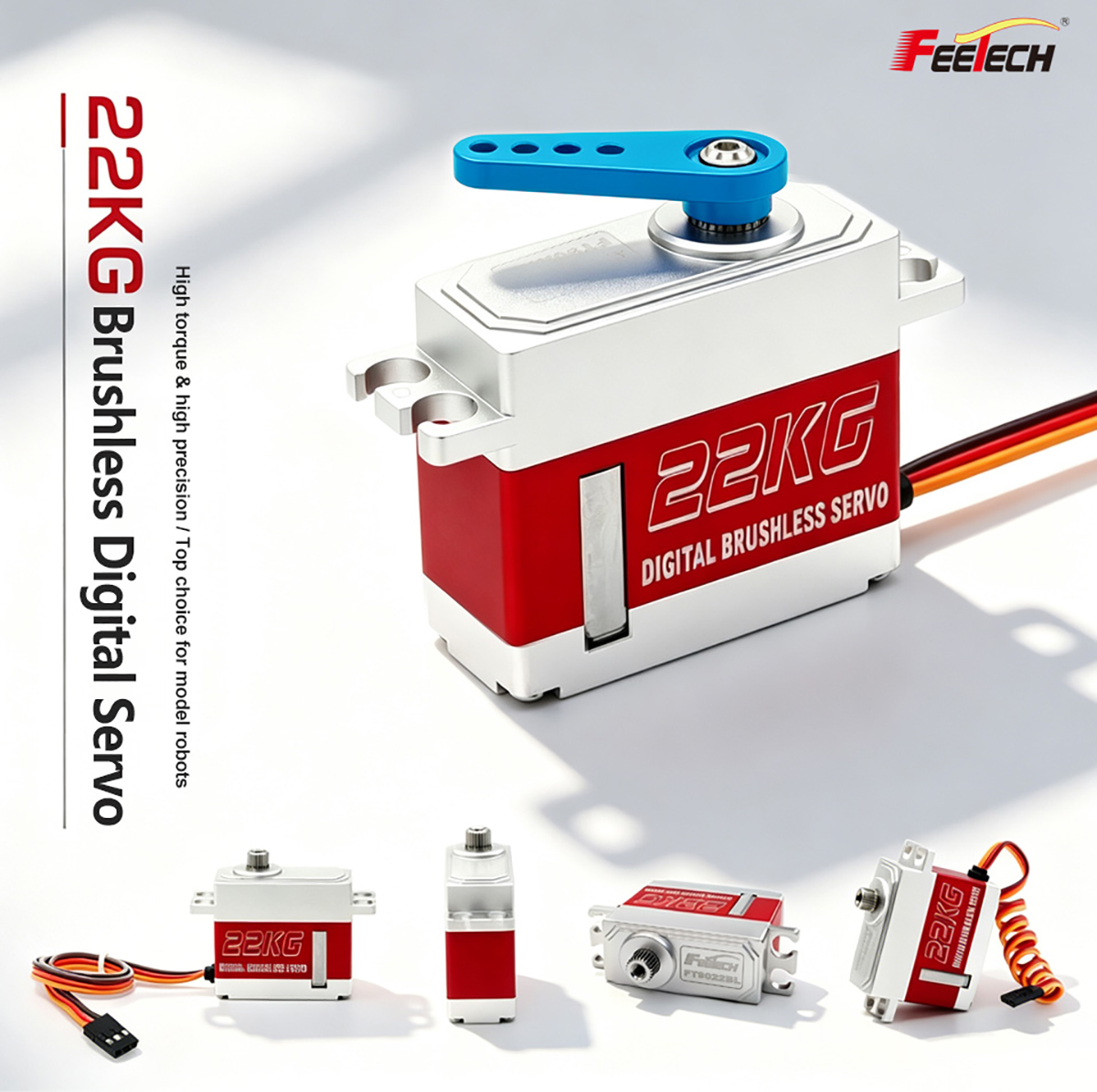

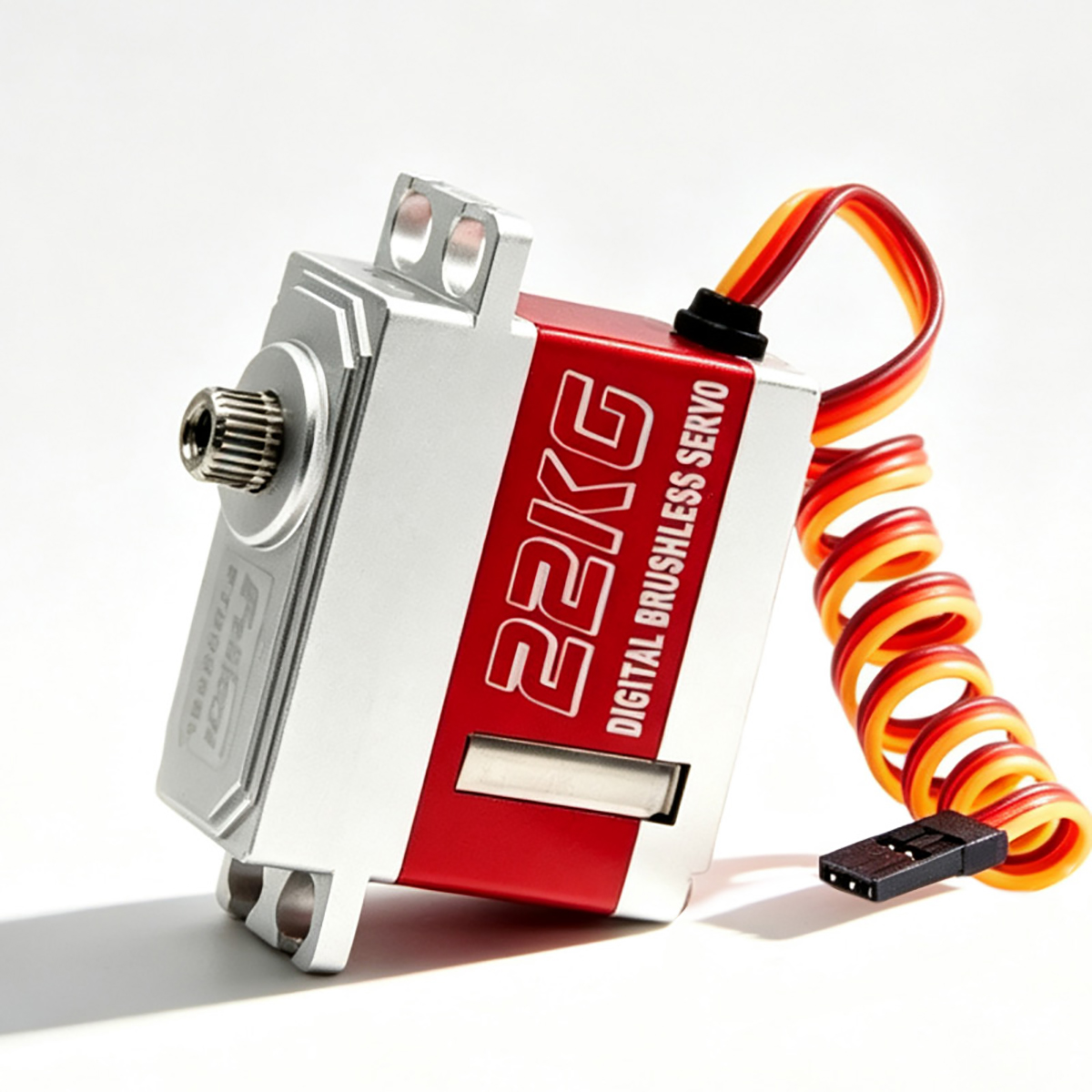

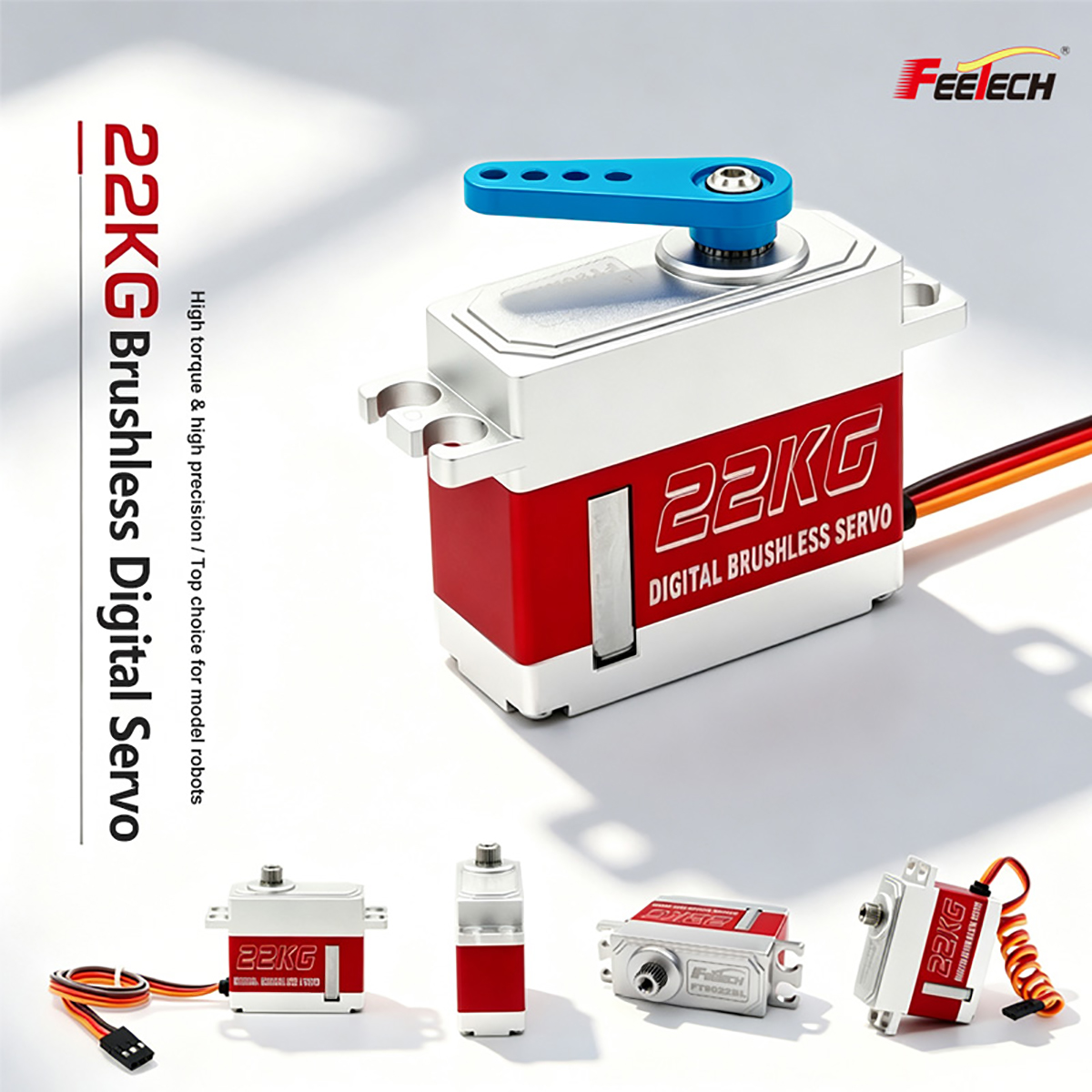

Feetech FT9022BL 7.4V 22kg 180 Degree Metal Gear Brushless Motor Digital Servo for Rc Car Model Helicopter
Feetech FT9022BL 7.4V 22kg 180 Degree Metal Gear Brushless Motor Digital Servo for Rc Car Model Helicopter
5.0V ~8.0V High voltage,High performance digital High Voltage Brushless
Controllable angle range from 0 to 180 degrees, Excellent linearity, precision control.

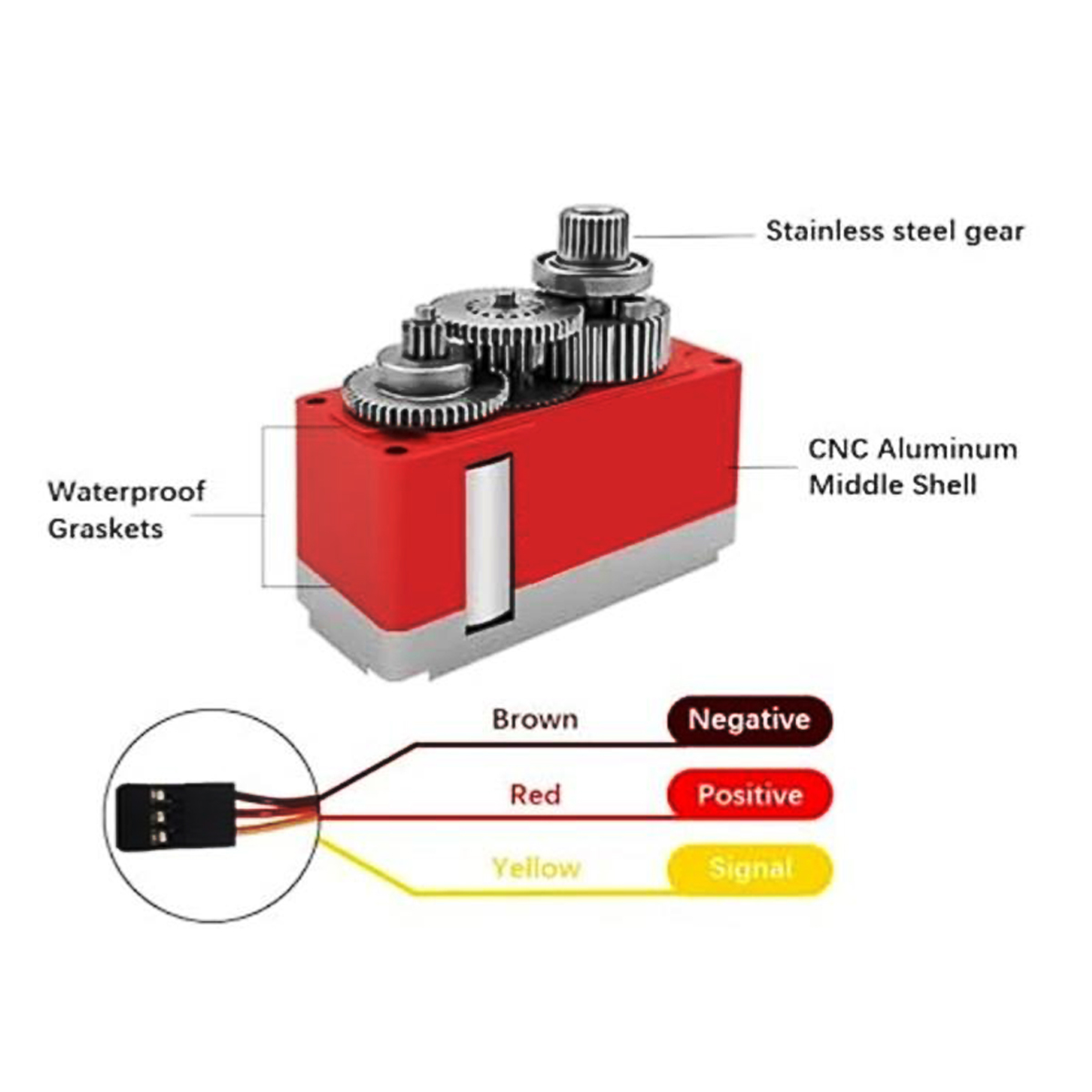

With Stainless Steel Gears, Full CNC aluminium case,Less Noise, light weight,Dual ball bearings.
Programmable Digital Circuit
Widely Use Digital Servo,The steering servo (Control Angle 180°) Compatible with RC Helicopter Multi-rotor Quadcopter Uav, Rc Drones AirplaneHexacopter Octocopter Fpv /RC Car / Robot / Boat ,1/8, 1/10,Scale Clawer Truck, Traxxas, scx10,and other remote control models.

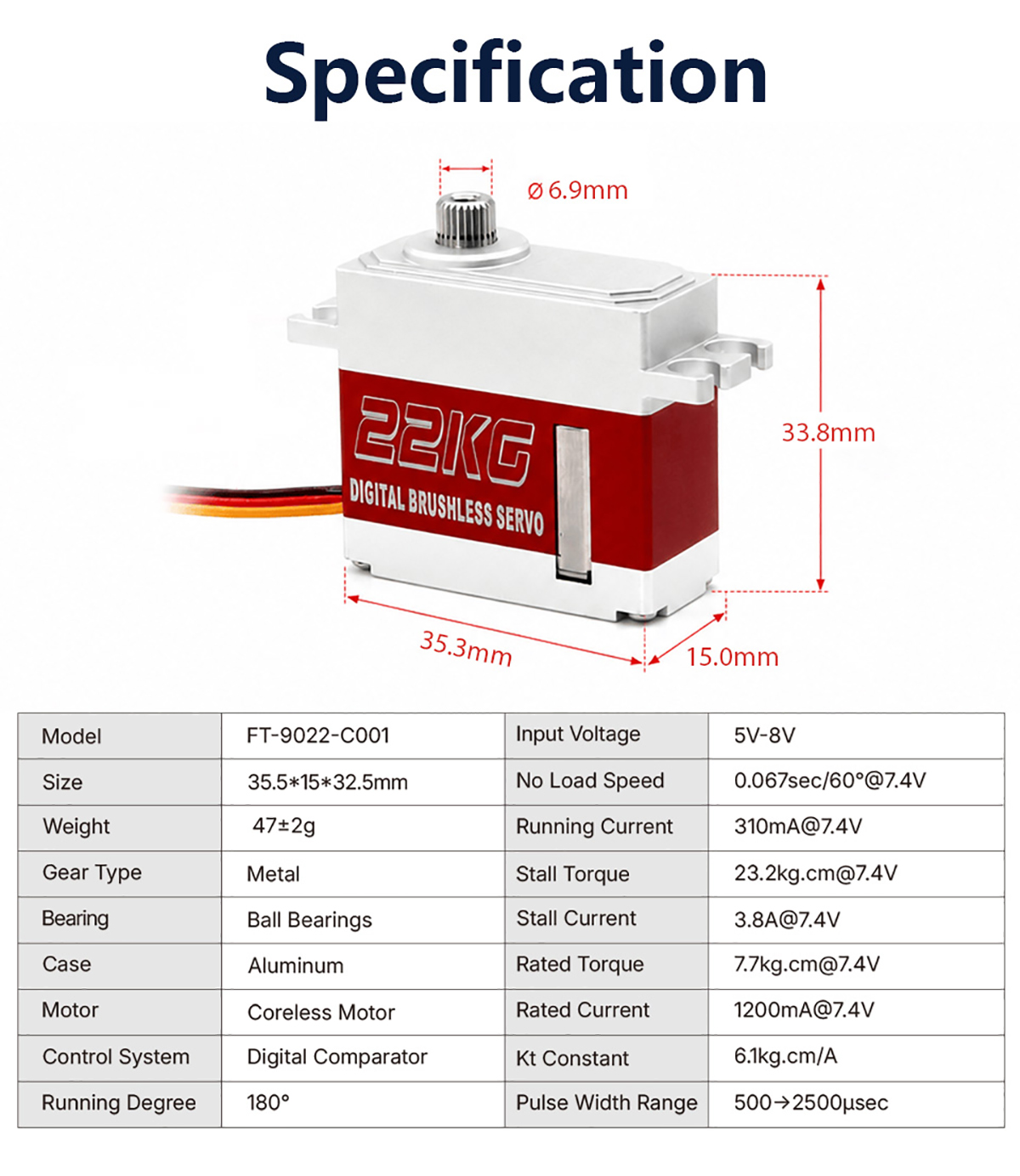

Model: FT-9022-C001
Product name: 7.4V 22kg.cm Digital servo
Storage temperature range: -30℃～80℃
Operating temperature range: -40℃～60℃

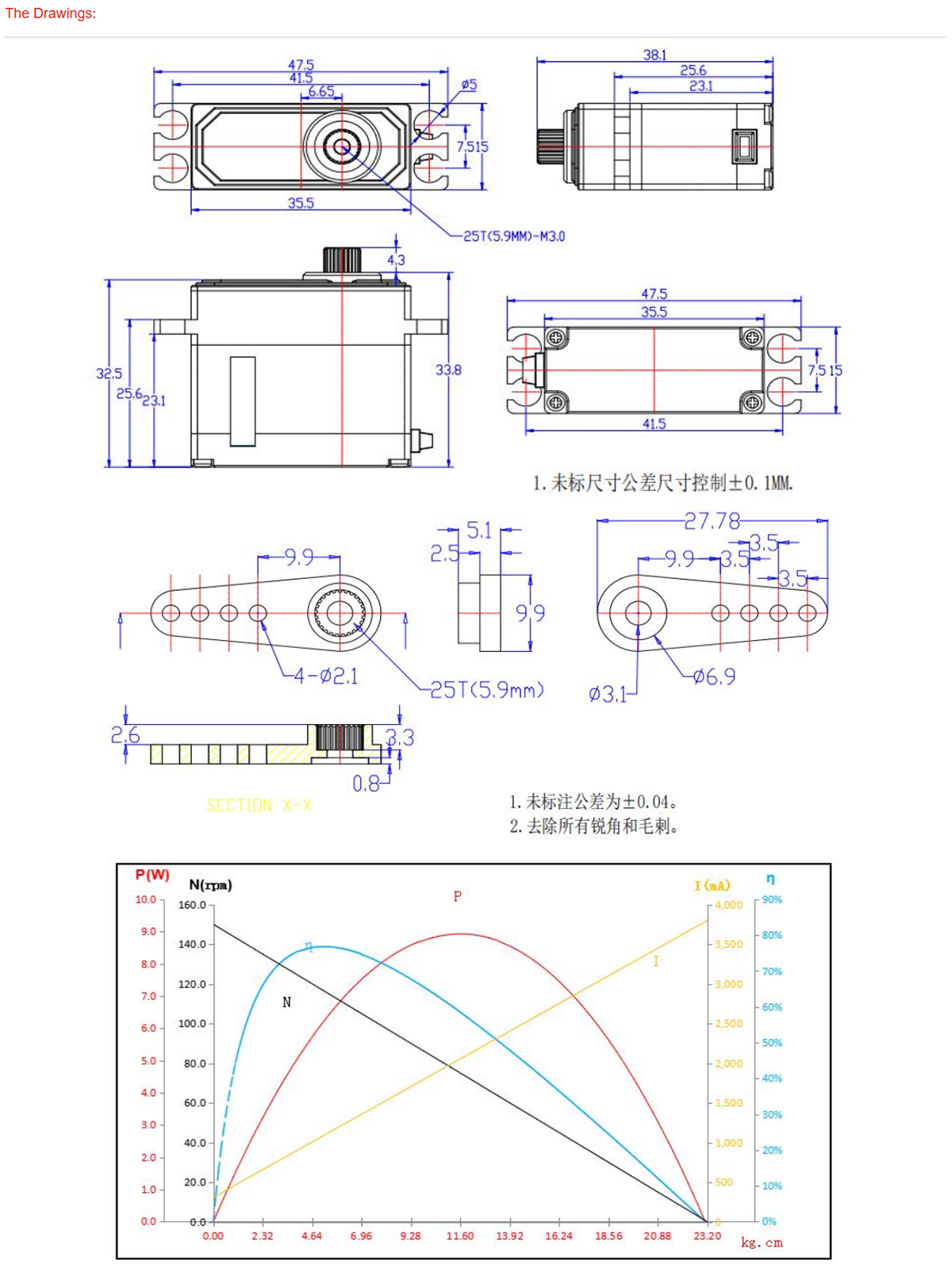

Size: 35.5*15*32.5mm
Weight: 47±2g

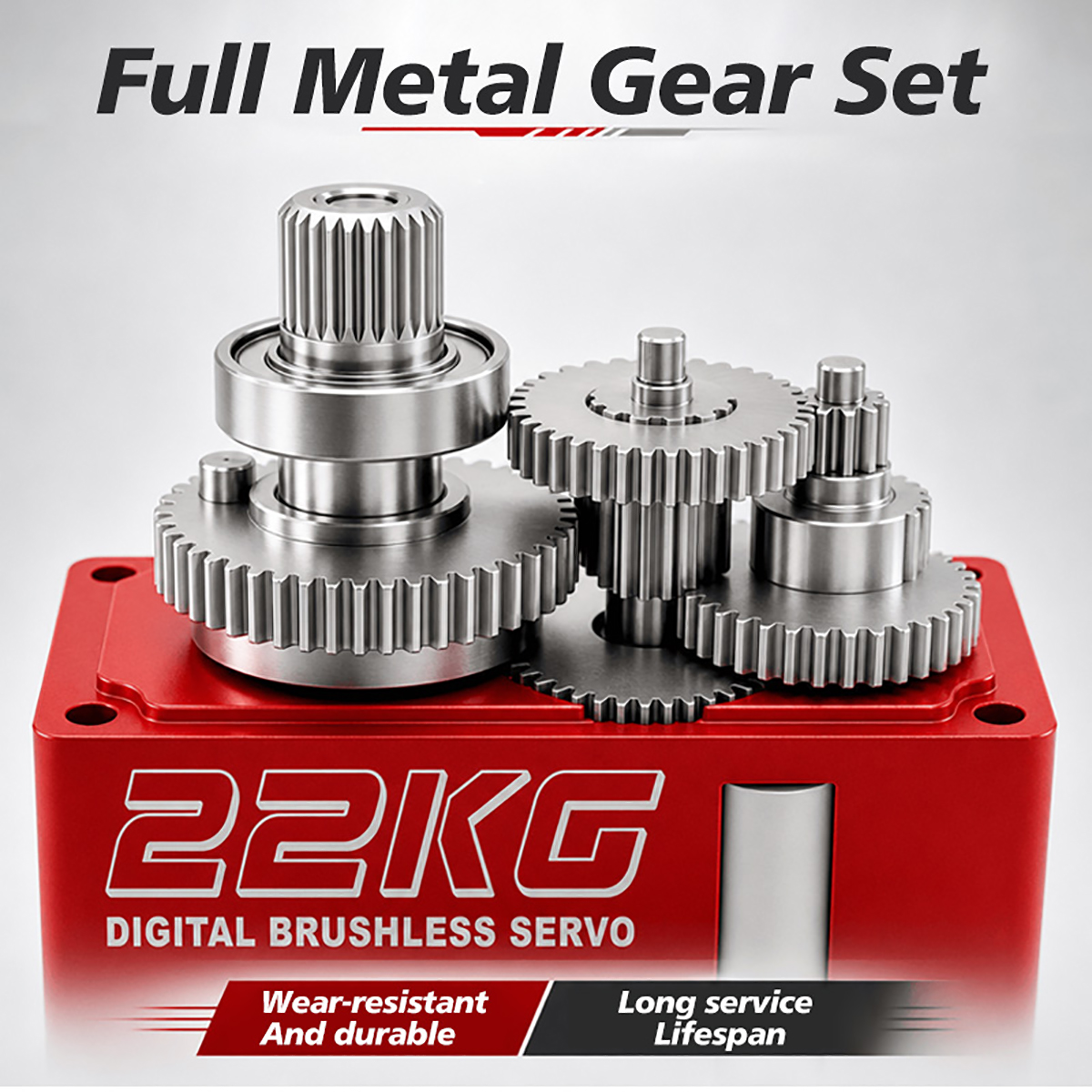

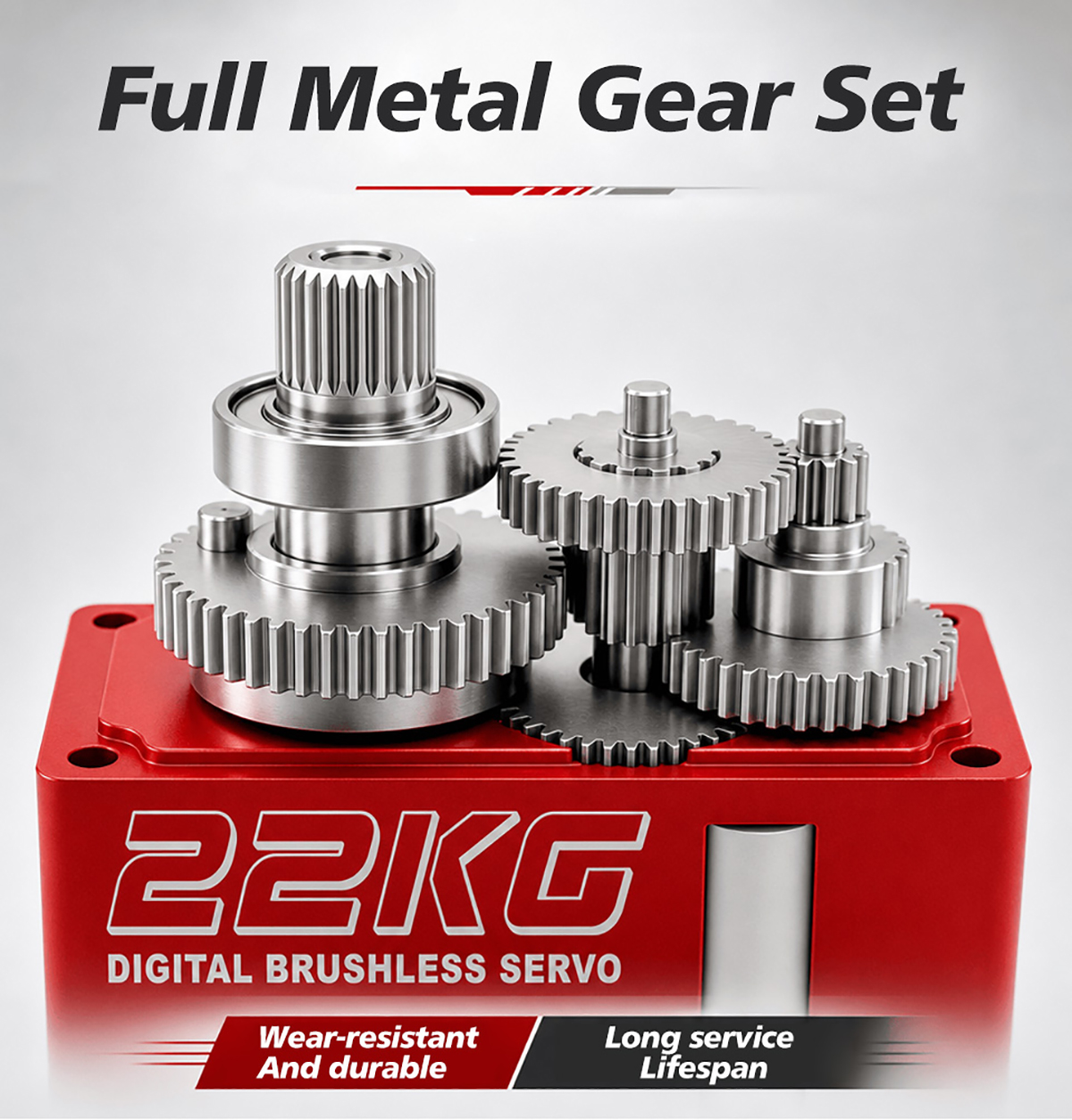

Gear type: Metal gear
Limit angle: No limit
Bearing: Ball bearings
Horn gear spline: 25T/5.90mm
Case: Aluminium
Connector wire: 25cm
Motor: Brushless motor
Operating voltage range: 5-8V
Idle current (at stopped): 40mA@7.4V
No load speed: 0.067sec/60°@7.4V
Running current(at no load): 310mA@7.4V
Peak stall torque: 23.2kg.cm@7.4V
Rated torque: 7.7kg.cm@7.4V
Stall current: 3.8A@7.4V
Command signal: Pulse width modification
Amplifier type: Digital controller
Pulse width range: 500→2500 μsec
Neutral position: 1500μsec
Running degree: 180°(at 500→2500μsec)
Dead band width: ≤4μsec
Rotating direction: Counterclockwise (at 500→2500μsec)

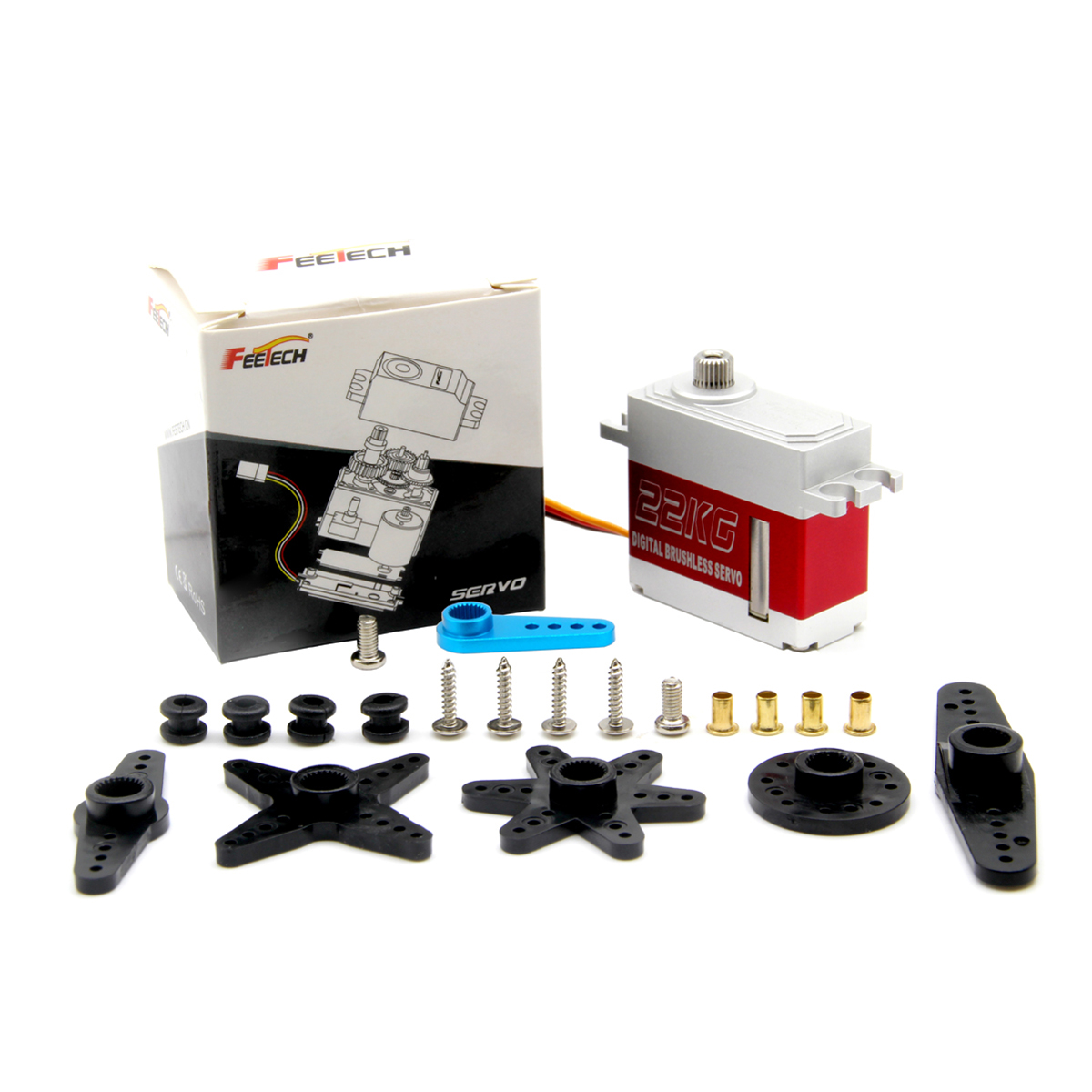

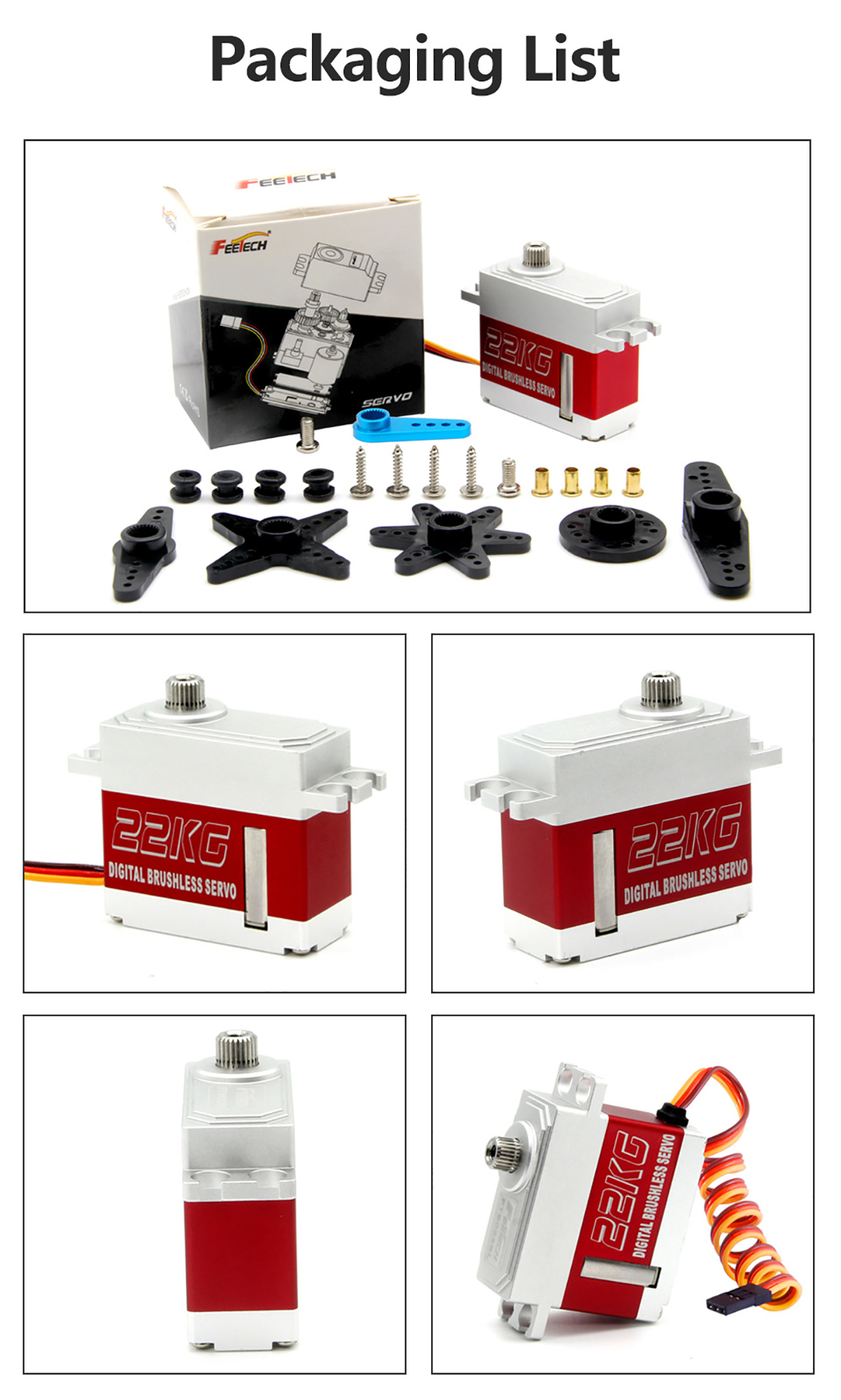

FT9022BL Servo x1
Related products
-
Feetech Servo

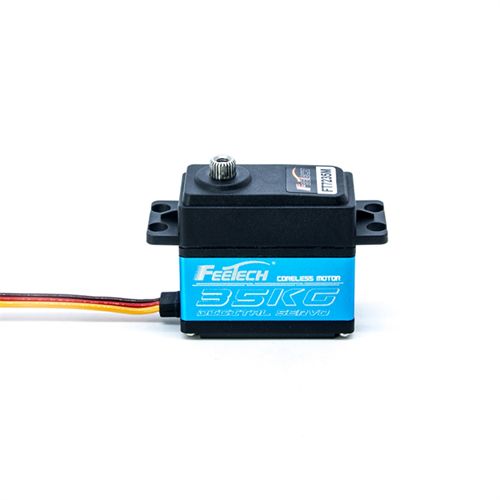

Feetech FT7235M 7.4V 35KG 180 Degree Steel Gear Servo
