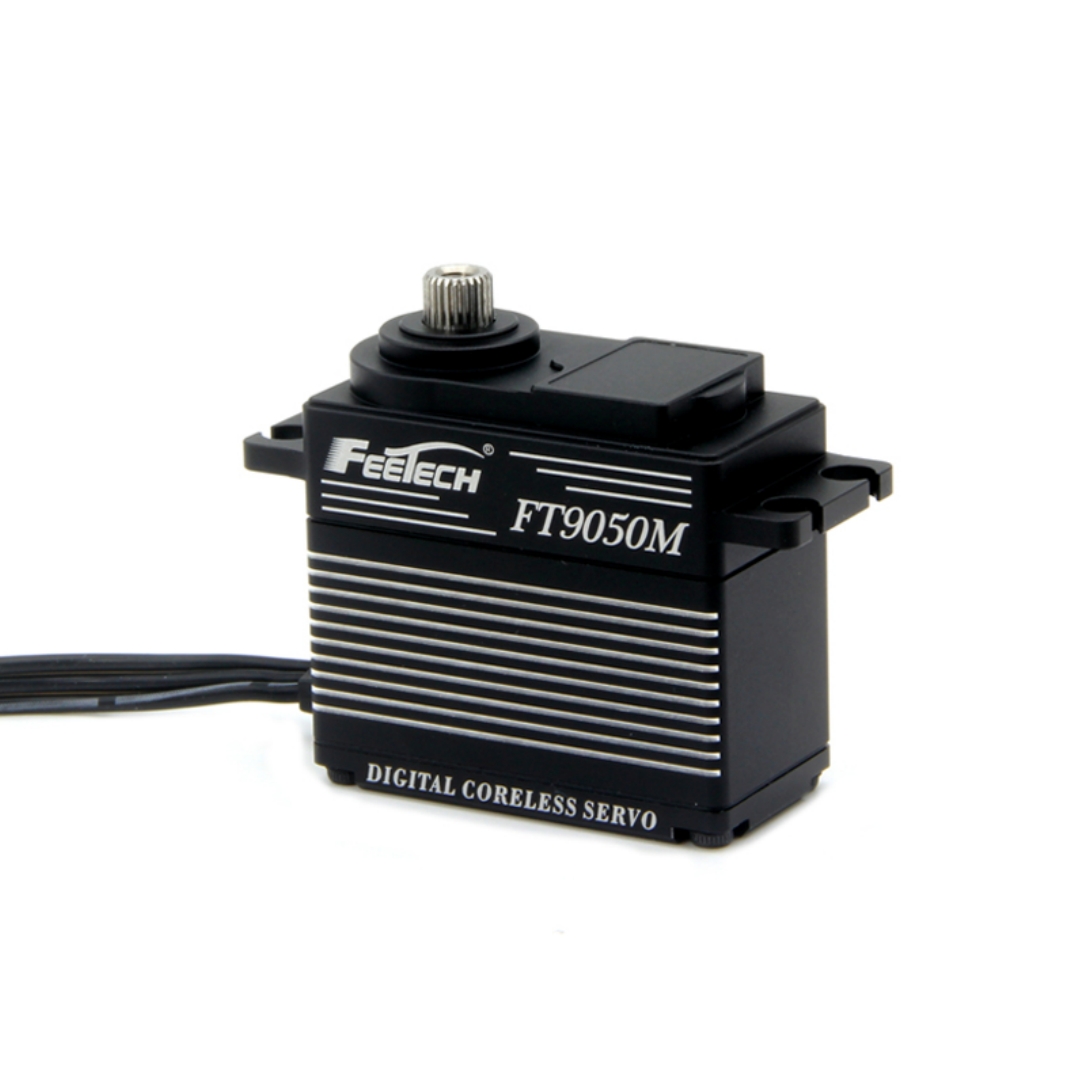

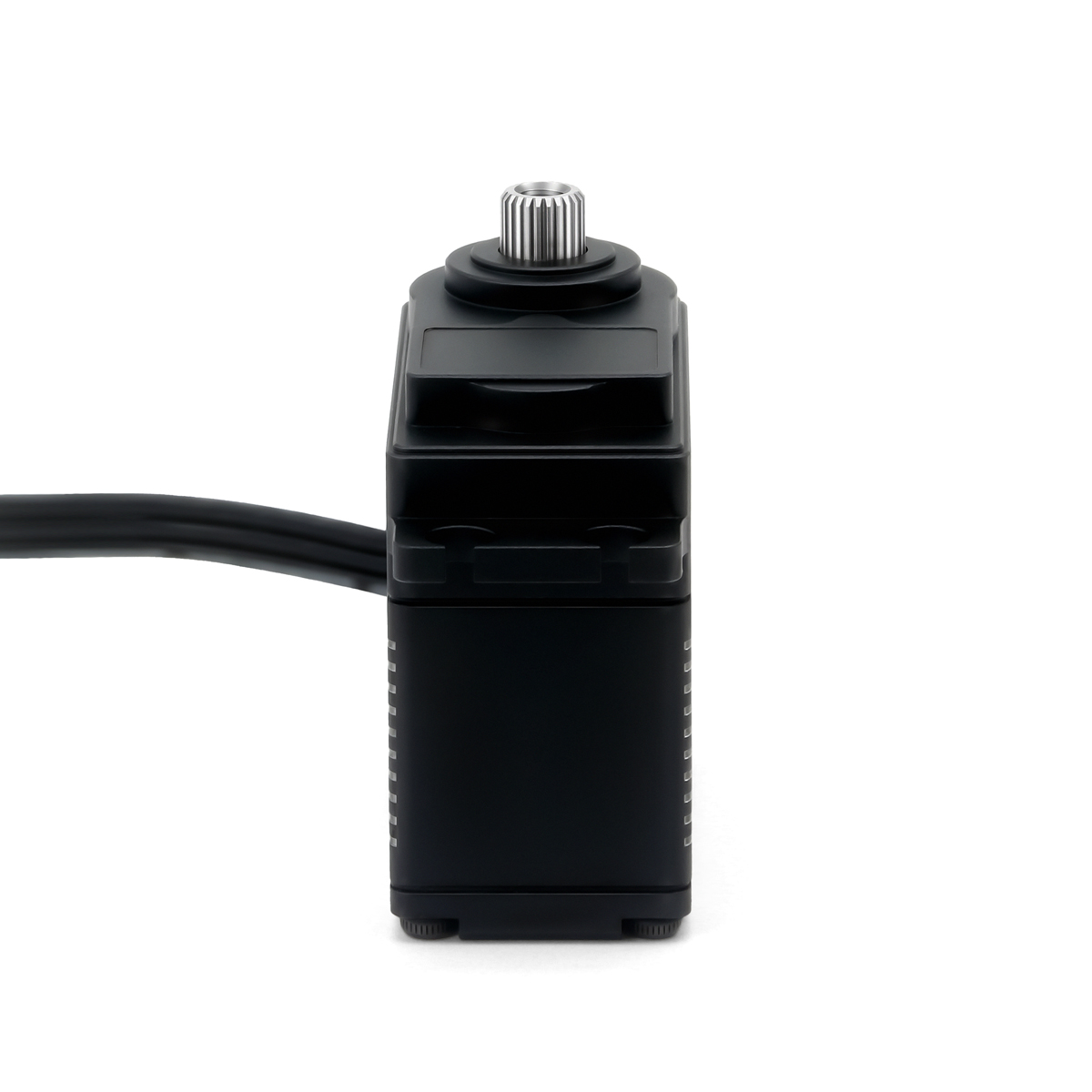

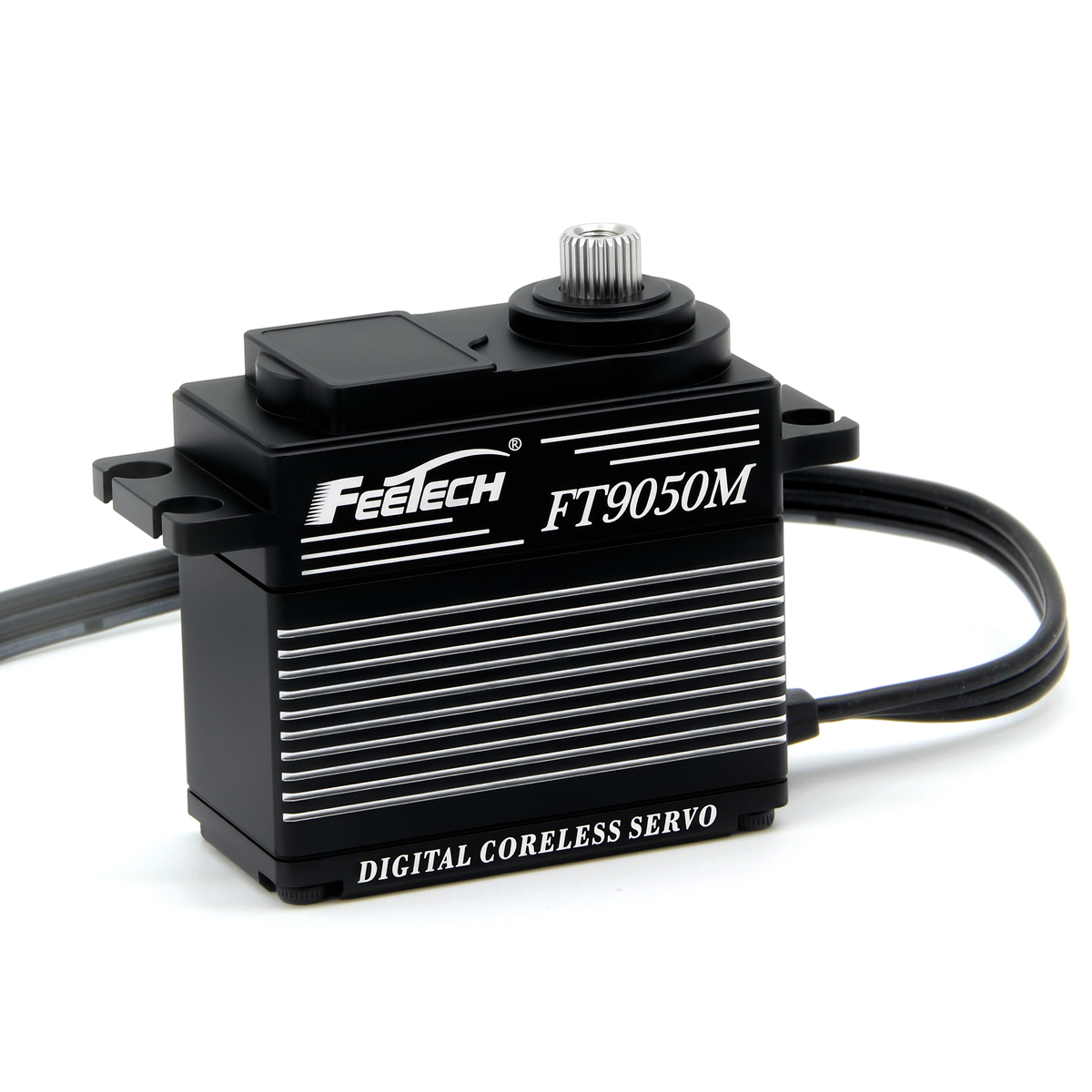

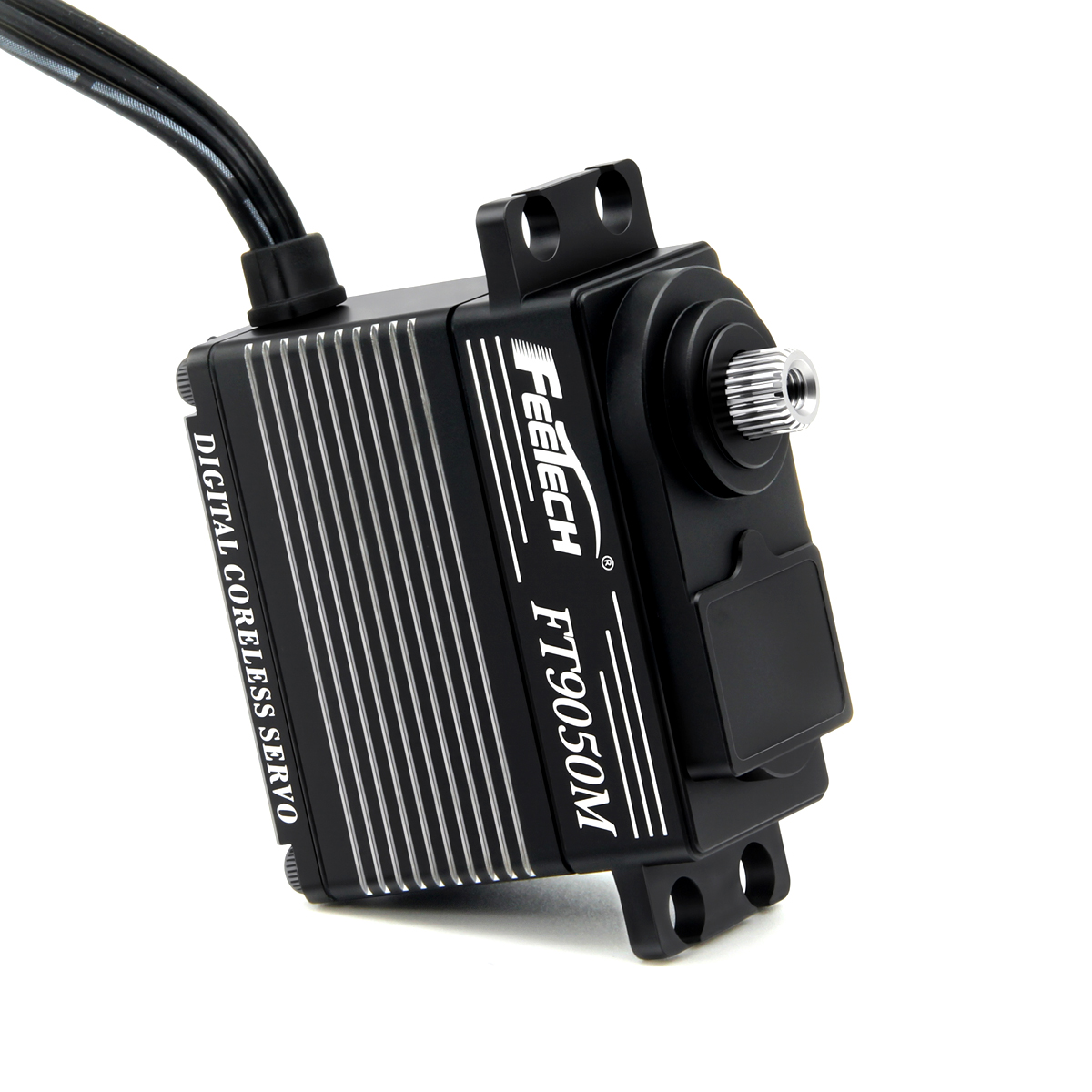

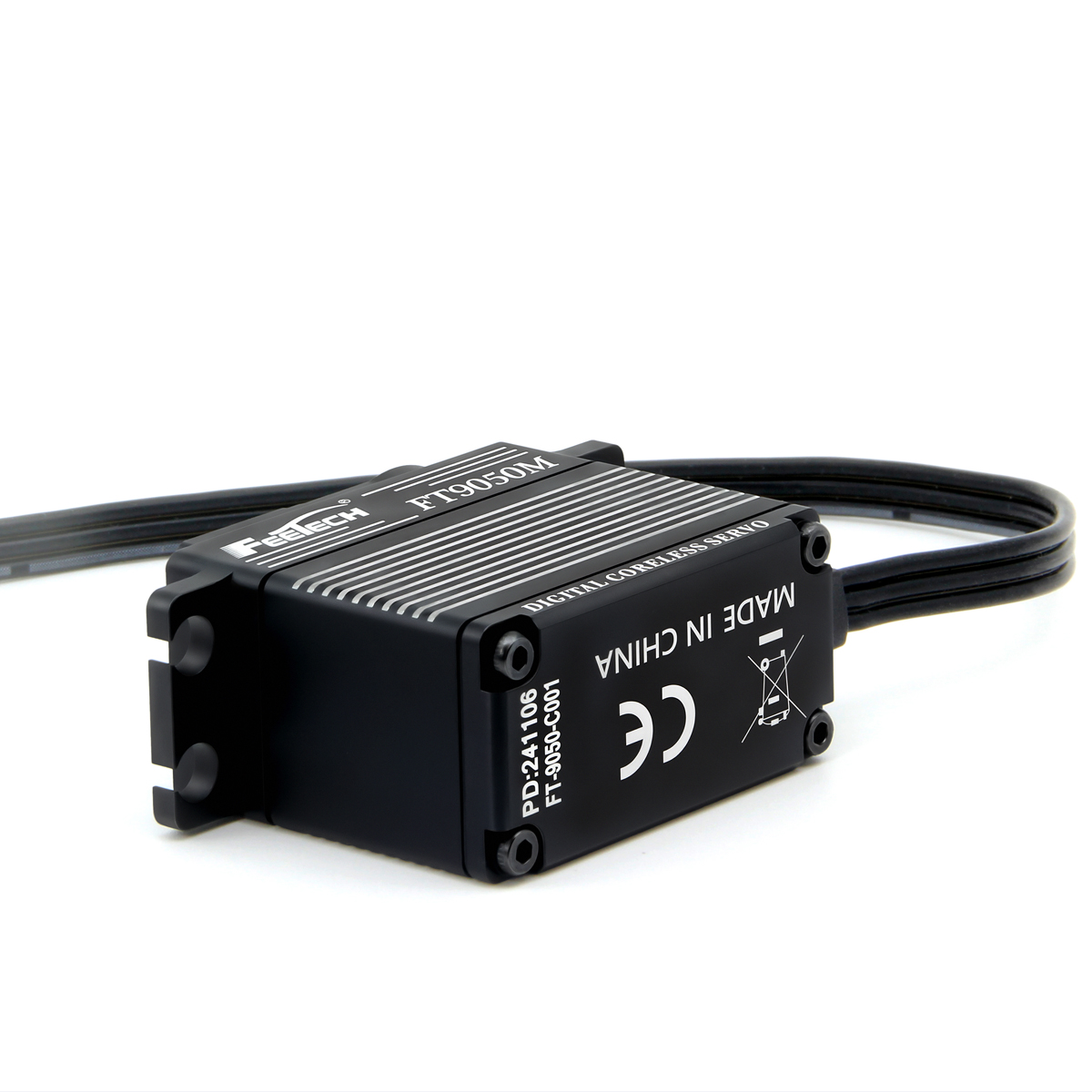

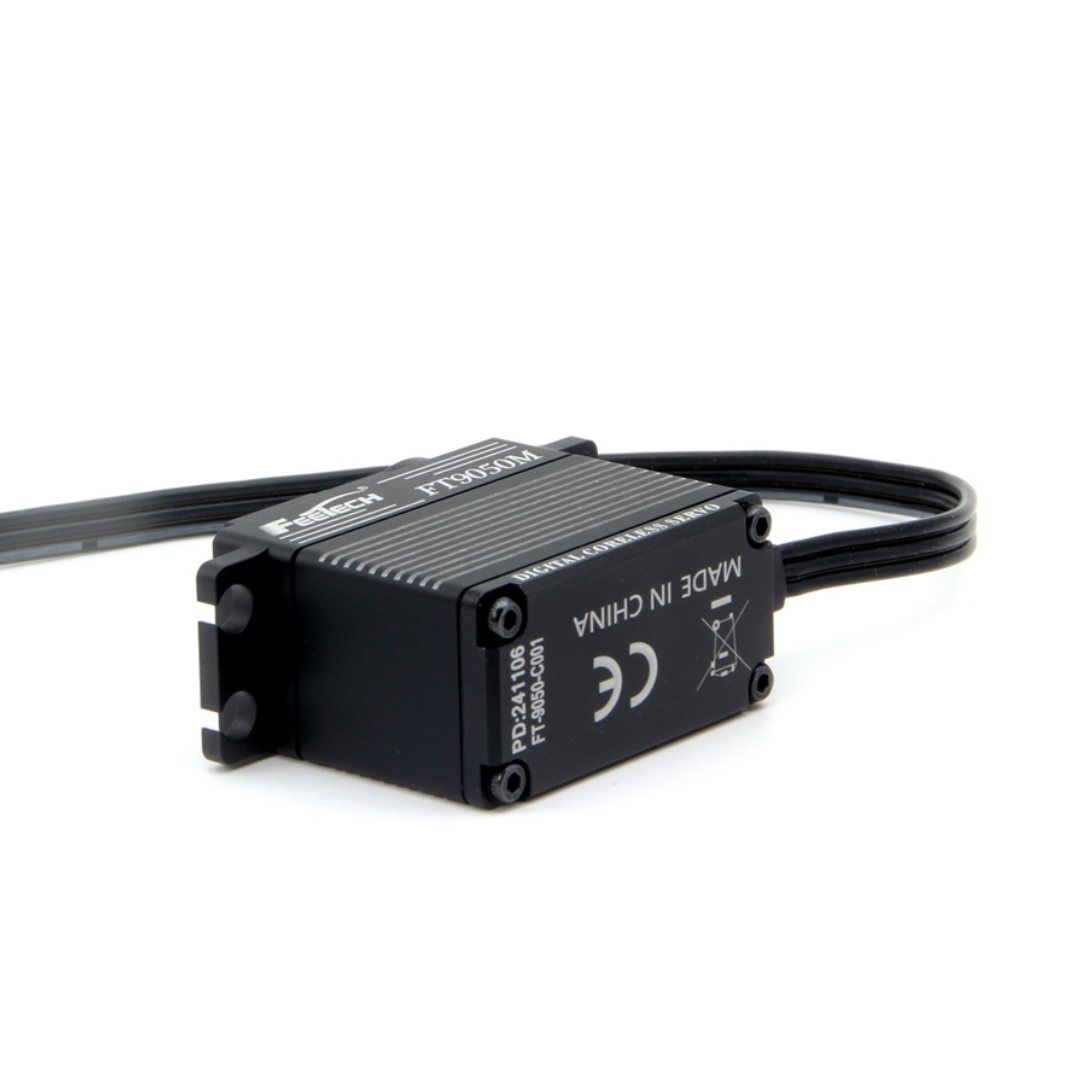

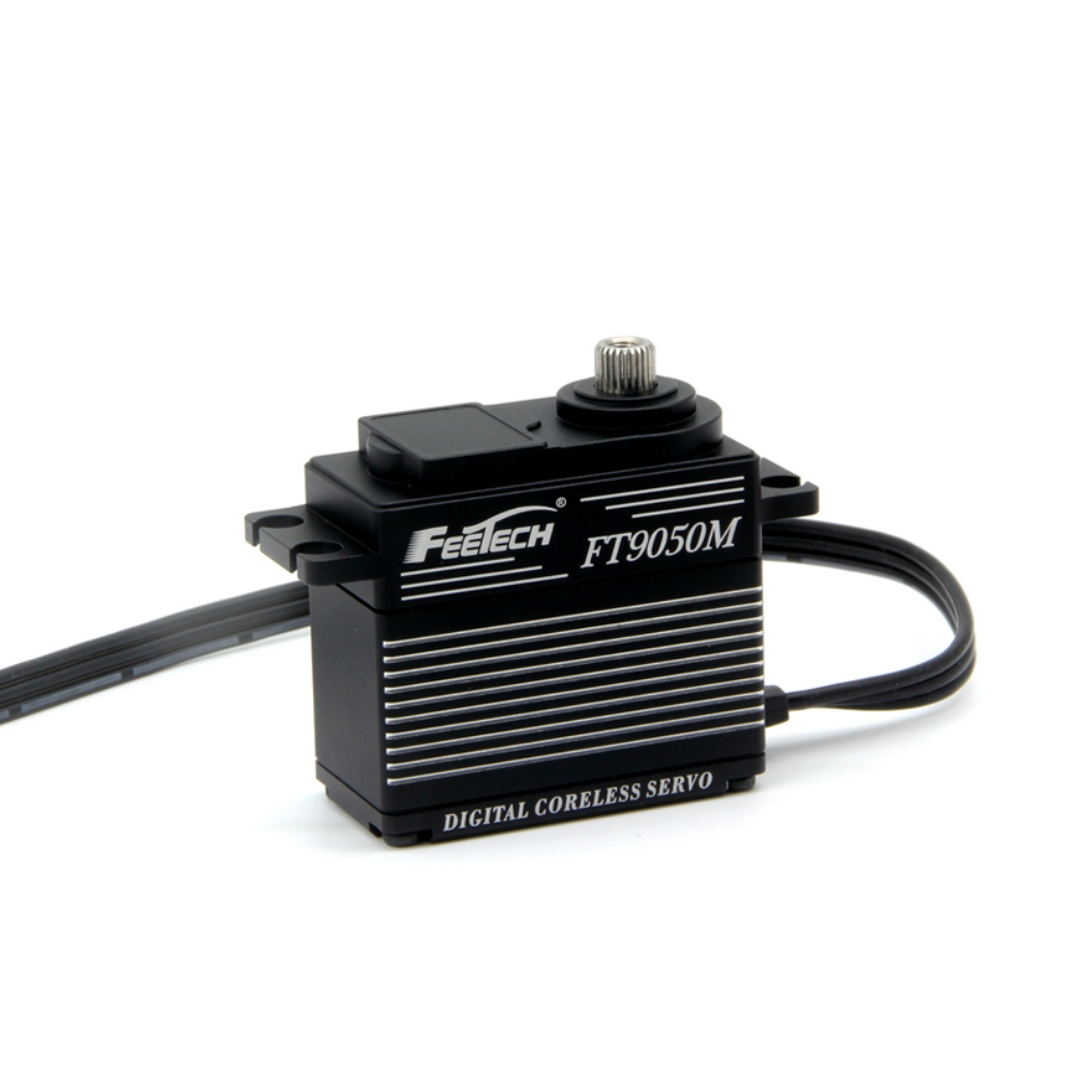

Model: FT-9050-C001

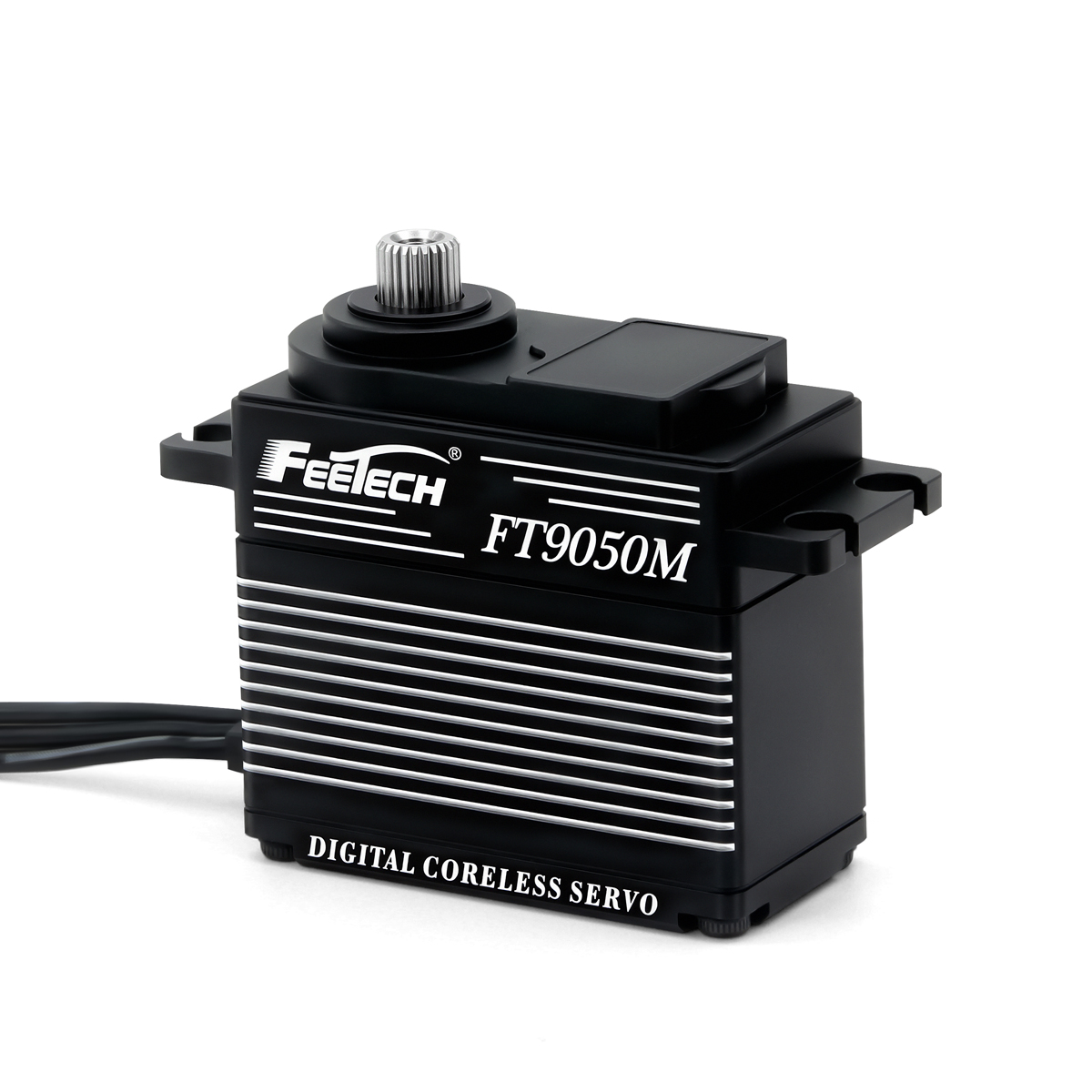

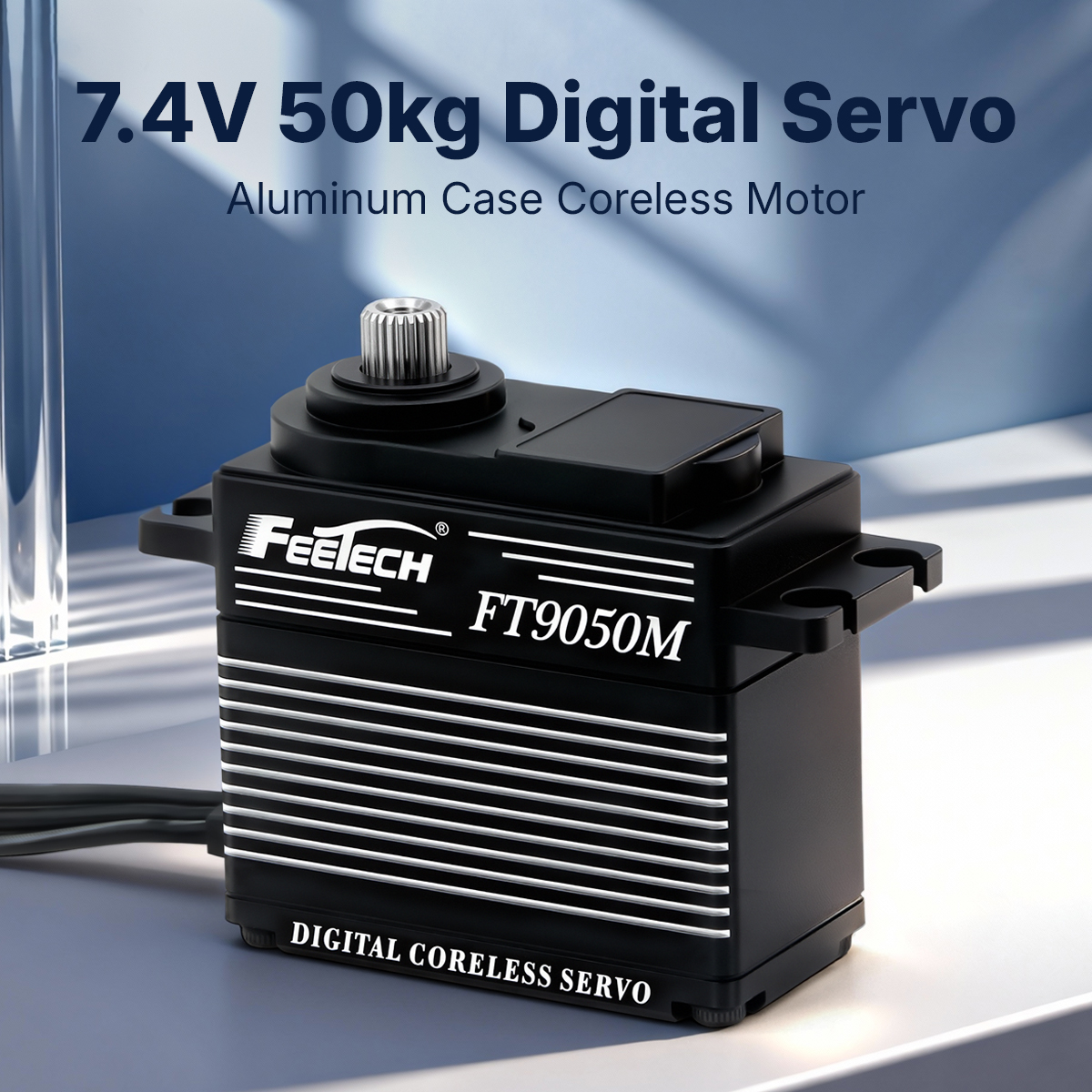

Product Name: 7.4V 50KG 180 Degree Servo
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～60℃

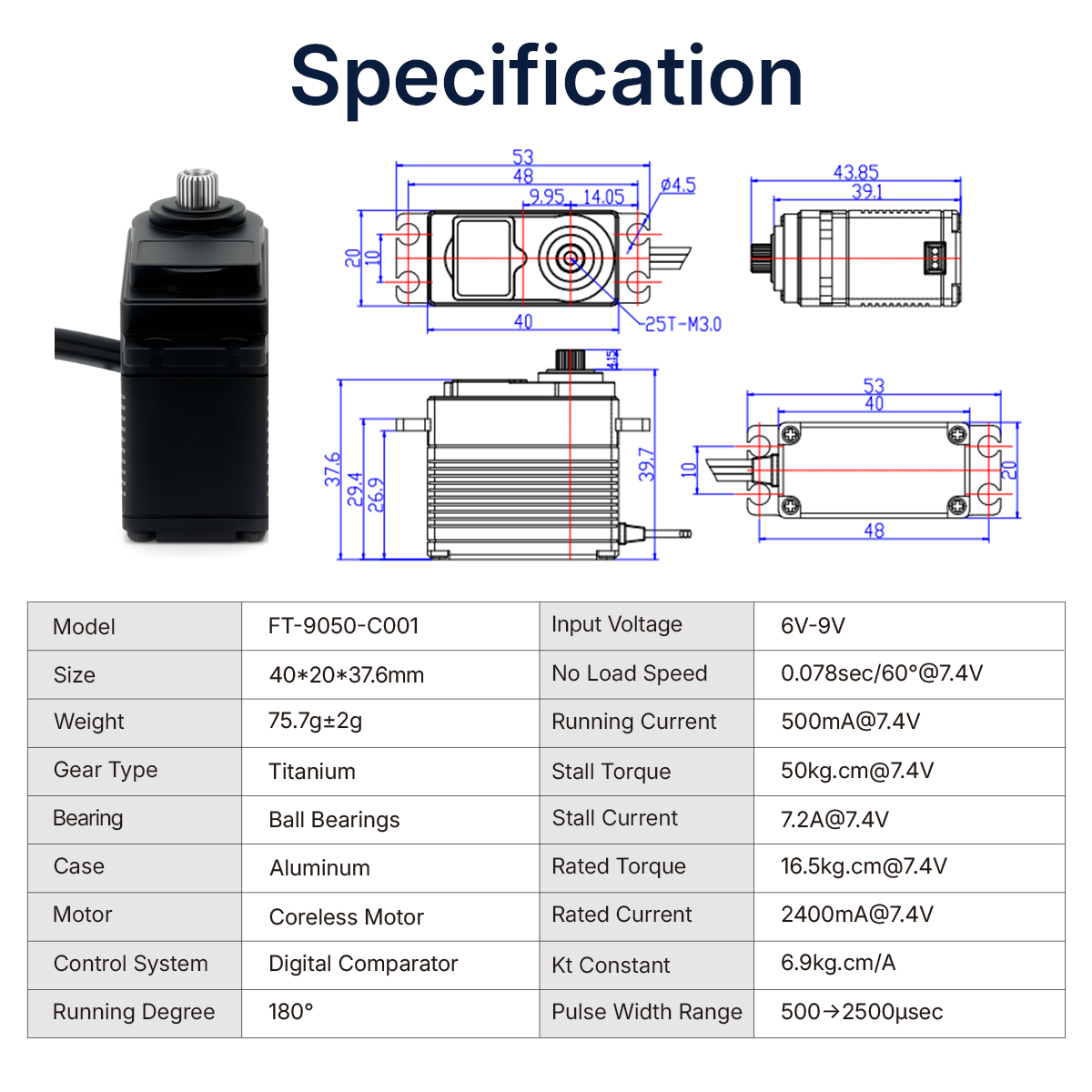

Size: A：40mm B：20mm C: 37.6mm
Weight: 75.7g±2g

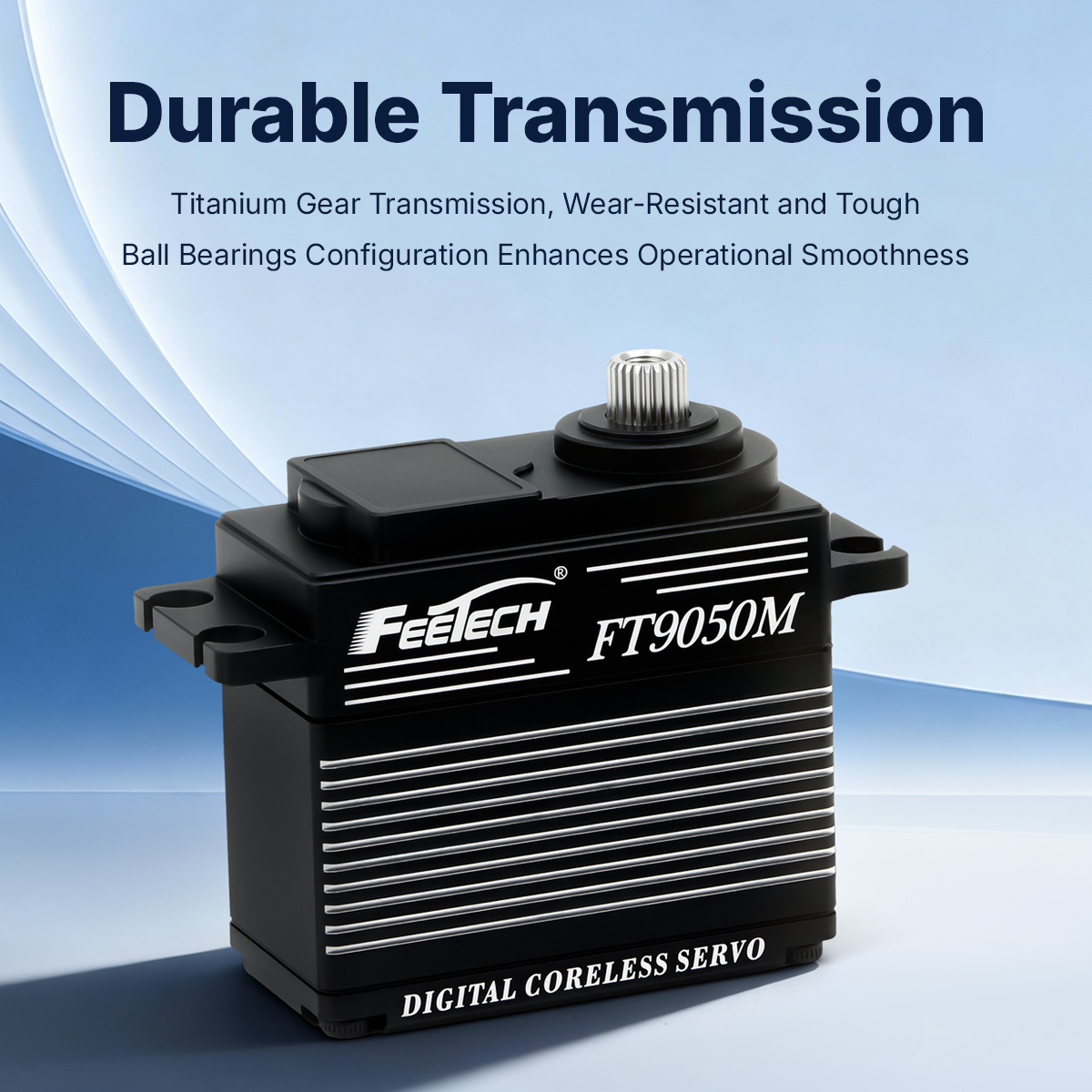

Gear type: Titanium
Limit angle: No limit
Bearing: Ball bearings

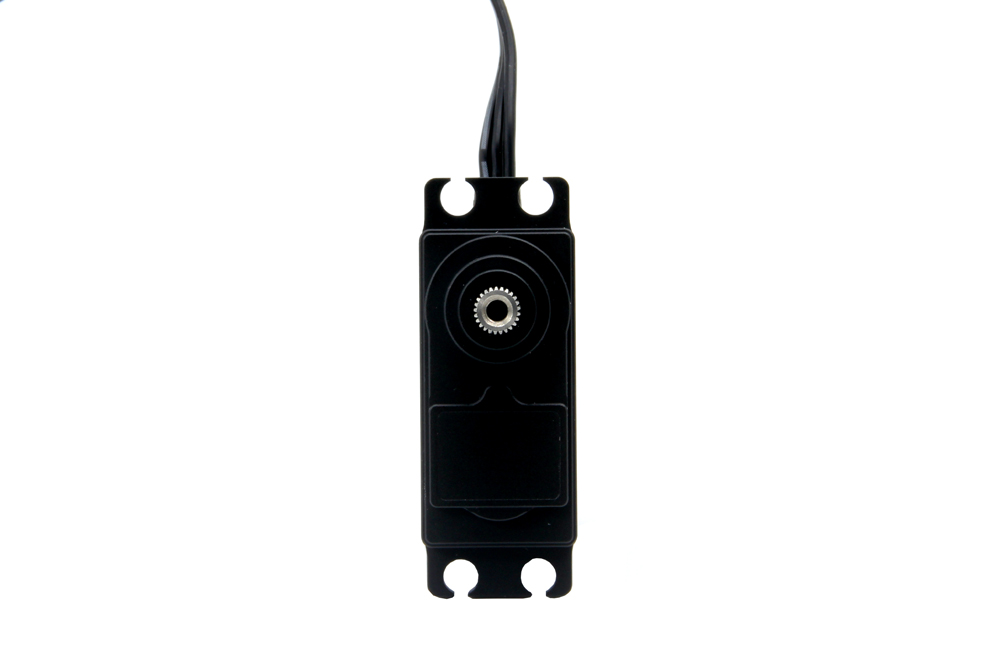

Horn gear spline: 25T/5.9mm
Gear Ratio：1/275
Case: Aluminum

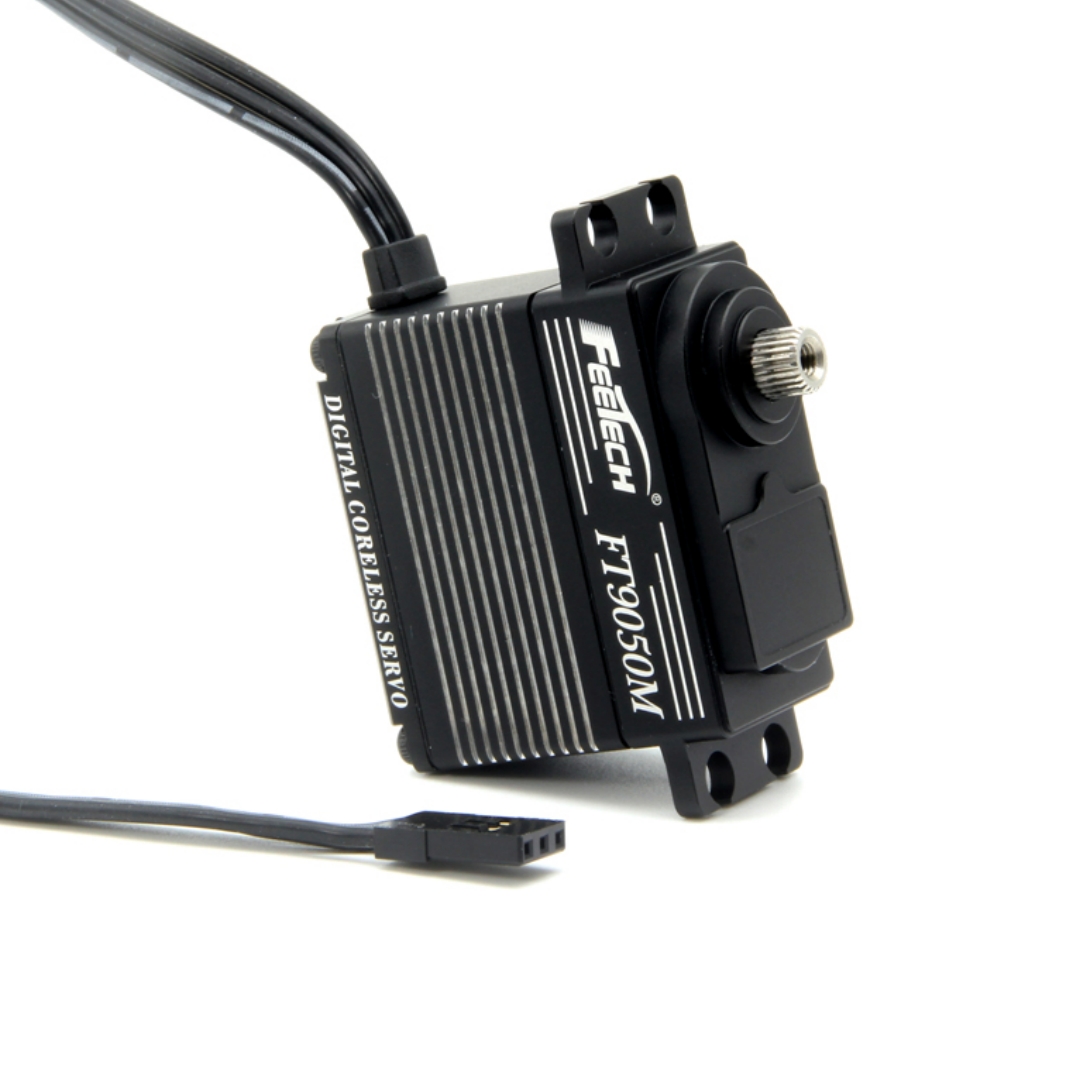

Connector wire: 30±0.5CM
Motor: Coreless Motor
Operating Voltage Range: 6-9V
Idle current (atstopped): 10mA@7.4V
No load speed: 0.078sec/60°(128RPM)@7.4V
Running current(at no load): 500mA@7.4V
Peak stall torque: 50kg.cm@7.4V
Rated torque: 16.5kg.cm@7.4V
Command signal: Pulse width modulation
Control System Type: Digital comparator
Pulse width range: 500~2500 μ sec
Stop position: 1500 μ sec
Running degree: 180±5°(at 500→2500μsec)
Dead band width: ≤4 μ sec
Rotating direction: Counterclockwise(at 500→2500 μsec)

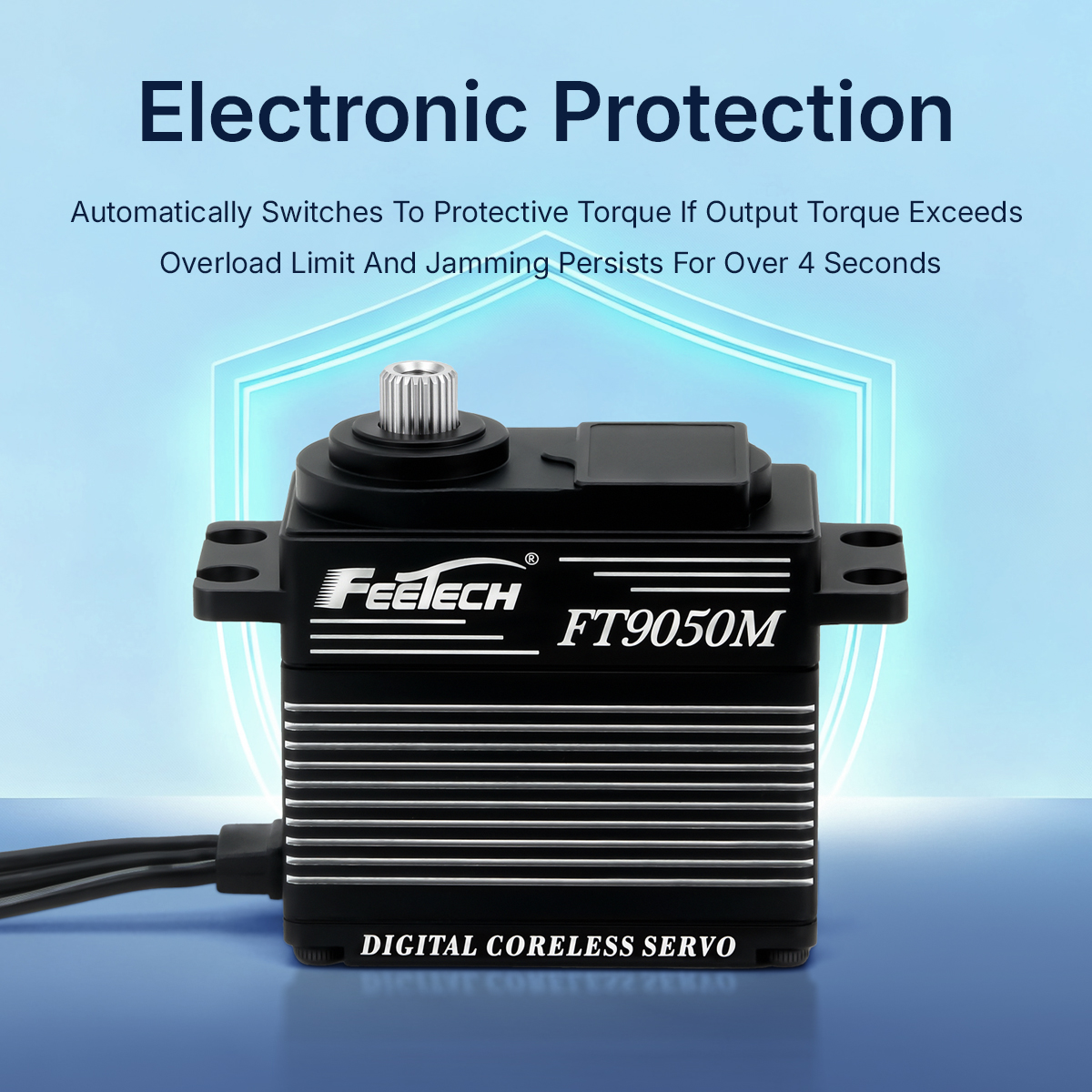

Electronic Protection: Stall 4sec
