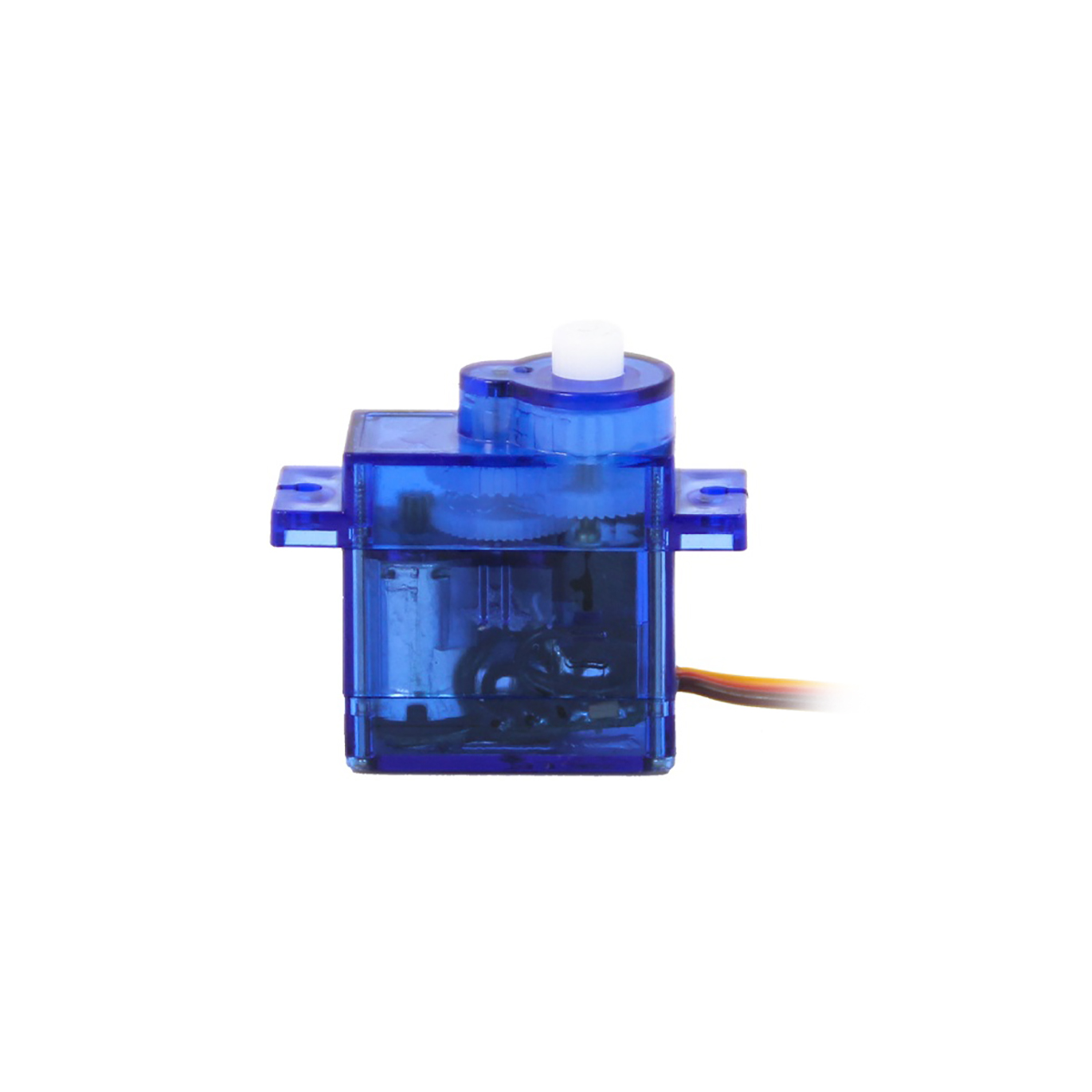

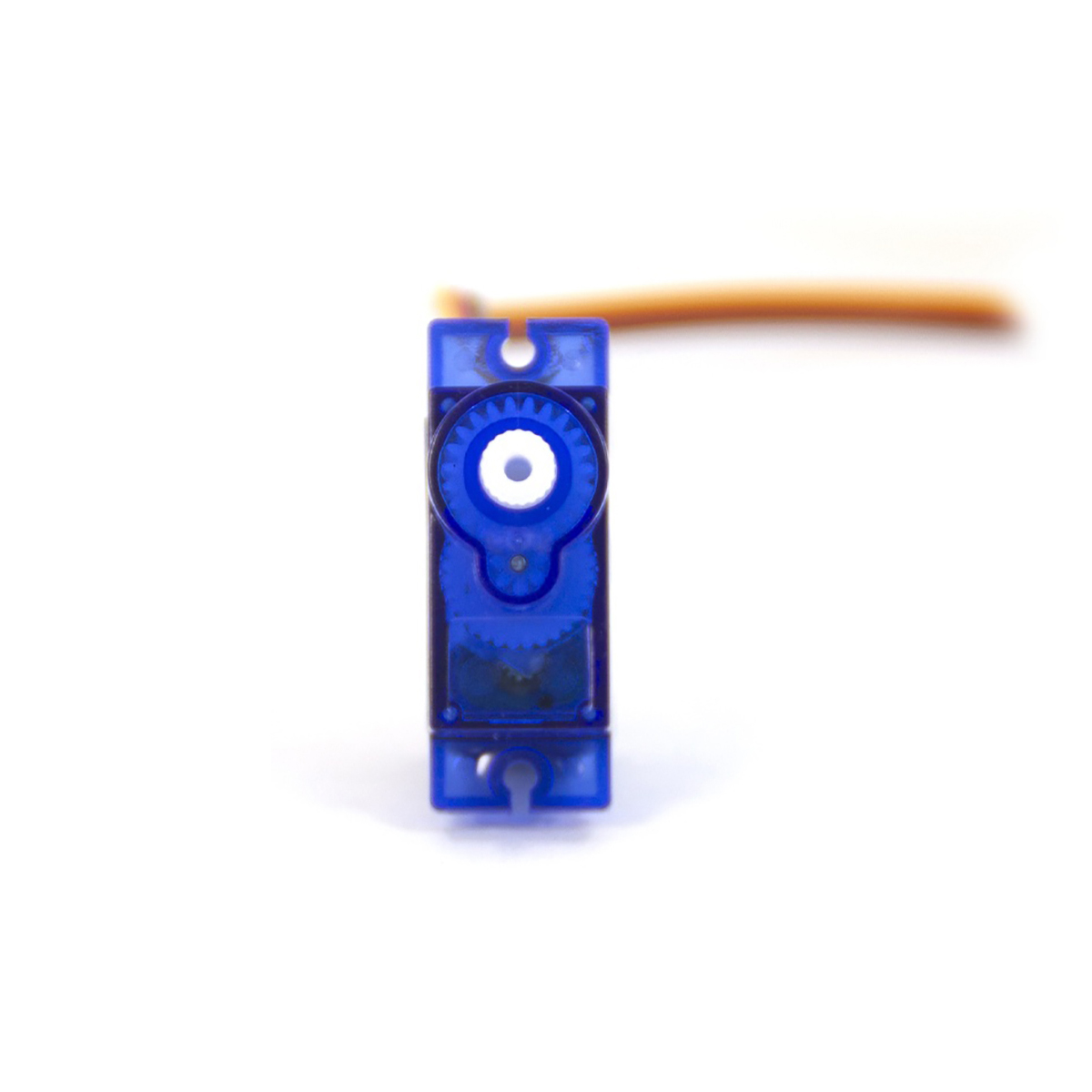

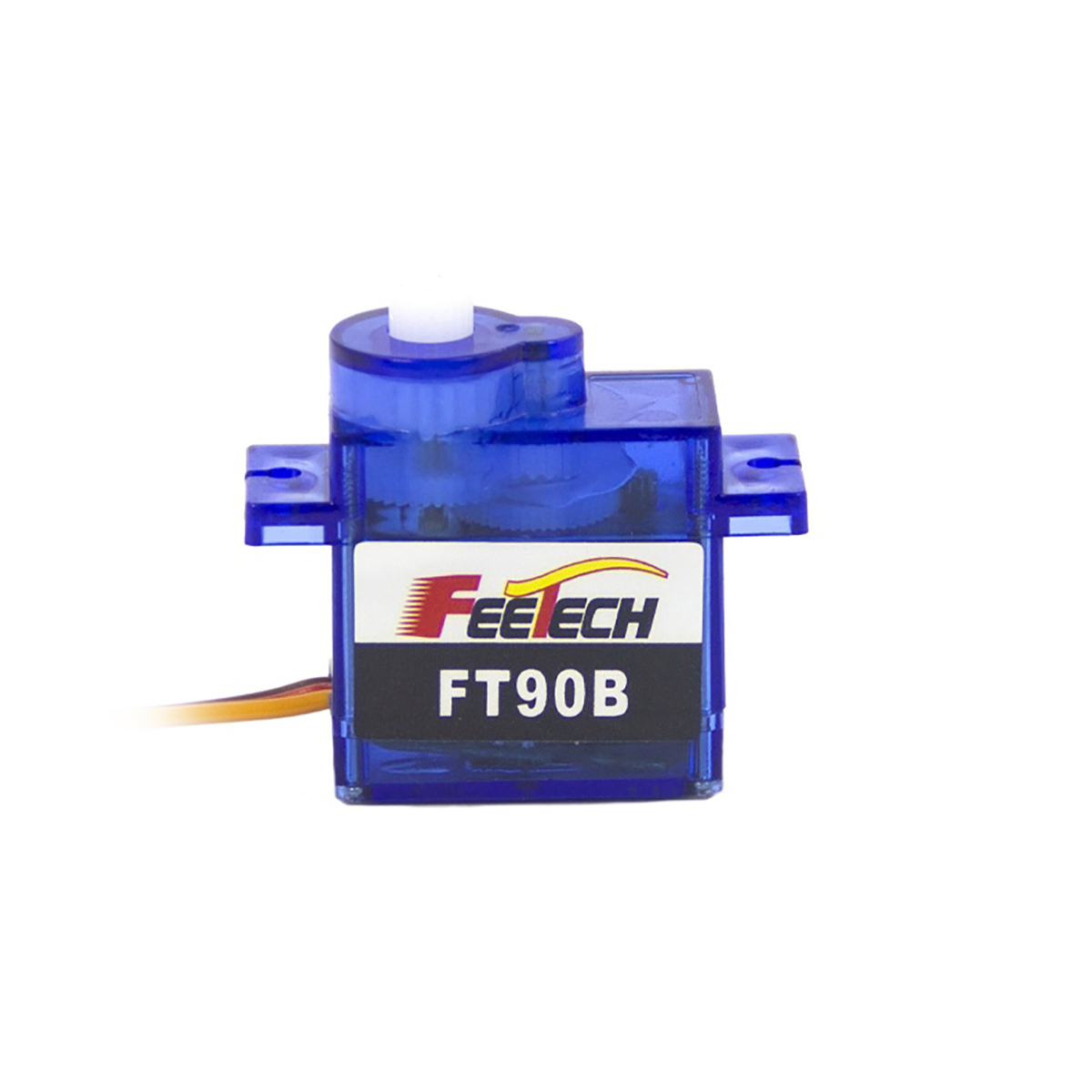

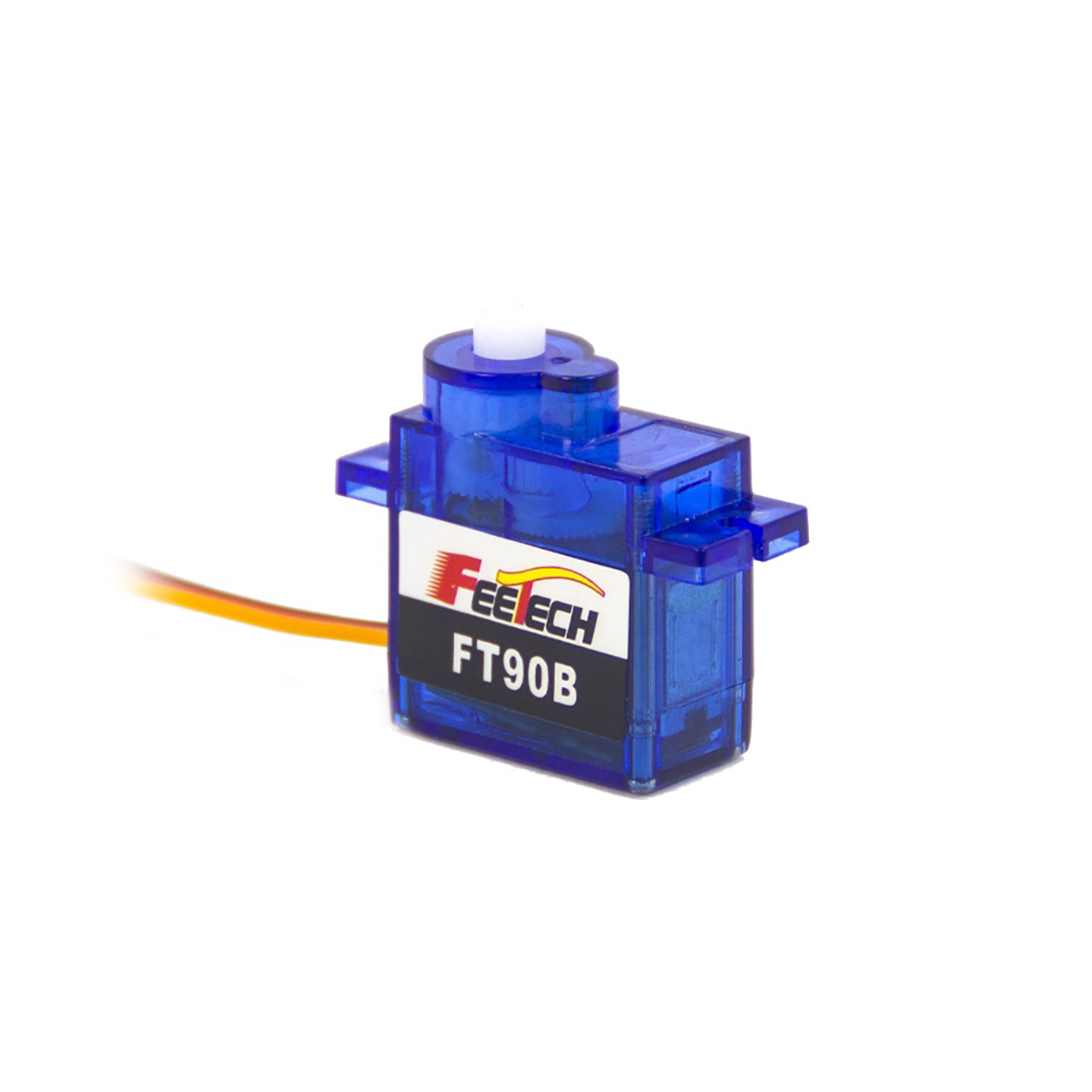

Feetech FT90B 6V 1.5kg Plastic Gear 180 Degree Micro Digital Servo for RC Airplane Robot
FT90B is an upgrade from the original FS90 simulation servo appearance, using high-quality nylon and fiberglass raw materials in the structure to improve the stability of the shell. It is precisely matched with POM gears to achieve smooth and smooth rotation.
The biggest improvement of FT90B lies in its precise control system, which eliminates the need to stop the potentiometer.
It can also operate at a power supply voltage as low as 3V without losing control, ensuring stable and smooth operation.
Model: FT-90B0-C001
Storage temperature range: -30℃～80℃
Operating temperature range: -20℃～70℃
Size: 22.5*12.1*22.4mm
Weight: 10.5g
Gear type: Plastic gear
Limit angle: 180degree
Bearing: No ball bearings
Horn gear spline: 21T (4.86mm)
Horn type: Plastic, POM
Case: PC

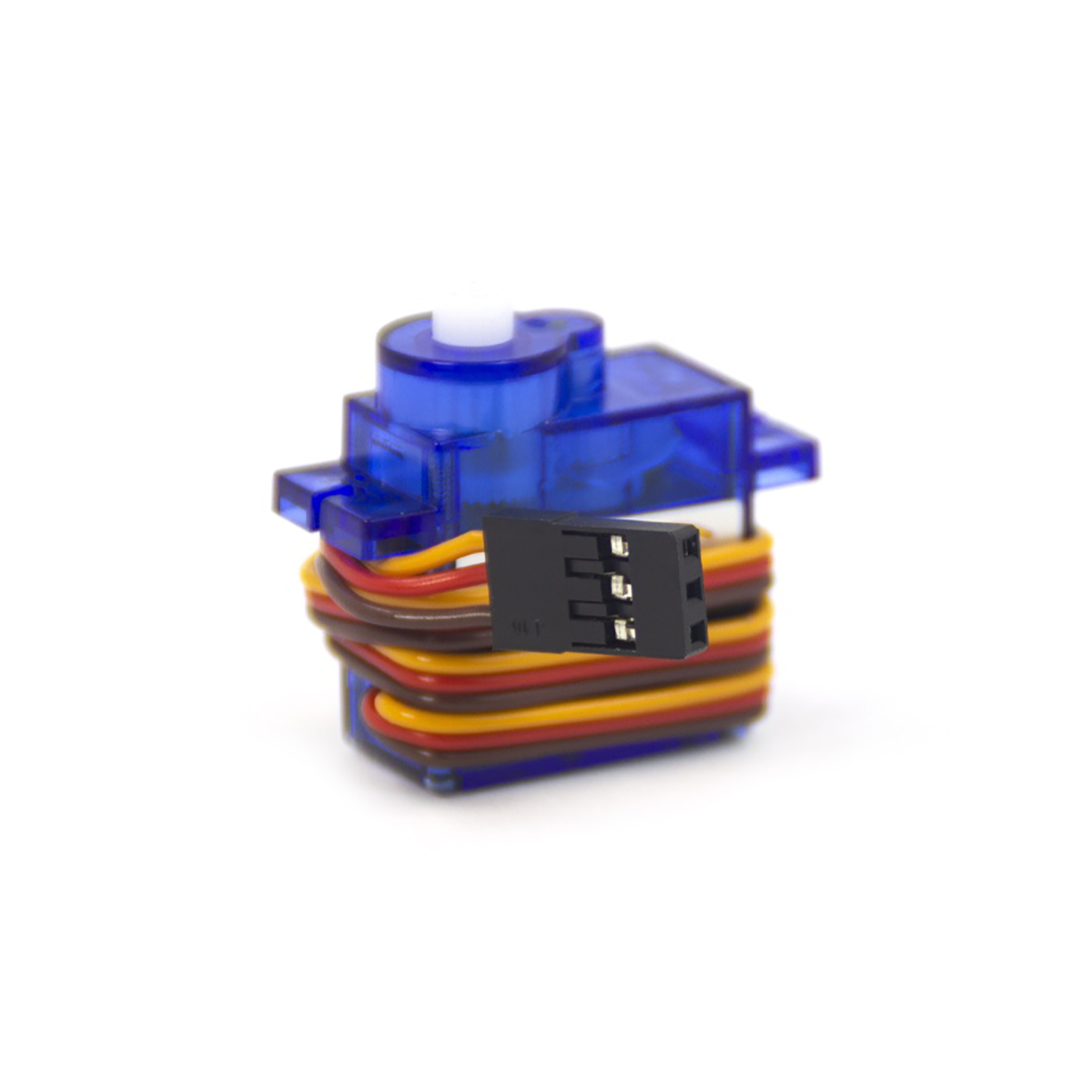

Connector wire: 250mm±5mm（JR）(Brown, Red and Orange)
Motor: Metal brush motor
Operating voltage range: 3-6V
Idle current (at stopped): 4mA-6mA
No load speed: 110RPM@6V
Running current(at no load): 120mA@6V
Peak stall torque: 1.5kg.cm@6V
Rated torque: 0.5kg.cm@6V
Stall current: 800mA@6V
Running degree: 180°(when 500～2500μsec)

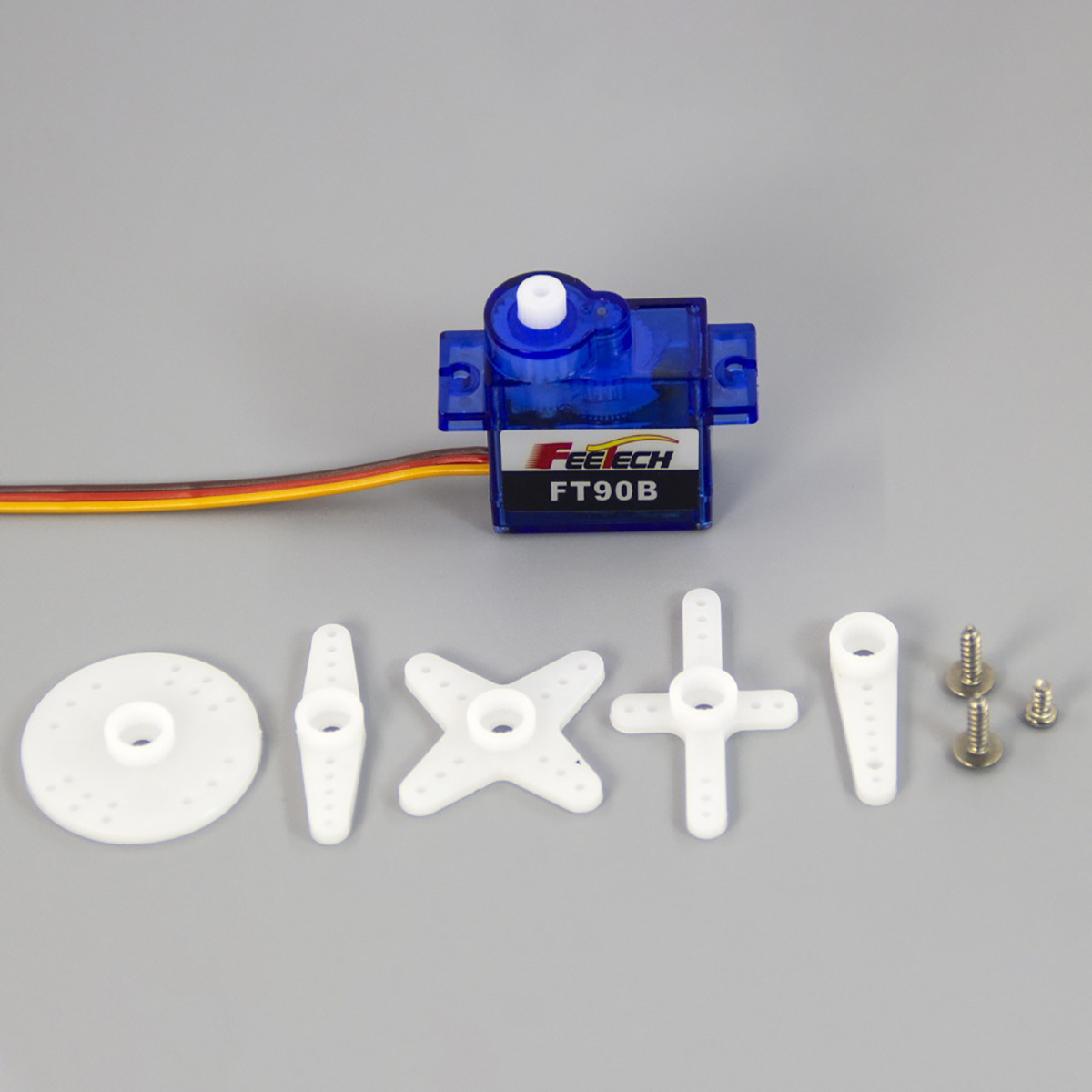

FT90B Servo x1
