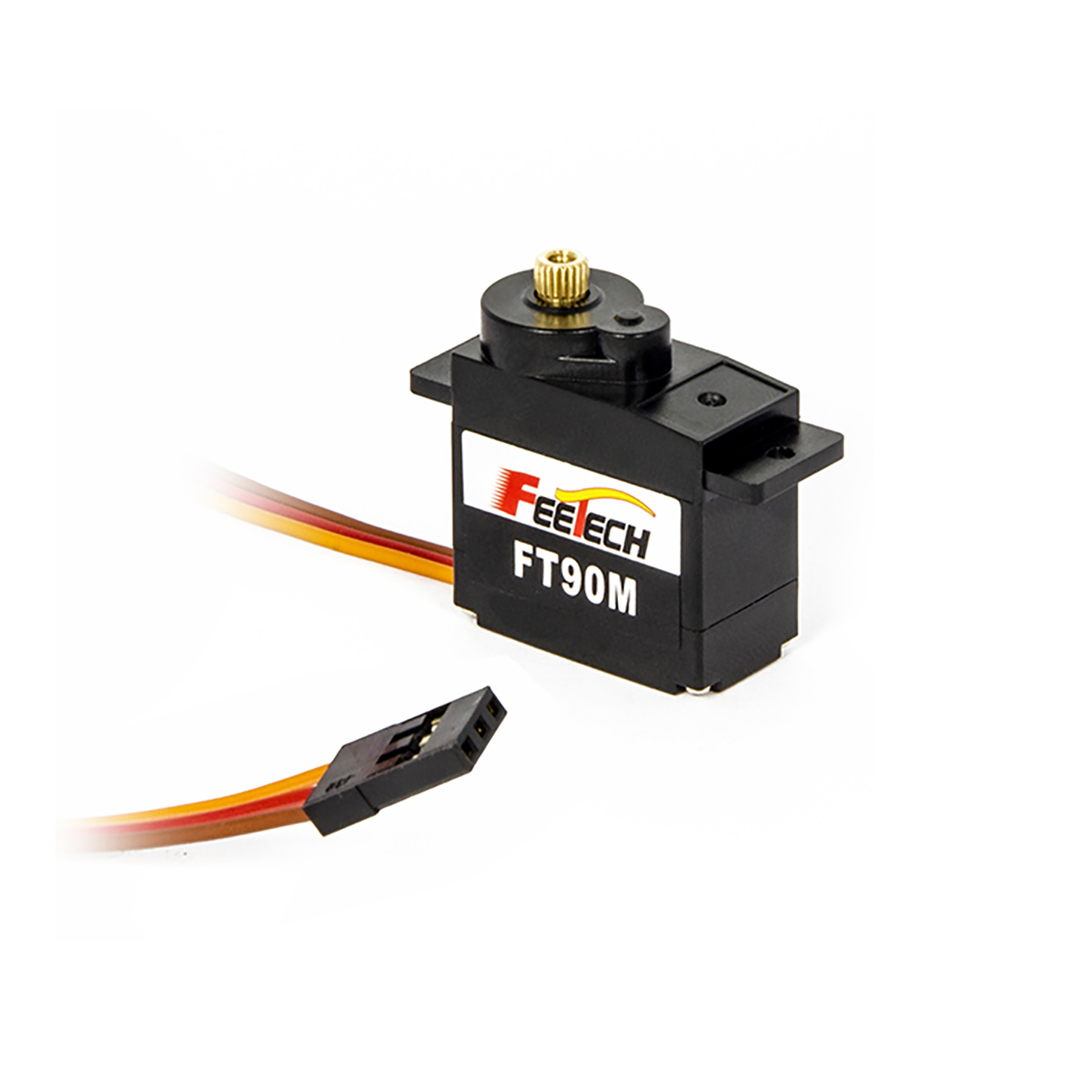

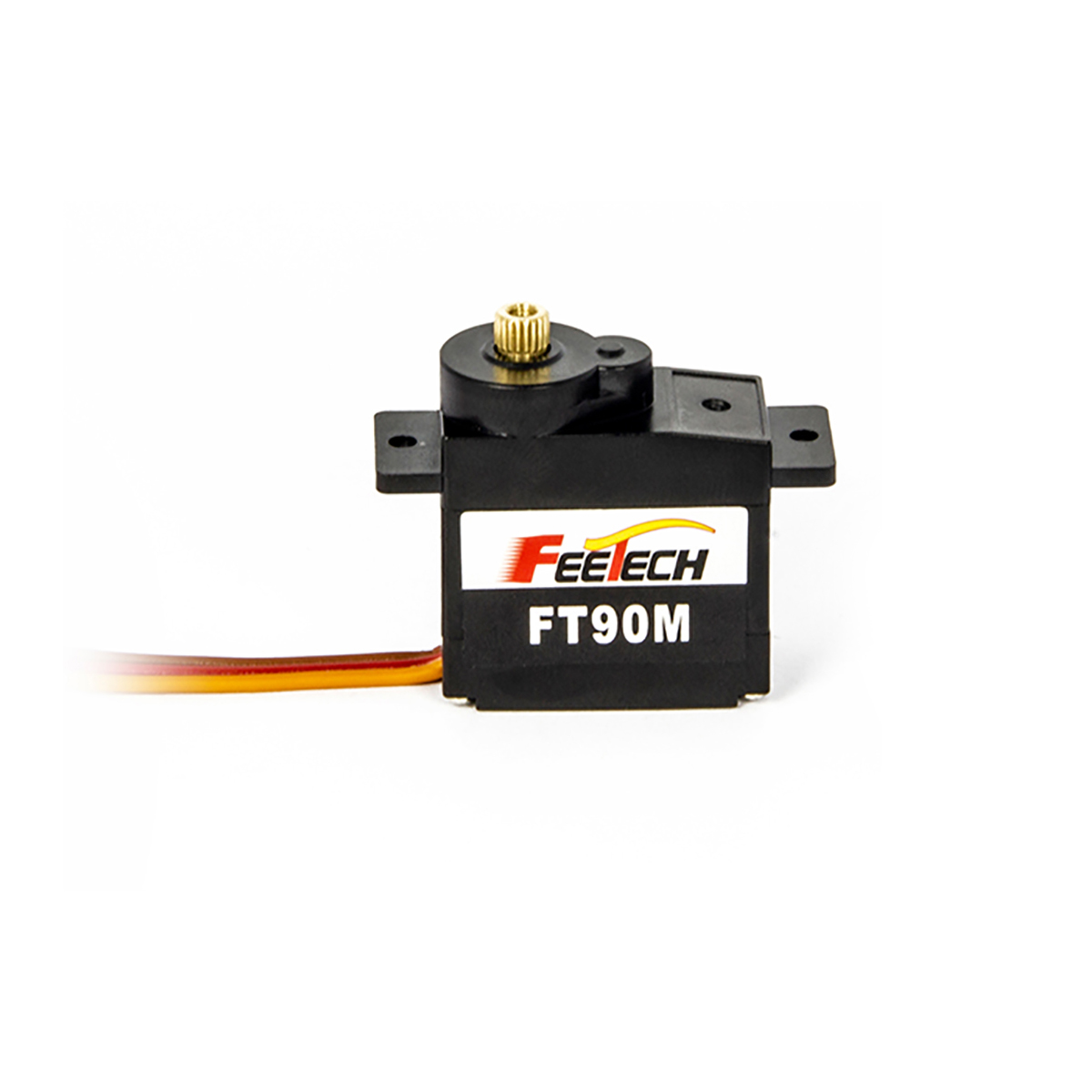

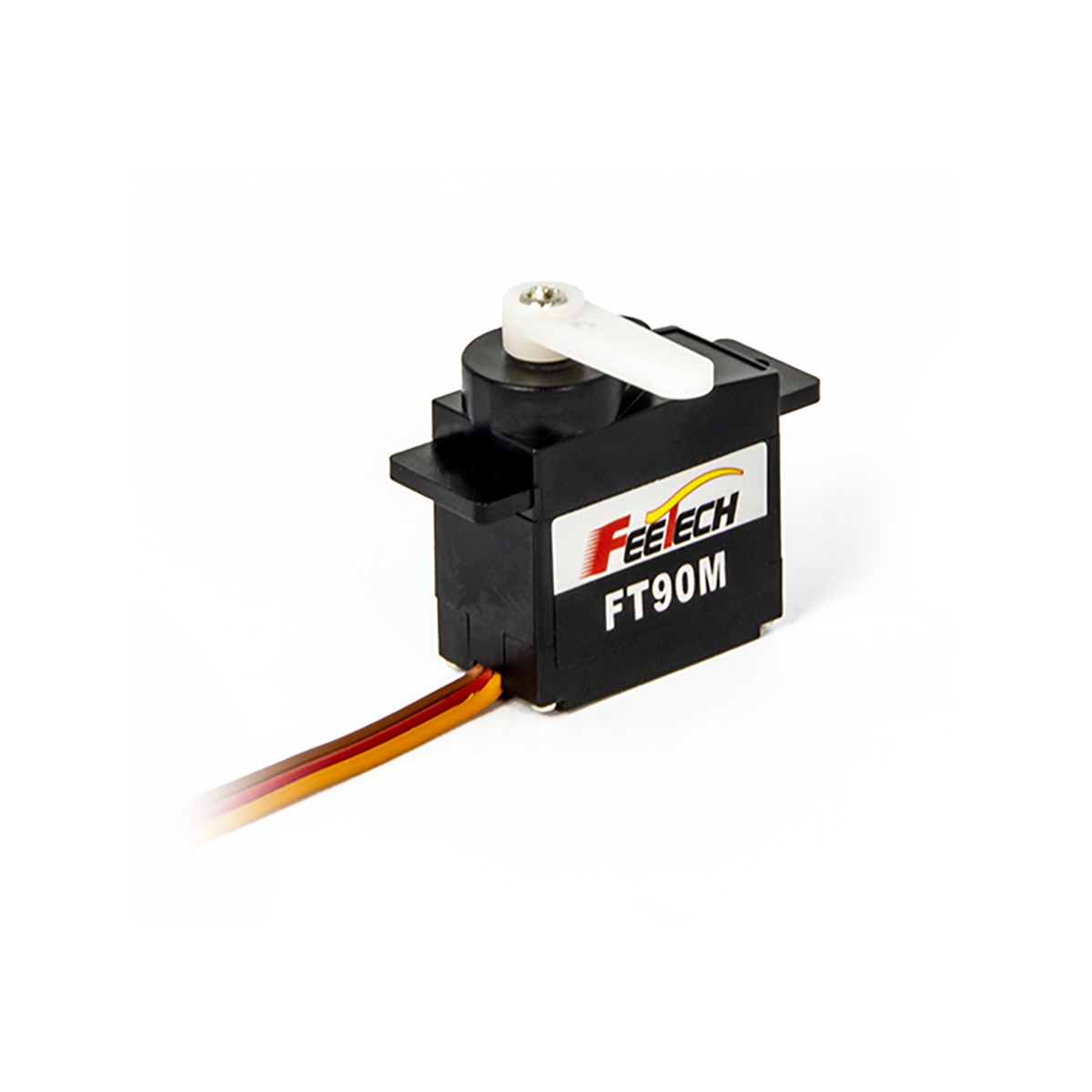

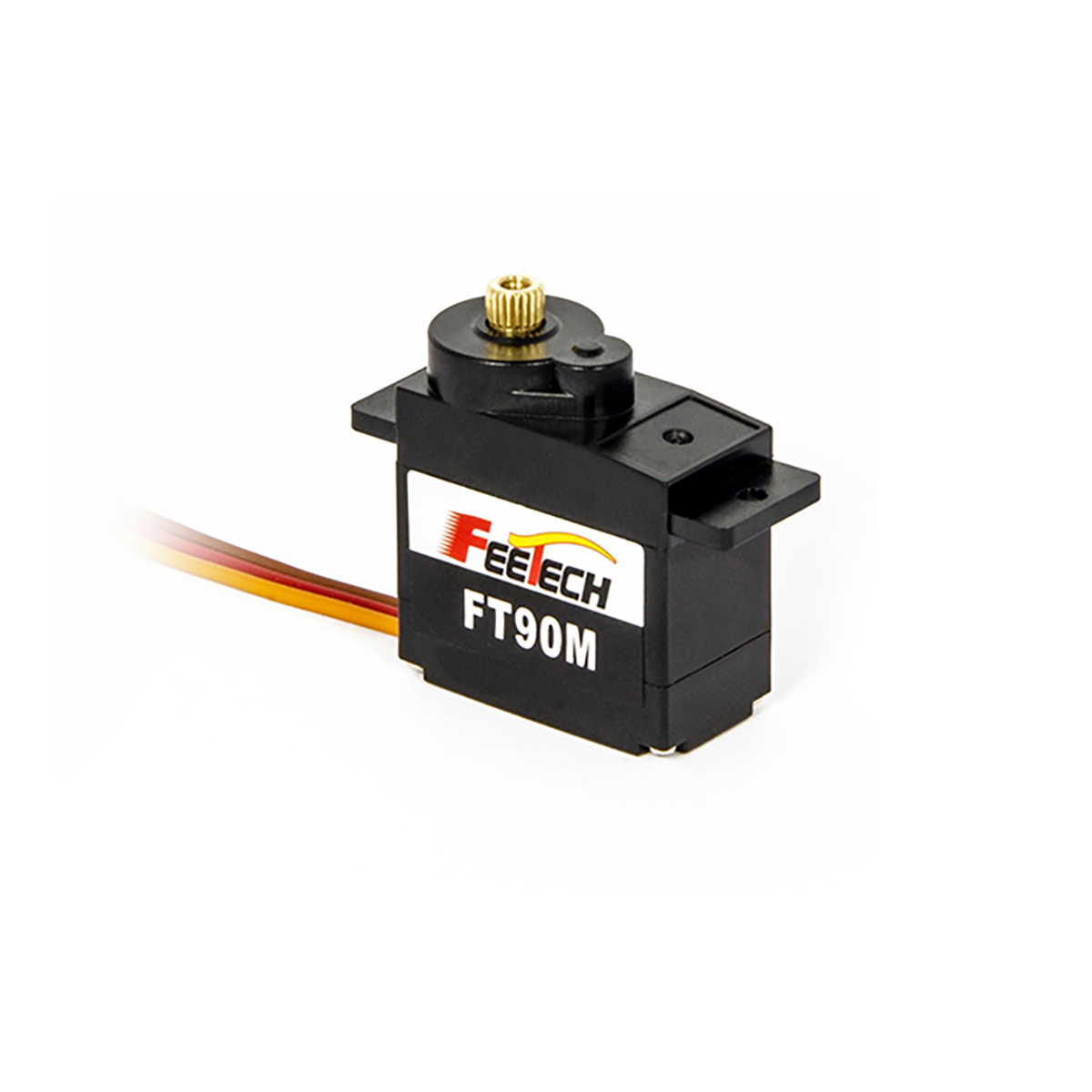

Model: FT-90M0-C001
Storage temperature range: -30℃～80℃
Operating temperature range: -15℃～70℃
Size: 23.3*12.1*25.5mm
Weight: 13.5±1g
Gear type: Metal gear
Limit angle: No limit
Bearing: NO
Horn gear spline: 20T/3.95mm
Horn type: Plastic, POM
Case: PC plastic
Connector wire: 200mm
Motor: Core motor
Operating voltage range: 3-8.4V
Idle current (at stopped): 6mA@6V
No load speed: 0.1sec/60degree@6V
Running current(at no load): 150mA@6V
Peak stall torque: 2.3kg.cm@6V
Rated torque: 0.76kg.cm@6V
Stall current: 1000mA@6V
Command signal: Pulse width modification
Amplifier type: Digital comparator
Pulse width range: 1000~2000usec
Stop position: 1500μsec
Running degree: 280° (at 1000→2000μsec)
Dead band width: ≤4μsec
Rotating direction: Counterclockwise (at 1500→2000μsec)
