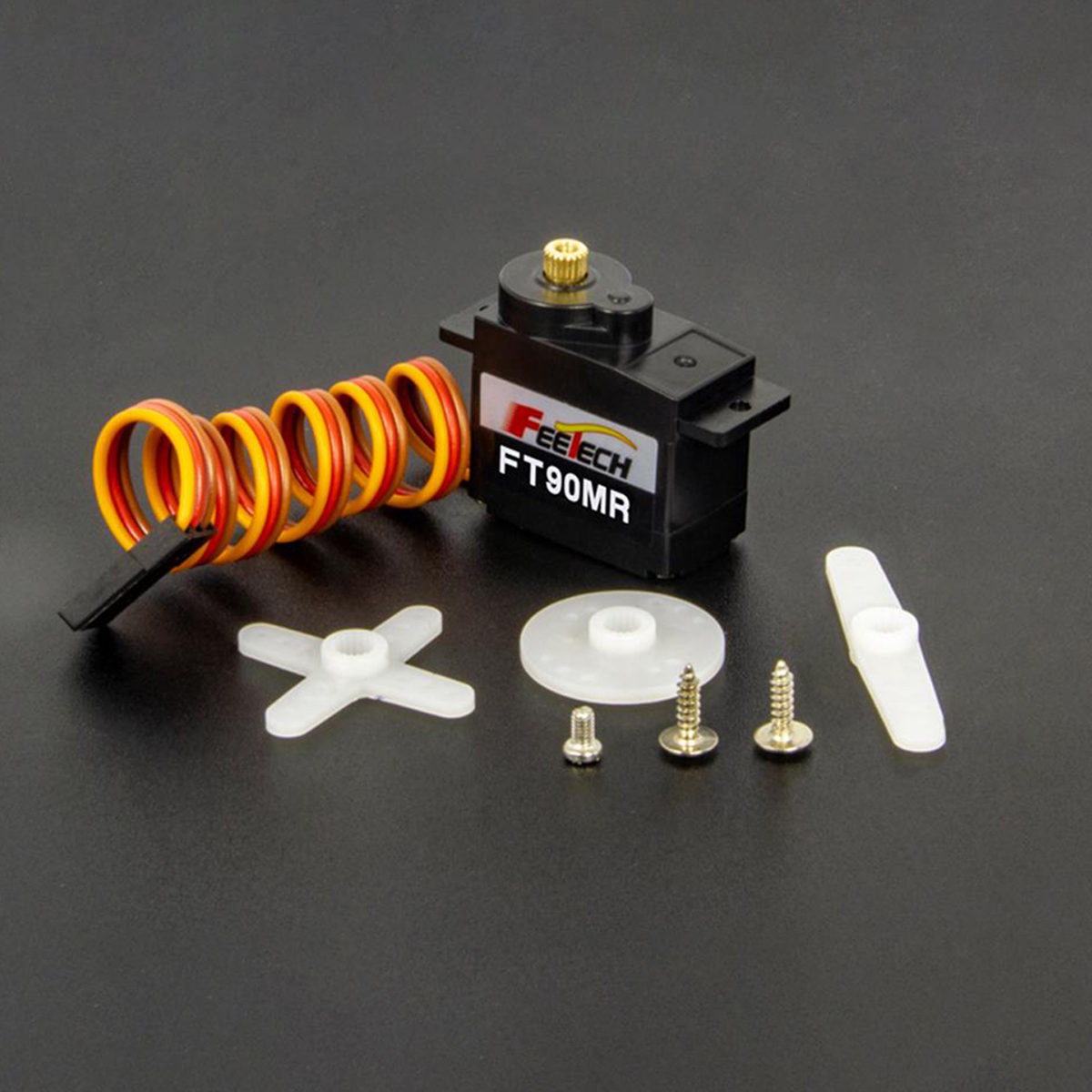

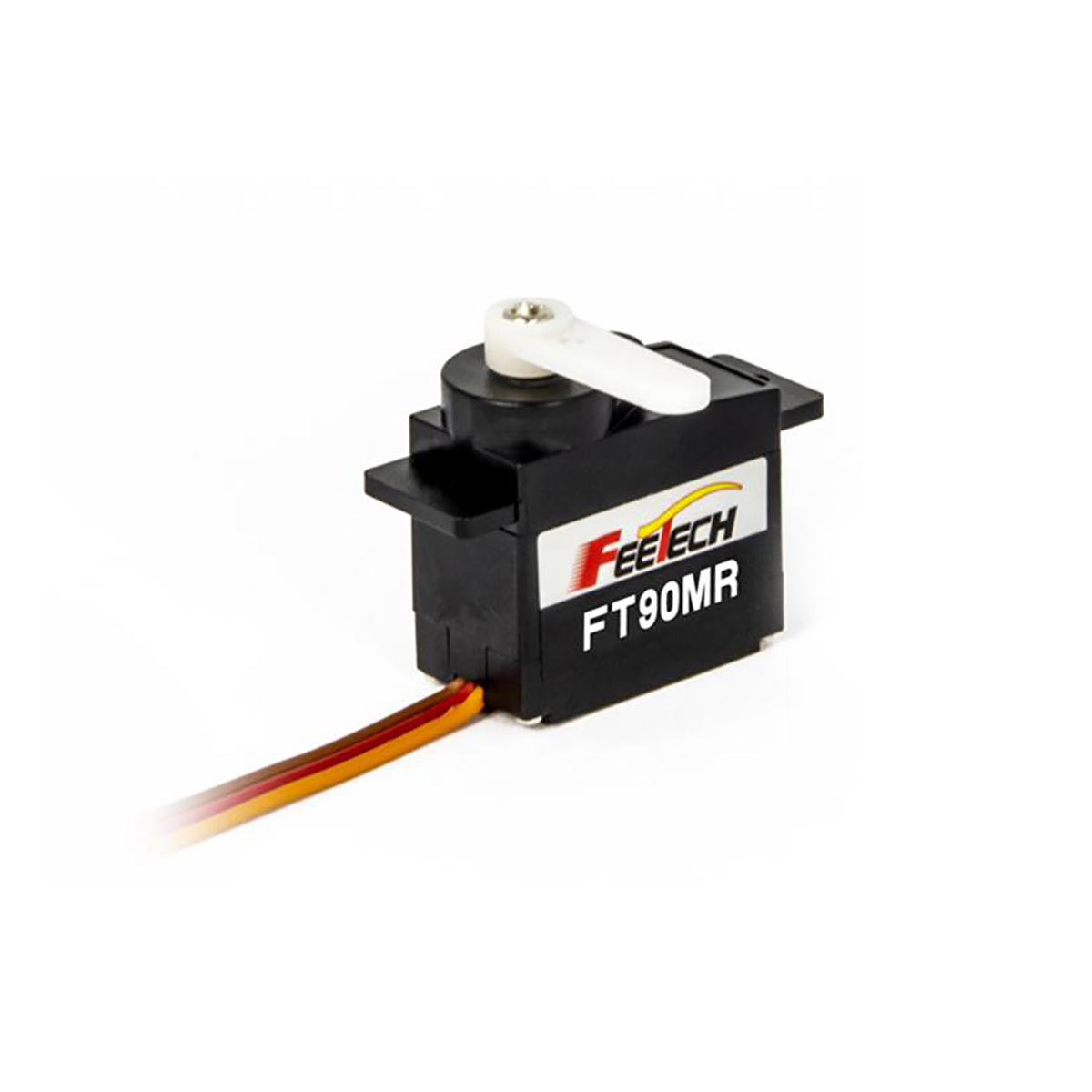

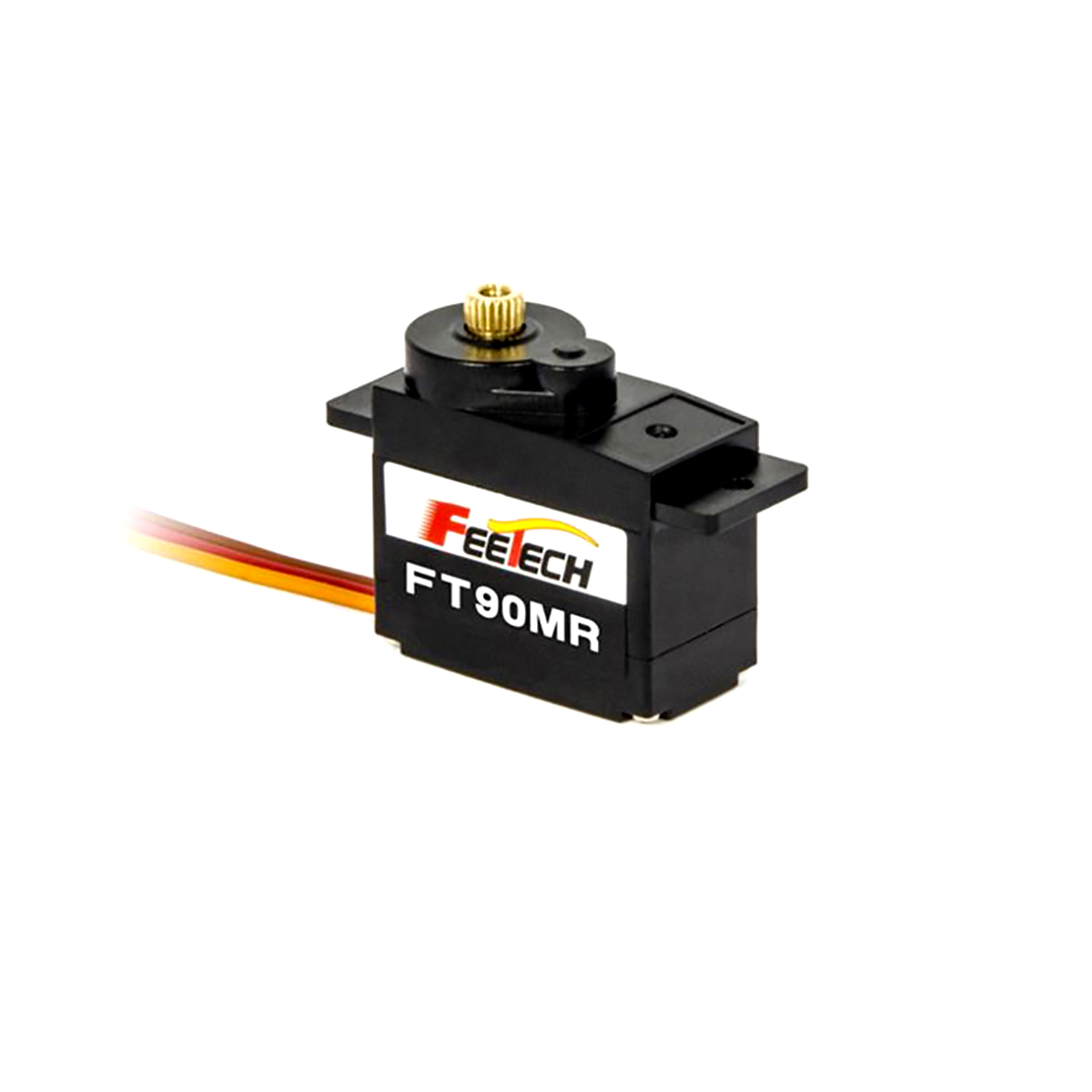

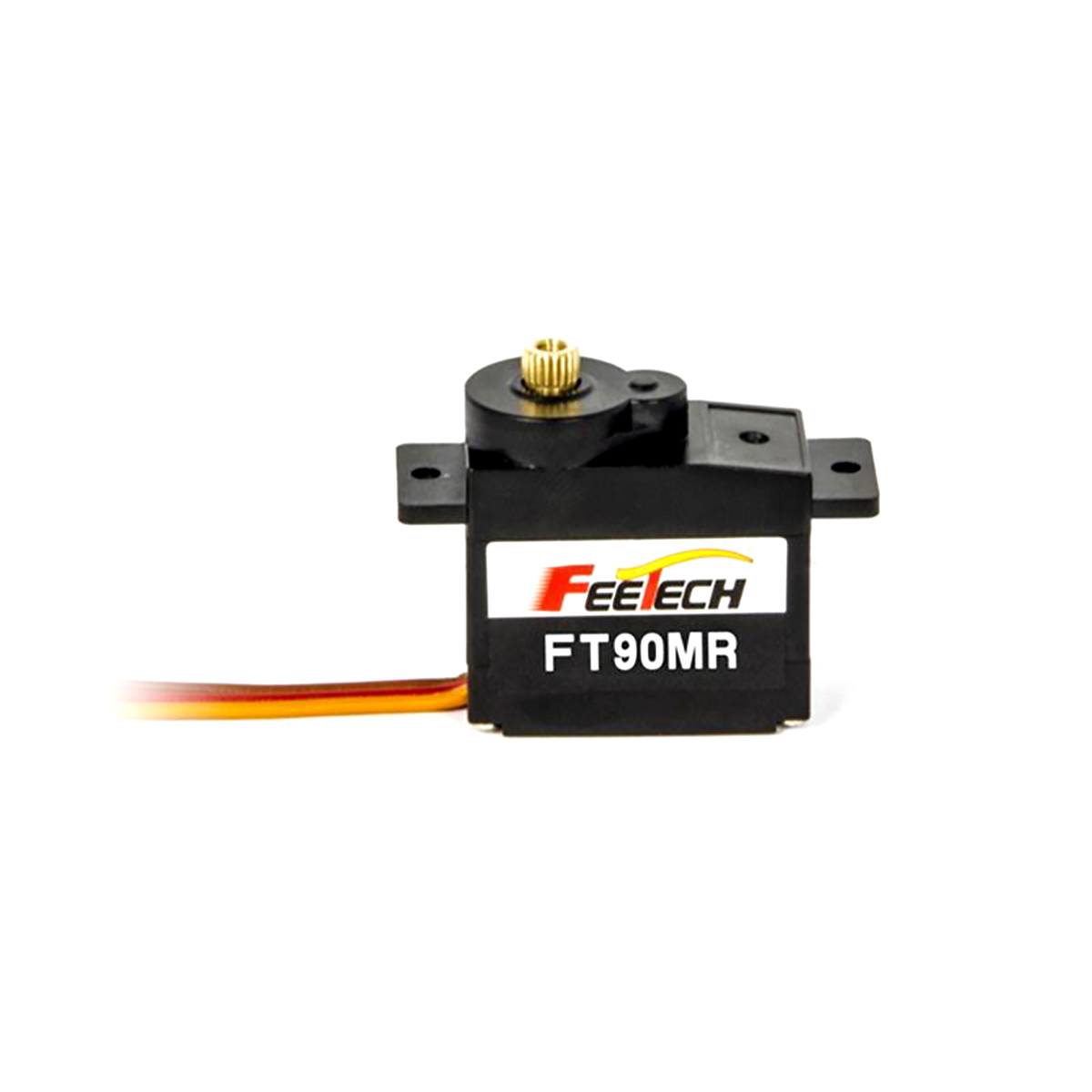

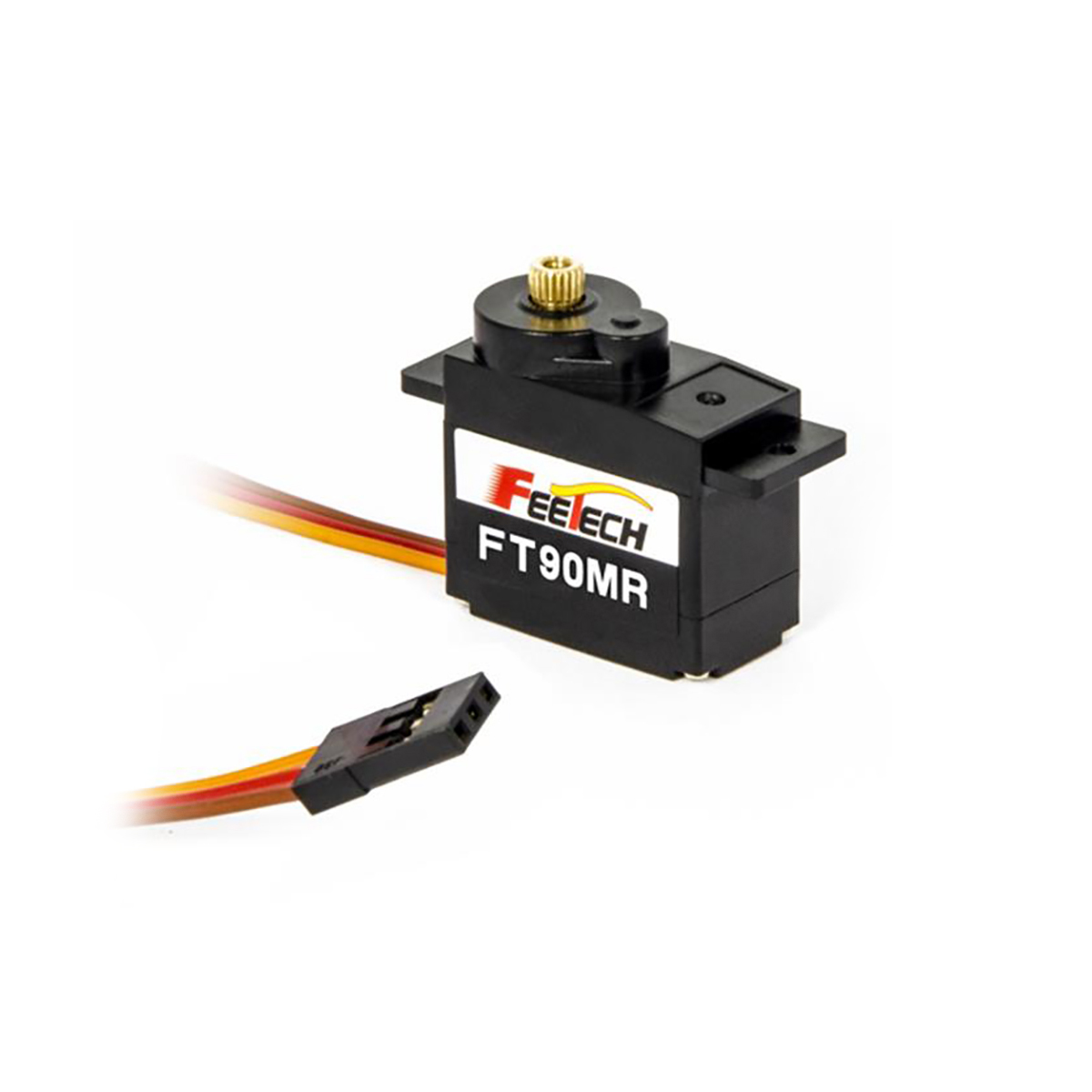

Model: FT-90MR-C001
Storage temperature range: -30℃～80℃
Operating temperature range: -10℃～70℃
Size: 23.2*12.1*25.25mm
Weight: 12.5g
Gear type: Metal gear
Limit angle: No limit
Bearing: No ball bearings
Horn gear spline: 20T
Horn type: Plastic, POM
Case: ABS
Connector wire: 250mm
Motor: Core motor
Operating voltage range: 3-6V
Idle current (at stopped): 5mA-6mA
No load speed: 100RPM@6V
Running current(at no load): 150mA@6V
Peak stall torque: 2.3kg.cm@6V
Rated torque: 0.7kg.cm
Stall current: 1000mA@6V
Command signal: Pulse width modification
Amplifier type: Digital comparator
Pulse width range: 900~2100usec
Stop position: 1500μsec
Running degree: 360°Continuous Rotation
Dead band width: ±25μsec

Rotating direction: CCW (when 1500~2500μsec)
