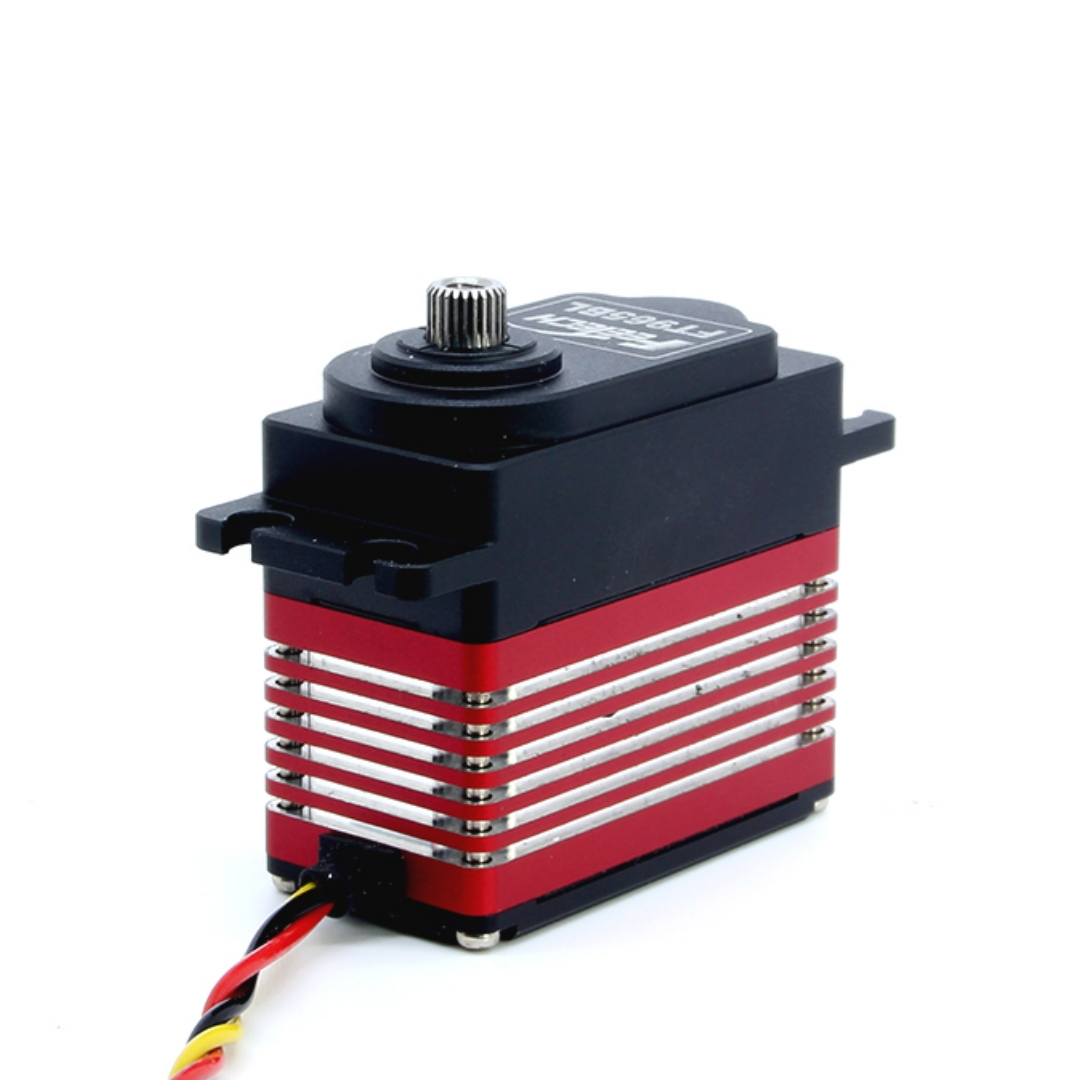

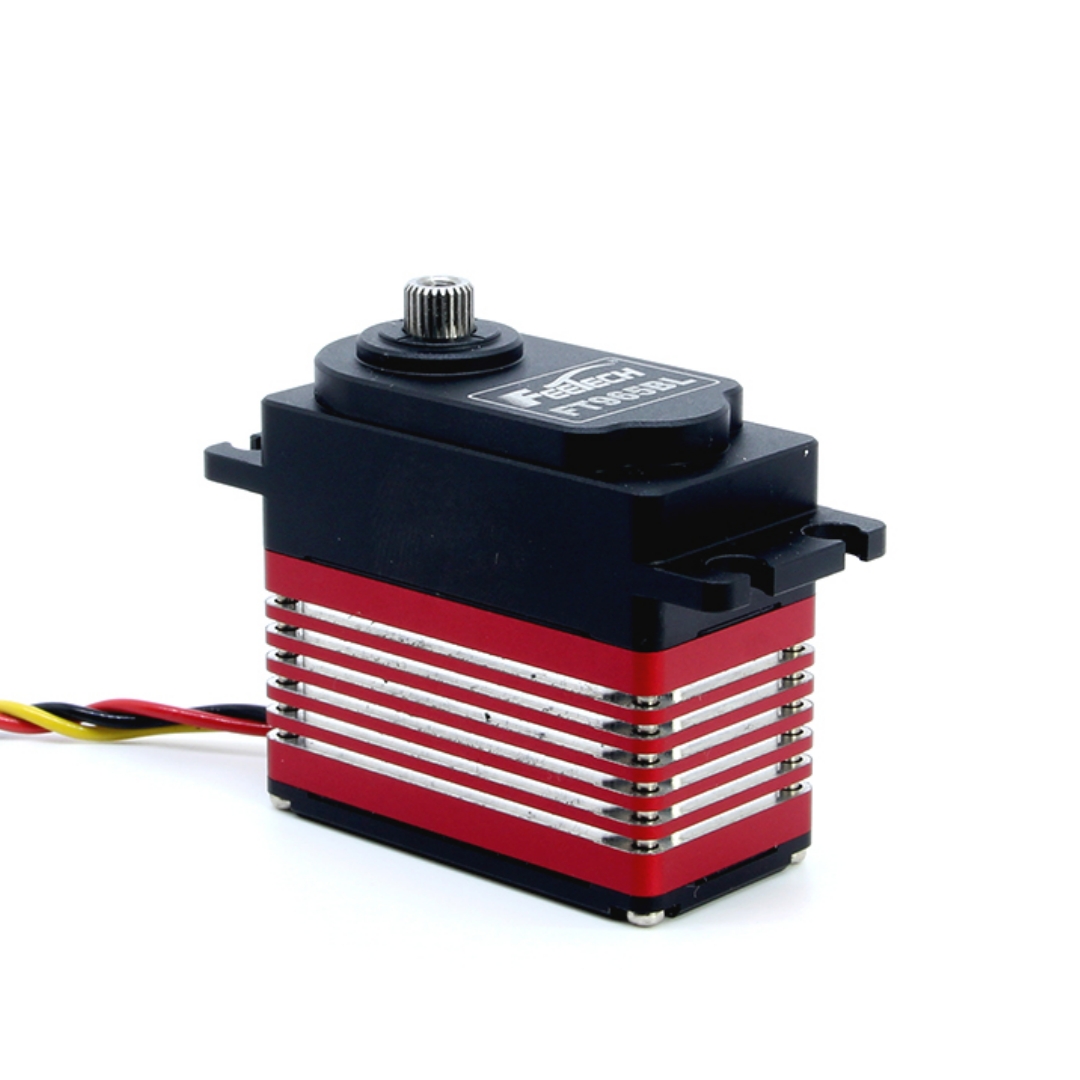

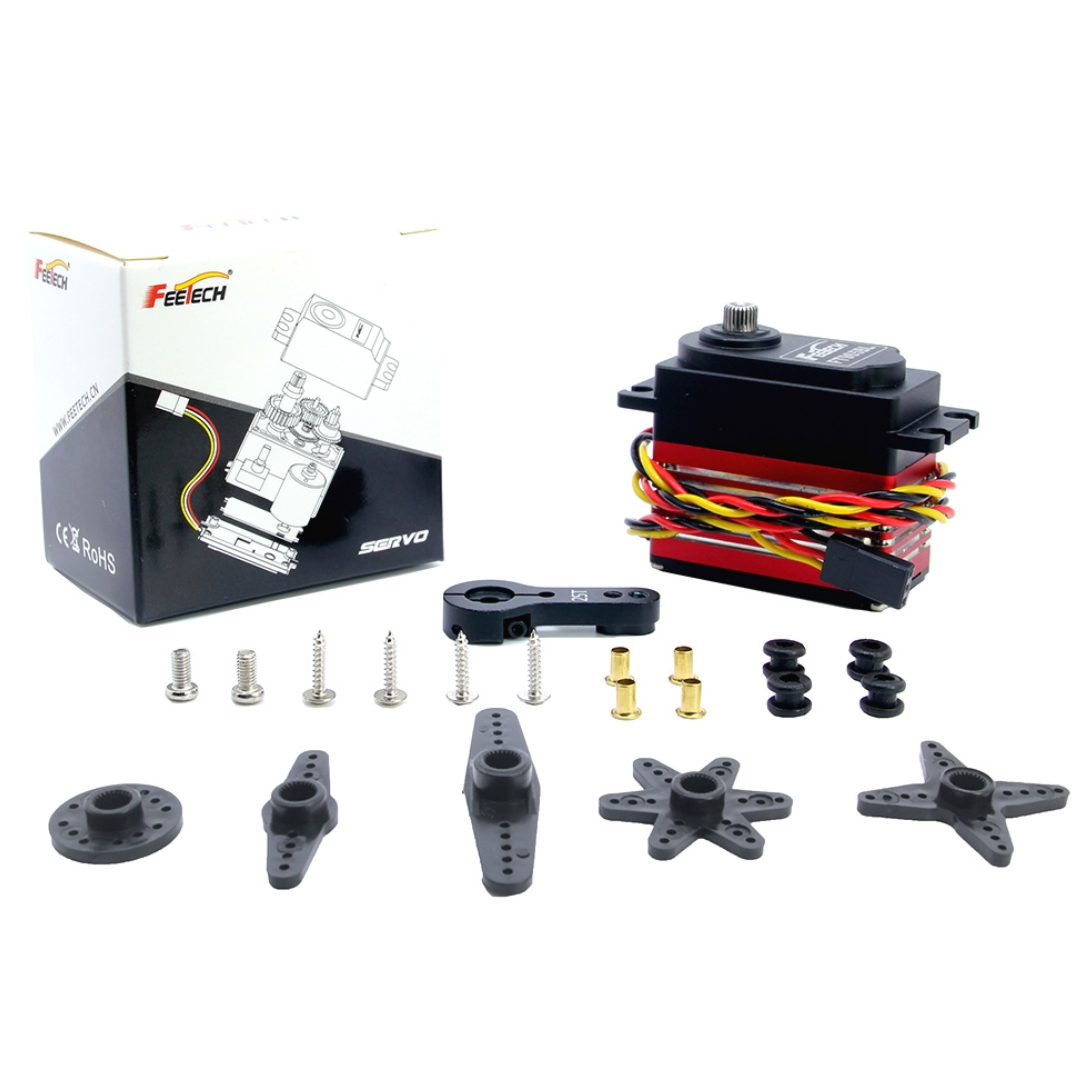

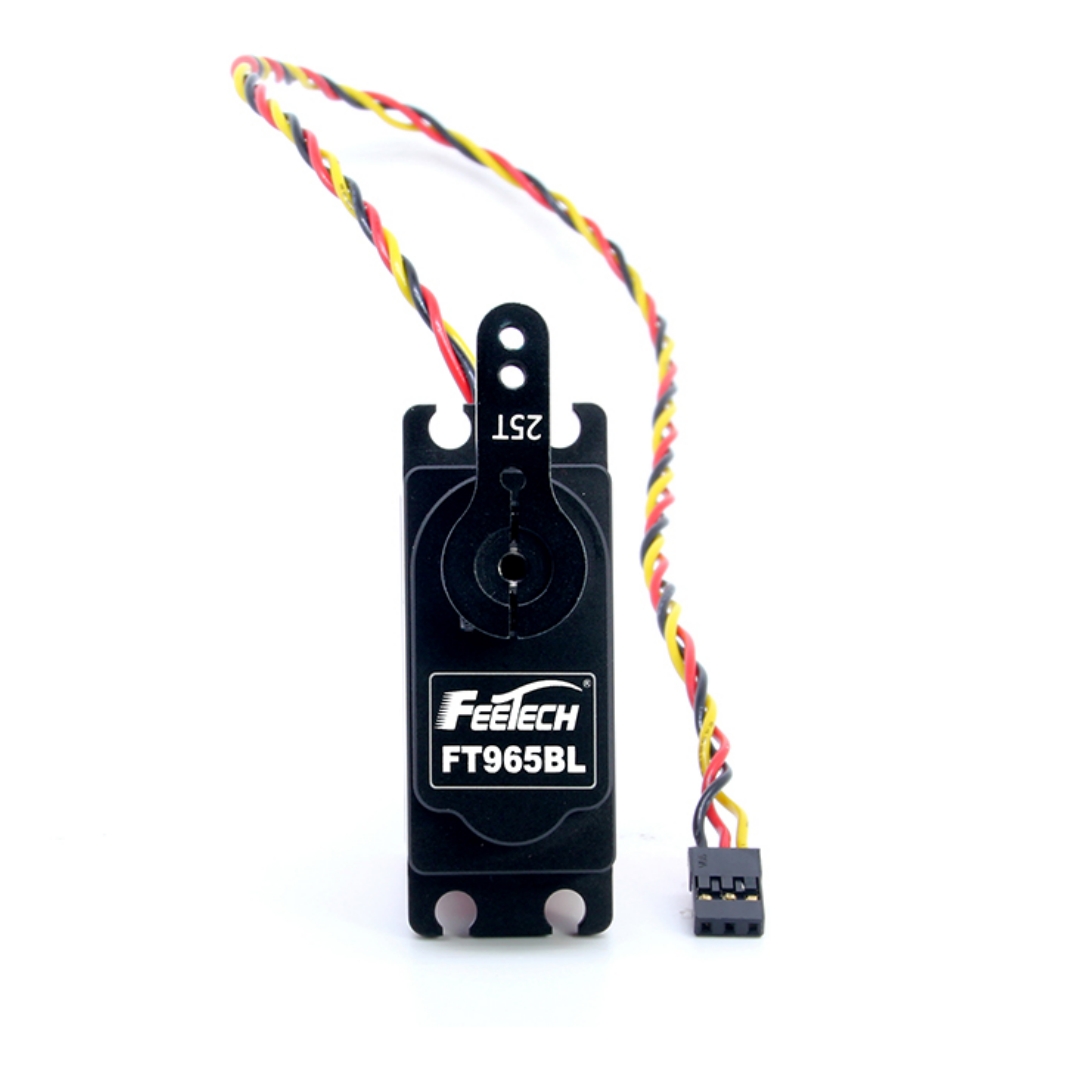

Model: FT-965B-C001
Product Name: 8.4V 60KG 180 Degree Servo
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～60℃
Size: A：43.7mm B：22.3mm C: 39.8mm
Weight: 95.1± 1g
Gear type: Steel
Limit angle: NO limit
Bearing: Ball bearings
Horn gear spline: 25T/5.9mm
Gear Ratio：1/579
Case: Aluminum
Connector wire: 35CM
Motor: Brushless Motor
Operating Voltage Range: 4-8.4V
Idle current (atstopped): 35mA@8.4V
No load speed: 0.149sec/60°(84RPM)@8.4V
Running current(at no load): 400mA@8.4V
Peak stall torque: 60kg.cm@8.4V
Rated torque: 20kg.cm@8.4V
Command signal: Pulse width modulation
Control System Type: Digital comparator
Pulse width range: 500~2500 μ sec
Stop position: 1500 μ sec
Running degree: 180±5°(at 500→2500μsec)
Dead band width: ≤4 μ sec
Rotating direction: Clockwise(at 1500→2000 μsec)
